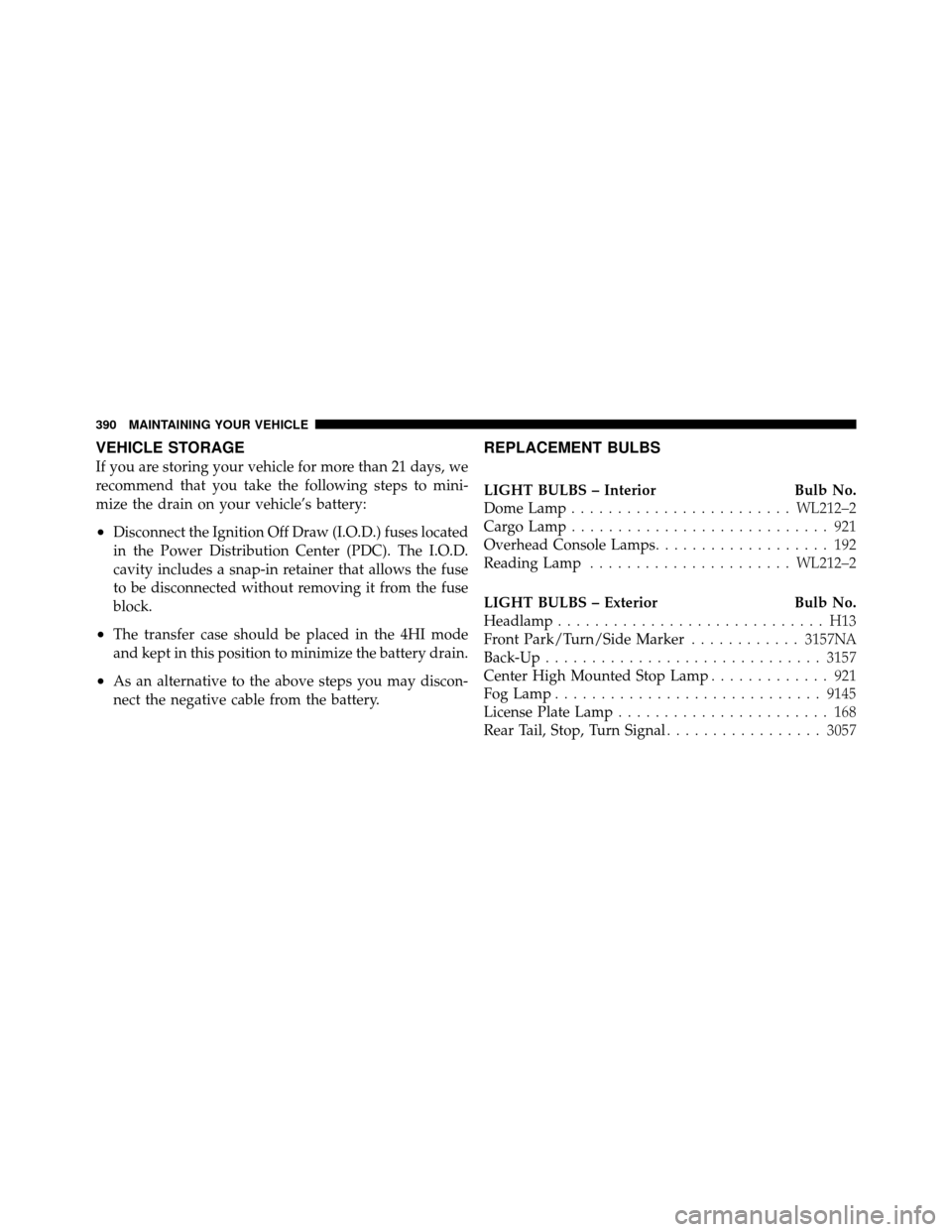

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
•Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
•The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
•As an alternative to the above steps you may discon-
nect the negative cable from the battery.
REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb No.
Dome Lamp ........................ WL212–2
Cargo Lamp ............................ 921
Overhead Console Lamps ................... 192
Reading Lamp ...................... WL212–2
LIGHT BULBS – Exterior Bulb No.
Headlamp ............................. H13
Front Park/Turn/Side Marker ............3157NA
Back-Up .............................. 3157
Center High Mounted Stop Lamp ............. 921
Fog Lamp ............................. 9145
License Plate Lamp ....................... 168
Rear Tail, Stop, Turn Signal .................3057
390 MAINTAINING YOUR VEHICLE

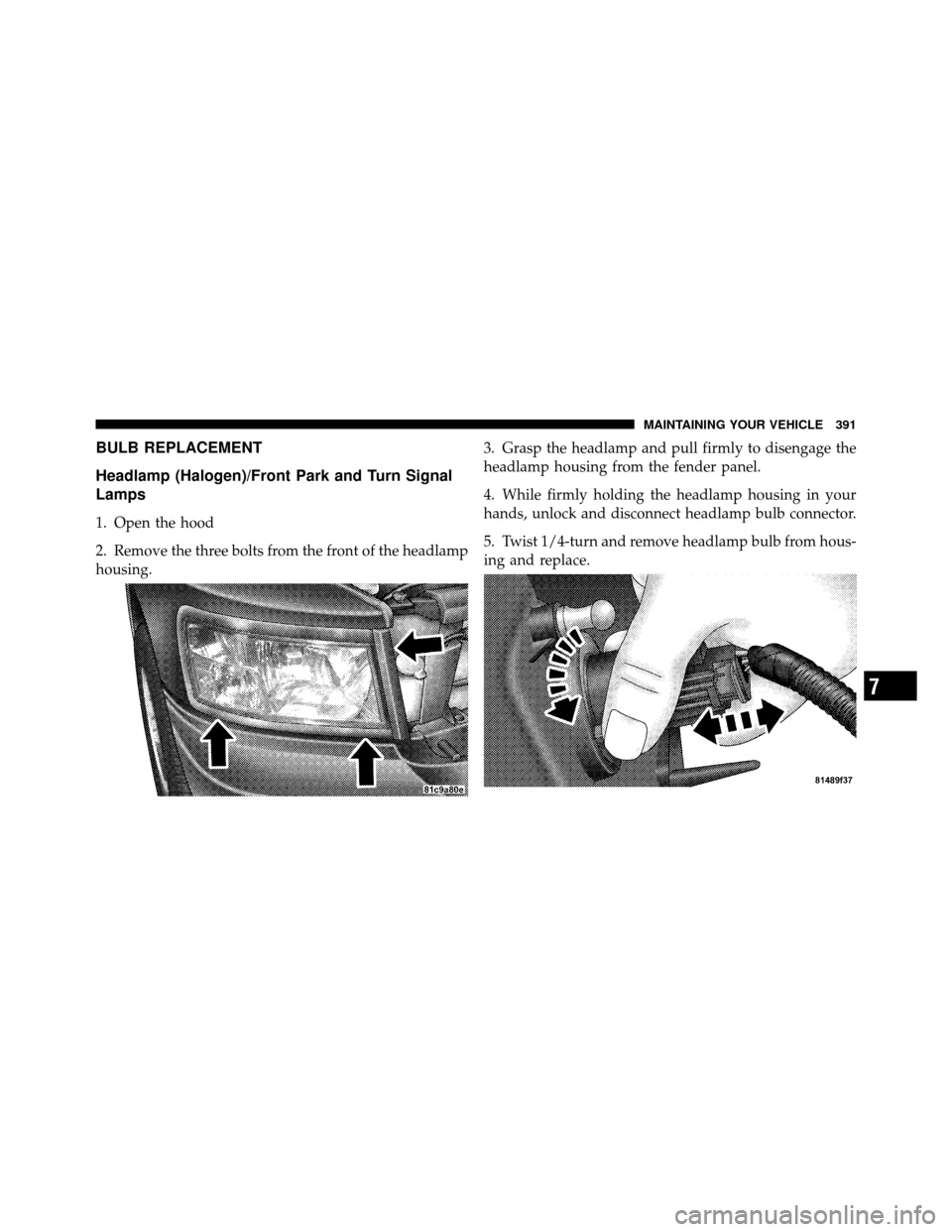

BULB REPLACEMENT
Headlamp (Halogen)/Front Park and Turn Signal
Lamps
1. Open the hood
2. Remove the three bolts from the front of the headlamp
housing.3. Grasp the headlamp and pull firmly to disengage the
headlamp housing from the fender panel.
4. While firmly holding the headlamp housing in your
hands, unlock and disconnect headlamp bulb connector.
5. Twist 1/4-turn and remove headlamp bulb from hous-
ing and replace.
7
MAINTAINING YOUR VEHICLE 391

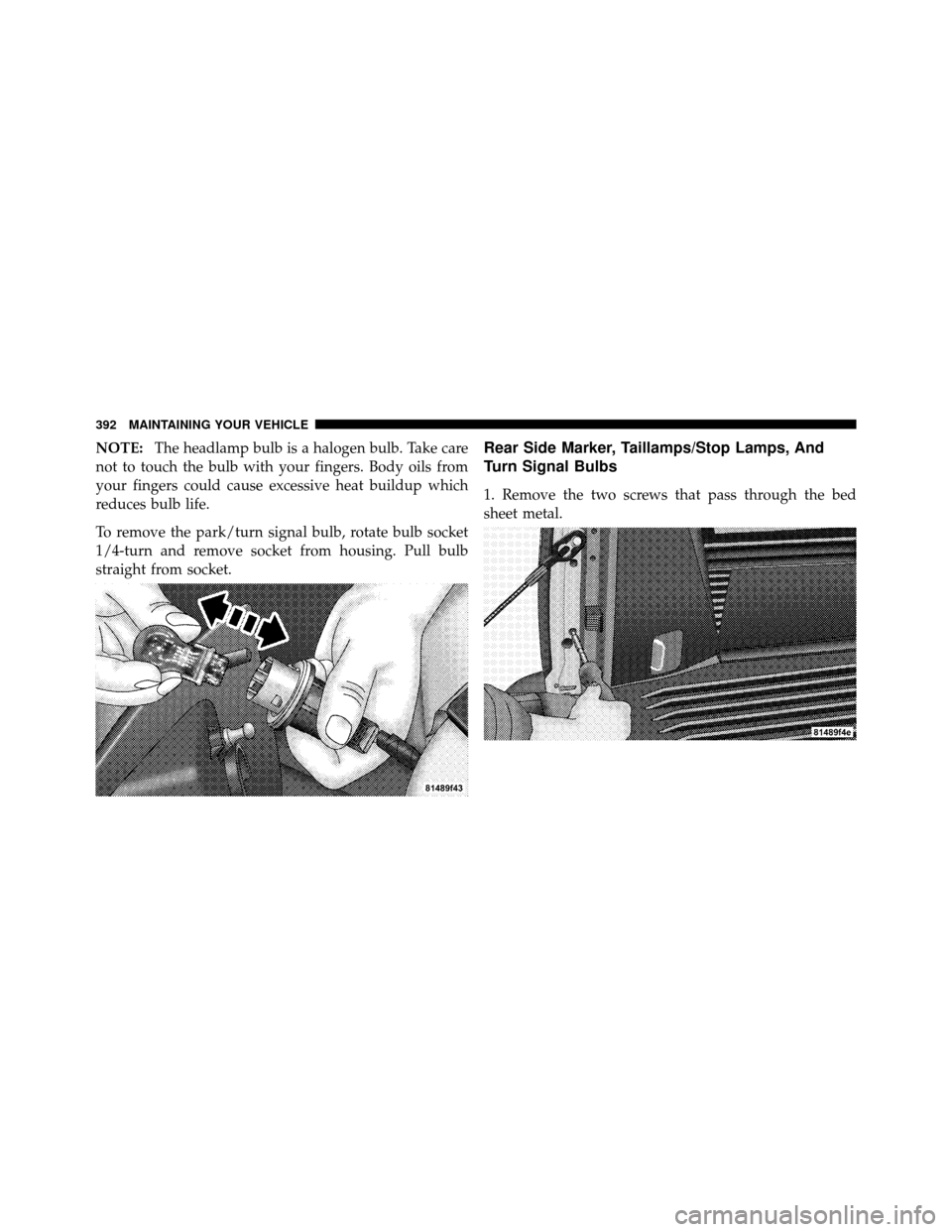

NOTE:The headlamp bulb is a halogen bulb. Take care
not to touch the bulb with your fingers. Body oils from
your fingers could cause excessive heat buildup which
reduces bulb life.
To remove the park/turn signal bulb, rotate bulb socket
1/4-turn and remove socket from housing. Pull bulb
straight from socket.Rear Side Marker, Taillamps/Stop Lamps, And
Turn Signal Bulbs
1. Remove the two screws that pass through the bed
sheet metal.
392 MAINTAINING YOUR VEHICLE

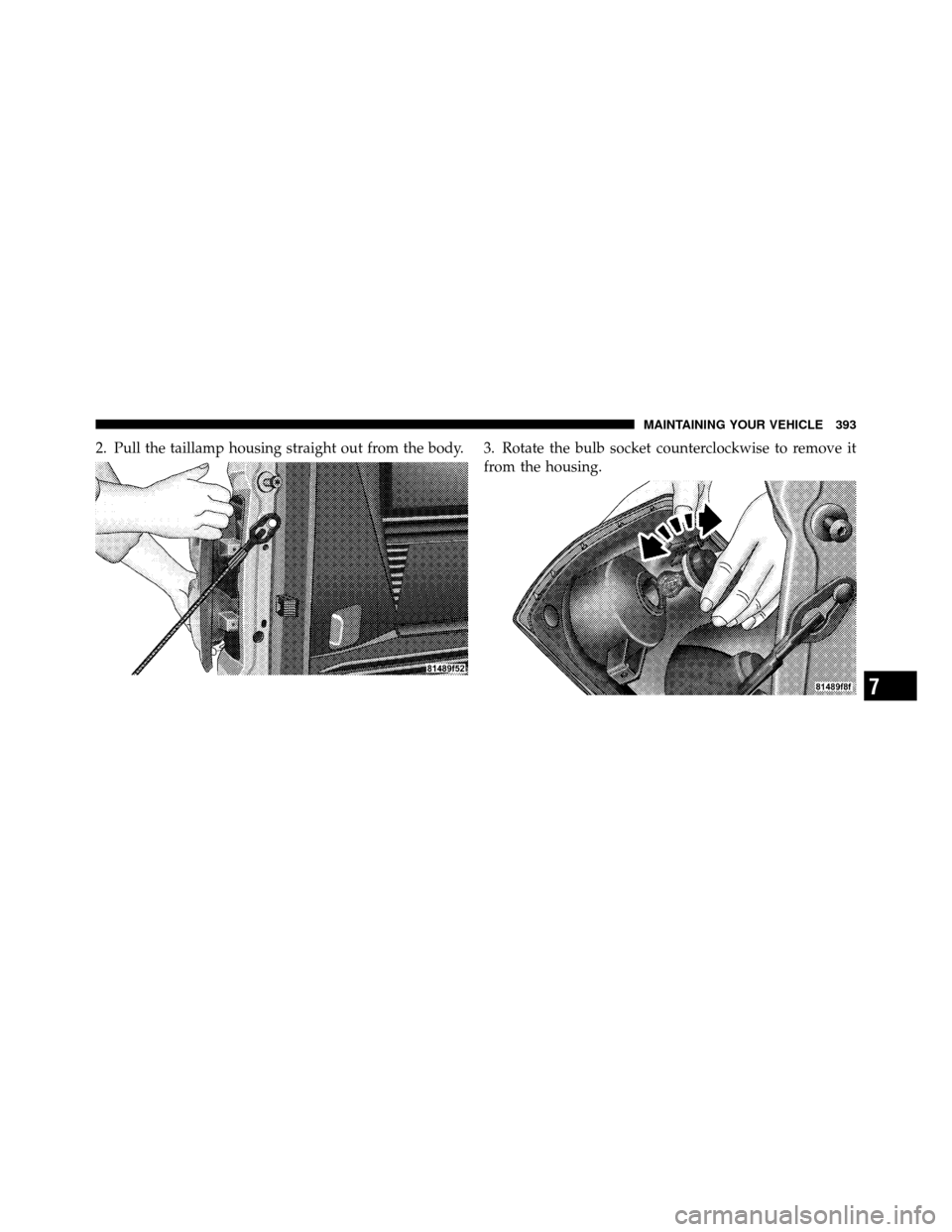

2. Pull the taillamp housing straight out from the body. 3. Rotate the bulb socket counterclockwise to remove itfrom the housing.
7
MAINTAINING YOUR VEHICLE 393

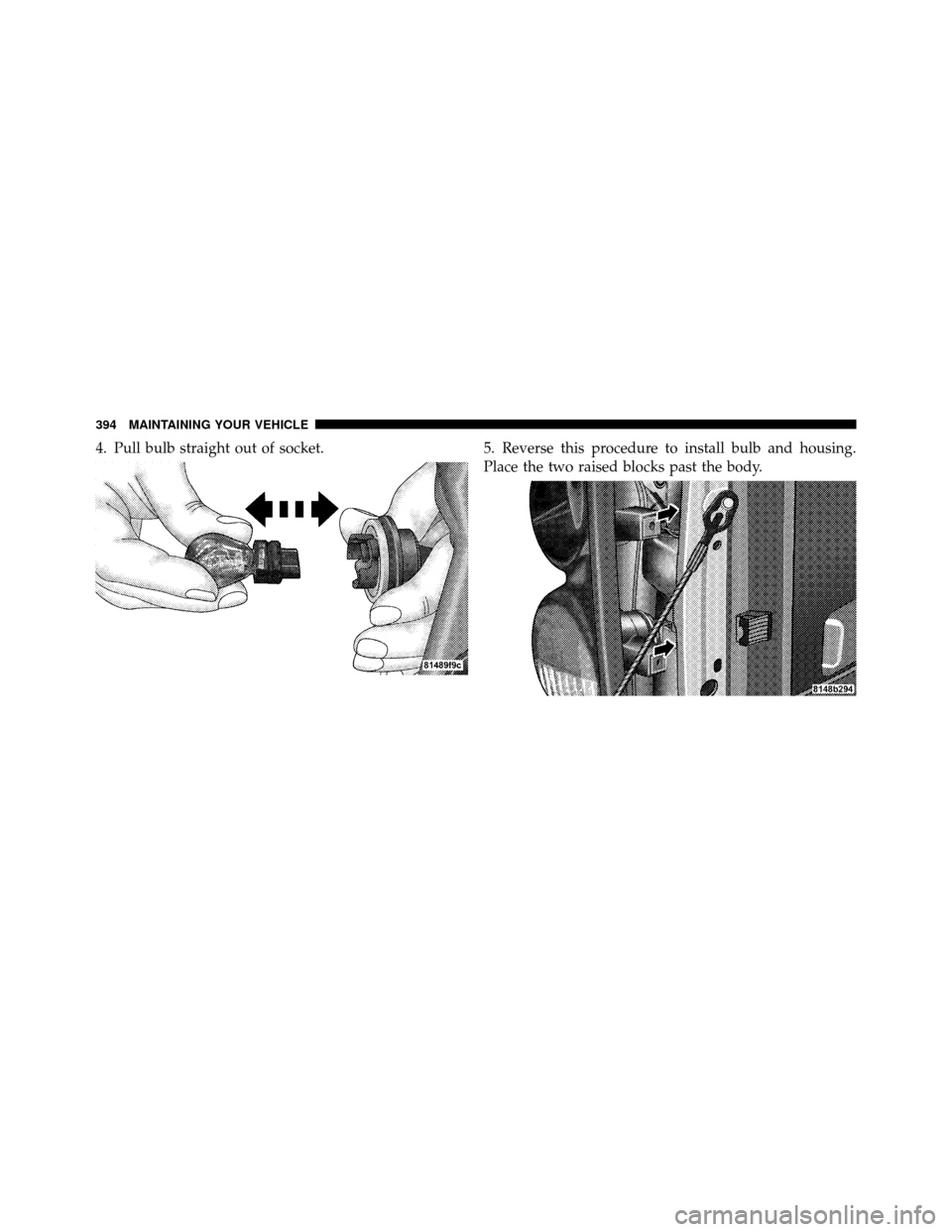

4. Pull bulb straight out of socket.5. Reverse this procedure to install bulb and housing.
Place the two raised blocks past the body.
394 MAINTAINING YOUR VEHICLE

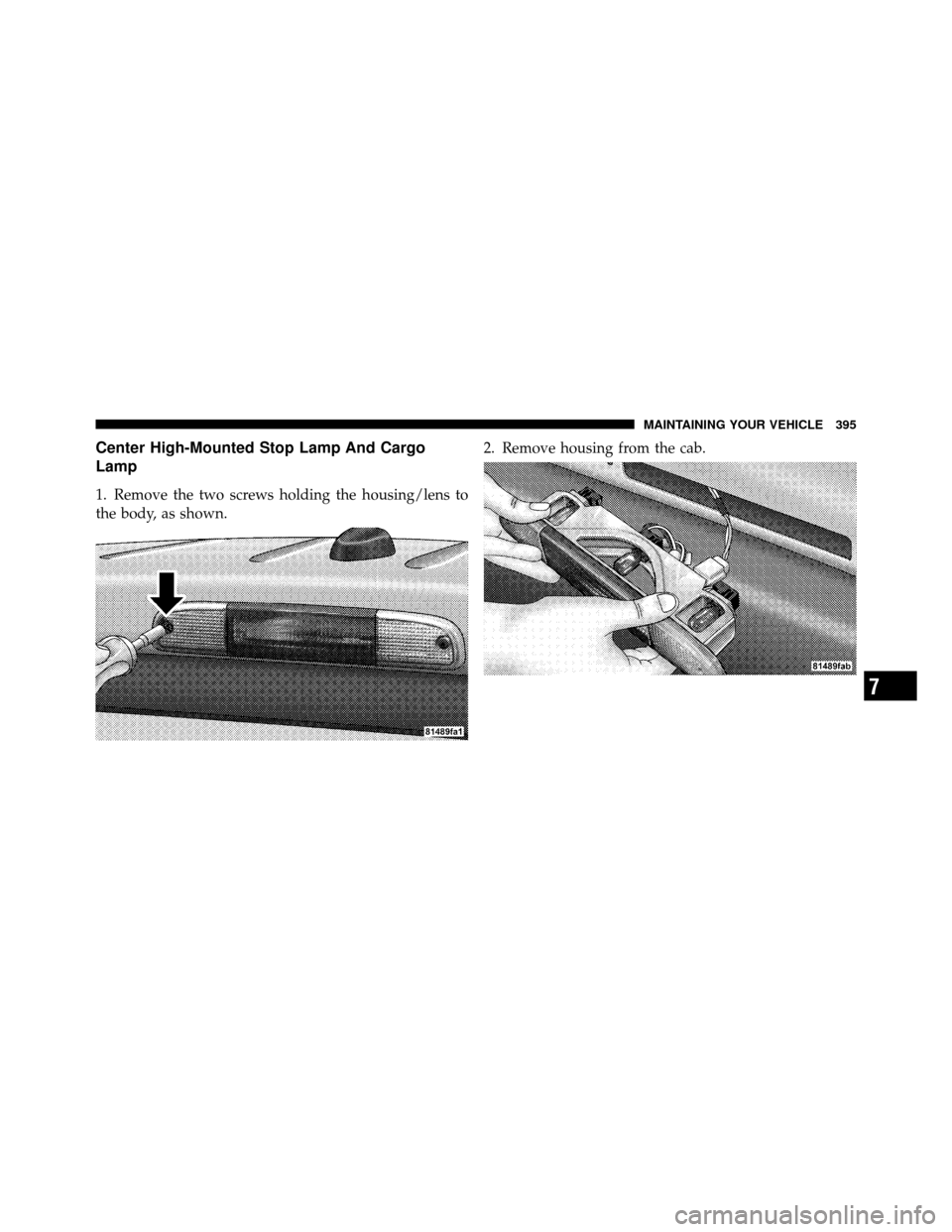

Center High-Mounted Stop Lamp And Cargo
Lamp
1. Remove the two screws holding the housing/lens to
the body, as shown.2. Remove housing from the cab.
7
MAINTAINING YOUR VEHICLE 395

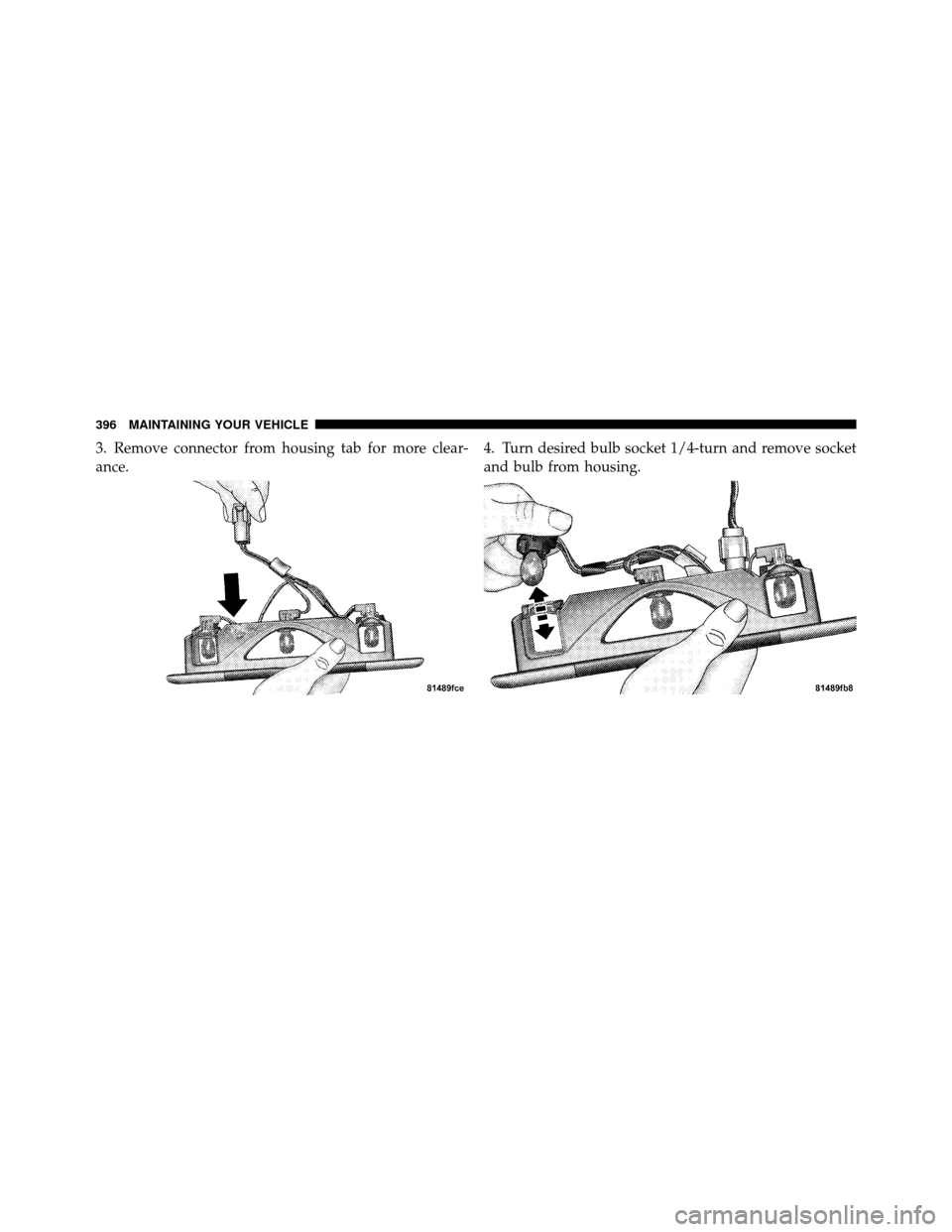

3. Remove connector from housing tab for more clear-
ance.4. Turn desired bulb socket 1/4-turn and remove socket
and bulb from housing.
396 MAINTAINING YOUR VEHICLE

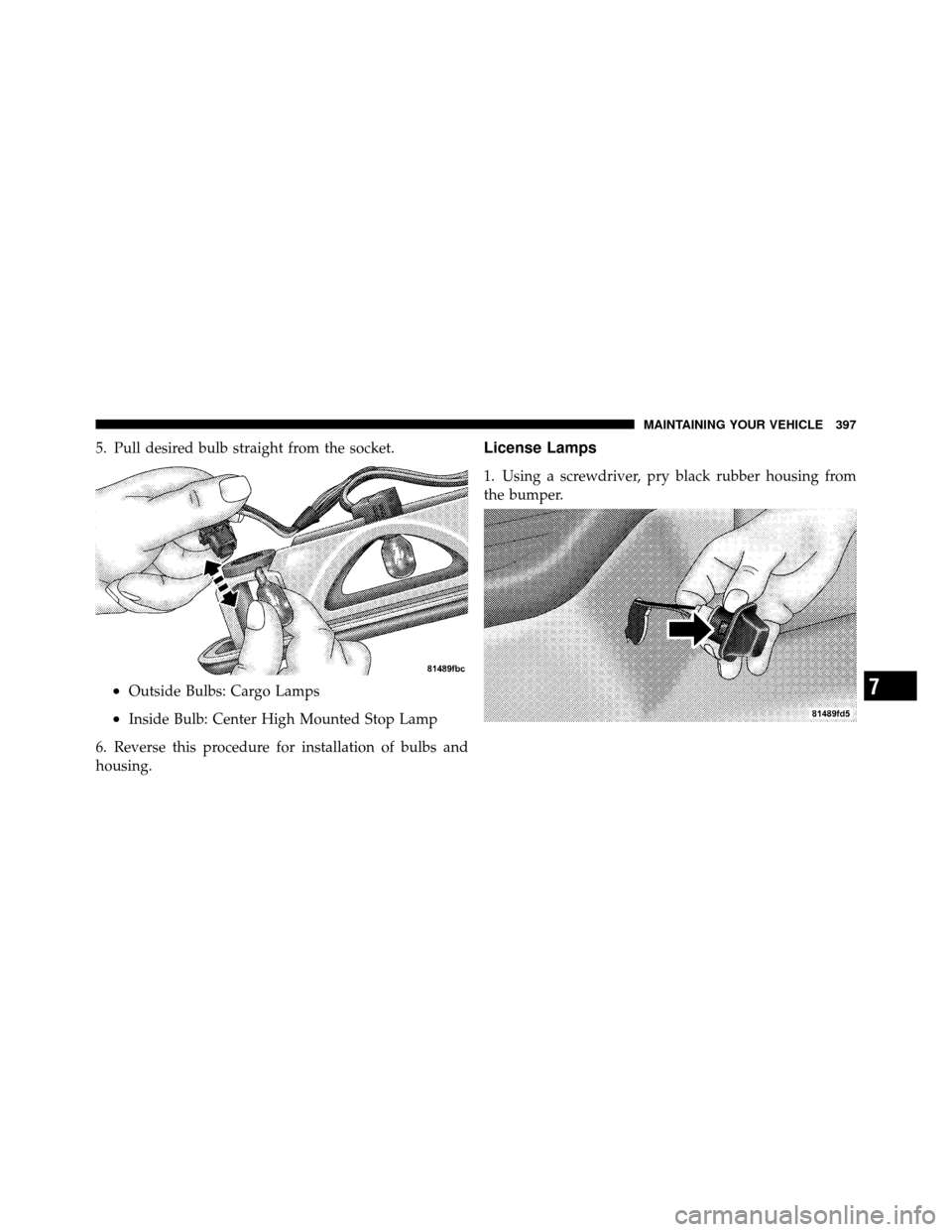

5. Pull desired bulb straight from the socket.
•Outside Bulbs: Cargo Lamps
•Inside Bulb: Center High Mounted Stop Lamp
6. Reverse this procedure for installation of bulbs and
housing.
License Lamps
1. Using a screwdriver, pry black rubber housing from
the bumper.
7
MAINTAINING YOUR VEHICLE 397

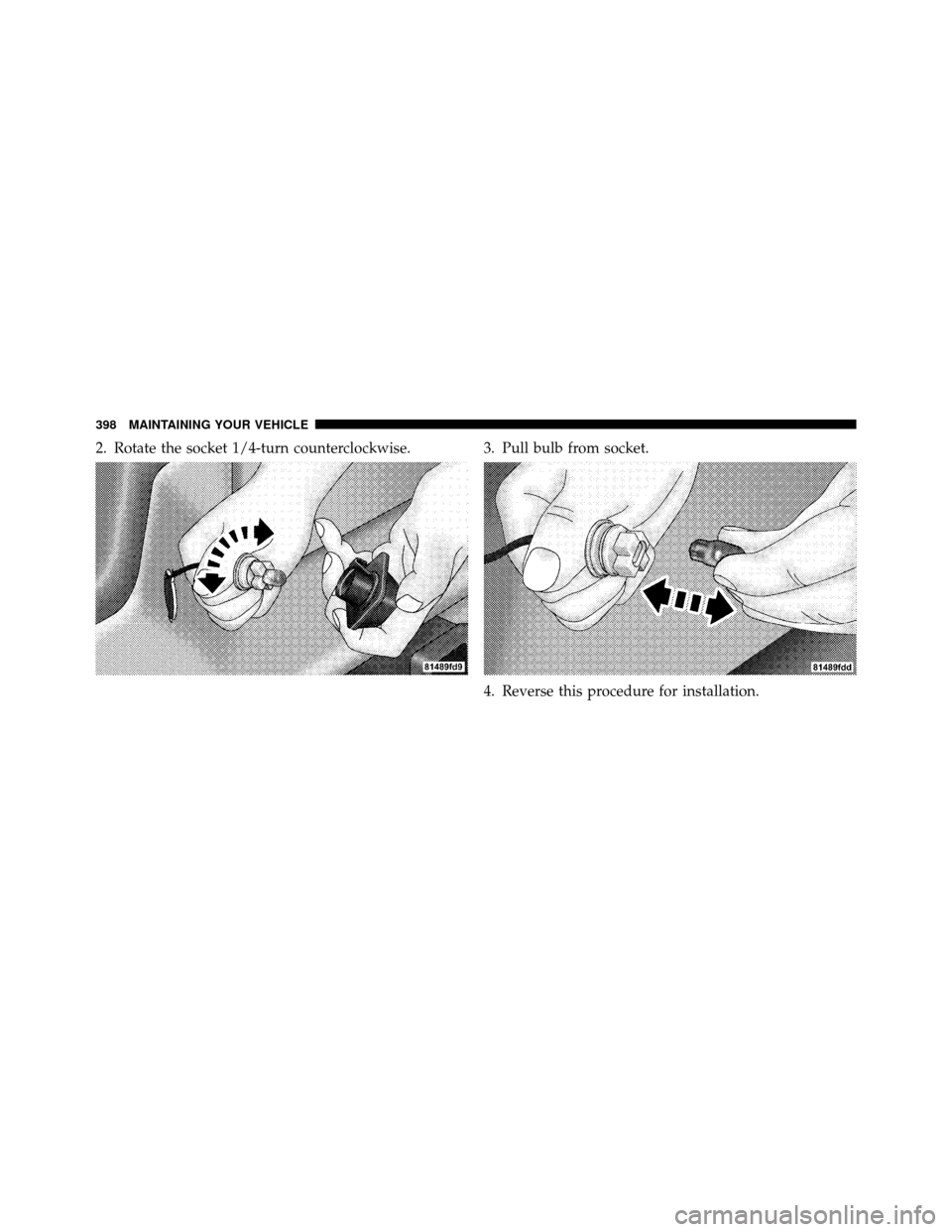

2. Rotate the socket 1/4-turn counterclockwise. 3. Pull bulb from socket.4. Reverse this procedure for installation.
398 MAINTAINING YOUR VEHICLE

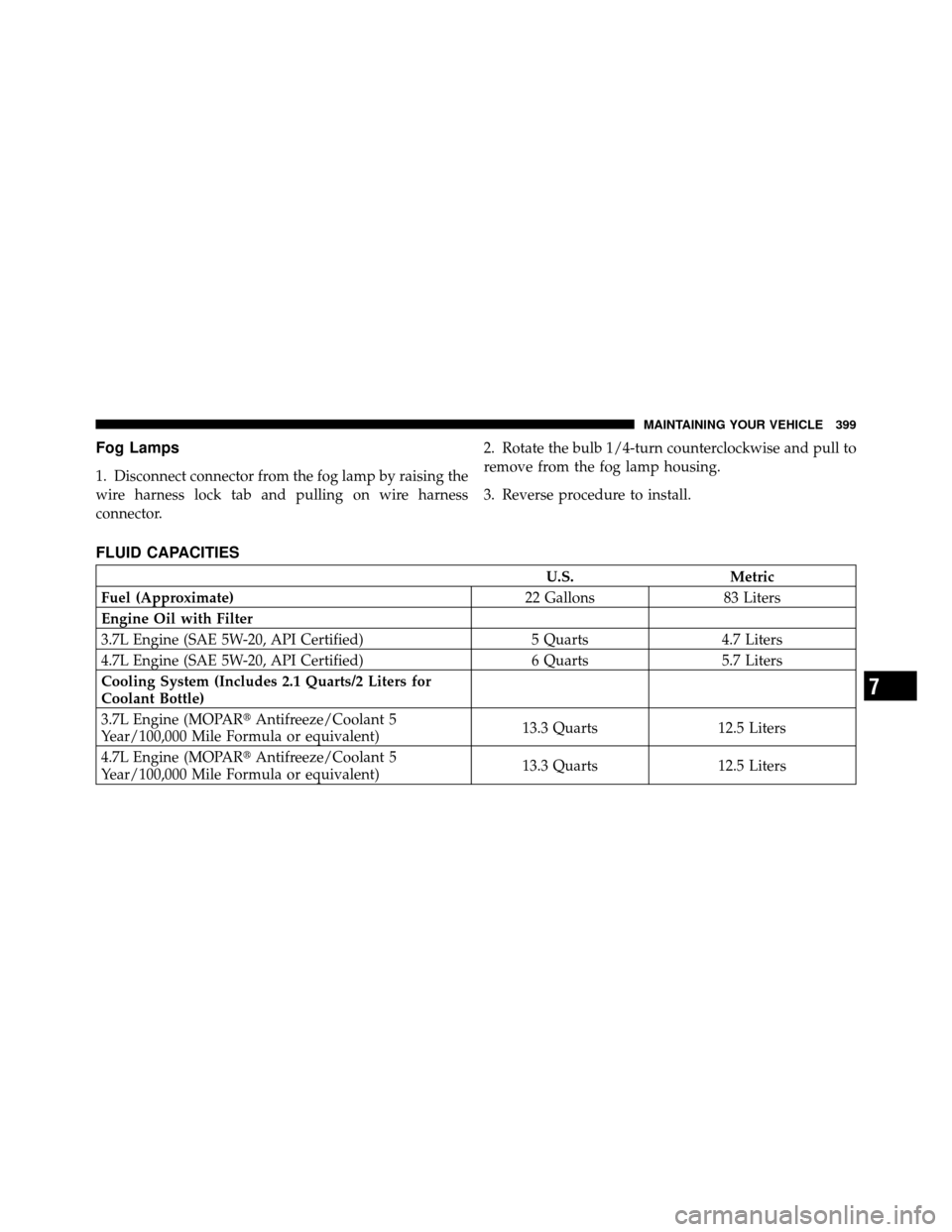

Fog Lamps
1. Disconnect connector from the fog lamp by raising the
wire harness lock tab and pulling on wire harness
connector.2. Rotate the bulb 1/4-turn counterclockwise and pull to
remove from the fog lamp housing.
3. Reverse procedure to install.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate) 22 Gallons83 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
4.7L Engine (SAE 5W-20, API Certified) 6 Quarts5.7 Liters
Cooling System (Includes 2.1 Quarts/2 Liters for
Coolant Bottle)
3.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
4.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 13.3 Quarts
12.5 Liters
7
MAINTAINING YOUR VEHICLE 399
