DODGE DAKOTA 2011 3.G Owner's Manual

To Arm The System
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly for approximately
15 seconds to signal that the Vehicle Security Alarm is
arming. After the Vehicle Security Alarm is set, the
Vehicle Security Light will flash at a slower rate to
indicate that the Vehicle Security Alarm is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by an authorized dealer.
To Disarm The System
Use the RKE transmitter to unlock the door. If something
has triggered the Vehicle Security Alarm in your absence,
the horn will sound three times when you unlock the
doors. Check the vehicle for tampering. The Vehicle Security Alarm will also disarm if the vehicle
Sentry Key
in inserted into the ignition and turned to
ON/RUN. To exit alarming mode, press the RKE trans-
mitter UNLOCK button or start the vehicle with a
programmed Sentry Key.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, the alarm will sound when you pull the door
handle to exit.
NOTE: You may accidentally activate the Vehicle Secu-
rity Alarm (horn sounds and lights flash) by entering the
vehicle without using the RKE transmitter to unlock the
door(s). The Vehicle Security Alarm can be disarmed with
the RKE transmitter unlock button or by inserting a
programmed Sentry Key into the ignition and turning
the key to the ON/RUN position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON/RUN position or a RKE
transmitter LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after eight minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors or
activate the Panic Alarm from distances up to approxi-
mately 66 ft (20 m) using a Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system.
Remote Keyless Entry (RKE) Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

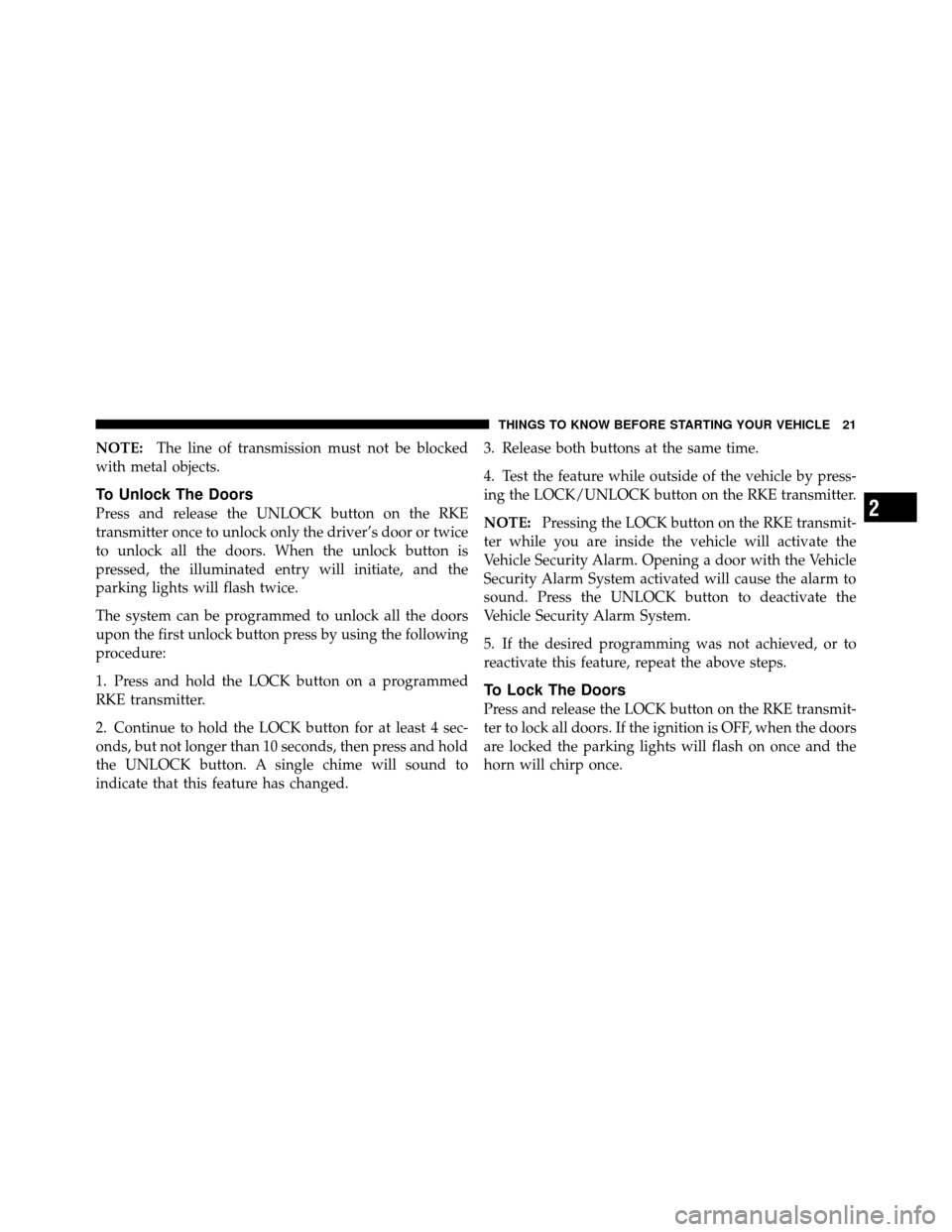

NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors. When the unlock button is
pressed, the illuminated entry will initiate, and the
parking lights will flash twice.
The system can be programmed to unlock all the doors
upon the first unlock button press by using the following
procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the LOCK button for at least 4 sec-
onds, but not longer than 10 seconds, then press and hold
the UNLOCK button. A single chime will sound to
indicate that this feature has changed. 3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK button on the RKE transmitter.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
5. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
To Lock The Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. If the ignition is OFF, when the doors
are locked the parking lights will flash on once and the
horn will chirp once.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

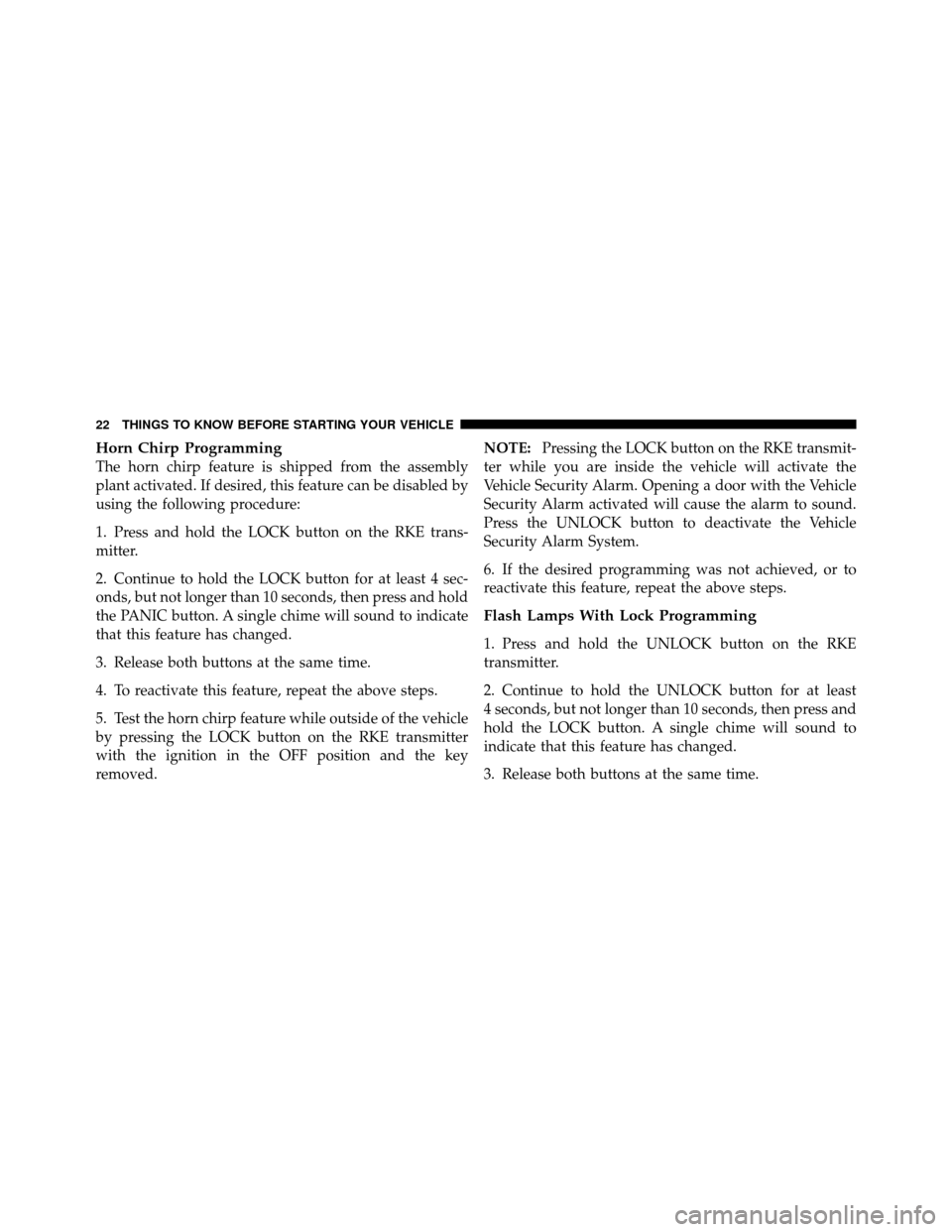

Horn Chirp Programming
The horn chirp feature is shipped from the assembly
plant activated. If desired, this feature can be disabled by
using the following procedure:
1. Press and hold the LOCK button on the RKE trans-
mitter.
2. Continue to hold the LOCK button for at least 4 sec-
onds, but not longer than 10 seconds, then press and hold
the PANIC button. A single chime will sound to indicate
that this feature has changed.
3. Release both buttons at the same time.
4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm System.
6. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
Flash Lamps With Lock Programming
1. Press and hold the UNLOCK button on the RKE
transmitter.
2. Continue to hold the UNLOCK button for at least
4 seconds, but not longer than 10 seconds, then press and
hold the LOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Test the Flash Lamps With Lock feature while outside
of the vehicle by pressing the LOCK button on the RKE
transmitter with the ignition in the OFF position and the
key removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
5. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
Using The Panic Alarm
To activate the Panic mode while the ignition is OFF,
press and release the PANIC button on the RKE trans-
mitter once. When the Panic mode is activated, the
interior lights will illuminate, the headlights and parking
lights will flash, and the horn will sound. To cancel the Panic mode, press and release the PANIC
button on the RKE transmitter a second time. Panic mode
will automatically cancel after three minutes, or if the
vehicle is started and or exceeds 15 mph (24 km/h).
During the Panic Mode, the door locks and RKE systems
will function normally. Panic mode will not disarm the
Vehicle Security Alarm System, on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

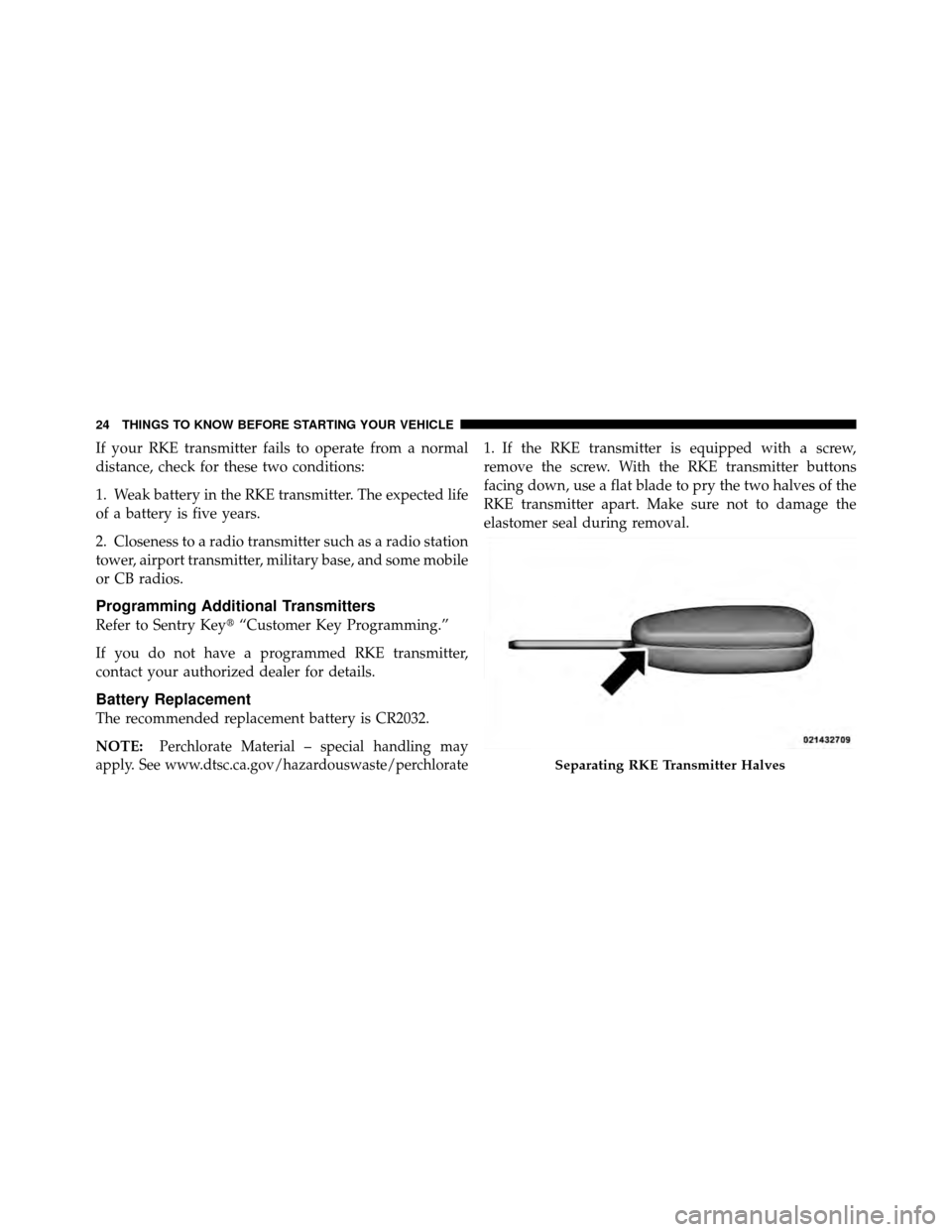

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in the RKE transmitter. The expected life
of a battery is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Programming Additional Transmitters
Refer to Sentry Key“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.
Separating RKE Transmitter Halves
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on the back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test the RKE transmitter
operation.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m). NOTE:
The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle. NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

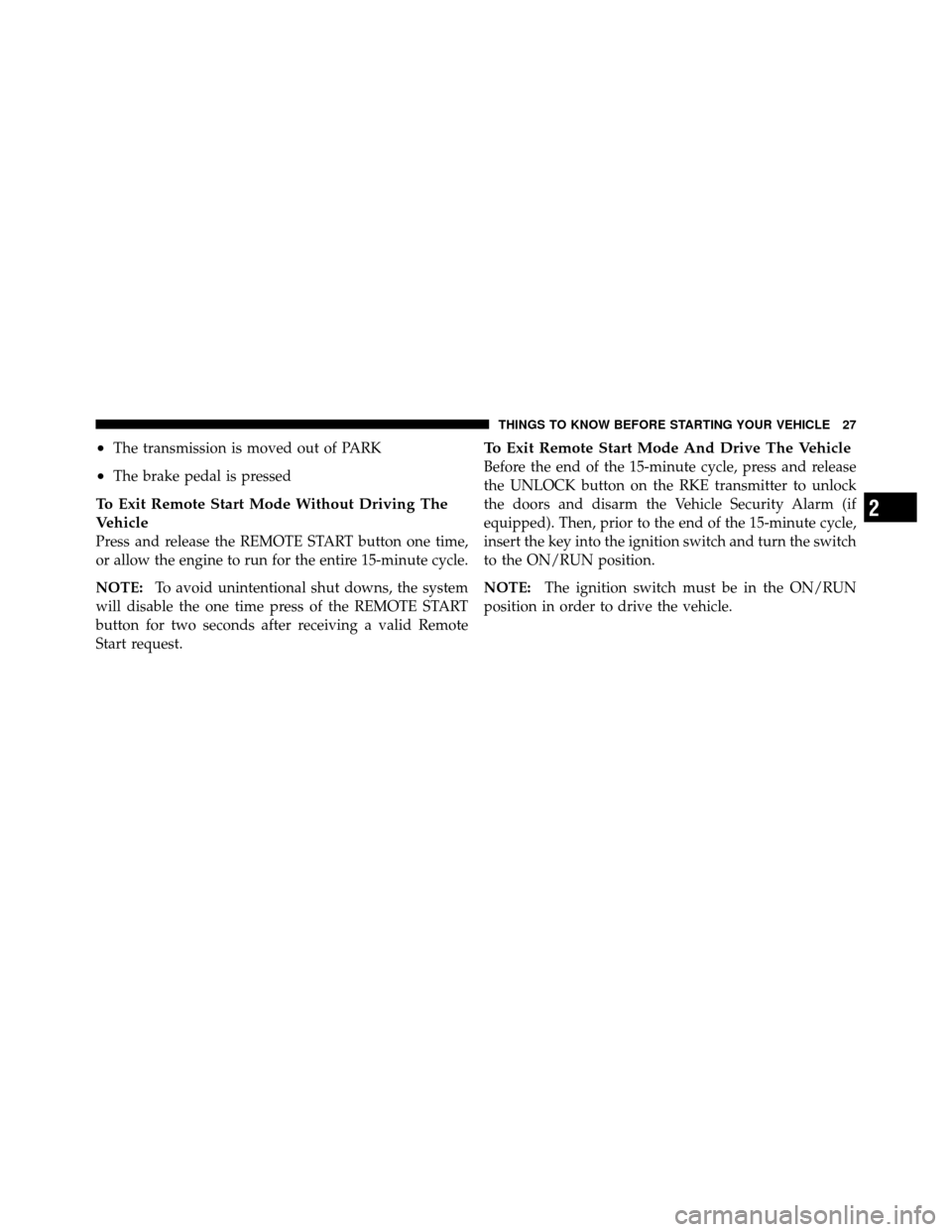

•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON/RUN position.
NOTE: The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

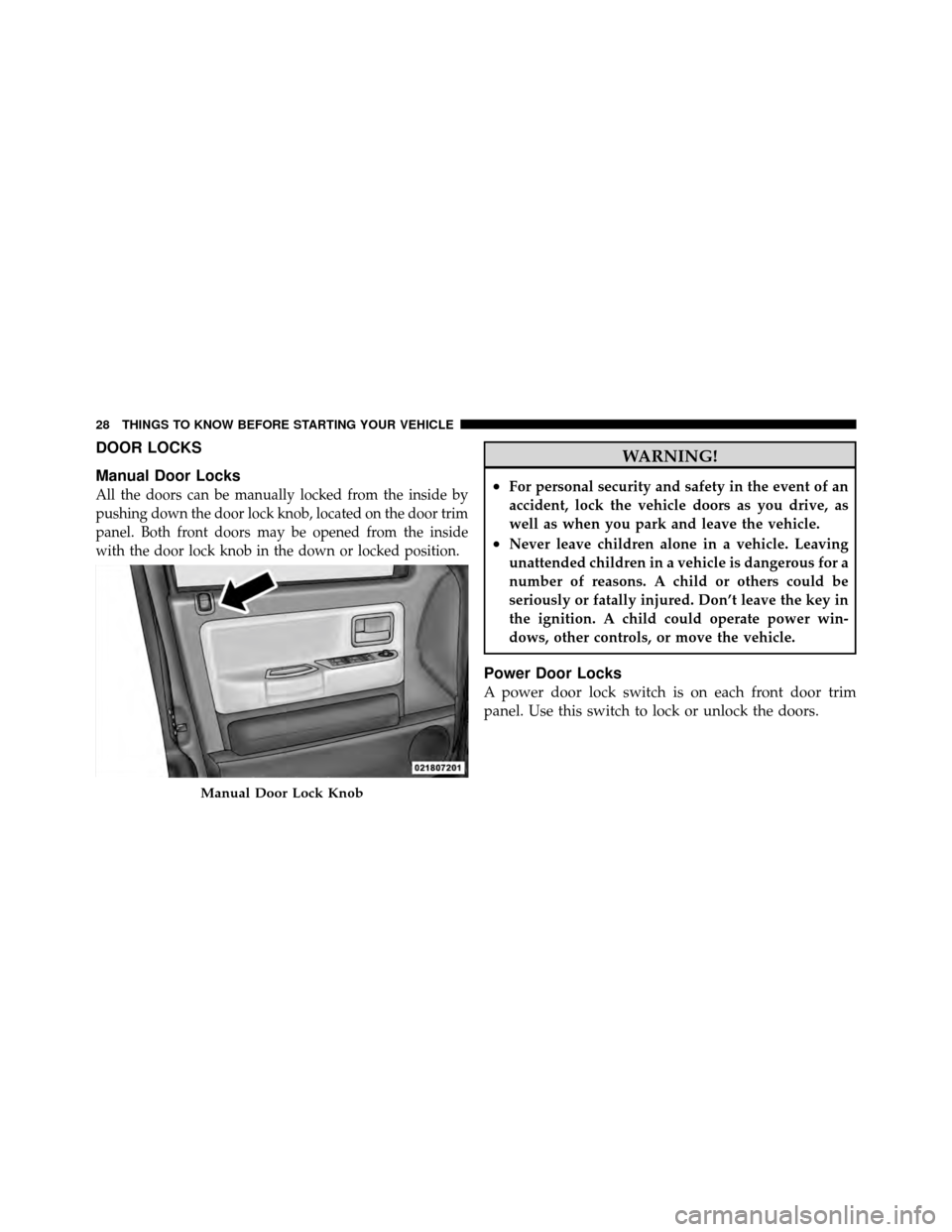

DOOR LOCKS
Manual Door Locks
All the doors can be manually locked from the inside by
pushing down the door lock knob, located on the door trim
panel. Both front doors may be opened from the inside
with the door lock knob in the down or locked position.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive, as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Power Door Locks
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
Manual Door Lock Knob
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
