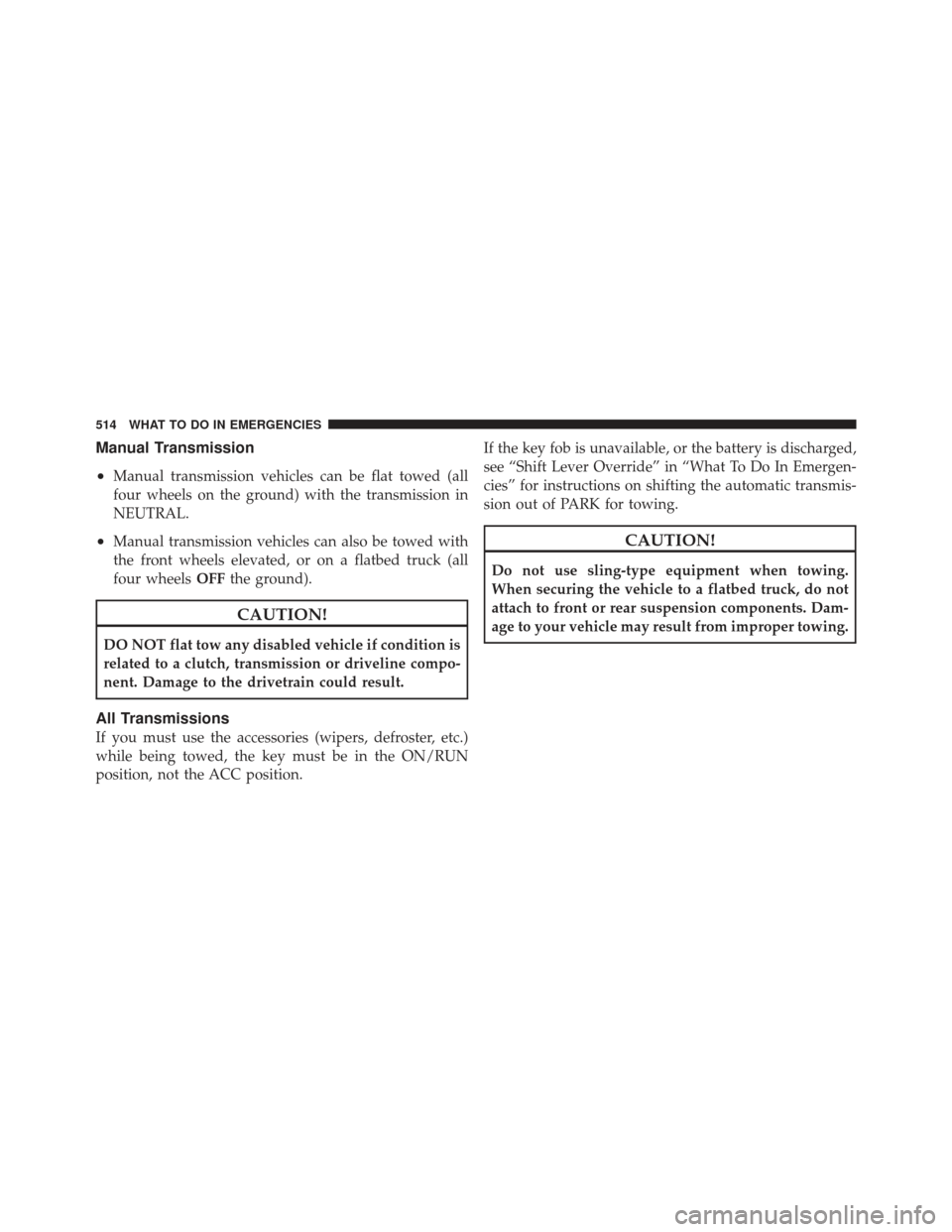

Manual Transmission
•
Manual transmission vehicles can be flat towed (all
four wheels on the ground) with the transmission in
NEUTRAL.
•Manual transmission vehicles can also be towed with
the front wheels elevated, or on a flatbed truck (all
four wheelsOFFthe ground).
CAUTION!
DO NOT flat tow any disabled vehicle if condition is
related to a clutch, transmission or driveline compo-
nent. Damage to the drivetrain could result.
All Transmissions
If you must use the accessories (wipers, defroster, etc.)
while being towed, the key must be in the ON/RUN
position, not the ACC position. If the key fob is unavailable, or the battery is discharged,
see “Shift Lever Override” in “What To Do In Emergen-
cies” for instructions on shifting the automatic transmis-
sion out of PARK for towing.
CAUTION!
Do not use sling-type equipment when towing.
When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
514 WHAT TO DO IN EMERGENCIES

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the MIL. Resolving the problem will turn the MIL
light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
7
MAINTAINING YOUR VEHICLE 521

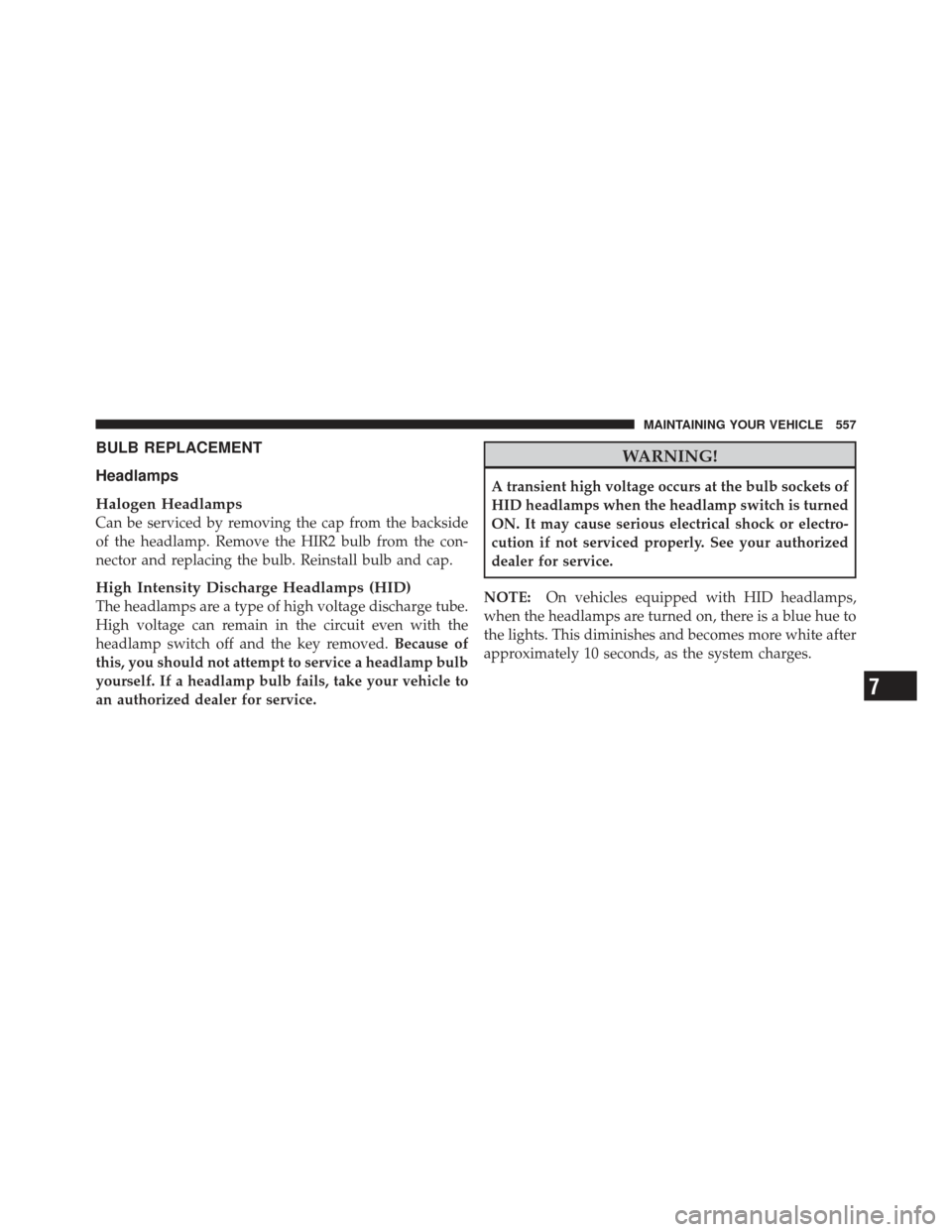

BULB REPLACEMENT
Headlamps
Halogen Headlamps
Can be serviced by removing the cap from the backside
of the headlamp. Remove the HIR2 bulb from the con-
nector and replacing the bulb. Reinstall bulb and cap.
High Intensity Discharge Headlamps (HID)
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
7
MAINTAINING YOUR VEHICLE 557

Automatic Door Locks..................... 34
Automatic Headlights .................... 212
Automatic Temperature Control (ATC) ......... 372
Automatic Transaxle ...................... 380
Automatic Transmission ................386,544
Adding Fluid ....................... 545
Fluid and Filter Changes ............... 545
Fluid Level Check .................... 545
Fluid Type ......................... 544
Gear Ranges ..................... 390,400
Special Additives ..................... 545
Autostick ............................. 407
B-Pillar Location ........................ 432
Battery ............................... 528
Keyless Transmitter Replacement (RKE) ..... 27
Belts, Seat ............................ 50,95
Body Mechanism Lubrication ............... 532
Brake Assist System ...................... 418 Brake Control System, Electronic
............. 415
Brake Fluid ............................ 562
Brake System ........................... 542
Anti-Lock (ABS) ..................... 415
Master Cylinder ..................... 542
Parking ........................... 412
Warning Light ....................... 289
Brake, Parking .......................... 412
Brake/Transmission Interlock ............... 388
Brakes ............................... 542
Break-In Recommendations, New Vehicle ........ 93
Brightness, Interior Lights .................. 218
Bulb Replacement ..................... 556,557
Bulbs, Light .......................... 97,556
Camera, Rear ........................... 245
Capacities, Antifreeze (Engine Coolant) ........ 560
Capacities, Fluid ........................ 560
10
INDEX 583

HazardDriving Through Flowing, Rising, or Shallow
Standing Water ...................... 409
Hazard Warning Flasher ................... 483
Head Restraints ......................... 205
Head Rests ............................ 205
Headlights ............................ 557
Automatic ......................... 212
Cleaning ........................... 550
Delay ............................. 212
High Beam/Low Beam Select Switch ...... 217
Lights On Reminder .................. 214
On With Wipers ................... 212,222
Passing ............................ 217
Switch ............................ 211
Time Delay ......................... 212
Heated Mirrors ......................... 108
Heated Seats ........................... 202
Heater ............................... 361 Heater, Engine Block
..................... 383
High Beam/Low Beam Select (Dimmer) Switch . . 217
Hill Start Assist ......................... 420
Hitches Trailer Towing ....................... 469
Holder, Coin ........................... 268
Holder, Cup ........................... 265
HomeLink® (Garage Door Opener) Transmitter . . 249
Ignition Key ............................... 12
Illuminated Entry ........................ 23
Immobilizer (Sentry Key) ................... 19
Infant Restraint ........................ 83,84
Information Center, Vehicle ................. 297
Inside Rearview Mirror ................... 105
Instrument Cluster .................... 281,284
Instrument Panel and Controls .............. 280
Instrument Panel Cover ................... 551
10
INDEX 589

Instrument Panel Lens Cleaning............. 551
Interior Appearance Care .................. 550
Interior Lights .......................... 218
Intermittent Wipers (Delay Wipers) ........... 221
Introduction ............................. 4
Jack Location ........................... 485
Jack Operation .......................... 487
Jacking Instructions ...................... 487
Jump Starting .......................... 505
Key-In Reminder ......................... 17
Key, Programming ........................ 20
Key, Replacement ........................ 20
Key, Sentry (Immobilizer) ................... 19
Keyless Enter-N-Go™ ................... 36,380
Keyless Entry System ...................... 24
Keyless Go ............................. 14
Keys ................................. 12 Knee Bolster
............................ 60
Lane Change and Turn Signals .............. 216
Lane Change Assist ...................... 216
Lap/Shoulder Belts ....................... 50
LATCH
(Lower Anchors and Tether for CHildren) .....87,88
Latch Plate ............................. 52
Latches ................................ 97
Lead Free Gasoline ...................... 457
Leaks, Fluid ............................ 97
Life of Tires ............................ 443
Light Bulbs .......................... 97,556
Lights .............................. 97,211
Airbag ...................... 67,81,95,291
Alarm ............................ 291
Anti-Lock ....................... 294,417
Automatic Headlights ................. 212
Brake Warning ...................... 289
590 INDEX

Passing Light........................... 217
Pets .................................. 92
Phone, Cellular ......................... 117
Phone, Hands-Free (Uconnect™) ............. 117
Placard, Tire and Loading Information ......... 432
Power Deck Lid Release ..................... 45
Door Locks ......................... 33
Mirrors ............................ 108
Outlet (Auxiliary Electrical Outlet) ........ 262
Sunroof ........................... 258
Windows ........................... 41
Power Steering Fluid ..................... 562
Pregnant Women and Seat Belts .............. 59
Preparation for Jacking .................... 486
Pretensioners Seat Belts ........................... 58
Programming Transmitters
(Remote Keyless Entry) .................... 24 Radial Ply Tires
......................... 439
Radio Operation ........................ 360
Rain Sensitive Wiper System ................ 223
Rear Camera ........................... 245
Rear Cupholder ......................... 266
Rear Park Sense System ................... 231
Rear Seat, Folding ....................... 207
Rear Window Defroster ................... 275
Rear Window Features .................... 275
Rearview Mirrors ........................ 105
Recorder, Event Data ...................... 82
Recreational Towing ...................... 479
Reformulated Gasoline .................... 458
Refrigerant ............................ 530
Reminder, Lights On ..................... 214
Reminder, Seat Belt ....................... 58
Remote Control Starting System ....................... 28
Remote Keyless Entry (RKE) ................. 24
594 INDEX

Remote Sound System (Radio) Controls........ 358
Remote Starting System .................... 28
Remote Trunk Release ..................... 45
Replacement Bulbs ....................... 556
Replacement Keys ........................ 20
Replacement Parts ....................... 522
Replacement Tires ....................... 444
Reporting Safety Defects ................... 576
Resetting Oil Change Indicator .............. 293
Restraint, Head ......................... 205
Restraints, Child ......................... 83
Restraints, Occupant ...................... 47
Rocking Vehicle When Stuck ................ 509
Rotation, Tires .......................... 448
Safety Checks Inside Vehicle ................. 95
Safety Checks Outside Vehicle ............... 97
Safety Defects, Reporting .................. 576
Safety Information, Tire ................... 427 Safety Tips
............................. 94
Safety, Exhaust Gas ....................... 94
Schedule, Maintenance .................... 564
Seat Belt Maintenance .................... 552
Seat Belt Reminder ....................... 58
Seat Belts .......................... 47,50,95
Adjustable Upper Shoulder Anchorage ...... 55
And Pregnant Women .................. 59
Child Restraint ................. 83,84,85,90
Extender ........................... 59
Front Seat ......................... 50,51
Inspection .......................... 95
Operating Instructions .................. 51
Pretensioners ........................ 58
Rear Seat ........................... 50
Untwisting Procedure .................. 55
Seats ................................. 197
Adjustment ...................... 197,200
Head Restraints ...................... 205
10
INDEX 595

Heated............................ 202
Rear Folding ........................ 207
Seatback Release .................. 201,207
Tilting ............................ 201
Security Alarm (Theft Alarm) ................ 21
Selection of Oil ......................... 525
Sentry Key (Immobilizer) ................... 19
Sentry Key Programming ................... 20
Sentry Key Replacement ................... 20
Service Assistance ....................... 573
Service Contract ......................... 575
Service Engine Soon Light
(Malfunction Indicator) .................... 294
Service Manuals ........................ 577
Setting the Clock ........................ 340
Shift Lever Override ...................... 511
Shifting Manual Transmission .................. 384
Short Message Service (SMS) ................ 139Shoulder Belt Upper Anchorage
.............. 55
Shoulder Belts ........................... 50
Side Airbag ............................. 77
Side View Mirror Adjustment ............... 106
Signals, Turn ...................... 97,216,286
Slippery Surfaces, Driving On ............... 408
SmartBeams ........................... 213
Snow Chains (Tire Chains) ................. 446
Snow Tires ............................ 447
Spare Tire ....................... 440,441,485
Specifications Oil ............................... 525
Speed Control (Cruise Control) .............. 227
Speedometer ........................... 290
Starting ............................. 28,379
Automatic Transmission ................ 380
Engine Fails to Start .................. 382
Manual Transmission .................. 379
Remote ............................ 28
596 INDEX

Trailer Towing Guide..................... 470
Trailer Weight .......................... 470
Transaxle Automatic ......................... 380
Autostick .......................... 407
Manual ........................... 379
Transmission Automatic ....................... 386,544
Filter ............................. 545
Maintenance ........................ 544
Manual ......................... 384,546
Transmitter Battery Service
(Remote Keyless Entry) .................... 27
Transmitter Programming
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener (HomeLink®) . . 249
Transmitter, Remote Keyless Entry (RKE) ........ 24
Transporting Pets ........................ 92
Tread Wear Indicators .................... 442 Trip Odometer
.......................... 292
Trunk Lid (Deck Lid) .................... 45,46
Trunk Release Remote Control ............... 45
Trunk Release, Emergency .................. 46
Turn Signals ......................... 216,286
UCI Connector ......................... 352
Uconnect™ (Hands-Free Phone) ............. 117
Uniform Tire Quality Grades ................ 579
Universal Consumer Interface (UCI) Connector . . . 352
Universal Transmitter ..................... 249
Unleaded Gasoline ....................... 457
Untwisting Procedure, Seat Belt .............. 55
Vanity Mirrors .......................... 109
Vehicle Certification Label ................. 465
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 433,464,466
Vehicle Modifications/Alterations .............. 7
10
INDEX 599
