or ON/RUN position. If the ignition is in the OFF
position or in the ACC position, the air bag system is not
on and the air bags will not inflate.
The ORC contains a backup power supply system that
may deploy the air bags even if the battery loses power or
it becomes disconnected prior to deployment.Also, the ORC turns on the Air Bag Warning
Light in the instrument panel for approxi-
mately four to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Air Bag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
turns on the Air Bag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup. It also includes diagnostics that will illuminate the instru-
ment cluster Air Bag Warning Light if a malfunction is
noted that could affect the air bag system. The diagnos-
tics also record the nature of the malfunction.
WARNING!
Ignoring the Air Bag Warning Light in your instru-
ment panel could mean you won’t have the air bags
to protect you in a collision. If the light does not come
on as a bulb check when the ignition is first turned
on, stays on after you start the vehicle, or if it comes
on as you drive, have an authorized dealer service the
air bag system immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67

Occupant Classification System (OCS) — Front
Passenger Seat
The OCS is part of a Federally regulated safety system for
this vehicle.
The Occupant Classification System (OCS) consists of the
following:
•Occupant Restraint Controller (ORC)
•Occupant Classification Module (OCM) located in the
front passenger seat
•OCS Sensor located in the front passenger seat
•Air Bag Warning Light
The OCS will NOT prevent deployment of the passenger
Advanced Front Air Bag. The OCS may reduce the
inflation rate of the passenger Advanced Front Air Bag if
the sensors estimate that:
•The front passenger seat is unoccupied or has very
light objects in it; or
•The front passenger seat is occupied by a small pas-
senger, including a child; or
•The front passenger seat is occupied by a rearward
facing infant seat; or
•The front passenger is not properly seated or his or her
weight is taken off of the seat for a period of time.
Front Passenger SeatOccupant Status Front Passenger Air
Bag Classification
Rearward-facing infant seat* Reduced-power deploy- ment
Child, including a child in a forward-facing child re-straint or booster seat* Full-power deployment
OR reduced-power de- ployment
Properly seated adult Full-power deployment OR reduced-power de-ployment
Unoccupied seat Reduced-power deploy- ment
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

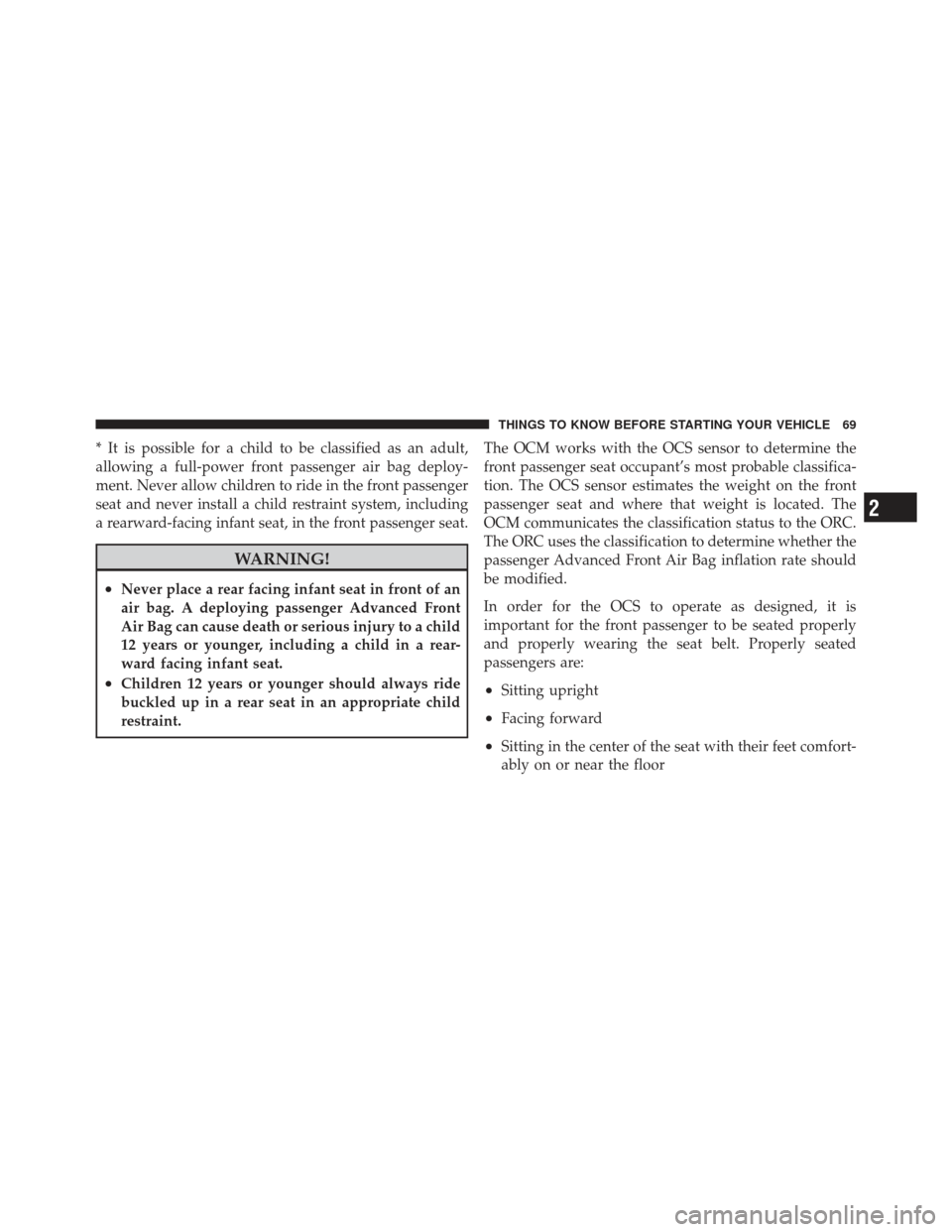

* It is possible for a child to be classified as an adult,
allowing a full-power front passenger air bag deploy-
ment. Never allow children to ride in the front passenger
seat and never install a child restraint system, including
a rearward-facing infant seat, in the front passenger seat.
WARNING!
•Never place a rear facing infant seat in front of an
air bag. A deploying passenger Advanced Front
Air Bag can cause death or serious injury to a child
12 years or younger, including a child in a rear-
ward facing infant seat.
•Children 12 years or younger should always ride
buckled up in a rear seat in an appropriate child
restraint.The OCM works with the OCS sensor to determine the
front passenger seat occupant’s most probable classifica-
tion. The OCS sensor estimates the weight on the front
passenger seat and where that weight is located. The
OCM communicates the classification status to the ORC.
The ORC uses the classification to determine whether the
passenger Advanced Front Air Bag inflation rate should
be modified.
In order for the OCS to operate as designed, it is
important for the front passenger to be seated properly
and properly wearing the seat belt. Properly seated
passengers are:•Sitting upright
•Facing forward
•Sitting in the center of the seat with their feet comfort-
ably on or near the floor
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69

A quantity of non-toxic gas is generated to inflate the side
curtain air bag. The inflating side curtain air bag pushes
the outside edge of the headliner out of the way and
covers the window. The air bag inflates in about 30
milliseconds (about one-quarter of the time that it takes
to blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain air bag
inflates. This especially applies to children. The side
curtain air bag is only about 4 inches (10.16 cm) thick
when it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.
Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power, until the ignition key is re-
moved or the ignition switch is changed to OFF using
the Keyless Go Start/Stop button.
•Unlock the doors automatically.
78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 97

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors ............................. 105
▫ Inside Day/Night Mirror ............... 105
▫ Automatic Dimming Mirror — If Equipped . . 105
▫ Outside Mirrors ..................... 106
▫ Outside Mirrors Folding Feature — If
Equipped .......................... 107
▫ Outside Mirrors With Turn Signal And
Approach Lighting — If Equipped ........ 107
▫ Power Mirrors ...................... 108
▫ Heated Mirrors — If Equipped ........... 108▫
Illuminated Vanity Mirrors — If Equipped . . 109
 Blind Spot Monitoring — If Equipped ....... 110
▫ Rear Cross Path ..................... 115
▫ Modes Of Operation .................. 116
 Uconnect Phone (Uconnect 200)......... 117
▫ Operation ......................... 119
▫ Phone Call Features .................. 126
▫ Uconnect Phone Features .............. 129
▫ Advanced Phone Connectivity ........... 134
3

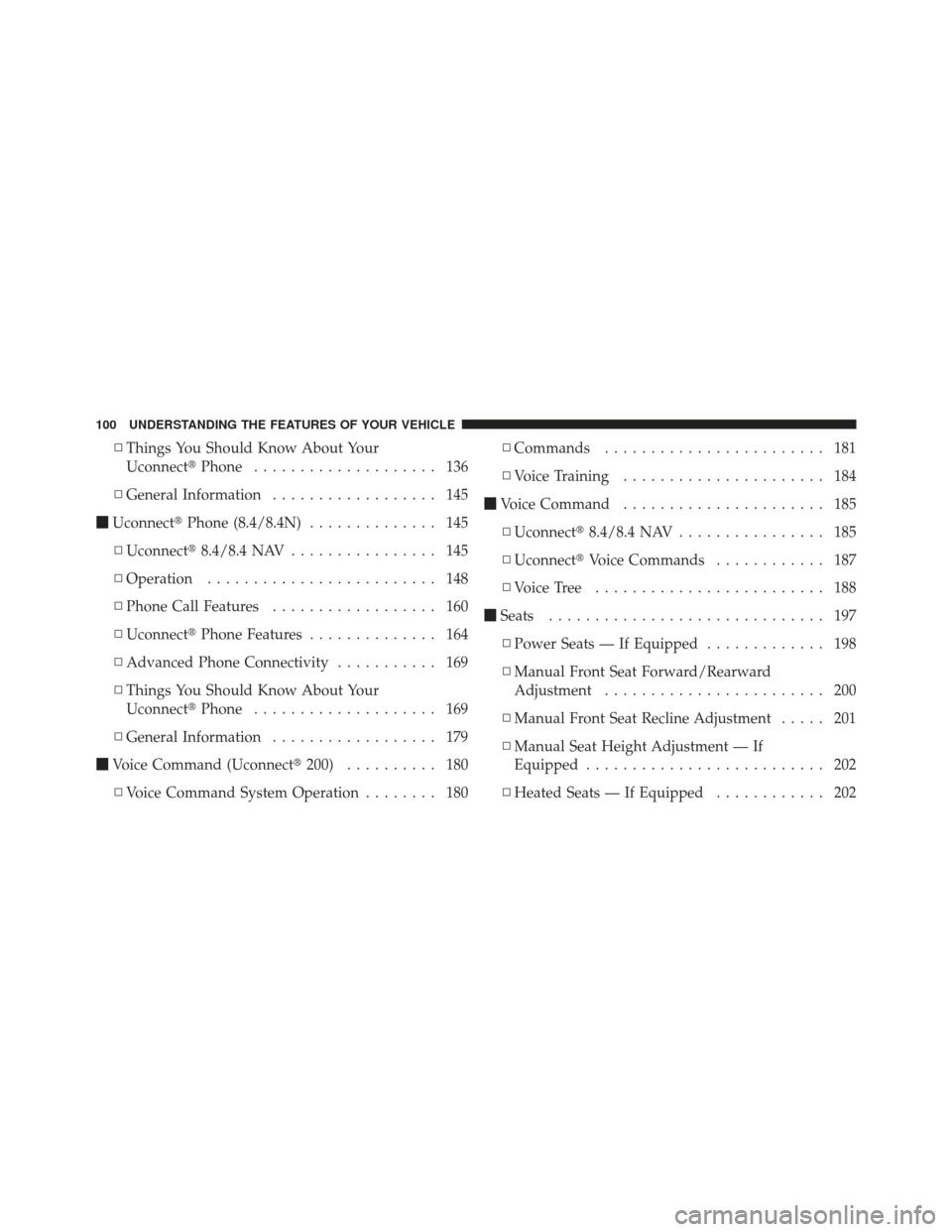

▫Things You Should Know About Your
Uconnect Phone.................... 136
▫ General Information .................. 145
 Uconnect Phone (8.4/8.4N) .............. 145
▫ Uconnect 8.4/8.4 NAV ................ 145
▫ Operation ......................... 148
▫ Phone Call Features .................. 160
▫ Uconnect Phone Features .............. 164
▫ Advanced Phone Connectivity ........... 169
▫ Things You Should Know About Your
Uconnect Phone.................... 169
▫ General Information .................. 179
 Voice Command (Uconnect 200).......... 180
▫ Voice Command System Operation ........ 180▫
Commands ........................ 181
▫ Voice Training ...................... 184
 Voice Command ...................... 185
▫ Uconnect 8.4/8.4 NAV ................ 185
▫ Uconnect Voice Commands ............ 187
▫ Voice Tree ......................... 188
 Seats .............................. 197
▫ Power Seats — If Equipped ............. 198
▫ Manual Front Seat Forward/Rearward
Adjustment ........................ 200
▫ Manual Front Seat Recline Adjustment ..... 201
▫ Manual Seat Height Adjustment — If
Equipped .......................... 202
▫ Heated Seats — If Equipped ............ 202
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Overhead Console ..................... 248
▫ Front Map/Reading Lights ............. 248
▫ Sunglass Bin Door ................... 249
 Garage Door Opener — If Equipped ........ 249
▫ Before You Begin Programming
HomeLink ........................ 251
▫ Programming A Rolling Code ........... 251
▫ Programming A Non-Rolling Code ........ 253
▫ Canadian/Gate Operator Programming .... 254
▫ Using HomeLink ................... 256
▫ Security ........................... 256
▫ Troubleshooting Tips .................. 257
▫ General Information .................. 258
Power Sunroof — If Equipped ............ 258
▫ Opening Sunroof — Express ............ 259
▫ Opening Sunroof — Manual Mode ........ 260
▫ Closing Sunroof — Express ............. 260
▫ Closing Sunroof — Manual Mode ........ 260
▫ Pinch Protect Feature ................. 260
▫ Venting Sunroof — Express ............. 260
▫ Sunshade Operation .................. 261
▫ Wind Buffeting ...................... 261
▫ Sunroof Maintenance ................. 261
▫ Ignition Off Operation ................. 261
 Electrical Power Outlets — If Equipped ...... 262
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

Power Mirrors
The power mirror controls are located on the drivers door
trim panel.The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a
mirror, press either the L (left) or R (right) button to select
the mirror that you want to adjust.
Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
Power Mirror Control
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

List of Preset Messages:
1. Yes.
2. No.
3. Okay.
4. I can’t talk right now.
5. Call me.
6. I’ll call you later.
7. I’m on my way.
8. Thanks.
9. I’ll be late.
10. I will be minutes late.
11. See you in minutes.
12. Stuck in traffic.13. Start without me.
14. Where are you?
15. Are you there yet?
16. I need directions.
17. I’m lost.
18. See you later.
Bluetooth
Communication Link
Mobile phones have been found to lose connection to the
UconnectPhone. When this happens, the connection
can generally be reestablished by switching the phone
OFF/ON. Your mobile phone is recommended to remain
in Bluetooth ON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least 15 seconds prior to using the system.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
