TPMS DODGE DART 2013 PF / 1.G User Guide

the graphic display of the pressure value(s) will stop
flashing or return to their normal color, and the Tire
Pressure Monitoring Light will extinguish once the up-
dated tire pressure(s) have been received. The vehicle
may need to be driven for up to 20 minutes above 15 mph
(24 km/h) to receive this information.
Service TPMS Message
The Tire Pressure Monitoring Telltale Light will flash on
and off for 75 seconds, and then remain on solid when a
system fault is detected. The system fault will also sound
a chime. The EVIC will display a “SERVICE TPM SYS-
TEM” message for a minimum of five seconds. This text
message is then followed by a graphic display, with “- -“
in place of the pressure value(s) indicating which Tire
Pressure Monitoring Sensor(s) is not being received.
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the Tire Pressure Monitoring TelltaleLight will no longer flash, the
SERVICE TPM SYSTEM
message will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur
with any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The EVIC will also display a “SERVICE TPM SYSTEM”
message for a minimum of five seconds and the Tire
Pressure Monitoring Telltale Light will flash on and off
for 75 seconds, and then remain on solid when a system
5
STARTING AND OPERATING 455

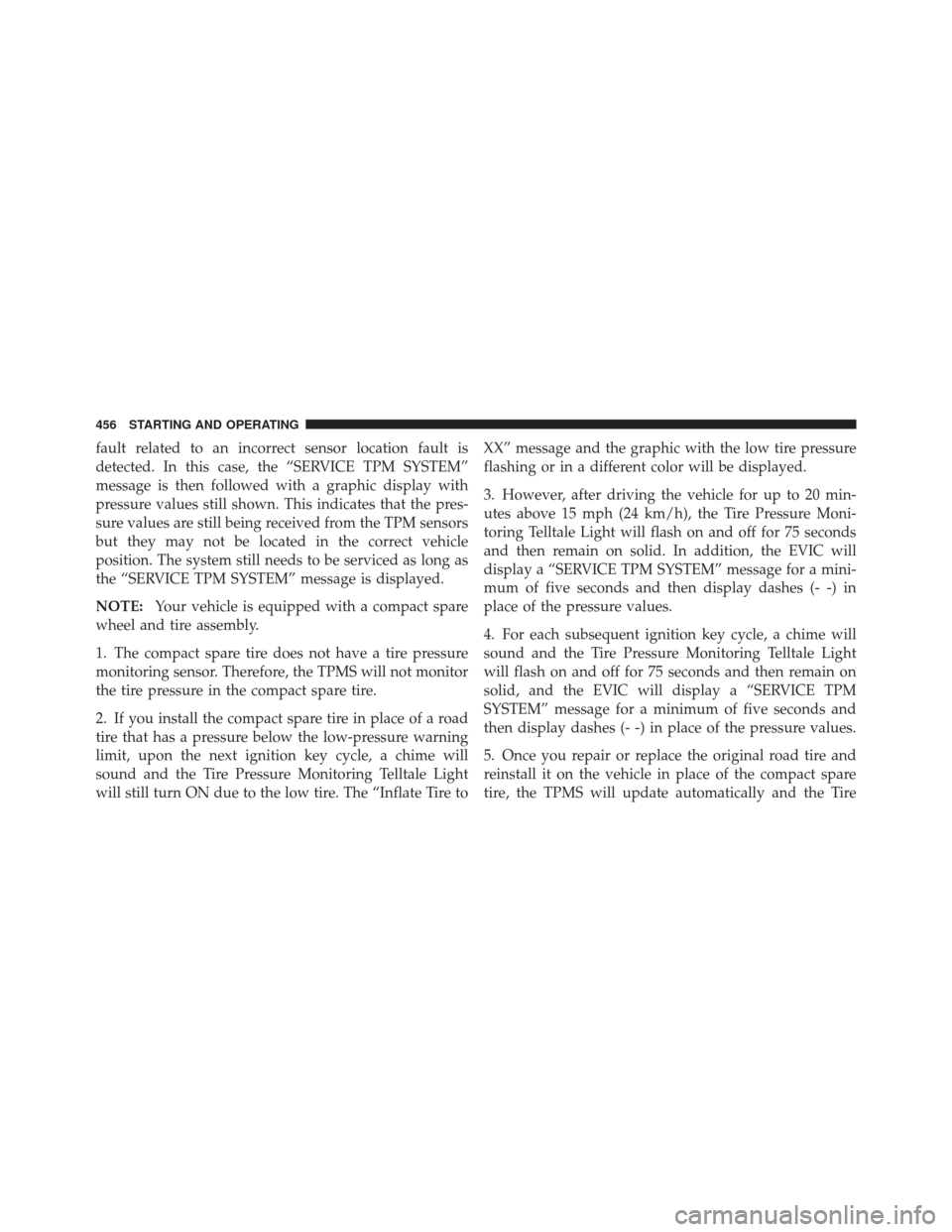

fault related to an incorrect sensor location fault is
detected. In this case, the “SERVICE TPM SYSTEM”
message is then followed with a graphic display with
pressure values still shown. This indicates that the pres-
sure values are still being received from the TPM sensors
but they may not be located in the correct vehicle
position. The system still needs to be serviced as long as
the “SERVICE TPM SYSTEM” message is displayed.
NOTE:Your vehicle is equipped with a compact spare
wheel and tire assembly.
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the tire pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will still turn ON due to the low tire. The “Inflate Tire to XX” message and the graphic with the low tire pressure
flashing or in a different color will be displayed.
3. However, after driving the vehicle for up to 20 min-
utes above 15 mph (24 km/h), the Tire Pressure Moni-
toring Telltale Light will flash on and off for 75 seconds
and then remain on solid. In addition, the EVIC will
display a “SERVICE TPM SYSTEM” message for a mini-
mum of five seconds and then display dashes (- -) in
place of the pressure values.
4. For each subsequent ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will flash on and off for 75 seconds and then remain on
solid, and the EVIC will display a “SERVICE TPM
SYSTEM” message for a minimum of five seconds and
then display dashes (- -) in place of the pressure values.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare
tire, the TPMS will update automatically and the Tire
456 STARTING AND OPERATING

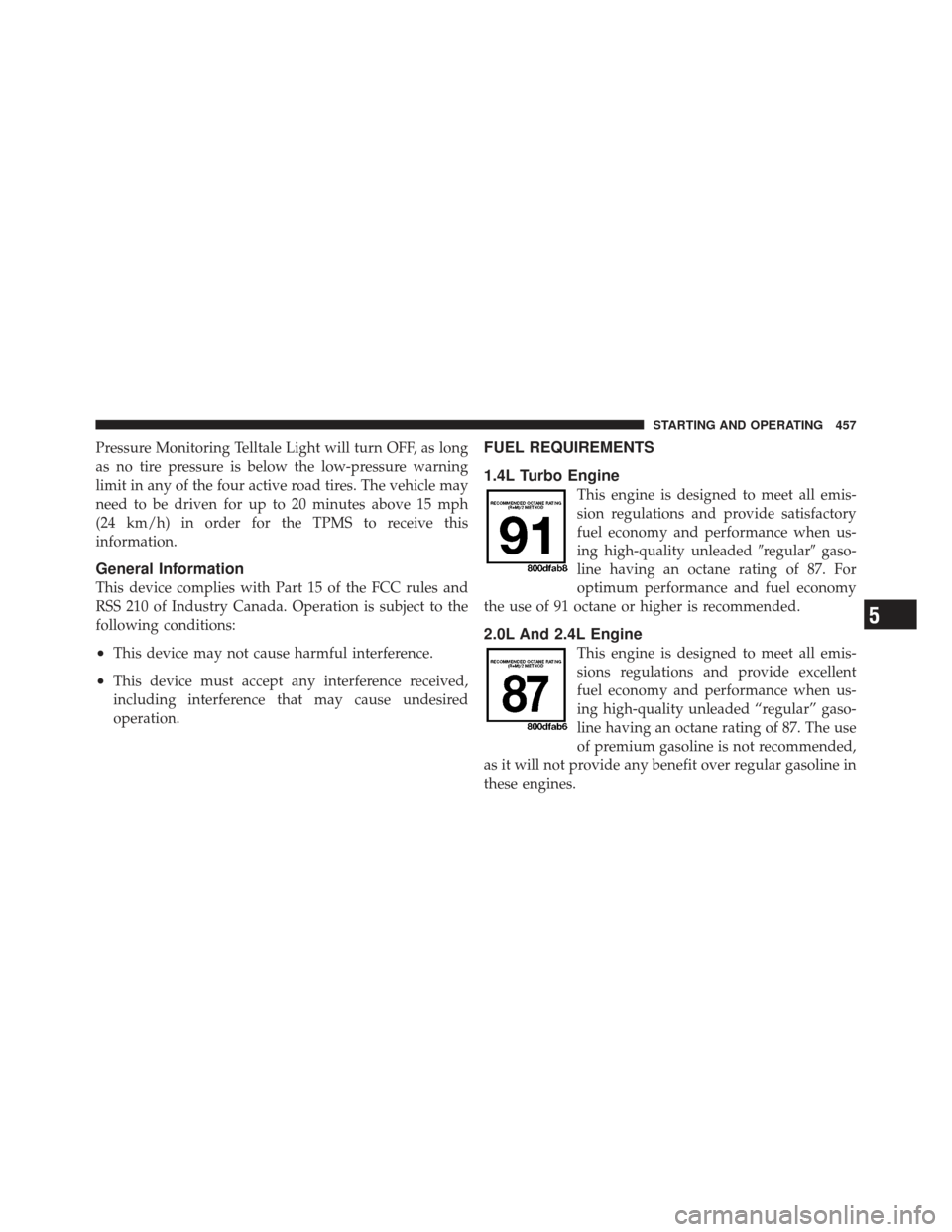

Pressure Monitoring Telltale Light will turn OFF, as long
as no tire pressure is below the low-pressure warning
limit in any of the four active road tires. The vehicle may
need to be driven for up to 20 minutes above 15 mph
(24 km/h) in order for the TPMS to receive this
information.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
FUEL REQUIREMENTS
1.4L Turbo Engine
This engine is designed to meet all emis-
sion regulations and provide satisfactory
fuel economy and performance when us-
ing high-quality unleadedregulargaso-
line having an octane rating of 87. For
optimum performance and fuel economy
the use of 91 octane or higher is recommended.
2.0L And 2.4L Engine
This engine is designed to meet all emis-
sions regulations and provide excellent
fuel economy and performance when us-
ing high-quality unleaded “regular” gaso-
line having an octane rating of 87. The use
of premium gasoline is not recommended,
as it will not provide any benefit over regular gasoline in
these engines.
5
STARTING AND OPERATING 457

Bulb Replacement.................... 557
Daytime Running .................... 214
Dimmer Switch, Headlight ...........216,217
Electronic Stability Program (ESP) Indicator . . 423
Exterior ............................ 97
Fog ............................ 215,288
Hazard Warning Flasher ............... 483
Headlight Switch ..................... 211
Headlights ...................... 21 1,557
Headlights On Reminder ............... 214
Headlights On With Wipers ..........212,222
High Beam ......................... 217
High Beam Indicator .................. 288
High Beam/Low Beam Select ............ 217
Illuminated Entry ..................... 23
Instrument Cluster .................... 211
Intensity Control ..................... 218
Interior ............................ 218
License ............................ 559 Lights On Reminder
.................. 214
Low Fuel ....................... 292,312
Malfunction Indicator (Check Engine) ...... 294
Oil Pressure ........................ 293
Parade Mode (Daytime Brightness) ........ 220
Passing ............................ 217
Reading ........................ 217,248
Seat Belt Reminder ................... 288
Security Alarm (Theft Alarm) ............ 291
Service Engine Soon
(Malfunction Indicator) ................ 294
SmartBeams ........................ 213
Theft Alarm (Security Alarm) ............ 291
Tire Pressure Monitoring (TPMS) ......... 284
Traction Control ..................... 423
Turn Signal ....................... 97,216
Vanity Mirror ....................... 109
Voltage ............................ 293
Warning (Instrument Cluster Description) . . . 284
10
INDEX 591

Changing....................... 484,487
Compact Spare ...................... 440
Flat Changing ....................... 484
General Information .................. 436
High Speed ......................... 438
Inflation Pressures .................... 437
Jacking ......................... 486,487
Life of Tires ........................ 443
Load Capacity .................... 432,433
Pressure Monitor System (TPMS) ......... 449
Pressure Warning Light ................ 284
Quality Grading ..................... 579
Radial ............................ 439
Replacement ........................ 444
Rotation ........................... 448
Safety .......................... 427,436
Sizes ............................. 428
Snow Tires ......................... 447
Spare Tire .......................... 485 Spinning
........................... 442
Tread Wear Indicators ................. 442
Tongue Weight/Trailer Weight .............. 470
Towing ............................... 467
24-Hour Towing Assistance ............. 131
Disabled Vehicle ..................... 513
Guide ............................. 470
Recreational ........................ 479
Weight ............................ 470
Towing Assistance ....................... 131
Traction .............................. 409
Traction Control ......................... 418
Trailer Sway Control (TSC) ................. 420
Trailer Towing .......................... 467
Cooling System Tips .................. 478
Hitches ............................ 469
Minimum Requirements ................ 472
Trailer and Tongue Weight .............. 470
Wiring ............................ 475
598 INDEX
