clock DODGE DART 2013 PF / 1.G User Guide

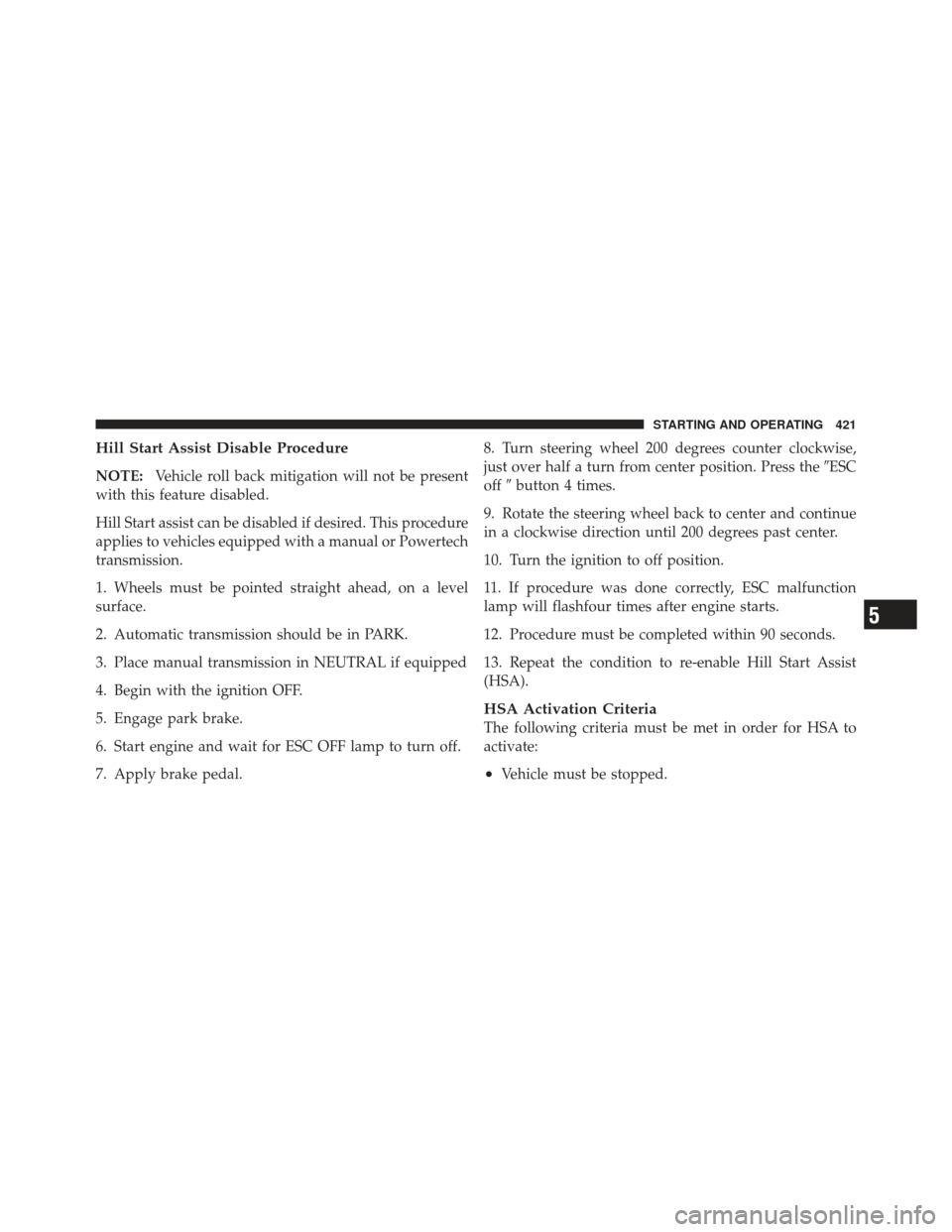

Hill Start Assist Disable Procedure
NOTE:Vehicle roll back mitigation will not be present
with this feature disabled.
Hill Start assist can be disabled if desired. This procedure
applies to vehicles equipped with a manual or Powertech
transmission.
1. Wheels must be pointed straight ahead, on a level
surface.
2. Automatic transmission should be in PARK.
3. Place manual transmission in NEUTRAL if equipped
4. Begin with the ignition OFF.
5. Engage park brake.
6. Start engine and wait for ESC OFF lamp to turn off.
7. Apply brake pedal. 8. Turn steering wheel 200 degrees counter clockwise,
just over half a turn from center position. Press the
ESC
off button 4 times.
9. Rotate the steering wheel back to center and continue
in a clockwise direction until 200 degrees past center.
10. Turn the ignition to off position.
11. If procedure was done correctly, ESC malfunction
lamp will flashfour times after engine starts.
12. Procedure must be completed within 90 seconds.
13. Repeat the condition to re-enable Hill Start Assist
(HSA).
HSA Activation Criteria
The following criteria must be met in order for HSA to
activate:
•Vehicle must be stopped.
5
STARTING AND OPERATING 421

1. Remove the spare tire, jack, and wheel bolt wrench.
2. If equipped with aluminum wheels where the center
cap covers the wheel bolts, use the wheel bolt wrench to
pry the center cap off carefully before raising the vehicle.
3. Before raising the vehicle, use the wheel bolt wrench
to loosen, but not remove, the wheel bolts on the wheel
with the flat tire. Turn the wheel bolts counterclockwise
one turn while the wheel is still on the ground.
4. Place the jack underneath the lift area that is closest to
the flat tire. Turn the jack screw clockwise to firmly
engage the jack saddle with the lift area of the sill flange,
centering the jack saddle between the locating notches on
the sill flange.
Front Jacking Location6
WHAT TO DO IN EMERGENCIES 489

NOTE:
•For vehicles so equipped, do not attempt to install a
center cap or wheel cover on the compact spare.
•Refer to “Compact Spare Tire” and to “Limited-Use
Spare” under “Tires—General Information” in “Start-
ing and Operating” for additional warnings, cautions,
and information about the spare tire, its use, and
operation.
8. Install the wheel bolts with the threaded end of the
wheel bolt toward the wheel. Lightly tighten the wheel
bolts.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the wheel bolts fully until the vehicle
has been lowered. Failure to follow this warning may
result in personal injury.
9. Lower the vehicle to the ground by turning the jack
handle counterclockwise.Mounting Spare Tire6
WHAT TO DO IN EMERGENCIES 491

3. Align the valve notch in the wheel cover with the
valve stem on the wheel. Install the cover by hand,
snapping the cover over the two wheel bolts. Do not use
a hammer or excessive force to install the cover.
4. Install the remaining wheel bolts with the threaded
end of the wheel bolt toward the wheel. Lightly tighten
the wheel bolts.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the wheel bolts fully until the vehicle
has been lowered. Failure to follow this warning may
result in personal injury.
5. Lower the vehicle to the ground by turning the jack
handle counterclockwise.
Tire And Wheel Cover Or Center Cap
1 — Valve Stem 4 — Wheel Cover
2 — Valve Notch 5 — Road Wheel
3 — Wheel bolt
6
WHAT TO DO IN EMERGENCIES 493

3. Lower the vehicle to the ground by turning the jack
handle counterclockwise.
4. Finish tightening the wheel bolts. Push down on the
wrench while at the end of the handle for increased
leverage. Tighten the wheel bolts in a star pattern until
each wheel bolt has been tightened twice. The correct
tightness of each wheel bolt is 95 ft/lbs (128 N·m). If in
doubt about the correct tightness, have them checked
with a torque wrench by your authorized dealer or
service station.
5. After 25 miles (40 km) check the wheel bolt torque
with a torque wrench to ensure that all wheel bolts are
properly seated against the wheel.TIREFIT KIT — IF EQUIPPED
Small punctures up to 1/4 in (6 mm) in the tire tread can
be sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (88 km/h).
TIREFIT Storage
The TIREFIT kit is located in the trunk under the load
floor.6
WHAT TO DO IN EMERGENCIES 495

Backup Lamps
1. Open trunk.
2. Remove trim cover.3. Twist the bulb socket one quarter turn counter clock-
wise to remove.
4. Replace bulb.
558 MAINTAINING YOUR VEHICLE

5.Twist the bulb socket one quarter turn clockwise to install.
6. Install trim cover.

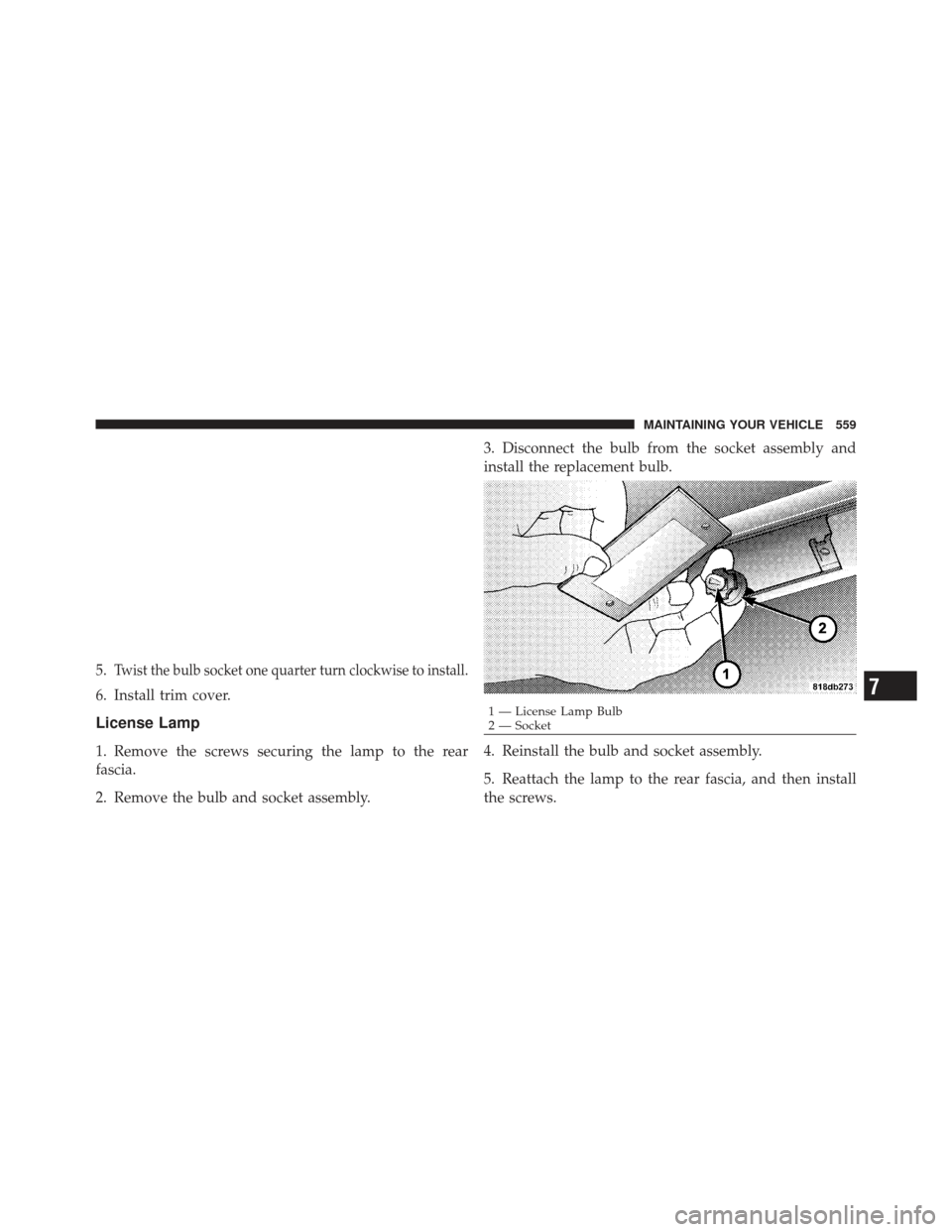

License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
7
MAINTAINING YOUR VEHICLE 559

Caps, FillerFuel .............................. 462
Oil (Engine) ................... 518,519,526
Car Washes ............................ 547
Carbon Monoxide Warning ...............94,461
CD (Compact Disc) Player ................. 350
Cellular Phone ....................... 1 17,360
Chains, Tire ............................ 446
Changing A Flat Tire ..................... 484
Chart, Tire Sizing ........................ 428
Check Engine Light
(Malfunction Indicator Light) .............294,521
Checking Your Vehicle For Safety ............. 94
Checks, Safety ........................... 94
Child Restraint .................. 83,84,85,88,90
Child Restraint Tether Anchors .............87,88
Child Safety Locks ........................ 35
Clean Air Gasoline ....................... 458 Cleaning
Wheels ............................ 549
Climate Control ......................... 361
Clock ................................ 340
Clutch ............................... 542
Clutch Fluid ........................... 542
Coin Holder ........................... 268
Compact Disc (CD) Maintenance ............. 360
Compact Disc (CD) Player ................. 350
Compact Spare Tire ...................... 440
Computer, Trip/Travel .................... 303
Connector UCI .............................. 352
Universal Consumer Interface (UCI) ....... 352
Conserving Fuel ........................ 320
Console, Floor .......................... 268
Console, Overhead ....................... 248
Contract, Service ........................ 575
Coolant (Antifreeze) ................... 560,561
584 INDEX

Heated............................ 202
Rear Folding ........................ 207
Seatback Release .................. 201,207
Tilting ............................ 201
Security Alarm (Theft Alarm) ................ 21
Selection of Oil ......................... 525
Sentry Key (Immobilizer) ................... 19
Sentry Key Programming ................... 20
Sentry Key Replacement ................... 20
Service Assistance ....................... 573
Service Contract ......................... 575
Service Engine Soon Light
(Malfunction Indicator) .................... 294
Service Manuals ........................ 577
Setting the Clock ........................ 340
Shift Lever Override ...................... 511
Shifting Manual Transmission .................. 384
Short Message Service (SMS) ................ 139Shoulder Belt Upper Anchorage
.............. 55
Shoulder Belts ........................... 50
Side Airbag ............................. 77
Side View Mirror Adjustment ............... 106
Signals, Turn ...................... 97,216,286
Slippery Surfaces, Driving On ............... 408
SmartBeams ........................... 213
Snow Chains (Tire Chains) ................. 446
Snow Tires ............................ 447
Spare Tire ....................... 440,441,485
Specifications Oil ............................... 525
Speed Control (Cruise Control) .............. 227
Speedometer ........................... 290
Starting ............................. 28,379
Automatic Transmission ................ 380
Engine Fails to Start .................. 382
Manual Transmission .................. 379
Remote ............................ 28
596 INDEX
