8. Disconnect the opposite end of the positive(+)jumper
cable from the positive (+)post of the booster battery.
9. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
FREEING A STUCK VEHICLE
If your manual transmission vehicle becomes stuck in
mud, sand, or snow, it can often be moved by a rocking
motion. Turn your steering wheel right and left to clear
the area around the front wheels. Then shift back and
forth between DRIVE (automatic transmission) or 1st
Gear (manual transmission) and REVERSE. Using mini-
mal accelerator pedal pressure to maintain the rocking
motion, without spinning the wheels, is most effective.
NOTE: Automatic transmission vehicles cannot be
rocked in this manner, because the transmission will not
allow shifts between DRIVE and REVERSE while the
wheels are turning.
6
WHAT TO DO IN EMERGENCIES 509

CAUTION!
Racing the engine or spinning the wheels may lead to
transmission or clutch overheating and failure. Al-
low the engine to idle with the shift lever in NEU-
TRAL for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of transmission or clutch failure
during prolonged efforts to free a stuck vehicle.
NOTE: Turn off the Electronic Stability Program (ESP)
— if equipped, or Traction Control System (TCS) — if
equipped before rocking the vehicle. Refer to “Electronic
Brake Control” in “Starting And Operating” for further
information.
CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween DRIVE (automatic transmission) or 1st Gear
(manual transmission) and REVERSE, do not spin
the wheels faster than 15 mph (24 km/h), or drive-
train damage may result.
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h) while in gear (no
transmission shifting occurring).
510 WHAT TO DO IN EMERGENCIES

WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
SHIFT LEVER OVERRIDE
If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:
1. Turn the engine OFF.
2. Firmly apply the parking brake.3. Remove the rubber storage tray liner from the center
console, then lift up the front of the shift lever/PRNDL
bezel, carefully disengage the bezel from the shift lever
housing, and slide it up to the top of the shift lever.
4. Press and maintain firm pressure on the brake pedal.
Shift Lever/PRNDL Bezel
6
WHAT TO DO IN EMERGENCIES 511

5. Insert a small screwdriver or similar tool down into
the access slot at the front of the shift lever assembly, and
push and hold the white override release lever down.
6. Move the shift lever to the NEUTRAL position.7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever/PRNDL bezel (use care to
avoid pinching the wiring), and the rubber storage tray
liner.
Override Release Tab
Shift Lever
512 WHAT TO DO IN EMERGENCIES

TOWING A DISABLED VEHICLE
NOTE:This section describes procedures for towing a disabled vehicle using a commercial wrecker service.
Towing Condition WheelsOFF The GroundAUTOMATIC
TRANSMISSION MANUAL
TRANSMISSION
Flat Tow NONE NOT ALLOWEDTrans in NEUTRAL
Dolly Tow Rear
NOT ALLOWED NOT ALLOWED
Front NOT ALLOWED NOT ALLOWED
Flatbed ALLBEST METHOD BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
Automatic Transmission
Automatic transmission vehicles can be towed with the
front wheels elevated, or on a flatbed truck (all four
wheels OFFthe ground).
CAUTION!
DO NOT flat tow any vehicle equipped with an
automatic transmission. Damage to the drivetrain
will result.
6
WHAT TO DO IN EMERGENCIES 513

Manual Transmission
•
Manual transmission vehicles can be flat towed (all
four wheels on the ground) with the transmission in
NEUTRAL.
•Manual transmission vehicles can also be towed with
the front wheels elevated, or on a flatbed truck (all
four wheelsOFFthe ground).
CAUTION!
DO NOT flat tow any disabled vehicle if condition is
related to a clutch, transmission or driveline compo-
nent. Damage to the drivetrain could result.
All Transmissions
If you must use the accessories (wipers, defroster, etc.)
while being towed, the key must be in the ON/RUN
position, not the ACC position. If the key fob is unavailable, or the battery is discharged,
see “Shift Lever Override” in “What To Do In Emergen-
cies” for instructions on shifting the automatic transmis-
sion out of PARK for towing.
CAUTION!
Do not use sling-type equipment when towing.
When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
514 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 1.4L Turbo ........ 517
 Engine Compartment — 2.0L ............. 518
 Engine Compartment — 2.4L ............. 519
 Onboard Diagnostic System — OBD II ...... 520
▫ Loose Fuel Filler Cap Message ........... 520
 Emissions Inspection And Maintenance
Programs ............................ 521
 Replacement Parts ..................... 522
 Dealer Service ........................ 523
Maintenance Procedures ................. 523
▫ Engine Oil ......................... 524
▫ Engine Oil Filter ..................... 527
▫ Engine Air Cleaner Filter ............... 527
▫ Maintenance-Free Battery .............. 528
▫ Air Conditioner Maintenance ............ 529
▫ Body Lubrication .................... 532
▫ Windshield Wiper Blades ............... 533
▫ Adding Washer Fluid ................. 534
7

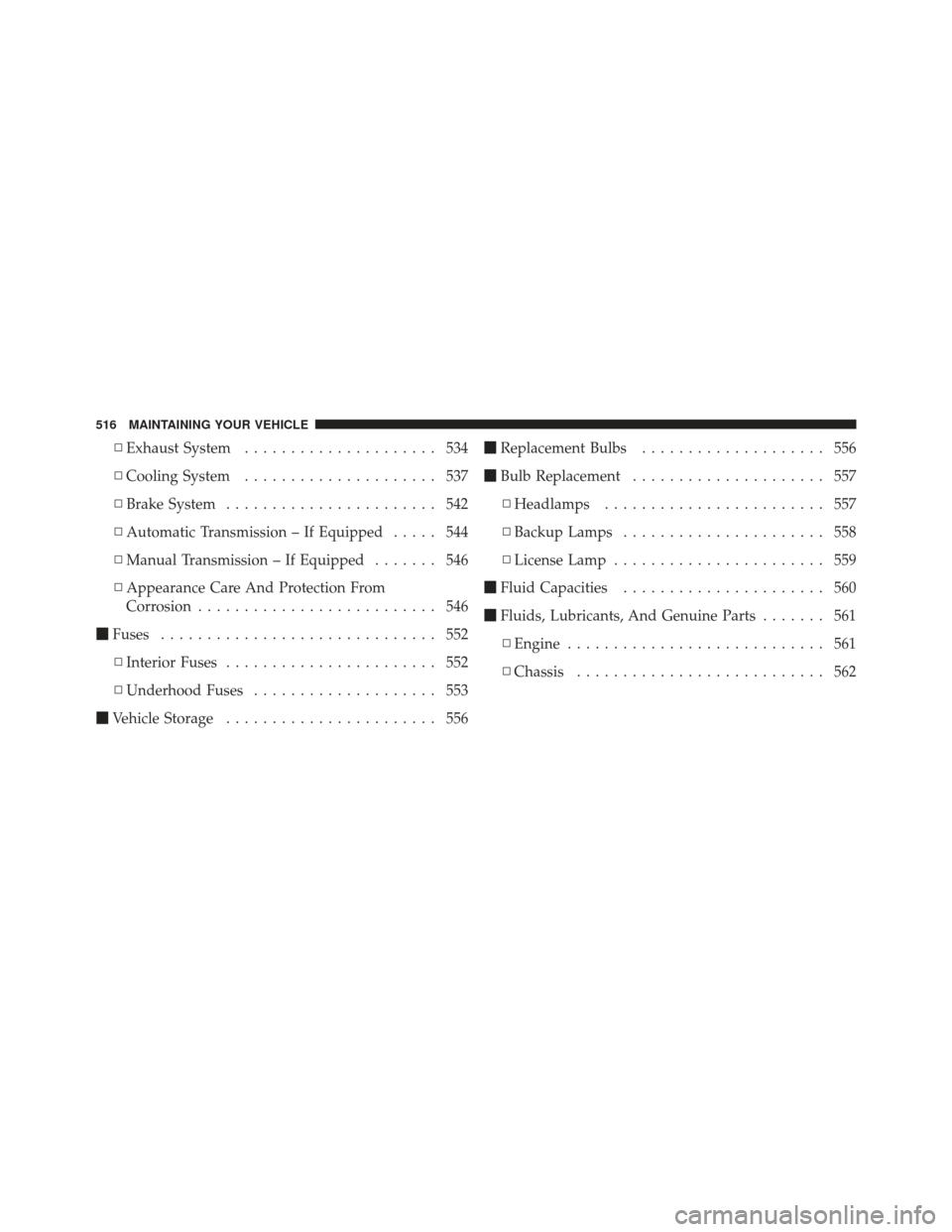

▫Exhaust System ..................... 534
▫ Cooling System ..................... 537
▫ Brake System ....................... 542
▫ Automatic Transmission – If Equipped ..... 544
▫ Manual Transmission – If Equipped ....... 546
▫ Appearance Care And Protection From
Corrosion .......................... 546
 Fuses .............................. 552
▫ Interior Fuses ....................... 552
▫ Underhood Fuses .................... 553
 Vehicle Storage ....................... 556
Replacement Bulbs .................... 556
 Bulb Replacement ..................... 557
▫ Headlamps ........................ 557
▫ Backup Lamps ...................... 558
▫ License Lamp ....................... 559
 Fluid Capacities ...................... 560
 Fluids, Lubricants, And Genuine Parts ....... 561
▫ Engine ............................ 561
▫ Chassis ........................... 562
516 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Power Distribution Center
2 — Engine Oil Level Indicator 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Battery
4 — Brake Fluid Reservoir 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 517

ENGINE COMPARTMENT — 2.0L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Integrated Power Module (Fuses) 8 — Air Cleaner Filter
