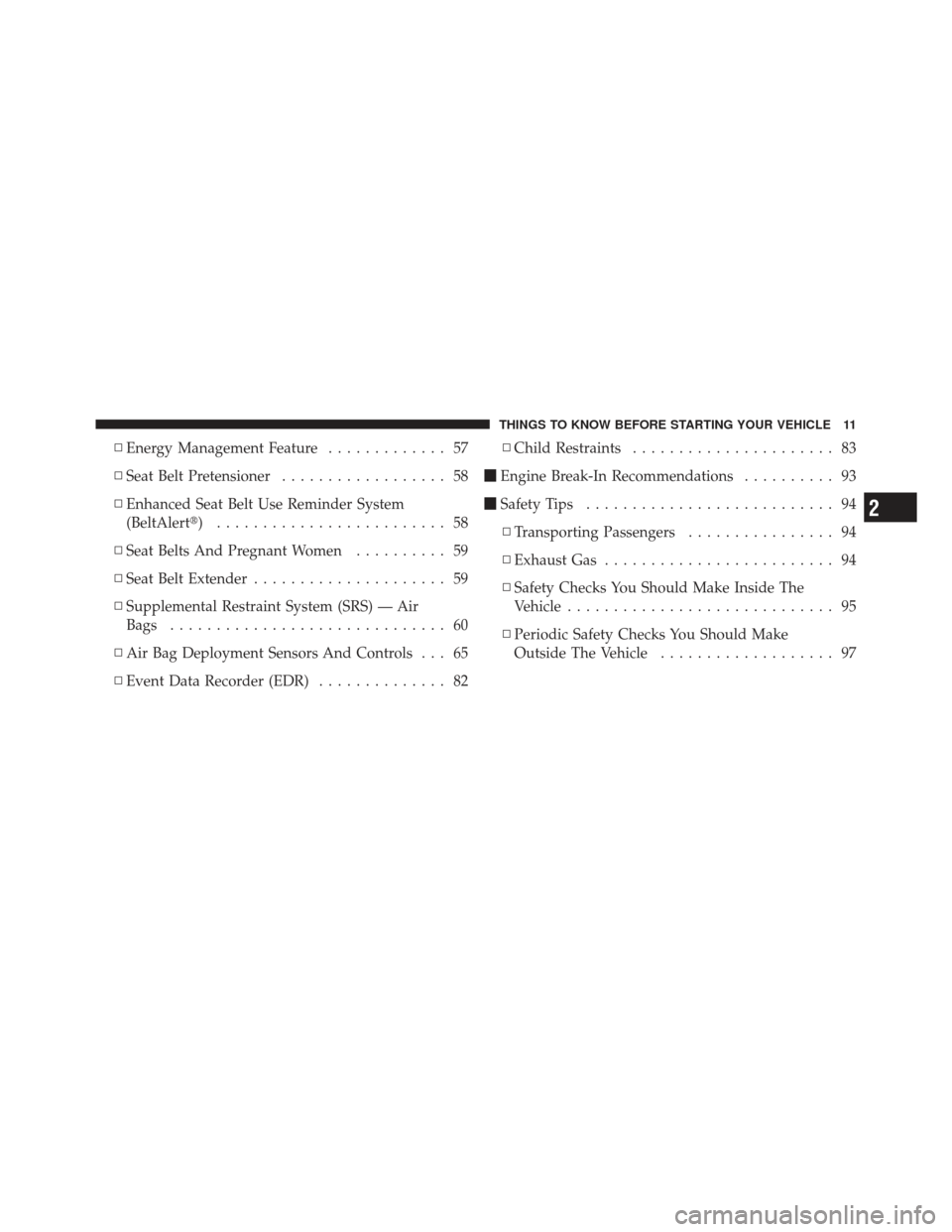

▫Energy Management Feature ............. 57
▫ Seat Belt Pretensioner .................. 58
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 58
▫ Seat Belts And Pregnant Women .......... 59
▫ Seat Belt Extender ..................... 59
▫ Supplemental Restraint System (SRS) — Air
Bags .............................. 60
▫ Air Bag Deployment Sensors And Controls . . . 65
▫ Event Data Recorder (EDR) .............. 82▫
Child Restraints ...................... 83
 Engine Break-In Recommendations .......... 93
 Safety Tips ........................... 94
▫ Transporting Passengers ................ 94
▫ Exhaust Gas ......................... 94
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 95
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 97
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

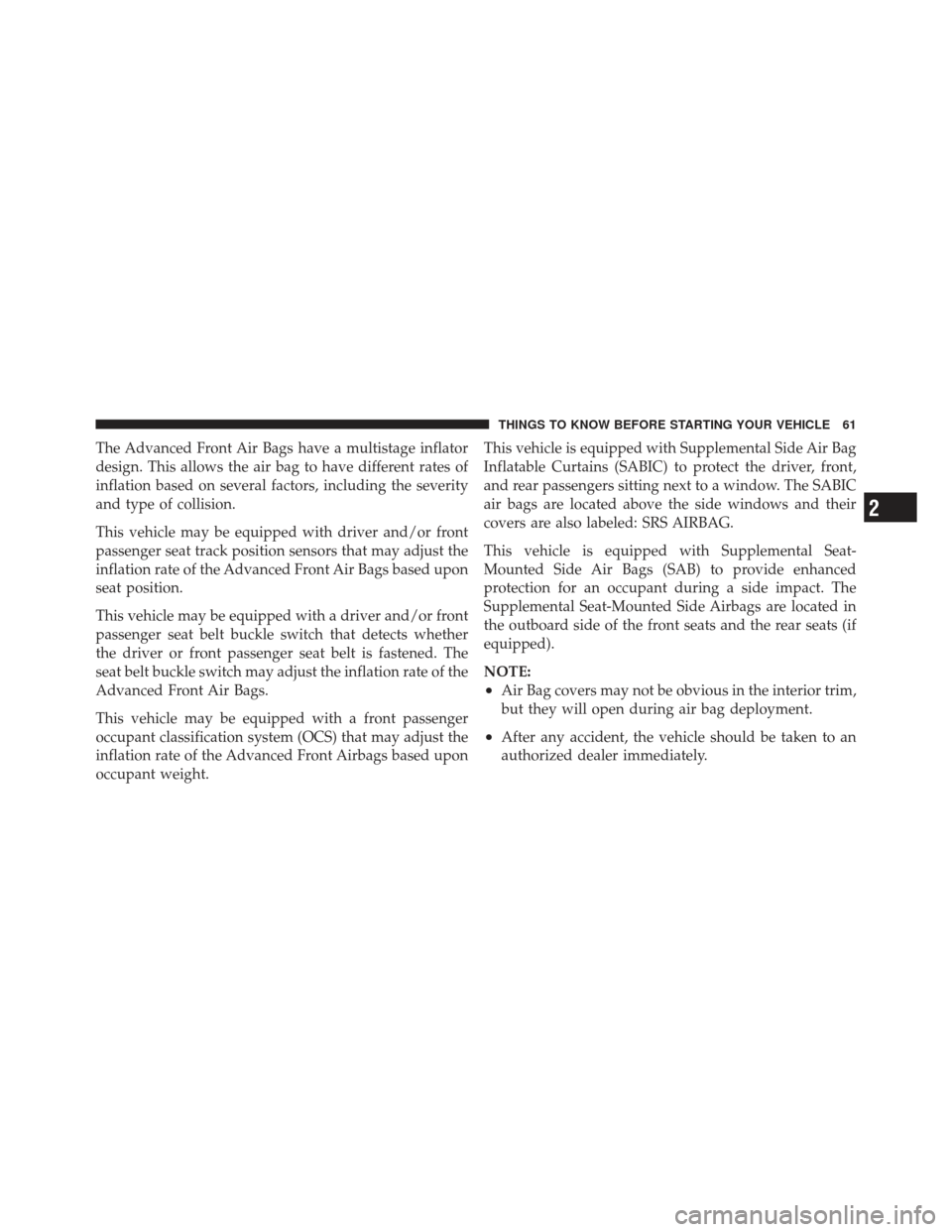

The Advanced Front Air Bags have a multistage inflator
design. This allows the air bag to have different rates of
inflation based on several factors, including the severity
and type of collision.
This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.
This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.
This vehicle may be equipped with a front passenger
occupant classification system (OCS) that may adjust the
inflation rate of the Advanced Front Airbags based upon
occupant weight.This vehicle is equipped with Supplemental Side Air Bag
Inflatable Curtains (SABIC) to protect the driver, front,
and rear passengers sitting next to a window. The SABIC
air bags are located above the side windows and their
covers are also labeled: SRS AIRBAG.
This vehicle is equipped with Supplemental Seat-
Mounted Side Air Bags (SAB) to provide enhanced
protection for an occupant during a side impact. The
Supplemental Seat-Mounted Side Airbags are located in
the outboard side of the front seats and the rear seats (if
equipped).
NOTE:
•Air Bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
•After any accident, the vehicle should be taken to an
authorized dealer immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

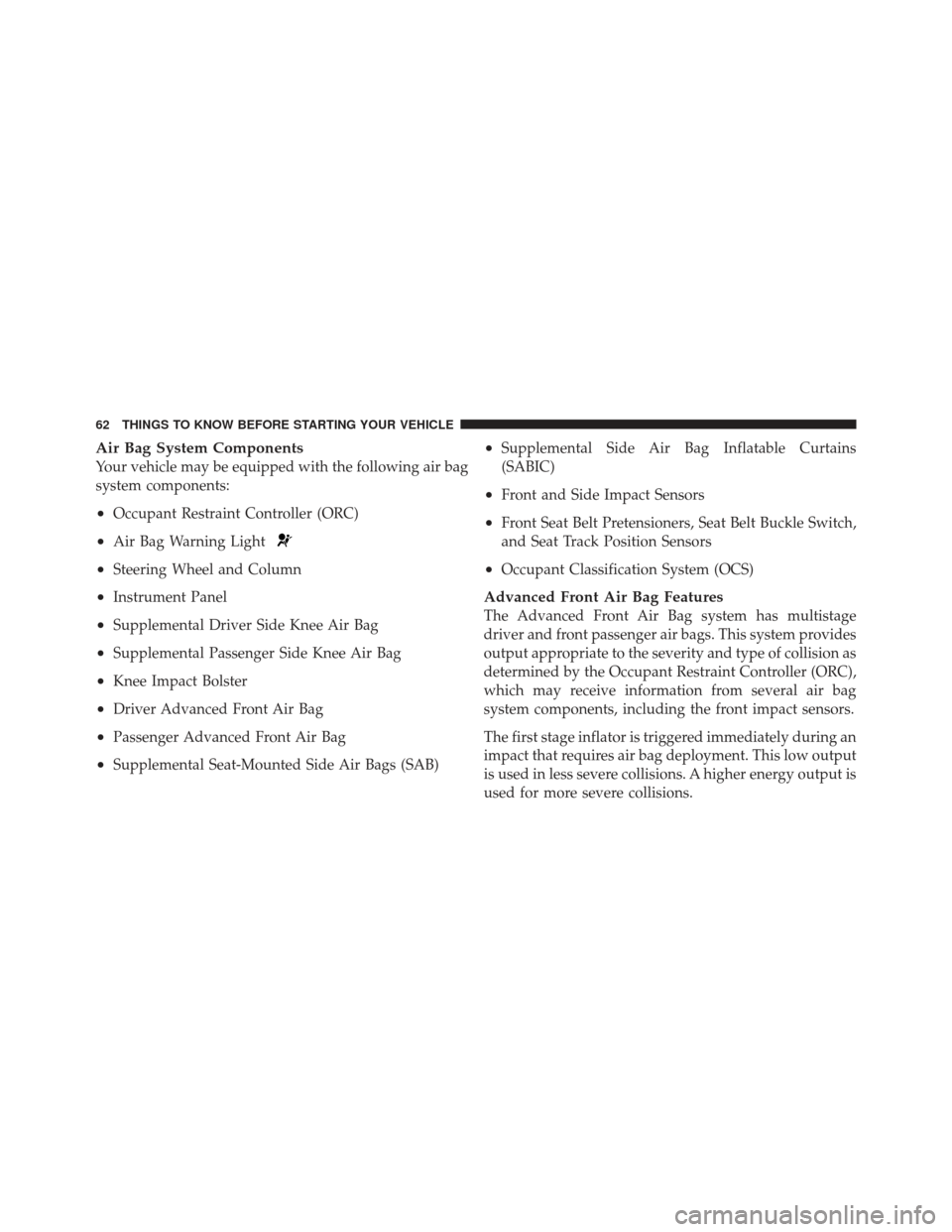

Air Bag System Components
Your vehicle may be equipped with the following air bag
system components:
•Occupant Restraint Controller (ORC)
•Air Bag Warning Light
•Steering Wheel and Column
•Instrument Panel
•Supplemental Driver Side Knee Air Bag
•Supplemental Passenger Side Knee Air Bag
•Knee Impact Bolster
•Driver Advanced Front Air Bag
•Passenger Advanced Front Air Bag
•Supplemental Seat-Mounted Side Air Bags (SAB)
•Supplemental Side Air Bag Inflatable Curtains
(SABIC)
•Front and Side Impact Sensors
•Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors
•Occupant Classification System (OCS)
Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage
driver and front passenger air bags. This system provides
output appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from several air bag
system components, including the front impact sensors.
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

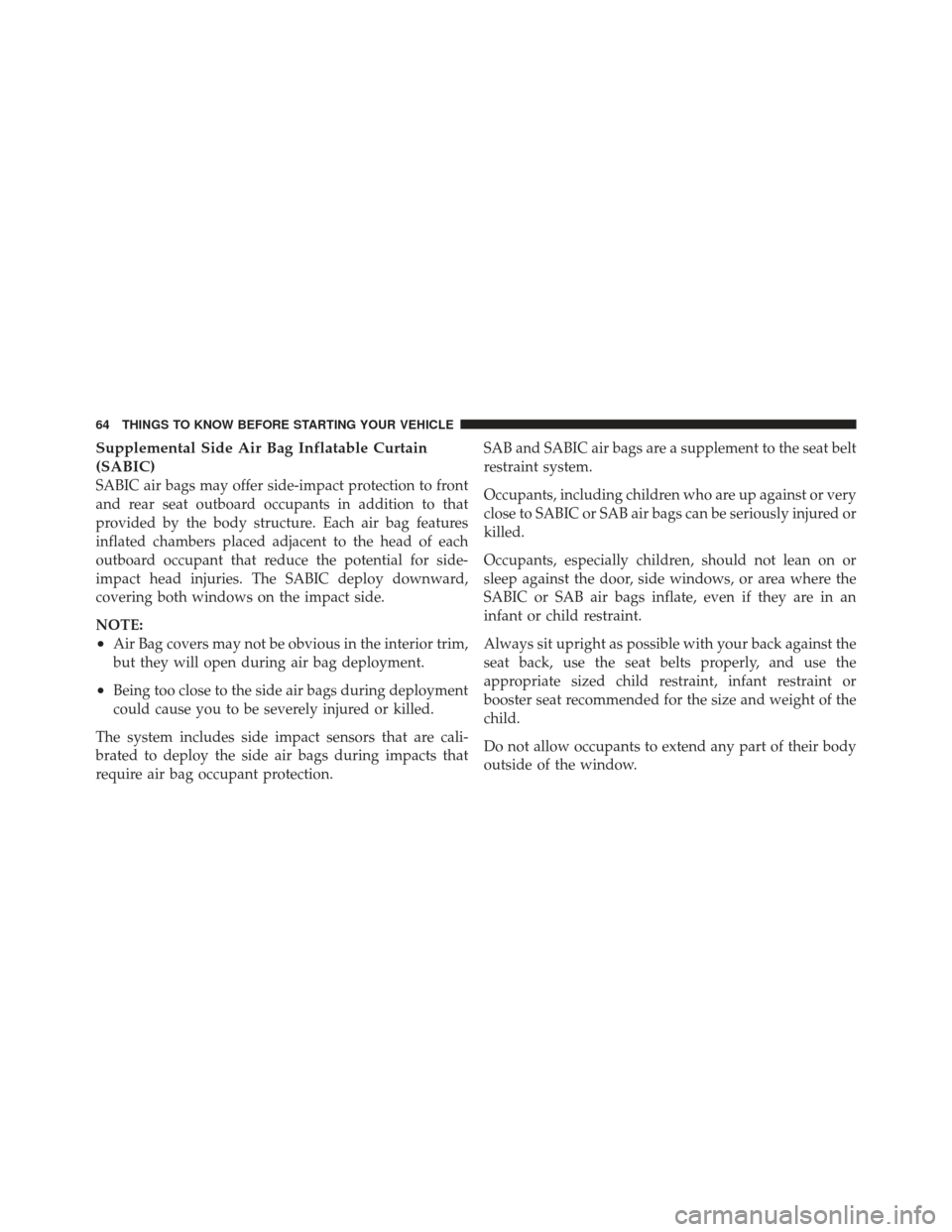

Supplemental Side Air Bag Inflatable Curtain
(SABIC)
SABIC air bags may offer side-impact protection to front
and rear seat outboard occupants in addition to that
provided by the body structure. Each air bag features
inflated chambers placed adjacent to the head of each
outboard occupant that reduce the potential for side-
impact head injuries. The SABIC deploy downward,
covering both windows on the impact side.
NOTE:
•Air Bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
•Being too close to the side air bags during deployment
could cause you to be severely injured or killed.
The system includes side impact sensors that are cali-
brated to deploy the side air bags during impacts that
require air bag occupant protection. SAB and SABIC air bags are a supplement to the seat belt
restraint system.
Occupants, including children who are up against or very
close to SABIC or SAB air bags can be seriously injured or
killed.
Occupants, especially children, should not lean on or
sleep against the door, side windows, or area where the
SABIC or SAB air bags inflate, even if they are in an
infant or child restraint.
Always sit upright as possible with your back against the
seat back, use the seat belts properly, and use the
appropriate sized child restraint, infant restraint or
booster seat recommended for the size and weight of the
child.
Do not allow occupants to extend any part of their body
outside of the window.
64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

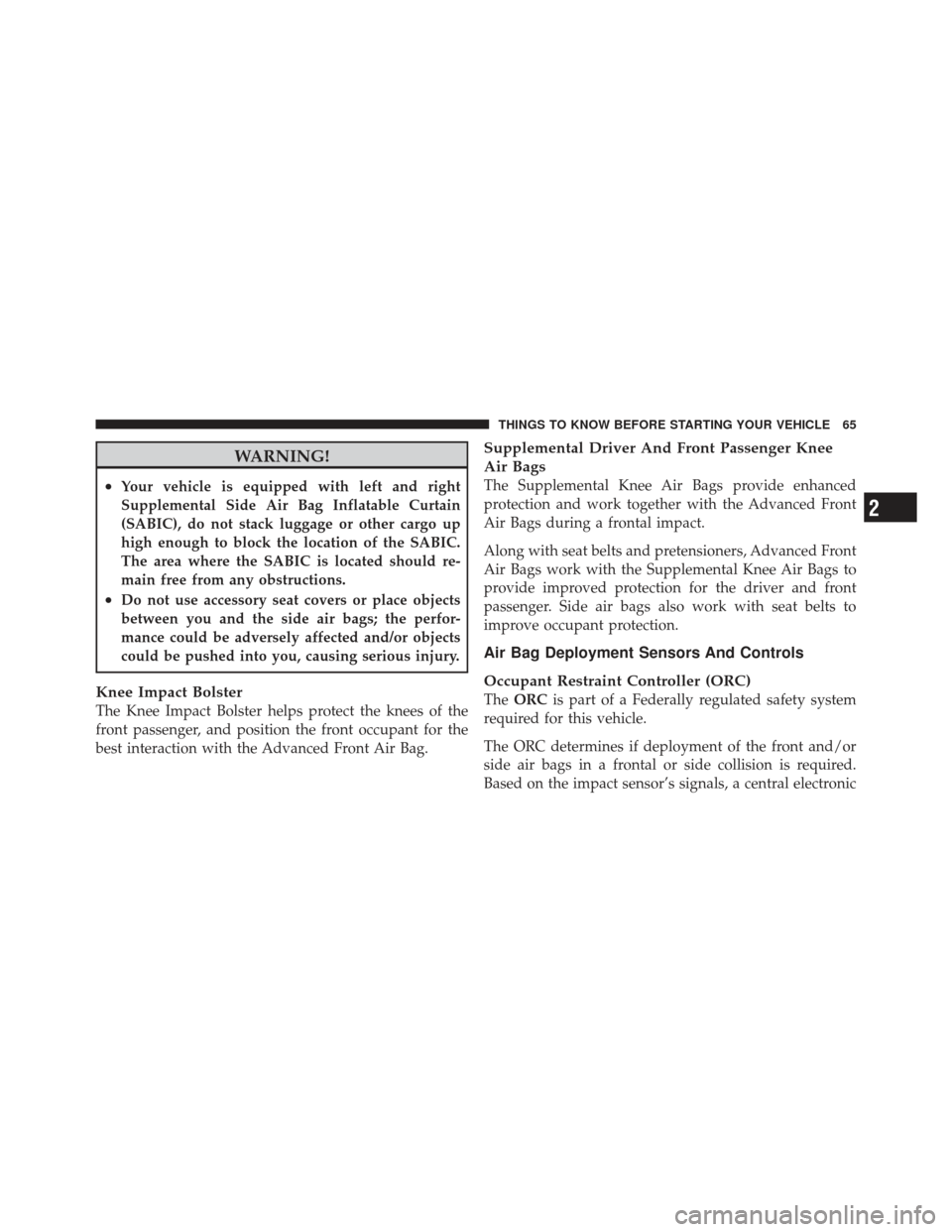

WARNING!
•Your vehicle is equipped with left and right
Supplemental Side Air Bag Inflatable Curtain
(SABIC), do not stack luggage or other cargo up
high enough to block the location of the SABIC.
The area where the SABIC is located should re-
main free from any obstructions.
•Do not use accessory seat covers or place objects
between you and the side air bags; the perfor-
mance could be adversely affected and/or objects
could be pushed into you, causing serious injury.
Knee Impact Bolster
The Knee Impact Bolster helps protect the knees of the
front passenger, and position the front occupant for the
best interaction with the Advanced Front Air Bag.
Supplemental Driver And Front Passenger Knee
Air Bags
The Supplemental Knee Air Bags provide enhanced
protection and work together with the Advanced Front
Air Bags during a frontal impact.
Along with seat belts and pretensioners, Advanced Front
Air Bags work with the Supplemental Knee Air Bags to
provide improved protection for the driver and front
passenger. Side air bags also work with seat belts to
improve occupant protection.
Air Bag Deployment Sensors And Controls
Occupant Restraint Controller (ORC)
TheORC is part of a Federally regulated safety system
required for this vehicle.
The ORC determines if deployment of the front and/or
side air bags in a frontal or side collision is required.
Based on the impact sensor’s signals, a central electronic
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65

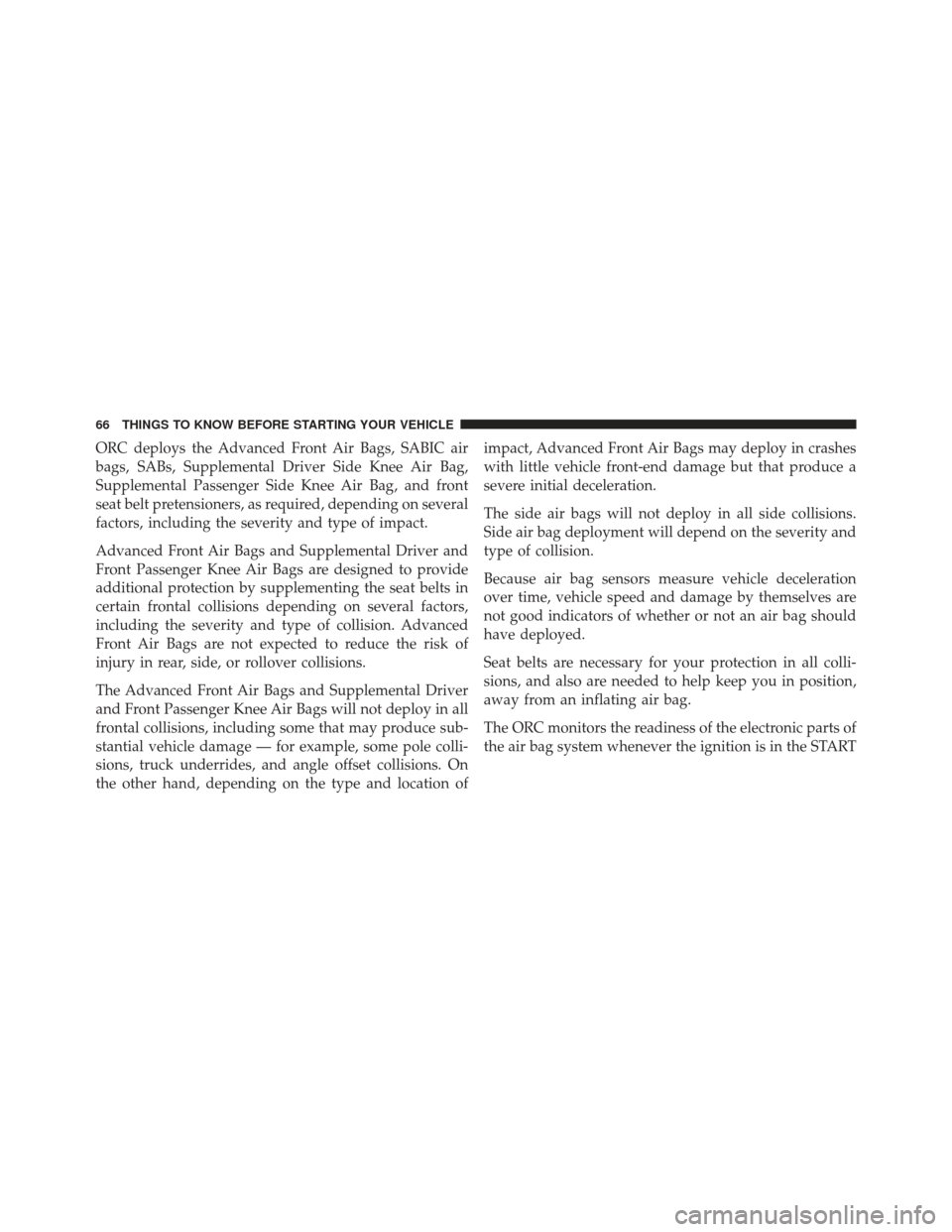

ORC deploys the Advanced Front Air Bags, SABIC air
bags, SABs, Supplemental Driver Side Knee Air Bag,
Supplemental Passenger Side Knee Air Bag, and front
seat belt pretensioners, as required, depending on several
factors, including the severity and type of impact.
Advanced Front Air Bags and Supplemental Driver and
Front Passenger Knee Air Bags are designed to provide
additional protection by supplementing the seat belts in
certain frontal collisions depending on several factors,
including the severity and type of collision. Advanced
Front Air Bags are not expected to reduce the risk of
injury in rear, side, or rollover collisions.
The Advanced Front Air Bags and Supplemental Driver
and Front Passenger Knee Air Bags will not deploy in all
frontal collisions, including some that may produce sub-
stantial vehicle damage — for example, some pole colli-
sions, truck underrides, and angle offset collisions. On
the other hand, depending on the type and location ofimpact, Advanced Front Air Bags may deploy in crashes
with little vehicle front-end damage but that produce a
severe initial deceleration.
The side air bags will not deploy in all side collisions.
Side air bag deployment will depend on the severity and
type of collision.
Because air bag sensors measure vehicle deceleration
over time, vehicle speed and damage by themselves are
not good indicators of whether or not an air bag should
have deployed.
Seat belts are necessary for your protection in all colli-
sions, and also are needed to help keep you in position,
away from an inflating air bag.
The ORC monitors the readiness of the electronic parts of
the air bag system whenever the ignition is in the START
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

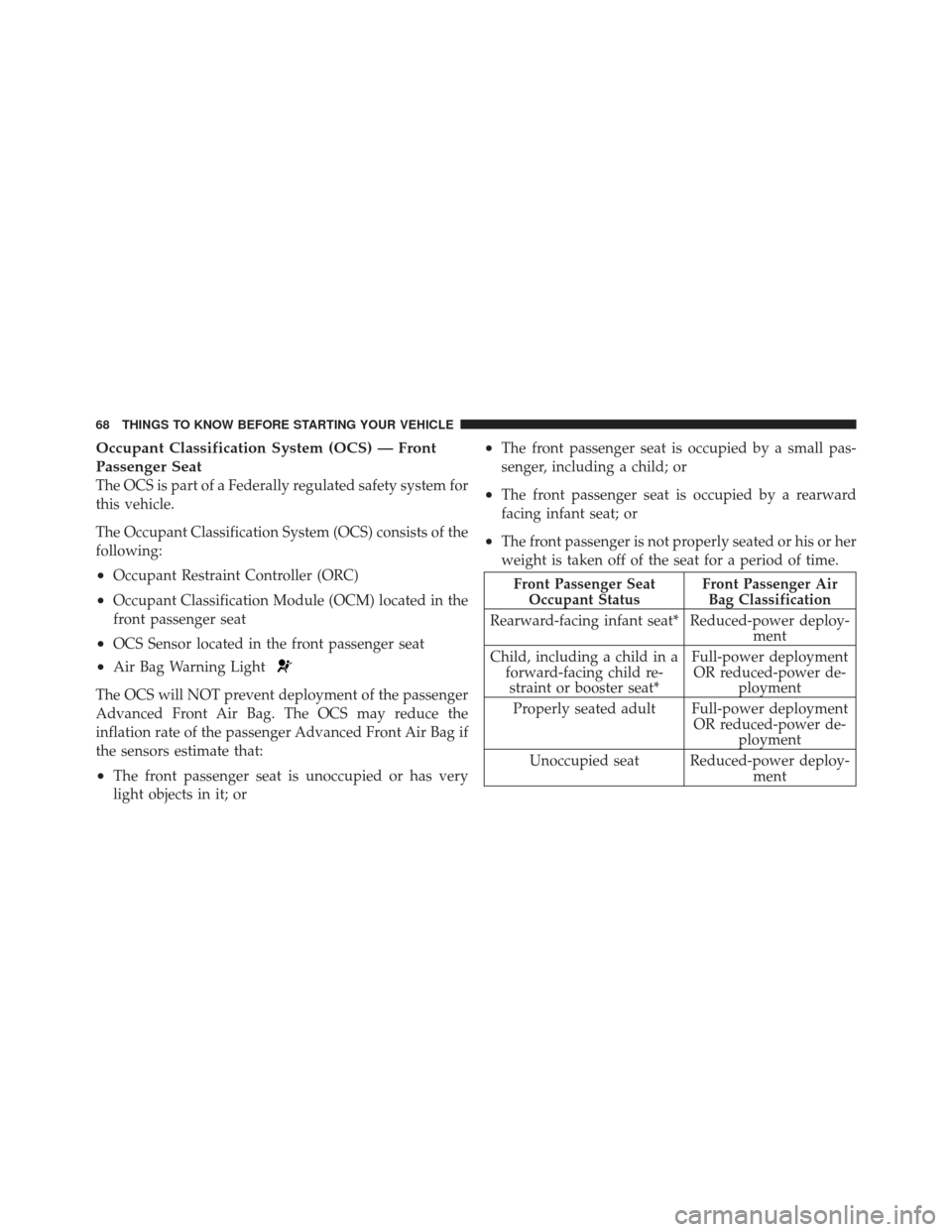

Occupant Classification System (OCS) — Front
Passenger Seat
The OCS is part of a Federally regulated safety system for
this vehicle.
The Occupant Classification System (OCS) consists of the
following:
•Occupant Restraint Controller (ORC)
•Occupant Classification Module (OCM) located in the
front passenger seat
•OCS Sensor located in the front passenger seat
•Air Bag Warning Light
The OCS will NOT prevent deployment of the passenger
Advanced Front Air Bag. The OCS may reduce the
inflation rate of the passenger Advanced Front Air Bag if
the sensors estimate that:
•The front passenger seat is unoccupied or has very
light objects in it; or
•The front passenger seat is occupied by a small pas-
senger, including a child; or
•The front passenger seat is occupied by a rearward
facing infant seat; or
•The front passenger is not properly seated or his or her
weight is taken off of the seat for a period of time.
Front Passenger SeatOccupant Status Front Passenger Air
Bag Classification
Rearward-facing infant seat* Reduced-power deploy- ment
Child, including a child in a forward-facing child re-straint or booster seat* Full-power deployment
OR reduced-power de- ployment
Properly seated adult Full-power deployment OR reduced-power de-ployment
Unoccupied seat Reduced-power deploy- ment
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A quantity of non-toxic gas is generated to inflate the side
curtain air bag. The inflating side curtain air bag pushes
the outside edge of the headliner out of the way and
covers the window. The air bag inflates in about 30
milliseconds (about one-quarter of the time that it takes
to blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain air bag
inflates. This especially applies to children. The side
curtain air bag is only about 4 inches (10.16 cm) thick
when it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.
Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power, until the ignition key is re-
moved or the ignition switch is changed to OFF using
the Keyless Go Start/Stop button.
•Unlock the doors automatically.
78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 222
▫ Rain Sensing Wipers — If Equipped ....... 223
 Tilt/Telescoping Steering Column .......... 224
 Heated Steering Wheel — If Equipped ...... 225
 Electronic Speed Control — If Equipped ..... 227
▫ To Activate ......................... 228
▫ To Set A Desired Speed ................ 229
▫ To Deactivate ....................... 229
▫ To Resume Speed .................... 230
▫ To Vary The Speed Setting .............. 230
▫ To Accelerate For Passing .............. 231
Parksense Rear Park Assist — If Equipped . . . 231
▫ Parksense Sensors................... 232
▫ Parksense Warning Display ............ 232
▫ Parksense Display................... 233
▫ Enabling And Disabling Parksense ....... 240
▫ Service The Parksense Rear Park Assist
System ............................ 240
▫ Cleaning The Parksense System......... 243
▫ Parksense System Usage Precautions ...... 243
 Parkview Rear Back Up Camera — If
Equipped ............................ 245
▫ Turning Parkview On Or Off — With Touch
Screen Radio ....................... 247
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

BLIND SPOT MONITORING — IF EQUIPPED
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway licensable vehicles (automobiles, trucks,
motorcycles, etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.When the vehicle is started, the BSM warning light will
momentarily illuminate in both outside rear view mirrors
to let the driver know that the system is operational. The
BSM system sensors operate when the vehicle is in any
forward gear or REVERSE and enters stand by mode
when the vehicle is in PARK.
Rear Detection ZonesBSM Warning Light
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
