coolant level DODGE DART 2013 PF / 1.G Owners Manual

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Power Distribution Center
2 — Engine Oil Level Indicator 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Battery
4 — Brake Fluid Reservoir 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 517

ENGINE COMPARTMENT — 2.0L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Integrated Power Module (Fuses) 8 — Air Cleaner Filter
518 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Integrated Power Module (Fuses) 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 519

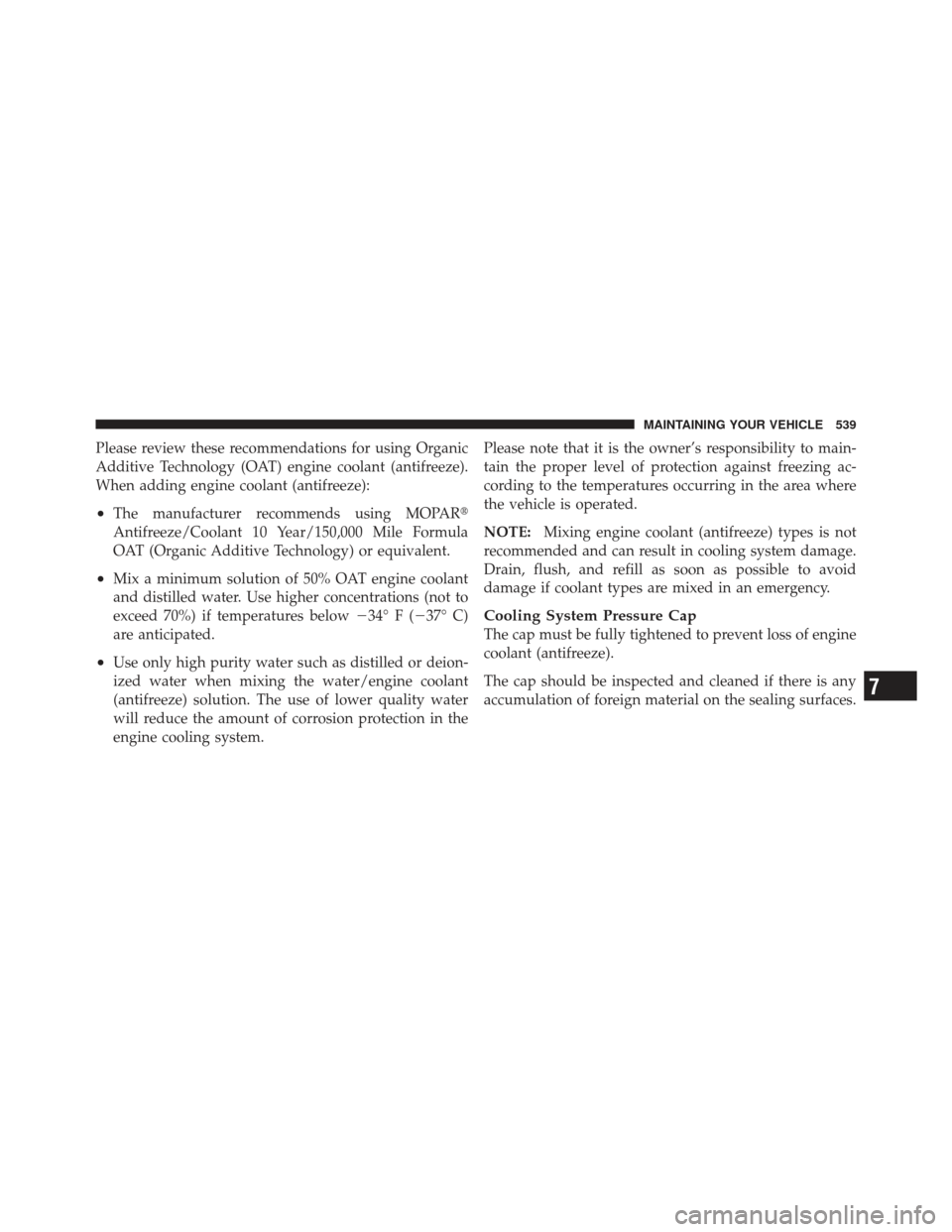

Please review these recommendations for using Organic
Additive Technology (OAT) engine coolant (antifreeze).
When adding engine coolant (antifreeze):
•The manufacturer recommends using MOPAR
Antifreeze/Coolant 10 Year/150,000 Mile Formula
OAT (Organic Additive Technology) or equivalent.
•Mix a minimum solution of 50% OAT engine coolant
and distilled water. Use higher concentrations (not to
exceed 70%) if temperatures below 34°F(37° C)
are anticipated.
•Use only high purity water such as distilled or deion-
ized water when mixing the water/engine coolant
(antifreeze) solution. The use of lower quality water
will reduce the amount of corrosion protection in the
engine cooling system. Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.
NOTE:
Mixing engine coolant (antifreeze) types is not
recommended and can result in cooling system damage.
Drain, flush, and refill as soon as possible to avoid
damage if coolant types are mixed in an emergency.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of engine
coolant (antifreeze).
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
7
MAINTAINING YOUR VEHICLE 539

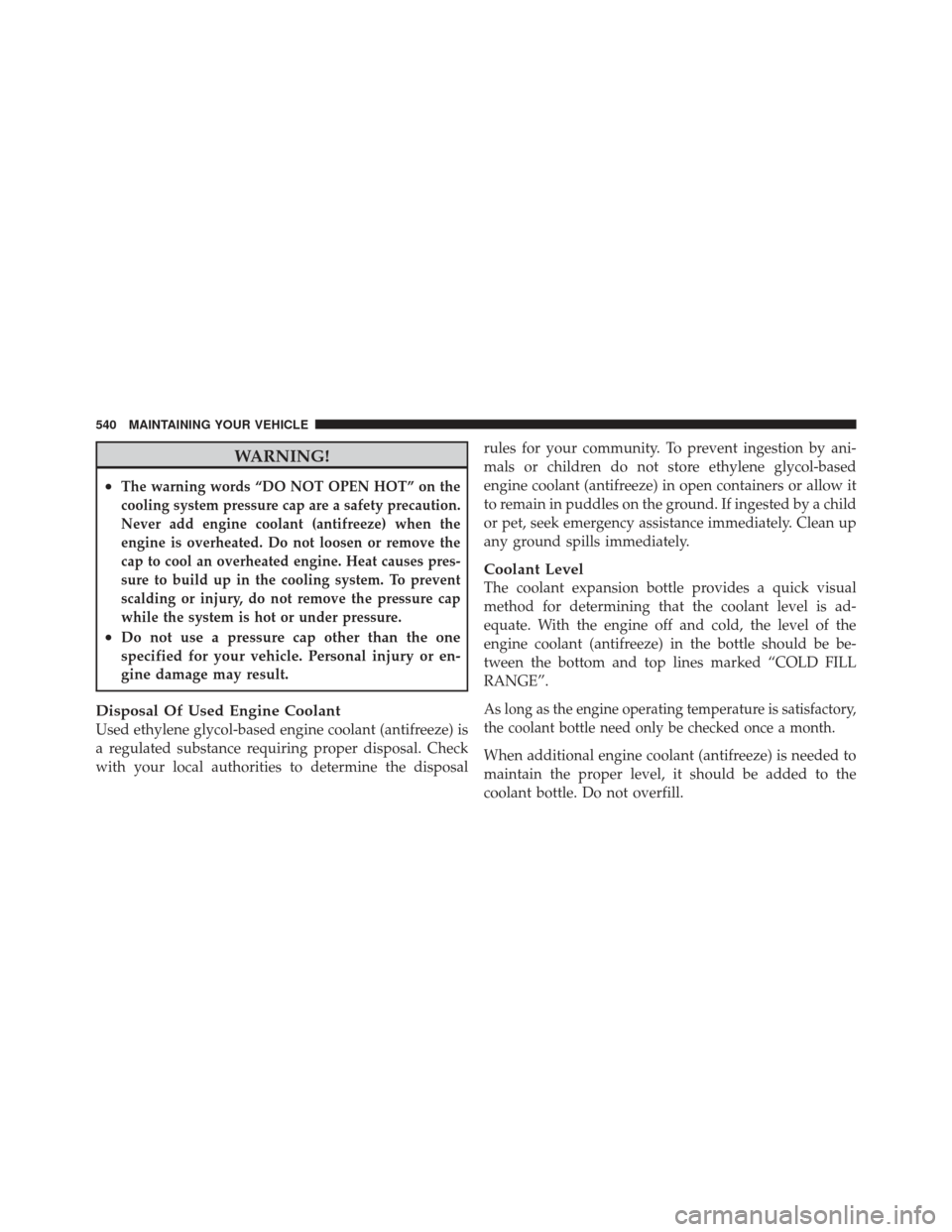

WARNING!
•The warning words “DO NOT OPEN HOT” on the
cooling system pressure cap are a safety precaution.
Never add engine coolant (antifreeze) when the
engine is overheated. Do not loosen or remove the
cap to cool an overheated engine. Heat causes pres-
sure to build up in the cooling system. To prevent
scalding or injury, do not remove the pressure cap
while the system is hot or under pressure.
•Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or en-
gine damage may result.
Disposal Of Used Engine Coolant
Used ethylene glycol-based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposalrules for your community. To prevent ingestion by ani-
mals or children do not store ethylene glycol-based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
Coolant Level
The coolant expansion bottle provides a quick visual
method for determining that the coolant level is ad-
equate. With the engine off and cold, the level of the
engine coolant (antifreeze) in the bottle should be be-
tween the bottom and top lines marked “COLD FILL
RANGE”.
As long as the engine operating temperature is satisfactory,
the coolant bottle need only be checked once a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the
coolant bottle. Do not overfill.
540 MAINTAINING YOUR VEHICLE

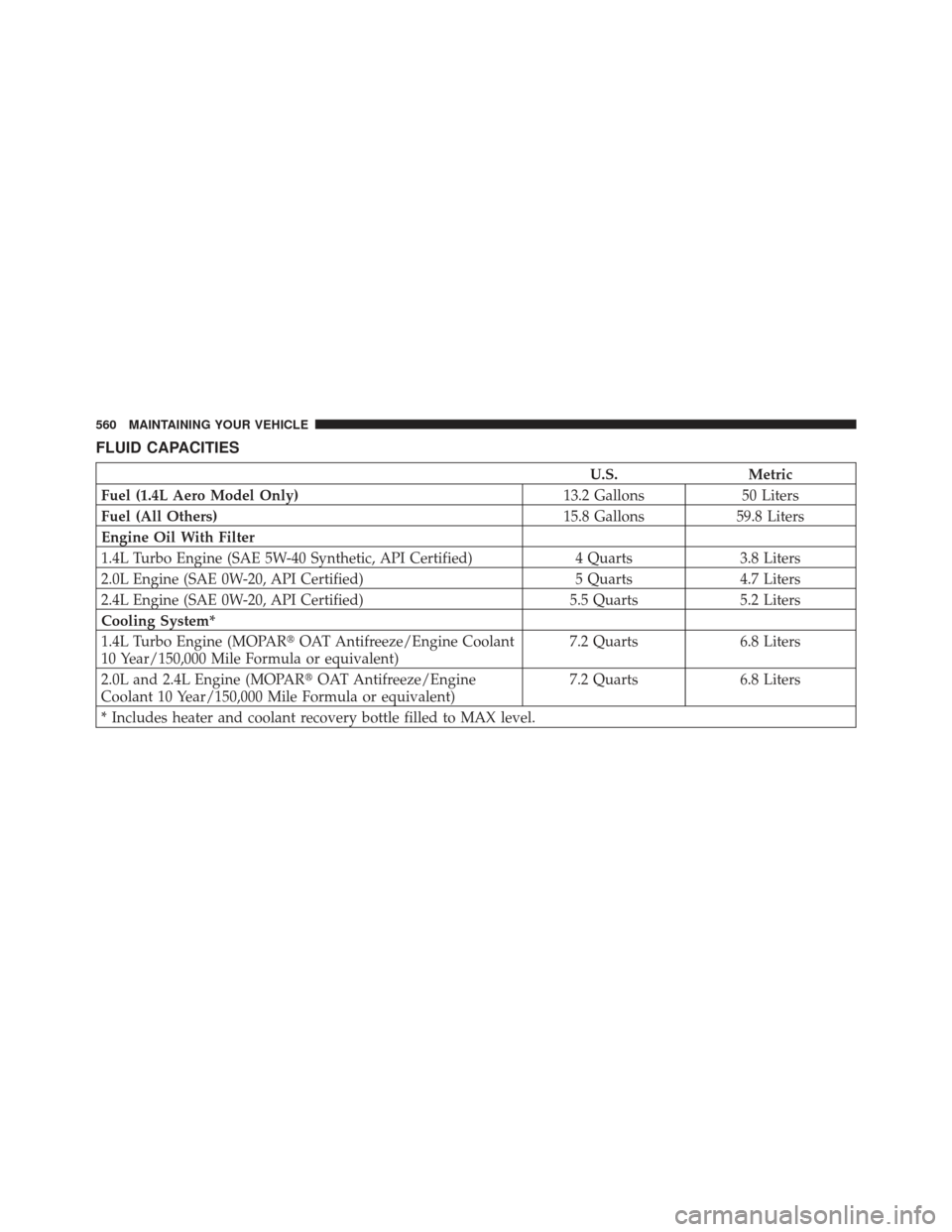

FLUID CAPACITIES
U.S.Metric
Fuel (1.4L Aero Model Only) 13.2 Gallons50 Liters
Fuel (All Others) 15.8 Gallons59.8 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4 Quarts3.8 Liters
2.0L Engine (SAE 0W-20, API Certified) 5 Quarts4.7 Liters
2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR OAT Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
2.0L and 2.4L Engine (MOPAR OAT Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
560 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
NOTE:Under no circumstances should oil change in-
tervals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first. Once A Month Or Before A Long Trip:•Check engine oil level.
•Check windshield washer fluid level.
•Check the tire inflation pressures and look for unusual
wear or damage.
•Check the fluid levels of the coolant reservoir, and
brake master cylinder as needed.
•Check function of all interior and exterior lights.
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S564 MAINTENANCE SCHEDULES

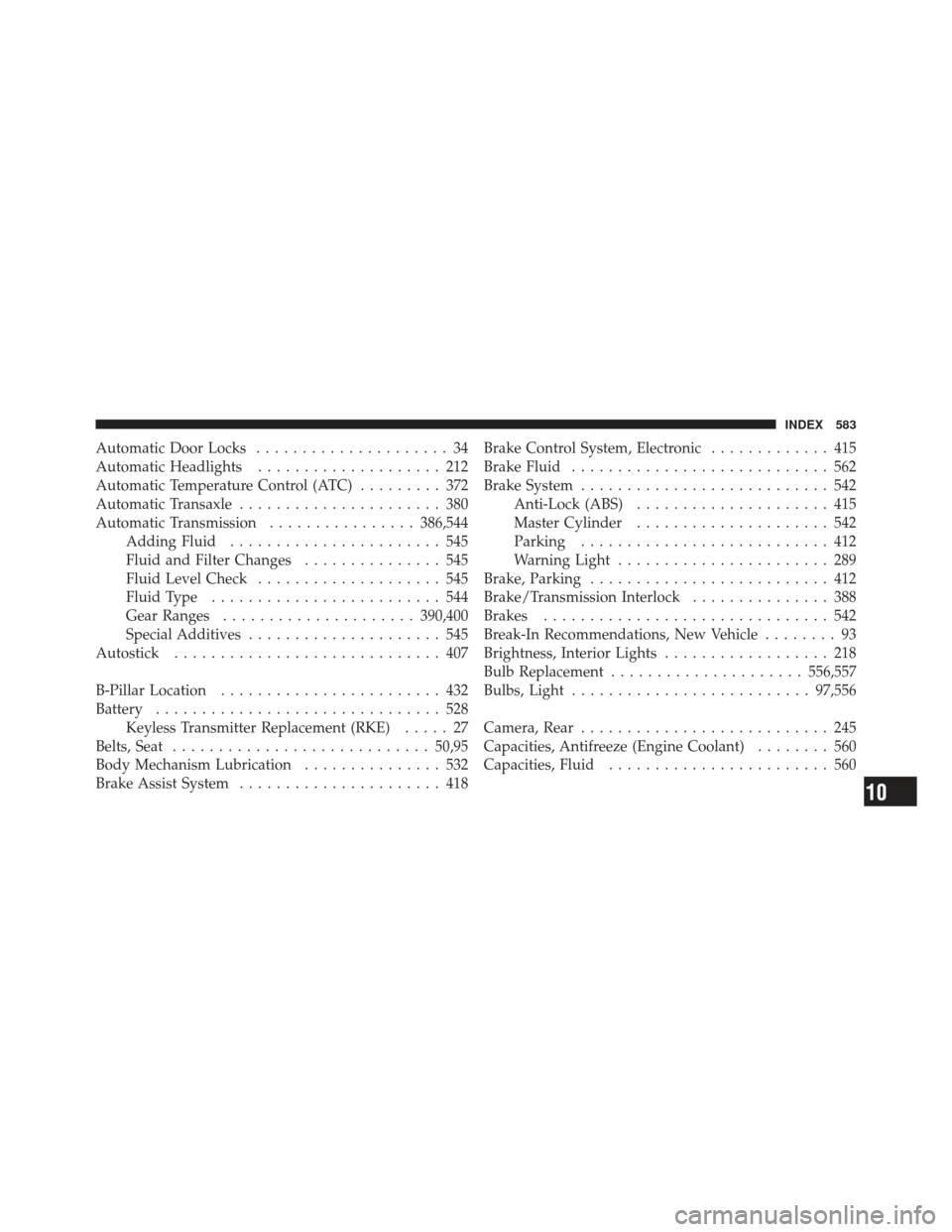

Automatic Door Locks..................... 34
Automatic Headlights .................... 212
Automatic Temperature Control (ATC) ......... 372
Automatic Transaxle ...................... 380
Automatic Transmission ................386,544
Adding Fluid ....................... 545
Fluid and Filter Changes ............... 545
Fluid Level Check .................... 545
Fluid Type ......................... 544
Gear Ranges ..................... 390,400
Special Additives ..................... 545
Autostick ............................. 407
B-Pillar Location ........................ 432
Battery ............................... 528
Keyless Transmitter Replacement (RKE) ..... 27
Belts, Seat ............................ 50,95
Body Mechanism Lubrication ............... 532
Brake Assist System ...................... 418 Brake Control System, Electronic
............. 415
Brake Fluid ............................ 562
Brake System ........................... 542
Anti-Lock (ABS) ..................... 415
Master Cylinder ..................... 542
Parking ........................... 412
Warning Light ....................... 289
Brake, Parking .......................... 412
Brake/Transmission Interlock ............... 388
Brakes ............................... 542
Break-In Recommendations, New Vehicle ........ 93
Brightness, Interior Lights .................. 218
Bulb Replacement ..................... 556,557
Bulbs, Light .......................... 97,556
Camera, Rear ........................... 245
Capacities, Antifreeze (Engine Coolant) ........ 560
Capacities, Fluid ........................ 560
10
INDEX 583

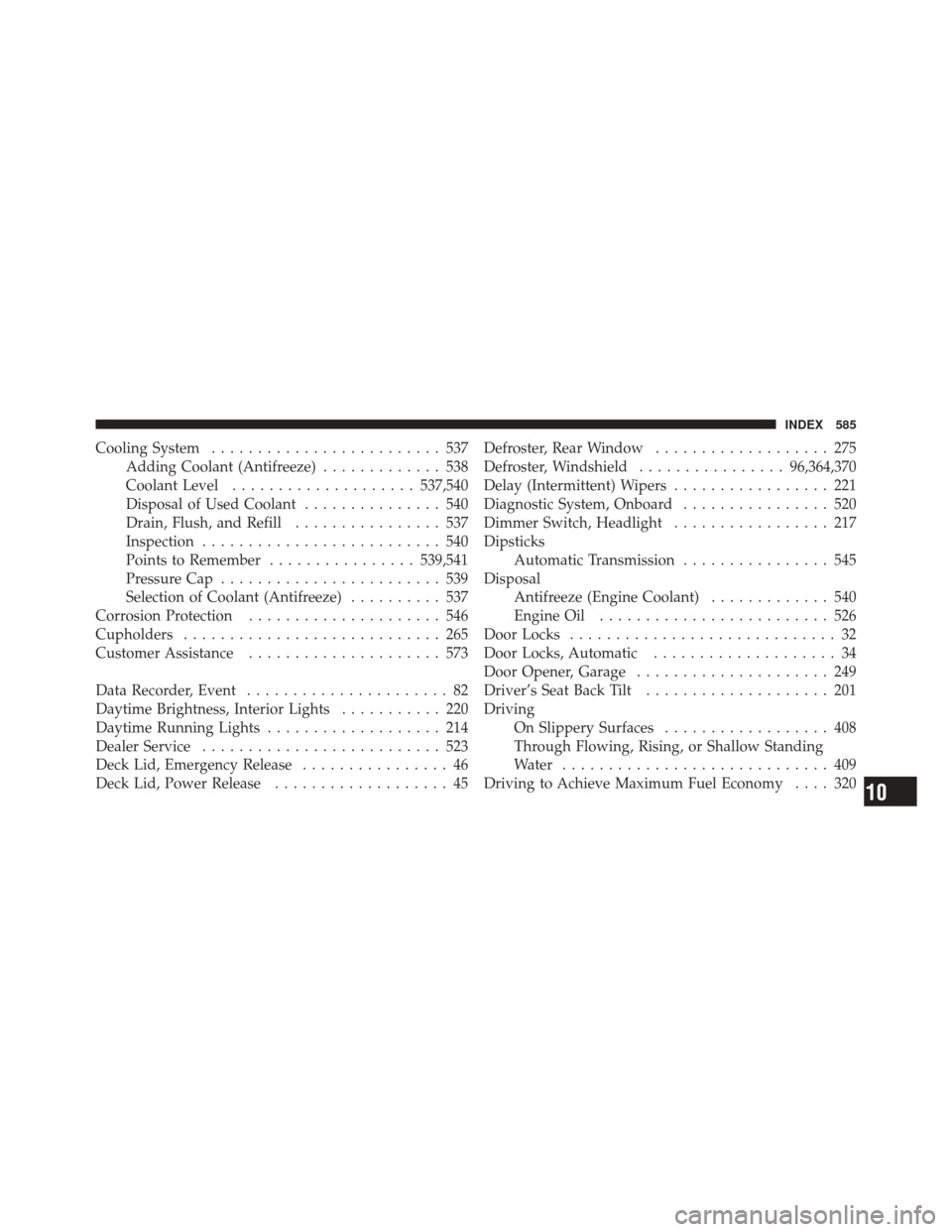

Cooling System......................... 537
Adding Coolant (Antifreeze) ............. 538
Coolant Level .................... 537,540
Disposal of Used Coolant ............... 540
Drain, Flush, and Refill ................ 537
Inspection .......................... 540
Points to Remember ................ 539,541
Pressure Cap ........................ 539
Selection of Coolant (Antifreeze) .......... 537
Corrosion Protection ..................... 546
Cupholders ............................ 265
Customer Assistance ..................... 573
Data Recorder, Event ...................... 82
Daytime Brightness, Interior Lights ........... 220
Daytime Running Lights ................... 214
Dealer Service .......................... 523
Deck Lid, Emergency Release ................ 46
Deck Lid, Power Release ................... 45 Defroster, Rear Window
................... 275
Defroster, Windshield ................96,364,370
Delay (Intermittent) Wipers ................. 221
Diagnostic System, Onboard ................ 520
Dimmer Switch, Headlight ................. 217
Dipsticks Automatic Transmission ................ 545
Disposal Antifreeze (Engine Coolant) ............. 540
Engine Oil ......................... 526
Door Locks ............................. 32
Door Locks, Automatic .................... 34
Door Opener, Garage ..................... 249
Driver’s Seat Back Tilt .................... 201
Driving On Slippery Surfaces .................. 408
Through Flowing, Rising, or Shallow Standing
Water ............................. 409
Driving to Achieve Maximum Fuel Economy .... 320
10
INDEX 585
