jump start DODGE DART 2014 PF / 1.G User Guide

6. Once the engine is started, remove the jumper cablesin the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)end of the jumper cable
from the engine ground of the vehicle with the dis-
charged battery.
2. Disconnect the opposite end of the negative (-)jumper
cable from the negative (-)post of the booster battery.
3. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the vehicle with the
discharged battery.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved by a rocking motion. Turn your steering
wheel right and left to clear the area around the front
wheels. Then shift back and forth between DRIVE and
REVERSE (with automatic transmission) or 2nd Gear and
REVERSE (with manual transmission) while gently press-
ing the accelerator. Use the least amount of accelerator
pedal pressure that will maintain the rocking motion,
without spinning the wheels or racing the engine.6
WHAT TO DO IN EMERGENCIES 547

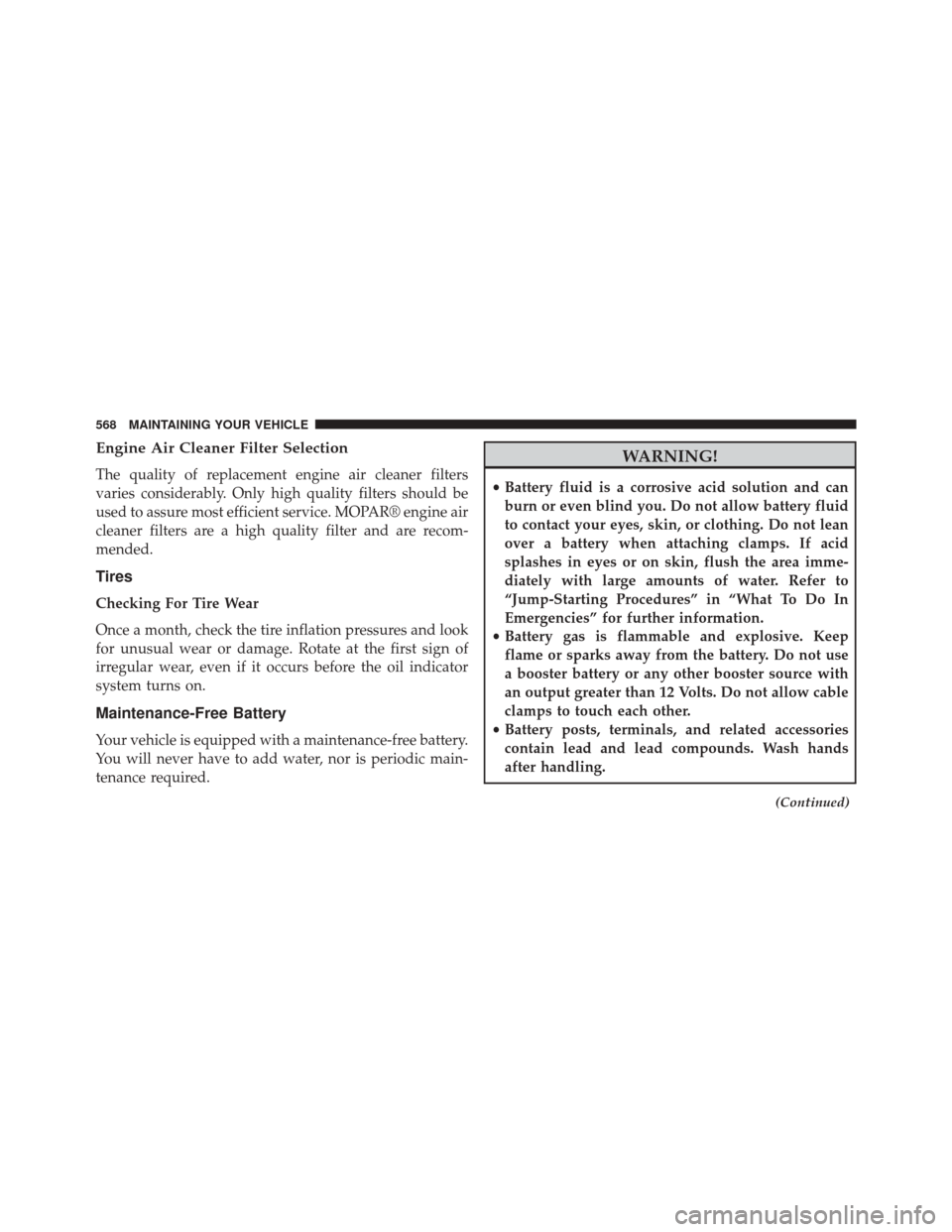

Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR® engine air
cleaner filters are a high quality filter and are recom-
mended.
Tires
Checking For Tire Wear
Once a month, check the tire inflation pressures and look
for unusual wear or damage. Rotate at the first sign of
irregular wear, even if it occurs before the oil indicator
system turns on.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
WARNING!
•Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To Do In
Emergencies” for further information.
• Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.
• Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.
(Continued)
568 MAINTAINING YOUR VEHICLE

Hazard Warning Flasher..................519
Jacking ...............................532
Jump Starting ..........................543
Overheating .......................... .519
Towing ............................. .551
Emergency Trunk Release ....................47
Emission Control System Maintenance ..........561
Engine .................................558
Air Cleaner .......................... .567
Block Heater ..........................414
Break-In Recommendations ................106
Checking Oil Level ..................... .564
Compartment ..........................557
Cooling ............................. .578
Exhaust Gas Caution .....................108
Fuel Requirements ..................... .492
Jump Starting ..........................543
Oil..................................564
Oil Filler Cap ..........................558 Oil Selection
.......................... .565
Overheating .......................... .519
Temperature Gauge ..................... .310
Enhanced Accident Response Feature ............80
Entry System, Illuminated ....................23
Ethanol ............................... .493
Event Data Recorder ........................83
Exhaust Gas Caution .......................108
Exhaust System .......................... .108
Exterior Folding Mirrors ....................121
Exterior Lighting ..........................235
Exterior Lights ...........................111
Filler Location Fuel ........................316
Filters Air Cleaner .......................... .567
Air Conditioning .......................404
Automatic Transmission ..................588
Engine Oil ............................567
10
INDEX 637

Heater, Engine Block.......................414
High Beam/Low Beam Select (Dimmer) Switch . . . .241
Hill Start Assist .......................... .451
Hitches Trailer Towing ........................ .505
Holder, Coin ............................ .292
HomeLink® (Garage Door Opener) ............274
Ignition Key..................................12
Illuminated Entry ..........................23
Courtesy Lights .........................23
Front Courtesy Overhead Console ............23
Illuminated Entry ........................23
Remote Keyless Entry (RKE) Transmitter .......23
Immobilizer (Sentry Key) ....................17
Infant Restraint ...........................84
Information Center, Vehicle ..................321
Inside Rearview Mirror .....................119 Instrument Cluster
........................305
Instrument Panel and Controls ................304
Instrument Panel Lens Cleaning ...............594
Interior Appearance Care ....................592
Interior Lights .......................... .242
Intermittent Wipers (Delay Wipers) .............245
Introduction ..............................4
iPod®/USB/MP3 Control Bluetooth® Streaming Audio ...............172
Jacking Instructions ........................535
Jack Location ............................532
Jack Operation .......................... .532
Jump Starting ............................543
Key Fob Arm The Alarm .........................20
Disarm The Alarm .......................21
Keyless Entry ...........................36
640 INDEX
