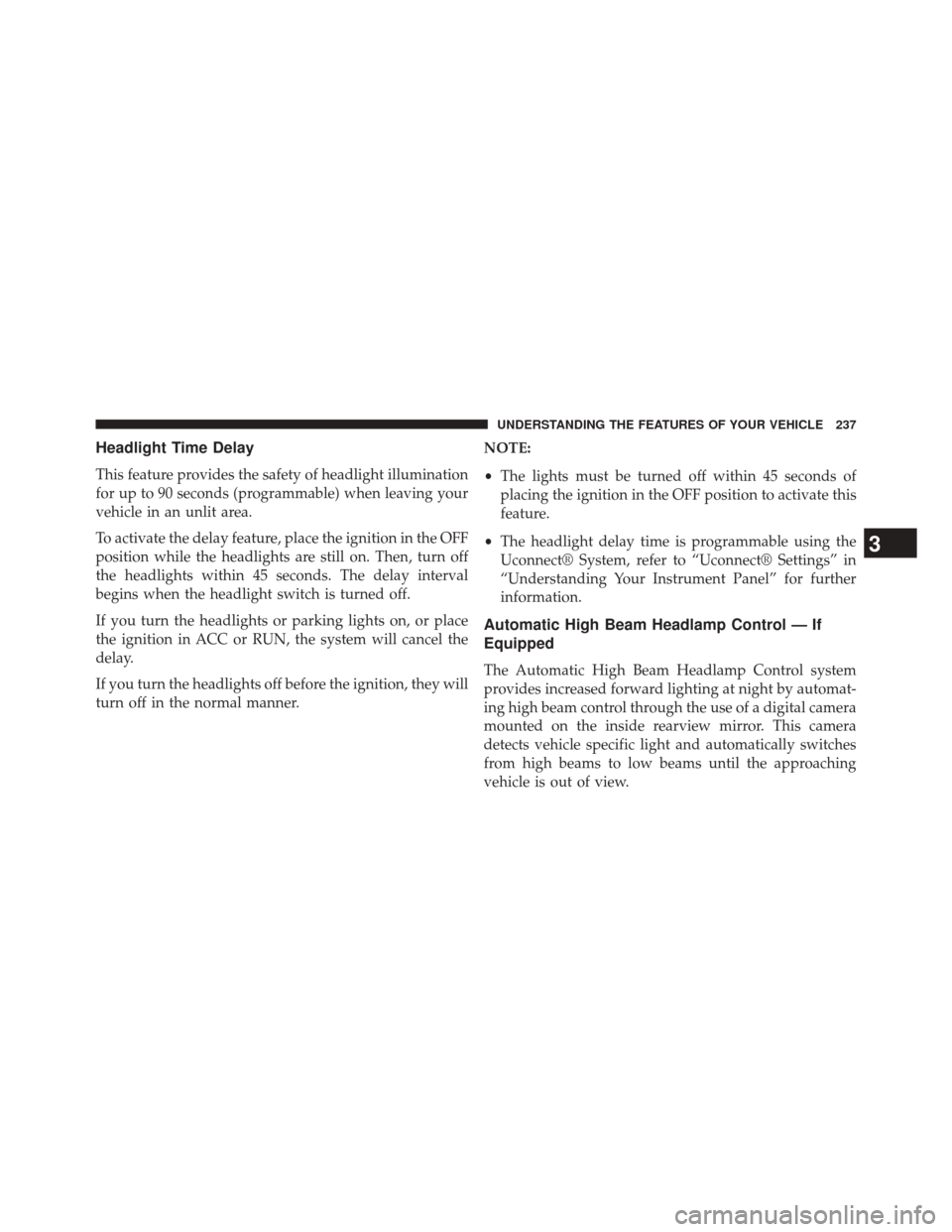

Headlight Time Delay
This feature provides the safety of headlight illumination
for up to 90 seconds (programmable) when leaving your
vehicle in an unlit area.
To activate the delay feature, place the ignition in the OFF
position while the headlights are still on. Then, turn off
the headlights within 45 seconds. The delay interval
begins when the headlight switch is turned off.
If you turn the headlights or parking lights on, or place
the ignition in ACC or RUN, the system will cancel the
delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.NOTE:
•
The lights must be turned off within 45 seconds of
placing the ignition in the OFF position to activate this
feature.
• The headlight delay time is programmable using the
Uconnect® System, refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further
information.
Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

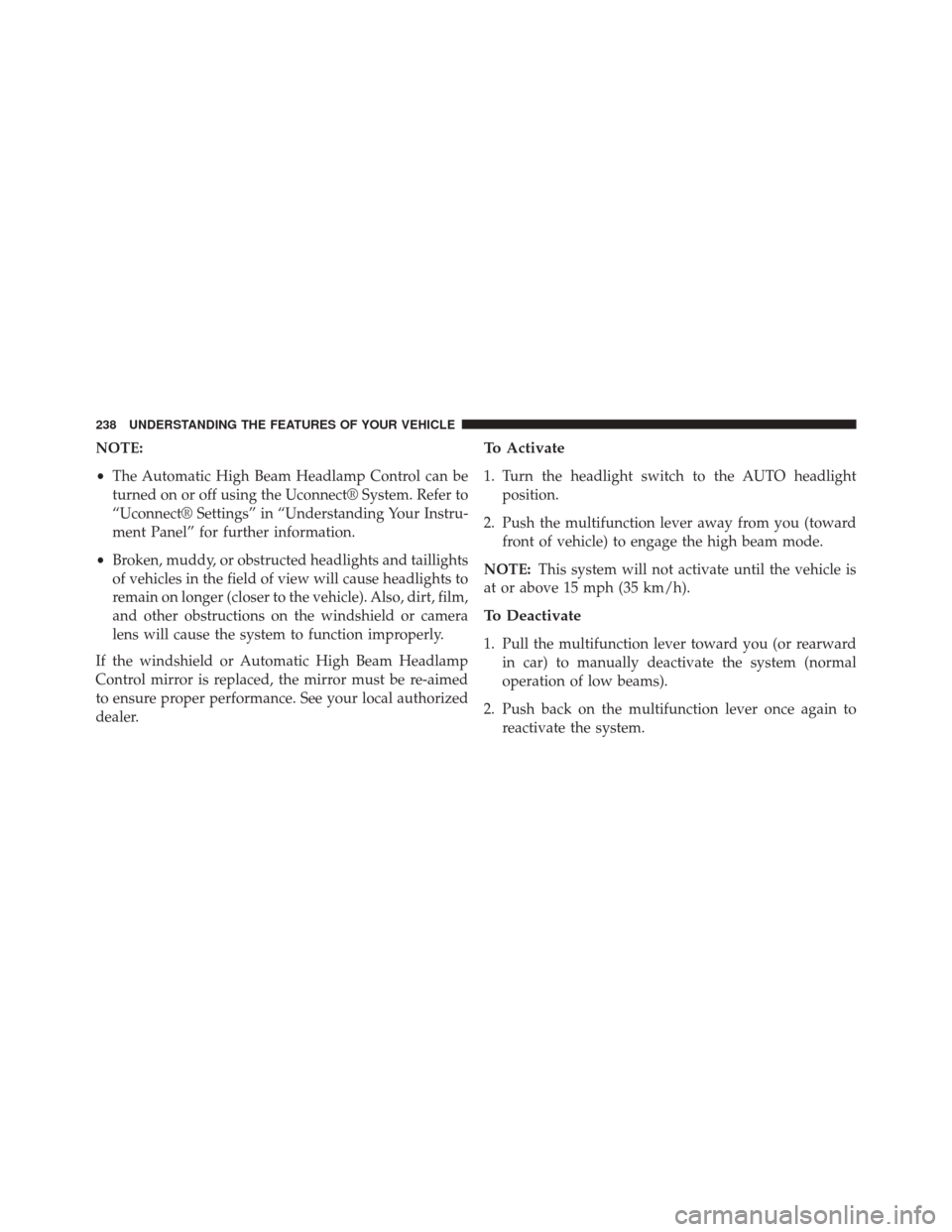

NOTE:
•The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.To Activate
1. Turn the headlight switch to the AUTO headlight position.
2. Push the multifunction lever away from you (toward front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 15 mph (35 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or rearward in car) to manually deactivate the system (normal
operation of low beams).
2. Push back on the multifunction lever once again to reactivate the system.
238 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Exhaust System ..................... .575
▫ Cooling System ..................... .578
▫ Brake System ........................583
▫ Automatic Transmission — If Equipped .....586
▫ Manual Transmission — If Equipped .......588
▫ Appearance Care And Protection From
Corrosion .......................... .589
 FUSES ............................. .595
▫ Interior Fuses ........................596
▫ Underhood Fuses ..................... .598
▫ Body Control Module (BCM) Fuses .........601
VEHICLE STORAGE ....................603
 REPLACEMENT BULBS .................603
 BULB REPLACEMENT ..................604
▫ Headlamps ..........................604
▫ Backup Lamps ........................605
▫ License Lamp ........................607
 FLUID CAPACITIES ....................608

FLUIDS, LUBRICANTS AND GENUINE PARTS . .609
▫ Engine ............................ .609
▫ Chassis ............................611
556 MAINTAINING YOUR VEHICLE

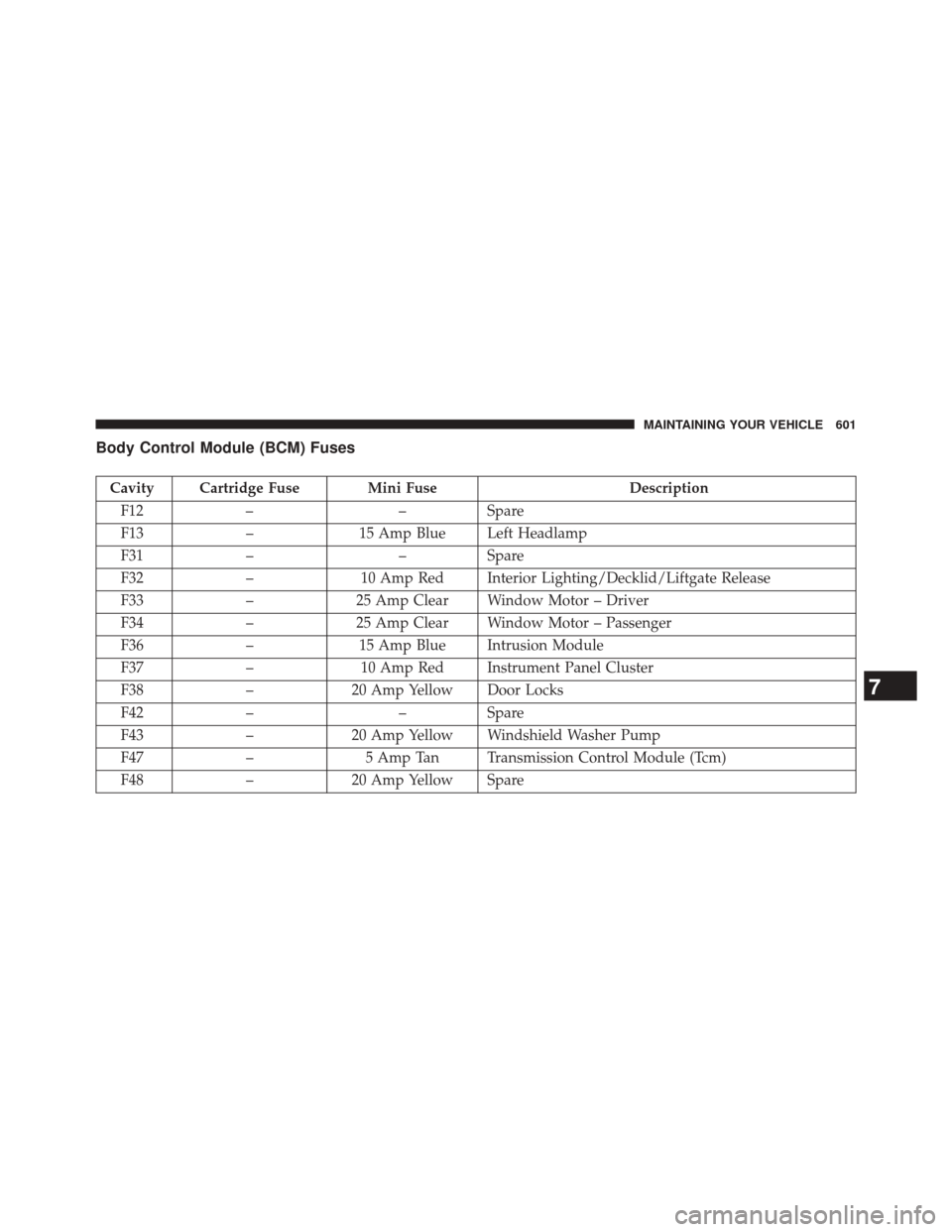

Body Control Module (BCM) Fuses
Cavity Cartridge Fuse Mini FuseDescription
F12 – –Spare
F13 –15 Amp Blue Left Headlamp
F31 – –Spare
F32 –10 Amp Red Interior Lighting/Decklid/Liftgate Release
F33 –25 Amp Clear Window Motor – Driver
F34 –25 Amp Clear Window Motor – Passenger
F36 –15 Amp Blue Intrusion Module
F37 –10 Amp Red Instrument Panel Cluster
F38 –20 Amp Yellow Door Locks
F42 – –Spare
F43 –20 Amp Yellow Windshield Washer Pump
F47 –5 Amp Tan Transmission Control Module (Tcm)
F48 –20 Amp Yellow Spare
7
MAINTAINING YOUR VEHICLE 601

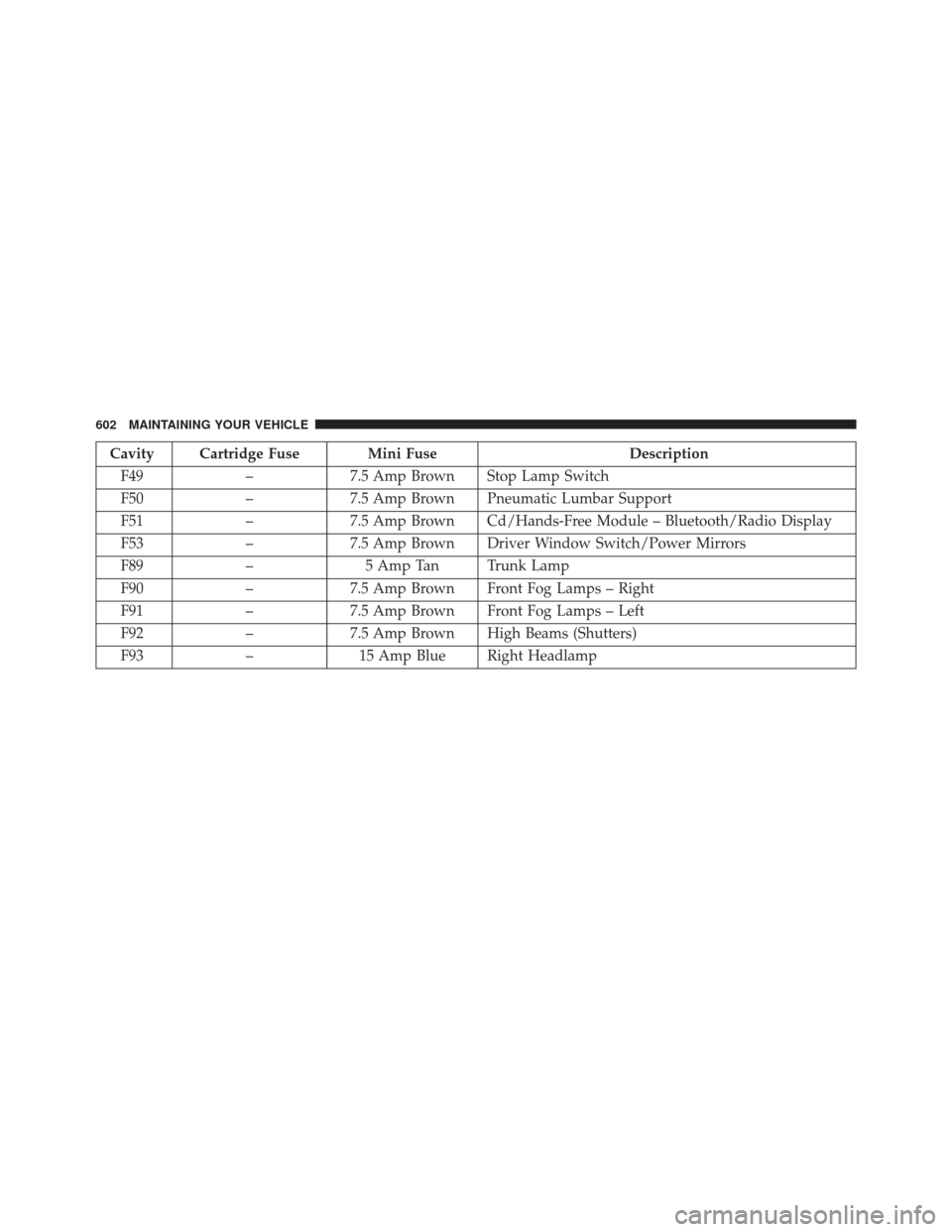

Cavity Cartridge Fuse Mini FuseDescription
F49 –7.5 Amp Brown Stop Lamp Switch
F50 –7.5 Amp Brown Pneumatic Lumbar Support
F51 –7.5 Amp Brown Cd/Hands-Free Module – Bluetooth/Radio Display
F53 –7.5 Amp Brown Driver Window Switch/Power Mirrors
F89 –5 Amp Tan Trunk Lamp
F90 –7.5 Amp Brown Front Fog Lamps – Right
F91 –7.5 Amp Brown Front Fog Lamps – Left
F92 –7.5 Amp Brown High Beams (Shutters)
F93 –15 Amp Blue Right Headlamp
602 MAINTAINING YOUR VEHICLE

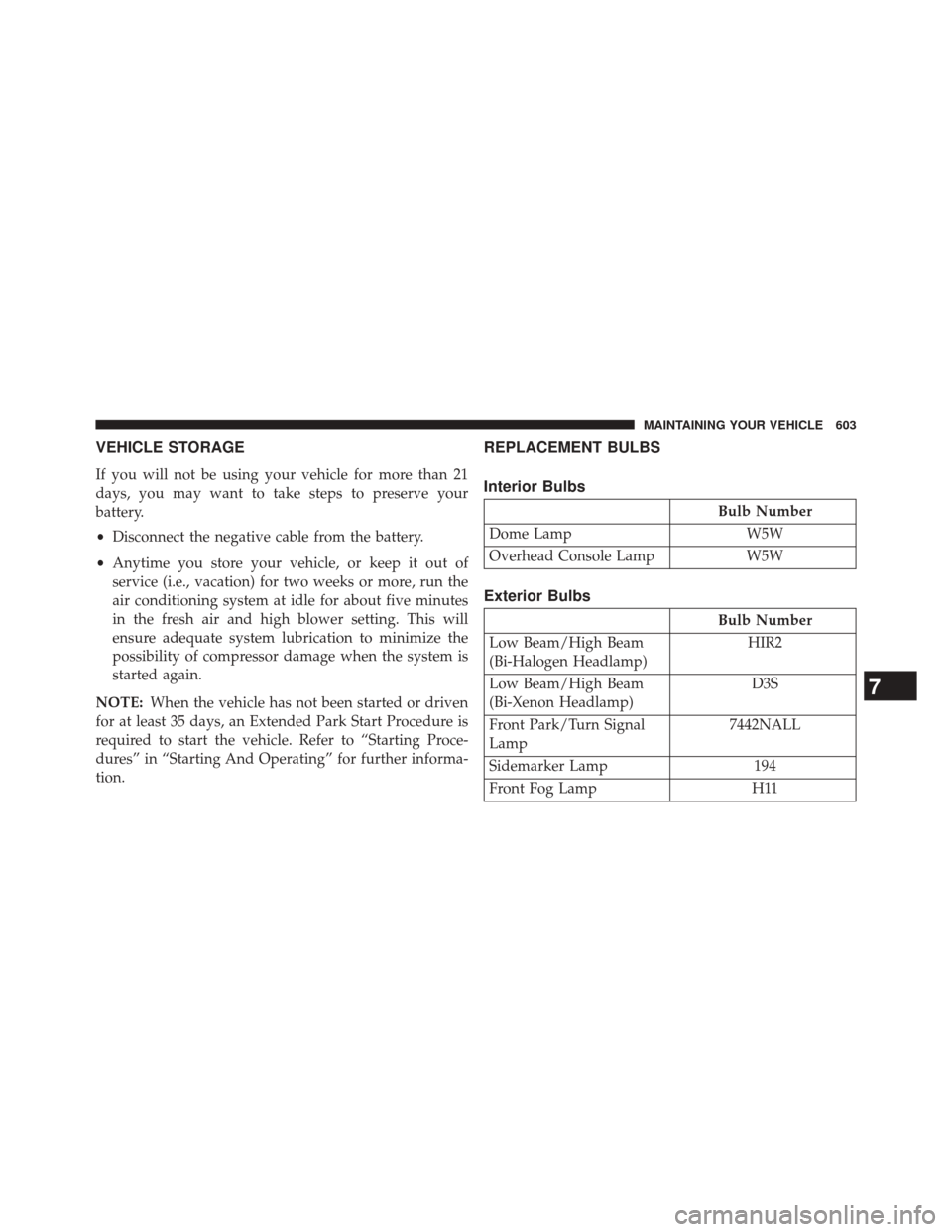

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
NOTE: When the vehicle has not been started or driven
for at least 35 days, an Extended Park Start Procedure is
required to start the vehicle. Refer to “Starting Proce-
dures” in “Starting And Operating” for further informa-
tion.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Dome Lamp W5W
Overhead Console Lamp W5W
Exterior Bulbs
Bulb Number
Low Beam/High Beam
(Bi-Halogen Headlamp) HIR2
Low Beam/High Beam
(Bi-Xenon Headlamp) D3S
Front Park/Turn Signal
Lamp 7442NALL
Sidemarker Lamp 194
Front Fog Lamp H11
7
MAINTAINING YOUR VEHICLE 603

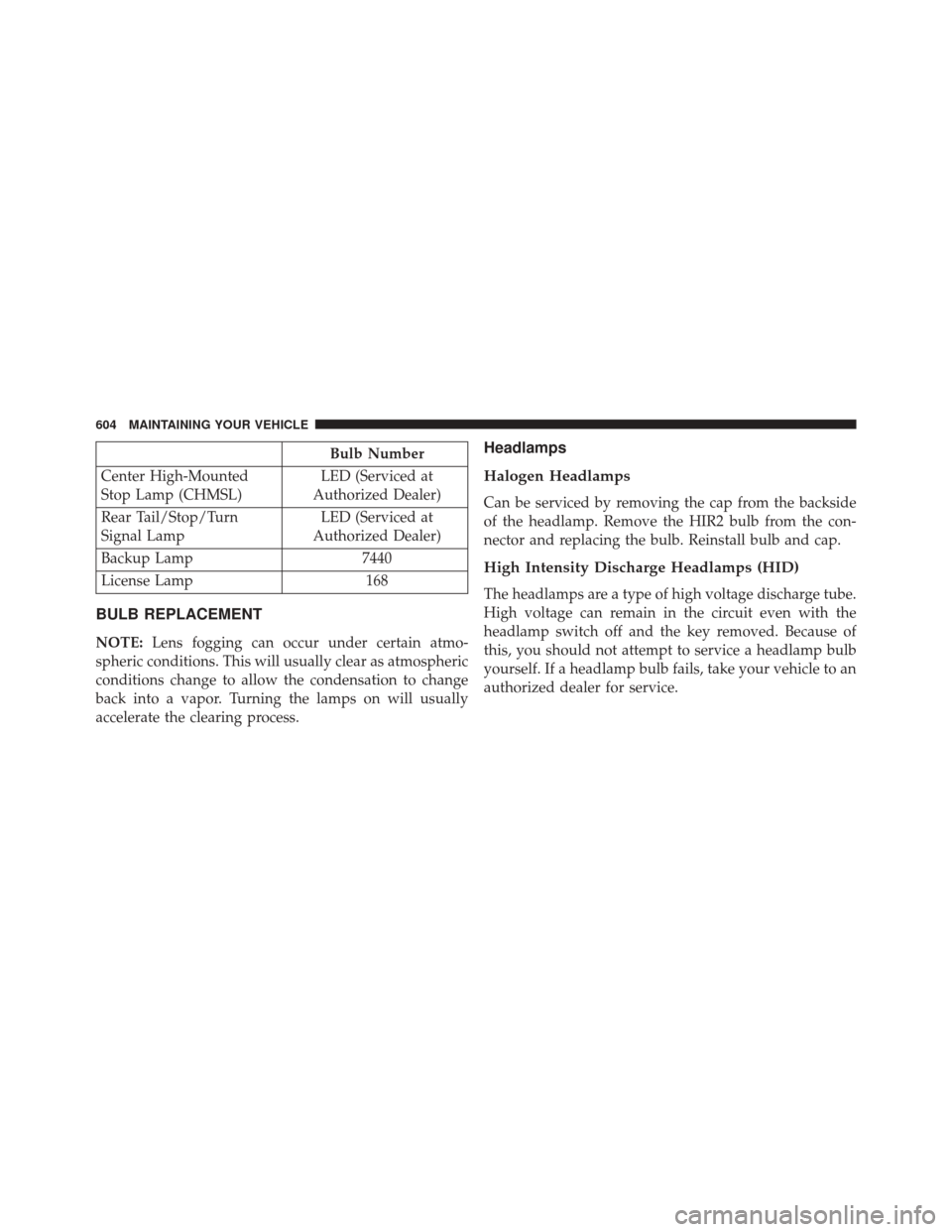

Bulb Number
Center High-Mounted
Stop Lamp (CHMSL) LED (Serviced at
Authorized Dealer)
Rear Tail/Stop/Turn
Signal Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 7440
License Lamp 168
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps
Halogen Headlamps
Can be serviced by removing the cap from the backside
of the headlamp. Remove the HIR2 bulb from the con-
nector and replacing the bulb. Reinstall bulb and cap.
High Intensity Discharge Headlamps (HID)
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.
604 MAINTAINING YOUR VEHICLE

WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Backup Lamps
1. Open trunk.
2. Remove trim cover.
Trim Cover
