trunk release DODGE DART 2014 PF / 1.G Owners Manual

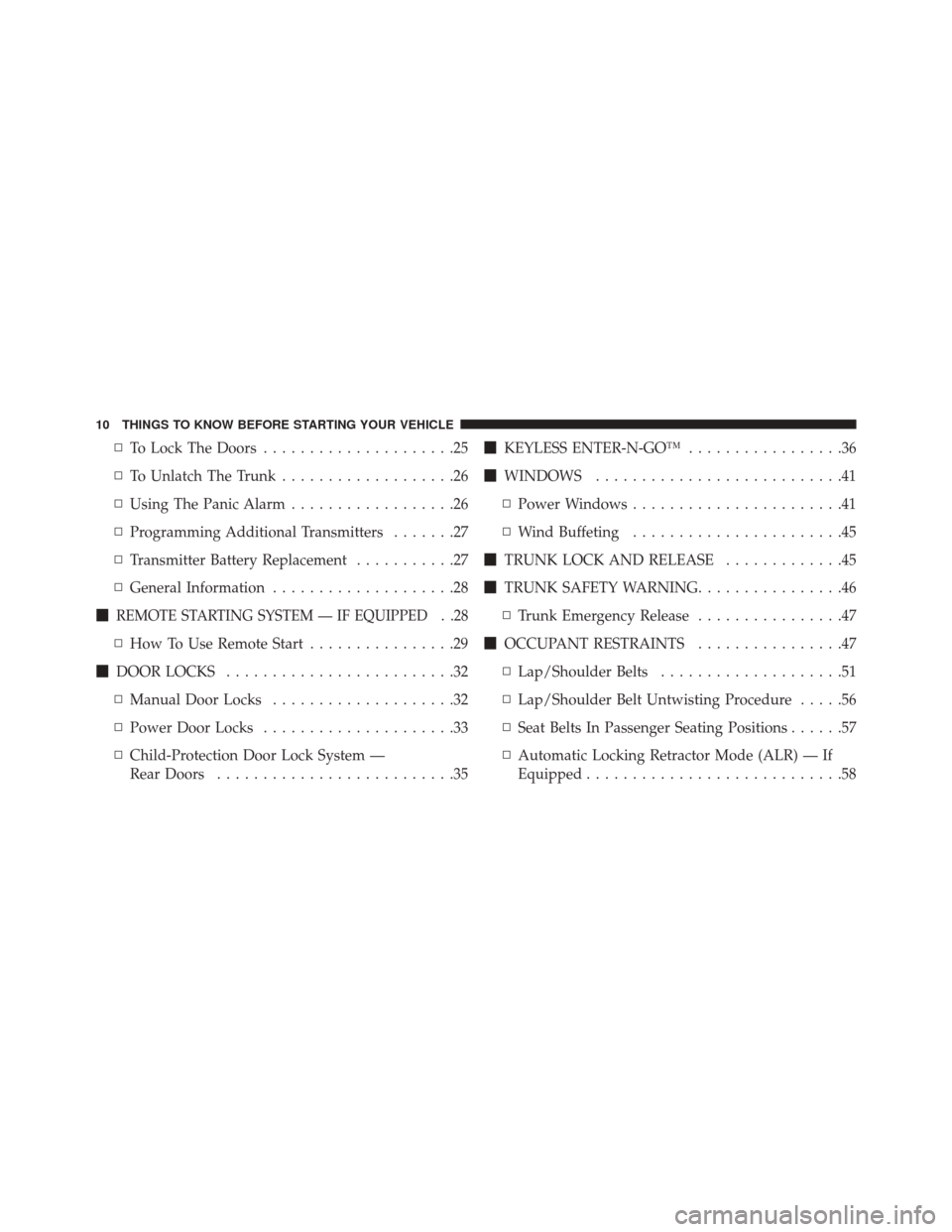

▫To Lock The Doors .....................25
▫ To Unlatch The Trunk ...................26
▫ Using The Panic Alarm ..................26
▫ Programming Additional Transmitters .......27
▫ Transmitter Battery Replacement ...........27
▫ General Information ....................28

REMOTE STARTING SYSTEM — IF EQUIPPED . .28
▫ How To Use Remote Start ................29
 DOOR LOCKS .........................32
▫ Manual Door Locks ....................32
▫ Power Door Locks .....................33
▫ Child-Protection Door Lock System —
Rear Doors ..........................35
KEYLESS ENTER-N-GO™ .................36
 WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................45
 TRUNK LOCK AND RELEASE .............45
 TRUNK SAFETY WARNING ................46
▫ Trunk Emergency Release ................47
 OCCUPANT RESTRAINTS ................47
▫ Lap/Shoulder Belts ....................51
▫ Lap/Shoulder Belt Untwisting Procedure .....56
▫ Seat Belts In Passenger Seating Positions ......57
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................58
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

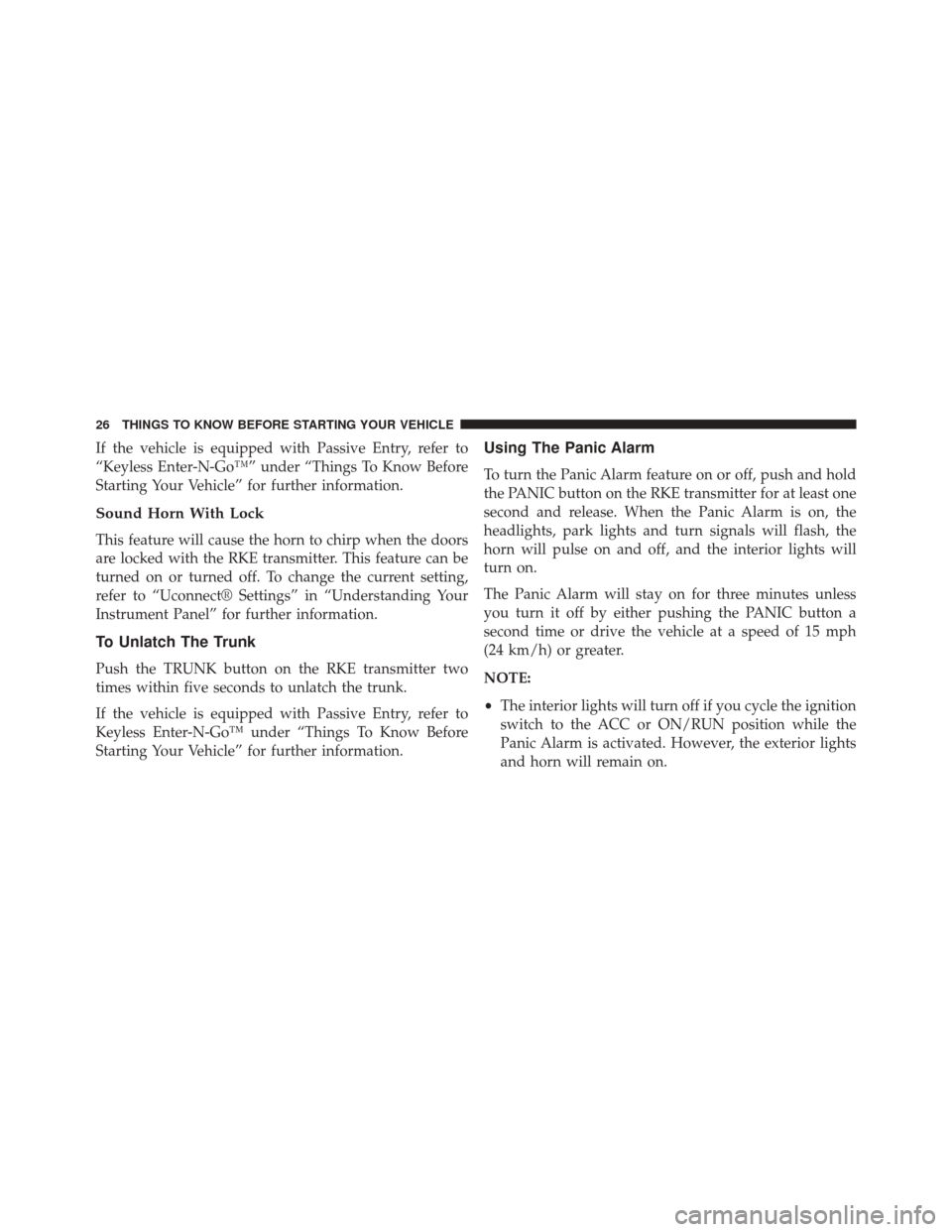

If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go™” under “Things To Know Before
Starting Your Vehicle” for further information.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
refer to “Uconnect® Settings” in “Understanding Your
Instrument Panel” for further information.
To Unlatch The Trunk
Push the TRUNK button on the RKE transmitter two
times within five seconds to unlatch the trunk.
If the vehicle is equipped with Passive Entry, refer to
Keyless Enter-N-Go™ under “Things To Know Before
Starting Your Vehicle” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights, park lights and turn signals will flash, the
horn will pulse on and off, and the interior lights will
turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pushing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you cycle the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

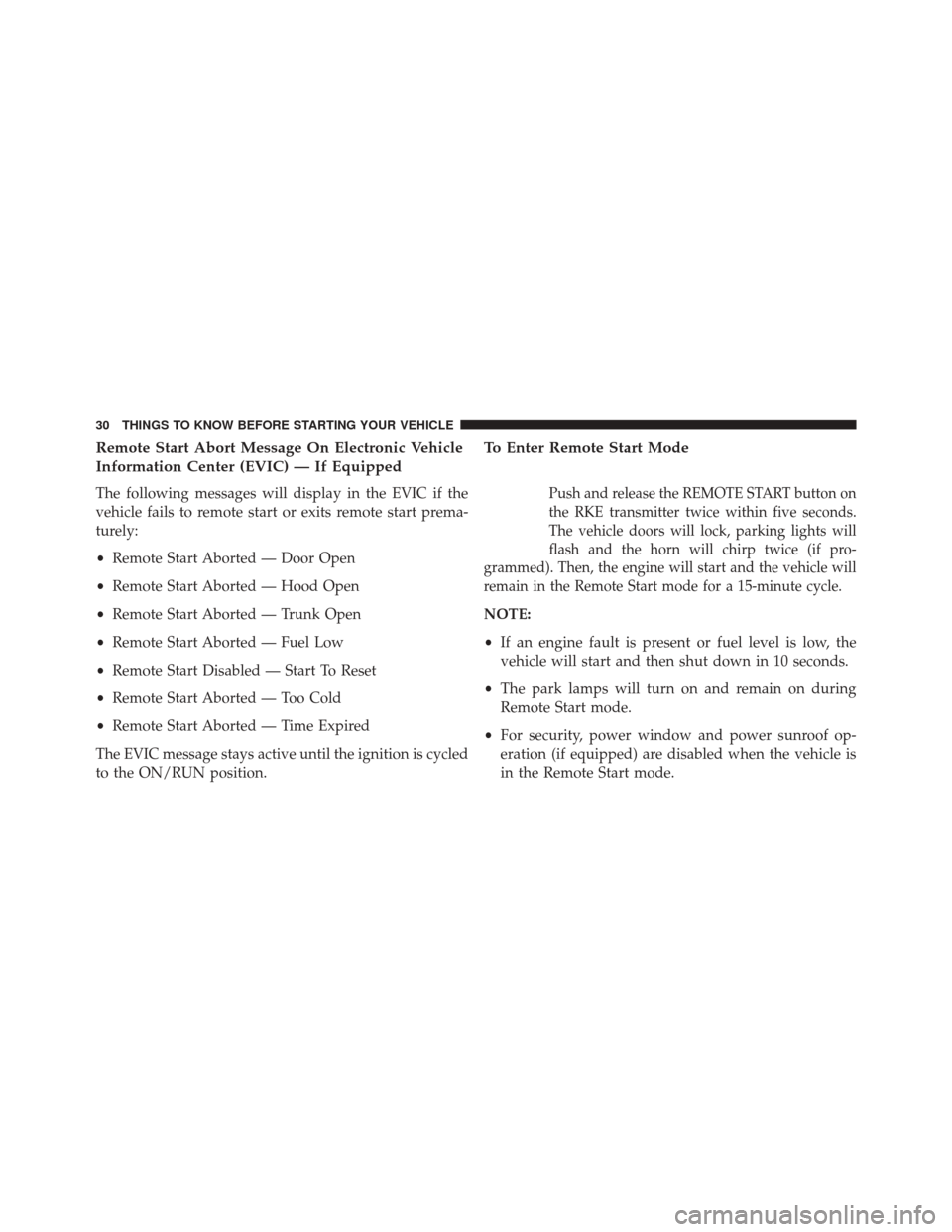

Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Trunk Open
• Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start To Reset
• Remote Start Aborted — Too Cold
• Remote Start Aborted — Time Expired
The EVIC message stays active until the ignition is cycled
to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START button on
the RKE transmitter twice within five seconds.
The vehicle doors will lock, parking lights will
flash and the horn will chirp twice (if pro-
grammed). Then, the engine will start and the vehicle will
remain in the Remote Start mode for a 15-minute cycle.
NOTE:
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

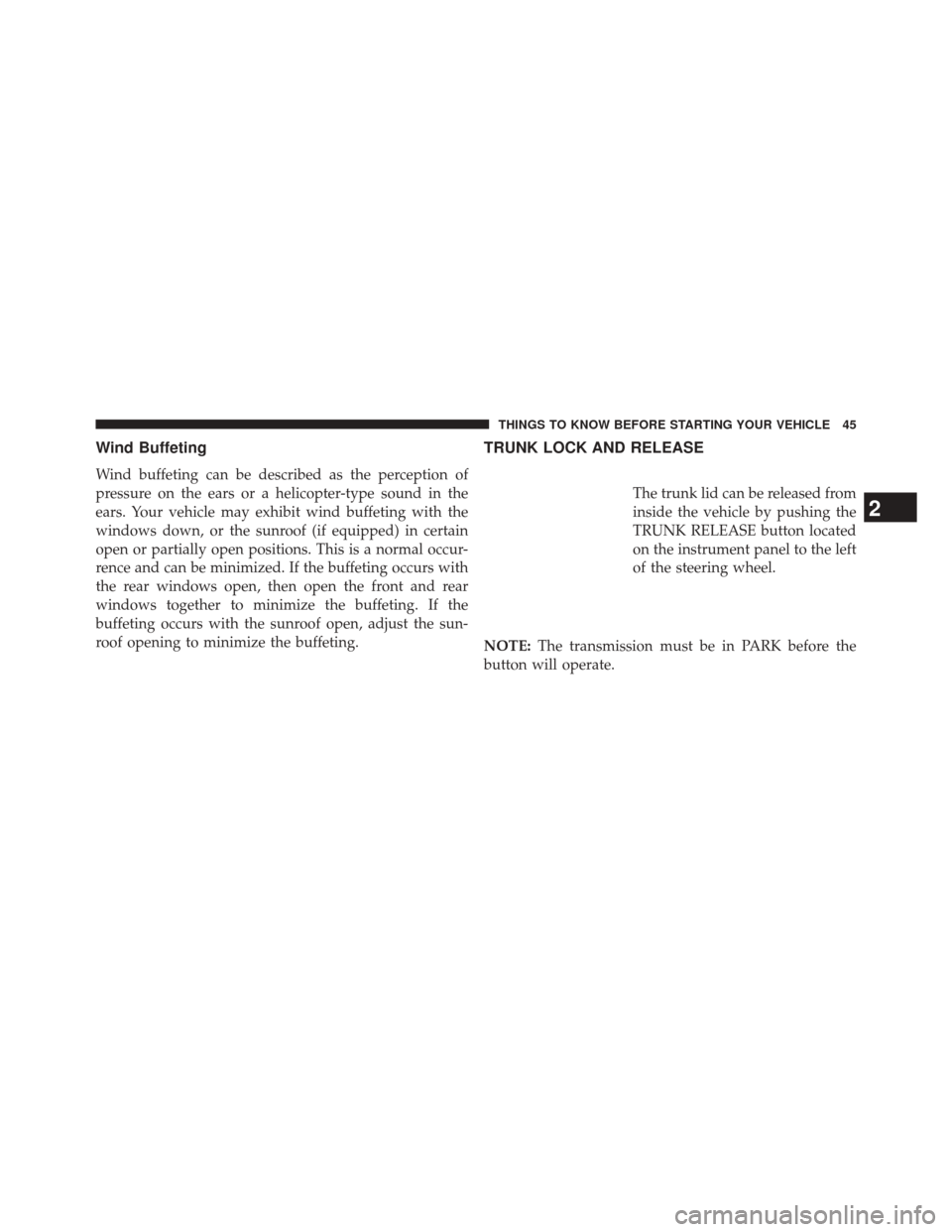

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting.
TRUNK LOCK AND RELEASE
The trunk lid can be released from
inside the vehicle by pushing the
TRUNK RELEASE button located
on the instrument panel to the left
of the steering wheel.
NOTE: The transmission must be in PARK before the
button will operate.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

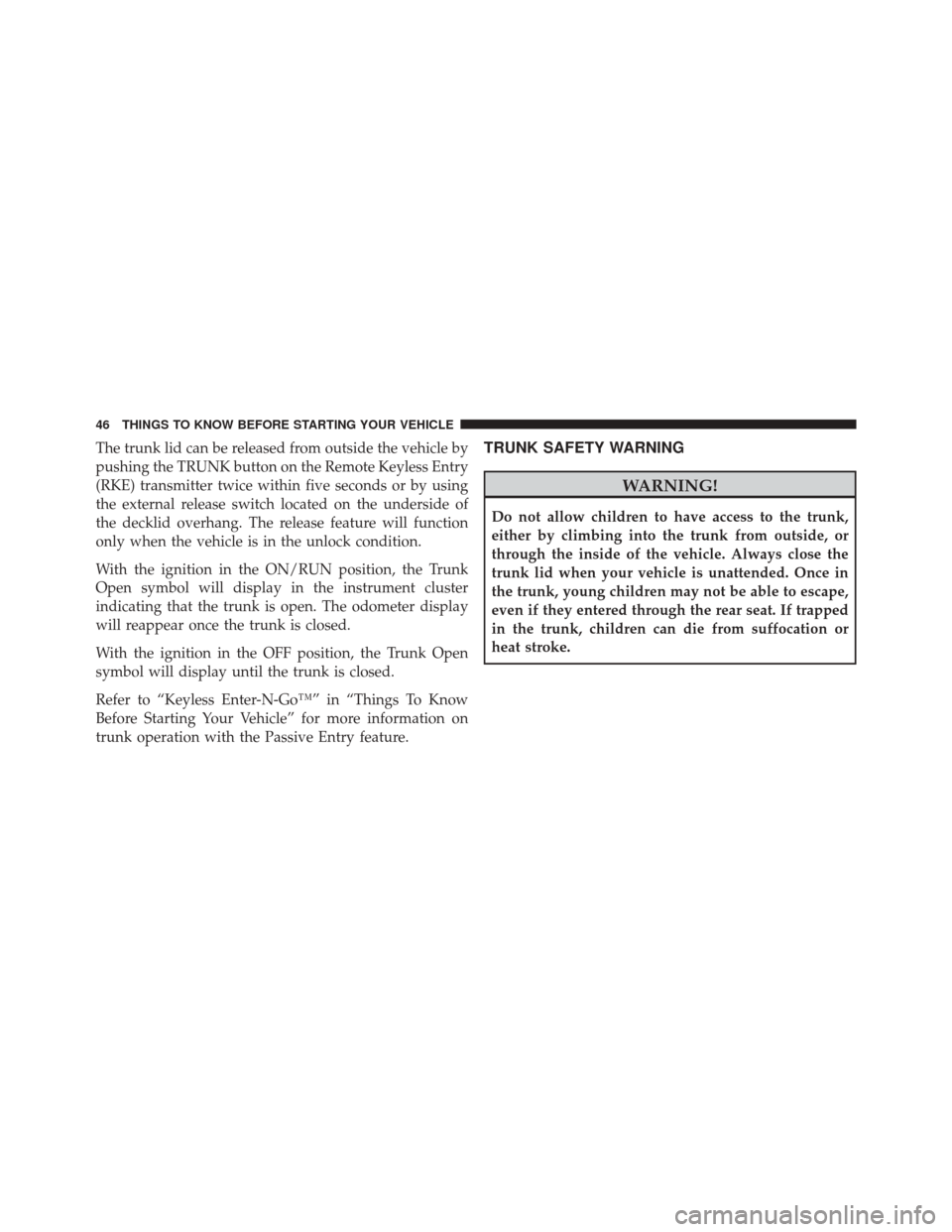

The trunk lid can be released from outside the vehicle by
pushing the TRUNK button on the Remote Keyless Entry
(RKE) transmitter twice within five seconds or by using
the external release switch located on the underside of
the decklid overhang. The release feature will function
only when the vehicle is in the unlock condition.
With the ignition in the ON/RUN position, the Trunk
Open symbol will display in the instrument cluster
indicating that the trunk is open. The odometer display
will reappear once the trunk is closed.
With the ignition in the OFF position, the Trunk Open
symbol will display until the trunk is closed.
Refer to “Keyless Enter-N-Go™” in “Things To Know
Before Starting Your Vehicle” for more information on
trunk operation with the Passive Entry feature.TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

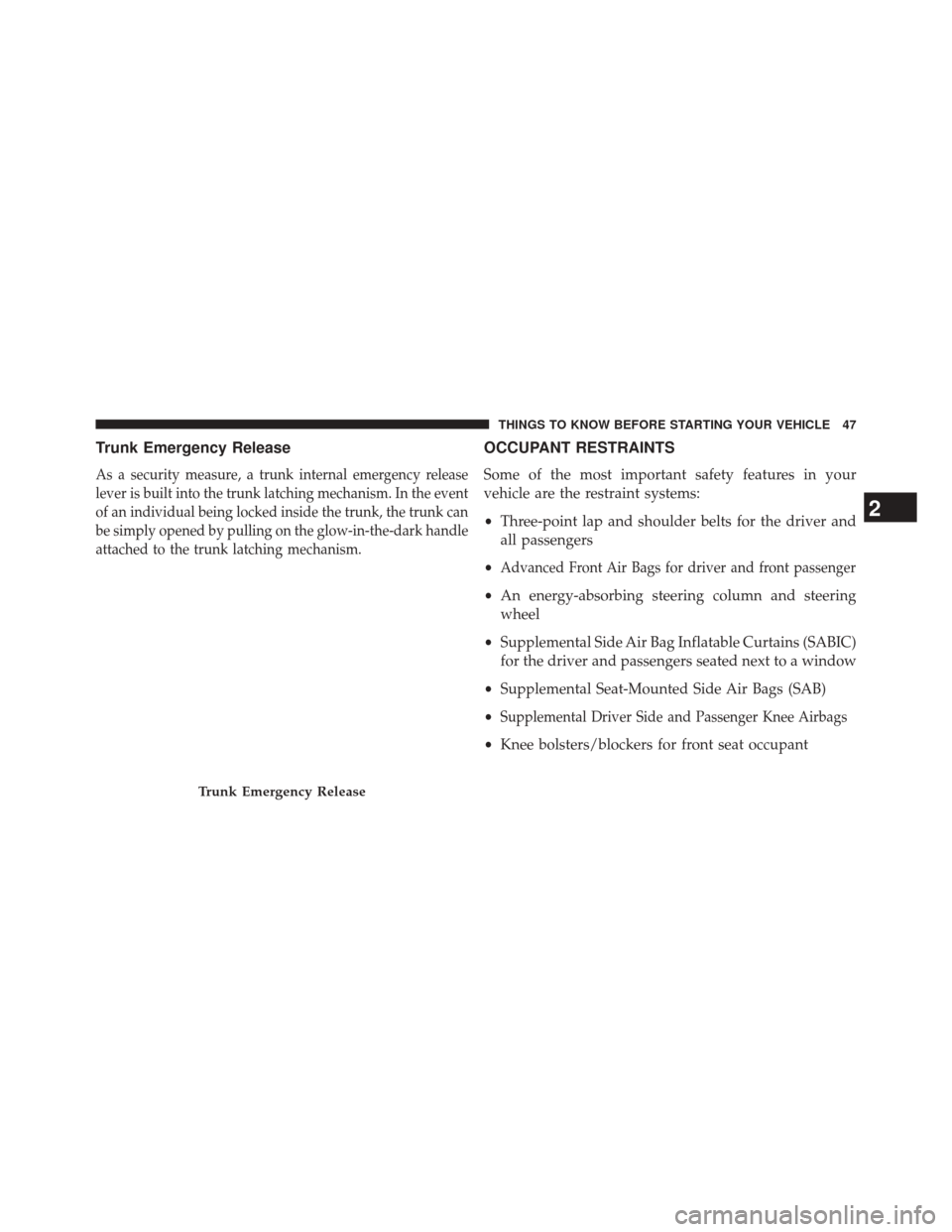

Trunk Emergency Release
As a security measure, a trunk internal emergency release
lever is built into the trunk latching mechanism. In the event
of an individual being locked inside the trunk, the trunk can
be simply opened by pulling on the glow-in-the-dark handle
attached to the trunk latching mechanism.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
•Three-point lap and shoulder belts for the driver and
all passengers
•
Advanced Front Air Bags for driver and front passenger
• An energy-absorbing steering column and steering
wheel
• Supplemental Side Air Bag Inflatable Curtains (SABIC)
for the driver and passengers seated next to a window
• Supplemental Seat-Mounted Side Air Bags (SAB)
•
Supplemental Driver Side and Passenger Knee Airbags
• Knee bolsters/blockers for front seat occupant
Trunk Emergency Release
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47

INSTRUMENT PANEL FEATURES
1 — Air Demister5 — Glove Compartment9 — Trunk Release
2 — Outlet 6 — Climate Control Hard Controls/
Uconnect® System Hard Controls10 — Hood Release
3 — Instrument Cluster 7 — Power Outlet11 — Dimmer Control
4 — Radio/Uconnect® System 8 — Ignition Switch12 — Headlight Switch
304 UNDERSTANDING YOUR INSTRUMENT PANEL

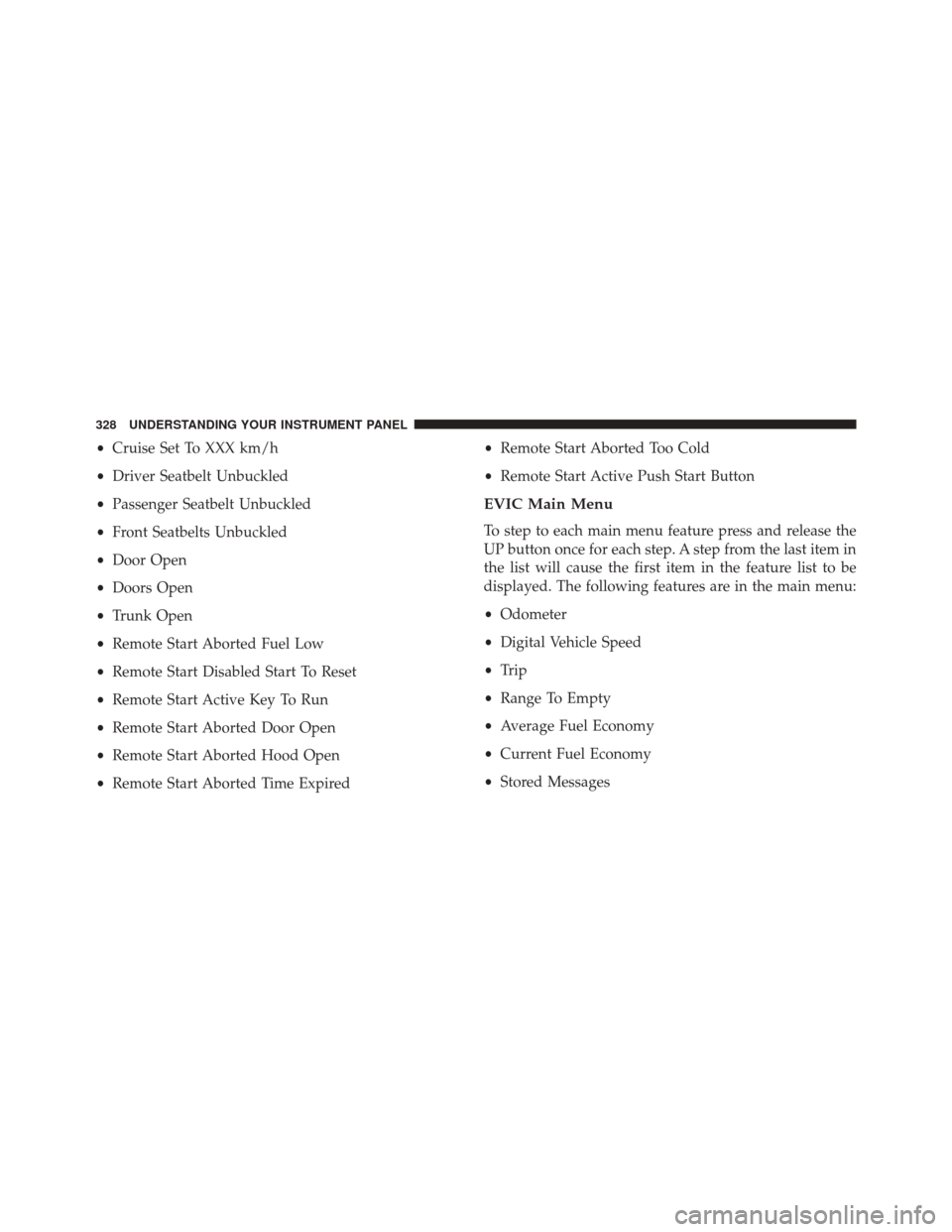

•Cruise Set To XXX km/h
• Driver Seatbelt Unbuckled
• Passenger Seatbelt Unbuckled
• Front Seatbelts Unbuckled
• Door Open
• Doors Open
• Trunk Open
• Remote Start Aborted Fuel Low
• Remote Start Disabled Start To Reset
• Remote Start Active Key To Run
• Remote Start Aborted Door Open
• Remote Start Aborted Hood Open
• Remote Start Aborted Time Expired •
Remote Start Aborted Too Cold
• Remote Start Active Push Start Button
EVIC Main Menu
To step to each main menu feature press and release the
UP button once for each step. A step from the last item in
the list will cause the first item in the feature list to be
displayed. The following features are in the main menu:
•Odometer
• Digital Vehicle Speed
• Trip
• Range To Empty
• Average Fuel Economy
• Current Fuel Economy
• Stored Messages
328 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!(Continued)
•Guard against carbon monoxide with proper main-
tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal
conditions repaired promptly. Until repaired, drive
with all side windows fully open.
• Keep the trunk closed when driving your vehicle to
prevent carbon monoxide and other poisonous ex-
haust gases from entering the vehicle.
ADDING FUEL
Fuel Filler Cap (Gas Cap)
The gas cap is located behind the locking fuel filler door,
on the right side of the vehicle. If the gas cap is lost or
damaged, be sure the replacement cap is for use with this
vehicle. 1. Press the fuel filler door release switch (located on the
driver’s side door trim).
2. Open the fuel filler door, and remove the fuel filler cap.
Fuel Filler Cap
5
STARTING AND OPERATING 497

NOTE:
•When the fuel nozzle “clicks” or shuts off, the fuel tank
is full.
• Tighten the gas cap about one-quarter turn until you
hear one click. This is an indication that the cap is
properly tightened.
• If the gas cap is not tighten properly, the MIL will come
on. Be sure the gas cap is tightened every time the
vehicle is refueled.
Manual Fuel Filler Door Release
If you are unable to open the fuel filler door, use the
manual fuel filler door release.
1. Open the trunk.
2. Locate the release cable access door cut out on the
right side of the trunk trim. 3. Insert finger into half circle opening and pull flap open
to access the cable.
Release Cable Access Door Cut Out
5
STARTING AND OPERATING 499
