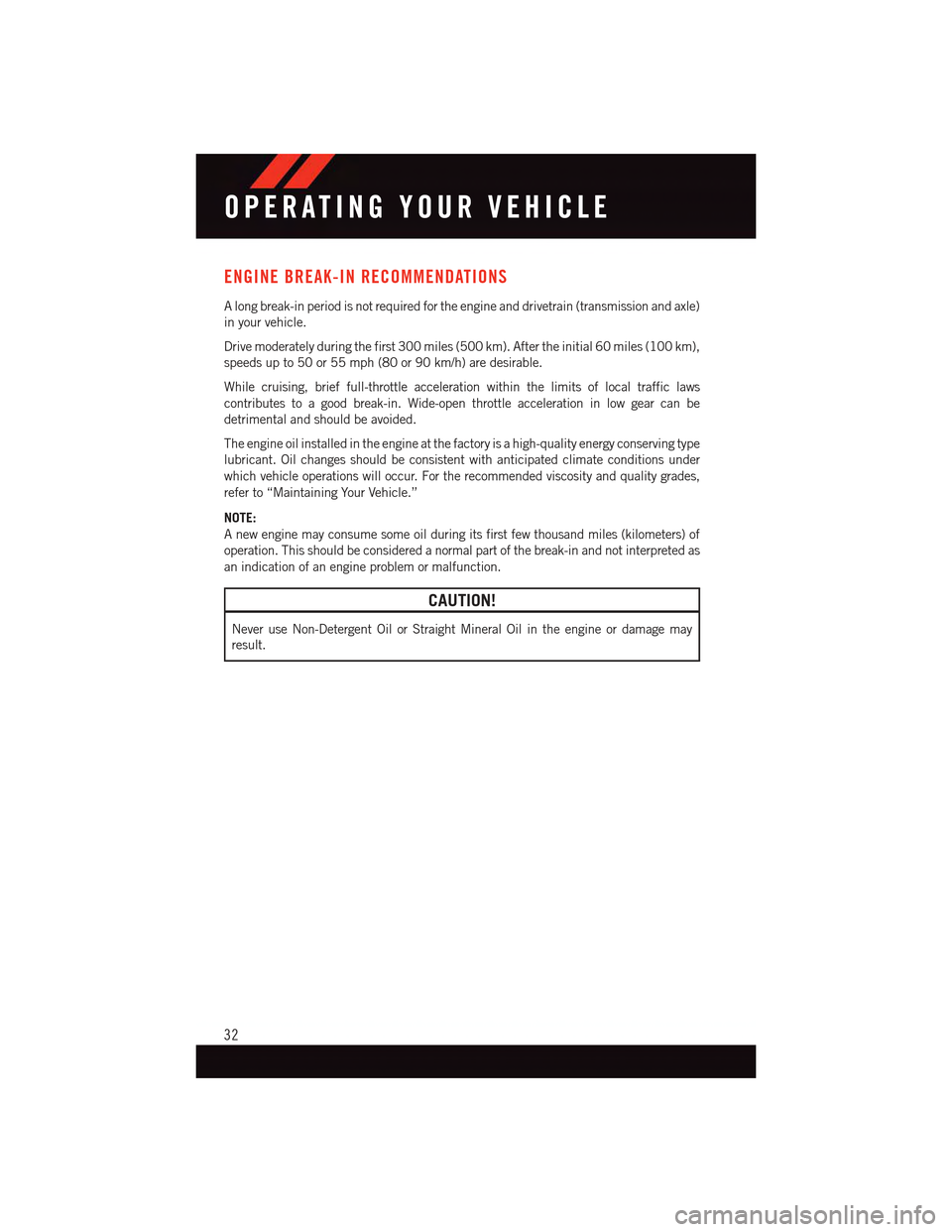

ENGINE BREAK-IN RECOMMENDATIONS
Alongbreak-inperiodisnotrequiredfortheengineanddrivetrain(transmissionandaxle)
in your vehicle.
Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km),
speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the limits of local traffic laws
contributes to a good break-in. Wide-open throttle acceleration in low gear can be
detrimental and should be avoided.
The engine oil installed in the engine at the factory is a high-quality energy conserving type
lubricant. Oil changes should be consistent with anticipated climate conditions under
which vehicle operations will occur. For the recommended viscosity and quality grades,
refer to “Maintaining Your Vehicle.”
NOTE:
Anewenginemayconsumesomeoilduringitsfirstfewthousandmiles(kilometers)of
operation. This should be considered a normal part of the break-in and not interpreted as
an indication of an engine problem or malfunction.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may
result.
OPERATING YOUR VEHICLE
32

If the tire does not inflate to at least 26 psi (1.8 Bar) pressure within 15 minutes:
The tire is too badly damaged. Do not attempt to drive the vehicle further. Call for
assistance.
NOTE:
If the tire becomes over-inflated, press the Deflation Button to reduce the tire pressure to
the recommended inflation pressure before continuing.
If the tire inflates to the recommended pressure or is at least 26 psi (1.8 Bar) pressure
within 15 minutes:
1. Press the Power Button (4) to turn off the Tire Service Kit.
2. Remove the Speed Limit sticker from the top of the Sealant Bottle (1) and place the
sticker on the instrument panel.
3. Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on
the fitting at the end of the hose, and place the Tire Service Kit in the vehicle storage
location. Quickly proceed to (D) “Drive Vehicle.”
(D) Drive Vehicle:
Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km)
or 10 minutes to ensure distribution of the Tire Service Kit Sealant within the tire. Do not
exceed 55 mph (88 km/h).
(E) After Driving:
Pull over to a safe location. Refer to “Whenever You Stop to Use Tire Service Kit” before
continuing.
1. Turn the Mode Select Knob (5) to the Air Mode position.
2. Uncoil the Air Pump Hose (7) (black in color) and screw the fitting at the end of
hose (7) onto the valve stem.
3. Uncoil the power plug and insert the plug into the vehicles 12 Volt power outlet.
4. Check the pressure in the tire by reading the Pressure Gauge (3).
WHAT TO DO IN EMERGENCIES
117

If tire pressure is less than 19 psi (1.3 Bar), the tire is too badly damaged. Do not attempt
to drive the vehicle further. Call for assistance.
If the tire pressure is 19 psi (1.3 Bar) or higher:
1. Press the Power Button (4) to turn on Tire Service Kit and inflate the tire to the pressure
indicated on the tire and loading information label on the driver-side door opening.
2. Disconnect the Tire Service Kit from the valve stem, reinstall the cap on the valve stem
and unplug from 12 Volt outlet.
3. Place the Tire Service Kit in its proper storage area in the vehicle.
4. Have the tire inspected and repaired or replaced at the earliest opportunity at an
authorized dealer or tire service center.
5. Remove the Speed Limit sticker from the instrument panel after the tire has been
repaired.
6. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized
dealer as soon as possible. Refer to “(F) Sealant Bottle and Hose Replacement.”
NOTE:
•Ifthetirebecomesover-inflated,presstheDeflationButtontoreducethetirepressure
to the recommended inflation pressure before continuing.
•Whenhavingthetireserviced,advisetheauthorizeddealerorservicecenterthatthe
tire has been sealed using the Tire Service Kit.
(F) Sealant Bottle And Hose Replacement:
1. Uncoil the Sealant Hose (6) (clear in color).
2. Locate the round Sealant Bottle release button in the recessed area under the sealant
bottle.
3. Press the Sealant Bottle release button. The Sealant Bottle (1) will pop up. Remove
the bottle and dispose of it accordingly.
4. Clean any remaining sealant from the Tire Service Kit housing.
5. Position the new Sealant Bottle (1) in the housing so that the Sealant Hose (6) aligns
with the hose slot in the front of the housing. Press the bottle into the housing. An
audible click will be heard indicating the bottle is locked into place.
6. Verify that the cap is installed on the fitting at the end of the Sealant Hose (6) and
return the hose to its storage area (located on the bottom of the air pump).
7. Return the Tire Service Kit to its storage location in the vehicle.
WHAT TO DO IN EMERGENCIES
118

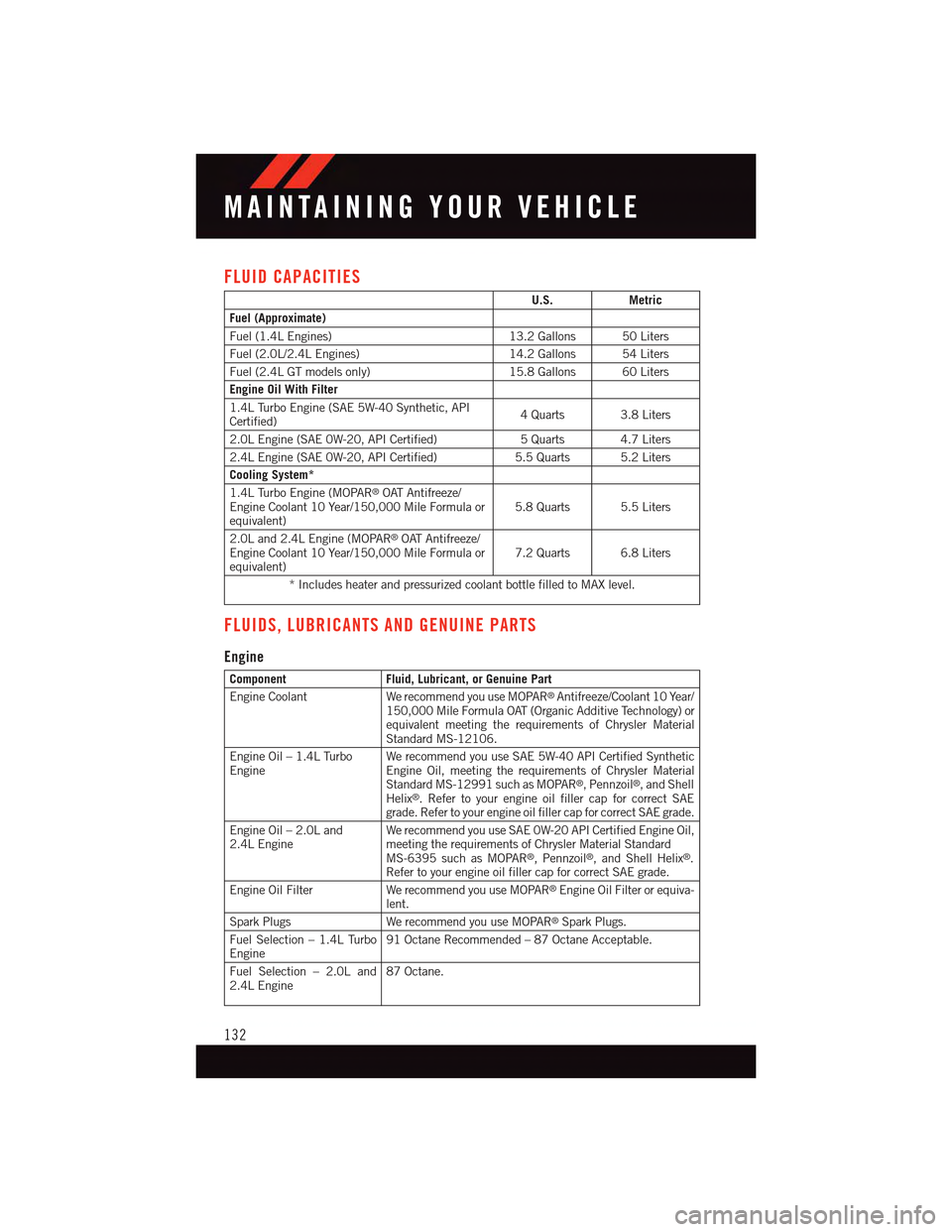

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Fuel (1.4L Engines)13.2 Gallons 50 Liters
Fuel (2.0L/2.4L Engines)14.2 Gallons 54 Liters
Fuel (2.4L GT models only)15.8 Gallons 60 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, APICertified)4Quarts 3.8Liters
2.0L Engine (SAE 0W-20, API Certified)5Quarts 4.7Liters
2.4L Engine (SAE 0W-20, API Certified)5.5 Quarts 5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR®OAT Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula orequivalent)5.8 Quarts 5.5 Liters
2.0L and 2.4L Engine (MOPAR®OAT Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula orequivalent)7.2 Quarts 6.8 Liters
*IncludesheaterandpressurizedcoolantbottlefilledtoMAXlevel.
FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR®Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) orequivalent meeting the requirements of Chrysler MaterialStandard MS-12106.
Engine Oil – 1.4L TurboEngineWe recommend you use SAE 5W-40 API Certified SyntheticEngine Oil, meeting the requirements of Chrysler MaterialStandard MS-12991 such as MOPAR®,Pennzoil®,andShellHelix®.RefertoyourengineoilfillercapforcorrectSAEgrade. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.0L and2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil,meeting the requirements of Chrysler Material StandardMS-6395 such as MOPAR®,Pennzoil®,andShellHelix®.Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR®Engine Oil Filter or equiva-lent.
Spark Plugs We recommend you use MOPAR®Spark Plugs.
Fuel Selection – 1.4L TurboEngine91 Octane Recommended – 87 Octane Acceptable.
Fuel Selection – 2.0L and2.4L Engine87 Octane.
MAINTAINING YOUR VEHICLE
132

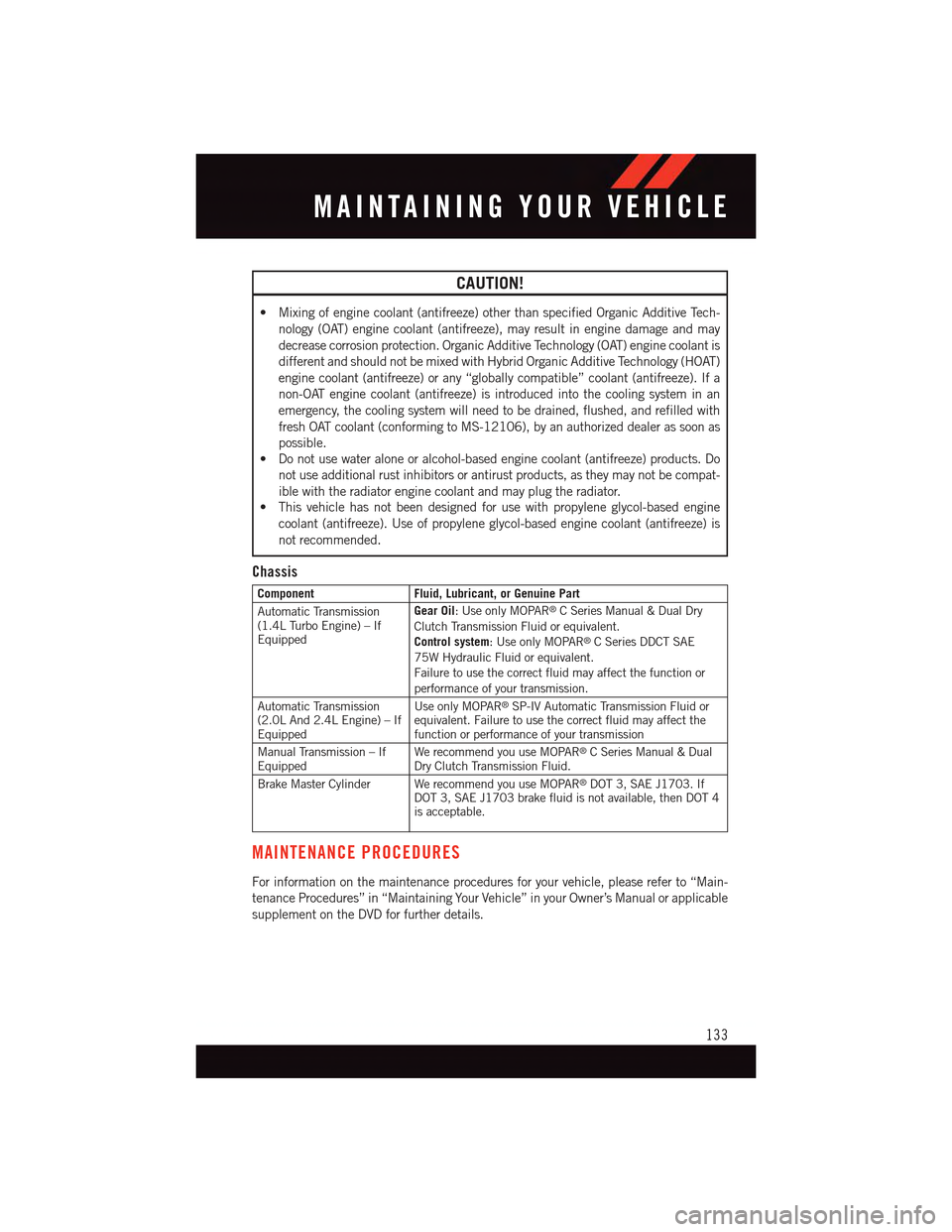

CAUTION!
•Mixingofenginecoolant(antifreeze)otherthanspecifiedOrganicAdditiveTech-
nology (OAT) engine coolant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is
different and should not be mixed with Hybrid Organic Additive Technology (HOAT)
engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an
emergency, the cooling system will need to be drained, flushed, and refilled with
fresh OAT coolant (conforming to MS-12106), by an authorized dealer as soon as
possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.Do
not use additional rust inhibitors or antirust products, as they may not be compat-
ible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission(1.4L Turbo Engine) – IfEquipped
Gear Oil:UseonlyMOPAR®CSeriesManual&DualDryClutch Transmission Fluid or equivalent.Control system:UseonlyMOPAR®CSeriesDDCTSAE75W Hydraulic Fluid or equivalent.Failure to use the correct fluid may affect the function orperformance of your transmission.
Automatic Transmission(2.0L And 2.4L Engine) – IfEquipped
Use only MOPAR®SP-IV Automatic Transmission Fluid orequivalent. Failure to use the correct fluid may affect thefunction or performance of your transmission
Manual Transmission – IfEquippedWe recommend you use MOPAR®CSeriesManual&DualDry Clutch Transmission Fluid.
Brake Master Cylinder We recommend you use MOPAR®DOT 3, SAE J1703. IfDOT 3, SAE J1703 brake fluid is not available, then DOT 4is acceptable.
MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to “Main-
tenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or applicable
supplement on the DVD for further details.
