engine DODGE DART 2016 PF / 1.G Owners Manual

CavityMaxi Fuse Mini Fuse Description
F01 70 Amp Tan –Body Control Module #1
F02 60 Amp Blue –Body Control Module #2
F03 30 Amp Green –Output For Starter Relay #1
F04 40 Amp Orange –ESC Pump Motor
F05 40 Amp Orange –Transmission Control Module #1
F06 30 Amp Green –Body Control Module #3
F07 40 Amp Orange –EBL RLY Coil, Blower Motor RLY Coil
F09 –5 Amp Tan Radiator Fan
F10 –10 Amp Red ORC
F11 –20 Amp Yellow Run/Start, Engine Control Module
F14 –15 Amp Blue Transmission Control Module #2
F15 –15 Amp Blue Transmission Control Module #3
F16 –15 Amp Blue Engine Control Module, Ignition Coils
F17 –15 Amp Blue Brake System Module
F18 –20 Amp Yellow Engine Control Module
612 MAINTAINING YOUR VEHICLE

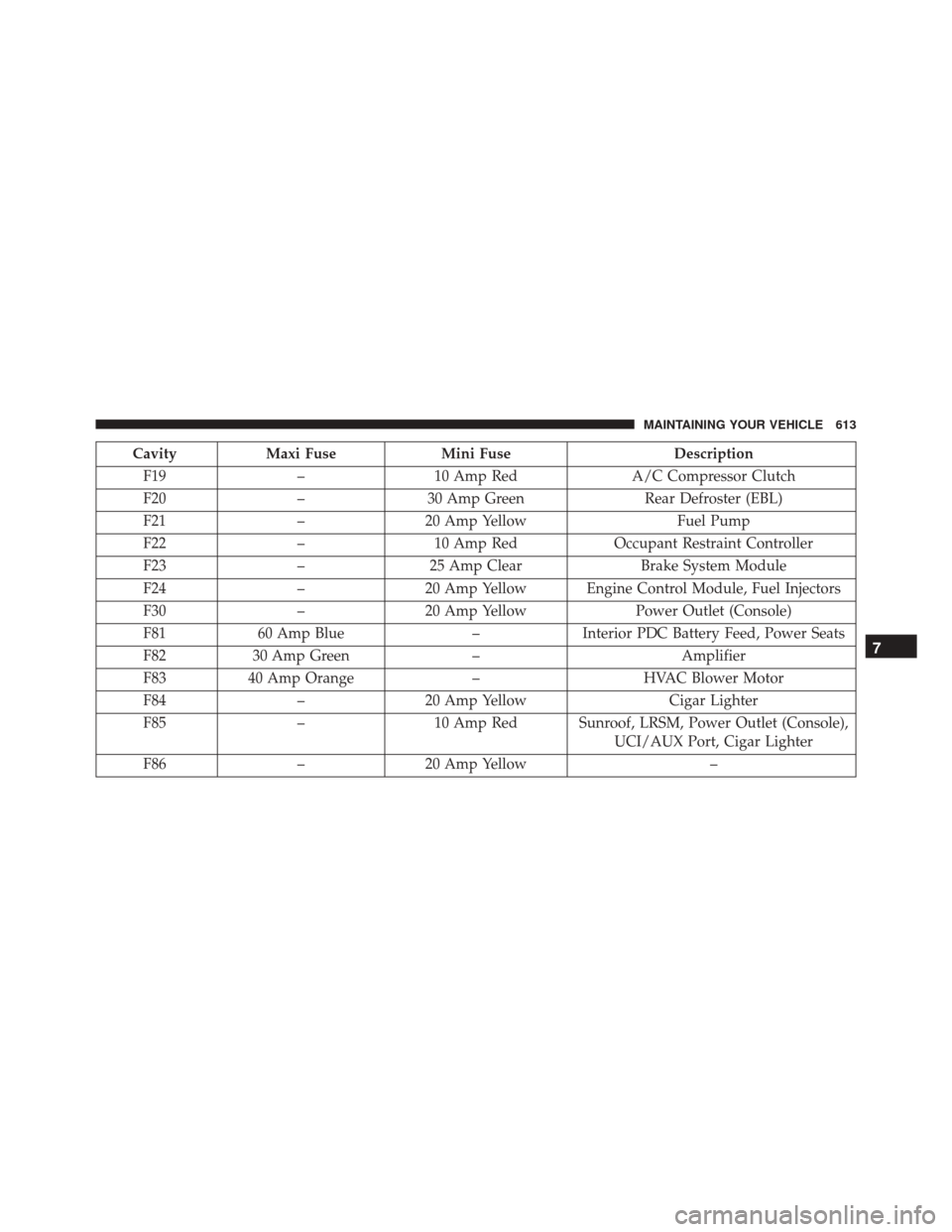

CavityMaxi Fuse Mini Fuse Description
F19 –10 Amp Red A/C Compressor Clutch
F20 –30 Amp Green Rear Defroster (EBL)
F21 –20 Amp Yellow Fuel Pump
F22 –10 Amp Red Occupant Restraint Controller
F23 –25 Amp Clear Brake System Module
F24 –20 Amp Yellow Engine Control Module, Fuel Injectors
F30 –20 Amp Yellow Power Outlet (Console)
F81 60 Amp Blue –Interior PDC Battery Feed, Power Seats
F82 30 Amp Green –Amplifier
F83 40 Amp Orange –HVAC Blower Motor
F84 –20 Amp Yellow Cigar Lighter
F85 –10 Amp Red Sunroof, LRSM, Power Outlet (Console),
UCI/AUX Port, Cigar Lighter
F86 –20 Amp Yellow –
7
MAINTAINING YOUR VEHICLE 613

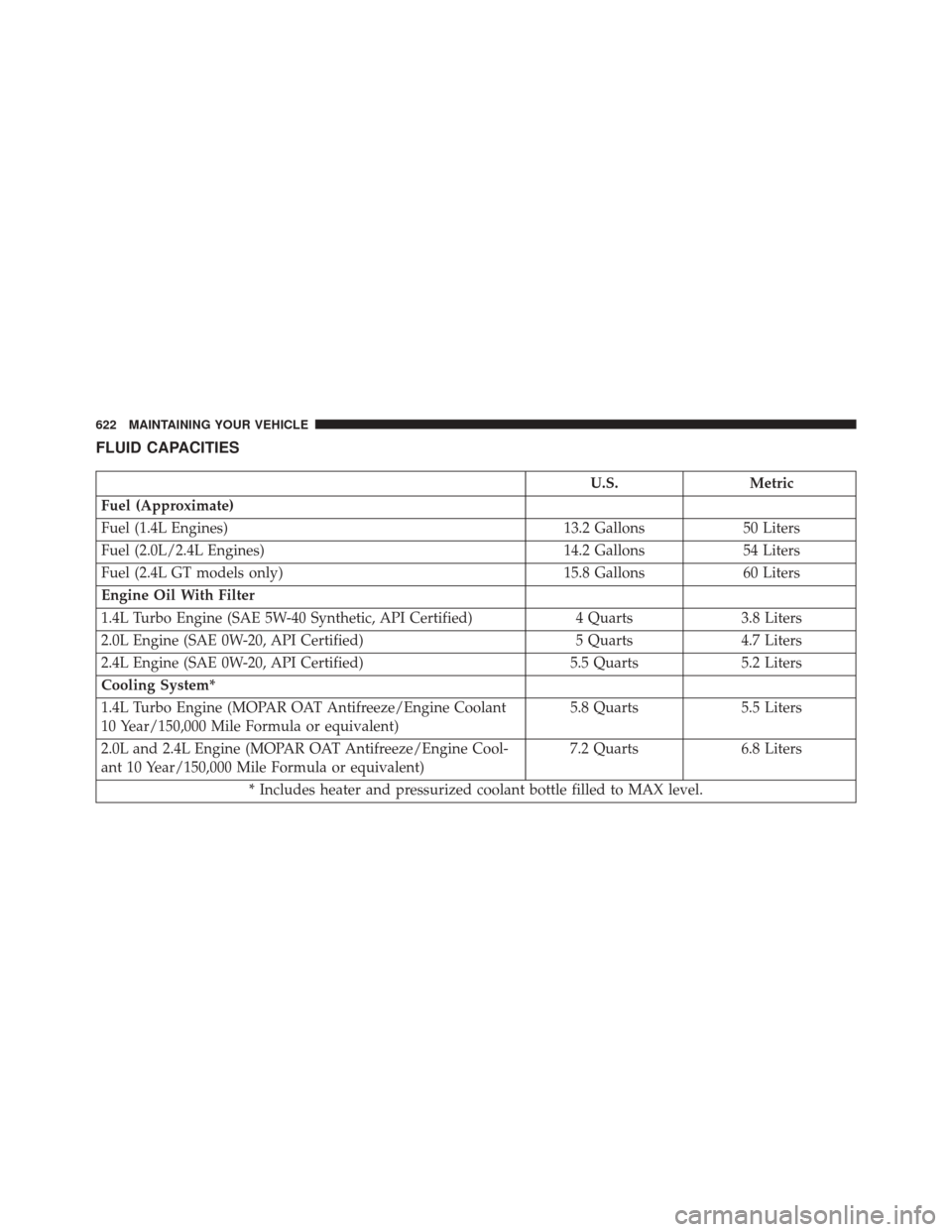

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Fuel (1.4L Engines) 13.2 Gallons50 Liters
Fuel (2.0L/2.4L Engines) 14.2 Gallons54 Liters
Fuel (2.4L GT models only) 15.8 Gallons60 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4 Quarts3.8 Liters
2.0L Engine (SAE 0W-20, API Certified) 5 Quarts4.7 Liters
2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR OAT Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 5.8 Quarts
5.5 Liters
2.0L and 2.4L Engine (MOPAR OAT Antifreeze/Engine Cool-
ant 10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and pressurized coolant bottle filled to MAX level.
622 MAINTAINING YOUR VEHICLE

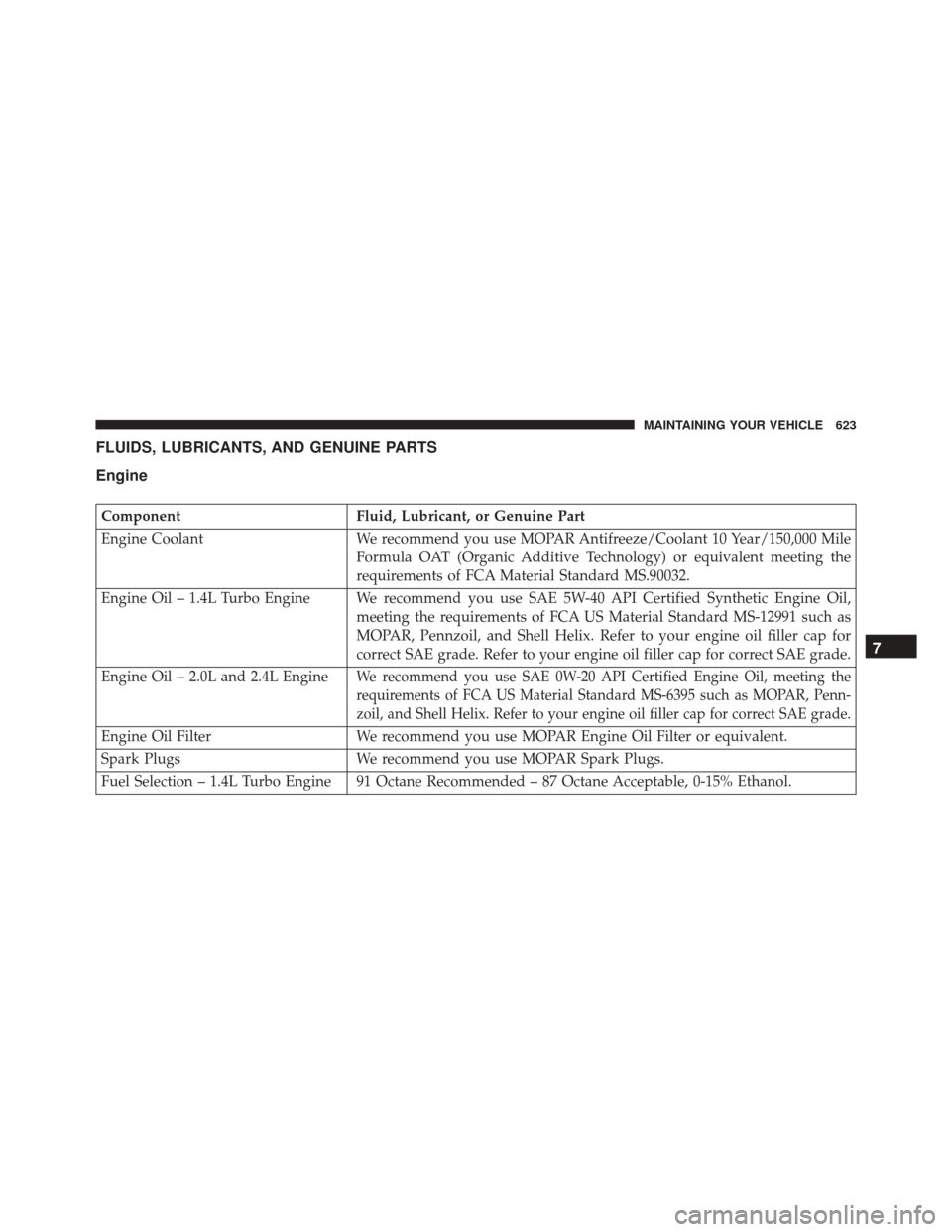

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of FCA Material Standard MS.90032.
Engine Oil – 1.4L Turbo Engine We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the requirements of FCA US Material Standard MS-12991 such as
MOPAR, Pennzoil, and Shell Helix. Refer to your engine oil filler cap for
correct SAE grade. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.0L and 2.4L Engine
We recommend you use SAE 0W-20 API Certified Engine Oil, meeting the
requirements of FCA US Material Standard MS-6395 such as MOPAR, Penn-
zoil, and Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filter or equivalent.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection – 1.4L Turbo Engine 91 Octane Recommended – 87 Octane Acceptable, 0-15% Ethanol.
7
MAINTAINING YOUR VEHICLE 623

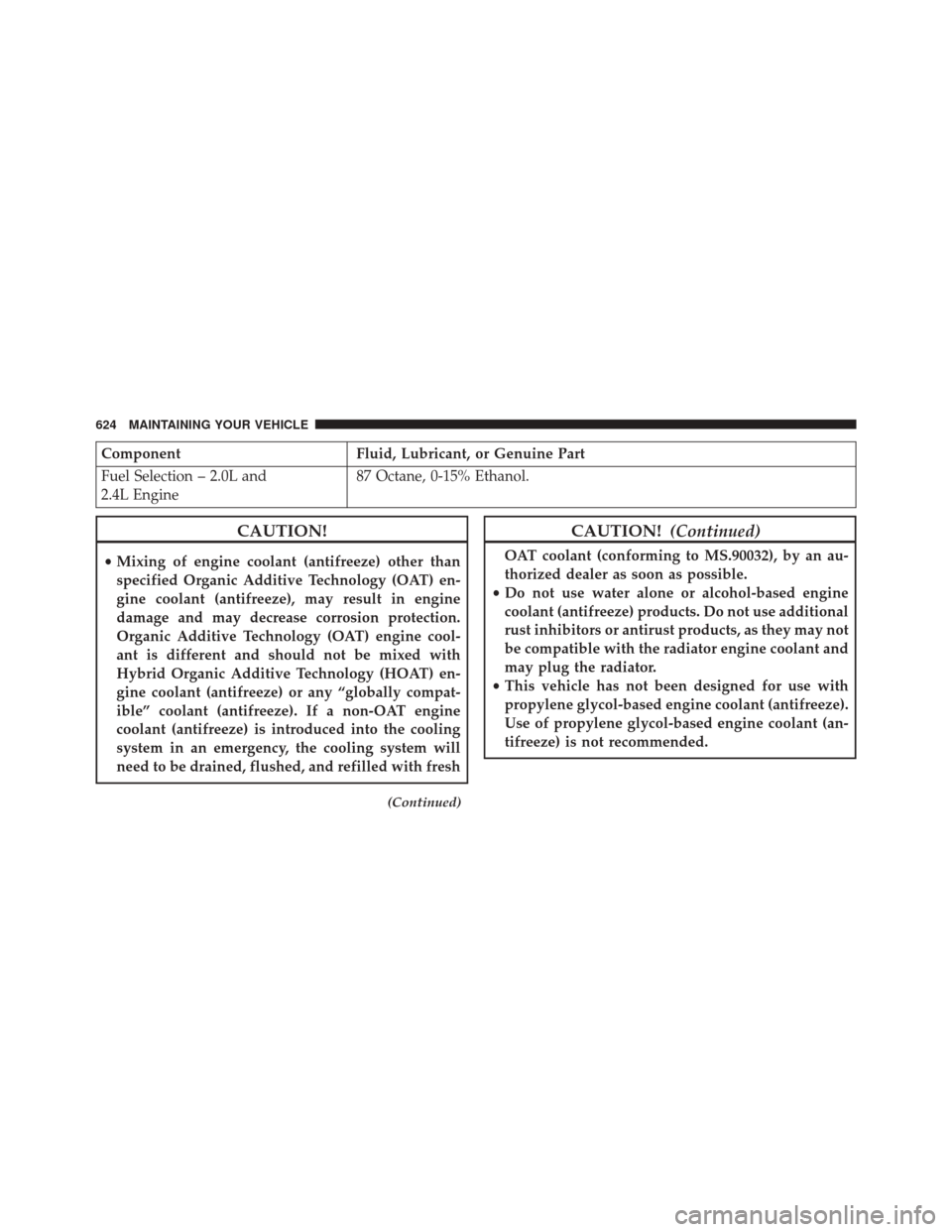

ComponentFluid, Lubricant, or Genuine Part
Fuel Selection – 2.0L and
2.4L Engine 87 Octane, 0-15% Ethanol.
CAUTION!
•
Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
(Continued)
CAUTION! (Continued)
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
• Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
624 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (1.4L
Turbo Engine) – If Equipped Gearbox: Use only MOPAR C Series Manual & Dual Dry Clutch Trans-
mission Fluid or equivalent.
Control System: Use only MOPAR C Series DDCT SAE 75W Hydraulic
Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission.
Automatic Transmission (2.0L And
2.4L Engine) – If Equipped Use only MOPAR SP-IV M Automatic Transmission Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission
Manual Transmission – If
Equipped We recommend you use MOPAR C Series Manual & Dual Dry Clutch
Transmission Fluid.
Brake Master Cylinder We recommend you use MOPAR DOT 3, SAE J1703. If DOT 3, SAE J1703
brake fluid is not available, then DOT 4 is acceptable.
7
MAINTAINING YOUR VEHICLE 625

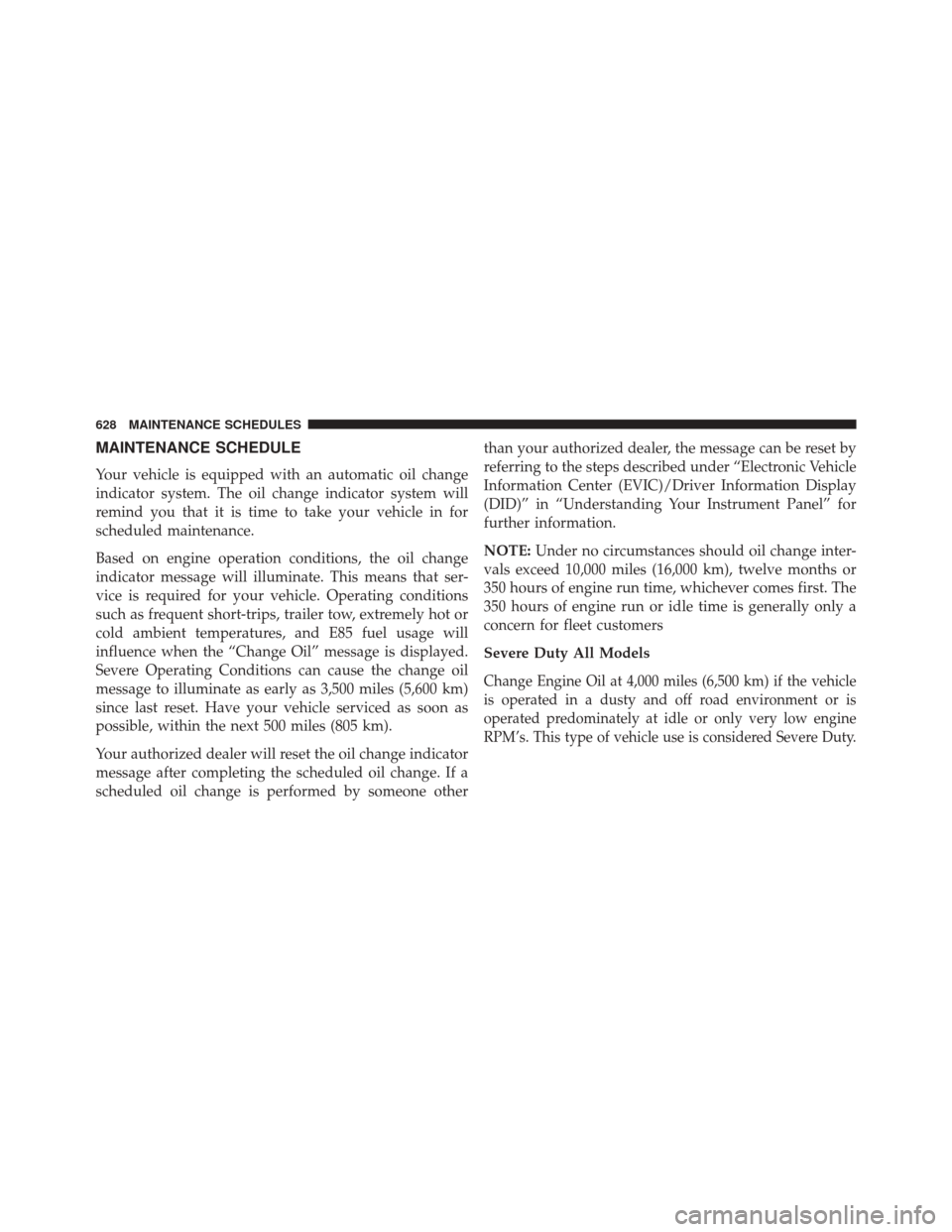

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Driver Information Display
(DID)” in “Understanding Your Instrument Panel” for
further information.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe Duty.
628 MAINTENANCE SCHEDULES

Once A Month Or Before A Long Trip:
•Check engine oil level.
• Check windshield washer fluid level.
• Check the tire inflation pressures and look for unusual
wear or damage.
• Check the fluid levels of the coolant reservoir, and
brake master cylinder as needed.
• Check function of all interior and exterior lights.
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change engine oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions. 8
MAINTENANCE SCHEDULES 629

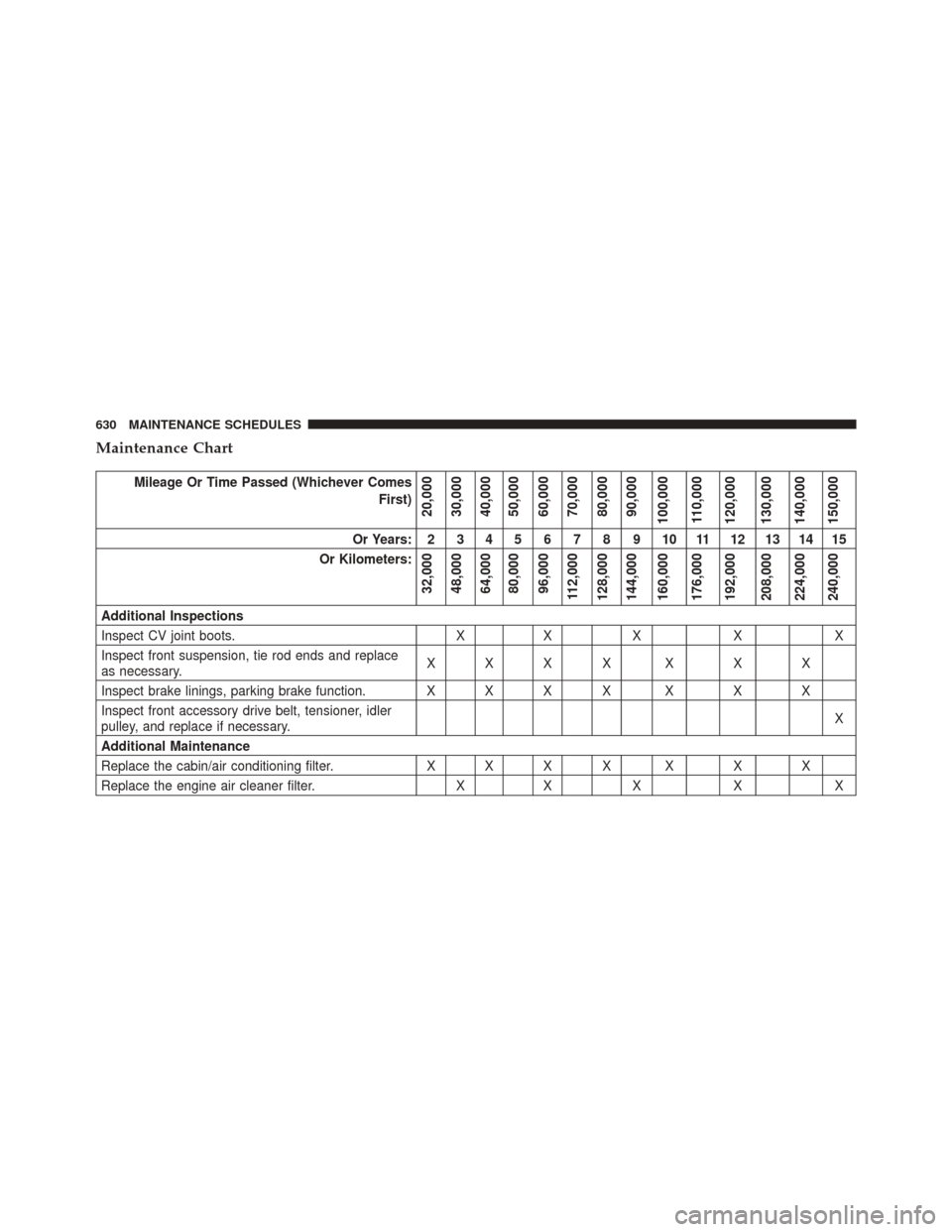

Maintenance Chart
Mileage Or Time Passed (Whichever ComesFirst)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect CV joint boots. XX X X X
Inspect front suspension, tie rod ends and replace
as necessary. XXX X X X X
Inspect brake linings, parking brake function. X X X X X X X
Inspect front accessory drive belt, tensioner, idler
pulley, and replace if necessary. X
Additional Maintenance
Replace the cabin/air conditioning filter. X X X X X X X
Replace the engine air cleaner filter. XX X X X
630 MAINTENANCE SCHEDULES

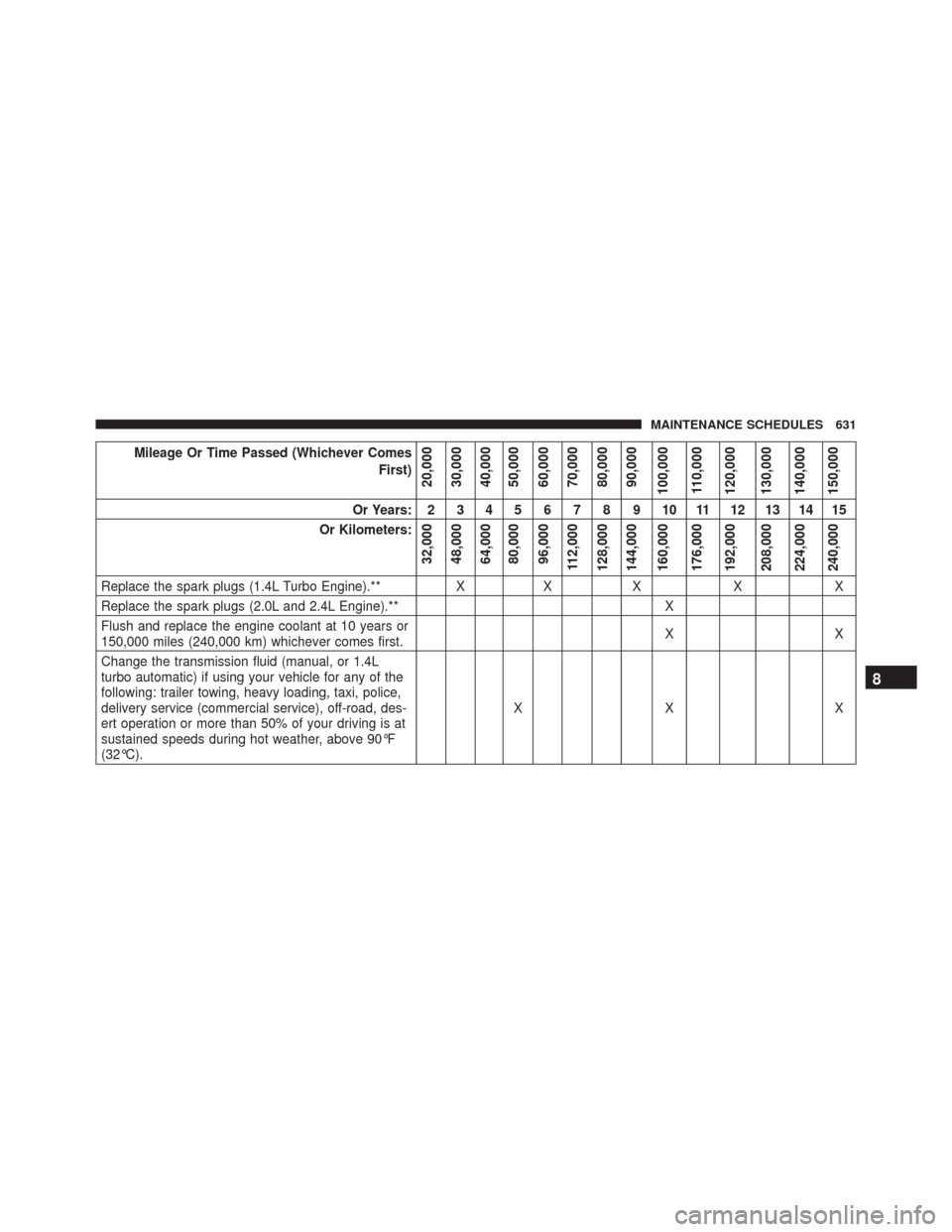

Mileage Or Time Passed (Whichever ComesFirst)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Replace the spark plugs (1.4L Turbo Engine).** XX X X X
Replace the spark plugs (2.0L and 2.4L Engine).** X
Flush and replace the engine coolant at 10 years or
150,000 miles (240,000 km) whichever comes first. XX
Change the transmission fluid (manual, or 1.4L
turbo automatic) if using your vehicle for any of the
following: trailer towing, heavy loading, taxi, police,
delivery service (commercial service), off-road, des-
ert operation or more than 50% of your driving is at
sustained speeds during hot weather, above 90°F
(32°C). XX X
8
MAINTENANCE SCHEDULES 631
