fog light DODGE DURANGO 2005 2.G Owners Manual

▫Headlight Delay......................122
▫Automatic Headlights — If Equipped.......122
▫Headlights, Parking Lights, Panel Lights.....123
▫Illuminated Entry.....................123
▫Daytime Running Lights (Canada Only).....123
▫Lights-On Reminder...................124
▫Fog Lights — If Equipped...............124

Multifunction Control Lever...............124
▫Turn Signals.........................125
▫Passing Light........................125
▫High Beam / Low Beam Select Switch......126
▫Windshield Wipers....................126
▫Windshield Washers...................127
Traction Control Switch — If Equipped.......128

Tilt Steering Column....................129

Driver Adjustable Pedals — If Equipped......130
▫Adjustment.........................131

Electronic Speed Control — If Equipped......132
▫To Activate..........................132
▫To Set At A Desired Speed...............132
▫To Deactivate........................132
▫To Resume Speed.....................133
▫To Vary The Speed Setting...............133
▫To Accelerate For Passing...............134

Overhead Console......................135
▫Courtesy/Reading Lights................136
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

If the headlights remain on while the ignition is cycled
off, the exterior lights will automatically turn off after 8
minutes. If the headlights are turned on and left on for 8
minutes while the ignition is off, the exterior lights will
automatically turn off.
NOTE:Battery Saver mode is cancelled if the ignition is
ON.
NOTE:While the engine is running, the system will
deactivate the Fog Lights and Heated seats if a low
battery system voltage is detected.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for 90
seconds. This delay is initiated when the ignition is
cycled off while the headlight switch is on, and then the
headlight switch is cycled off. The headlights will remainon for 90 seconds. Headlight delay can be cancelled by
either turning the headlight switch ON then OFF or by
turning the ignition ON.
NOTE:This feature can be disabled by your authorized
dealer.
Automatic Headlights — If Equipped
Automatic Headlights can be activated by rotating the
rotary headlight switch to the symbol “A.” The head-
lights will turn on when the engine is running and the
ambient light sensor indicates that the headlights should
be activated. The headlights will turn off if the headlight
switch is rotated to the off position or 90 seconds after the
ignition is turned to OFF.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

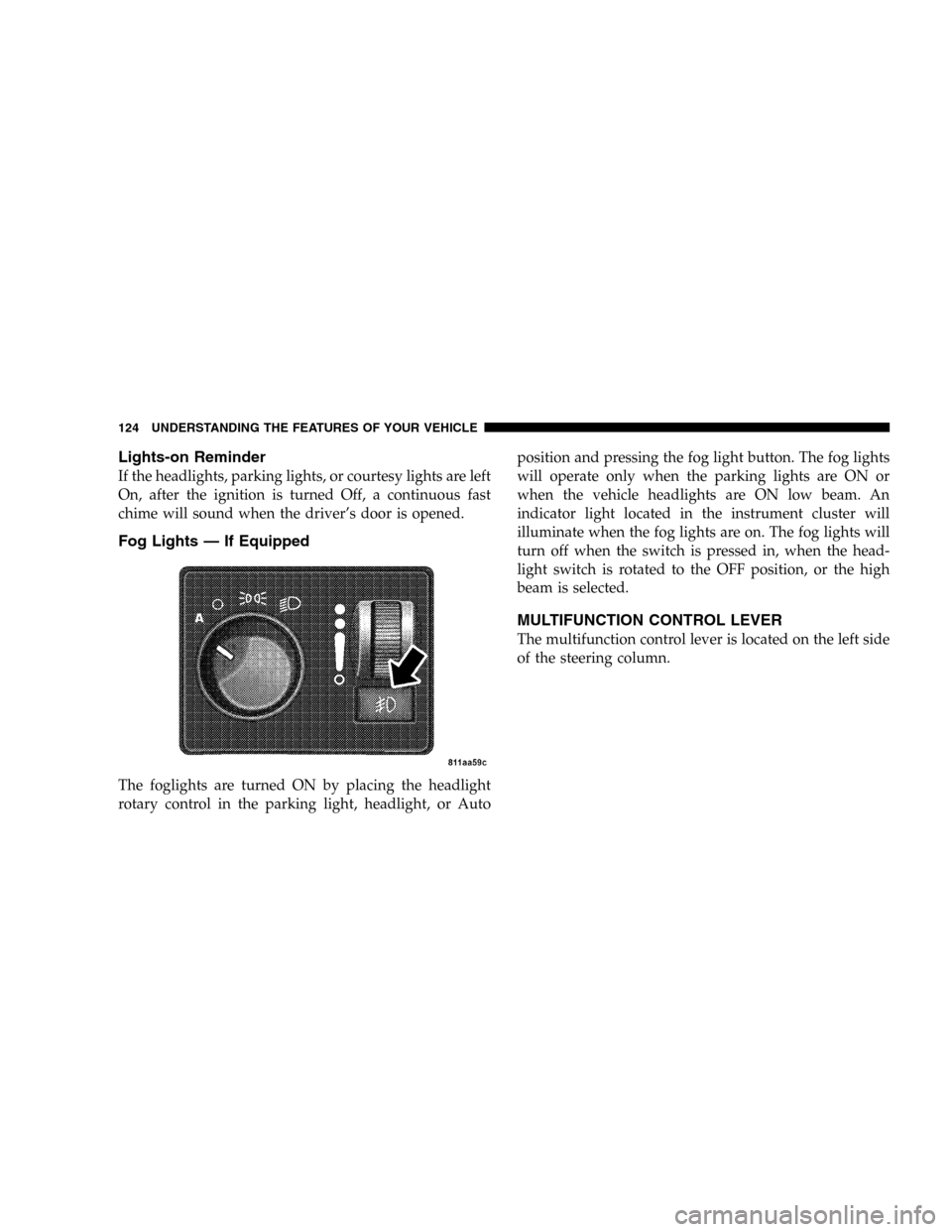

Lights-on Reminder
If the headlights, parking lights, or courtesy lights are left
On, after the ignition is turned Off, a continuous fast
chime will sound when the driver’s door is opened.
Fog Lights — If Equipped
The foglights are turned ON by placing the headlight
rotary control in the parking light, headlight, or Autoposition and pressing the fog light button. The fog lights
will operate only when the parking lights are ON or
when the vehicle headlights are ON low beam. An
indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights will
turn off when the switch is pressed in, when the head-
light switch is rotated to the OFF position, or the high
beam is selected.
MULTIFUNCTION CONTROL LEVER
The multifunction control lever is located on the left side
of the steering column.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

left/right turn signal is left on with the engine RPM
vehicle speed greater than 15 mph (24 km/h) for more
than one mile. (See page 124 for more information.)
4. Low Fuel Warning Light
This indicator lights when the fuel gauge reads 1/8
of a tank or less.
5. High Beam Indicator
Indicates that headlights are on high beam.
6. Seat Belt Reminder Light
This light comes on for several seconds after the
ignition is turned ON as a reminder to “buckle
up.” This light will remain on as long as the seat
belt remains unbuckled. If this light flashes, it indicates a
fault in the airbag system. Have the system checked by
an authorized dealer. (See page 28 for more information.)7. Fog Light Indicator — If Equipped
This light shows when the fog lights are ON.
8. Coolant Temperature Light
This light warns of an overheated engine condi-
tion. For a bulb check, this light will come on
momentarily when the ignition is turned On. If the
light turns on while driving, stop the vehicle, shift into N
(Neutral) and increase the engine speed for 2 to 3
minutes. If the temperature reading does not return to
normal, seek authorized service immediately.
INSTRUMENT PANEL AND CONTROLS 165
4

and blower speed to maintain comfort. Interior fogging
on the windshield can be quickly removed by selecting
the defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear.When stopped in heavy traffic, it may be necessary to
shift into NEUTRAL and press the accelerator slightly for
fast idle operation.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
210 INSTRUMENT PANEL AND CONTROLS

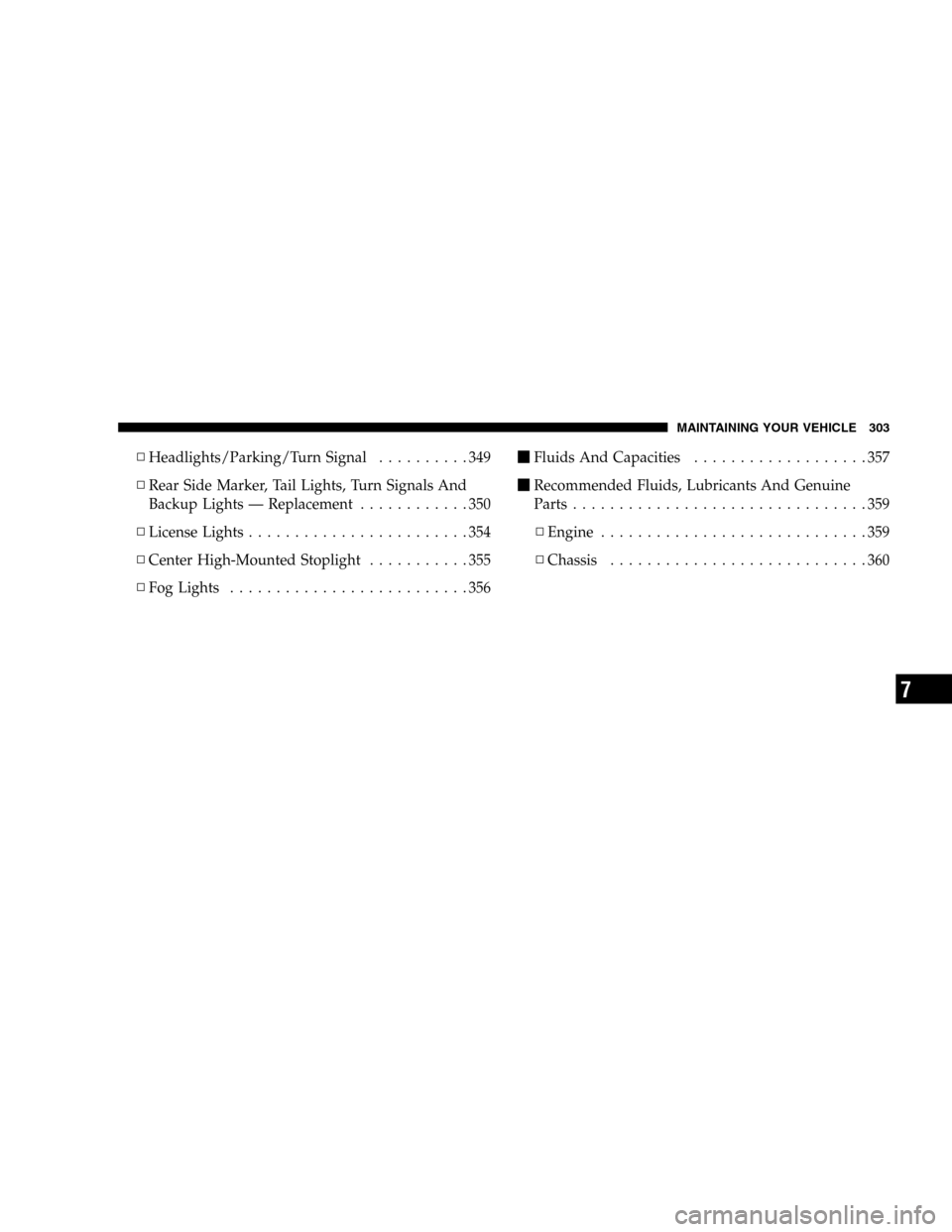

▫Headlights/Parking/Turn Signal..........349
▫Rear Side Marker, Tail Lights, Turn Signals And
Backup Lights — Replacement............350
▫License Lights........................354
▫Center High-Mounted Stoplight...........355
▫Fog Lights..........................356
Fluids And Capacities...................357

Recommended Fluids, Lubricants And Genuine
Parts................................359
▫Engine.............................359
▫Chassis............................360
MAINTAINING YOUR VEHICLE 303
7

Cavity Fuse/Color Description
23 50 Amp Red Rad Fan
24 Mini Relay Rad Fan Lo Rly
25 Micro Relay Ft Fog Lamps Rly
26 Micro Relay Adjustable Pedal Rly
27 15 Amp Lt.
BlueIOD #1
28 20 Amp Yel-
lowIOD #2 (Audio)
29 10 Amp Red ORC (Ign R/.S)
30 10 Amp Red ORC (Ign R/O)
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light........................WL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2AReading Light.......................WL212–2
Visor Vanity Lights............... NotServiceable
LIGHT BULBS — Outside Bulb No.
Headlight............................. H13
Front Park/Turn/Sidemarker.............3457AK
Front Auxilliary Park...................... 194
Back-Up..............................3057
Center High Mounted Stoplight.............. 921
Fog Lamp...........................9006LL
Rear Sidemarker......................... 168
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal.................3057
348 MAINTAINING YOUR VEHICLE

2. Turn socket 1/4 counterclockwise and free from hous-
ing.
3. Pull bulb straight from socket to remove.Fog Lights
1. Rotate bulb and connector 1/4 turn counterclockwise.
2. Pull bulb off of connector.
NOTE:For foglights ensure that the takeout push-
fasteners are relocated back in their positions; one in the
foglight molding and the other in the hydroform.
356 MAINTAINING YOUR VEHICLE

Turn Signal.....................125,164,350
Flat Tire Stowage.....................289,295
Flooded Engine Starting................... 219
Floor Console.......................... 153
Fluid, Brake.........................331,360
Fluid Capacities......................... 357
Fluid Level Checks
Automatic Transmission................. 332
Brake............................... 331
Cooling System....................... 324
Engine Oil........................... 311
Power Steering........................ 320
Transfer Case......................... 335
Fog Lights..........................124,356
Folding Rear Seat.....................106,109
Four Wheel Drive....................... 226
Operation........................... 226
Four-Way Hazard Flasher.................. 286
Freeing A Stuck Vehicle................... 239Front Axle............................. 336
Fuel................................. 260
Adding............................. 262
Filter............................... 316
Gauge.............................. 164
Octane Rating......................260,359
Requirements......................260,357
Tank Capacity........................ 357
Fueling............................... 262
Fuses.............................152,341
Garage Door Opener..................... 142
GasCap ...........................263,307
Gas Gauge (Fuel Gauge)................... 164
Gasoline.............................. 260
Gasoline, Reformulated................... 261
Gauges
Coolant Temperature.................... 164
Fuel................................ 164
INDEX 399
10

Instrument Cluster....................... 164
Instrument Panel and Controls.............. 162
Instrument Panel Lens Cleaning............. 340
Integrated Power Module.................. 347
Interior Appearance Care.................. 339
Interior Fuses.......................... 342
Interior Lighting........................ 121
Interior Lights.......................... 121
Intermittent Wipers...................... 126
Introduction............................. 4
Jack Operation.......................288,291
Jacking Instructions...................... 292
Key, Replacement........................ 10
Key, Sentry.............................. 9
Key-In Reminder......................... 9
Keyless Entry System...................... 19
Keys.................................. 9Knee Bolster............................ 38
Lane Change and Turn Signals.........125,164,350
Lap/Shoulder Belts.....................29,34
LATCH (Lower Anchors and Tether for CHildren) . 57
Liftgate................................ 26
Lights..............................66,120
Airbag............................51,171
Anti-Lock Warning..................... 167
Automatic Headlights................... 122
Back-Up............................. 350
Brake Warning........................ 169
Bulb Replacement...................348,349
Center Mounted Stop................... 355
Courtesy/Reading..................... 136
Cruise.............................. 171
Daytime Running...................... 123
Door Ajar........................... 169
Fog ..........................124,165,356
INDEX 401
10
