jacking DODGE DURANGO 2005 2.G Owners Manual

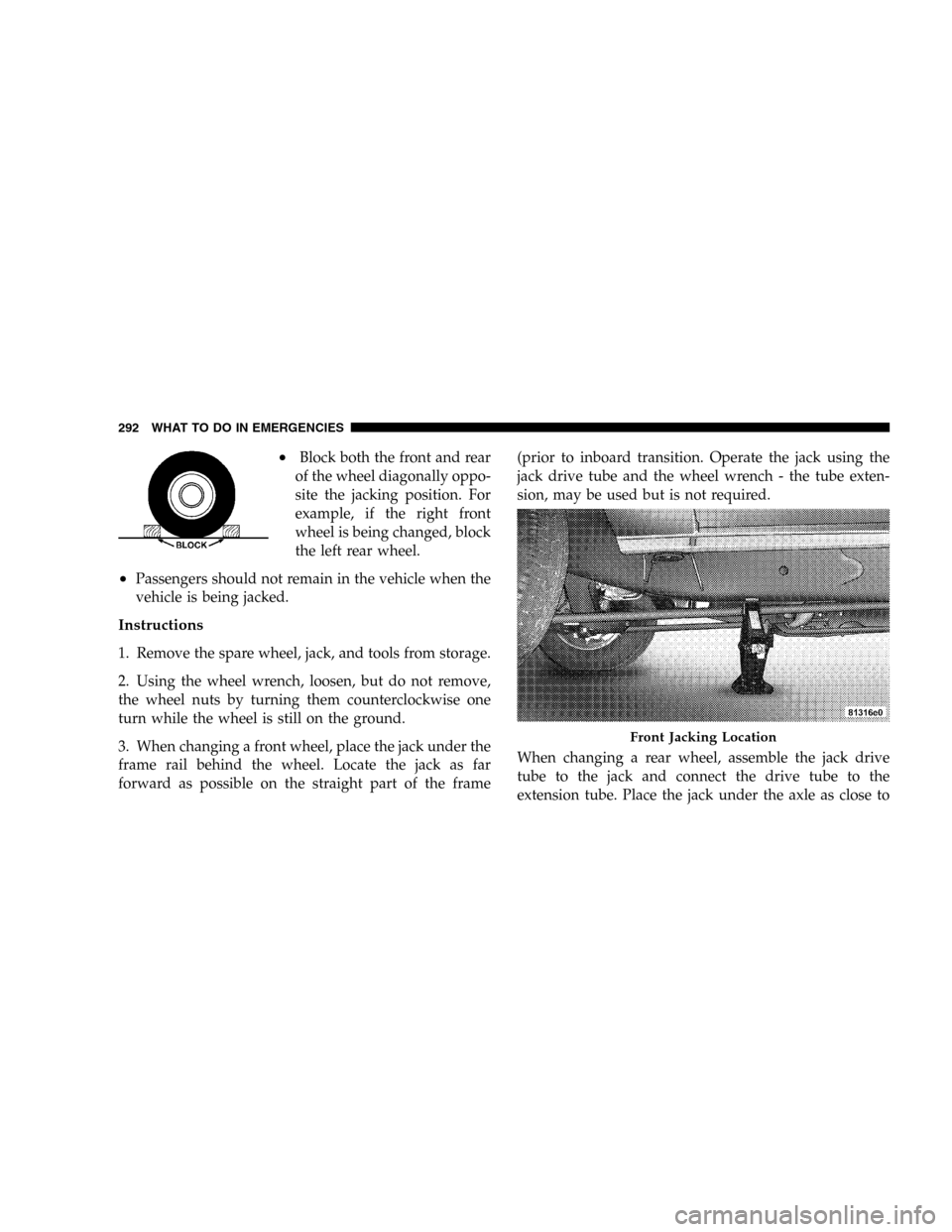

•Block both the front and rear
of the wheel diagonally oppo-
site the jacking position. For
example, if the right front
wheel is being changed, block
the left rear wheel.
•Passengers should not remain in the vehicle when the
vehicle is being jacked.
Instructions
1. Remove the spare wheel, jack, and tools from storage.
2. Using the wheel wrench, loosen, but do not remove,
the wheel nuts by turning them counterclockwise one
turn while the wheel is still on the ground.
3. When changing a front wheel, place the jack under the
frame rail behind the wheel. Locate the jack as far
forward as possible on the straight part of the frame(prior to inboard transition. Operate the jack using the
jack drive tube and the wheel wrench - the tube exten-
sion, may be used but is not required.
When changing a rear wheel, assemble the jack drive
tube to the jack and connect the drive tube to the
extension tube. Place the jack under the axle as close to
Front Jacking Location
292 WHAT TO DO IN EMERGENCIES

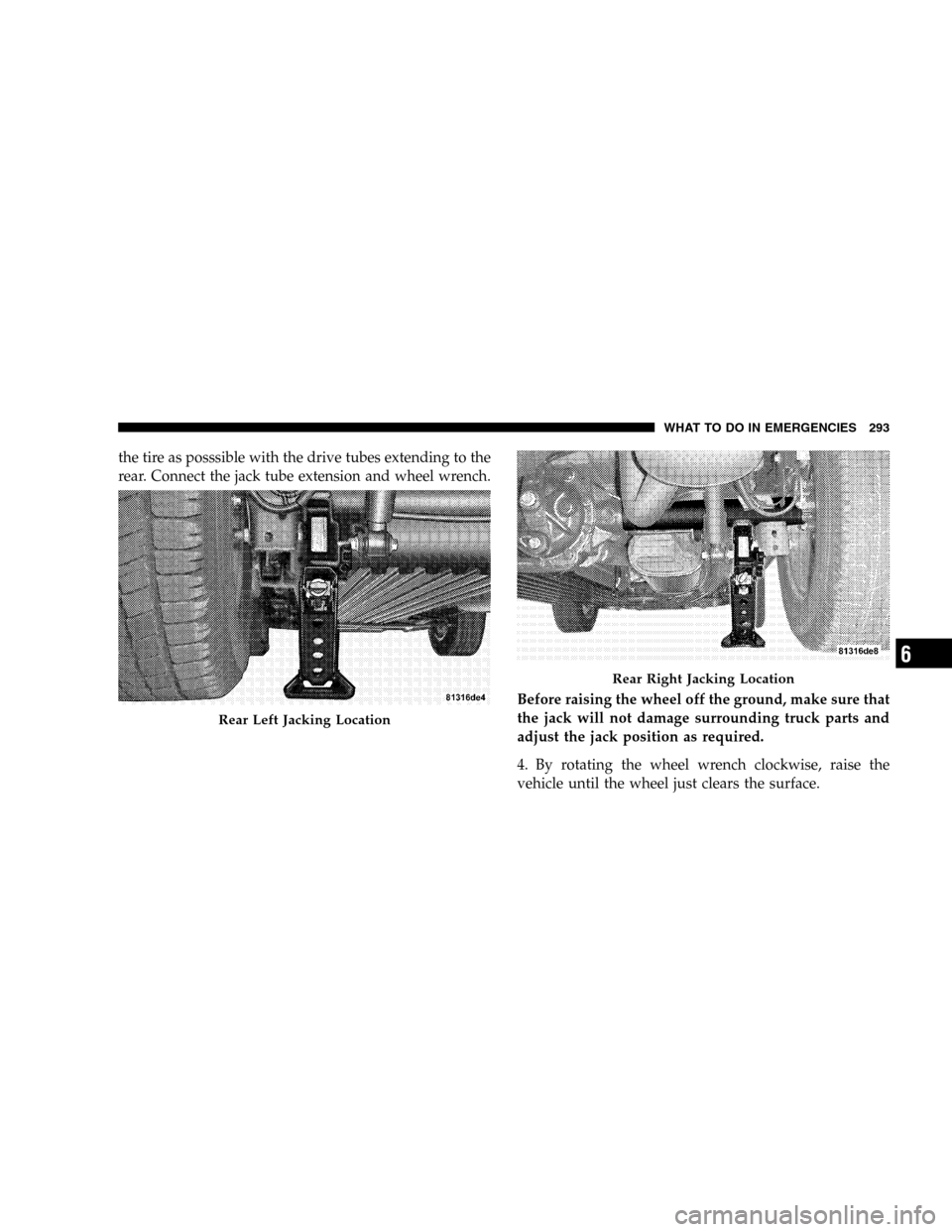

the tire as posssible with the drive tubes extending to the
rear. Connect the jack tube extension and wheel wrench.
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
4. By rotating the wheel wrench clockwise, raise the
vehicle until the wheel just clears the surface.
Rear Left Jacking Location
Rear Right Jacking Location
WHAT TO DO IN EMERGENCIES 293
6

WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
•Always park on a firm, level surface as far from the edge
of the roadway as possible before raising the vehicle.
•Block the wheel diagonally opposite the wheel to be
raised.
•Apply the parking brake firmly before jacking.
•Never start the engine with the vehicle on a jack.
•Do not let anyone sit in the vehicle when it is on a jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated.
•If working on or near a roadway, be extremely careful of
motor traffic.
•To assure that spare tires, flat or inflated are securely
stowed, spares must be stowed with the value stem
facing the ground.
To Stow The Flat Or Spare
Turn the wheel so that the valve stem is down. Slide the
wheel retainer through the center of the wheel and
position it properly across the wheel opening.
For convenience in checking the spare tire inflation, stow
with the valve stem toward the rear of the vehicle.
Rotate the winch mechanism until the wheel is drawn
into place against the underside of the vehicle. Continue
to rotate until you feel the winch mechanism slip or click
2 times. It cannot be overtightened. Push against the tire
several times to be sure it is firmly in place.
WHAT TO DO IN EMERGENCIES 295
6

Points to Remember.................... 328
Radiator Cap......................... 327
Selection of Coolant...............326,357,359
Temperature Gauge..................... 164
Cruise Control (Speed Control).............. 132
Cup Holder............................ 154
Customer Assistance..................... 385
Data Recorder, Event...................... 52
Daytime Running Lights................... 123
Dealer Service.......................... 310
Defroster, Rear Window................... 213
Defroster, Windshield................66,200,205
Delay (Intermittent) Wipers................. 126
Diagnostic System, Onboard................ 307
Dimmer Switch, Headlight................. 165
Dipsticks
Automatic Transmission................. 332
Oil (Engine).......................... 311Power Steering........................ 320
Disarming, Theft System................... 25
Disc Brakes............................ 330
Disposal
Used Coolant......................... 325
Door Ajar Light......................... 169
Door Locks............................. 13
Door Opener, Garage..................... 142
Drive Belts............................ 315
Drive Shaft Universal Joints................ 321
Electric Remote Mirrors.................... 76
Electrical Power Outlets................... 151
Electronic Speed Control................... 132
Emergency, In Case of
Freeing Vehicle When Stuck............... 239
Jacking............................. 291
Overheating.......................... 327
Tow Hooks.......................... 298
INDEX 397
10

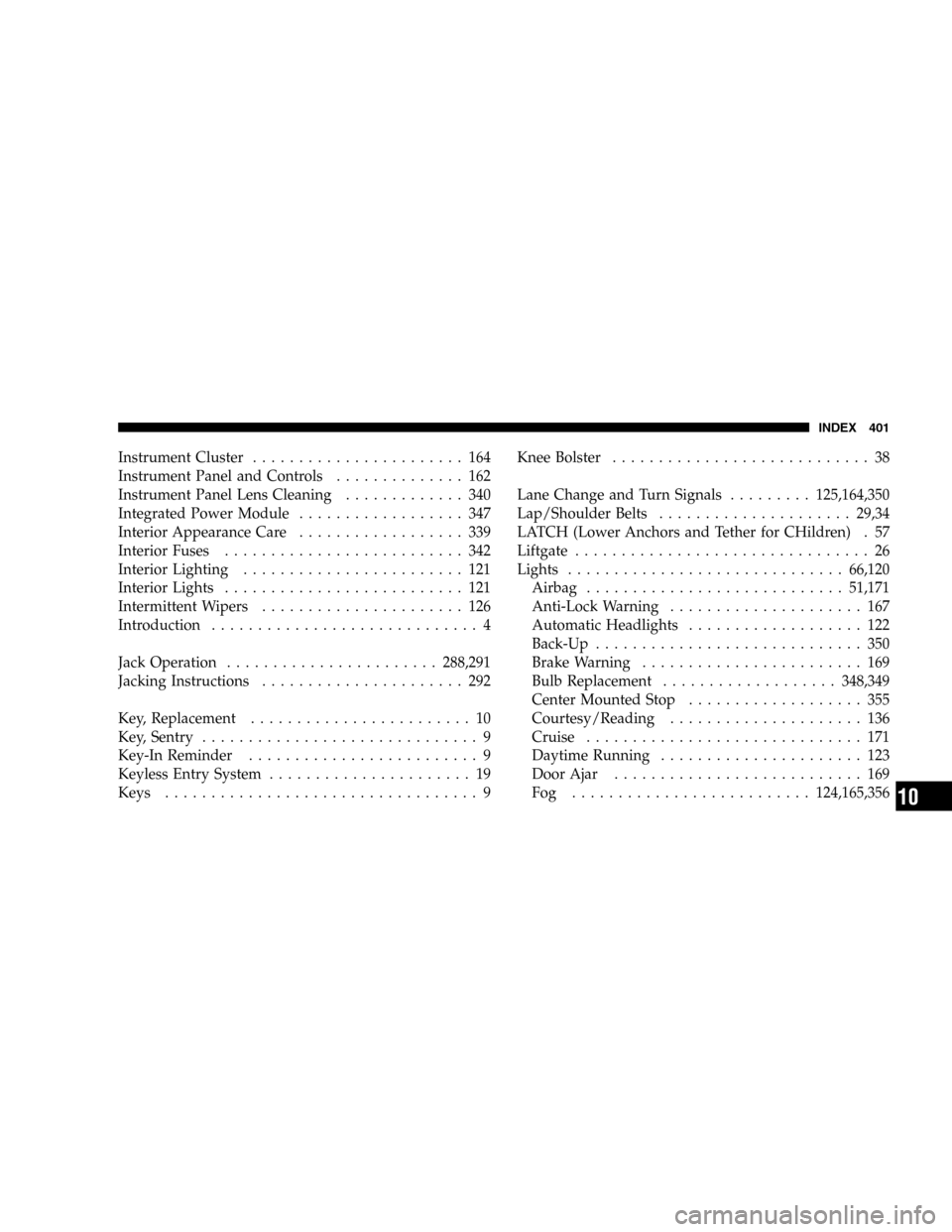

Instrument Cluster....................... 164
Instrument Panel and Controls.............. 162
Instrument Panel Lens Cleaning............. 340
Integrated Power Module.................. 347
Interior Appearance Care.................. 339
Interior Fuses.......................... 342
Interior Lighting........................ 121
Interior Lights.......................... 121
Intermittent Wipers...................... 126
Introduction............................. 4
Jack Operation.......................288,291
Jacking Instructions...................... 292
Key, Replacement........................ 10
Key, Sentry.............................. 9
Key-In Reminder......................... 9
Keyless Entry System...................... 19
Keys.................................. 9Knee Bolster............................ 38
Lane Change and Turn Signals.........125,164,350
Lap/Shoulder Belts.....................29,34
LATCH (Lower Anchors and Tether for CHildren) . 57
Liftgate................................ 26
Lights..............................66,120
Airbag............................51,171
Anti-Lock Warning..................... 167
Automatic Headlights................... 122
Back-Up............................. 350
Brake Warning........................ 169
Bulb Replacement...................348,349
Center Mounted Stop................... 355
Courtesy/Reading..................... 136
Cruise.............................. 171
Daytime Running...................... 123
Door Ajar........................... 169
Fog ..........................124,165,356
INDEX 401
10

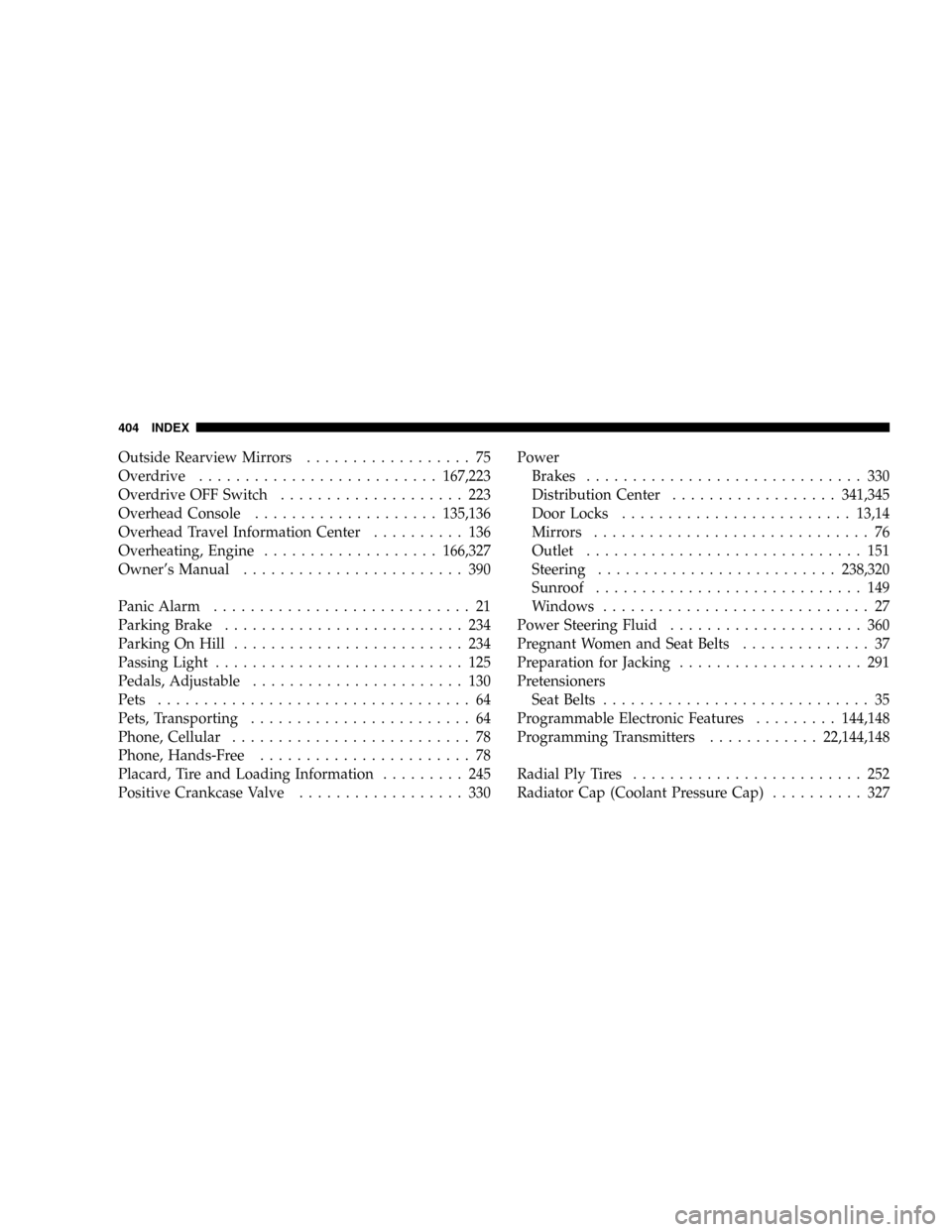

Outside Rearview Mirrors.................. 75
