MIRRORS
Inside Day/Night Mirror
The mirror should be adjusted to center on the view
through the rear window. A two-point pivot system
allows for horizontal and vertical adjustment of the
mirror.Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of truck). The mirror should be adjusted
while set in the day position (toward windshield).

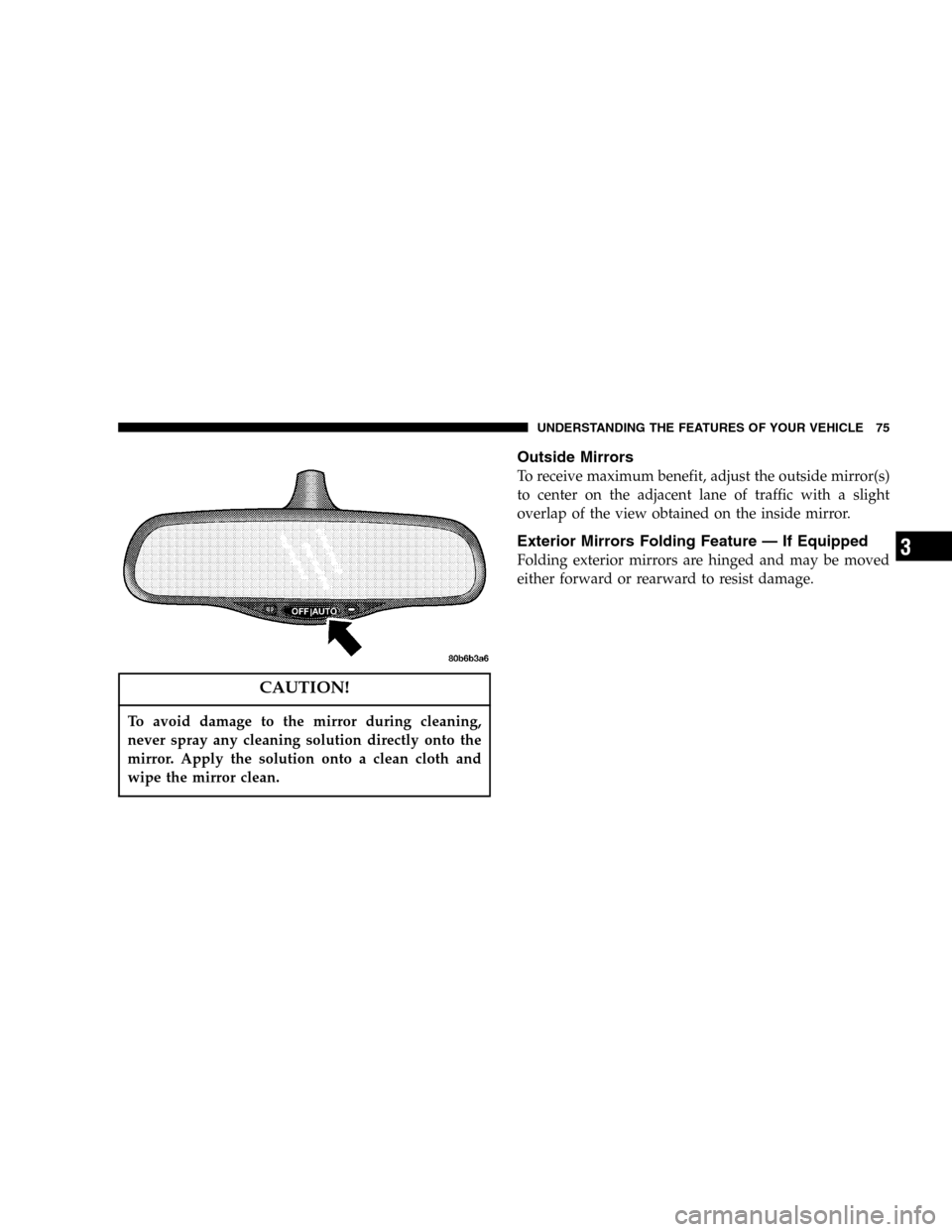

Automatic Dimming Mirror — If Equipped
This mirror will automatically adjust for annoying head-
light glare from vehicles behind you. You can turn the
feature on or off by pressing the button at the base of the
mirror. A light in the button will indicate when the
dimming feature is activated. This option also controls
the driver’s side mirror when it is equipped with auto
dimming glass.
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Exterior Mirrors Folding Feature — If Equipped
Folding exterior mirrors are hinged and may be moved
either forward or rearward to resist damage.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system. The diagram below shows the mirror
with the appropriate buttons. Individual button behavior
is discussed in theOperationsection.The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. If your
cellular phone supports a different profile (eg., Headset
Profile), you may not be able to use any UConnect™
features. Refer to your cellular service provider or the
phone manufacturer for details.
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

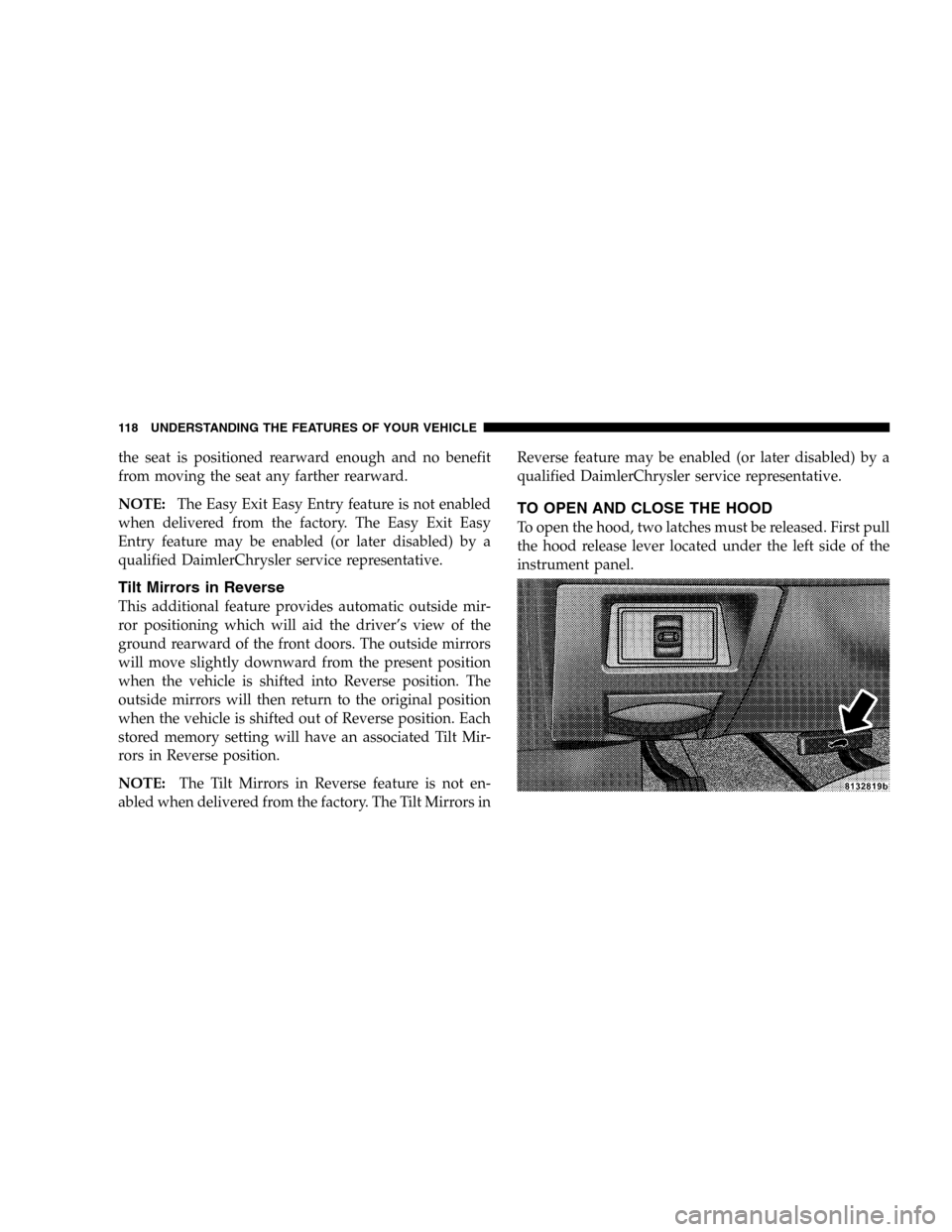

the seat is positioned rearward enough and no benefit
from moving the seat any farther rearward.
NOTE:The Easy Exit Easy Entry feature is not enabled
when delivered from the factory. The Easy Exit Easy
Entry feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
Tilt Mirrors in Reverse
This additional feature provides automatic outside mir-
ror positioning which will aid the driver’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into Reverse position. The
outside mirrors will then return to the original position
when the vehicle is shifted out of Reverse position. Each
stored memory setting will have an associated Tilt Mir-
rors in Reverse position.
NOTE:The Tilt Mirrors in Reverse feature is not en-
abled when delivered from the factory. The Tilt Mirrors inReverse feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located under the left side of the
instrument panel.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with any commercial household-type glass cleaner.
Never use an abrasive type cleaner. Use caution when
cleaning inside rear windows equipped with electric
defrosters or windshields equipped with a windshield
wiper de-icer. Do not use scrapers or other sharp instru-
ments which may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
340 MAINTAINING YOUR VEHICLE

Odometer........................... 168
Speedometer......................... 166
Tachometer.......................... 167
Gear Ranges........................... 221
Glass Cleaning.......................... 340
Grease............................... 336
Gross Axle Weight Rating.................. 269
Gross Cargo Weight...................... 268
GVWR............................268,271
Hands-Free Phone........................ 78
Hazard Warning Flasher................... 286
Headlights............................ 349
Delay.............................. 122
High Beam........................... 126
High Beam/Low Beam Select Switch........ 126
Lights On Reminder.................... 124
Passing............................. 125
Replacing............................ 349Heated Mirrors.......................... 77
Heated Seats........................... 105
Heater............................... 197
Heater, Engine Block..................... 220
High Beam Indicator..................... 165
High Beam/Low Beam Select (Dimmer) Switch . . 126
Hitches
Trailer Towing........................ 275
Homelink Transmitter.................... 142
Hood Release.......................... 118
Hoses................................ 329
Ignition............................... 12
Key ................................. 9
Lock................................ 12
Illuminated Entry........................ 13
Infant Restraint........................54,55
Inflation Pressure Tires.................... 257
Inside Rearview Mirror.................... 74
400 INDEX

ScheduleA......................... 377
ScheduleB.......................... 366
Malfunction Indicator Light..............170,308
Manual, Service......................... 390
Manual Transmission
Lubricant Selection..................... 360
Map/Reading Lights..................... 136
Memory Seat........................... 114
Mirrors................................ 74
Automatic Dimming...................74,78
Electric Powered....................... 76
Heated.............................. 77
Memory............................. 114
Outside.............................. 75
Rearview............................. 74
Vanity............................... 77
Modifications/Alterations, Vehicle............. 6
Mopar Parts.........................309,389
Multi-Function Control Lever............... 124New Vehicle Break-In Period................ 64
Occupant Classification System............... 42
Occupant Restraints....................... 28
Octane Rating, Gasoline................... 260
Oil, Engine......................... 311,359
Capacity............................ 357
Change Interval....................... 312
Dipstick............................. 311
Disposal............................ 314
Filter............................314,359
Filter Disposal........................ 314
Identification Logo..................... 313
Materials Added to..................... 314
Recommendation...................313,357
Synthetic............................ 314
Viscosity..........................313,357
Onboard Diagnostic System..............307,308
Opener, Garage Door..................... 142
INDEX 403
10

Outside Rearview Mirrors.................. 75
Overdrive..........................167,223
Overdrive OFF Switch.................... 223
Overhead Console....................135,136
Overhead Travel Information Center.......... 136
Overheating, Engine...................166,327
Owner’s Manual........................ 390
Panic Alarm............................ 21
Parking Brake.......................... 234
Parking On Hill......................... 234
Passing Light........................... 125
Pedals, Adjustable....................... 130
Pets.................................. 64
Pets, Transporting........................ 64
Phone, Cellular.......................... 78
Phone, Hands-Free....................... 78
Placard, Tire and Loading Information......... 245
Positive Crankcase Valve.................. 330Power
Brakes.............................. 330
Distribution Center..................341,345
Door Locks.........................13,14
Mirrors.............................. 76
Outlet.............................. 151
Steering..........................238,320
Sunroof............................. 149
Windows............................. 27
Power Steering Fluid..................... 360
Pregnant Women and Seat Belts.............. 37
Preparation for Jacking.................... 291
Pretensioners
Seat Belts............................. 35
Programmable Electronic Features.........144,148
Programming Transmitters............22,144,148
Radial Ply Tires......................... 252
Radiator Cap (Coolant Pressure Cap).......... 327
404 INDEX

Radio Broadcast Signals................... 172
Radio Operation...................173,179,197
Radio Reception........................ 172
Radio, Satellite.......................... 191
Radio (Sound Systems).................173,179
Rear Axle............................. 335
Rear Window Defroster................... 213
Rear Window Features.................... 212
Rear Wiper/Washer...................... 212
Rearview Mirrors........................ 74
Reception, Radio........................ 172
Reclining Front Seats..................... 103
Recommended Fluids, Lubricants and Genuine
Parts............................... 359
Recorder, Event Data...................... 52
Recreational Towing...................... 280
Shifting into Transfer Case Neutral (N)....... 281
Shifting out of Transfer Case Neutral (N)..... 282
Reformulated Gasoline.................... 261Refrigerant............................ 320
Release, Hood.......................... 118
Reminder, Seat Belt....................... 36
Remote Keyless Entry..................... 19
Remote Sound System Controls.............. 194
Replacement Keys........................ 10
Replacement Parts....................... 309
Replacement Tires....................... 255
Reporting Safety Defects................... 389
Restraints, Child.......................54,59
Restraints, Occupant...................... 28
Rocking Vehicle When Stuck................ 239
Roof Type Carrier....................... 155
Rotation, Tires.......................... 259
Safety Checks Inside Vehicle................. 66
Safety Checks Outside Vehicle............... 66
Safety Defects, Reporting.................. 389
Safety Information, Tire................... 239
INDEX 405
10
