relay DODGE DURANGO 2005 2.G Owners Manual

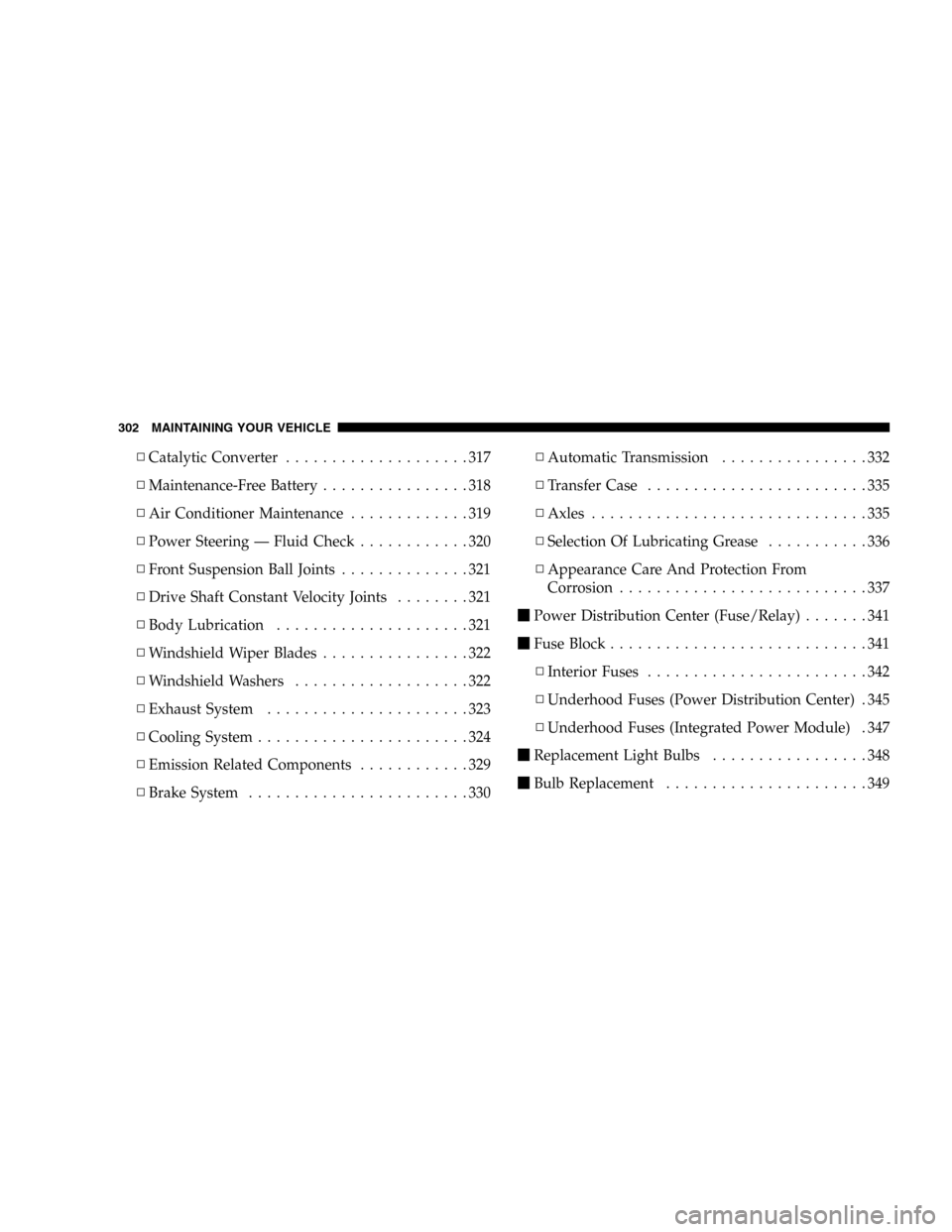

▫Catalytic Converter....................317
▫Maintenance-Free Battery................318
▫Air Conditioner Maintenance.............319
▫Power Steering — Fluid Check............320
▫Front Suspension Ball Joints..............321
▫Drive Shaft Constant Velocity Joints........321
▫Body Lubrication.....................321
▫Windshield Wiper Blades................322
▫Windshield Washers...................322
▫Exhaust System......................323
▫Cooling System.......................324
▫Emission Related Components............329
▫Brake System........................330▫Automatic Transmission................332
▫Transfer Case........................335
▫Axles..............................335
▫Selection Of Lubricating Grease...........336
▫Appearance Care And Protection From
Corrosion...........................337

Power Distribution Center (Fuse/Relay).......341

Fuse Block............................341
▫Interior Fuses........................342
▫Underhood Fuses (Power Distribution Center) . 345
▫Underhood Fuses (Integrated Power Module) . 347

Replacement Light Bulbs.................348

Bulb Replacement......................349
302 MAINTAINING YOUR VEHICLE

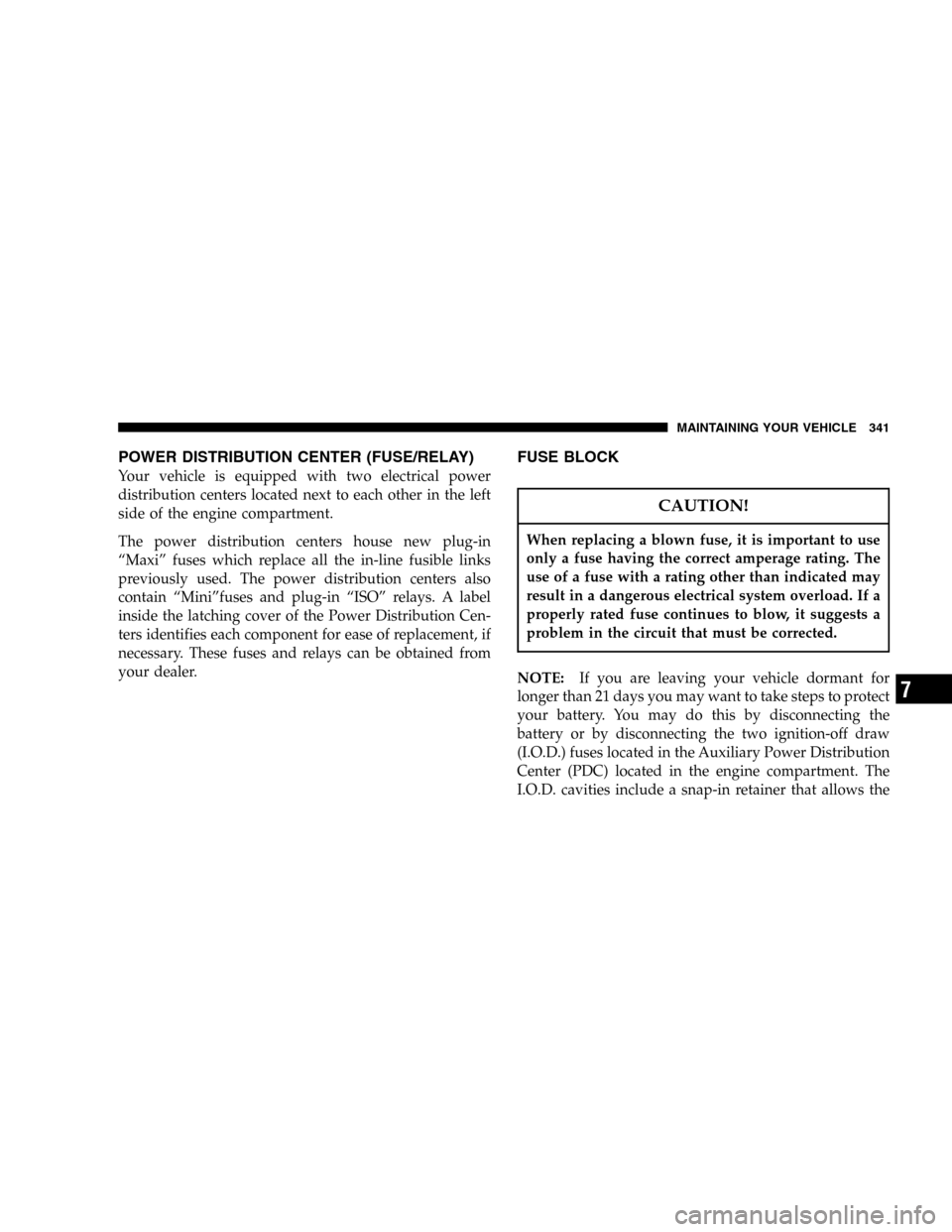

POWER DISTRIBUTION CENTER (FUSE/RELAY)
Your vehicle is equipped with two electrical power
distribution centers located next to each other in the left
side of the engine compartment.
The power distribution centers house new plug-in
“Maxi” fuses which replace all the in-line fusible links
previously used. The power distribution centers also
contain “Mini”fuses and plug-in “ISO” relays. A label
inside the latching cover of the Power Distribution Cen-
ters identifies each component for ease of replacement, if
necessary. These fuses and relays can be obtained from
your dealer.
FUSE BLOCK
CAUTION!
When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it suggests a
problem in the circuit that must be corrected.
NOTE:If you are leaving your vehicle dormant for
longer than 21 days you may want to take steps to protect
your battery. You may do this by disconnecting the
battery or by disconnecting the two ignition-off draw
(I.O.D.) fuses located in the Auxiliary Power Distribution
Center (PDC) located in the engine compartment. The
I.O.D. cavities include a snap-in retainer that allows the
MAINTAINING YOUR VEHICLE 341
7

fuse to be disconnected, without removing it from the
fuse block. Pressing the I.O.D. fuse back into the cavity
reconnects it.

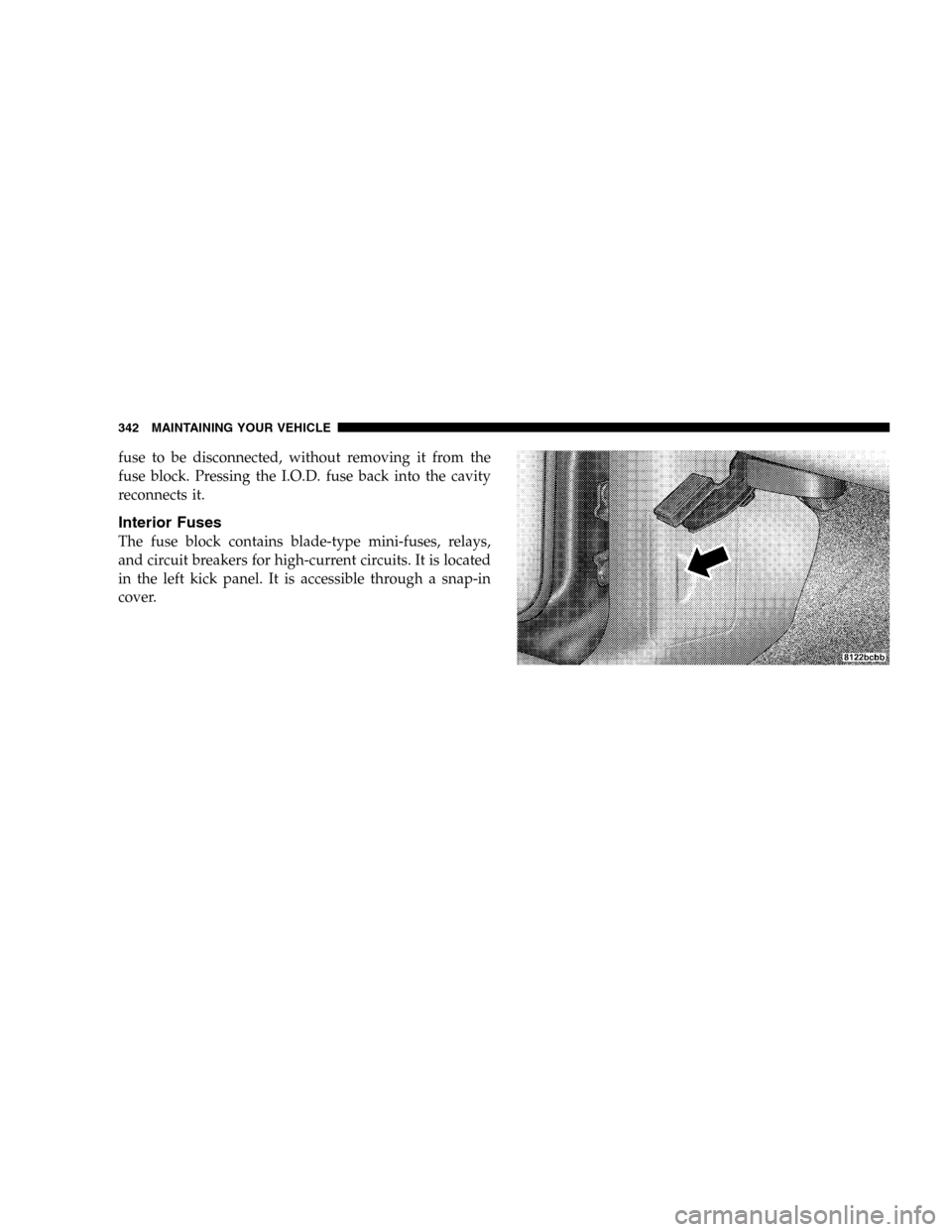

Interior Fuses
The fuse block contains blade-type mini-fuses, relays,
and circuit breakers for high-current circuits. It is located
in the left kick panel. It is accessible through a snap-in
cover.
342 MAINTAINING YOUR VEHICLE

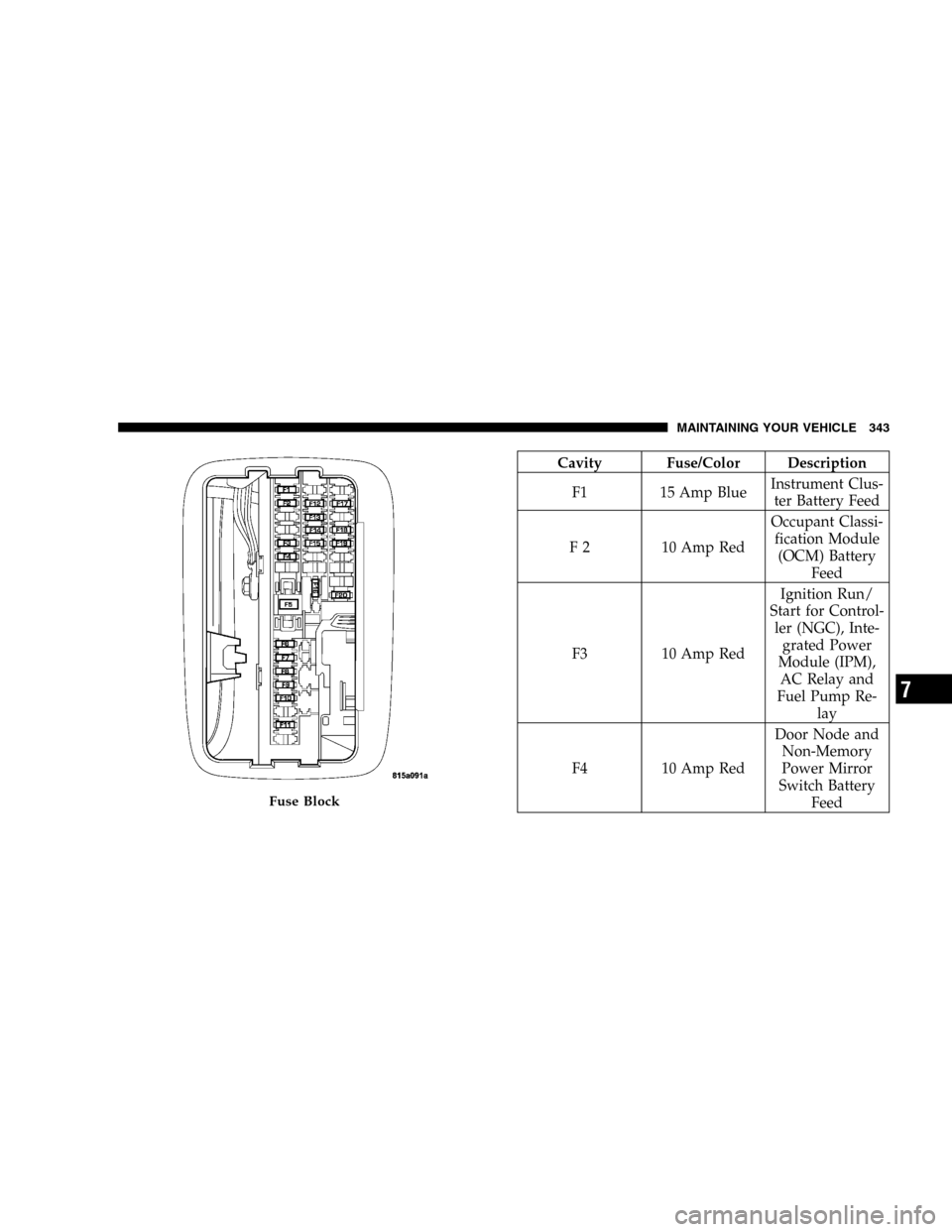

Cavity Fuse/Color Description
F1 15 Amp BlueInstrument Clus-
ter Battery Feed
F 2 10 Amp RedOccupant Classi-
fication Module
(OCM) Battery
Feed
F3 10 Amp RedIgnition Run/
Start for Control-
ler (NGC), Inte-
grated Power
Module (IPM),
AC Relay and
Fuel Pump Re-
lay
F4 10 Amp RedDoor Node and
Non-Memory
Power Mirror
Switch Battery
Feed
Fuse Block
MAINTAINING YOUR VEHICLE 343
7

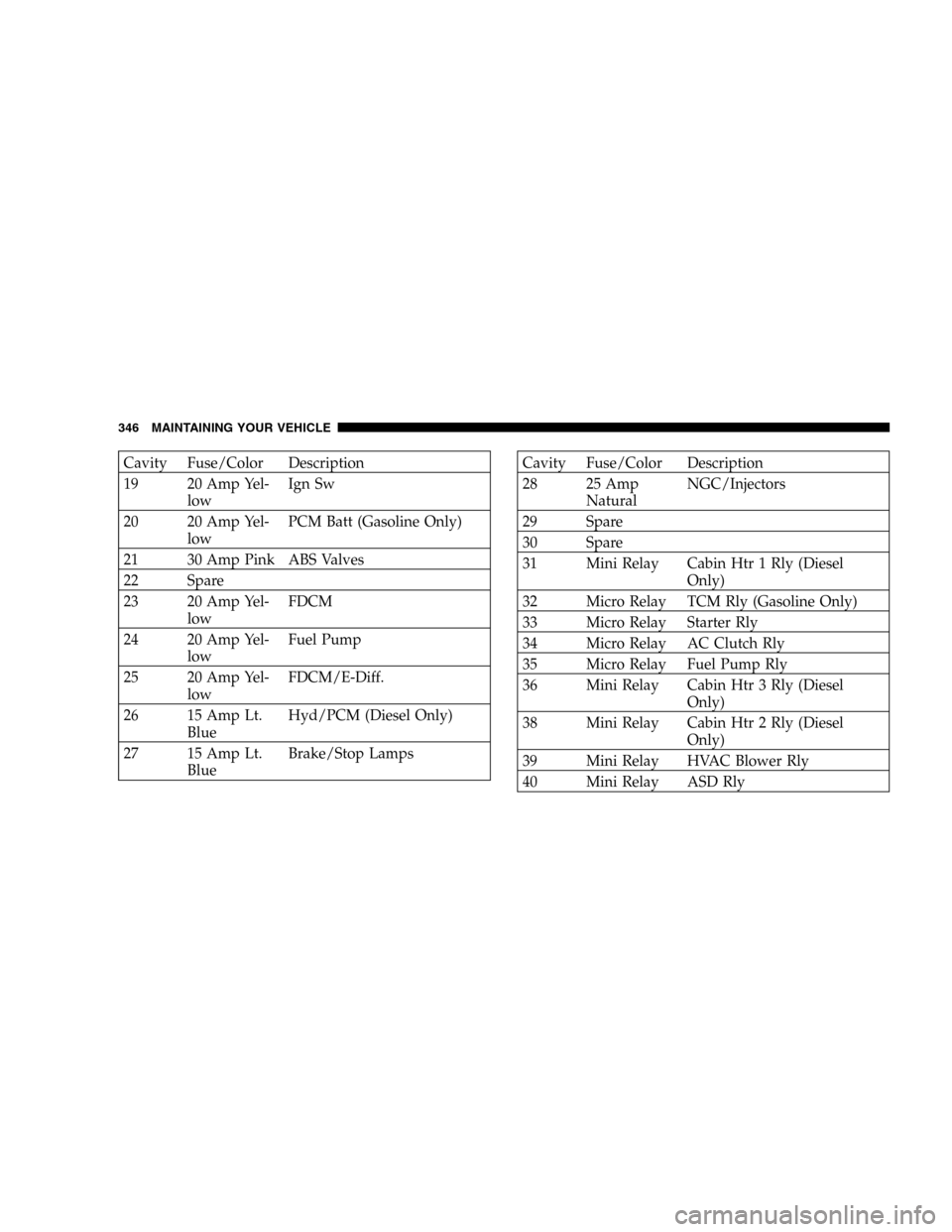

Cavity Fuse/Color Description
19 20 Amp Yel-
lowIgn Sw
20 20 Amp Yel-
lowPCM Batt (Gasoline Only)
21 30 Amp Pink ABS Valves
22 Spare
23 20 Amp Yel-
lowFDCM
24 20 Amp Yel-
lowFuel Pump
25 20 Amp Yel-
lowFDCM/E-Diff.
26 15 Amp Lt.
BlueHyd/PCM (Diesel Only)
27 15 Amp Lt.
BlueBrake/Stop LampsCavity Fuse/Color Description
28 25 Amp
NaturalNGC/Injectors
29 Spare
30 Spare
31 Mini Relay Cabin Htr 1 Rly (Diesel
Only)
32 Micro Relay TCM Rly (Gasoline Only)
33 Micro Relay Starter Rly
34 Micro Relay AC Clutch Rly
35 Micro Relay Fuel Pump Rly
36 Mini Relay Cabin Htr 3 Rly (Diesel
Only)
38 Mini Relay Cabin Htr 2 Rly (Diesel
Only)
39 Mini Relay HVAC Blower Rly
40 Mini Relay ASD Rly
346 MAINTAINING YOUR VEHICLE

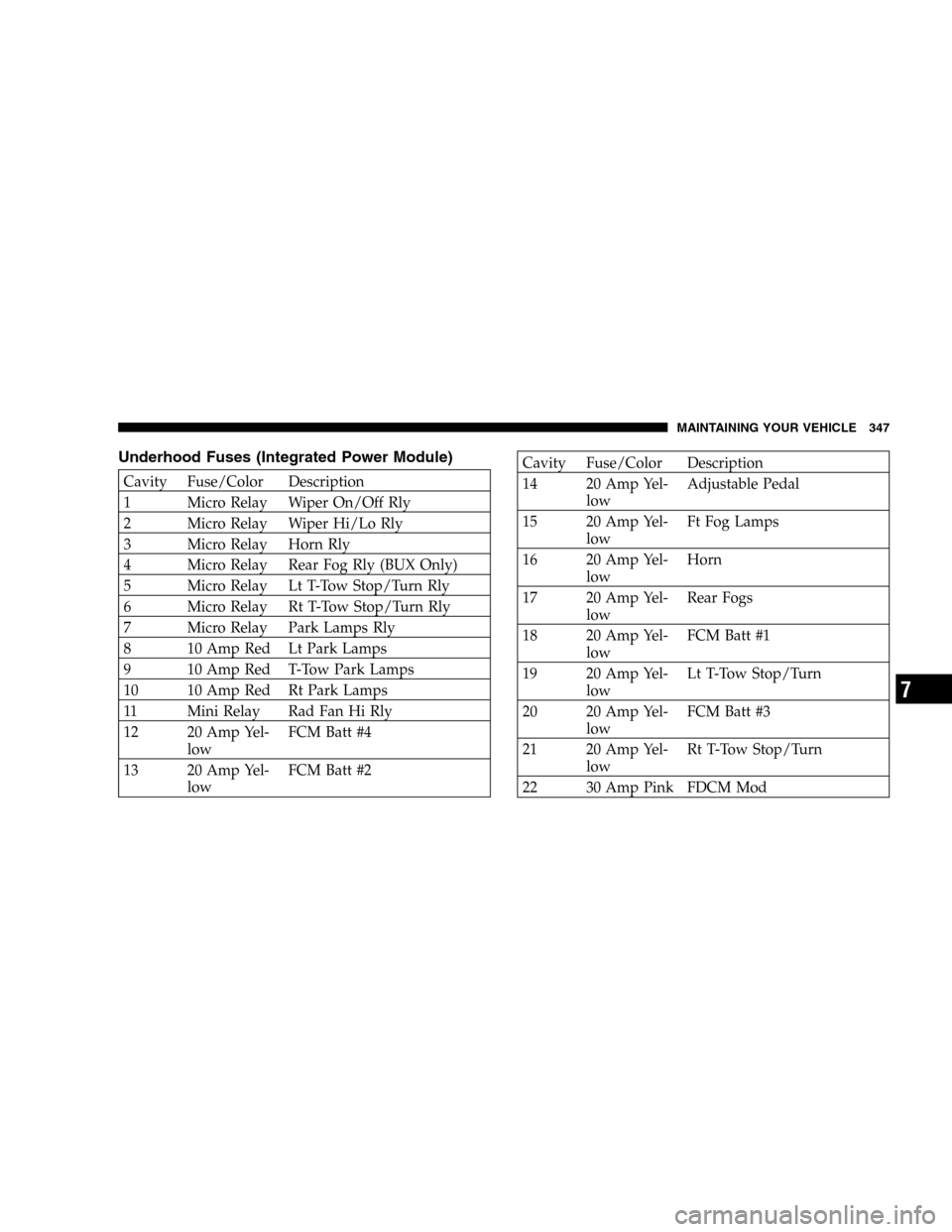

Underhood Fuses (Integrated Power Module)
Cavity Fuse/Color Description
1 Micro Relay Wiper On/Off Rly
2 Micro Relay Wiper Hi/Lo Rly
3 Micro Relay Horn Rly
4 Micro Relay Rear Fog Rly (BUX Only)
5 Micro Relay Lt T-Tow Stop/Turn Rly
6 Micro Relay Rt T-Tow Stop/Turn Rly
7 Micro Relay Park Lamps Rly
8 10 Amp Red Lt Park Lamps
9 10 Amp Red T-Tow Park Lamps
10 10 Amp Red Rt Park Lamps
11 Mini Relay Rad Fan Hi Rly
12 20 Amp Yel-
lowFCM Batt #4
13 20 Amp Yel-
lowFCM Batt #2
Cavity Fuse/Color Description
14 20 Amp Yel-
lowAdjustable Pedal
15 20 Amp Yel-
lowFt Fog Lamps
16 20 Amp Yel-
lowHorn
17 20 Amp Yel-
lowRear Fogs
18 20 Amp Yel-
lowFCM Batt #1
19 20 Amp Yel-
lowLt T-Tow Stop/Turn
20 20 Amp Yel-
lowFCM Batt #3
21 20 Amp Yel-
lowRt T-Tow Stop/Turn
22 30 Amp Pink FDCM Mod
MAINTAINING YOUR VEHICLE 347
7

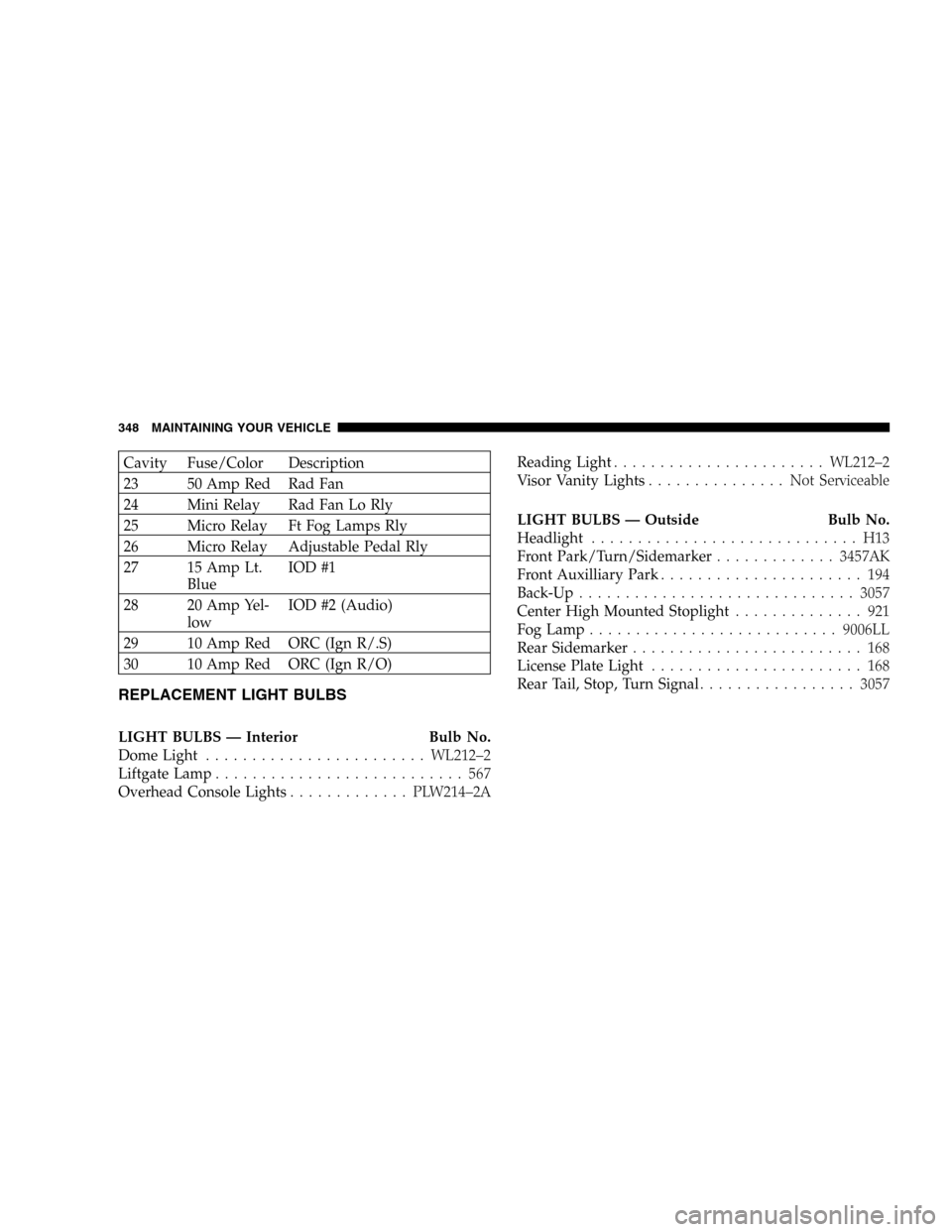

Cavity Fuse/Color Description
23 50 Amp Red Rad Fan
24 Mini Relay Rad Fan Lo Rly
25 Micro Relay Ft Fog Lamps Rly
26 Micro Relay Adjustable Pedal Rly
27 15 Amp Lt.
BlueIOD #1
28 20 Amp Yel-
lowIOD #2 (Audio)
29 10 Amp Red ORC (Ign R/.S)
30 10 Amp Red ORC (Ign R/O)
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light........................WL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2AReading Light.......................WL212–2
Visor Vanity Lights............... NotServiceable
LIGHT BULBS — Outside Bulb No.
Headlight............................. H13
Front Park/Turn/Sidemarker.............3457AK
Front Auxilliary Park...................... 194
Back-Up..............................3057
Center High Mounted Stoplight.............. 921
Fog Lamp...........................9006LL
Rear Sidemarker......................... 168
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal.................3057
348 MAINTAINING YOUR VEHICLE
