spark plugs DODGE DURANGO 2005 2.G Owners Manual

MAINTAINING YOUR VEHICLE
CONTENTS

Engine Compartment 3.7L V6..............304

Engine Compartment 4.7L V-8..............305

Engine Compartment 5.7L HEMI V-8.........306

Onboard Diagnostic System — OBD II........307
▫Loose Fuel Filler Cap Message............307

Emissions Inspection And Maintenance
Programs............................308

Replacement Parts......................309

Dealer Service.........................310
Maintenance Procedures..................310
▫Engine Oil..........................311
▫Engine Oil Filter......................314
▫Drive Belts — Check Condition And
Tensioner...........................315
▫Spark Plugs.........................315
▫Ignition Cables.......................316
▫Engine Air Cleaner Filter................316
▫Engine Fuel Filter.....................316
7

Engine Oil Filter Selection
The manufacturer’s engines have a full-flow type oil
filter. Use a filter of this type for replacement. The quality
of replacement filters varies considerably. Only high
quality filters should be used to assure most efficient
service. MoparEngine Oil Filters are a high quality oil
filter and are recommended.
Drive Belts — Check Condition and Tensioner
Belt tension is controlled by means of an automatic
tensioner. No belt tension adjustments are required.
However, belt and belt tensioner condition should be
inspected at the specified intervals, and replaced if re-
quired. See your authorized dealer for service. At the
mileage indicated in the maintenance schedule, all belts
and tensioner should be checked for condition. Improper
belt tension can cause belt slippage and failure. Belts
should be inspected for evidence of cuts, cracks, glazing,
or frayed cords and replaced if there is indication of
damage which could result in belt failure. Low generatorbelt tension can cause battery failure. Also check belt
routing to make sure there is no interference between the
belts and other engine components.
Spark Plugs
Spark plugs must fire properly to assure proper engine
performance and emission control. The plugs installed in
your vehicle should operate satisfactorily in normal
service for the mileage indicated in the Maintenance
Chart. New plugs should be installed at this mileage. The
entire set should be replaced if there is any malfunction
due to a faulty spark plug. Check the Vehicle Emissions
Control Information label for the proper type of spark
plug for your vehicle.
MAINTAINING YOUR VEHICLE 315
7

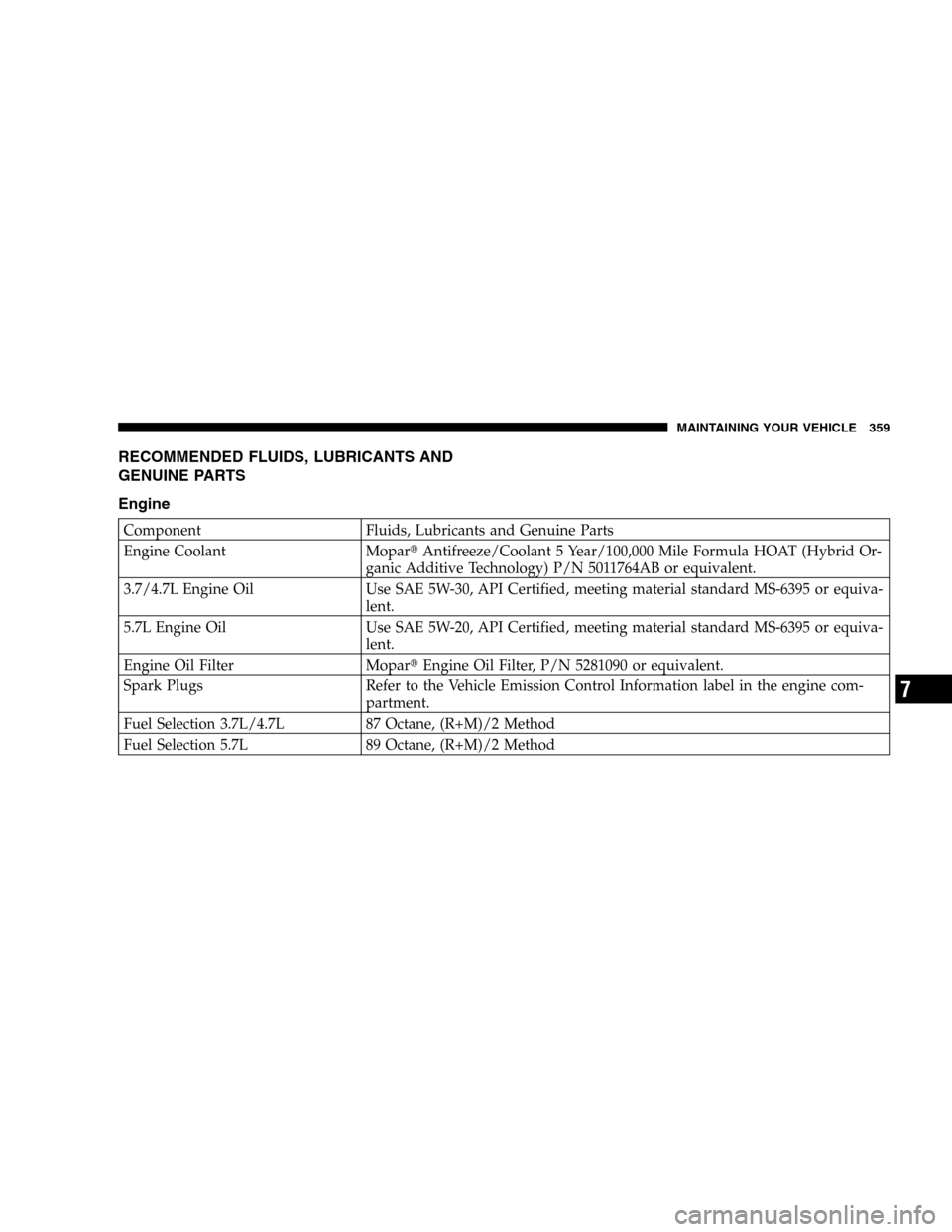

RECOMMENDED FLUIDS, LUBRICANTS AND
GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant MoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) P/N 5011764AB or equivalent.
3.7/4.7L Engine Oil Use SAE 5W-30, API Certified, meeting material standard MS-6395 or equiva-
lent.
5.7L Engine Oil Use SAE 5W-20, API Certified, meeting material standard MS-6395 or equiva-
lent.
Engine Oil Filter MoparEngine Oil Filter, P/N 5281090 or equivalent.
Spark Plugs Refer to the Vehicle Emission Control Information label in the engine com-
partment.
Fuel Selection 3.7L/4.7L 87 Octane, (R+M)/2 Method
Fuel Selection 5.7L 89 Octane, (R+M)/2 Method
MAINTAINING YOUR VEHICLE 359
7

Miles 18,000 21,000 24,000 27,000 30,000
(Kilometers) (29 000) (34 000) (38 000) (43 000) (48 000)
Change engine oil and engine oil filter, or at 3
months whichever comes first.X X XXX
Rotate tires. X X X
Change rear axle fluid.X
Change front axle fluid (4X4).X
Check transfer case fluid level (4X4).X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
368 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

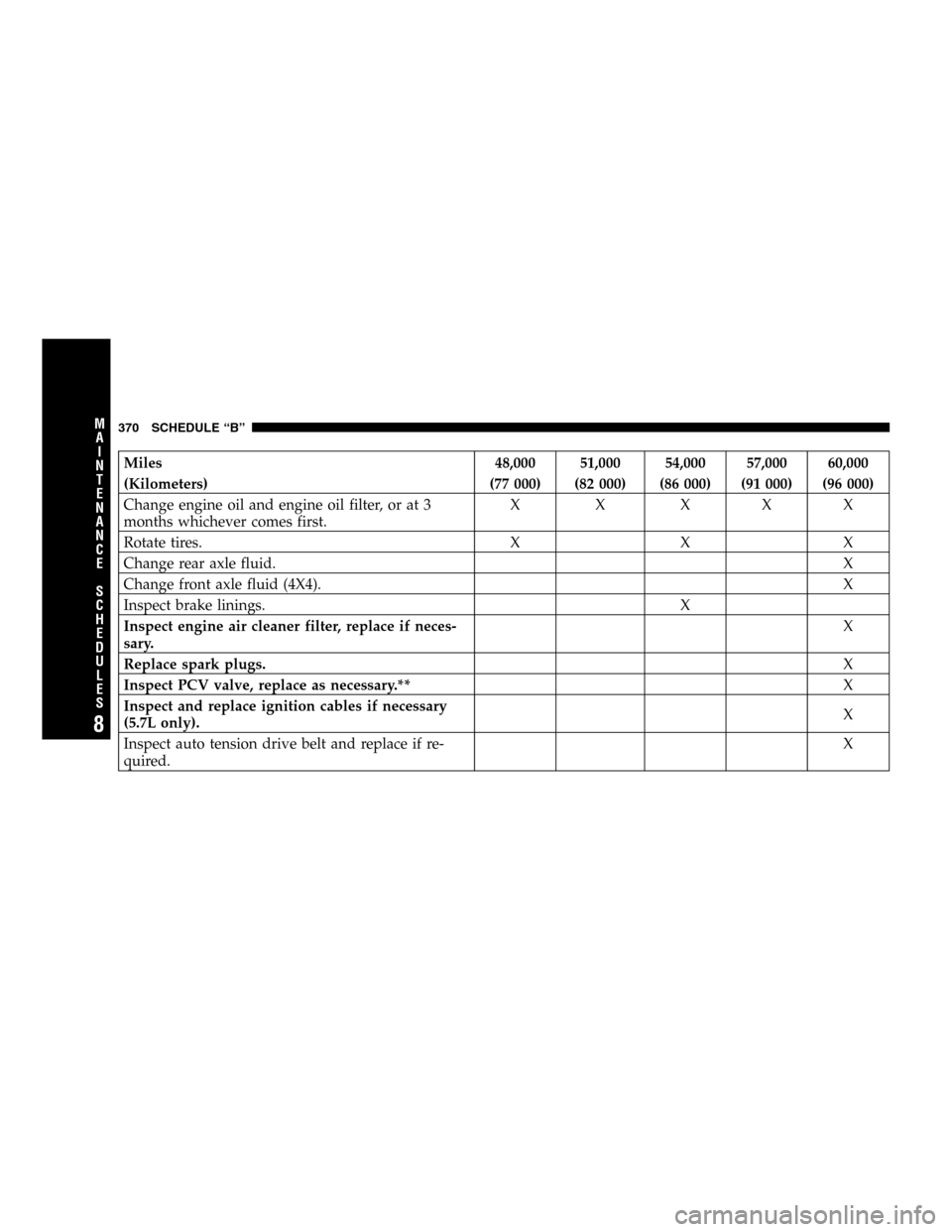

Miles 48,000 51,000 54,000 57,000 60,000
(Kilometers) (77 000) (82 000) (86 000) (91 000) (96 000)
Change engine oil and engine oil filter, or at 3
months whichever comes first.X X XXX
Rotate tires. X X X
Change rear axle fluid.X
Change front axle fluid (4X4).X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Inspect and replace ignition cables if necessary
(5.7L only).X
Inspect auto tension drive belt and replace if re-
quired.X
370 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 78,000 81,000 84,000 87,000 90,000
(Kilometers ) (125 000) (130 000) (134 000) (139 000) (144 000)
Change engine oil and engine oil filter, or at 3
months whichever comes first.X X XXX
Rotate tires. X X X
Change rear axle fluid.X
Change front axle fluid (4X4).X
Check transfer case fluid level (4X4).X
Inspect brake linings.X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Inspect auto tension drive belt and replace if re-
quired.X
SCHEDULE “B” 373
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

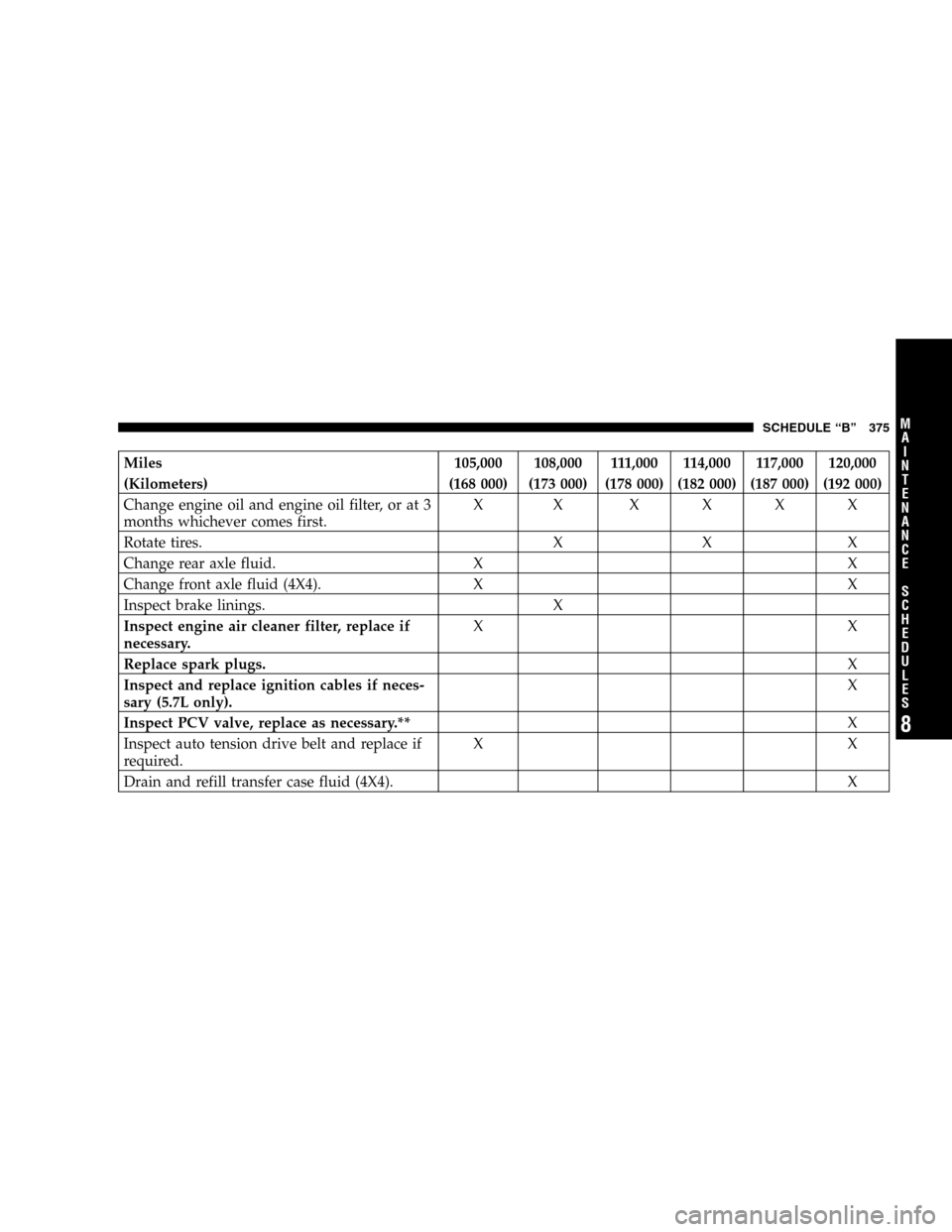

Miles 105,000 108,000 111,000 114,000 117,000 120,000
(Kilometers) (168 000) (173 000) (178 000) (182 000) (187 000) (192 000)
Change engine oil and engine oil filter, or at 3
months whichever comes first.X X XXXX
Rotate tires. X X X
Change rear axle fluid. X X
Change front axle fluid (4X4). X X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if
necessary.XX
Replace spark plugs.X
Inspect and replace ignition cables if neces-
sary (5.7L only).X
Inspect PCV valve, replace as necessary.**X
Inspect auto tension drive belt and replace if
required.XX
Drain and refill transfer case fluid (4X4). X
SCHEDULE “B” 375
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Schedule “A”
Miles 6,000 12,000 18,000 24,000 30,000
(Kilometers) (10 000) (19 000) (29 000) (38 000) (48 000)
[Months] [6] [12] [18] [24] [30]
Change engine oil and engine oil filter. X X X X X
Rotate tires. X X X X X
Check transfer case fluid level (4X4).X
Inspect brake linings. X
Inspect engine air cleaner filter, replace as neces-
sary.X
Replace spark plugs.X
SCHEDULE “A” 377
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 36,000 42,000 48,000 54000 60,000 66,000
(Kilometers) (58 000) (67 000) (77 000) (84 000) (96 000) (106 000)
[Months] [36] [42] [48] [54] [60] [66]
Change engine oil and engine oil filter. X X X X X X
Rotate tires. X X X X X X
Check transfer case fluid level (4X4). X
Flush and replace engine coolant at 60
months, if not replaced at 102,000 miles (163
000 km).X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if
necessary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary. *X
Inspect and replace ignition cables if neces-
sary (5.7L only).X
Inspect auto tension drive belt and replace if
required.X
378 SCHEDULE “A”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 72,000 78,000 84,000 90,000 96,000 100,000
(Kilometers) (115 000) (125 000) (134 000) (144 000) (154 000) (160 000)
[Months] [72] [78] [84] [90] [96]
Change engine oil and engine oil filter. X X X X X
Rotate tires. X X X X X X
Check transfer case fluid level (4X4). X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if
necessary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Inspect auto tension drive belt and replace if
required.X
SCHEDULE “A” 379
