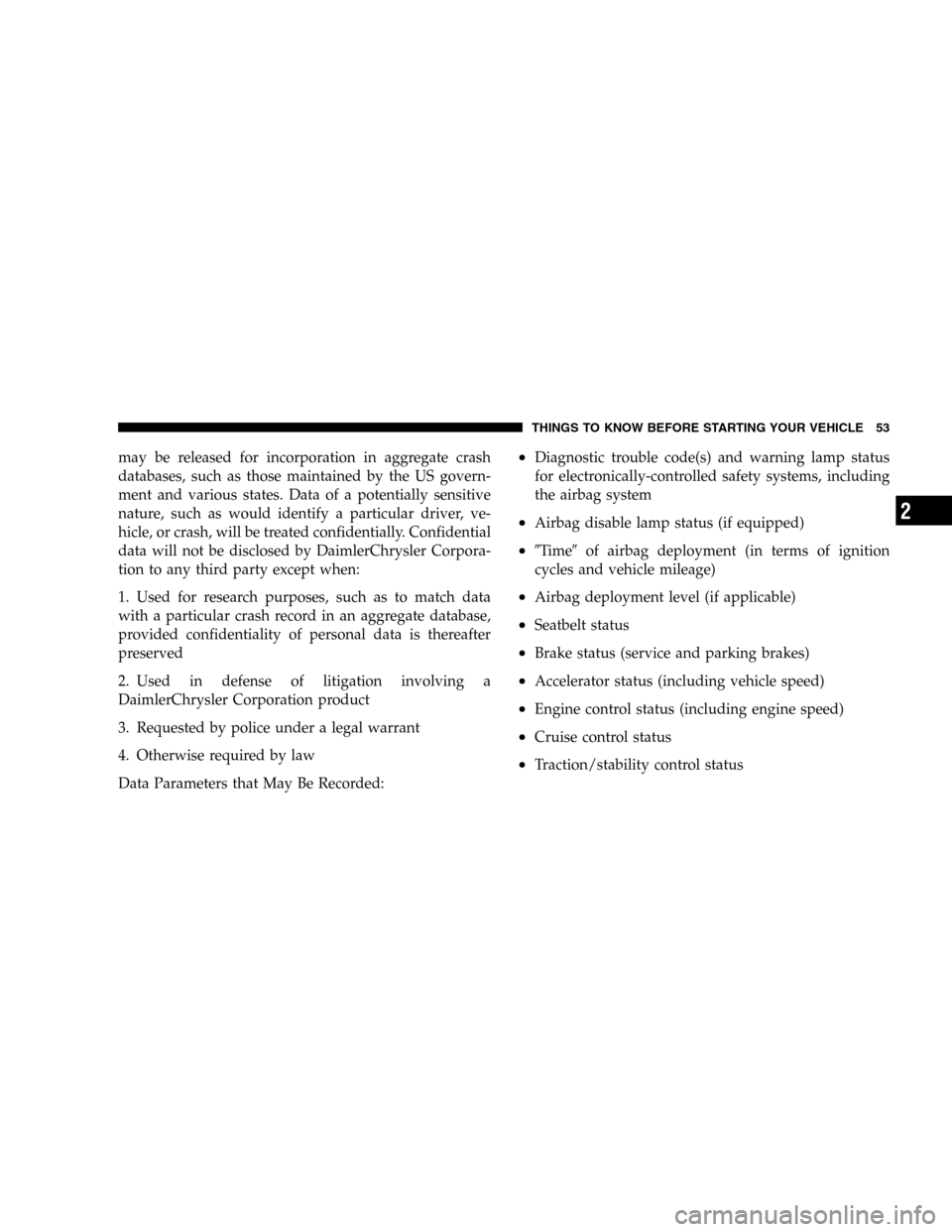

Page 53 of 416

may be released for incorporation in aggregate crash
databases, such as those maintained by the US govern-
ment and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, ve-
hicle, or crash, will be treated confidentially. Confidential
data will not be disclosed by DaimlerChrysler Corpora-
tion to any third party except when:
1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved
2. Used in defense of litigation involving a
DaimlerChrysler Corporation product
3. Requested by police under a legal warrant
4. Otherwise required by law
Data Parameters that May Be Recorded:•Diagnostic trouble code(s) and warning lamp status
for electronically-controlled safety systems, including
the airbag system
•Airbag disable lamp status (if equipped)
•Timeof airbag deployment (in terms of ignition
cycles and vehicle mileage)
•Airbag deployment level (if applicable)
•Seatbelt status
•Brake status (service and parking brakes)
•Accelerator status (including vehicle speed)
•Engine control status (including engine speed)
•Cruise control status
•Traction/stability control status
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

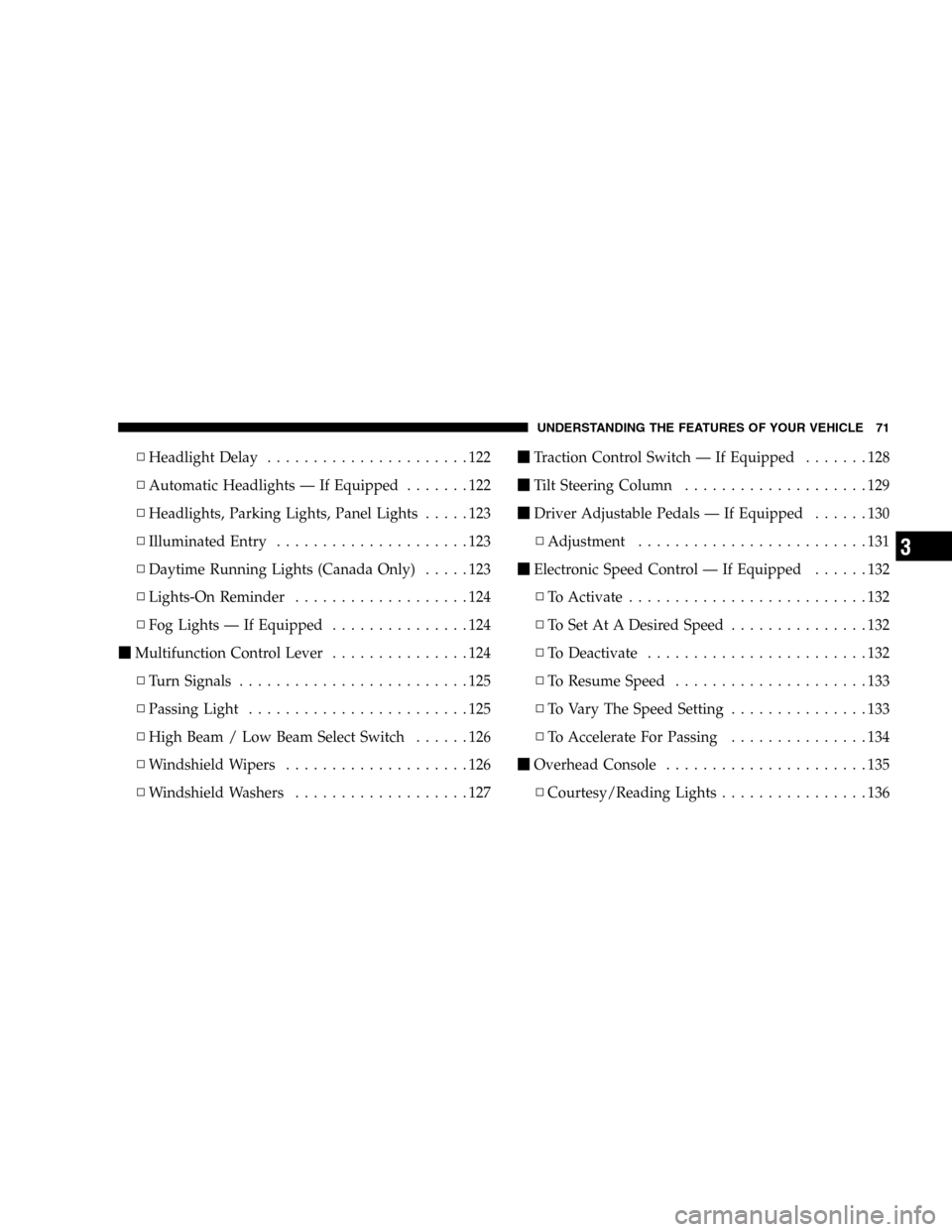

Page 71 of 416

▫Headlight Delay......................122
▫Automatic Headlights — If Equipped.......122
▫Headlights, Parking Lights, Panel Lights.....123
▫Illuminated Entry.....................123
▫Daytime Running Lights (Canada Only).....123
▫Lights-On Reminder...................124
▫Fog Lights — If Equipped...............124
Multifunction Control Lever...............124
▫Turn Signals.........................125
▫Passing Light........................125
▫High Beam / Low Beam Select Switch......126
▫Windshield Wipers....................126
▫Windshield Washers...................127Traction Control Switch — If Equipped.......128
Tilt Steering Column....................129
Driver Adjustable Pedals — If Equipped......130
▫Adjustment.........................131
Electronic Speed Control — If Equipped......132
▫To Activate..........................132
▫To Set At A Desired Speed...............132
▫To Deactivate........................132
▫To Resume Speed.....................133
▫To Vary The Speed Setting...............133
▫To Accelerate For Passing...............134
Overhead Console......................135
▫Courtesy/Reading Lights................136
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

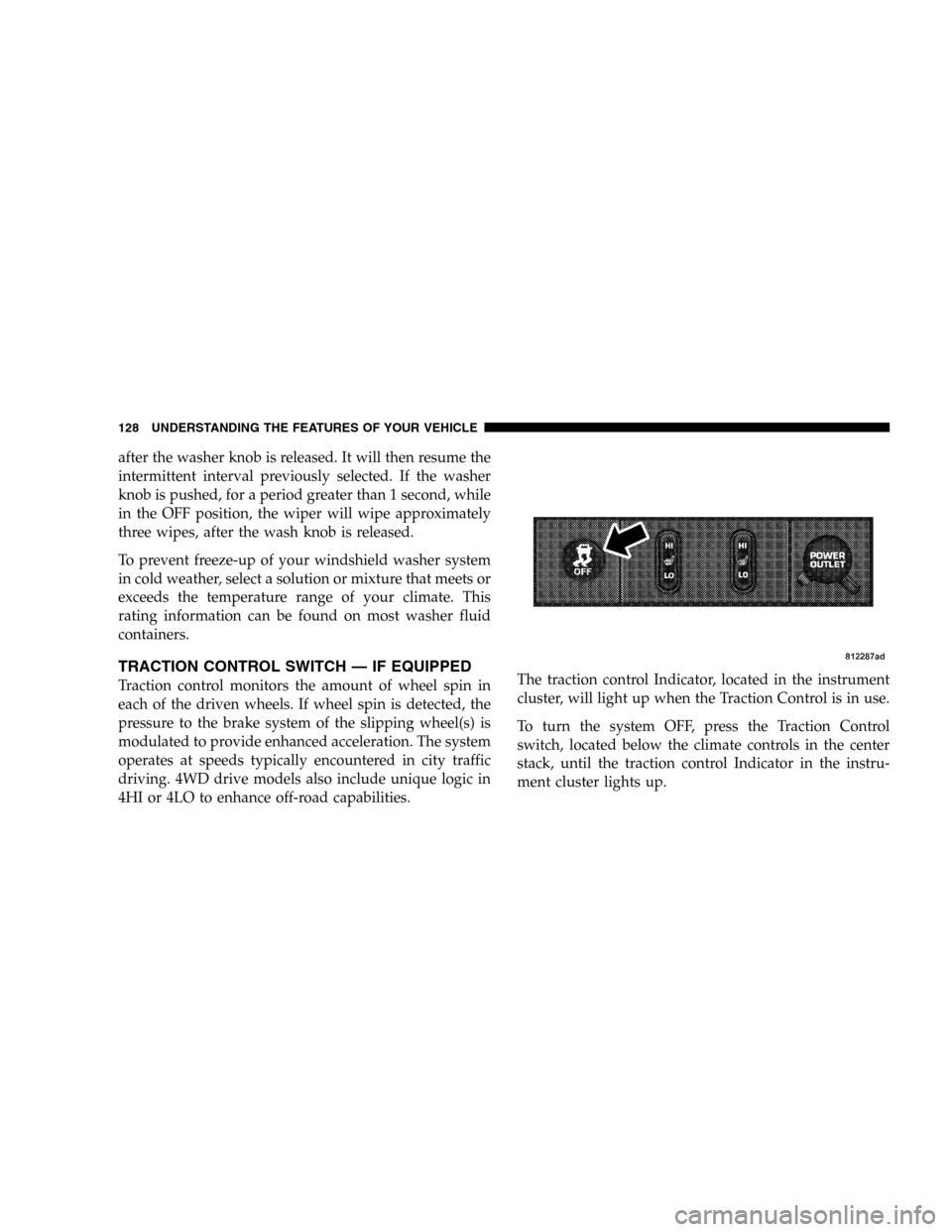

Page 128 of 416

after the washer knob is released. It will then resume the
intermittent interval previously selected. If the washer
knob is pushed, for a period greater than 1 second, while
in the OFF position, the wiper will wipe approximately
three wipes, after the wash knob is released.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
TRACTION CONTROL SWITCH — IF EQUIPPED
Traction control monitors the amount of wheel spin in
each of the driven wheels. If wheel spin is detected, the
pressure to the brake system of the slipping wheel(s) is
modulated to provide enhanced acceleration. The system
operates at speeds typically encountered in city traffic
driving. 4WD drive models also include unique logic in
4HI or 4LO to enhance off-road capabilities.The traction control Indicator, located in the instrument
cluster, will light up when the Traction Control is in use.
To turn the system OFF, press the Traction Control
switch, located below the climate controls in the center
stack, until the traction control Indicator in the instru-
ment cluster lights up.
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

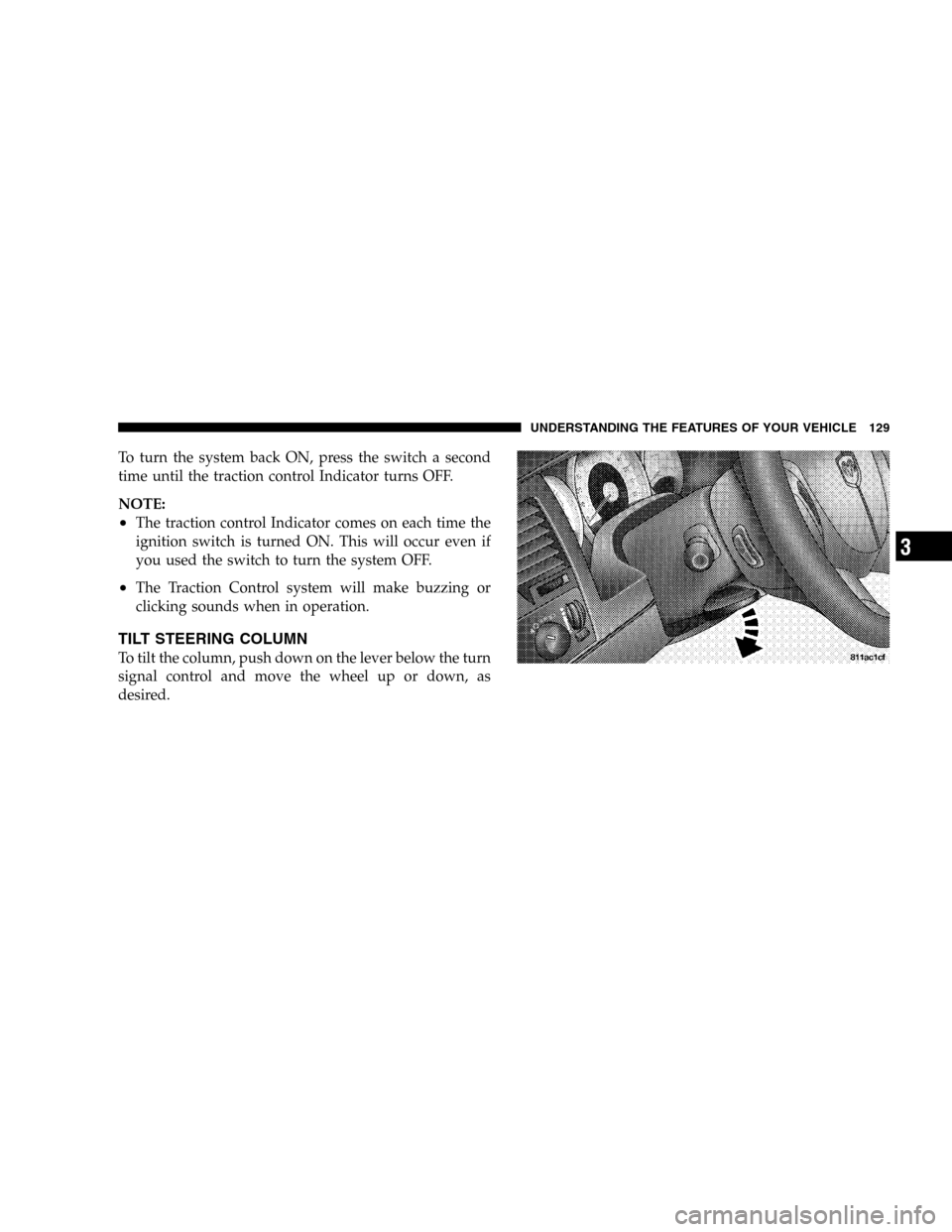

Page 129 of 416

To turn the system back ON, press the switch a second
time until the traction control Indicator turns OFF.
NOTE:
•The traction control Indicator comes on each time the
ignition switch is turned ON. This will occur even if
you used the switch to turn the system OFF.
•The Traction Control system will make buzzing or
clicking sounds when in operation.
TILT STEERING COLUMN
To tilt the column, push down on the lever below the turn
signal control and move the wheel up or down, as
desired.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3
Page 168 of 416

display will place a box around the selected transmission
range (PRND21). If the PRNDL displays only the char-
acters PRND21 (no boxes) have the system checked by an
authorized dealer.
17. Trip Odometer
The trip odometer shows individual trip mileage. To
toggle between the odometer and the trip odometer,
press the Odometer/Trip Odometer Button. To reset the
Trip Odometer, press and hold the button while in trip
mode, until the Trip Odometer resets.
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged,
GASCAP will be displayed in the instrument cluster.
Tighten the fuel filler cap properly and press the odom-
eter reset button to turn the GASCAP message off. If the
problem continues, the message will appear the next time
the vehicle is started.18. Odometer
The odometer shows the total distance the vehicle has
been driven.
U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or
replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.
19. Traction Control — If Equipped
This display indicator illuminates momentarily
as a bulb check when the ignition switch is first
turned ON. The indicator will blink during an
active traction event, but will remain solid
when the system is deactivated or if a system malfunc-
tion occurs.
168 INSTRUMENT PANEL AND CONTROLS
Page 169 of 416

The Traction Control indicator will turn ON if:
20. Transmission Temperature Indicator
This light indicates that there is excessive transmission
fluid temperature that might occur with severe usage
such as trailer towing. If this light comes on, stop the
vehicle and run the engine at idle or faster, with the
transmission in NEUTRAL until the light goes off.
21. Electronic Throttle Control (ETC)
This light informs you of a problem with the
Electronic Throttle Control system. If a prob-
lem is detected the light will come on while the
engine is running. If the light remains lit with
the engine running your vehicle will usually be drivable,
however, see your dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required and you may experience
reduced performance, an elevated/rough idle or engine
stall and your vehicle may require towing. The light willcome on when the ignition is first turned on and remain
on for 15 seconds as a bulb check. If the light does not
come on during starting, have the system checked by an
authorized dealer.
22. Door Ajar
The Door Ajar light will illuminate when any door is
open.
NOTE:A chime will sound if the vehicle is rolling and
a door has been opened.
23. BRAKE System Warning Light
This light will light when the ignition key is turned to the
ON position and will remain on for a few seconds. If the
light stays on, it may be an indication that the parking
brake has not been released, or there is a low brake fluid
level. If the light remains on when the parking brake has
been disengaged, and the fluid level is at the full mark on
the master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction. In this case, the light will
INSTRUMENT PANEL AND CONTROLS 169
4

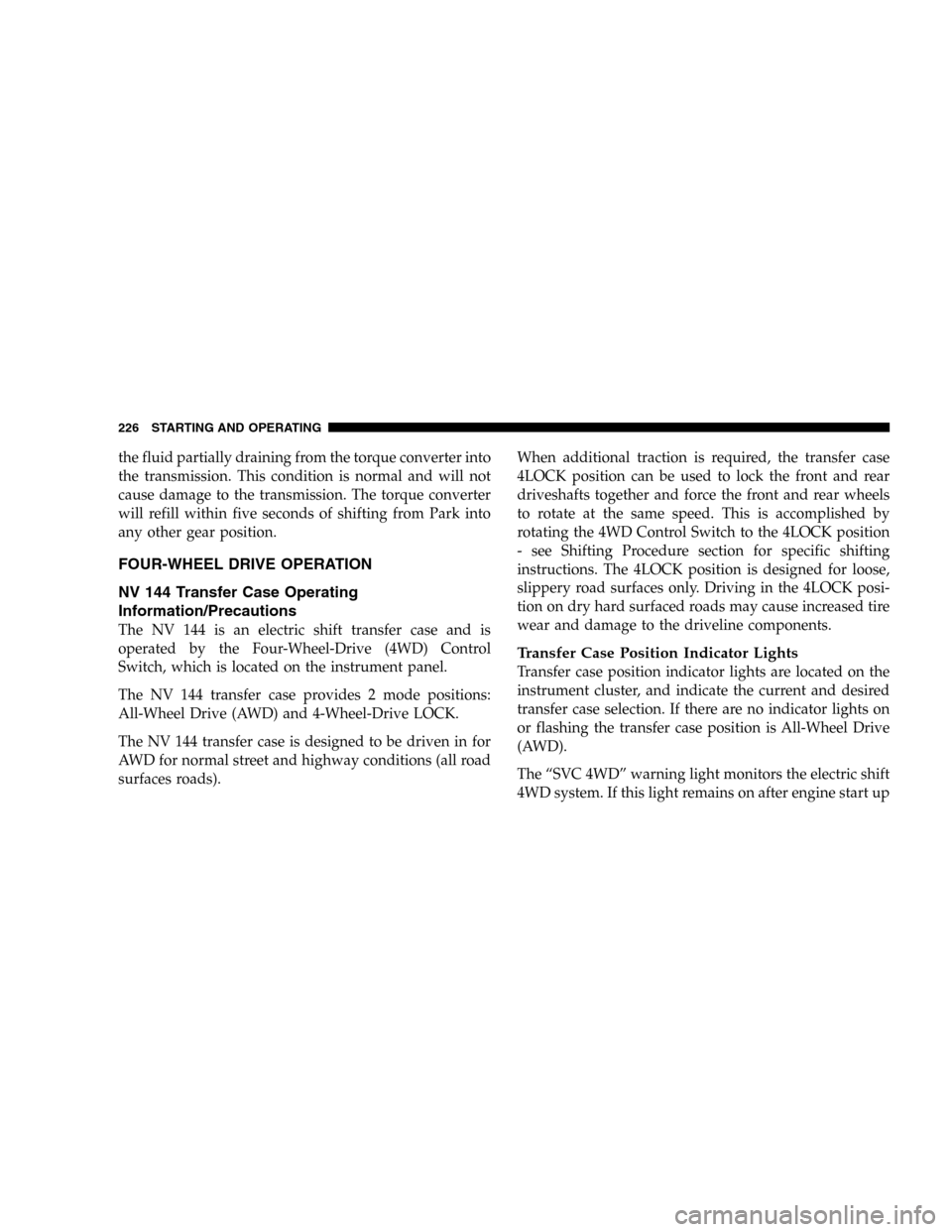

Page 226 of 416

the fluid partially draining from the torque converter into
the transmission. This condition is normal and will not
cause damage to the transmission. The torque converter
will refill within five seconds of shifting from Park into
any other gear position.
FOUR-WHEEL DRIVE OPERATION
NV 144 Transfer Case Operating
Information/Precautions
The NV 144 is an electric shift transfer case and is
operated by the Four-Wheel-Drive (4WD) Control
Switch, which is located on the instrument panel.
The NV 144 transfer case provides 2 mode positions:
All-Wheel Drive (AWD) and 4-Wheel-Drive LOCK.
The NV 144 transfer case is designed to be driven in for
AWD for normal street and highway conditions (all road
surfaces roads).When additional traction is required, the transfer case
4LOCK position can be used to lock the front and rear
driveshafts together and force the front and rear wheels
to rotate at the same speed. This is accomplished by
rotating the 4WD Control Switch to the 4LOCK position
- see Shifting Procedure section for specific shifting
instructions. The 4LOCK position is designed for loose,
slippery road surfaces only. Driving in the 4LOCK posi-
tion on dry hard surfaced roads may cause increased tire
wear and damage to the driveline components.
Transfer Case Position Indicator Lights
Transfer case position indicator lights are located on the
instrument cluster, and indicate the current and desired
transfer case selection. If there are no indicator lights on
or flashing the transfer case position is All-Wheel Drive
(AWD).
The “SVC 4WD” warning light monitors the electric shift
4WD system. If this light remains on after engine start up
226 STARTING AND OPERATING
Page 230 of 416

vehicle in the 4LOCK position on dry hard surfaced
roads. This feature provides the safety, security, and
convenience of operating in all-wheel drive at all times
regardless of road conditions.
When additional traction is required, the 4LOCK and
4LO positions can be used to lock the front and rear
driveshafts together through the transfer case inter-axle
differential and force the front and rear wheels to rotate
at the same speed. This is accomplished by rotating the
4WD Control Switch to these positions. The 4LOCK and
4LO positions are intended for loose, slippery road
surfaces only. Driving in the 4LOCK and 4LO positions
on dry hard surfaced roads may cause increased tire wear
and damage to the driveline components.
The transfer case Neutral (N) position is selected by
depressing the recessed button located on the lower left
hand corner of the 4WD Control Switch.NOTE:The transfer case Neutral (N) position is to be
used for recreational towing only. See Recreational Tow-
ing section for specific procedures on shifting into and
out of Neutral (N).
Transfer Case Position Indicator Lights
Transfer case position indicator lights are located on the
instrument cluster. If there are no indicator lights on or
flashing the transfer case position is All-Wheel Drive
(AWD) and indicate the current and desired transfer case
selection (4HI⇔4LOCK).
The “SVC 4WD” warning light monitors the electric shift
4WD system. If this light remains on after engine start up
or illuminates during driving, it means that the 4WD
system is not functioning properly and that service is
required.
230 STARTING AND OPERATING

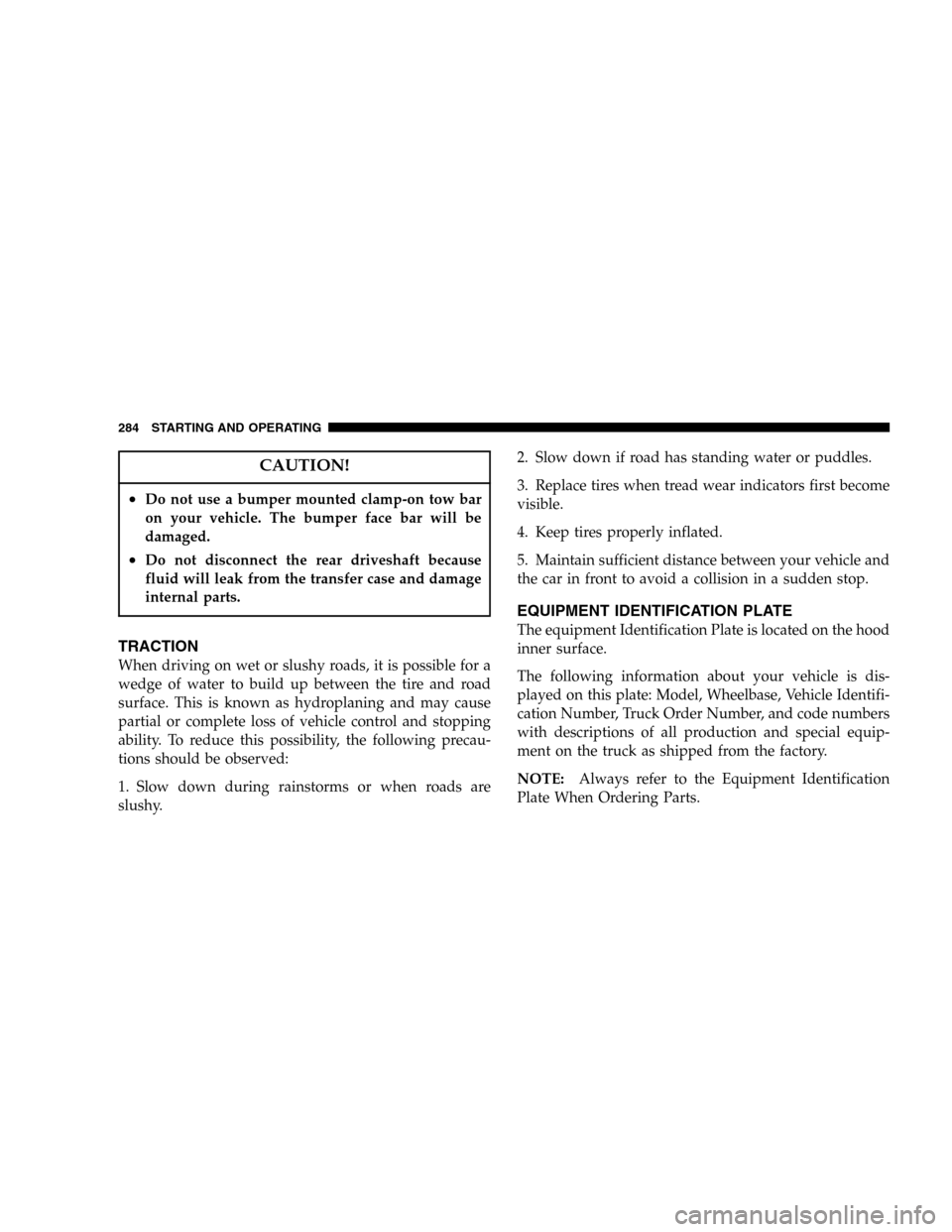

Page 284 of 416

CAUTION!
•Do not use a bumper mounted clamp-on tow bar
on your vehicle. The bumper face bar will be
damaged.
•Do not disconnect the rear driveshaft because
fluid will leak from the transfer case and damage
internal parts.
TRACTION
When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is known as hydroplaning and may cause
partial or complete loss of vehicle control and stopping
ability. To reduce this possibility, the following precau-
tions should be observed:
1. Slow down during rainstorms or when roads are
slushy.2. Slow down if road has standing water or puddles.
3. Replace tires when tread wear indicators first become
visible.
4. Keep tires properly inflated.
5. Maintain sufficient distance between your vehicle and
the car in front to avoid a collision in a sudden stop.
EQUIPMENT IDENTIFICATION PLATE
The equipment Identification Plate is located on the hood
inner surface.
The following information about your vehicle is dis-
played on this plate: Model, Wheelbase, Vehicle Identifi-
cation Number, Truck Order Number, and code numbers
with descriptions of all production and special equip-
ment on the truck as shipped from the factory.
NOTE:Always refer to the Equipment Identification
Plate When Ordering Parts.
284 STARTING AND OPERATING
Page 408 of 416

Tire Identification Number (TIN)............. 243
Tire Markings.......................... 239
Tire Safety Information.................... 239
Tires ...............................66,248
Air Pressure.......................... 248
Alignment........................... 256
Chains.............................. 257
Changing............................ 288
Compact Spare........................ 252
General Information.................... 248
High Speed.......................... 251
Inflation Pressures..................... 249
Jacking............................. 291
Load Capacity.....................244,245
Radial.............................. 252
Replacement......................... 255
Rotation............................. 259
Safety...........................239,248
Sizes............................... 241Snow Tires........................... 258
Spare Tire........................... 289
Spinning............................ 254
Tread Wear Indicators................... 254
Wheel Mounting....................... 291
Wheel Nut Torque..................... 294
Tongue Weight/Trailer Weight.............. 274
Torque Converter Clutch.................. 225
Tow Hooks, Emergency................... 298
Towing............................... 271
Disabled Vehicle....................... 299
Guide.............................. 275
Recreational.......................... 280
Weight.............................. 275
Traction.............................. 284
Traction Control......................128,168
Traction Control Switch................... 128
Trailer Towing.......................... 271
Cooling System Tips.................... 278
408 INDEX
