windshield wipers DODGE DURANGO 2005 2.G Owners Manual

▫Headlight Delay......................122
▫Automatic Headlights — If Equipped.......122
▫Headlights, Parking Lights, Panel Lights.....123
▫Illuminated Entry.....................123
▫Daytime Running Lights (Canada Only).....123
▫Lights-On Reminder...................124
▫Fog Lights — If Equipped...............124

Multifunction Control Lever...............124
▫Turn Signals.........................125
▫Passing Light........................125
▫High Beam / Low Beam Select Switch......126
▫Windshield Wipers....................126
▫Windshield Washers...................127
Traction Control Switch — If Equipped.......128

Tilt Steering Column....................129

Driver Adjustable Pedals — If Equipped......130
▫Adjustment.........................131

Electronic Speed Control — If Equipped......132
▫To Activate..........................132
▫To Set At A Desired Speed...............132
▫To Deactivate........................132
▫To Resume Speed.....................133
▫To Vary The Speed Setting...............133
▫To Accelerate For Passing...............134

Overhead Console......................135
▫Courtesy/Reading Lights................136
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

High Beam / Low Beam Select Switch
Pull the multifunction control lever fully toward the
steering wheel to switch the headlights from HIGH or
LOW beam.
Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction control lever. Turn the end of the handle to
select the desired wiper speed.
Intermittent Wiper System
The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

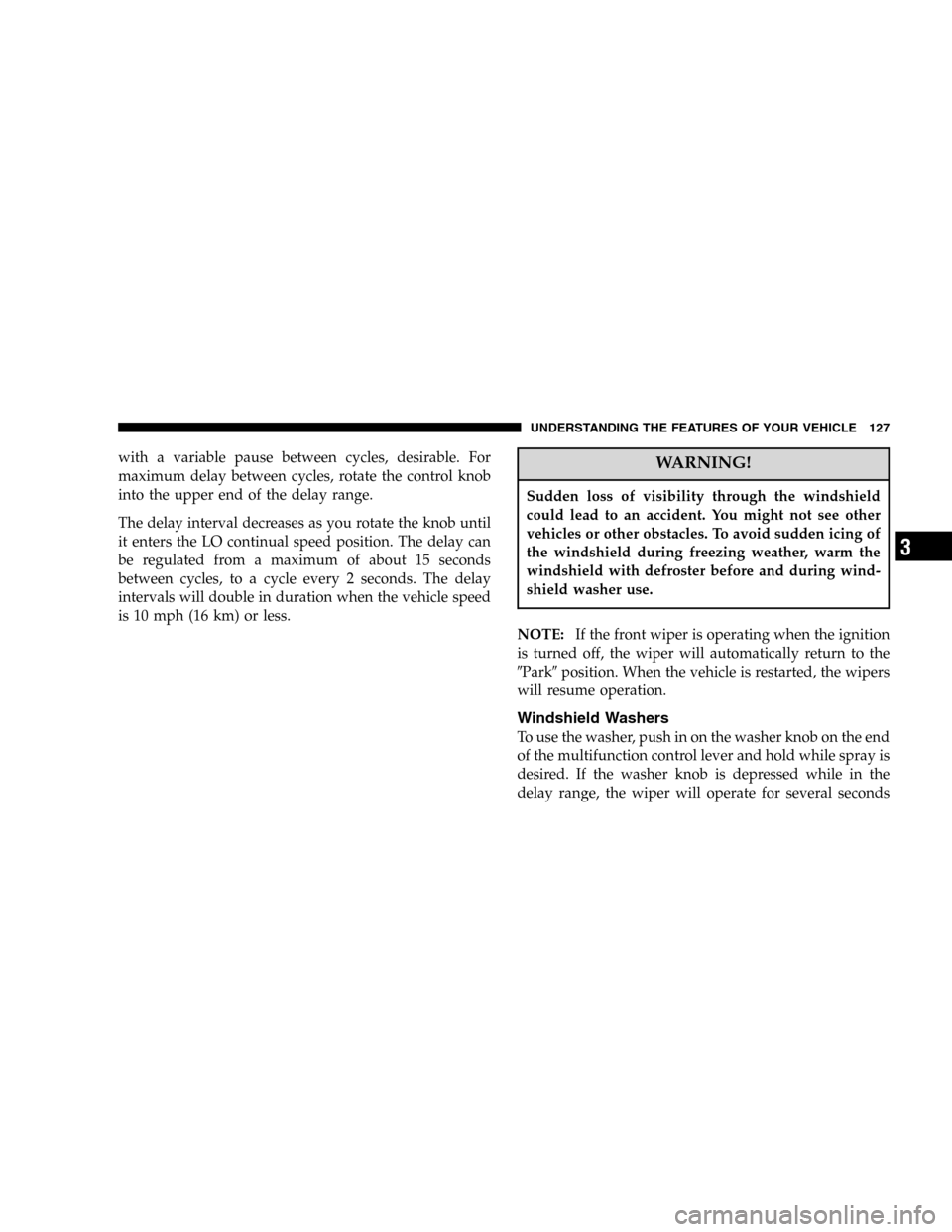

with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.
The delay interval decreases as you rotate the knob until
it enters the LO continual speed position. The delay can
be regulated from a maximum of about 15 seconds
between cycles, to a cycle every 2 seconds. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km) or less.WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
NOTE:If the front wiper is operating when the ignition
is turned off, the wiper will automatically return to the
Parkposition. When the vehicle is restarted, the wipers
will resume operation.
Windshield Washers
To use the washer, push in on the washer knob on the end
of the multifunction control lever and hold while spray is
desired. If the washer knob is depressed while in the
delay range, the wiper will operate for several seconds
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

attention should also be given to hood latching compo-
nents to insure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the fall and spring. Apply a small
amount of a high quality lubricant such as MoparLock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
The rubber edges of the wiper blades and the windshield
should be cleaned periodically with a sponge or soft cloth
and a mild nonabrasive cleaner. This will remove accu-
mulations of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Windshield Washers
The fluid reservoir should be checked for fluid level at
regular intervals. When freezing weather is anticipated,
flush out the water in the reservoir by operating the
system. Fill the reservoir with windshield washer anti-
freeze (not radiator antifreeze), and operate the system
for a few seconds to flush out the residual water.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
322 MAINTAINING YOUR VEHICLE

Points to Remember.................... 328
Radiator Cap......................... 327
Selection of Coolant...............326,357,359
Temperature Gauge..................... 164
Cruise Control (Speed Control).............. 132
Cup Holder............................ 154
Customer Assistance..................... 385
Data Recorder, Event...................... 52
Daytime Running Lights................... 123
Dealer Service.......................... 310
Defroster, Rear Window................... 213
Defroster, Windshield................66,200,205
Delay (Intermittent) Wipers................. 126
Diagnostic System, Onboard................ 307
Dimmer Switch, Headlight................. 165
Dipsticks
Automatic Transmission................. 332
Oil (Engine).......................... 311Power Steering........................ 320
Disarming, Theft System................... 25
Disc Brakes............................ 330
Disposal
Used Coolant......................... 325
Door Ajar Light......................... 169
Door Locks............................. 13
Door Opener, Garage..................... 142
Drive Belts............................ 315
Drive Shaft Universal Joints................ 321
Electric Remote Mirrors.................... 76
Electrical Power Outlets................... 151
Electronic Speed Control................... 132
Emergency, In Case of
Freeing Vehicle When Stuck............... 239
Jacking............................. 291
Overheating.......................... 327
Tow Hooks.......................... 298
INDEX 397
10

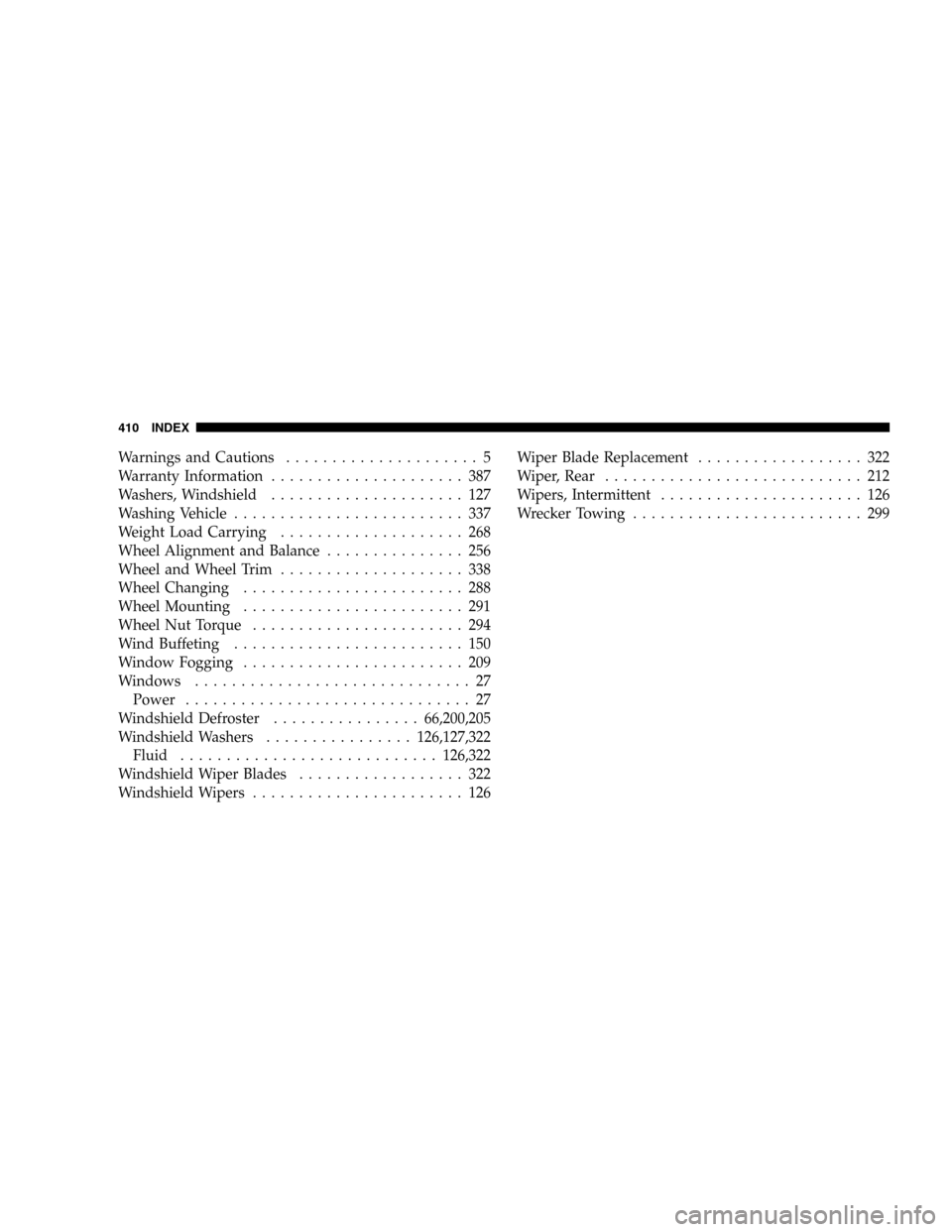

Warnings and Cautions..................... 5
Warranty Information..................... 387
Washers, Windshield..................... 127
Washing Vehicle......................... 337
Weight Load Carrying.................... 268
Wheel Alignment and Balance............... 256
Wheel and Wheel Trim.................... 338
Wheel Changing........................ 288
Wheel Mounting........................ 291
Wheel Nut Torque....................... 294
Wind Buffeting......................... 150
Window Fogging........................ 209
Windows.............................. 27
Power............................... 27
Windshield Defroster................66,200,205
Windshield Washers................126,127,322
Fluid............................126,322
Windshield Wiper Blades.................. 322
Windshield Wipers....................... 126Wiper Blade Replacement.................. 322
Wiper, Rear............................ 212
Wipers, Intermittent...................... 126
Wrecker Towing......................... 299
410 INDEX
