on the remaining transmitters will work. If the vehicle is
moving 5 mph or more, then all the transmitter buttons
are disabled for all keys.
NOTE:The Sentry Key Immobilizer System is not
compatible with remote starting systems. Use of these
systems may result in vehicle starting problems and a
loss of security protection. Additional Sentry Keys or
Mobil Speed-pass™ devices held against or immediately
adjacent to the ignition key when starting the engine may
cause vehicle starting problems. If a problem occurs,
remove the Sentry Key from the key-ring and attempt to
start the vehicle again. Pagers, cell phones, walkman, etc.
will have no effect on this system.
TheSecurity Lightwill illuminate for about 3 seconds
when the ignition switch is first turned to the ON
position. If the vehicle electronics do not receive a valid
signal from the ignition key, theSecurity Lightwill flashcontinuously to signal that the vehicle has been immobi-
lized. If theSecurity Lightremains on during vehicle
operation, it indicates a fault in the system electronics. If
this option was ordered, all of the keys provided with
your new vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed and needs to be cut.
NOTE:When having the Sentry Key System serviced,
bring all vehicle keys to the dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid keys by doing the following:
1. Insert the first valid key into the ignition and turn the
ignition to the ON position for at least 3 seconds but no
longer than 15 seconds. Turn the ignition back to the OFF
position and remove the first key.
2. Insert the second valid key and switch the ignition to
the ON position within 15 seconds. After 10 seconds, a
chime will sound and theSecurity Lightwill begin to
flash. Turn the ignition back to the OFF position and
remove the second key.3. Insert a blank Sentry Key into the ignition and switch
the ignition to the ON position within 60 seconds of
having removed the second key. After 10 seconds, a
single chime will sound. TheSecurity Lightwill stop
flashing, then turn on for 3 seconds; then turn off.
The new Sentry Key has been programmed. Repeat this
process to program up to a total of 8 keys.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
IGNITION AND STEERING LOCK
In the LOCK position, the steering and ignition systems
are locked to provide anti-theft protection for your ve-
hicle. It may be difficult to turn the key from the LOCK
position when starting your vehicle, if the steering wheel
is locked. Move the steering wheel left and right while
turning the key until it turns easily. The key can be
inserted or withdrawn only in the LOCK position. Push
in on the key in the ignition lock cylinder to rotate to the
LOCK position.
Ignition Switch Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

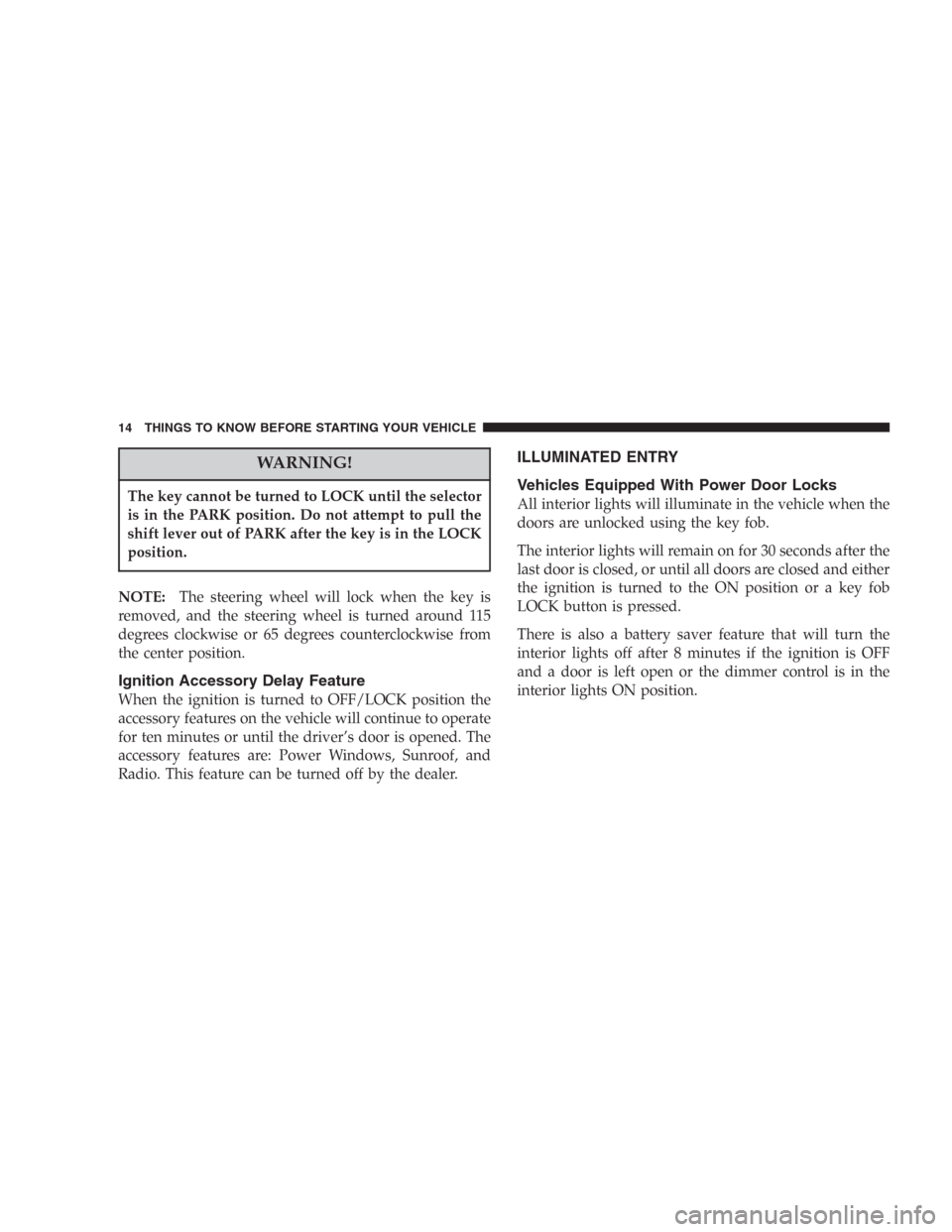

WARNING!
The key cannot be turned to LOCK until the selector
is in the PARK position. Do not attempt to pull the
shift lever out of PARK after the key is in the LOCK
position.
NOTE:The steering wheel will lock when the key is
removed, and the steering wheel is turned around 115
degrees clockwise or 65 degrees counterclockwise from
the center position.
Ignition Accessory Delay Feature
When the ignition is turned to OFF/LOCK position the
accessory features on the vehicle will continue to operate
for ten minutes or until the driver’s door is opened. The
accessory features are: Power Windows, Sunroof, and
Radio. This feature can be turned off by the dealer.
ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the key fob.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a key fob
LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after 8 minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

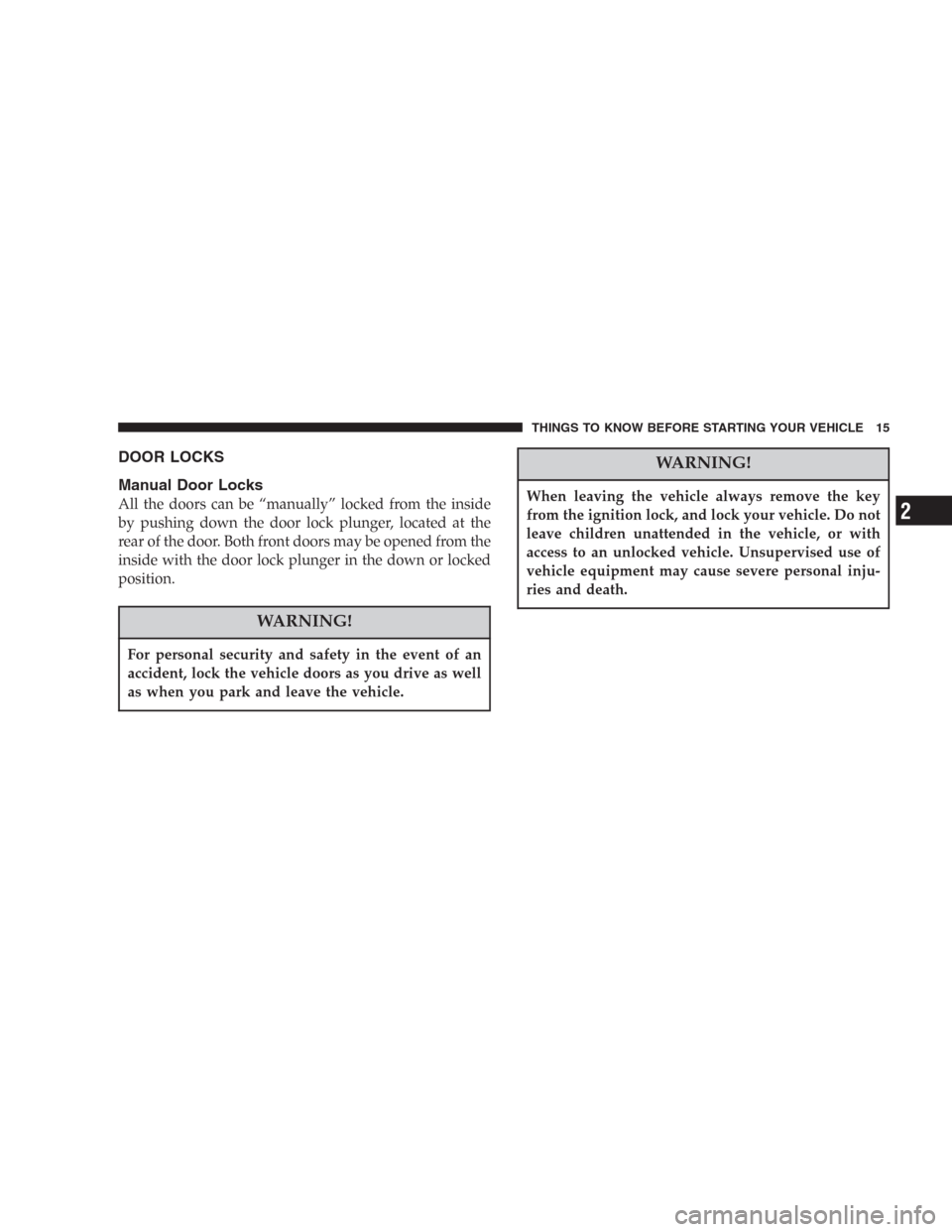

DOOR LOCKS
Manual Door Locks
All the doors can be “manually” locked from the inside
by pushing down the door lock plunger, located at the
rear of the door. Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
WARNING!
For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
WARNING!
When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal inju-
ries and death.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Power Door Locks
Vehicles equipped with power door locks can be locked
or unlocked from inside by either the use of the door lock
switches located on the front doors or by pressing the
LOCK or UNLOCK buttons on the Remote Keyless Entry
key fob.Power Door Lock Switches
Power Door Lock Switch Operation
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

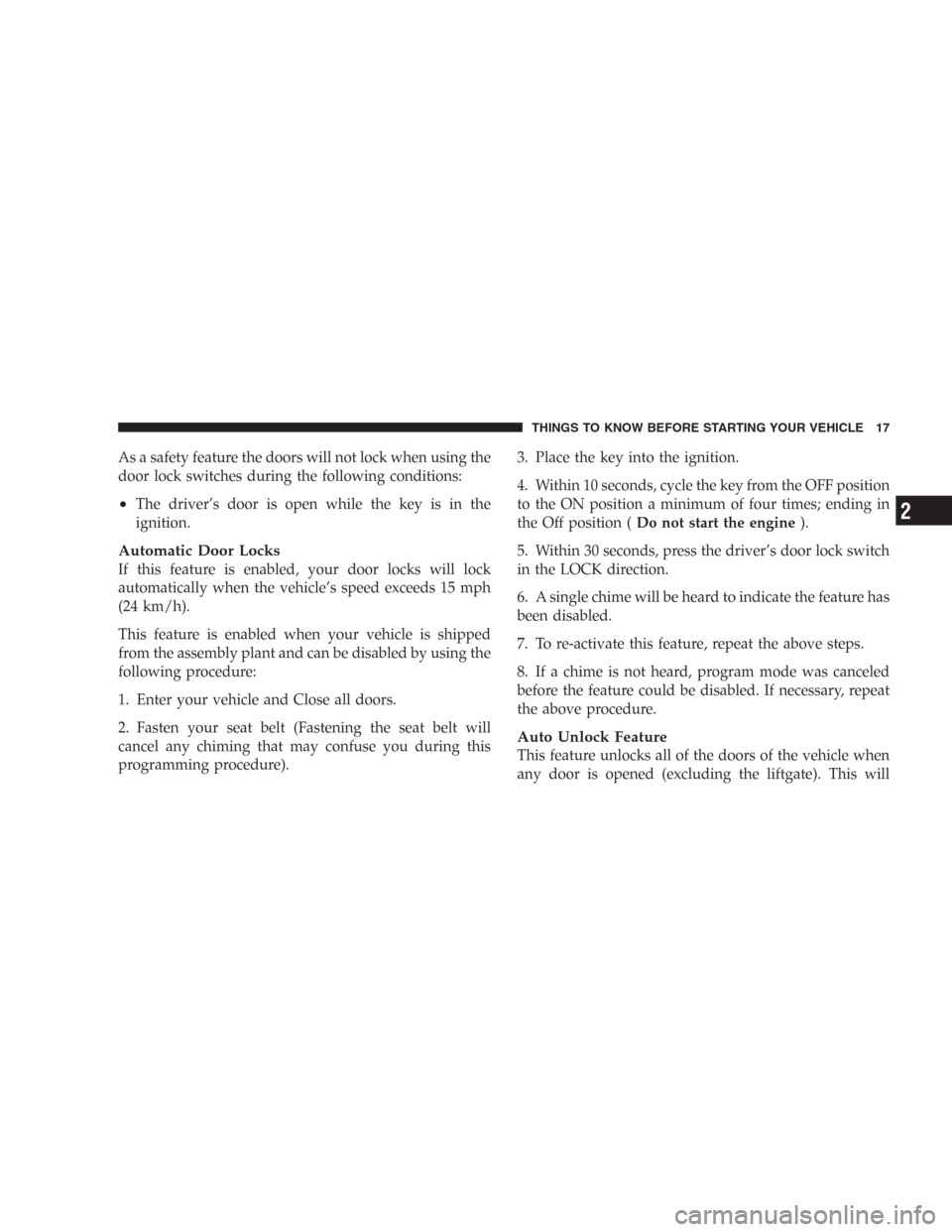

As a safety feature the doors will not lock when using the
door lock switches during the following conditions:
•The driver’s door is open while the key is in the
ignition.
Automatic Door Locks
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
1. Enter your vehicle and Close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).3. Place the key into the ignition.
4. Within 10 seconds, cycle the key from the OFF position
to the ON position a minimum of four times; ending in
the Off position (Do not start the engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To re-activate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Auto Unlock Feature
This feature unlocks all of the doors of the vehicle when
any door is opened (excluding the liftgate). This will
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

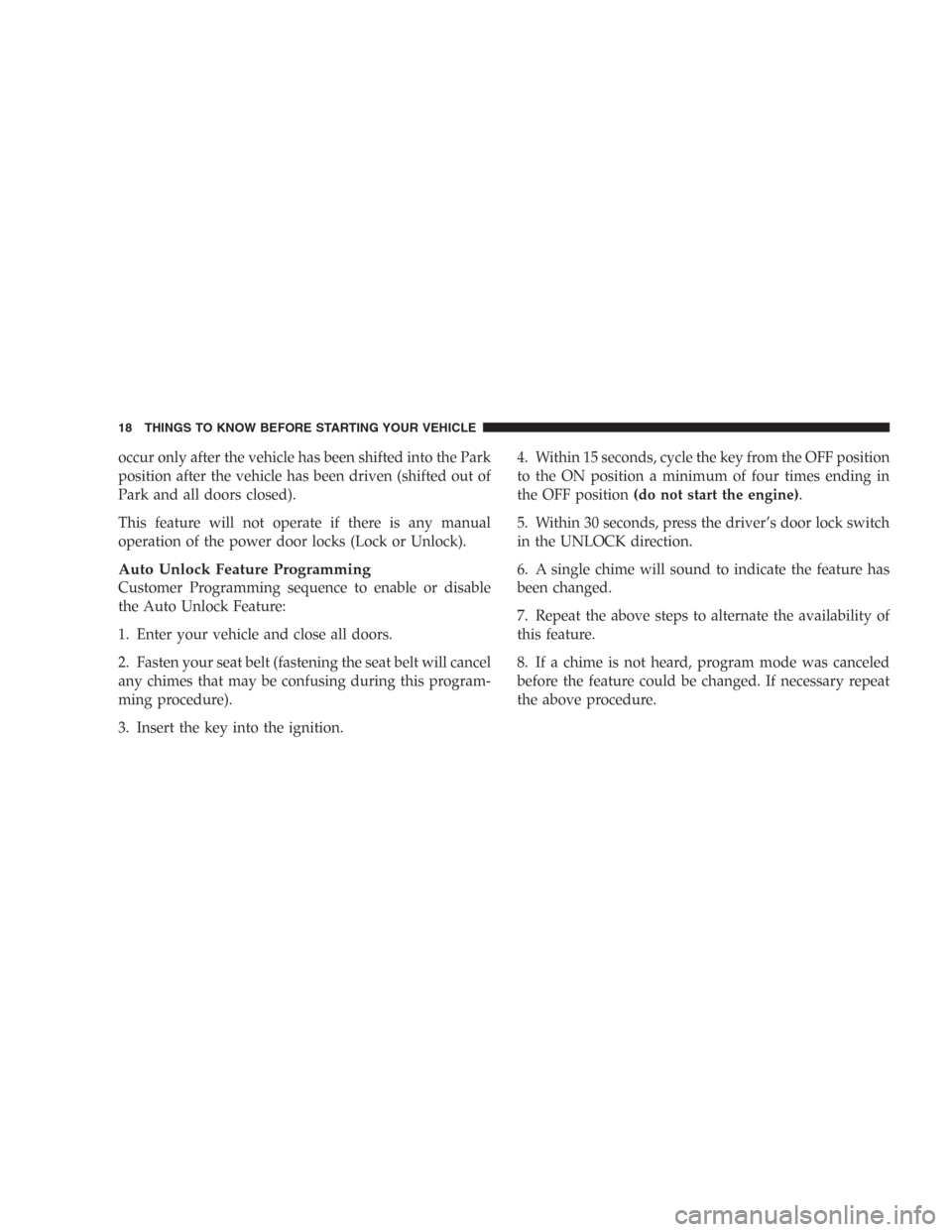

occur only after the vehicle has been shifted into the Park
position after the vehicle has been driven (shifted out of
Park and all doors closed).
This feature will not operate if there is any manual
operation of the power door locks (Lock or Unlock).
Auto Unlock Feature Programming
Customer Programming sequence to enable or disable
the Auto Unlock Feature:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (fastening the seat belt will cancel
any chimes that may be confusing during this program-
ming procedure).
3. Insert the key into the ignition.4. Within 15 seconds, cycle the key from the OFF position
to the ON position a minimum of four times ending in
the OFF position(do not start the engine).
5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.
6. A single chime will sound to indicate the feature has
been changed.
7. Repeat the above steps to alternate the availability of
this feature.
8. If a chime is not heard, program mode was canceled
before the feature could be changed. If necessary repeat
the above procedure.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Child Protection Door Lock
To provide a safer environment for children riding in the
rear seat, the rear doors of your vehicle have the child-
protection door lock system.
To use the system, open each rear door and slide the
control UP to engage the locks and DOWN to disengage
the child-protection locks. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.
Child Lock Location
Child Lock Details
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:After setting the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.
NOTE:For emergency exit with the system engaged,
move the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
REMOTE KEYLESS ENTRY
NOTE:For the remote starting feature (if equipped),
refer to the “Remote Starting System” section.
NOTE:For the power liftgate feature (if equipped), refer
to the “Power Liftgate” section.
Five Button Keyfob Shown
