BluetoothCommunication Link
Cellular phones have been found to lose connection to
the uconnectphone. When this happens, the connection
can generally be reestablished by switching the phone
off/on. Your cellular phone is recommended to remain in
BluetoothON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least five seconds prior to using the system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3

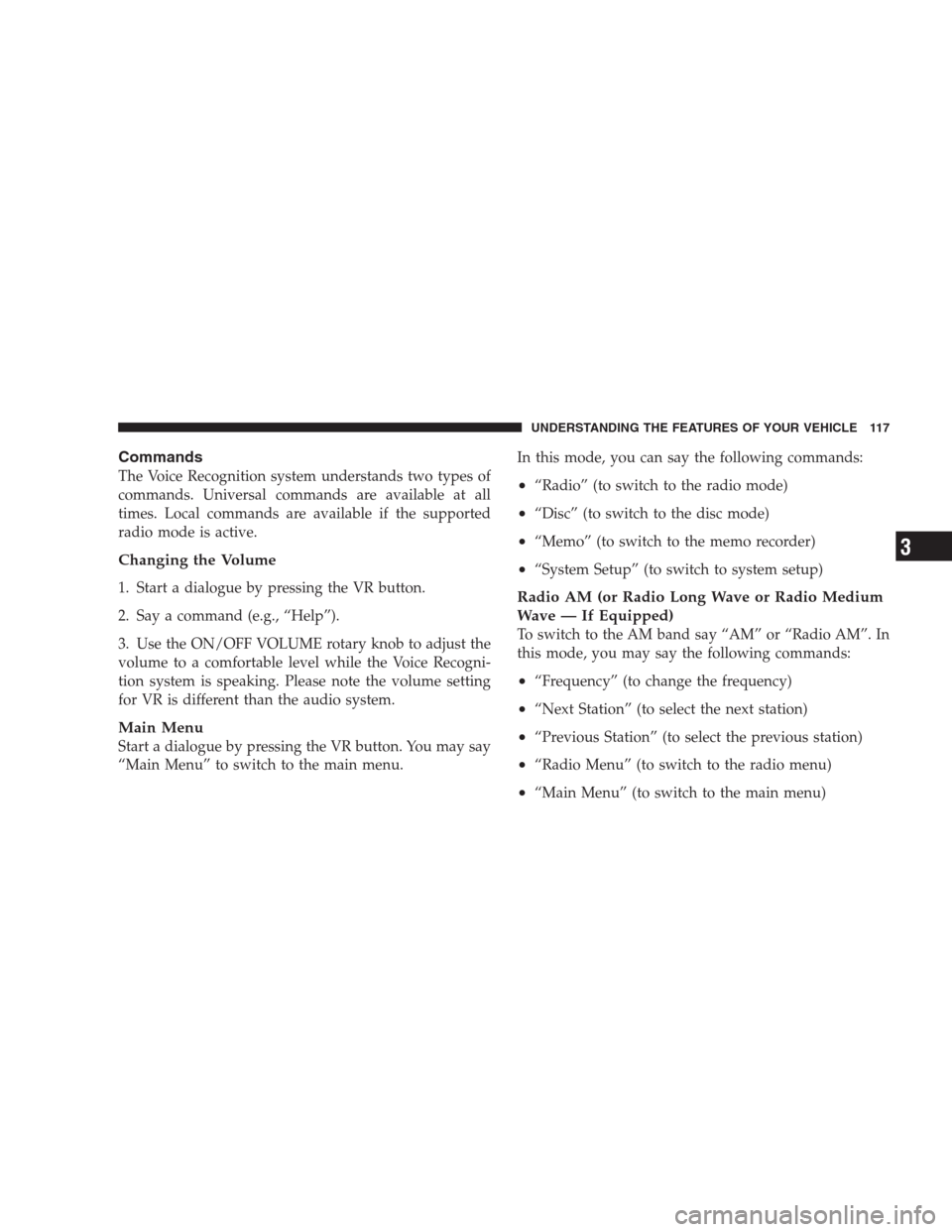

Commands
The Voice Recognition system understands two types of
commands. Universal commands are available at all
times. Local commands are available if the supported
radio mode is active.
Changing the Volume
1. Start a dialogue by pressing the VR button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Recogni-
tion system is speaking. Please note the volume setting
for VR is different than the audio system.
Main Menu
Start a dialogue by pressing the VR button. You may say
“Main Menu” to switch to the main menu.In this mode, you can say the following commands:
•“Radio” (to switch to the radio mode)
•“Disc” (to switch to the disc mode)
•“Memo” (to switch to the memo recorder)
•“System Setup” (to switch to system setup)
Radio AM (or Radio Long Wave or Radio Medium
Wave — If Equipped)
To switch to the AM band say “AM” or “Radio AM”. In
this mode, you may say the following commands:
•“Frequency” (to change the frequency)
•“Next Station” (to select the next station)
•“Previous Station” (to select the previous station)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

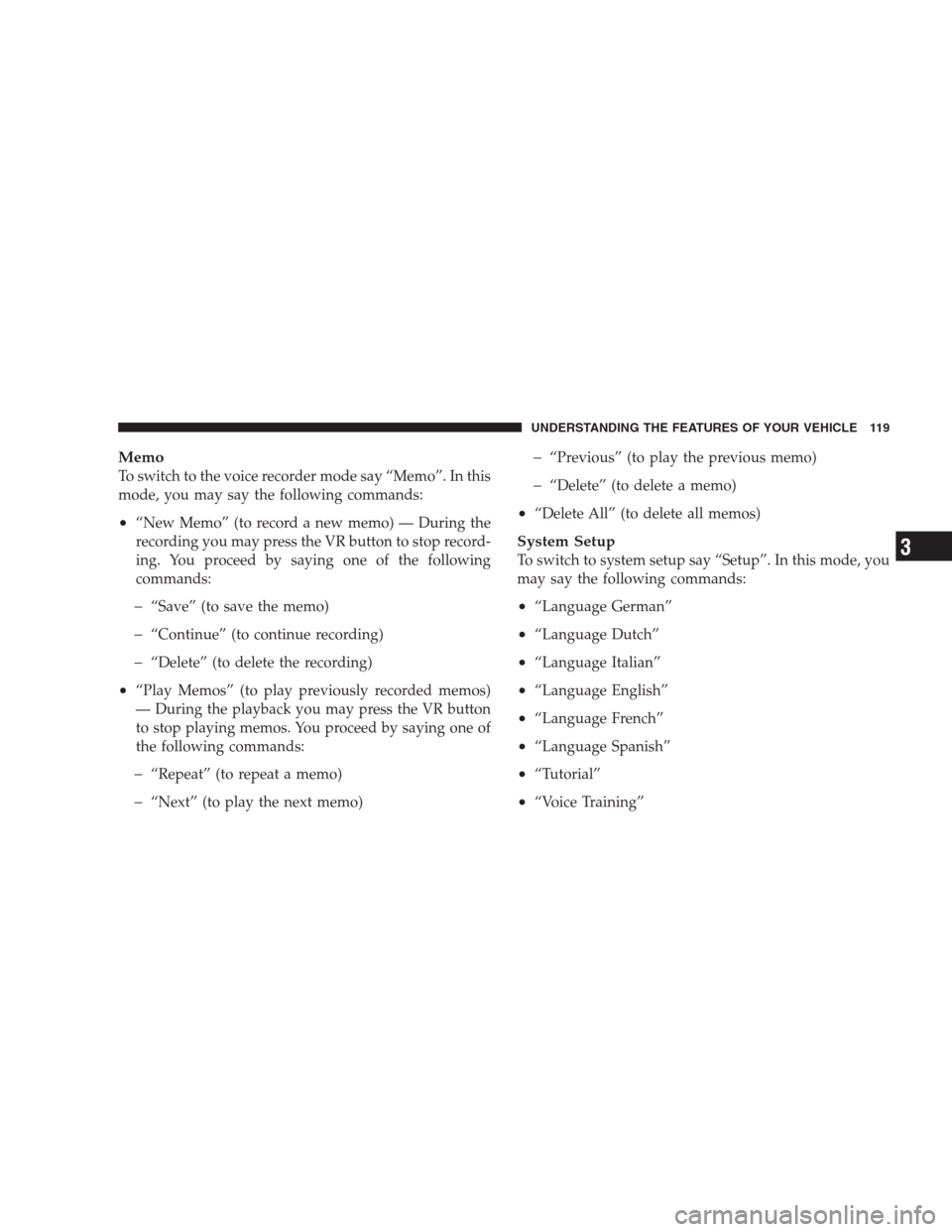

Memo
To switch to the voice recorder mode say “Memo”. In this
mode, you may say the following commands:
•“New Memo” (to record a new memo) — During the
recording you may press the VR button to stop record-
ing. You proceed by saying one of the following
commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
•“Play Memos” (to play previously recorded memos)
— During the playback you may press the VR button
to stop playing memos. You proceed by saying one of
the following commands:
“Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
•“Delete All” (to delete all memos)
System Setup
To switch to system setup say “Setup”. In this mode, you
may say the following commands:
•“Language German”
•“Language Dutch”
•“Language Italian”
•“Language English”
•“Language French”
•“Language Spanish”
•“Tutorial”
•“Voice Training”
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

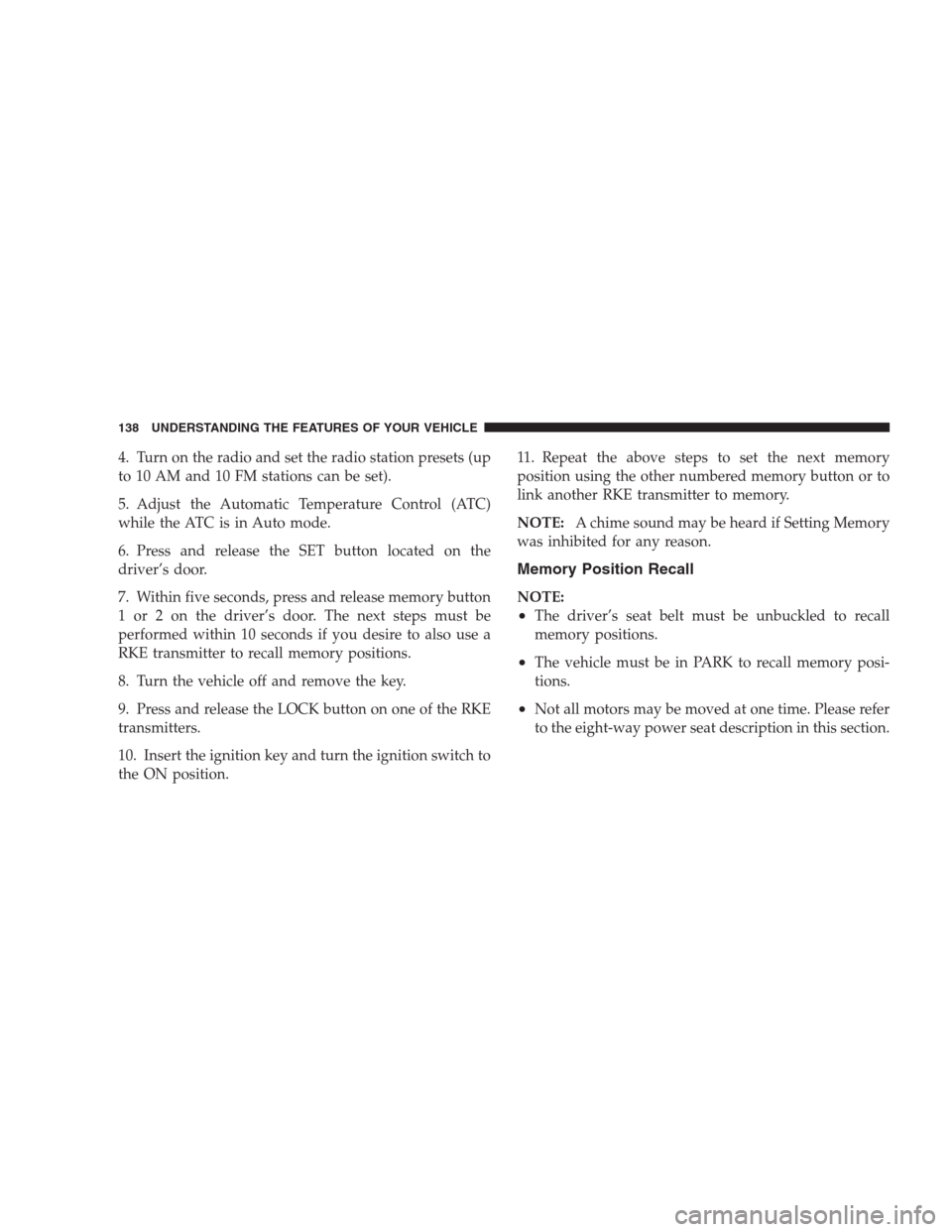

4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s door.
7. Within five seconds, press and release memory button
1 or 2 on the driver’s door. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the vehicle off and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key and turn the ignition switch to
the ON position.11. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
Memory Position Recall
NOTE:
•The driver’s seat belt must be unbuckled to recall
memory positions.
•The vehicle must be in PARK to recall memory posi-
tions.
•Not all motors may be moved at one time. Please refer
to the eight-way power seat description in this section.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

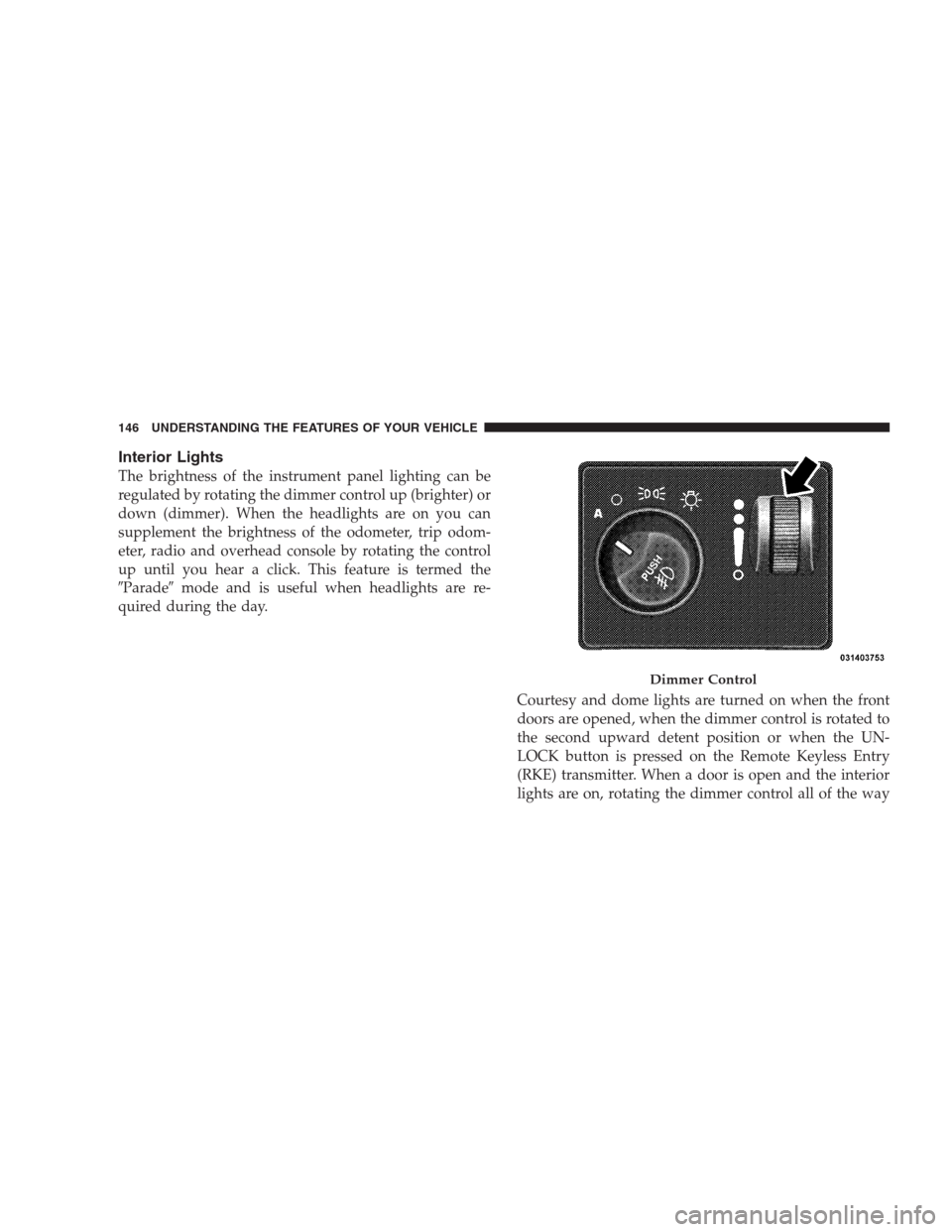

Interior Lights
The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are on you can
supplement the brightness of the odometer, trip odom-
eter, radio and overhead console by rotating the control
up until you hear a click. This feature is termed the
Parademode and is useful when headlights are re-
quired during the day.
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control is rotated to
the second upward detent position or when the UN-
LOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter. When a door is open and the interior
lights are on, rotating the dimmer control all of the way
Dimmer Control
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

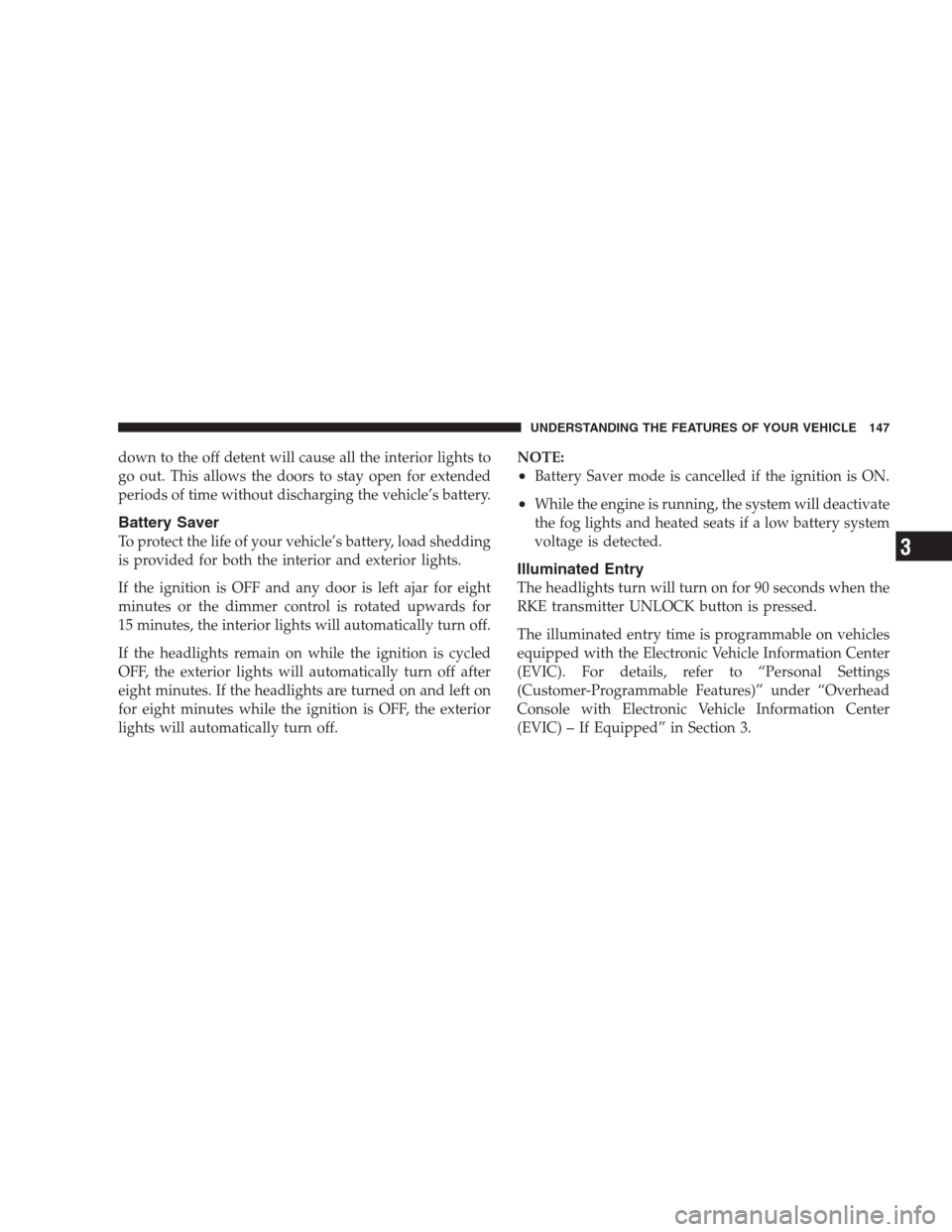

down to the off detent will cause all the interior lights to
go out. This allows the doors to stay open for extended
periods of time without discharging the vehicle’s battery.
Battery Saver
To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights.
If the ignition is OFF and any door is left ajar for eight
minutes or the dimmer control is rotated upwards for
15 minutes, the interior lights will automatically turn off.
If the headlights remain on while the ignition is cycled
OFF, the exterior lights will automatically turn off after
eight minutes. If the headlights are turned on and left on
for eight minutes while the ignition is OFF, the exterior
lights will automatically turn off.NOTE:
•Battery Saver mode is cancelled if the ignition is ON.
•While the engine is running, the system will deactivate
the fog lights and heated seats if a low battery system
voltage is detected.
Illuminated Entry
The headlights turn will turn on for 90 seconds when the
RKE transmitter UNLOCK button is pressed.
The illuminated entry time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Personal Settings
(Customer-Programmable Features)” under “Overhead
Console with Electronic Vehicle Information Center
(EVIC) – If Equipped” in Section 3.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

CAUTION! (Continued)
•To avoid vehicle damage, the vehicle must be
driven slowly when using the Rear Camera system
to be able to stop in time when an obstacle is seen.
It is recommended that the driver look frequently
over his/her shoulder when using the Rear Camera
system.
NOTE:If snow, ice, mud, or anything else builds up on
the camera lens, clean the lens, rinse with water, and dry
with a soft cloth. Do not cover the lens.
Turning the Rear Camera On or Off — With
Navigation Radio
1. Press themenuhard key.
2. Selectsystem setupsoft key.
3. Press the “camera setup” soft key.4. Enable or disable the rear camera feature by selecting
enable rear camera in reversesoft key.
5. Press the “save” soft key.
6. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
check entire surroundingsdisplayed across the top of
the screen. After five seconds this note will disappear.
7. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the navigation or audio screen
appears again.
Turning the Rear Camera On or Off — Without
Navigation Radio
1. Press themenuhard key.
2. Selectsystem setupsoft key.
3. Enable or disable the rear camera feature by selecting
enable rear camera in reversesoft key.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. When the vehicle is shifted into REVERSE, an image of
the rear of the vehicle will appear with a caution note to
check entire surroundingsdisplayed across the top of
the screen. After five seconds this note will disappear.
5. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the audio screen appears
again.
OVERHEAD CONSOLE
The overhead console has the following features:
•Courtesy Lights
•Garage Door Opener — If Equipped
Courtesy/Reading Lights
There are two reading lights and one courtesy light
located near the front of the console.All lights illuminate as courtesy lights when a door is
opened, when the dimmer control is rotated to the
courtesy light position (fully upward position), or when
the UNLOCK button is pressed on the Remote Keyless
Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

•“FLASH LAMPS W/LOCK >ON” – When ON is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the RKE Trans-
mitter. This feature may be selected with or without
the sound horn on lock feature selected. To make your
selection, press and release the RESET button until
“ON” or “OFF” appears.
•“HEADLAMP OFF DELAY > 0 SEC” – When this
feature is selected, the driver can choose to have the
headlamps remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To make your selection, press and
release the RESET button until “0,” “30,” “60,” or “90”
appears.
NOTE:The headlamp switch must be in the “A” auto
mode before this feature will work.
•HEADLAMPS W/WIPERS > ON – When ON is
selected, the headlamps will automatically turn on
when the wiper switch is activated.
•EASY EXIT SEAT > ON – When ON is selected, and
the key is removed from the ignition, the driver’s seat
will automatically move rearward to allow easy exit.
•TILT MIRRORS IN “R” > ON – When ON is selected,
and the transmission is put in REVERSE, the outside
mirrors will tilt downward.
•“KEY OFF POWER DELAY> OFF” – When this feature
is selected, the power window switches, radio, hands–
free system (if equipped), and power outlets will
remain active for up to 10 minutes after the ignition
switch is turned off. Opening a vehicle door will
cancel this feature. To make your selection, press and
release the RESET button until “Off,” “45 sec.,”
“5 min.,” “10 min.” appears.
•“ILLUMINATED APRCH > OFF” – When this feature
is selected, the headlights will activate and remain on
for up to 90 seconds when the doors are unlocked with
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

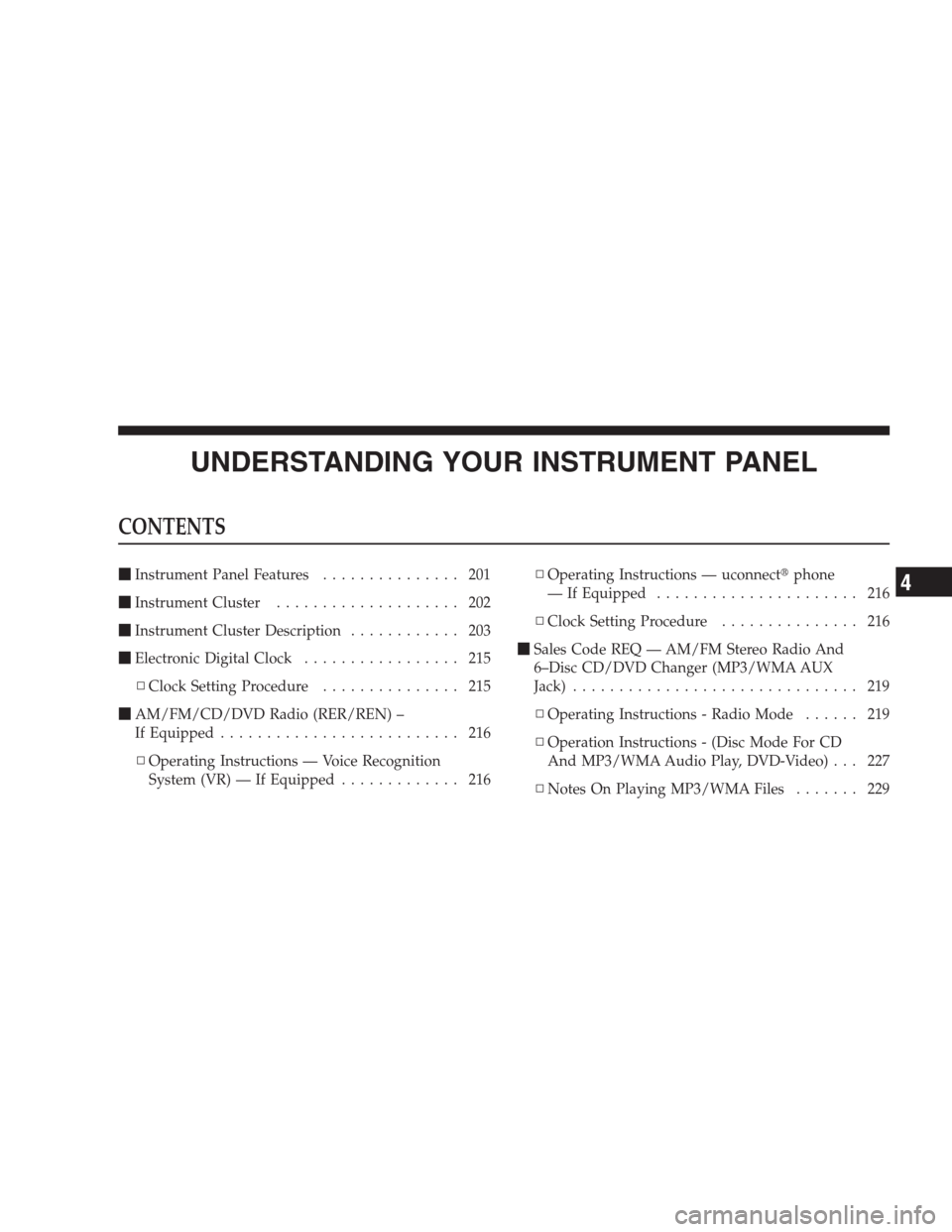

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features............... 201
Instrument Cluster.................... 202
Instrument Cluster Description............ 203
Electronic Digital Clock................. 215
▫Clock Setting Procedure............... 215
AM/FM/CD/DVD Radio (RER/REN) –
If Equipped.......................... 216
▫Operating Instructions — Voice Recognition
System (VR) — If Equipped............. 216▫Operating Instructions — uconnectphone
— If Equipped...................... 216
▫Clock Setting Procedure............... 216
Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)............................... 219
▫Operating Instructions - Radio Mode...... 219
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 227
▫Notes On Playing MP3/WMA Files....... 2294
