set clock DODGE DURANGO 2009 2.G User Guide

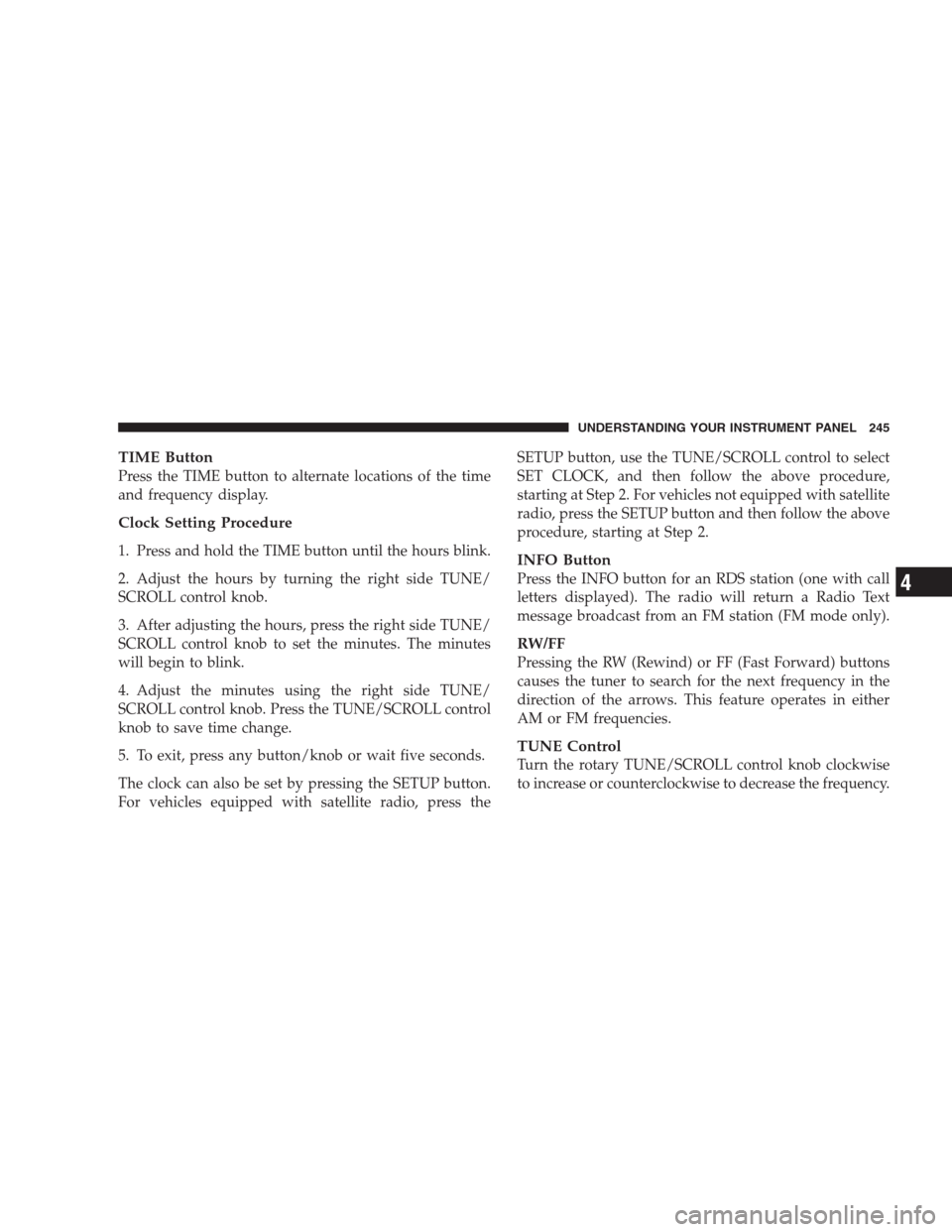

TIME Button
Press the TIME button to alternate locations of the time
and frequency display.
Clock Setting Procedure
1. Press and hold the TIME button until the hours blink.
2. Adjust the hours by turning the right side TUNE/
SCROLL control knob.
3. After adjusting the hours, press the right side TUNE/
SCROLL control knob to set the minutes. The minutes
will begin to blink.
4. Adjust the minutes using the right side TUNE/
SCROLL control knob. Press the TUNE/SCROLL control
knob to save time change.
5. To exit, press any button/knob or wait five seconds.
The clock can also be set by pressing the SETUP button.
For vehicles equipped with satellite radio, press theSETUP button, use the TUNE/SCROLL control to select
SET CLOCK, and then follow the above procedure,
starting at Step 2. For vehicles not equipped with satellite
radio, press the SETUP button and then follow the above
procedure, starting at Step 2.INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.
UNDERSTANDING YOUR INSTRUMENT PANEL 245
4

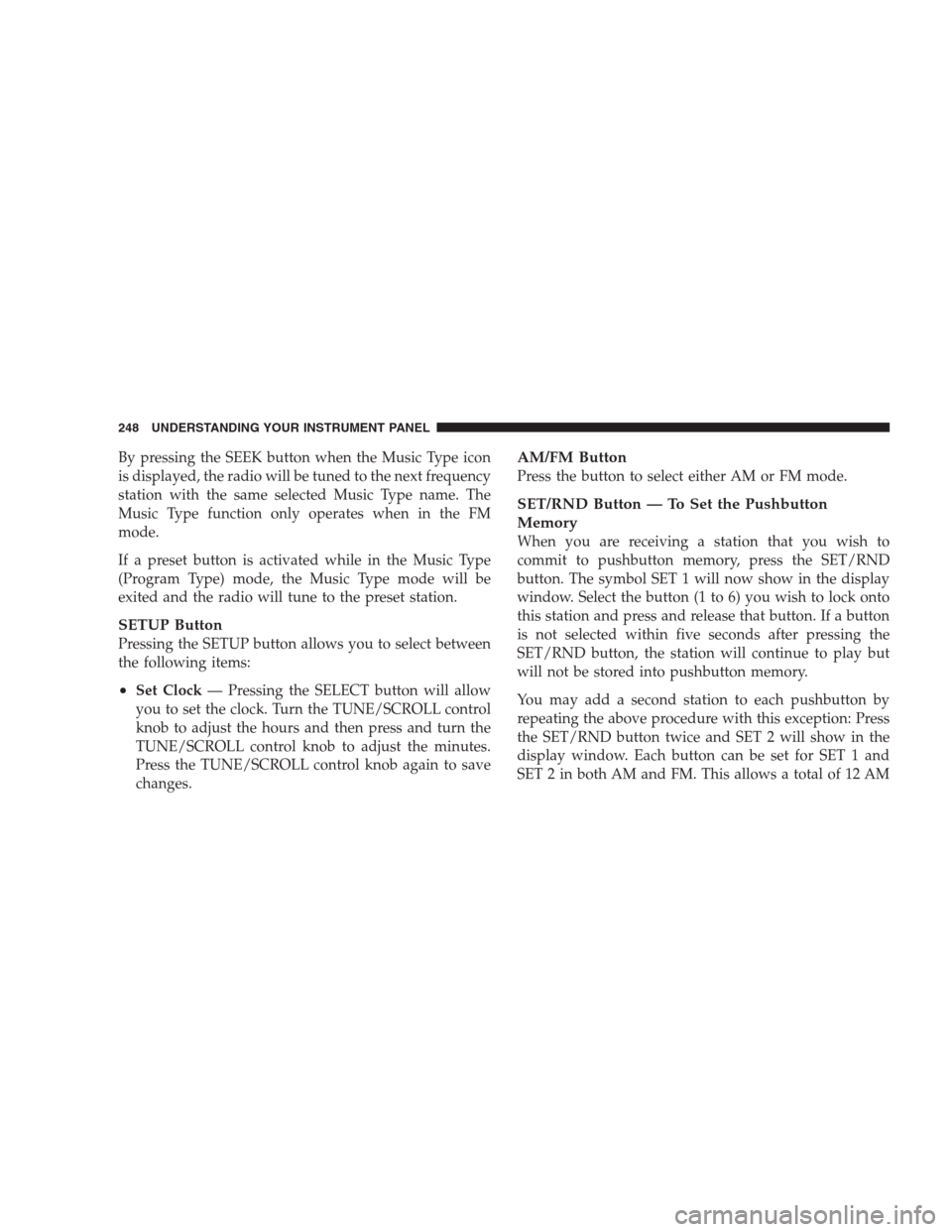

By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.
SETUP Button
Pressing the SETUP button allows you to select between
the following items:
•Set Clock— Pressing the SELECT button will allow
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
AM/FM Button
Press the button to select either AM or FM mode.
SET/RND Button — To Set the Pushbutton
Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET/RND
button. The symbol SET 1 will now show in the display
window. Select the button (1 to 6) you wish to lock onto
this station and press and release that button. If a button
is not selected within five seconds after pressing the
SET/RND button, the station will continue to play but
will not be stored into pushbutton memory.
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
248 UNDERSTANDING YOUR INSTRUMENT PANEL

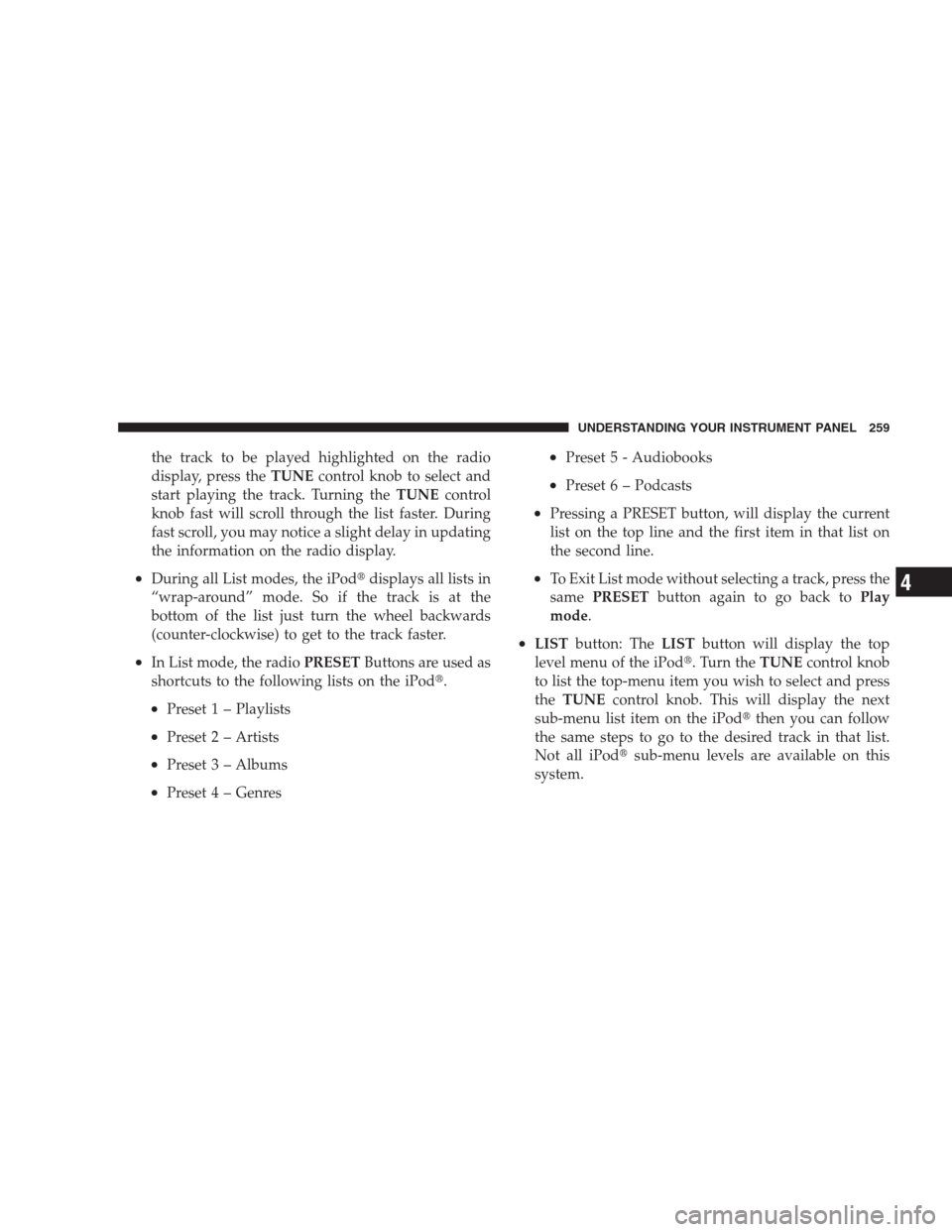

the track to be played highlighted on the radio
display, press theTUNEcontrol knob to select and
start playing the track. Turning theTUNEcontrol
knob fast will scroll through the list faster. During
fast scroll, you may notice a slight delay in updating
the information on the radio display.
•During all List modes, the iPoddisplays all lists in
“wrap-around” mode. So if the track is at the
bottom of the list just turn the wheel backwards
(counter-clockwise) to get to the track faster.
•In List mode, the radioPRESETButtons are used as
shortcuts to the following lists on the iPod.
•Preset 1 – Playlists
•Preset 2 – Artists
•Preset 3 – Albums
•Preset 4 – Genres
•Preset 5 - Audiobooks
•Preset 6 – Podcasts
•Pressing a PRESET button, will display the current
list on the top line and the first item in that list on
the second line.
•To Exit List mode without selecting a track, press the
samePRESETbutton again to go back toPlay
mode.
•LISTbutton: TheLISTbutton will display the top
level menu of the iPod. Turn theTUNEcontrol knob
to list the top-menu item you wish to select and press
theTUNEcontrol knob. This will display the next
sub-menu list item on the iPodthen you can follow
the same steps to go to the desired track in that list.
Not all iPodsub-menu levels are available on this
system.
UNDERSTANDING YOUR INSTRUMENT PANEL 259
4

Satellite Radio Antenna................... 262
Satellite Radio (uconnect studios)..........260,265
Schedule, Maintenance.................... 448
Seat Belt Maintenance.................... 425
Seat Belt Reminder....................... 49
Seat Belts..........................39,40,74
And Pregnant Women................... 50
Child Restraint.......................62,64
Extender............................. 50
Front Seat............................ 40
Inspection............................ 74
Pretensioners.......................... 48
Reminder............................ 204
Seats................................. 120
Adjustment.......................... 120
Fold and Tumble Rear................126,128
Heated............................. 124
Lumbar Support....................... 122
Memory............................ 136Rear Folding.......................126,128
Reclining............................ 121
Security Alarm (Theft Alarm).............18,205
Selection of Coolant (Antifreeze).......... 411,444
Selection of Oil......................... 402
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 16
Service and Maintenance.................. 401
Service Assistance....................... 465
Service Contract......................... 467
Service Manuals........................ 469
Setting the Clock.............215,216,220,235,245
Settings, Personal........................ 170
Shifting
Automatic Transmission................. 292
Transfer Case......................... 298
Transfer Case, Shifting into Transfer Case
Neutral (N).......................... 372
INDEX 487
10

INTRODUCTION INTRODUCTION ROLLOVER WARNING HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD
ABOUT YOUR KEYS Ignition Key RemovalLocking Doors With The KeySTEERING WHEEL LOCK - IF EQUIPPED To Manually Lock the Steering WheelTo Release the Steering Wheel LockAutomatic Transaxle Ignition Interlock System - If EquippedSENTRY KEY
Replacement KeysCustomer Key ProgrammingGeneral InformationVEHICLE SECURITY ALARM - IF EQUIPPED To Set the AlarmTo Disarm the SystemILLUMINATEDENTRY Vehicles Equipped With Power Door LocksREMOTE KEYLESS ENTRY (RKE) To Unlock the
Doors and LiftgateTo Lock the Doors and LiftgateUsing the Panic AlarmGeneral InformationProgramming Additional TransmittersBattery ReplacementREMOTE STARTING SYSTEM - IF EQUIPPED How to Use Remote StartDOOR LOCKS Manual Door LocksPower Door
LocksChild Protection Door LockWINDOWS Power Windows Auto DownAuto Up Feature with Anti-Pinch Protection (Drivers and Front Passenger Door Only)Window Lockout SwitchLIFTGATE Power Liftgate - If EquippedOCCUPANT RESTRAINTS Lap/Shoulder Belts
Adjustable Upper Shoulder Belt AnchorageAutomatic Locking Retractors (ALR) Mode - If EquippedRear 60/40 Seat Third Row Center Three Point Belt - If EquippedSeat Belt PretensionersEnhanced Seat Belt Use Reminder System (BeltAlert)Seat Belts and Pregnant Women
Seat Belt ExtenderDriver And Right Front Passenger Supplemental Restraint System (SRS)-Airbags Event Data Recorder (EDR)Child RestraintENGINE BREAK-IN RECOMMENDATIONS SAFETY TIPS Transporting PassengersExhaust GasSafety Checks You Should Make
Inside The VehiclePeriodic Safety Checks You Should Make Outside The VehicleUNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night MirrorAutomatic Dimming Mirror - If EquippedOutside MirrorsOutside Folding Mirrors - If EquippedPower
MirrorsAutomatic Dimming Drivers Outside Mirror - If EquippedHeated Mirrors - If EquippedIlluminated Vanity Mirrors - If Equippeduconnect phone -IF EQUIPPED OperationPhone Call Featuresuconnect phone FeaturesAdvanced Phone ConnectivityThings You Should
Know About Your uconnect phoneGeneral InformationVOICE RECOGNITION SYSTEM (VR) - IF EQUIPPED Voice Recognition System (VR) OperationCommandsVoice TrainingSEATS Manual Front Seat AdjustmentManual Front Seat ReclinersManual Lumbar Support
Adjustment - If EquippedAdjustable Head Restraints - All Seating PositionsEight-Way Drivers Power Seat - If EquippedFour-Way Passengers Power Seat - If EquippedHeated Seats - If EquippedSecond Row Bucket Seats - Fold and TumbleSecond Row 40/20/40 Seat -
Fold and TumbleThird Row Seat Bench - If EquippedThird Row 60/40 Folding - If EquippedDRIVER MEMORY SEAT - IF EQUIPPED Setting Memory Positions and Linking RKE Transmitter to MemoryMemory Position RecallTo Disable A RKE Transmitter Linked to Memory
Self-Limiting ControlDriver Easy Exit and Easy Entry ControlTO OPEN AND CLOSE THE HOOD LIGHTS Headlight SwitchInterior LightsBattery SaverIlluminated EntryDaytime Running Lights (Canada Only)Lights-On ReminderFog Lights - If EquippedMultifunction Lever
WINDSHIELD WIPERS AND WASHERS Windshield WipersWindshield WashersTILT STEERING COLUMN DRIVER ADJUSTABLE PEDALS - IF EQUIPPED AdjustmentELECTRONIC SPEED CONTROL - IF EQUIPPED To ActivateTo Set At A Desired SpeedTo Deactivate
To Resume SpeedTo Vary The Speed SettingTo Accelerate For PassingREAR PARK ASSIST - IF EQUIPPED Rear Park Assist SensorsRear Park Assist Warning DisplayEnable/Disable The Rear Park AssistService The Rear Park AssistCleaning The Rear Park AssistREAR
BACKUP CAMERA - IF EQUIPPED Turning the Rear Camera On or Off - With Navigation RadioTurning the Rear Camera On or Off - Without Navigation RadioOVERHEAD CONSOLE Courtesy/Reading LightsOVERHEAD CONSOLE WITH ELECTRONIC VEHICLE
INFORMATION CENTER (EVIC) - IF EQUIPPED Dome/Reading LightsElectronic Vehicle Information Center (EVIC) - If EquippedCompass/Temperature ButtonGARAGE DOOR OPENER - IF EQUIPPED Programming HomeLinkGate Operator/Canadian ProgrammingUsing
HomeLinkReprogramming A Single HomeLink ButtonSecurityTroubleshooting TipsGeneral InformationPOWER SUNROOF - IF EQUIPPED Express Open FeatureWind BuffetingSunroof MaintenanceELECTRICAL POWER OUTLETS Configuring Power Outlets115-Volt
Inverter Outlet - If Equipped FLOOR CONSOLE Floor Console FeaturesRear Floor Console Features - If EquippedCARGO AREA FEATURES Cargo Management System - If EquippedREAR WINDOW FEATURES Rear Window Wiper/WasherRear Window Defrosting
FACTORY INSTALLED ROOF LUGGAGE RACK UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES INSTRUMENT CLUSTER INSTRUMENT CLUSTER DESCRIPTION ELECTRONIC DIGITAL CLOCK Clock Setting Procedure
AM/FM/CD/DVD RADIO (RER/REN) - IF EQUIPPED Operating Instructions - Voice Recognition System (VR) - If EquippedOperating Instructions - uconnect phone - If EquippedClock Setting ProcedureSALES CODE REQ - AM/FM STEREO RADIO AND 6-DISC CD/DVD
CHANGER (MP3/WMA AUX JACK) Operating Instructions - Radio ModeOperation Instructions - (DISC MODE for CD and MP3/WMA Audio Play, DVD-VIDEO)Notes OnPlaying MP3/WMA FilesLIST Button (DISC Mode for MP3/WMA Play)INFO Button (DISC Mode for
MP3/WMA Play)SALES CODE RES - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) Operating Instructions - Radio ModeOperation Instructions - CD MODE ForCD And MP3 Audio PlayNotes on Playing MP3 FilesOperation Instructions - Auxiliary Mode
SALES CODE RES/RSC - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) AND SIRIUS RADIO Operating Instructions - Radio ModeOperation Instructions - CD MODE for CD and MP3 Audio PlayNotes On Playing MP3 FilesLIST Button (CD Mode for MP3
Play)INFO Button (CD Mode for MP3 Play)UNIVERSAL CONSUMER INTERFACE (UCI) - IF EQUIPPED Connecting The iPodUsing This FeatureControlling The iPod Using Radio ButtonsPlay ModeList Or Browse Modeuconnect studios (SATELLITE RADIO) - IF EQUIPPED
(REN/REQ/RER/RES/REU RADIOS ONLY) System ActivationElectronic Serial Number/Sirius Identification Number (ESN/SID)Selecting uconnect studios (Satellite) ModeSatellite AntennaReception QualityOperating Instructions - uconnect studios (Satellite) ModeOperating
Instructions - uconnect phone (If Equipped)Operating Instructions - Video Entertainment System (VES) (If Equipped)uconnect studios (SIRIUS BACKSEAT TV) - IF EQUIPPED VIDEO ENTERTAINMENT SYSTEM (SALES CODE XRV) - IF EQUIPPED REMOTE SOUND
SYSTEM CONTROLS - IF EQUIPPED Radio OperationCD PlayerCD/DVD MAINTENANCE RADIO OPERATION AND CELLULAR PHONES CLIMATE CONTROLS Manual Control Air Conditioning OperationFront Blower ControlFront Mode ControlRear Temperature Control
- If EquippedRear Window Defrosting and Rear Window Washer/WiperAutomatic Temperature Control (ATC) - If EquippedAutomatic ControlLevel Of Automatic ControlManual Control (ATC)Rear Zone Climate Control - If Equipped Rear Rotary Temperature ControlFront
Unit to Rear Unit ChartOperating TipsOperating Tips Chart STARTING AND OPERATING STARTING PROCEDURES Normal StartingExtremely Cold Weather (below -20 degrees F or -29 degrees C)If Engine Fails To StartAfter StartingENGINE BLOCK HEATER - IF
EQUIPPED AUTOMATIC TRANSMISSION Brake/Transmission Interlock SystemGear RangesFOUR-WHEEL DRIVE OPERATION NV 140 Transfer Case Operating Information/Precautions - If EquippedNV 244 Generation II Transfer Case Operating Information/Precautions
- If EquippedShifting Procedure - NV 244 Generation II Transfer Case DRIVING ON SLIPPERY SURFACES DRIVING THROUGH WATER Flowing/Rising WaterShallow Standing WaterPOWER STEERING Power Steering Fluid CheckPARKING BRAKE ANTI-LOCK BRAKE
SYSTEM ELECTRONIC BRAKE CONTROL SYSTEM Anti-Lock Brake System (ABS)Traction Control System (TCS)Brake Assist System (BAS)Electronic Roll Mitigation (ERM)Electronic Stability Program (ESP)Trailer Sway Control (TSC)ESP/BAS Warning Light and
ESP/TCS Indicator LightTIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation PressuresTire Pressures for High Speed OperationRadial Ply TiresCompact
Spare Tire - If EquippedLimited-Use Spare - If EquippedTire SpinningTread Wear IndicatorsLife of TireReplacement TiresSUPPLEMENTAL TIRE PRESSURE INFORMATION - IF EQUIPPED TIRE CHAINS SNOW TIRES TIRE ROTATION RECOMMENDATIONS TIRE
PRESSURE MONITOR SYSTEM (TPMS) Base SystemPremium System - If EquippedGeneral InformationFUEL REQUIREMENTS Reformulated GasolineGasoline/Oxygenate BlendsE-85 Usage In Non-Flex Fuel VehiclesMMT In GasolineMaterials Added To FuelFuel
System CautionsCarbon Monoxide WarningsFLEXIBLE FUEL (4.7L ENGINE ONLY) - IF EQUIPPED E-85 General InformationETHANOL FUEL (E-85)Fuel RequirementsSelection Of Engine Oil For Flexible Fuel Vehicles (E-85) and Gasoline VehiclesStartingCruising Range
Replacement PartsADDING FUEL Fuel Filler Cap (Gas Cap)Loose Fuel Filler Cap (Gas Cap) MessageVEHICLE LOADING Certification LabelCurb WeightLoadingTRAILER TOWING Common Towing DefinitionsTrailer Hitch ClassificationTrailer Towing Weights (Maximum
Trailer Weight Ratings)Trailer and Tongue WeightTowing RequirementsTowing TipsSNOWPLOW RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) 2WD Models4WD ModelsWHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER JACKING
INSTRUCTIONS Jack LocationRemoving The Spare TireTire Changing ProcedureJUMP-STARTING PROCEDURES FREEING A STUCK VEHICLE EMERGENCY TOW HOOKS - IF EQUIPPED TOWING A DISABLED VEHICLE Four-Wheel Drive VehiclesTwo-Wheel Drive
VehiclesMAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 3.7L ENGINE COMPARTMENT - 4.7L ENGINE COMPARTMENT - 5.7L ONBOARD DIAGNOSTIC SYSTEM - OBD II Loose Fuel Filler Cap MessageEMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS REPLACEMENT PARTS DEALER SERVICE MAINTENANCE PROCEDURES Engine OilEngine Oil FilterEngine Air Cleaner FilterMaintenance-Free BatteryAir Conditioner MaintenanceDrive Shaft Constant Velocity JointsBody LubricationWindshield Wiper
BladesAdding Washer FluidExhaust SystemCooling SystemBrake SystemAutomatic TransmissionTransfer CaseAxlesAppearance Care and Protection From CorrosionFUSES Interior FusesUnderhood Fuses (Power Distribution Center) Underhood Fuses (Integrated Power
Module) VEHICLE STORAGE REPLACEMENT LIGHT BULBS BULB REPLACEMENT Headlights/Parking/Turn SignalRear Side Marker, Tail Lights, Turn Signals And Backup Lights - ReplacementLicense LightsCenter High-Mounted StoplightFog LightsFLUIDS AND
CAPACITIES
U.S Metric
Fuel (Approximate)27 Gal-
lons102 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API
Certified)5 Quarts 4.7 Liters
4.7L Engine (SAE 5W-20, API
Certified)6 Quarts 5.7 Liters
U.S Metric
5.7L Engine (SAE 5W-20, API
Certified)7 Quarts 6.6 Liters
Cooling System (Includes
2.1 Quarts/2 Liters for Coolant
Bottle)
3.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.5 Quarts12.9 Li-
ters
3.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.5 Quarts13.8 Li-
ters
4.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.1 Quarts12.5 Li-
ters
4.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.2 Quarts13.5 Li-
ters
