Headliner air comes from the outlets in the headliner.
Each of these outlets can be individually adjusted to
direct the flow of air. Moving the air vane knobs on the
outlets to one side will shut off the airflow.

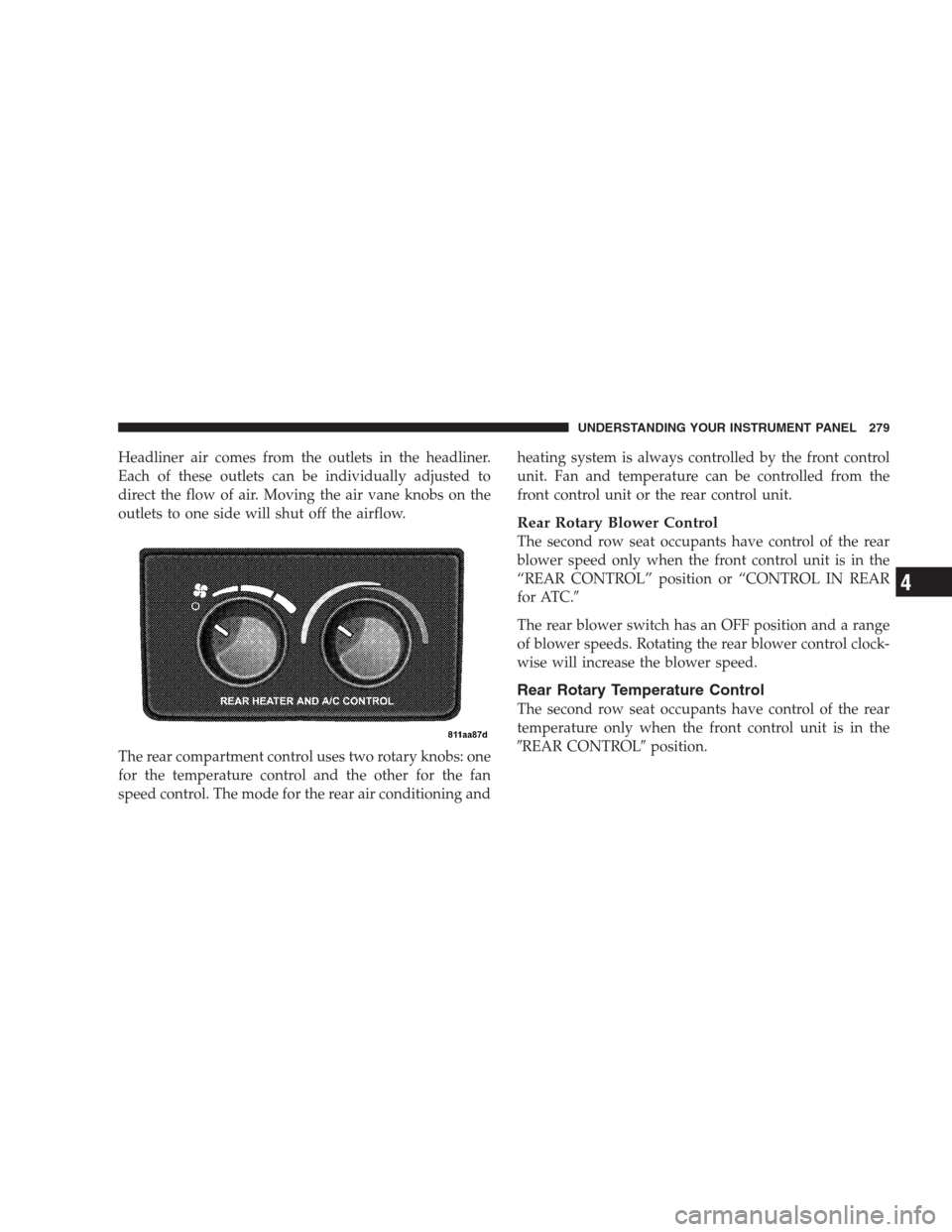

The rear compartment control uses two rotary knobs: one
for the temperature control and the other for the fan
speed control. The mode for the rear air conditioning andheating system is always controlled by the front control
unit. Fan and temperature can be controlled from the
front control unit or the rear control unit.
Rear Rotary Blower Control
The second row seat occupants have control of the rear
blower speed only when the front control unit is in the
“REAR CONTROL” position or “CONTROL IN REAR
for ATC.
The rear blower switch has an OFF position and a range
of blower speeds. Rotating the rear blower control clock-
wise will increase the blower speed.
Rear Rotary Temperature Control
The second row seat occupants have control of the rear
temperature only when the front control unit is in the
REAR CONTROLposition.
UNDERSTANDING YOUR INSTRUMENT PANEL 279
4

To change the temperature in the rear of the vehicle,
rotate the temperature control knob to the right or left.
The blue area indicates cooler temperatures while the red
area indicates warmer temperatures.
NOTE:For best operation, make sure that ventilation
grilles located in the rear storage area are not obstructed
by stowed articles.

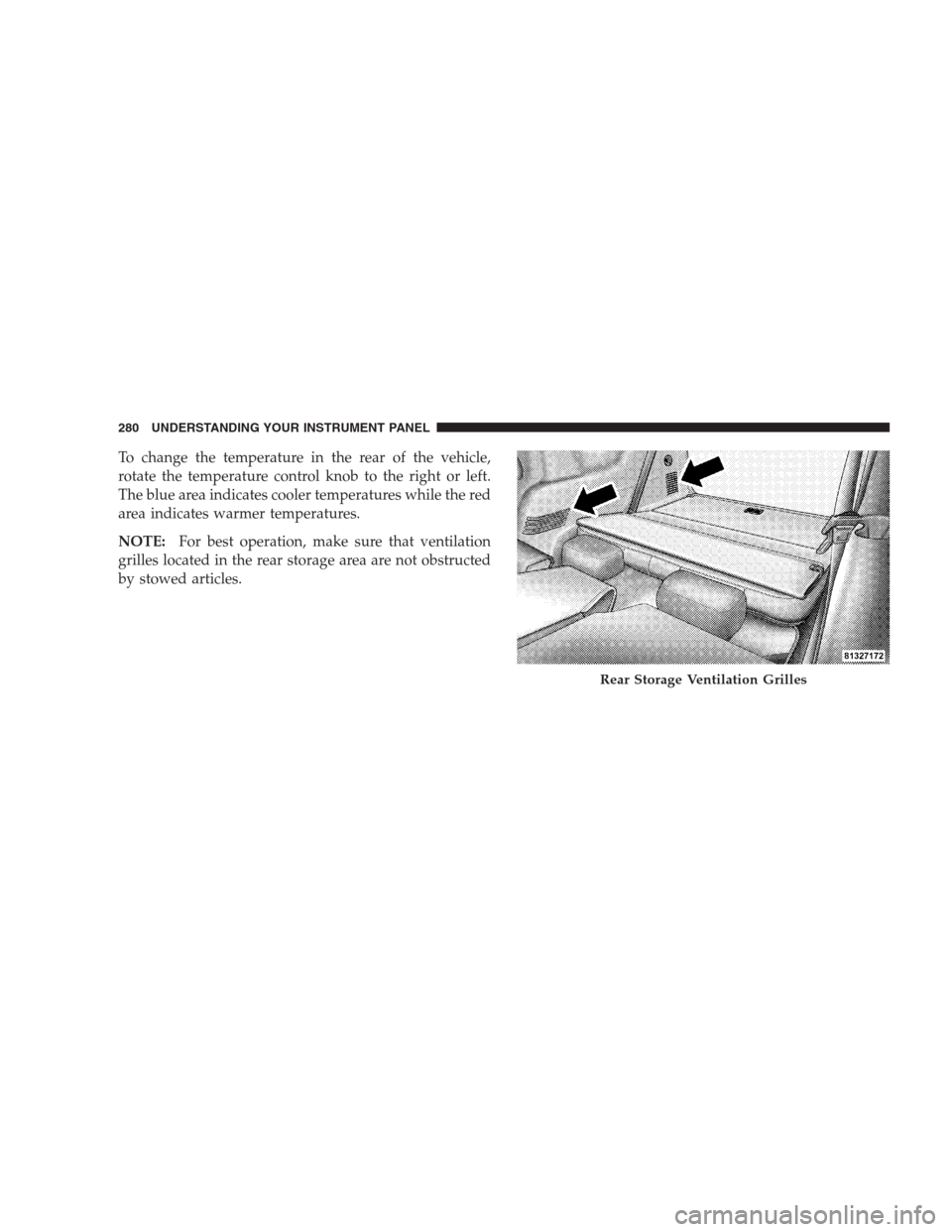

Rear Storage Ventilation Grilles
280 UNDERSTANDING YOUR INSTRUMENT PANEL

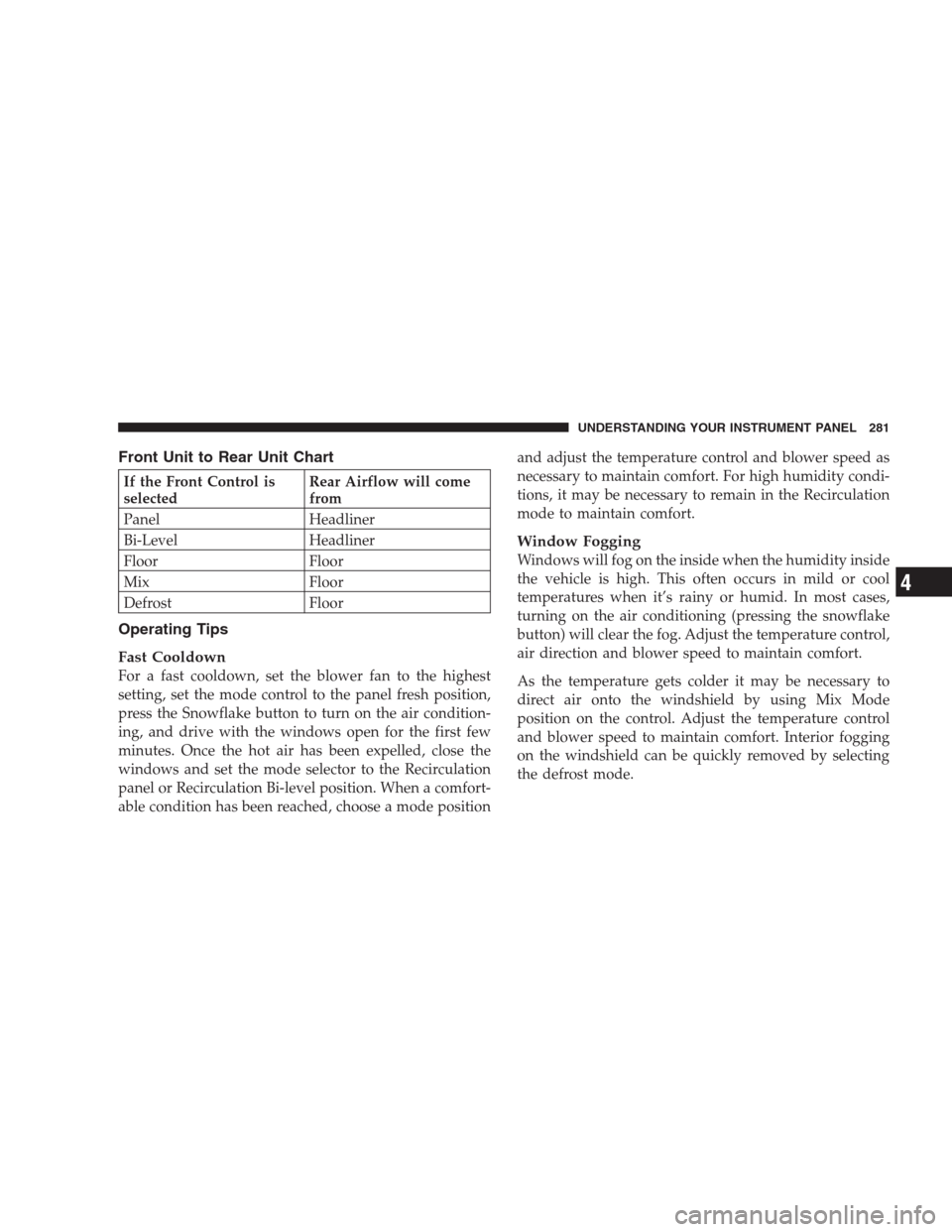

Front Unit to Rear Unit Chart
If the Front Control is
selectedRear Airflow will come
from
Panel Headliner
Bi-Level Headliner
Floor Floor
Mix Floor
Defrost Floor
Operating Tips
Fast Cooldown
For a fast cooldown, set the blower fan to the highest
setting, set the mode control to the panel fresh position,
press the Snowflake button to turn on the air condition-
ing, and drive with the windows open for the first few
minutes. Once the hot air has been expelled, close the
windows and set the mode selector to the Recirculation
panel or Recirculation Bi-level position. When a comfort-
able condition has been reached, choose a mode positionand adjust the temperature control and blower speed as
necessary to maintain comfort. For high humidity condi-
tions, it may be necessary to remain in the Recirculation
mode to maintain comfort.
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning on the air conditioning (pressing the snowflake
button) will clear the fog. Adjust the temperature control,
air direction and blower speed to maintain comfort.
As the temperature gets colder it may be necessary to
direct air onto the windshield by using Mix Mode
position on the control. Adjust the temperature control
and blower speed to maintain comfort. Interior fogging
on the windshield can be quickly removed by selecting
the defrost mode.
UNDERSTANDING YOUR INSTRUMENT PANEL 281
4

Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminants (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminants increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions. This will also prevent snow ingestion into the
ducts.
282 UNDERSTANDING YOUR INSTRUMENT PANEL

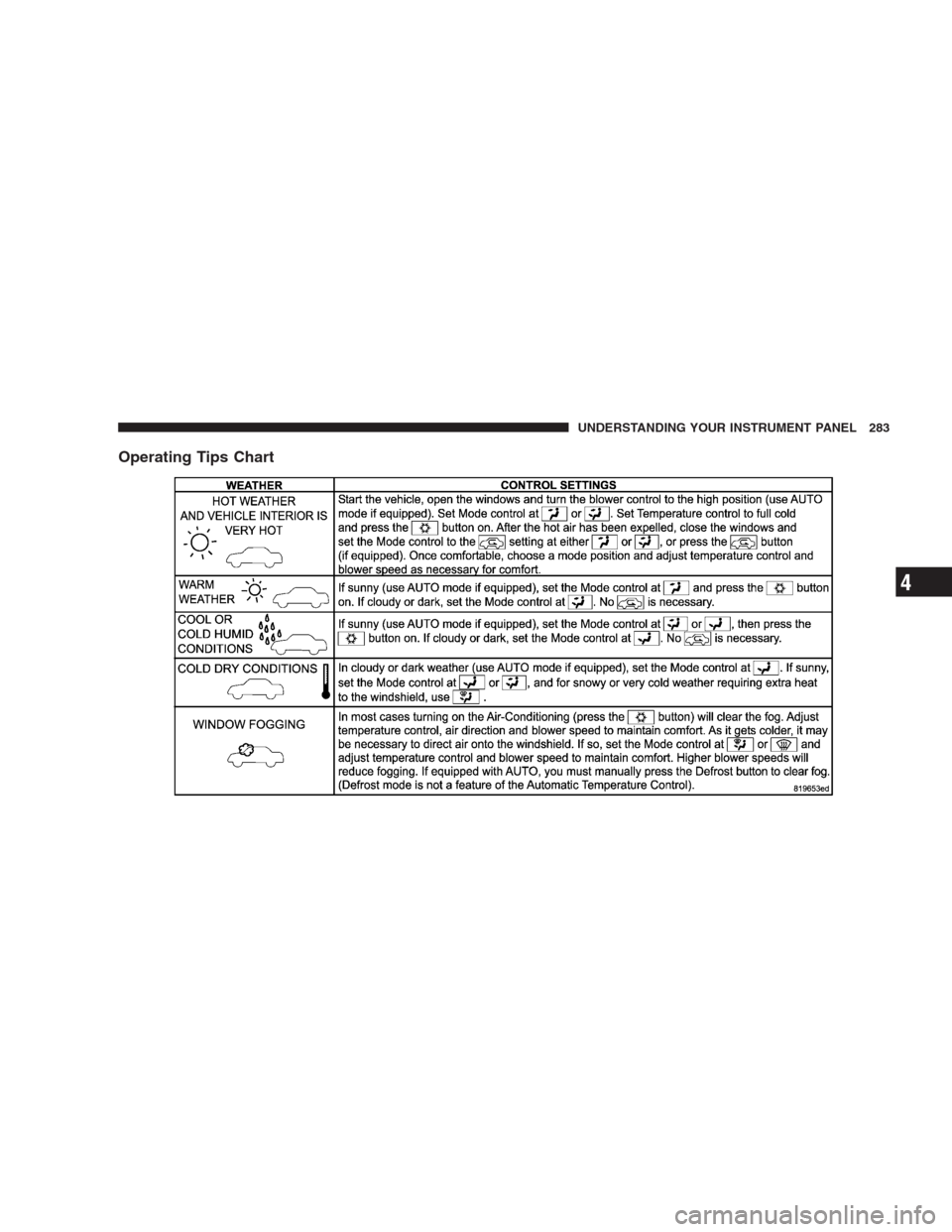

Operating Tips Chart
UNDERSTANDING YOUR INSTRUMENT PANEL 283
4

STARTING AND OPERATING
CONTENTS
Starting Procedures.................... 289
▫Normal Starting..................... 289
▫Extremely Cold Weather
(Below20°F Or29°C)............... 290
▫If Engine Fails To Start................ 290
▫After Starting....................... 291
Engine Block Heater – If Equipped......... 291
Automatic Transmission................. 292
▫Brake/Transmission Interlock System...... 293▫Gear Ranges........................ 293
Four-Wheel Drive Operation............. 298
▫NV 140 Transfer Case Operating
Information/Precautions — If Equipped.... 298
▫NV 244 Generation II Transfer Case
Operating Information/Precautions —
If Equipped........................ 298
▫Shifting Procedure - NV 244 Generation II
Transfer Case....................... 302
Driving On Slippery Surfaces............. 303
5

Driving Through Water................. 304
▫Flowing/Rising Water................. 304
▫Shallow Standing Water............... 304
Power Steering....................... 306
▫Power Steering Fluid Check............. 307
Parking Brake........................ 308
Anti-Lock Brake System................. 309
Electronic Brake Control System........... 312
▫Anti-Lock Brake System (ABS)........... 312
▫Traction Control System (TCS)........... 313
▫Brake Assist System (BAS).............. 313
▫Electronic Roll Mitigation (ERM)......... 314
▫Electronic Stability Program (ESP)........ 315▫Trailer Sway Control (TSC)............. 319
▫ESP/BAS Warning Light And ESP/TCS
Indicator Light...................... 319
Tire Safety Information................. 320
▫Tire Markings....................... 320
▫Tire Identification Number (TIN)......... 324
▫Tire Loading And Tire Pressure.......... 325
Tires — General Information............. 329
▫Tire Pressure....................... 329
▫Tire Inflation Pressures................ 330
▫Tire Pressures For High Speed Operation . . . 331
▫Radial Ply Tires..................... 332
▫Compact Spare Tire — If Equipped....... 332
286 STARTING AND OPERATING

▫Limited-Use Spare — If Equipped........ 333
▫Tire Spinning....................... 334
▫Tread Wear Indicators................. 334
▫Life Of Tire........................ 335
▫Replacement Tires.................... 336
Supplemental Tire Pressure Information —
If Equipped.......................... 337
Tire Chains.......................... 337
Snow Tires.......................... 339
Tire Rotation Recommendations........... 339
Tire Pressure Monitor System (TPMS)....... 340
▫Base System........................ 342
▫Premium System – If Equipped.......... 344▫General Information.................. 347
Fuel Requirements..................... 347
▫Reformulated Gasoline................ 348
▫Gasoline/Oxygenate Blends............. 349
▫E-85 Usage In Non-Flex Fuel Vehicles...... 349
▫MMT In Gasoline.................... 350
▫Materials Added To Fuel............... 350
▫Fuel System Cautions................. 350
▫Carbon Monoxide Warnings............ 351
Flexible Fuel (4.7L Engine Only) —
If Equipped.......................... 352
▫E-85 General Information............... 352
▫Ethanol Fuel (E-85)................... 353
STARTING AND OPERATING 287
5

▫Fuel Requirements................... 353
▫Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles...... 354
▫Starting........................... 354
▫Cruising Range...................... 355
▫Replacement Parts................... 355
Adding Fuel......................... 355
▫Fuel Filler Cap (Gas Cap).............. 355
▫Loose Fuel Filler Cap (Gas Cap) Message . . . 357
Vehicle Loading...................... 358
▫Certification Label................... 358
▫Curb Weight........................ 359
▫Loading........................... 359Trailer Towing........................ 360
▫Common Towing Definitions............ 361
▫Trailer Hitch Classification.............. 363
▫Trailer Towing Weights (Maximum Trailer
Weight Ratings)..................... 364
▫Trailer And Tongue Weight............. 364
▫Towing Requirements................. 365
▫Towing Tips........................ 370
Snowplow.......................... 371
Recreational Towing
(Behind Motorhome, Etc.)................ 371
▫2WD Models....................... 371
▫4WD Models....................... 372
288 STARTING AND OPERATING
