CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL before recre-
ational towing to prevent damage to internal parts.
1. Bring vehicle to a complete stop.
2. Shut engine OFF.
3. Turn the ignition key to the ON position without
starting the engine.
4. Depress brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using the point of a ballpoint pen or similar object,
depress the recessed transfer case NEUTRAL button for
four seconds.7. After shift is completed and the NEUTRAL light
comes on, release the NEUTRAL button.
8. Start the engine.
9. Shift the transmission into REVERSE.
10. Release brake pedal for five seconds and ensure that
there is no vehicle movement.
11. Repeat steps 9 and 10 with the transmission in
DRIVE.
12. Turn ignition key to the unlocked OFF position.
13. Shift the transmission into PARK.
14. Attach vehicle to tow vehicle with tow bar.
NOTE:Items 1 through 5 are requirements that must be
met prior to depressing the NEUTRAL selection button,
and must continue to be met until the four seconds
elapses and the shift has been completed.
STARTING AND OPERATING 373
5

If any of these requirements (with the exception of Step 3
- Key ON) are not met prior to depressing the NEUTRAL
button or are no longer met during the four second timer,
then the NEUTRAL indicator light will flash continu-
ously until all requirements are met or until the NEU-
TRAL button is released.
NOTE:The ignition key must be ON for a shift to take
place and for the position indicator lights to be operable.
If the key is not ON, the shift will not take place and no
position indicator lights will be on or flashing.
CAUTION!
Damage to the transmission may occur if the trans-
mission is shifted into PARK with the transfer case in
NEUTRAL and the engine RUNNING. With the
transfer case in NEUTRAL, ensure that the engine is
OFF prior to shifting the transmission into PARK.
Shifting Out of NEUTRAL
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring vehicle to a complete stop.
2. Shut engine OFF.
3. Turn the ignition key to the ON position without
starting the engine.
4. Depress brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using the point of a ballpoint pen or similar object,
depress the recessed transfer case NEUTRAL button for
one second.
7. After the NEUTRAL indicator light turns off, release
the NEUTRAL button.
374 STARTING AND OPERATING

8. After the NEUTRAL button has been released, the
transfer case will shift to the position identified by the
selector switch.
9. Shift the transmission into PARK.
10. Start the engine.
11. Shift the transmission into DRIVE.
NOTE:
•Steps 1 through 5 are requirements that must be met
prior to depressing the NEUTRAL selection button,
and must continue to be met until one second elapses
and the shift has been completed.
•If any of these requirements are not met prior to
depressing the NEUTRAL button or are no longer met
during the one second time, then all of the position
indicator lights will flash continuously until all re-
quirements are met or until the NEUTRAL button is
released.
•The ignition key must be ON for a shift to take place
and for the position indicator lights to be operable. If
the key is not ON, the shift will not take place and no
position indicator lights will be on or flashing.
•A flashing NEUTRAL position indicator light indicates
that shift requirements have not been met.
CAUTION!
•Do not use a bumper-mounted clamp-on tow bar
on your vehicle. The bumper face bar will be
damaged.
•Do not disconnect the rear driveshaft because
fluid will leak from the transfer case and damage
internal parts.
STARTING AND OPERATING 375
5

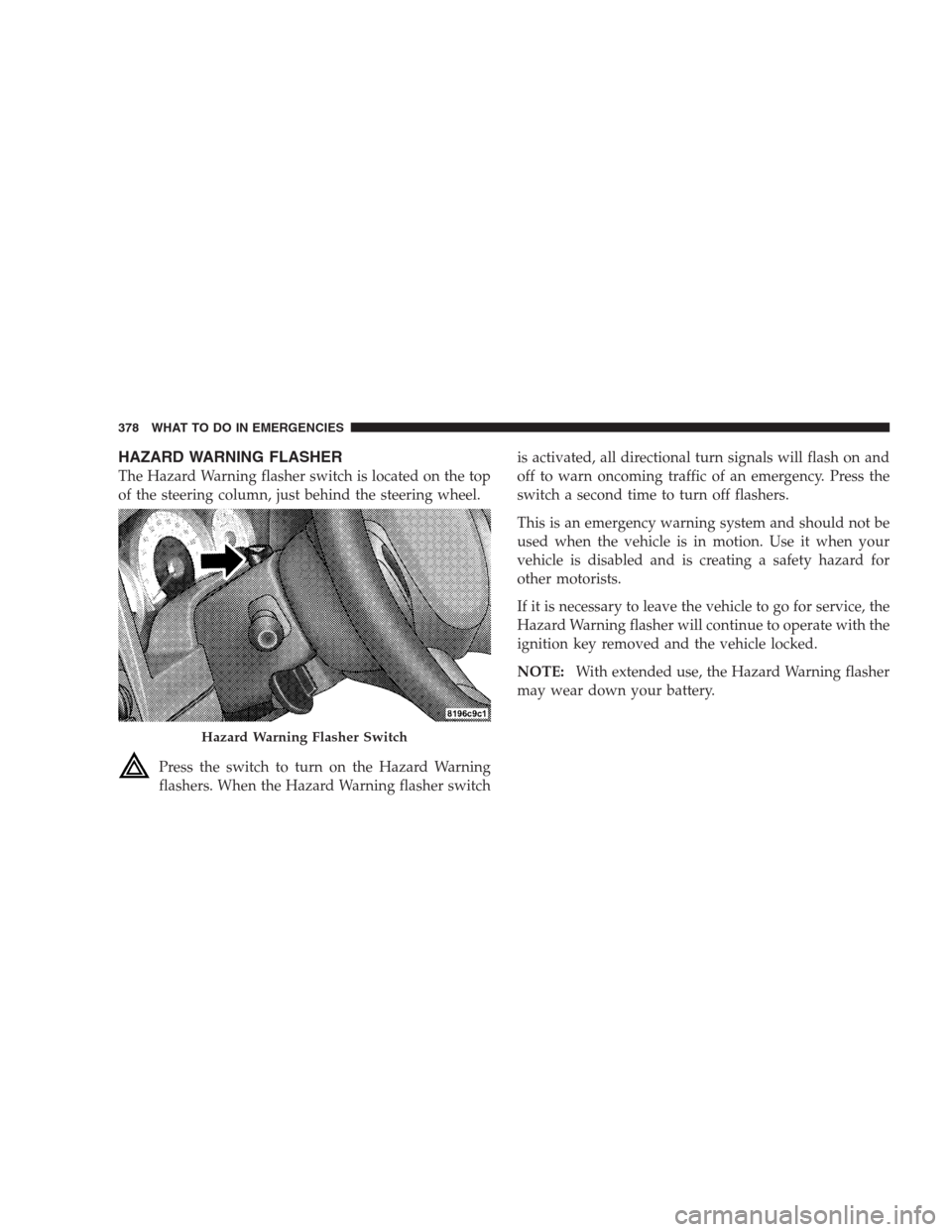

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the top
of the steering column, just behind the steering wheel.
Press the switch to turn on the Hazard Warning
flashers. When the Hazard Warning flasher switchis activated, all directional turn signals will flash on and
off to warn oncoming traffic of an emergency. Press the
switch a second time to turn off flashers.
This is an emergency warning system and should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and is creating a safety hazard for
other motorists.
If it is necessary to leave the vehicle to go for service, the
Hazard Warning flasher will continue to operate with the
ignition key removed and the vehicle locked.
NOTE:With extended use, the Hazard Warning flasher
may wear down your battery.
Hazard Warning Flasher Switch
378 WHAT TO DO IN EMERGENCIES

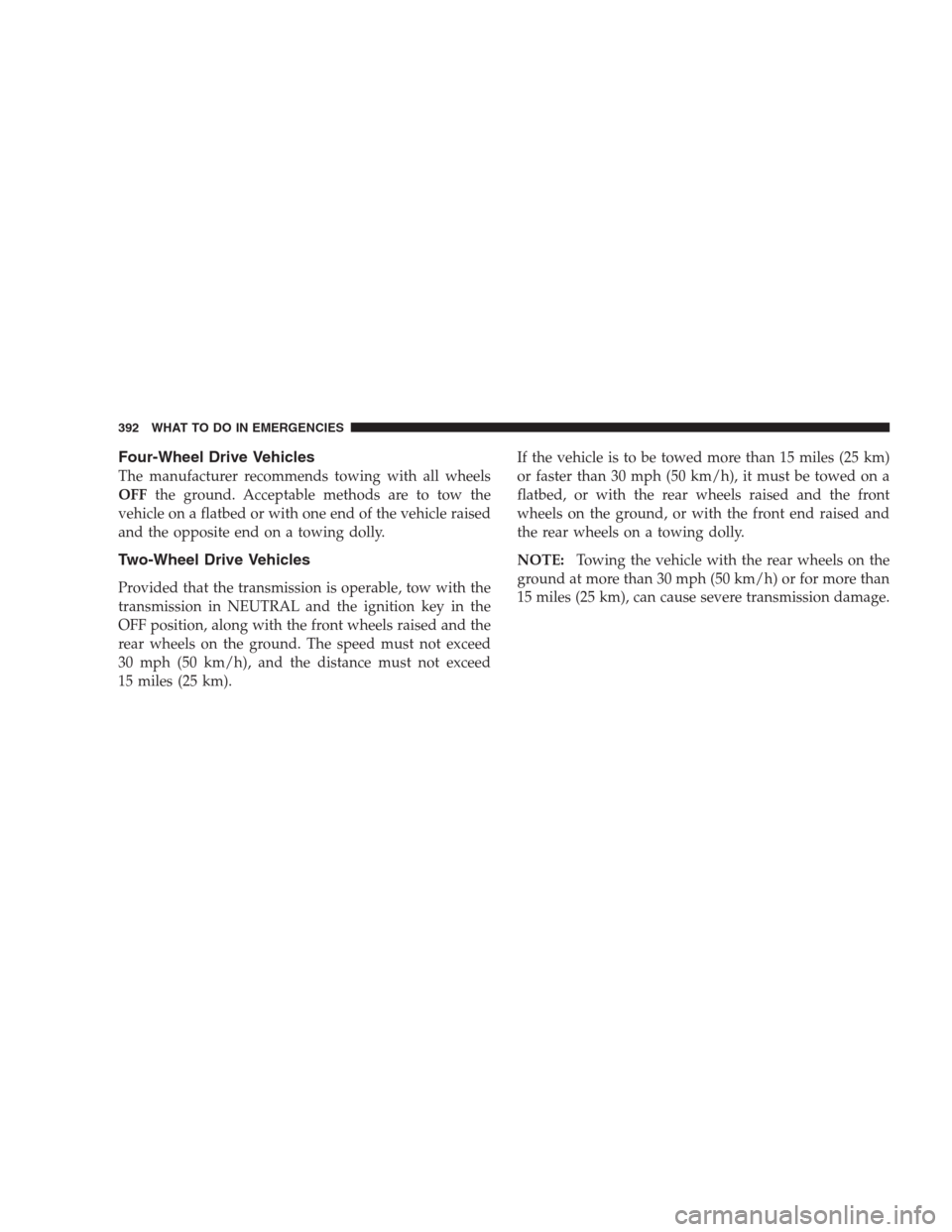

Four-Wheel Drive Vehicles
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of the vehicle raised
and the opposite end on a towing dolly.
Two-Wheel Drive Vehicles
Provided that the transmission is operable, tow with the
transmission in NEUTRAL and the ignition key in the
OFF position, along with the front wheels raised and the
rear wheels on the ground. The speed must not exceed
30 mph (50 km/h), and the distance must not exceed
15 miles (25 km).If the vehicle is to be towed more than 15 miles (25 km)
or faster than 30 mph (50 km/h), it must be towed on a
flatbed, or with the rear wheels raised and the front
wheels on the ground, or with the front end raised and
the rear wheels on a towing dolly.
NOTE:Towing the vehicle with the rear wheels on the
ground at more than 30 mph (50 km/h) or for more than
15 miles (25 km), can cause severe transmission damage.
392 WHAT TO DO IN EMERGENCIES

problem persists, the message will appear the next time
the vehicle is started. This might indicate a damaged cap.
If the problem is detected twice in a row, the system will
turn on the MIL. Resolving the problem will turn the MIL
off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recentlyserviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
MAINTAINING YOUR VEHICLE 399
7

Cavity Mini Fuse/Color Description
F13 10 Amp RedIgnition Run
HVAC Module/
Heated Rear
Glass (EBL) Re-
lay
F14 10 Amp RedABS Module Ig-
nition Run
F15 15 Amp BlueBattery Feed
Bluetooth,
Compass/Trip
Computer
(CMTC), Sentry
KeyDiagnos-
tics
F16 20 Amp YellowReconfigurable
Power OutletsCavity Mini Fuse/Color Description
F17 20 Amp YellowIgnition Run /
Rear Park Assist
/ Second Row
Heated Seats
F18 20 Amp YellowCigar Lighter
Ignition
F19 10 Amp Red Spare Fuse
F20 15 Amp BlueHeating & Air
Conditioning
w/ATC Only
Battery Feed
F21 25 Amp NaturalAmplifier Bat-
tery Feed
428 MAINTAINING YOUR VEHICLE

Axle Fluid............................. 445
Axle Lubrication (Axle Fluid)............... 420
Battery.......................395,396,397,404
Charging............................ 388
Emergency Starting..................... 388
Gas Caution.......................... 388
Keyless Transmitter Replacement (RKE)....... 25
Saving Feature (Protection)............... 147
Belts, Seat............................40,74
Body Mechanism Lubrication............... 406
B-Pillar Location........................ 325
Brake Assist System...................... 313
Brake Control System, Electronic............. 312
Brake Fluid............................ 445
Brake System........................... 416
Anti-Lock (ABS)....................309,312
Fluid Check.......................... 416
Master Cylinder....................... 416Parking............................. 308
Warning Light.....................205,210
Brake/Transmission Interlock............... 293
Break-In Recommendations, New Vehicle........ 71
Bulb Replacement....................... 435
Bulbs, Light..........................74,434
Calibration, Compass..................... 174
Camera, Rear........................... 163
Capacities, Fluid........................ 443
Caps, Filler
Fuel............................... 355
Oil (Engine).......................... 402
Power Steering........................ 307
Radiator (Coolant Pressure)............... 413
Car Washes............................ 421
Carbon Monoxide Warning...............73,351
Cargo Management System................. 191
Cargo Organizer....................... 191
INDEX 475
10

Passing............................. 150
Replacing........................... 435
Heated Mirrors.......................... 85
Heated Seats........................... 124
Heater............................... 269
Heater, Engine Block..................... 291
High Beam Indicator..................... 204
High Beam/Low Beam Select (Dimmer) Switch . . 150
Hitches
Trailer Towing........................ 363
HomeLink(Garage Door Opener) Transmitter . . . 175
Hood Release.......................... 141
Ignition............................... 12
Key ................................ 12
Ignition Key Removal..................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................62,63Inflation Pressure Tires.................... 337
Information Center...................... 167
Information Center, Vehicle................. 167
Inside Rearview Mirror.................... 82
Instrument Cluster....................... 203
Instrument Panel and Controls.............. 201
Instrument Panel Lens Cleaning............. 425
Integrated Power Module (Fuses)............ 432
Interior Appearance Care.................. 423
Interior Fuses.......................... 426
Interior Lighting........................ 146
Interior Lights.......................... 146
Intermittent Wipers (Delay Wipers)........... 151
Introduction............................. 4
Inverter Outlet (115V)..................... 187
Jack Operation.......................379,381
Jacking Instructions...................... 383
INDEX 481
10

Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Keyless Entry System...................... 20
Keys................................. 12
Knee Bolster............................ 51
Lane Change and Turn Signals.........149,203,437
Lap/Shoulder Belts....................... 40
LATCH (Lower Anchors and Tether for
CHildren).............................. 65
Latches................................ 75
Leaks, Fluid............................ 75
Life of Tires............................ 335
Liftgate................................ 35
Light Bulbs............................. 74
Lights..............................74,143
Airbag..........................60,74,214
Anti-Lock Warning..................... 205Back-Up............................ 437
Brake Warning........................ 210
Bulb Replacement...................434,435
Center Mounted Stop................... 441
Courtesy/Reading..................... 165
Cruise.............................. 215
Daytime Running...................... 148
Dome.............................. 166
Electronic Stability Program (ESP)
Indicator......................... 211,316
Exterior.............................. 74
Fog ..........................148,208,442
Hazard Warning Flasher................. 378
High Beam.......................... 150
High Beam/Low Beam Select............. 150
Instrument Cluster..................... 203
Interior..........................146,165
License............................. 440
Lights On Reminder.................... 148
482 INDEX
