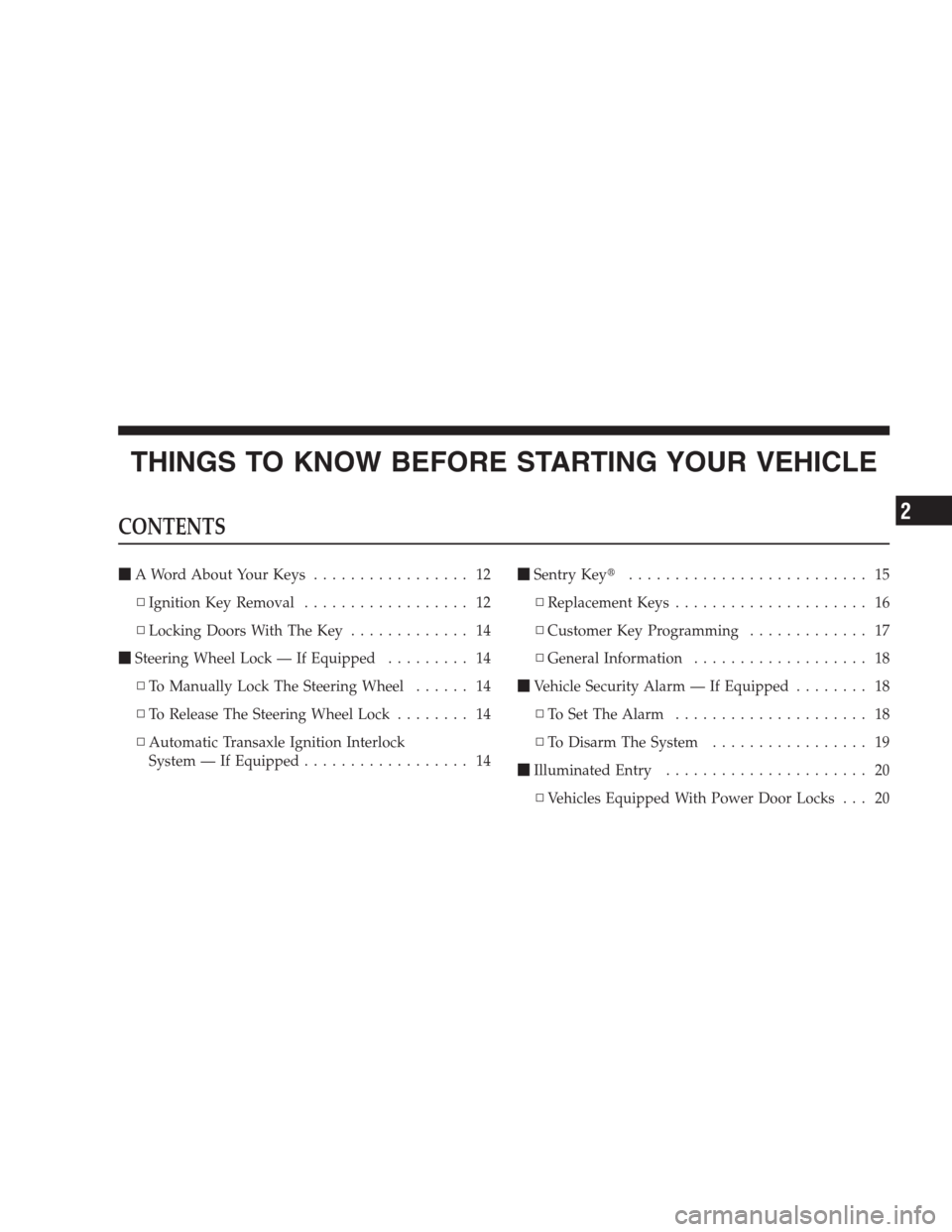

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Locking Doors With The Key............. 14
Steering Wheel Lock — If Equipped......... 14
▫To Manually Lock The Steering Wheel...... 14
▫To Release The Steering Wheel Lock........ 14
▫Automatic Transaxle Ignition Interlock
System — If Equipped.................. 14Sentry Key.......................... 15
▫Replacement Keys..................... 16
▫Customer Key Programming............. 17
▫General Information................... 18
Vehicle Security Alarm — If Equipped........ 18
▫To Set The Alarm..................... 18
▫To Disarm The System................. 19
Illuminated Entry...................... 20
▫Vehicles Equipped With Power Door Locks . . . 20
2

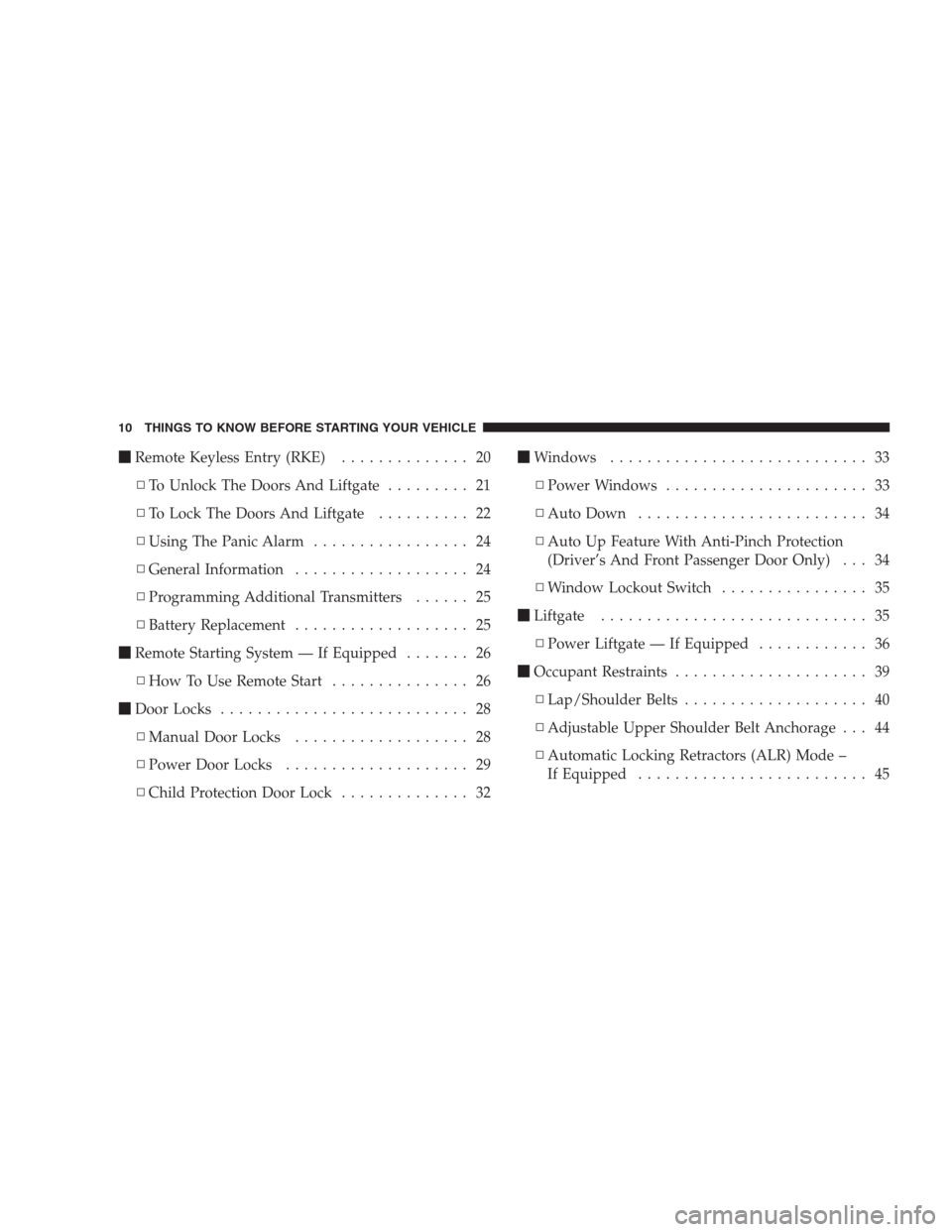

Remote Keyless Entry (RKE).............. 20
▫To Unlock The Doors And Liftgate......... 21
▫To Lock The Doors And Liftgate.......... 22
▫Using The Panic Alarm................. 24
▫General Information................... 24
▫Programming Additional Transmitters...... 25
▫Battery Replacement................... 25
Remote Starting System — If Equipped....... 26
▫How To Use Remote Start............... 26
Door Locks........................... 28
▫Manual Door Locks................... 28
▫Power Door Locks.................... 29
▫Child Protection Door Lock.............. 32Windows............................ 33
▫Power Windows...................... 33
▫Auto Down......................... 34
▫Auto Up Feature With Anti-Pinch Protection
(Driver’s And Front Passenger Door Only) . . . 34
▫Window Lockout Switch................ 35
Liftgate............................. 35
▫Power Liftgate — If Equipped............ 36
Occupant Restraints..................... 39
▫Lap/Shoulder Belts.................... 40
▫Adjustable Upper Shoulder Belt Anchorage . . . 44
▫Automatic Locking Retractors (ALR) Mode –
If Equipped......................... 45
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

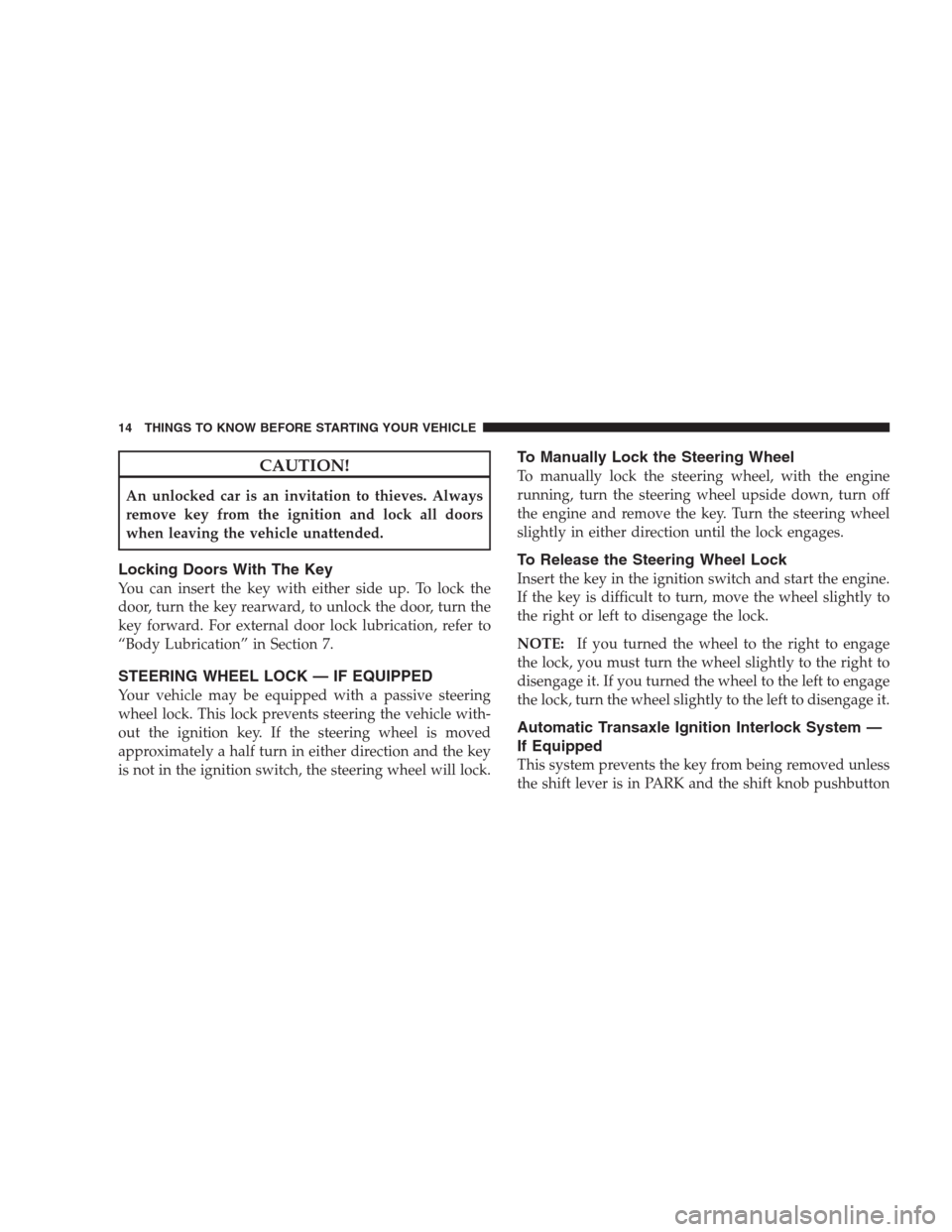

CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. For external door lock lubrication, refer to
“Body Lubrication” in Section 7.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.
To Manually Lock the Steering Wheel
To manually lock the steering wheel, with the engine
running, turn the steering wheel upside down, turn off
the engine and remove the key. Turn the steering wheel
slightly in either direction until the lock engages.
To Release the Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
Automatic Transaxle Ignition Interlock System —
If Equipped
This system prevents the key from being removed unless
the shift lever is in PARK and the shift knob pushbutton
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

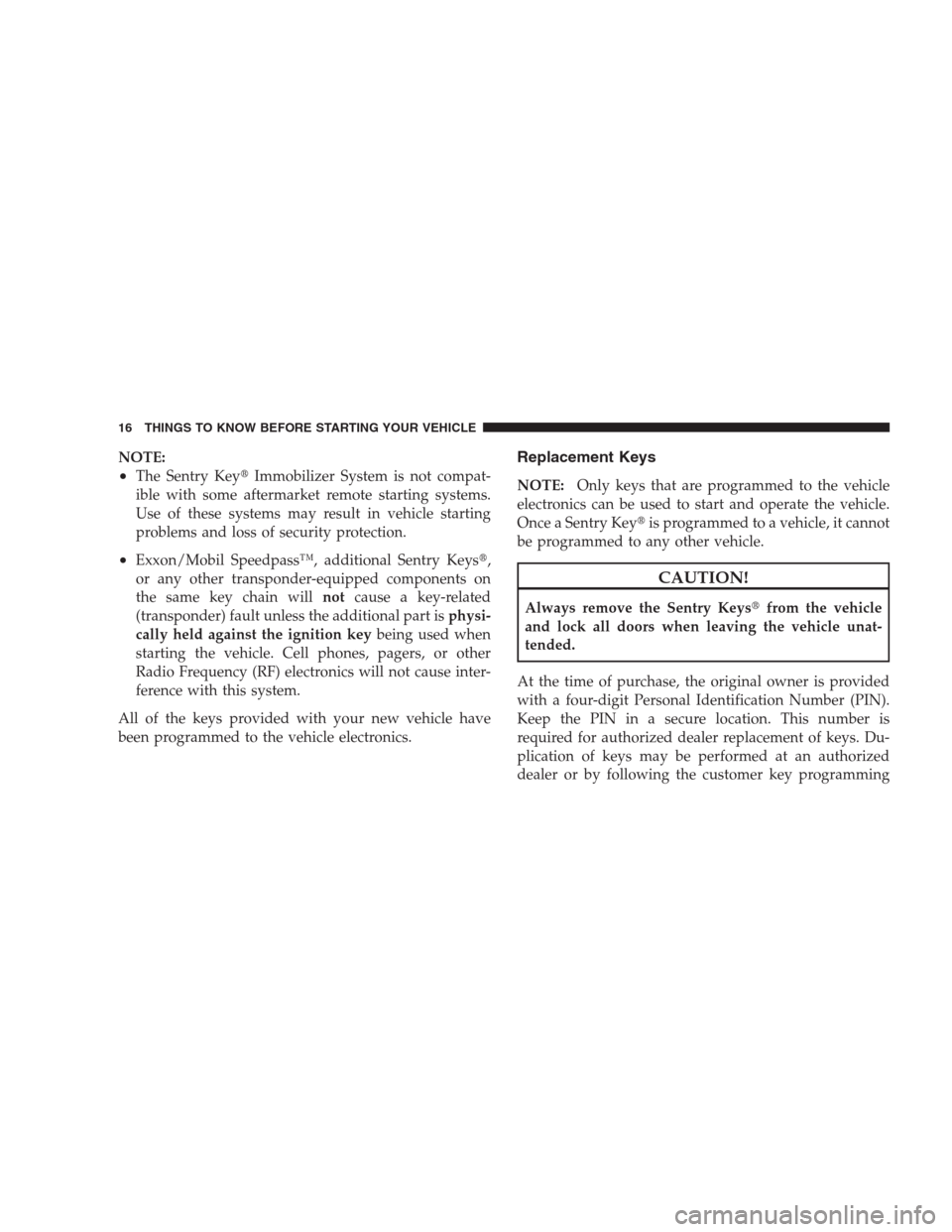

NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain willnotcause a key-related
(transponder) fault unless the additional part isphysi-
cally held against the ignition keybeing used when
starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Keyis programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keysfrom the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the vehicle doors,
liftgate, and ignition for unauthorized operation. When
the alarm is activated, the Vehicle Security Alarm pro-
vides both audible and visual signals. The horn will
sound repeatedly for three minutes and the headlights
and Vehicle Security Light in the instrument cluster will
flash for an additional 15 minutes. The engine will not
run until the Vehicle Security Alarm is disarmed.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
closed and locked, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Vehicle Security Alarm is arming. The Vehicle Security
Light in the instrument panel cluster will flash rapidly for
about 15 seconds to indicate that the alarm is being set.
After the alarm is set, the Vehicle Security Light will flash
at a slower rate to indicate that the Vehicle Security
Alarm is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by your authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the doors. If some-
thing has triggered the Vehicle Security Alarm in your
absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key. If an unpro-
grammed Sentry Keyis used to start a vehicle, the
engine will start and run for two seconds and then shutdown. After six unsuccessful attempts at starting the
engine, the Vehicle Security Alarm will shut down until
the correct key is used. To exit alarming mode, press the
RKE transmitter UNLOCK button or start the vehicle
with a programmed Sentry Key.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the
transmitter, the alarm will sound when you pull the door
handle to exit.
NOTE:You may accidentally activate the Vehicle Secu-
rity Alarm (horn sounds and lights flash) by entering the
vehicle without using the RKE transmitter to unlock the
door(s). The Vehicle Security Alarm can be disarmed with
the RKE transmitters unlock button or by inserting a
programmed Sentry Keyinto the ignition and turning
the key to the ON position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a RKE
transmitter LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after eight minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
REMOTE KEYLESS ENTRY (RKE)
NOTE:
•For the remote starting feature (if equipped), refer to
“Remote Starting System” in section 2.
Remote Keyless Entry (RKE) Transmitter with Integrated
Key
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•For the power liftgate feature (if equipped), refer to the
“Power Liftgate” in section 2.
•Your vehicle’s RKE transmitter may have three, four,
or five buttons (shown), depending on the optional
features purchased with your vehicle.
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances up to
approximately 66 ft (20 m) using the RKE transmitter.
The RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors and liftgate. When the UNLOCKbutton is pressed on the RKE transmitter, the illuminated
entry will initiate, and the parking lights will flash twice.
The system can be programmed to unlock all the doors
upon the first RKE transmitter UNLOCK button press by
following these procedures:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings
(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the RKE transmitter LOCK button at
least four seconds, but not longer than 10 seconds, then
press and hold the RKE transmitter UNLOCK button.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the RKE trans-
mitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the security alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the security alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock the Doors and Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. If the ignition is OFF
when the doors are locked, the parking lights will flash
once and the horn will chirp once.
Horn Chirp Programming
The horn chirp feature will be activated when shipped
from the assembly plants. If desired, this feature can be
disabled by following these procedures:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings
(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on the RKE trans-
mitter.
2. After holding the RKE transmitter LOCK button for
four seconds, also press the RKE transmitter PANIC
button within six seconds.
3. Release both buttons at the same time.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the security alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the security alarm.
6. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Flash Lights with Lock Programming
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on the RKE
transmitter.
2. After holding the RKE transmitter UNLOCK button
for four seconds, also press the RKE transmitter LOCK
button within six seconds.
3. Release both buttons at the same time.
4. Test the flash lights with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the RKE
transmitter with the ignition in the OFF position and the
key removed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
