To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

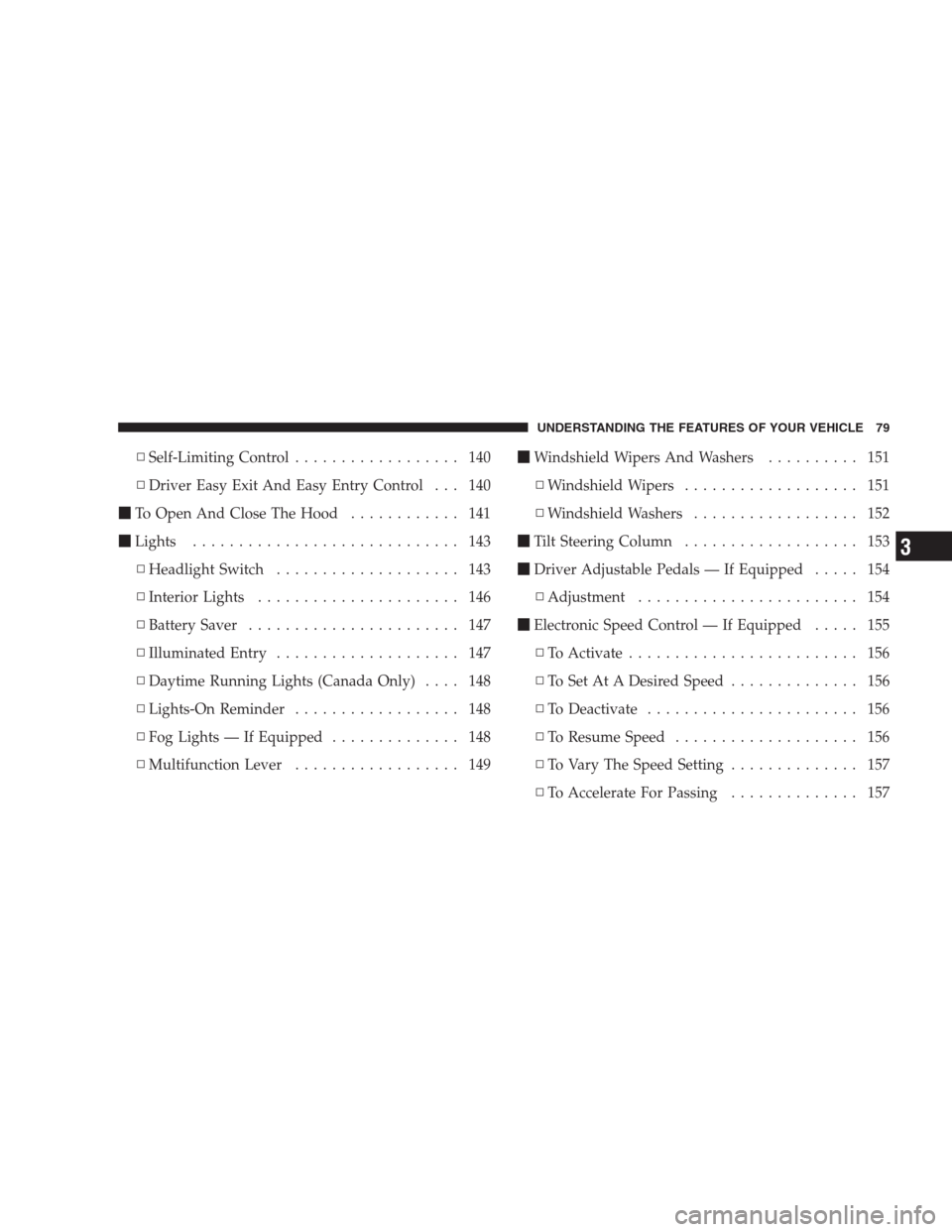

▫Self-Limiting Control.................. 140
▫Driver Easy Exit And Easy Entry Control . . . 140
To Open And Close The Hood............ 141
Lights............................. 143
▫Headlight Switch.................... 143
▫Interior Lights...................... 146
▫Battery Saver....................... 147
▫Illuminated Entry.................... 147
▫Daytime Running Lights (Canada Only).... 148
▫Lights-On Reminder.................. 148
▫Fog Lights — If Equipped.............. 148
▫Multifunction Lever.................. 149Windshield Wipers And Washers.......... 151
▫Windshield Wipers................... 151
▫Windshield Washers.................. 152
Tilt Steering Column................... 153
Driver Adjustable Pedals — If Equipped..... 154
▫Adjustment........................ 154
Electronic Speed Control — If Equipped..... 155
▫To Activate......................... 156
▫To Set At A Desired Speed.............. 156
▫To Deactivate....................... 156
▫To Resume Speed.................... 156
▫To Vary The Speed Setting.............. 157
▫To Accelerate For Passing.............. 157
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

details, refer to “Personal Settings (Customer-
Programmable Features)” under “Overhead Console
with Electronic Vehicle Information Center (EVIC) – If
Equipped” in Section 3.

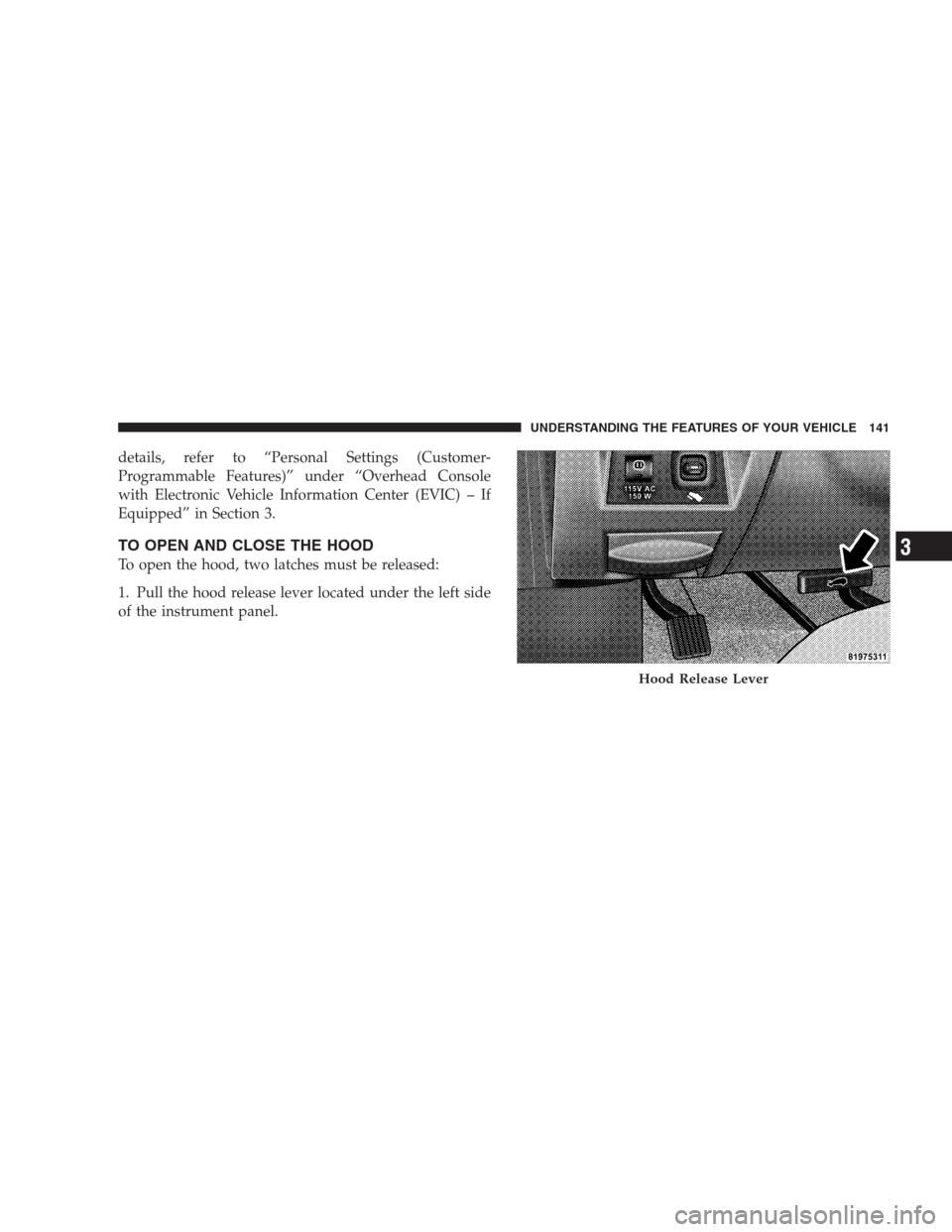

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released:
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

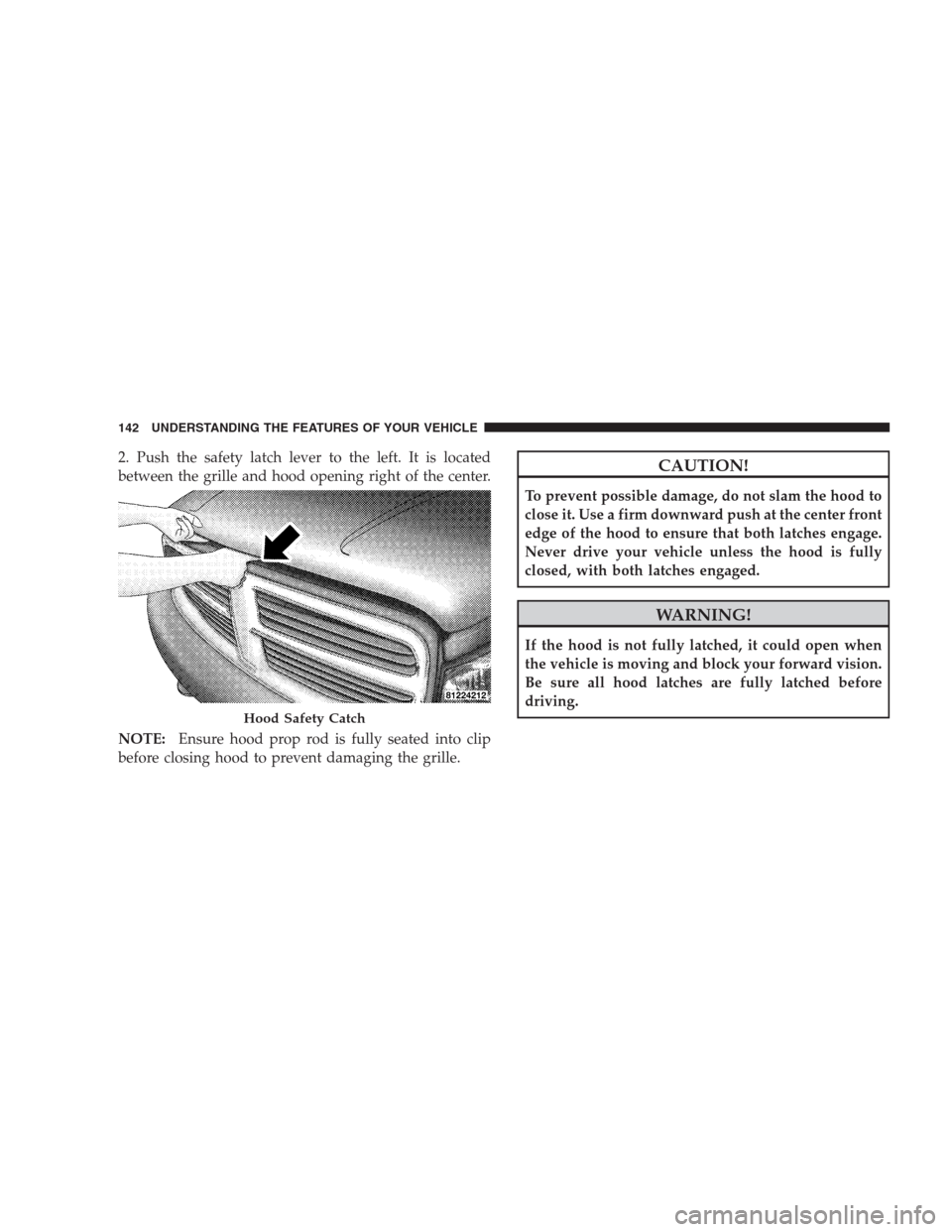

2. Push the safety latch lever to the left. It is located
between the grille and hood opening right of the center.
NOTE:Ensure hood prop rod is fully seated into clip
before closing hood to prevent damaging the grille.CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center front
edge of the hood to ensure that both latches engage.
Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched, it could open when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
Hood Safety Catch
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

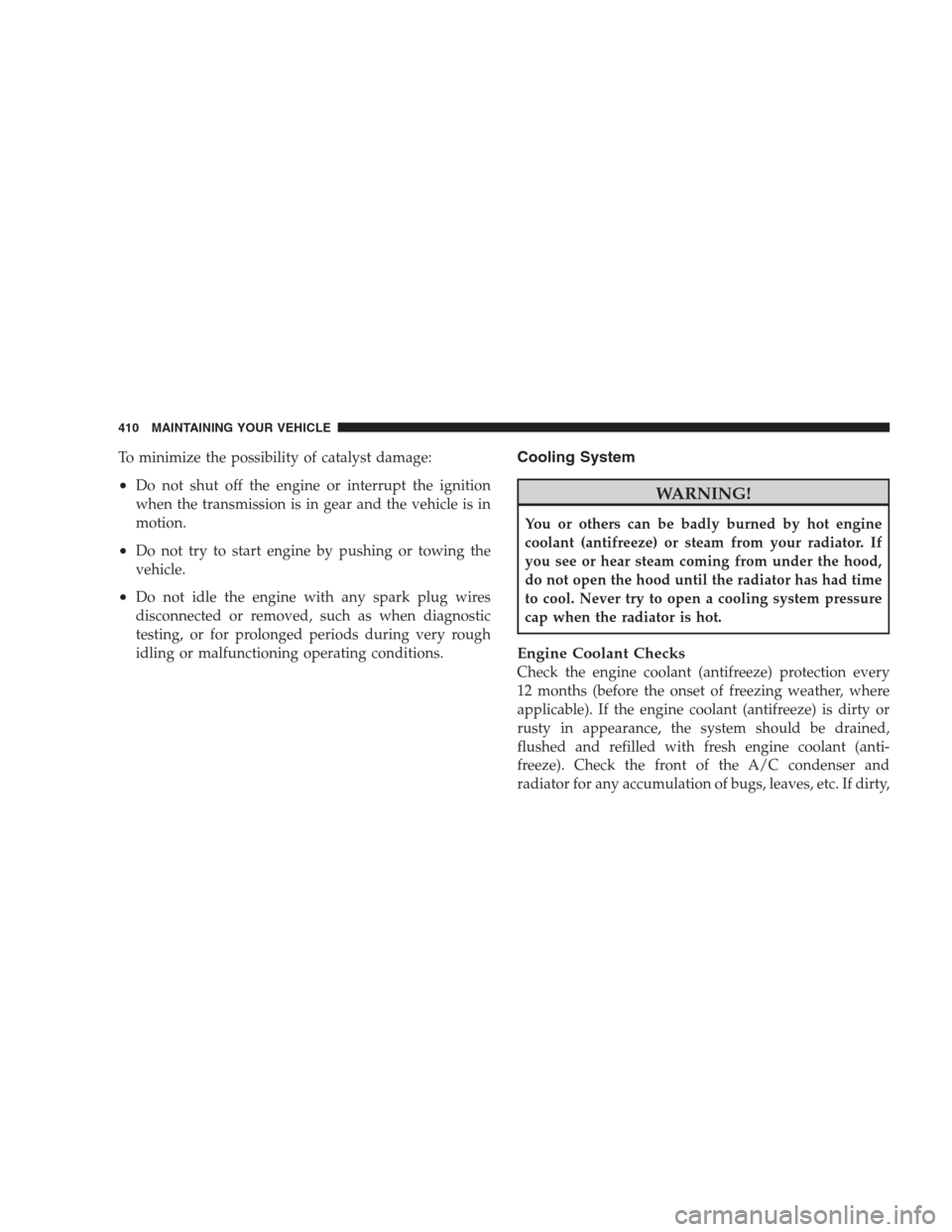

To minimize the possibility of catalyst damage:
•Do not shut off the engine or interrupt the ignition
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start engine by pushing or towing the
vehicle.
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idling or malfunctioning operating conditions.
Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator is hot.
Engine Coolant Checks
Check the engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed and refilled with fresh engine coolant (anti-
freeze). Check the front of the A/C condenser and
radiator for any accumulation of bugs, leaves, etc. If dirty,
410 MAINTAINING YOUR VEHICLE

Front Side Marker........................ 168
Fog Lamp.............................9145
License Plate Light....................... 168
Rear Tail, Stop, and Turn Signal............3057K
Rear Side Marker........................ 168
BULB REPLACEMENT
Headlights/Parking/Turn Signal
1. Remove the two bolts attaching the headlight to the
upper fender reinforcement. (Hood must be open to
access bolts).
MAINTAINING YOUR VEHICLE 435
7

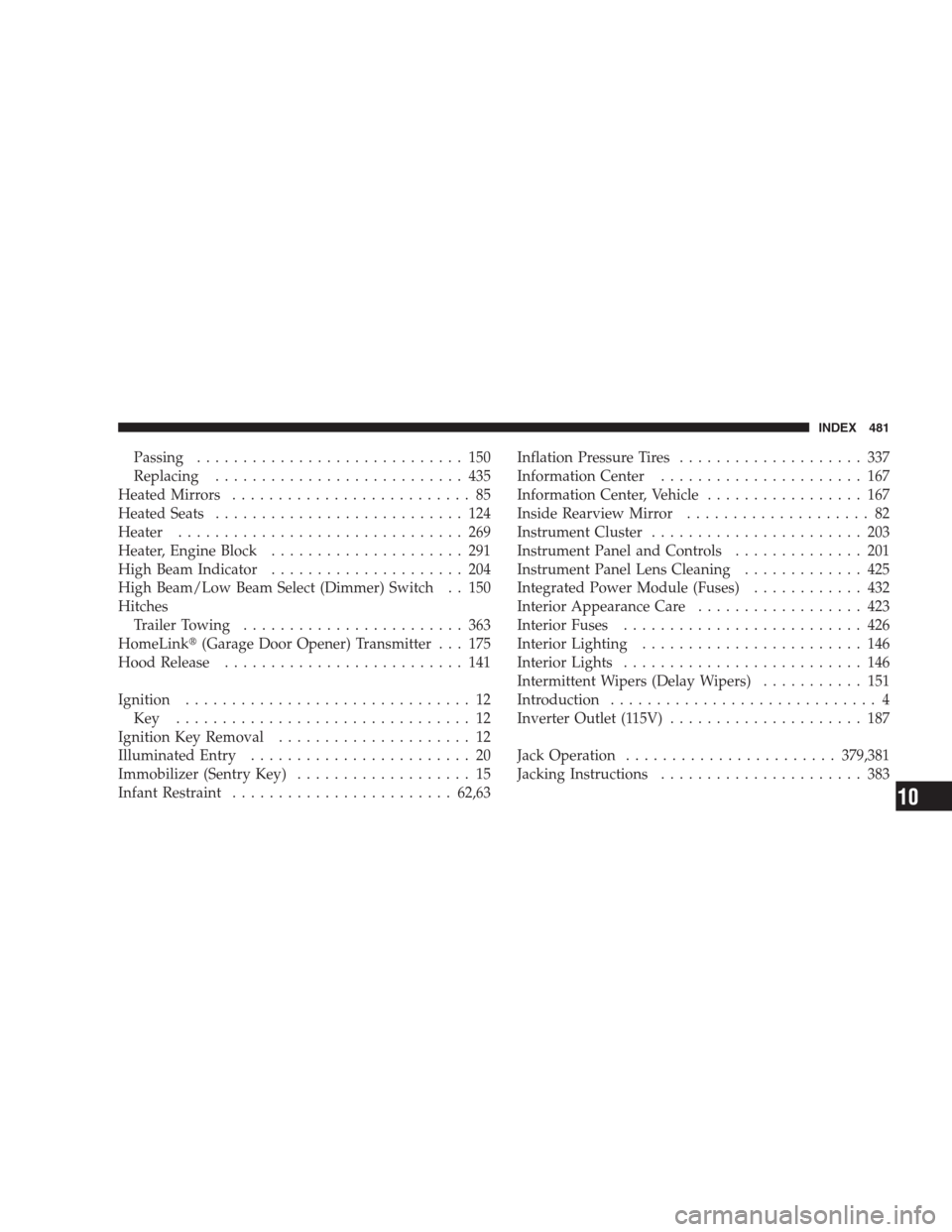

Passing............................. 150
Replacing........................... 435
Heated Mirrors.......................... 85
Heated Seats........................... 124
Heater............................... 269
Heater, Engine Block..................... 291
High Beam Indicator..................... 204
High Beam/Low Beam Select (Dimmer) Switch . . 150
Hitches
Trailer Towing........................ 363
HomeLink(Garage Door Opener) Transmitter . . . 175
Hood Release.......................... 141
Ignition............................... 12
Key ................................ 12
Ignition Key Removal..................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................62,63Inflation Pressure Tires.................... 337
Information Center...................... 167
Information Center, Vehicle................. 167
Inside Rearview Mirror.................... 82
Instrument Cluster....................... 203
Instrument Panel and Controls.............. 201
Instrument Panel Lens Cleaning............. 425
Integrated Power Module (Fuses)............ 432
Interior Appearance Care.................. 423
Interior Fuses.......................... 426
Interior Lighting........................ 146
Interior Lights.......................... 146
Intermittent Wipers (Delay Wipers)........... 151
Introduction............................. 4
Inverter Outlet (115V)..................... 187
Jack Operation.......................379,381
Jacking Instructions...................... 383
INDEX 481
10

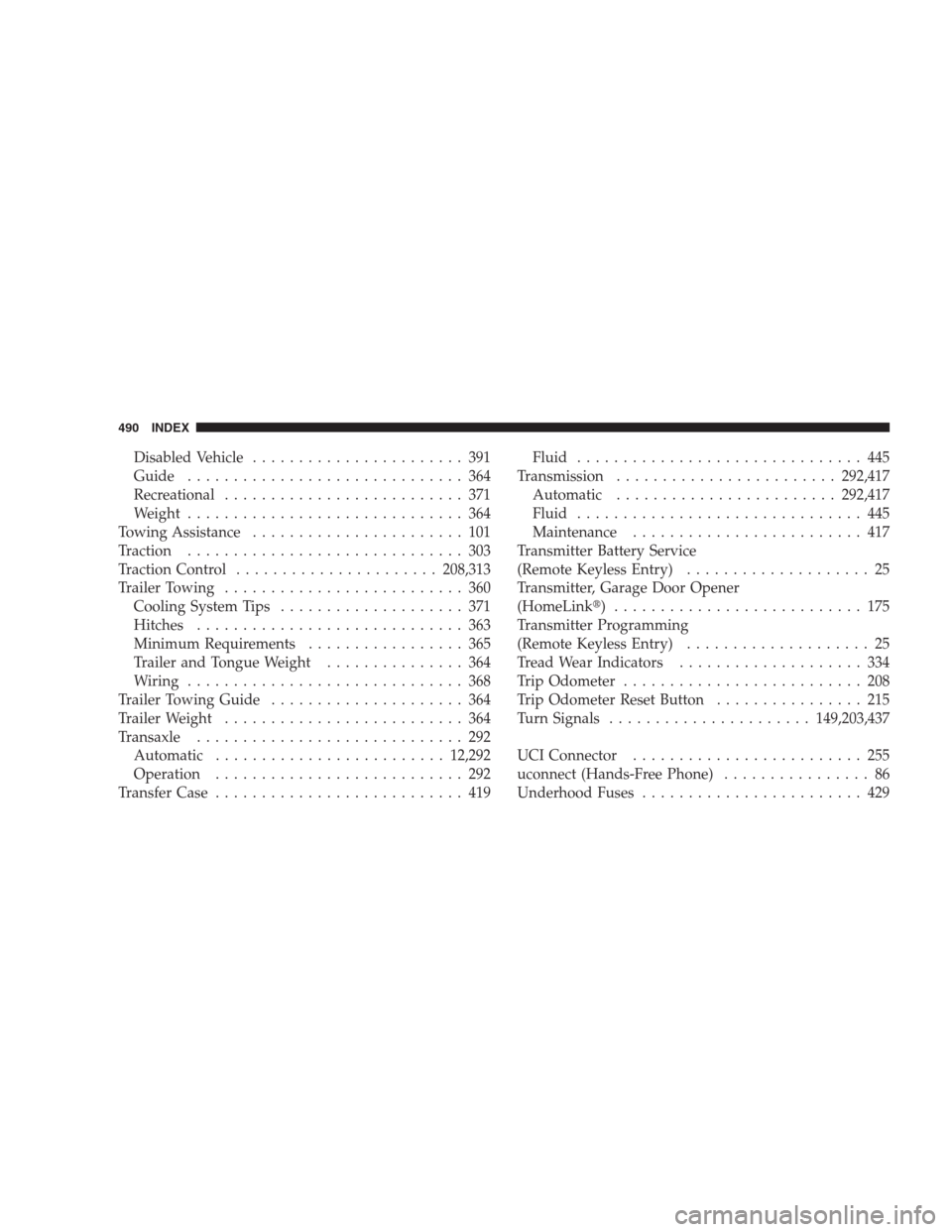

Disabled Vehicle....................... 391
Guide.............................. 364
Recreational.......................... 371
Weight.............................. 364
Towing Assistance....................... 101
Traction.............................. 303
Traction Control......................208,313
Trailer Towing.......................... 360
Cooling System Tips.................... 371
Hitches............................. 363
Minimum Requirements................. 365
Trailer and Tongue Weight............... 364
Wiring.............................. 368
Trailer Towing Guide..................... 364
Trailer Weight.......................... 364
Transaxle............................. 292
Automatic.........................12,292
Operation........................... 292
Transfer Case........................... 419Fluid............................... 445
Transmission........................292,417
Automatic........................292,417
Fluid............................... 445
Maintenance......................... 417
Transmitter Battery Service
(Remote Keyless Entry).................... 25
Transmitter, Garage Door Opener
(HomeLink) ........................... 175
Transmitter Programming
(Remote Keyless Entry).................... 25
Tread Wear Indicators.................... 334
Trip Odometer.......................... 208
Trip Odometer Reset Button................ 215
Turn Signals......................149,203,437
UCI Connector......................... 255
uconnect (Hands-Free Phone)................ 86
Underhood Fuses........................ 429
490 INDEX

INTRODUCTION INTRODUCTION ROLLOVER WARNING HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD
ABOUT YOUR KEYS Ignition Key RemovalLocking Doors With The KeySTEERING WHEEL LOCK - IF EQUIPPED To Manually Lock the Steering WheelTo Release the Steering Wheel LockAutomatic Transaxle Ignition Interlock System - If EquippedSENTRY KEY
Replacement KeysCustomer Key ProgrammingGeneral InformationVEHICLE SECURITY ALARM - IF EQUIPPED To Set the AlarmTo Disarm the SystemILLUMINATEDENTRY Vehicles Equipped With Power Door LocksREMOTE KEYLESS ENTRY (RKE) To Unlock the
Doors and LiftgateTo Lock the Doors and LiftgateUsing the Panic AlarmGeneral InformationProgramming Additional TransmittersBattery ReplacementREMOTE STARTING SYSTEM - IF EQUIPPED How to Use Remote StartDOOR LOCKS Manual Door LocksPower Door
LocksChild Protection Door LockWINDOWS Power Windows Auto DownAuto Up Feature with Anti-Pinch Protection (Drivers and Front Passenger Door Only)Window Lockout SwitchLIFTGATE Power Liftgate - If EquippedOCCUPANT RESTRAINTS Lap/Shoulder Belts
Adjustable Upper Shoulder Belt AnchorageAutomatic Locking Retractors (ALR) Mode - If EquippedRear 60/40 Seat Third Row Center Three Point Belt - If EquippedSeat Belt PretensionersEnhanced Seat Belt Use Reminder System (BeltAlert)Seat Belts and Pregnant Women
Seat Belt ExtenderDriver And Right Front Passenger Supplemental Restraint System (SRS)-Airbags Event Data Recorder (EDR)Child RestraintENGINE BREAK-IN RECOMMENDATIONS SAFETY TIPS Transporting PassengersExhaust GasSafety Checks You Should Make
Inside The VehiclePeriodic Safety Checks You Should Make Outside The VehicleUNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night MirrorAutomatic Dimming Mirror - If EquippedOutside MirrorsOutside Folding Mirrors - If EquippedPower
MirrorsAutomatic Dimming Drivers Outside Mirror - If EquippedHeated Mirrors - If EquippedIlluminated Vanity Mirrors - If Equippeduconnect phone -IF EQUIPPED OperationPhone Call Featuresuconnect phone FeaturesAdvanced Phone ConnectivityThings You Should
Know About Your uconnect phoneGeneral InformationVOICE RECOGNITION SYSTEM (VR) - IF EQUIPPED Voice Recognition System (VR) OperationCommandsVoice TrainingSEATS Manual Front Seat AdjustmentManual Front Seat ReclinersManual Lumbar Support
Adjustment - If EquippedAdjustable Head Restraints - All Seating PositionsEight-Way Drivers Power Seat - If EquippedFour-Way Passengers Power Seat - If EquippedHeated Seats - If EquippedSecond Row Bucket Seats - Fold and TumbleSecond Row 40/20/40 Seat -
Fold and TumbleThird Row Seat Bench - If EquippedThird Row 60/40 Folding - If EquippedDRIVER MEMORY SEAT - IF EQUIPPED Setting Memory Positions and Linking RKE Transmitter to MemoryMemory Position RecallTo Disable A RKE Transmitter Linked to Memory
Self-Limiting ControlDriver Easy Exit and Easy Entry ControlTO OPEN AND CLOSE THE HOOD LIGHTS Headlight SwitchInterior LightsBattery SaverIlluminated EntryDaytime Running Lights (Canada Only)Lights-On ReminderFog Lights - If EquippedMultifunction Lever
WINDSHIELD WIPERS AND WASHERS Windshield WipersWindshield WashersTILT STEERING COLUMN DRIVER ADJUSTABLE PEDALS - IF EQUIPPED AdjustmentELECTRONIC SPEED CONTROL - IF EQUIPPED To ActivateTo Set At A Desired SpeedTo Deactivate
To Resume SpeedTo Vary The Speed SettingTo Accelerate For PassingREAR PARK ASSIST - IF EQUIPPED Rear Park Assist SensorsRear Park Assist Warning DisplayEnable/Disable The Rear Park AssistService The Rear Park AssistCleaning The Rear Park AssistREAR
BACKUP CAMERA - IF EQUIPPED Turning the Rear Camera On or Off - With Navigation RadioTurning the Rear Camera On or Off - Without Navigation RadioOVERHEAD CONSOLE Courtesy/Reading LightsOVERHEAD CONSOLE WITH ELECTRONIC VEHICLE
INFORMATION CENTER (EVIC) - IF EQUIPPED Dome/Reading LightsElectronic Vehicle Information Center (EVIC) - If EquippedCompass/Temperature ButtonGARAGE DOOR OPENER - IF EQUIPPED Programming HomeLinkGate Operator/Canadian ProgrammingUsing
HomeLinkReprogramming A Single HomeLink ButtonSecurityTroubleshooting TipsGeneral InformationPOWER SUNROOF - IF EQUIPPED Express Open FeatureWind BuffetingSunroof MaintenanceELECTRICAL POWER OUTLETS Configuring Power Outlets115-Volt
Inverter Outlet - If Equipped FLOOR CONSOLE Floor Console FeaturesRear Floor Console Features - If EquippedCARGO AREA FEATURES Cargo Management System - If EquippedREAR WINDOW FEATURES Rear Window Wiper/WasherRear Window Defrosting
FACTORY INSTALLED ROOF LUGGAGE RACK UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES INSTRUMENT CLUSTER INSTRUMENT CLUSTER DESCRIPTION ELECTRONIC DIGITAL CLOCK Clock Setting Procedure
AM/FM/CD/DVD RADIO (RER/REN) - IF EQUIPPED Operating Instructions - Voice Recognition System (VR) - If EquippedOperating Instructions - uconnect phone - If EquippedClock Setting ProcedureSALES CODE REQ - AM/FM STEREO RADIO AND 6-DISC CD/DVD
CHANGER (MP3/WMA AUX JACK) Operating Instructions - Radio ModeOperation Instructions - (DISC MODE for CD and MP3/WMA Audio Play, DVD-VIDEO)Notes OnPlaying MP3/WMA FilesLIST Button (DISC Mode for MP3/WMA Play)INFO Button (DISC Mode for
MP3/WMA Play)SALES CODE RES - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) Operating Instructions - Radio ModeOperation Instructions - CD MODE ForCD And MP3 Audio PlayNotes on Playing MP3 FilesOperation Instructions - Auxiliary Mode
SALES CODE RES/RSC - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) AND SIRIUS RADIO Operating Instructions - Radio ModeOperation Instructions - CD MODE for CD and MP3 Audio PlayNotes On Playing MP3 FilesLIST Button (CD Mode for MP3
Play)INFO Button (CD Mode for MP3 Play)UNIVERSAL CONSUMER INTERFACE (UCI) - IF EQUIPPED Connecting The iPodUsing This FeatureControlling The iPod Using Radio ButtonsPlay ModeList Or Browse Modeuconnect studios (SATELLITE RADIO) - IF EQUIPPED
(REN/REQ/RER/RES/REU RADIOS ONLY) System ActivationElectronic Serial Number/Sirius Identification Number (ESN/SID)Selecting uconnect studios (Satellite) ModeSatellite AntennaReception QualityOperating Instructions - uconnect studios (Satellite) ModeOperating
Instructions - uconnect phone (If Equipped)Operating Instructions - Video Entertainment System (VES) (If Equipped)uconnect studios (SIRIUS BACKSEAT TV) - IF EQUIPPED VIDEO ENTERTAINMENT SYSTEM (SALES CODE XRV) - IF EQUIPPED REMOTE SOUND
SYSTEM CONTROLS - IF EQUIPPED Radio OperationCD PlayerCD/DVD MAINTENANCE RADIO OPERATION AND CELLULAR PHONES CLIMATE CONTROLS Manual Control Air Conditioning OperationFront Blower ControlFront Mode ControlRear Temperature Control
- If EquippedRear Window Defrosting and Rear Window Washer/WiperAutomatic Temperature Control (ATC) - If EquippedAutomatic ControlLevel Of Automatic ControlManual Control (ATC)Rear Zone Climate Control - If Equipped Rear Rotary Temperature ControlFront
Unit to Rear Unit ChartOperating TipsOperating Tips Chart STARTING AND OPERATING STARTING PROCEDURES Normal StartingExtremely Cold Weather (below -20 degrees F or -29 degrees C)If Engine Fails To StartAfter StartingENGINE BLOCK HEATER - IF
EQUIPPED AUTOMATIC TRANSMISSION Brake/Transmission Interlock SystemGear RangesFOUR-WHEEL DRIVE OPERATION NV 140 Transfer Case Operating Information/Precautions - If EquippedNV 244 Generation II Transfer Case Operating Information/Precautions
- If EquippedShifting Procedure - NV 244 Generation II Transfer Case DRIVING ON SLIPPERY SURFACES DRIVING THROUGH WATER Flowing/Rising WaterShallow Standing WaterPOWER STEERING Power Steering Fluid CheckPARKING BRAKE ANTI-LOCK BRAKE
SYSTEM ELECTRONIC BRAKE CONTROL SYSTEM Anti-Lock Brake System (ABS)Traction Control System (TCS)Brake Assist System (BAS)Electronic Roll Mitigation (ERM)Electronic Stability Program (ESP)Trailer Sway Control (TSC)ESP/BAS Warning Light and
ESP/TCS Indicator LightTIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation PressuresTire Pressures for High Speed OperationRadial Ply TiresCompact
Spare Tire - If EquippedLimited-Use Spare - If EquippedTire SpinningTread Wear IndicatorsLife of TireReplacement TiresSUPPLEMENTAL TIRE PRESSURE INFORMATION - IF EQUIPPED TIRE CHAINS SNOW TIRES TIRE ROTATION RECOMMENDATIONS TIRE
PRESSURE MONITOR SYSTEM (TPMS) Base SystemPremium System - If EquippedGeneral InformationFUEL REQUIREMENTS Reformulated GasolineGasoline/Oxygenate BlendsE-85 Usage In Non-Flex Fuel VehiclesMMT In GasolineMaterials Added To FuelFuel
System CautionsCarbon Monoxide WarningsFLEXIBLE FUEL (4.7L ENGINE ONLY) - IF EQUIPPED E-85 General InformationETHANOL FUEL (E-85)Fuel RequirementsSelection Of Engine Oil For Flexible Fuel Vehicles (E-85) and Gasoline VehiclesStartingCruising Range
Replacement PartsADDING FUEL Fuel Filler Cap (Gas Cap)Loose Fuel Filler Cap (Gas Cap) MessageVEHICLE LOADING Certification LabelCurb WeightLoadingTRAILER TOWING Common Towing DefinitionsTrailer Hitch ClassificationTrailer Towing Weights (Maximum
Trailer Weight Ratings)Trailer and Tongue WeightTowing RequirementsTowing TipsSNOWPLOW RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) 2WD Models4WD ModelsWHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER JACKING
INSTRUCTIONS Jack LocationRemoving The Spare TireTire Changing ProcedureJUMP-STARTING PROCEDURES FREEING A STUCK VEHICLE EMERGENCY TOW HOOKS - IF EQUIPPED TOWING A DISABLED VEHICLE Four-Wheel Drive VehiclesTwo-Wheel Drive
VehiclesMAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 3.7L ENGINE COMPARTMENT - 4.7L ENGINE COMPARTMENT - 5.7L ONBOARD DIAGNOSTIC SYSTEM - OBD II Loose Fuel Filler Cap MessageEMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS REPLACEMENT PARTS DEALER SERVICE MAINTENANCE PROCEDURES Engine OilEngine Oil FilterEngine Air Cleaner FilterMaintenance-Free BatteryAir Conditioner MaintenanceDrive Shaft Constant Velocity JointsBody LubricationWindshield Wiper
BladesAdding Washer FluidExhaust SystemCooling SystemBrake SystemAutomatic TransmissionTransfer CaseAxlesAppearance Care and Protection From CorrosionFUSES Interior FusesUnderhood Fuses (Power Distribution Center) Underhood Fuses (Integrated Power
Module) VEHICLE STORAGE REPLACEMENT LIGHT BULBS BULB REPLACEMENT Headlights/Parking/Turn SignalRear Side Marker, Tail Lights, Turn Signals And Backup Lights - ReplacementLicense LightsCenter High-Mounted StoplightFog LightsFLUIDS AND
CAPACITIES
U.S Metric
Fuel (Approximate)27 Gal-
lons102 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API
Certified)5 Quarts 4.7 Liters
4.7L Engine (SAE 5W-20, API
Certified)6 Quarts 5.7 Liters
U.S Metric
5.7L Engine (SAE 5W-20, API
Certified)7 Quarts 6.6 Liters
Cooling System (Includes
2.1 Quarts/2 Liters for Coolant
Bottle)
3.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.5 Quarts12.9 Li-
ters
3.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.5 Quarts13.8 Li-
ters
4.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.1 Quarts12.5 Li-
ters
4.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.2 Quarts13.5 Li-
ters
