FUSES
CAUTION!
When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it suggests a
problem in the circuit that must be corrected.
Interior Fuses
The fuse block contains blade-type mini-fuses, relays,
and circuit breakers for high-current circuits. It is located
in the left kick panel. It is accessible through a snap-in
cover.

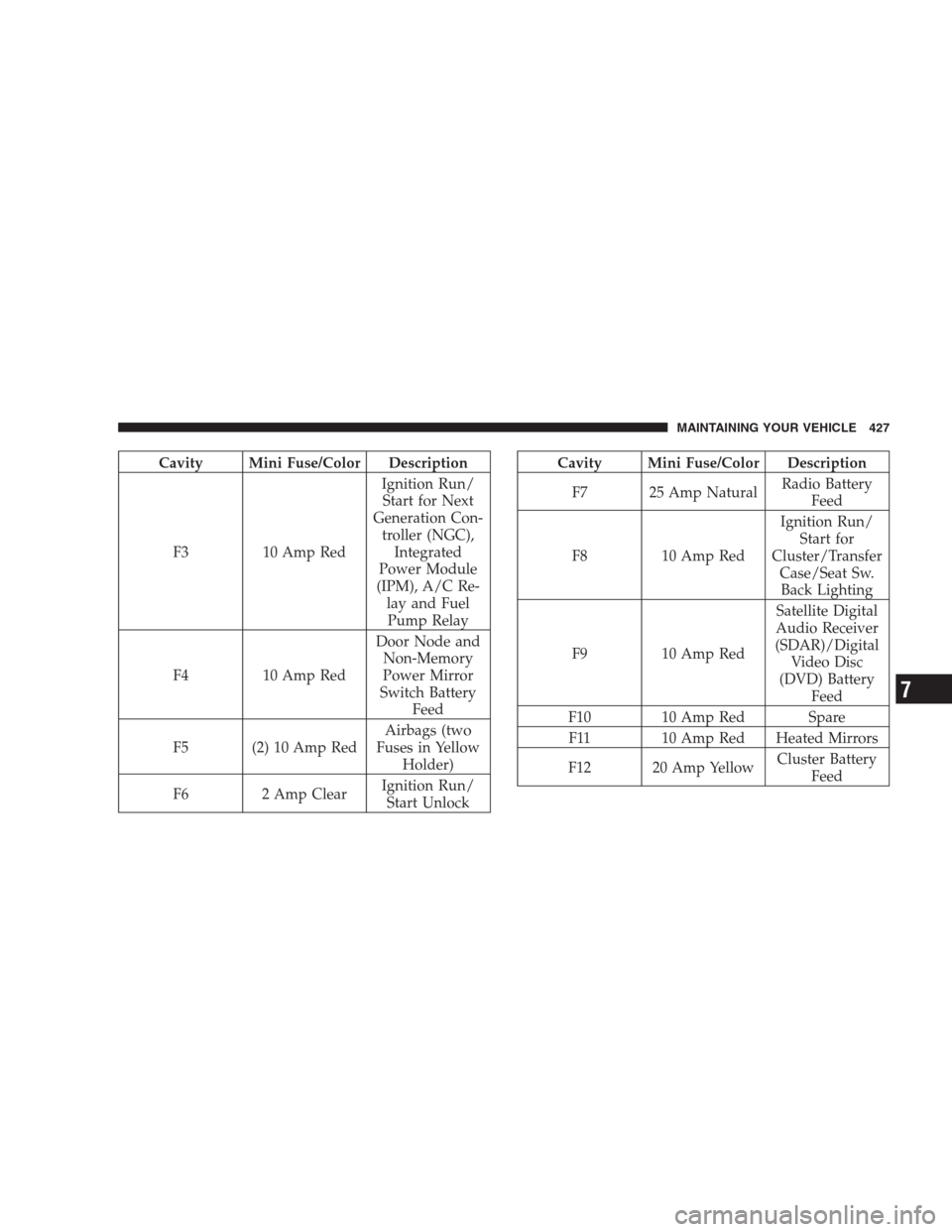

Cavity Mini Fuse/Color Description
F1 15 Amp BlueInstrument Clus-
ter Battery Feed
F 2 10 Amp Red Spare
Fuse Block Cover
426 MAINTAINING YOUR VEHICLE
Page 429 of 498

Cavity Mini Fuse/Color Description
F3 10 Amp RedIgnition Run/
Start for Next
Generation Con-
troller (NGC),
Integrated
Power Module
(IPM), A/C Re-
lay and Fuel
Pump Relay
F4 10 Amp RedDoor Node and
Non-Memory
Power Mirror
Switch Battery
Feed
F5 (2) 10 Amp RedAirbags (two
Fuses in Yellow
Holder)
F6 2 Amp ClearIgnition Run/
Start UnlockCavity Mini Fuse/Color Description
F7 25 Amp NaturalRadio Battery
Feed
F8 10 Amp RedIgnition Run/
Start for
Cluster/Transfer
Case/Seat Sw.
Back Lighting
F9 10 Amp RedSatellite Digital
Audio Receiver
(SDAR)/Digital
Video Disc
(DVD) Battery
Feed
F10 10 Amp Red Spare
F11 10 Amp Red Heated Mirrors
F12 20 Amp YellowCluster Battery
Feed
MAINTAINING YOUR VEHICLE 427
7
Page 431 of 498

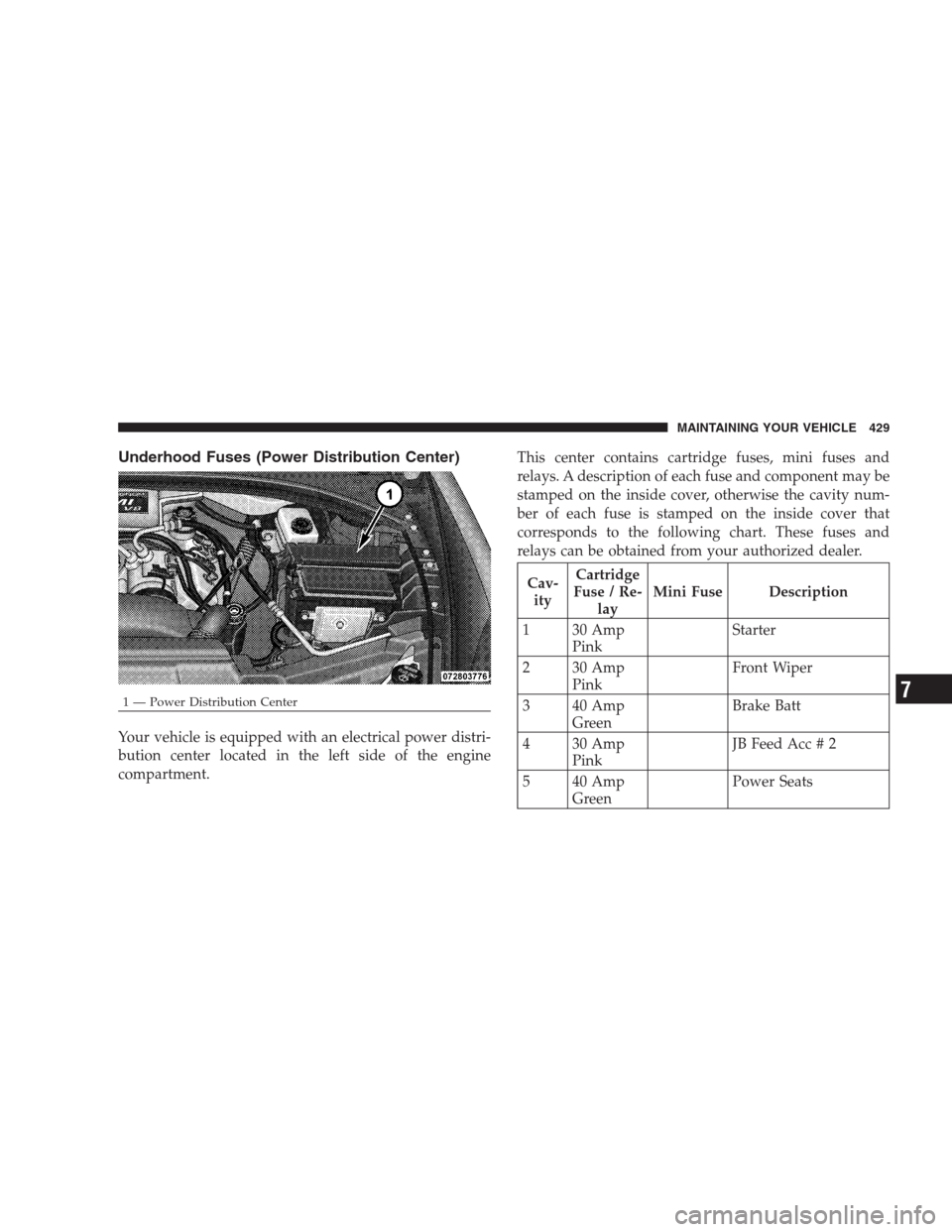

Underhood Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the left side of the engine
compartment.This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
1 — Power Distribution CenterMAINTAINING YOUR VEHICLE 4297
Page 432 of 498

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description

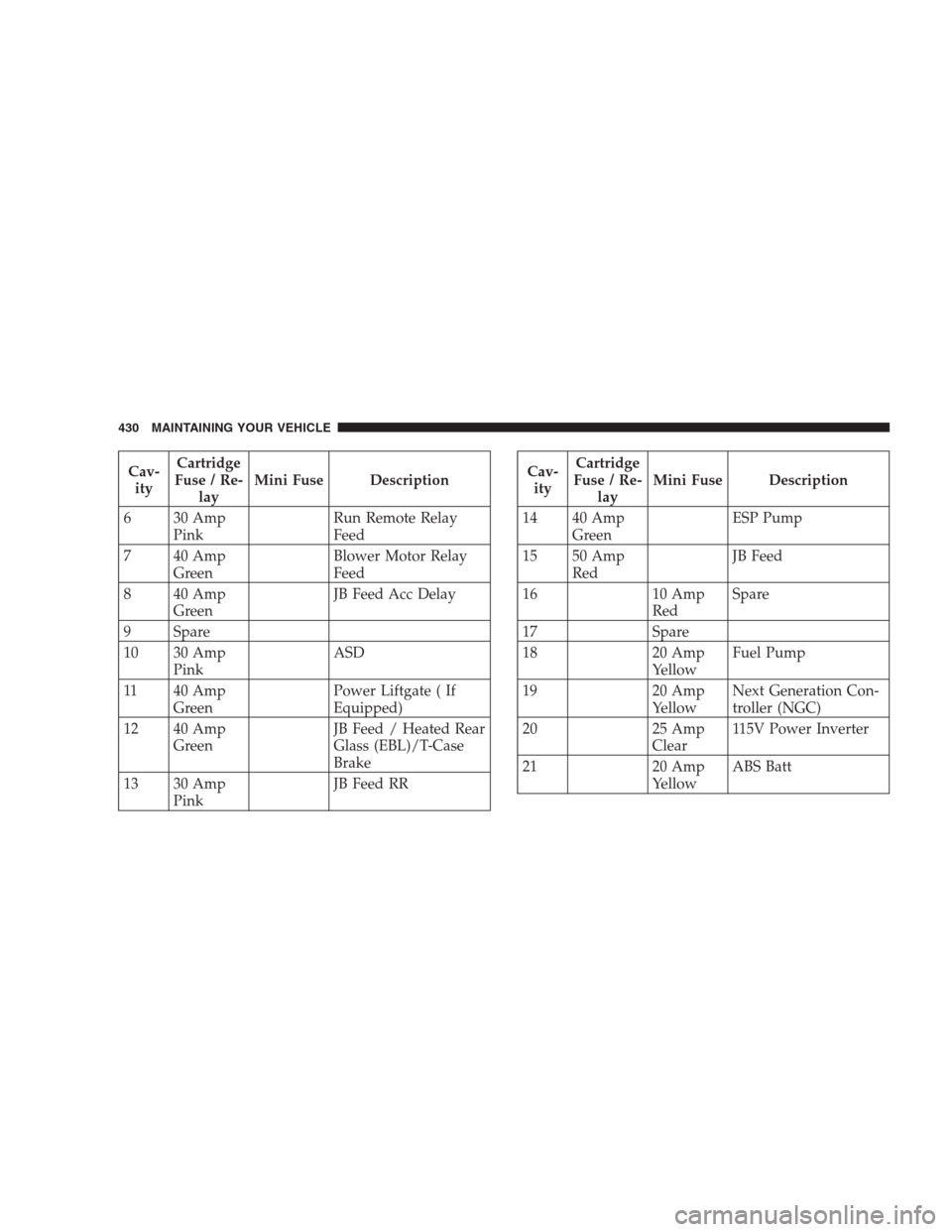

6 30 Amp
PinkRun Remote Relay
Feed
7 40 Amp
GreenBlower Motor Relay
Feed
8 40 Amp
GreenJB Feed Acc Delay
9 Spare
10 30 Amp
PinkASD
11 40 Amp
GreenPower Liftgate ( If
Equipped)
12 40 Amp
GreenJB Feed / Heated Rear
Glass (EBL)/T-Case
Brake
13 30 Amp
PinkJB Feed RRCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
14 40 Amp
GreenESP Pump
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS Batt
430 MAINTAINING YOUR VEHICLE
Page 433 of 498

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description

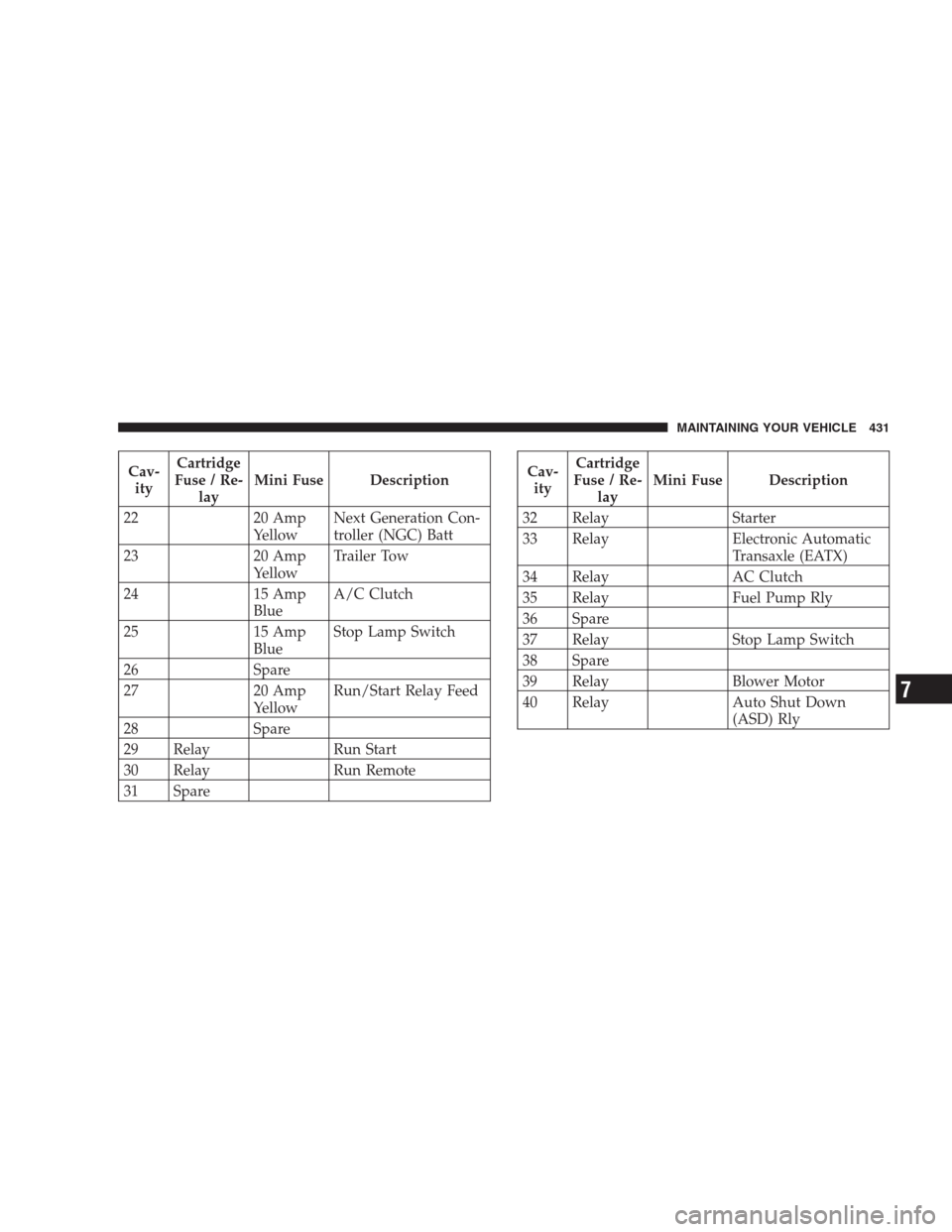

22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 SpareCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
32 Relay Starter
33 Relay Electronic Automatic
Transaxle (EATX)
34 Relay AC Clutch
35 Relay Fuel Pump Rly
36 Spare
37 Relay Stop Lamp Switch
38 Spare
39 Relay Blower Motor
40 Relay Auto Shut Down
(ASD) Rly
MAINTAINING YOUR VEHICLE 431
7
Page 434 of 498

Underhood Fuses (Integrated Power Module)
An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
1 — Integrated Power Module 432 MAINTAINING YOUR VEHICLE
Page 435 of 498

Cav-
ityCartridge
Fuse / Re-
layMini Fuse Description
10 10 Amp
RedRt Park Lamps
11 Relay Radiator Fan Hi Rly
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
17 20 Amp
YellowRear WiperCav-
ityCartridge
Fuse / Re-
layMini Fuse Description
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFront Control Module
(FCM) BATT # 5
23 40 Amp
GreenRadiator Fan
24 Relay Radiator Fan Lo Rly
25 Relay Ft Fog Lamps Rly
26 Relay Adjustable Pedal Rly
MAINTAINING YOUR VEHICLE 433
