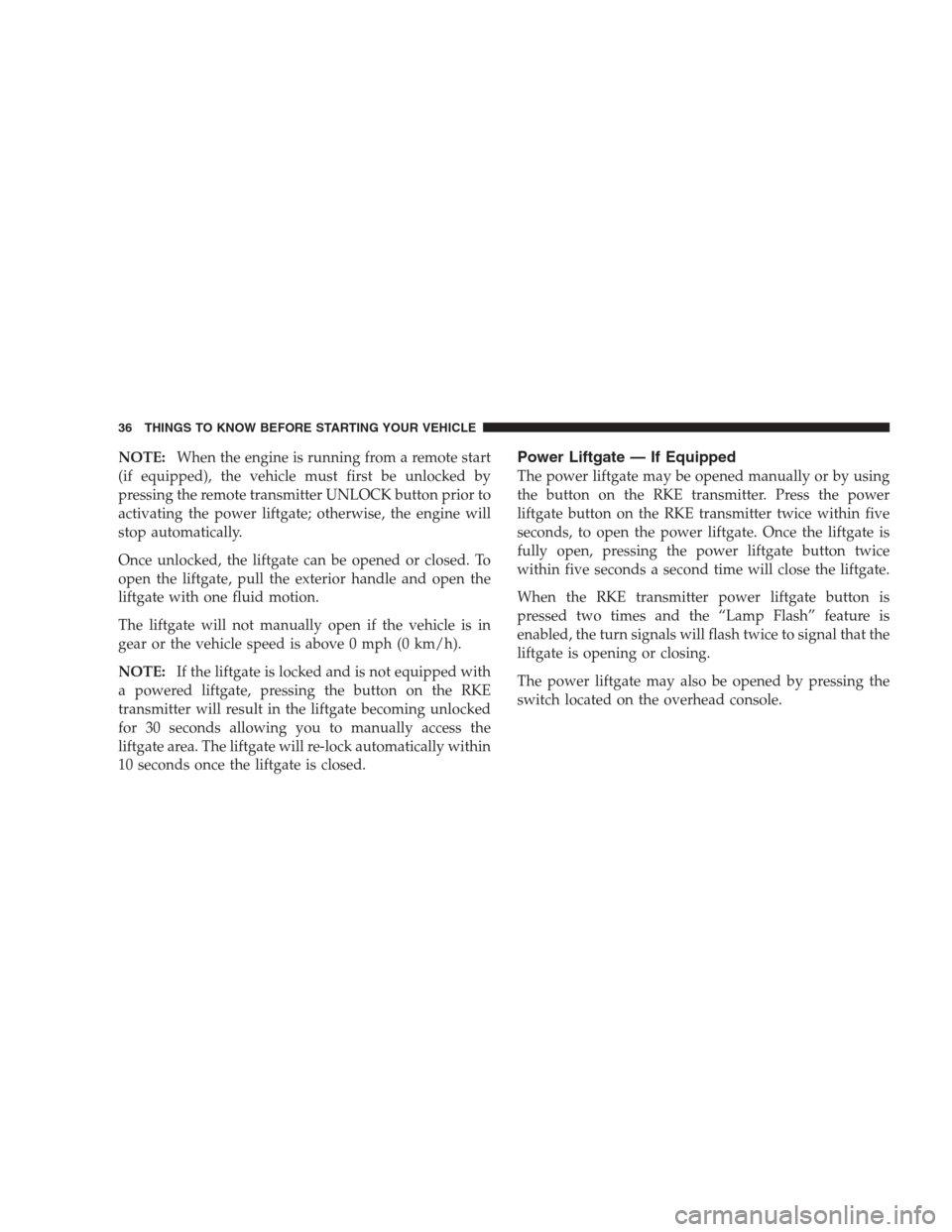

NOTE:When the engine is running from a remote start
(if equipped), the vehicle must first be unlocked by
pressing the remote transmitter UNLOCK button prior to
activating the power liftgate; otherwise, the engine will
stop automatically.
Once unlocked, the liftgate can be opened or closed. To
open the liftgate, pull the exterior handle and open the
liftgate with one fluid motion.
The liftgate will not manually open if the vehicle is in
gear or the vehicle speed is above 0 mph (0 km/h).
NOTE:If the liftgate is locked and is not equipped with
a powered liftgate, pressing the button on the RKE
transmitter will result in the liftgate becoming unlocked
for 30 seconds allowing you to manually access the
liftgate area. The liftgate will re-lock automatically within
10 seconds once the liftgate is closed.Power Liftgate — If Equipped
The power liftgate may be opened manually or by using
the button on the RKE transmitter. Press the power
liftgate button on the RKE transmitter twice within five
seconds, to open the power liftgate. Once the liftgate is
fully open, pressing the power liftgate button twice
within five seconds a second time will close the liftgate.
When the RKE transmitter power liftgate button is
pressed two times and the “Lamp Flash” feature is
enabled, the turn signals will flash twice to signal that the
liftgate is opening or closing.
The power liftgate may also be opened by pressing the
switch located on the overhead console.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

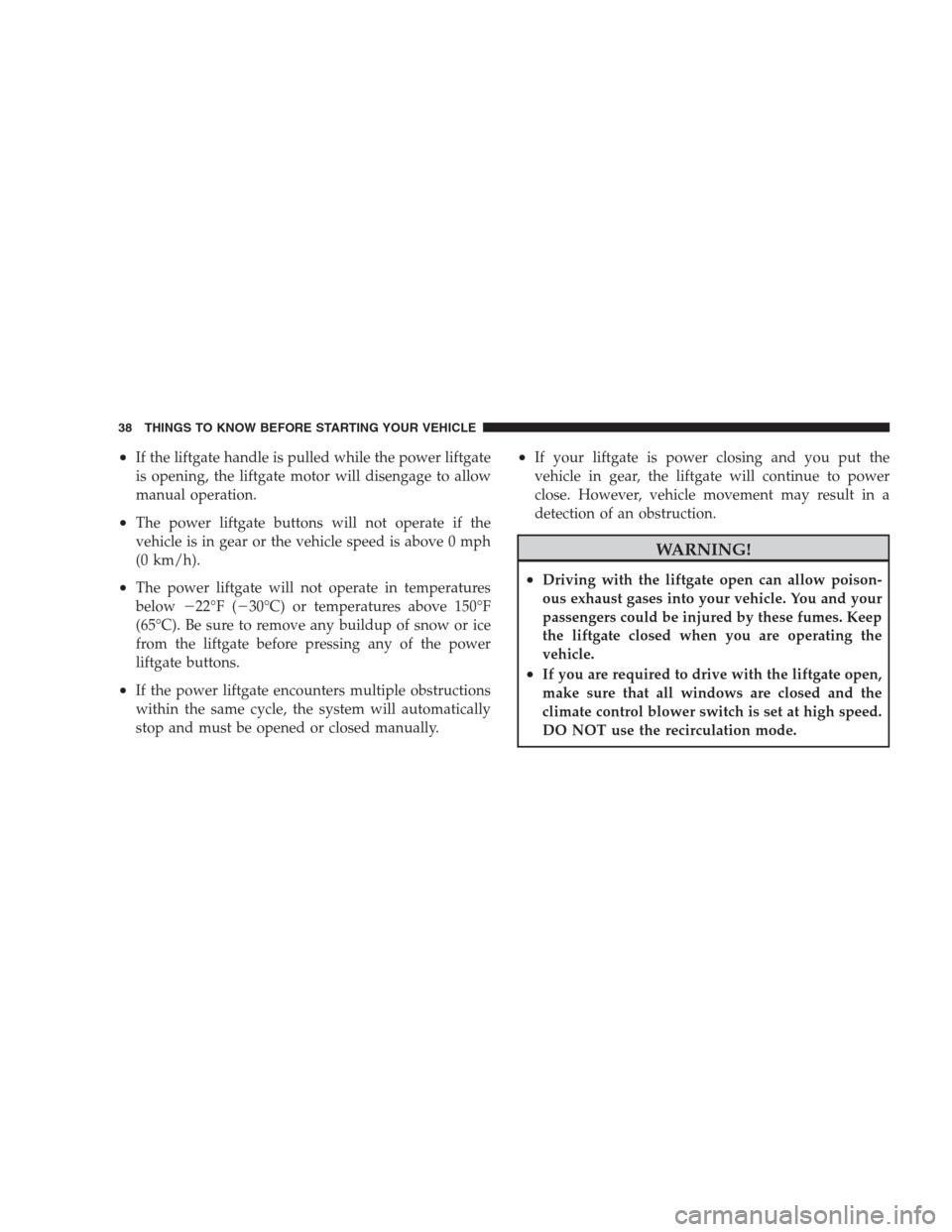

•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
•The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
•The power liftgate will not operate in temperatures
below22°F (30°C) or temperatures above 150°F
(65°C). Be sure to remove any buildup of snow or ice
from the liftgate before pressing any of the power
liftgate buttons.
•If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
•If your liftgate is power closing and you put the
vehicle in gear, the liftgate will continue to power
close. However, vehicle movement may result in a
detection of an obstruction.
WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

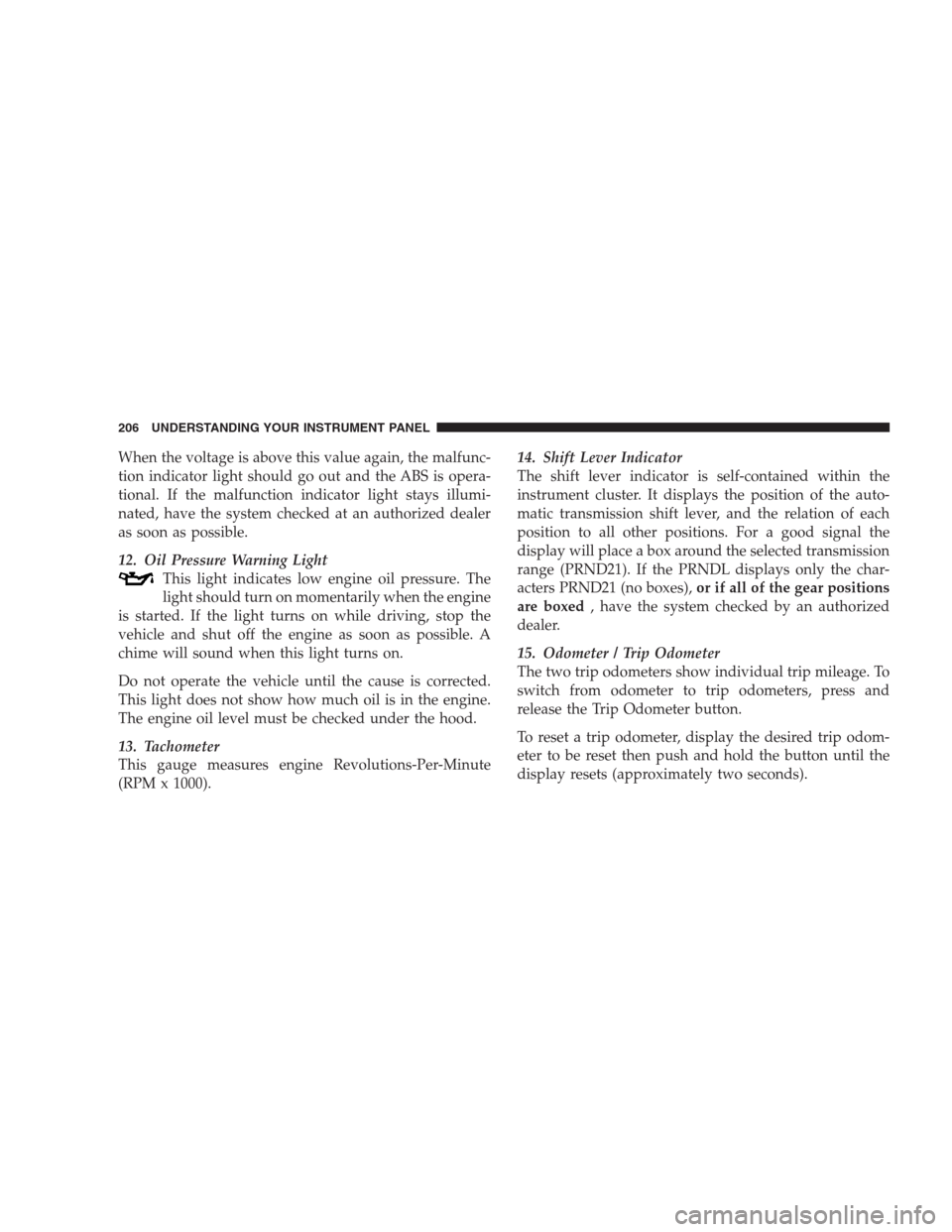

When the voltage is above this value again, the malfunc-
tion indicator light should go out and the ABS is opera-
tional. If the malfunction indicator light stays illumi-
nated, have the system checked at an authorized dealer
as soon as possible.
12. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.
13. Tachometer
This gauge measures engine Revolutions-Per-Minute
(RPM x 1000).14. Shift Lever Indicator
The shift lever indicator is self-contained within the
instrument cluster. It displays the position of the auto-
matic transmission shift lever, and the relation of each
position to all other positions. For a good signal the
display will place a box around the selected transmission
range (PRND21). If the PRNDL displays only the char-
acters PRND21 (no boxes),or if all of the gear positions
are boxed, have the system checked by an authorized
dealer.
15. Odometer / Trip Odometer
The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the Trip Odometer button.
To reset a trip odometer, display the desired trip odom-
eter to be reset then push and hold the button until the
display resets (approximately two seconds).
206 UNDERSTANDING YOUR INSTRUMENT PANEL

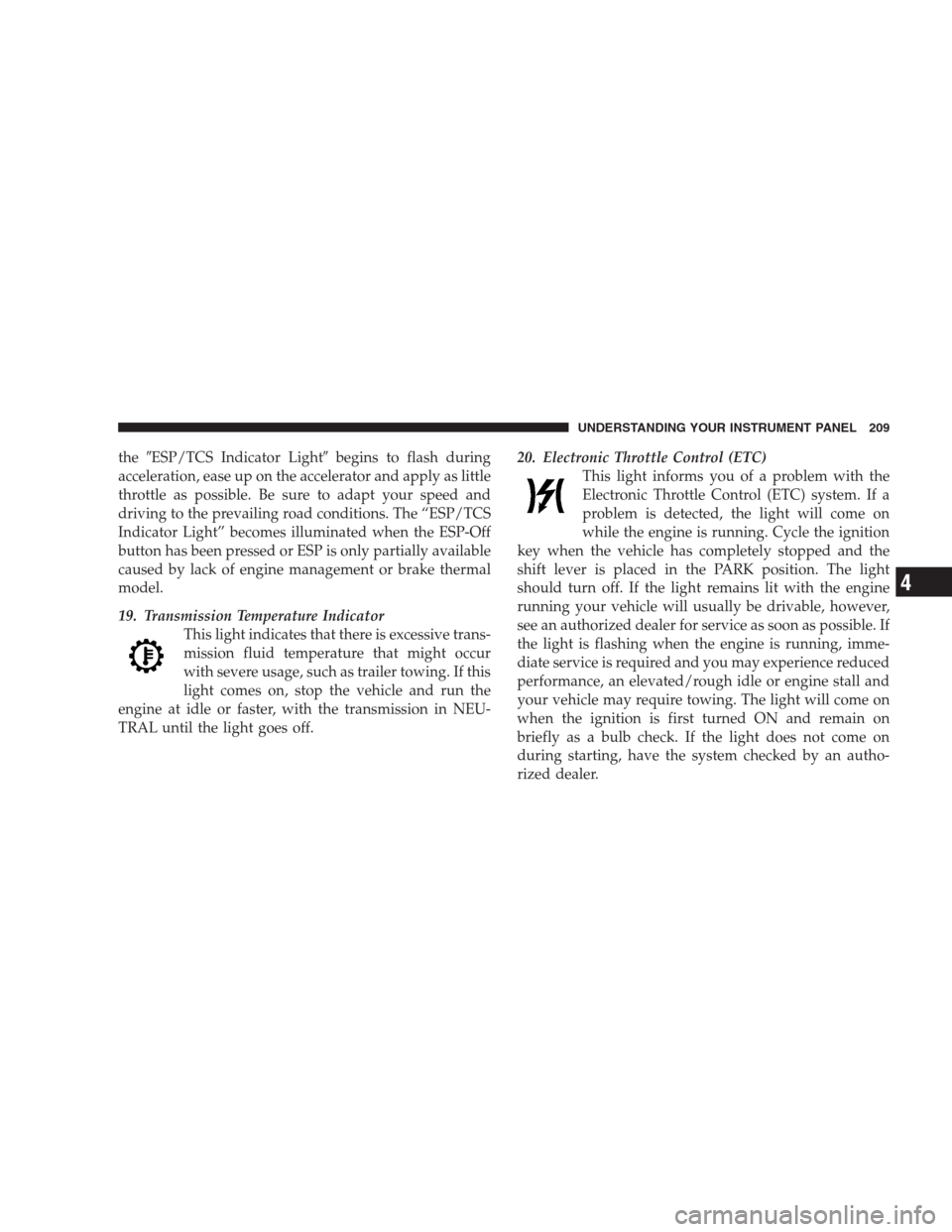

theESP/TCS Indicator Lightbegins to flash during
acceleration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions. The “ESP/TCS
Indicator Light” becomes illuminated when the ESP-Off
button has been pressed or ESP is only partially available
caused by lack of engine management or brake thermal
model.
19. Transmission Temperature Indicator
This light indicates that there is excessive trans-
mission fluid temperature that might occur
with severe usage, such as trailer towing. If this
light comes on, stop the vehicle and run the
engine at idle or faster, with the transmission in NEU-
TRAL until the light goes off.20. Electronic Throttle Control (ETC)
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the PARK position. The light
should turn off. If the light remains lit with the engine
running your vehicle will usually be drivable, however,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme-
diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned ON and remain on
briefly as a bulb check. If the light does not come on
during starting, have the system checked by an autho-
rized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 209
4

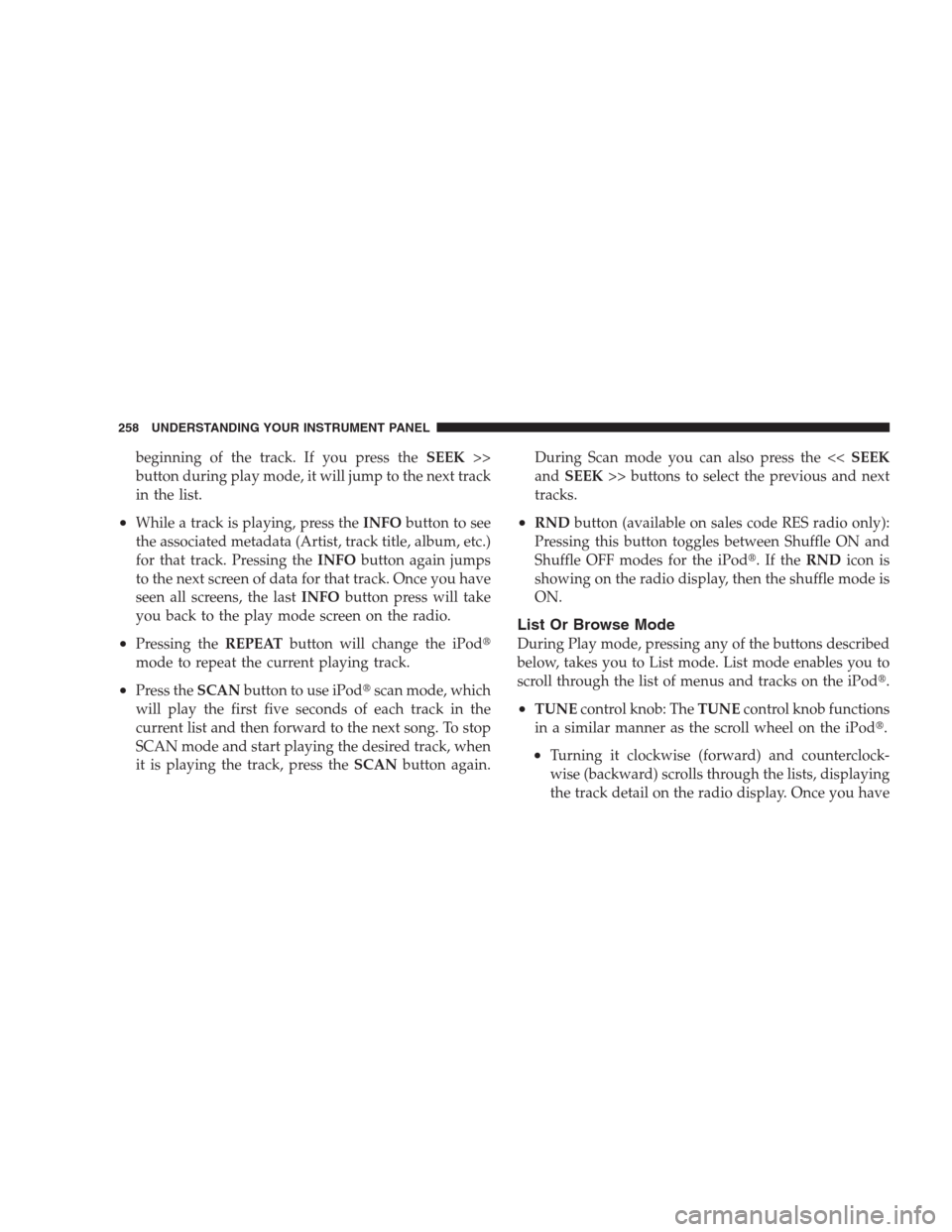

beginning of the track. If you press theSEEK>>
button during play mode, it will jump to the next track
in the list.
•While a track is playing, press theINFObutton to see
the associated metadata (Artist, track title, album, etc.)
for that track. Pressing theINFObutton again jumps
to the next screen of data for that track. Once you have
seen all screens, the lastINFObutton press will take
you back to the play mode screen on the radio.
•Pressing theREPEATbutton will change the iPod
mode to repeat the current playing track.
•Press theSCANbutton to use iPodscan mode, which
will play the first five seconds of each track in the
current list and then forward to the next song. To stop
SCAN mode and start playing the desired track, when
it is playing the track, press theSCANbutton again.During Scan mode you can also press the < andSEEK>> buttons to select the previous and next
tracks.
•RNDbutton (available on sales code RES radio only):
Pressing this button toggles between Shuffle ON and
Shuffle OFF modes for the iPod.IftheRNDicon is
showing on the radio display, then the shuffle mode is
ON.
List Or Browse Mode
During Play mode, pressing any of the buttons described
below, takes you to List mode. List mode enables you to
scroll through the list of menus and tracks on the iPod.
•TUNEcontrol knob: TheTUNEcontrol knob functions
in a similar manner as the scroll wheel on the iPod.
•Turning it clockwise (forward) and counterclock-
wise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once you have
258 UNDERSTANDING YOUR INSTRUMENT PANEL

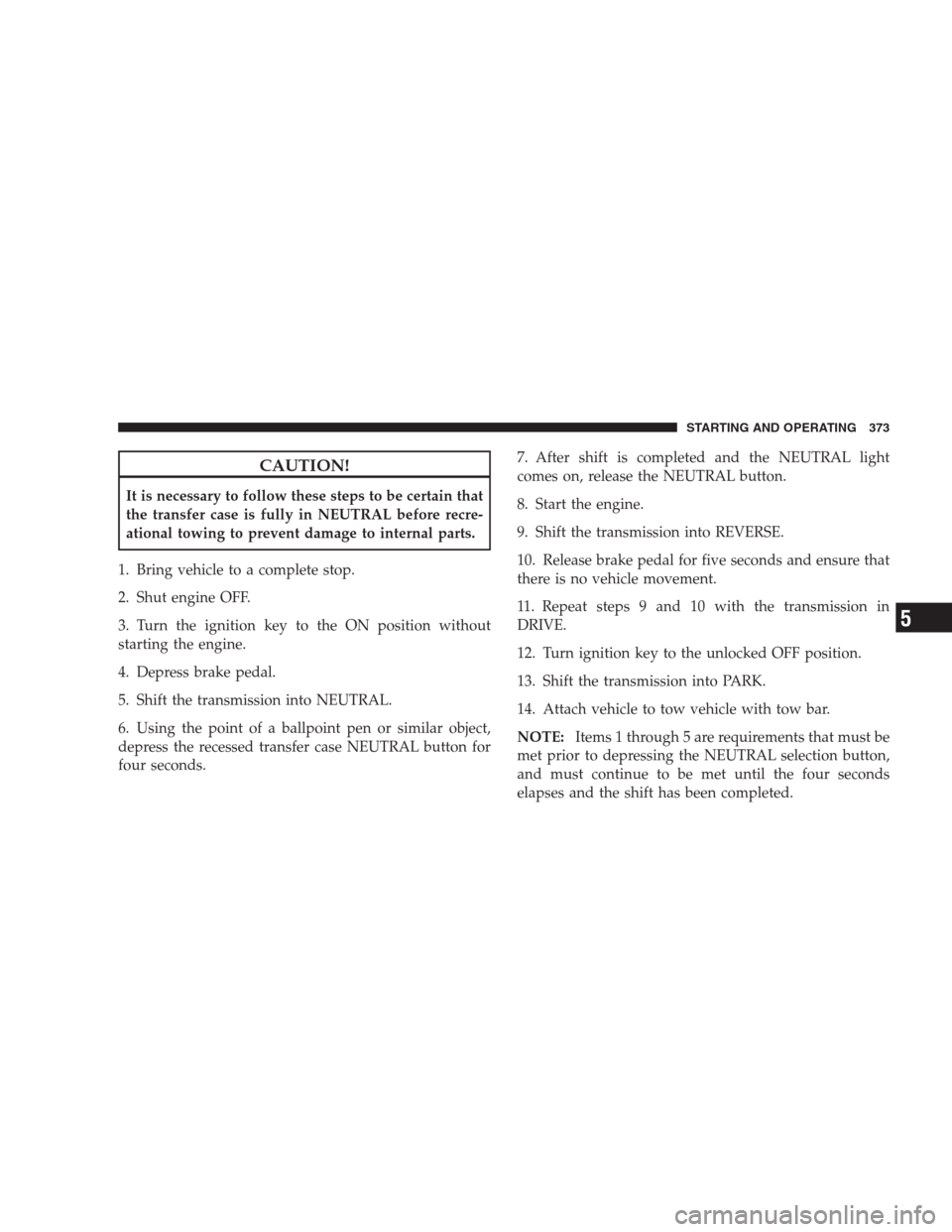

CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL before recre-
ational towing to prevent damage to internal parts.
1. Bring vehicle to a complete stop.
2. Shut engine OFF.
3. Turn the ignition key to the ON position without
starting the engine.
4. Depress brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using the point of a ballpoint pen or similar object,
depress the recessed transfer case NEUTRAL button for
four seconds.7. After shift is completed and the NEUTRAL light
comes on, release the NEUTRAL button.
8. Start the engine.
9. Shift the transmission into REVERSE.
10. Release brake pedal for five seconds and ensure that
there is no vehicle movement.
11. Repeat steps 9 and 10 with the transmission in
DRIVE.
12. Turn ignition key to the unlocked OFF position.
13. Shift the transmission into PARK.
14. Attach vehicle to tow vehicle with tow bar.
NOTE:Items 1 through 5 are requirements that must be
met prior to depressing the NEUTRAL selection button,
and must continue to be met until the four seconds
elapses and the shift has been completed.
STARTING AND OPERATING 373
5

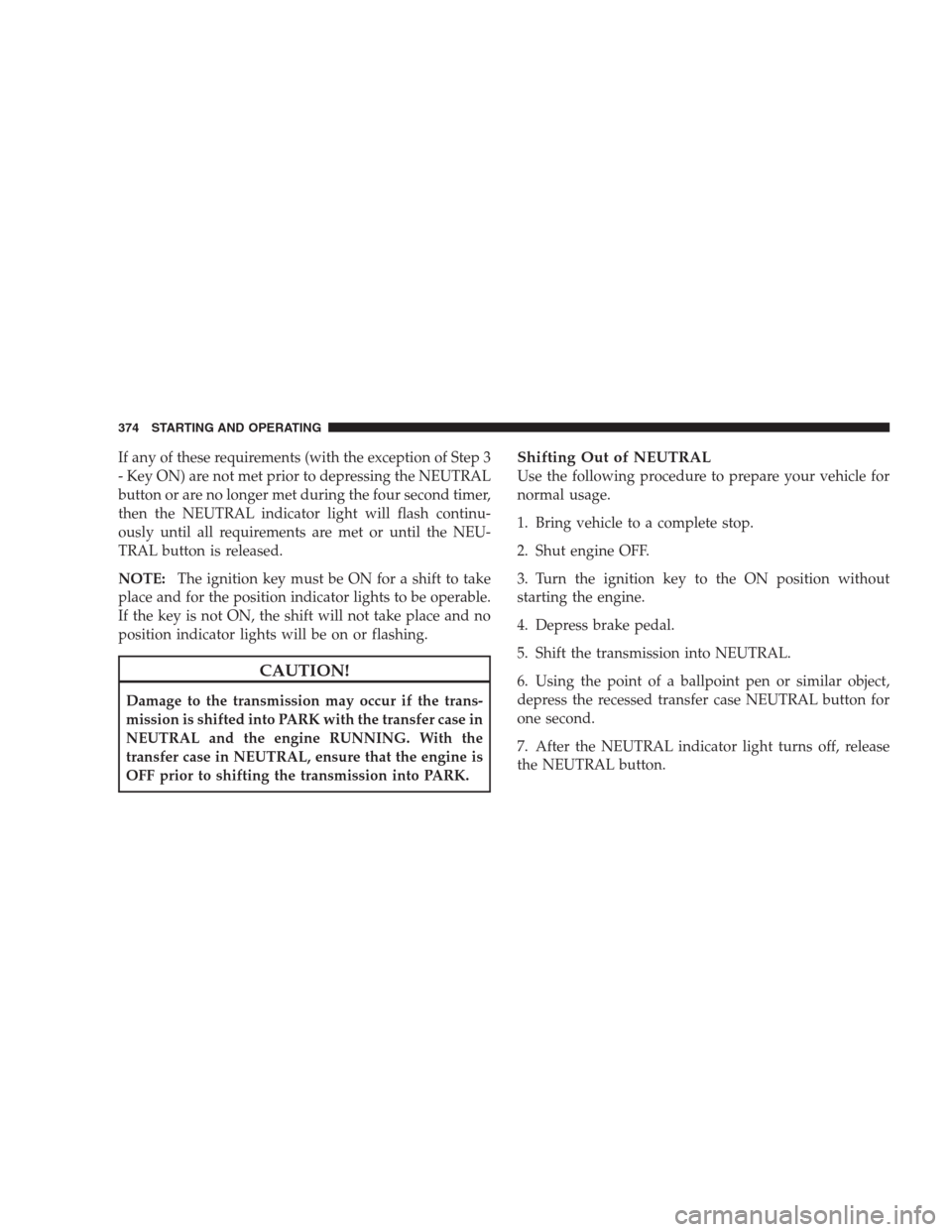

If any of these requirements (with the exception of Step 3
- Key ON) are not met prior to depressing the NEUTRAL
button or are no longer met during the four second timer,
then the NEUTRAL indicator light will flash continu-
ously until all requirements are met or until the NEU-
TRAL button is released.
NOTE:The ignition key must be ON for a shift to take
place and for the position indicator lights to be operable.
If the key is not ON, the shift will not take place and no
position indicator lights will be on or flashing.
CAUTION!
Damage to the transmission may occur if the trans-
mission is shifted into PARK with the transfer case in
NEUTRAL and the engine RUNNING. With the
transfer case in NEUTRAL, ensure that the engine is
OFF prior to shifting the transmission into PARK.
Shifting Out of NEUTRAL
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring vehicle to a complete stop.
2. Shut engine OFF.
3. Turn the ignition key to the ON position without
starting the engine.
4. Depress brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using the point of a ballpoint pen or similar object,
depress the recessed transfer case NEUTRAL button for
one second.
7. After the NEUTRAL indicator light turns off, release
the NEUTRAL button.
374 STARTING AND OPERATING

INTRODUCTION INTRODUCTION ROLLOVER WARNING HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD
ABOUT YOUR KEYS Ignition Key RemovalLocking Doors With The KeySTEERING WHEEL LOCK - IF EQUIPPED To Manually Lock the Steering WheelTo Release the Steering Wheel LockAutomatic Transaxle Ignition Interlock System - If EquippedSENTRY KEY
Replacement KeysCustomer Key ProgrammingGeneral InformationVEHICLE SECURITY ALARM - IF EQUIPPED To Set the AlarmTo Disarm the SystemILLUMINATEDENTRY Vehicles Equipped With Power Door LocksREMOTE KEYLESS ENTRY (RKE) To Unlock the
Doors and LiftgateTo Lock the Doors and LiftgateUsing the Panic AlarmGeneral InformationProgramming Additional TransmittersBattery ReplacementREMOTE STARTING SYSTEM - IF EQUIPPED How to Use Remote StartDOOR LOCKS Manual Door LocksPower Door
LocksChild Protection Door LockWINDOWS Power Windows Auto DownAuto Up Feature with Anti-Pinch Protection (Drivers and Front Passenger Door Only)Window Lockout SwitchLIFTGATE Power Liftgate - If EquippedOCCUPANT RESTRAINTS Lap/Shoulder Belts
Adjustable Upper Shoulder Belt AnchorageAutomatic Locking Retractors (ALR) Mode - If EquippedRear 60/40 Seat Third Row Center Three Point Belt - If EquippedSeat Belt PretensionersEnhanced Seat Belt Use Reminder System (BeltAlert)Seat Belts and Pregnant Women
Seat Belt ExtenderDriver And Right Front Passenger Supplemental Restraint System (SRS)-Airbags Event Data Recorder (EDR)Child RestraintENGINE BREAK-IN RECOMMENDATIONS SAFETY TIPS Transporting PassengersExhaust GasSafety Checks You Should Make
Inside The VehiclePeriodic Safety Checks You Should Make Outside The VehicleUNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night MirrorAutomatic Dimming Mirror - If EquippedOutside MirrorsOutside Folding Mirrors - If EquippedPower
MirrorsAutomatic Dimming Drivers Outside Mirror - If EquippedHeated Mirrors - If EquippedIlluminated Vanity Mirrors - If Equippeduconnect phone -IF EQUIPPED OperationPhone Call Featuresuconnect phone FeaturesAdvanced Phone ConnectivityThings You Should
Know About Your uconnect phoneGeneral InformationVOICE RECOGNITION SYSTEM (VR) - IF EQUIPPED Voice Recognition System (VR) OperationCommandsVoice TrainingSEATS Manual Front Seat AdjustmentManual Front Seat ReclinersManual Lumbar Support
Adjustment - If EquippedAdjustable Head Restraints - All Seating PositionsEight-Way Drivers Power Seat - If EquippedFour-Way Passengers Power Seat - If EquippedHeated Seats - If EquippedSecond Row Bucket Seats - Fold and TumbleSecond Row 40/20/40 Seat -
Fold and TumbleThird Row Seat Bench - If EquippedThird Row 60/40 Folding - If EquippedDRIVER MEMORY SEAT - IF EQUIPPED Setting Memory Positions and Linking RKE Transmitter to MemoryMemory Position RecallTo Disable A RKE Transmitter Linked to Memory
Self-Limiting ControlDriver Easy Exit and Easy Entry ControlTO OPEN AND CLOSE THE HOOD LIGHTS Headlight SwitchInterior LightsBattery SaverIlluminated EntryDaytime Running Lights (Canada Only)Lights-On ReminderFog Lights - If EquippedMultifunction Lever
WINDSHIELD WIPERS AND WASHERS Windshield WipersWindshield WashersTILT STEERING COLUMN DRIVER ADJUSTABLE PEDALS - IF EQUIPPED AdjustmentELECTRONIC SPEED CONTROL - IF EQUIPPED To ActivateTo Set At A Desired SpeedTo Deactivate
To Resume SpeedTo Vary The Speed SettingTo Accelerate For PassingREAR PARK ASSIST - IF EQUIPPED Rear Park Assist SensorsRear Park Assist Warning DisplayEnable/Disable The Rear Park AssistService The Rear Park AssistCleaning The Rear Park AssistREAR
BACKUP CAMERA - IF EQUIPPED Turning the Rear Camera On or Off - With Navigation RadioTurning the Rear Camera On or Off - Without Navigation RadioOVERHEAD CONSOLE Courtesy/Reading LightsOVERHEAD CONSOLE WITH ELECTRONIC VEHICLE
INFORMATION CENTER (EVIC) - IF EQUIPPED Dome/Reading LightsElectronic Vehicle Information Center (EVIC) - If EquippedCompass/Temperature ButtonGARAGE DOOR OPENER - IF EQUIPPED Programming HomeLinkGate Operator/Canadian ProgrammingUsing
HomeLinkReprogramming A Single HomeLink ButtonSecurityTroubleshooting TipsGeneral InformationPOWER SUNROOF - IF EQUIPPED Express Open FeatureWind BuffetingSunroof MaintenanceELECTRICAL POWER OUTLETS Configuring Power Outlets115-Volt
Inverter Outlet - If Equipped FLOOR CONSOLE Floor Console FeaturesRear Floor Console Features - If EquippedCARGO AREA FEATURES Cargo Management System - If EquippedREAR WINDOW FEATURES Rear Window Wiper/WasherRear Window Defrosting
FACTORY INSTALLED ROOF LUGGAGE RACK UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES INSTRUMENT CLUSTER INSTRUMENT CLUSTER DESCRIPTION ELECTRONIC DIGITAL CLOCK Clock Setting Procedure
AM/FM/CD/DVD RADIO (RER/REN) - IF EQUIPPED Operating Instructions - Voice Recognition System (VR) - If EquippedOperating Instructions - uconnect phone - If EquippedClock Setting ProcedureSALES CODE REQ - AM/FM STEREO RADIO AND 6-DISC CD/DVD
CHANGER (MP3/WMA AUX JACK) Operating Instructions - Radio ModeOperation Instructions - (DISC MODE for CD and MP3/WMA Audio Play, DVD-VIDEO)Notes OnPlaying MP3/WMA FilesLIST Button (DISC Mode for MP3/WMA Play)INFO Button (DISC Mode for
MP3/WMA Play)SALES CODE RES - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) Operating Instructions - Radio ModeOperation Instructions - CD MODE ForCD And MP3 Audio PlayNotes on Playing MP3 FilesOperation Instructions - Auxiliary Mode
SALES CODE RES/RSC - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) AND SIRIUS RADIO Operating Instructions - Radio ModeOperation Instructions - CD MODE for CD and MP3 Audio PlayNotes On Playing MP3 FilesLIST Button (CD Mode for MP3
Play)INFO Button (CD Mode for MP3 Play)UNIVERSAL CONSUMER INTERFACE (UCI) - IF EQUIPPED Connecting The iPodUsing This FeatureControlling The iPod Using Radio ButtonsPlay ModeList Or Browse Modeuconnect studios (SATELLITE RADIO) - IF EQUIPPED
(REN/REQ/RER/RES/REU RADIOS ONLY) System ActivationElectronic Serial Number/Sirius Identification Number (ESN/SID)Selecting uconnect studios (Satellite) ModeSatellite AntennaReception QualityOperating Instructions - uconnect studios (Satellite) ModeOperating
Instructions - uconnect phone (If Equipped)Operating Instructions - Video Entertainment System (VES) (If Equipped)uconnect studios (SIRIUS BACKSEAT TV) - IF EQUIPPED VIDEO ENTERTAINMENT SYSTEM (SALES CODE XRV) - IF EQUIPPED REMOTE SOUND
SYSTEM CONTROLS - IF EQUIPPED Radio OperationCD PlayerCD/DVD MAINTENANCE RADIO OPERATION AND CELLULAR PHONES CLIMATE CONTROLS Manual Control Air Conditioning OperationFront Blower ControlFront Mode ControlRear Temperature Control
- If EquippedRear Window Defrosting and Rear Window Washer/WiperAutomatic Temperature Control (ATC) - If EquippedAutomatic ControlLevel Of Automatic ControlManual Control (ATC)Rear Zone Climate Control - If Equipped Rear Rotary Temperature ControlFront
Unit to Rear Unit ChartOperating TipsOperating Tips Chart STARTING AND OPERATING STARTING PROCEDURES Normal StartingExtremely Cold Weather (below -20 degrees F or -29 degrees C)If Engine Fails To StartAfter StartingENGINE BLOCK HEATER - IF
EQUIPPED AUTOMATIC TRANSMISSION Brake/Transmission Interlock SystemGear RangesFOUR-WHEEL DRIVE OPERATION NV 140 Transfer Case Operating Information/Precautions - If EquippedNV 244 Generation II Transfer Case Operating Information/Precautions
- If EquippedShifting Procedure - NV 244 Generation II Transfer Case DRIVING ON SLIPPERY SURFACES DRIVING THROUGH WATER Flowing/Rising WaterShallow Standing WaterPOWER STEERING Power Steering Fluid CheckPARKING BRAKE ANTI-LOCK BRAKE
SYSTEM ELECTRONIC BRAKE CONTROL SYSTEM Anti-Lock Brake System (ABS)Traction Control System (TCS)Brake Assist System (BAS)Electronic Roll Mitigation (ERM)Electronic Stability Program (ESP)Trailer Sway Control (TSC)ESP/BAS Warning Light and
ESP/TCS Indicator LightTIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation PressuresTire Pressures for High Speed OperationRadial Ply TiresCompact
Spare Tire - If EquippedLimited-Use Spare - If EquippedTire SpinningTread Wear IndicatorsLife of TireReplacement TiresSUPPLEMENTAL TIRE PRESSURE INFORMATION - IF EQUIPPED TIRE CHAINS SNOW TIRES TIRE ROTATION RECOMMENDATIONS TIRE
PRESSURE MONITOR SYSTEM (TPMS) Base SystemPremium System - If EquippedGeneral InformationFUEL REQUIREMENTS Reformulated GasolineGasoline/Oxygenate BlendsE-85 Usage In Non-Flex Fuel VehiclesMMT In GasolineMaterials Added To FuelFuel
System CautionsCarbon Monoxide WarningsFLEXIBLE FUEL (4.7L ENGINE ONLY) - IF EQUIPPED E-85 General InformationETHANOL FUEL (E-85)Fuel RequirementsSelection Of Engine Oil For Flexible Fuel Vehicles (E-85) and Gasoline VehiclesStartingCruising Range
Replacement PartsADDING FUEL Fuel Filler Cap (Gas Cap)Loose Fuel Filler Cap (Gas Cap) MessageVEHICLE LOADING Certification LabelCurb WeightLoadingTRAILER TOWING Common Towing DefinitionsTrailer Hitch ClassificationTrailer Towing Weights (Maximum
Trailer Weight Ratings)Trailer and Tongue WeightTowing RequirementsTowing TipsSNOWPLOW RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) 2WD Models4WD ModelsWHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER JACKING
INSTRUCTIONS Jack LocationRemoving The Spare TireTire Changing ProcedureJUMP-STARTING PROCEDURES FREEING A STUCK VEHICLE EMERGENCY TOW HOOKS - IF EQUIPPED TOWING A DISABLED VEHICLE Four-Wheel Drive VehiclesTwo-Wheel Drive
VehiclesMAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 3.7L ENGINE COMPARTMENT - 4.7L ENGINE COMPARTMENT - 5.7L ONBOARD DIAGNOSTIC SYSTEM - OBD II Loose Fuel Filler Cap MessageEMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS REPLACEMENT PARTS DEALER SERVICE MAINTENANCE PROCEDURES Engine OilEngine Oil FilterEngine Air Cleaner FilterMaintenance-Free BatteryAir Conditioner MaintenanceDrive Shaft Constant Velocity JointsBody LubricationWindshield Wiper
BladesAdding Washer FluidExhaust SystemCooling SystemBrake SystemAutomatic TransmissionTransfer CaseAxlesAppearance Care and Protection From CorrosionFUSES Interior FusesUnderhood Fuses (Power Distribution Center) Underhood Fuses (Integrated Power
Module) VEHICLE STORAGE REPLACEMENT LIGHT BULBS BULB REPLACEMENT Headlights/Parking/Turn SignalRear Side Marker, Tail Lights, Turn Signals And Backup Lights - ReplacementLicense LightsCenter High-Mounted StoplightFog LightsFLUIDS AND

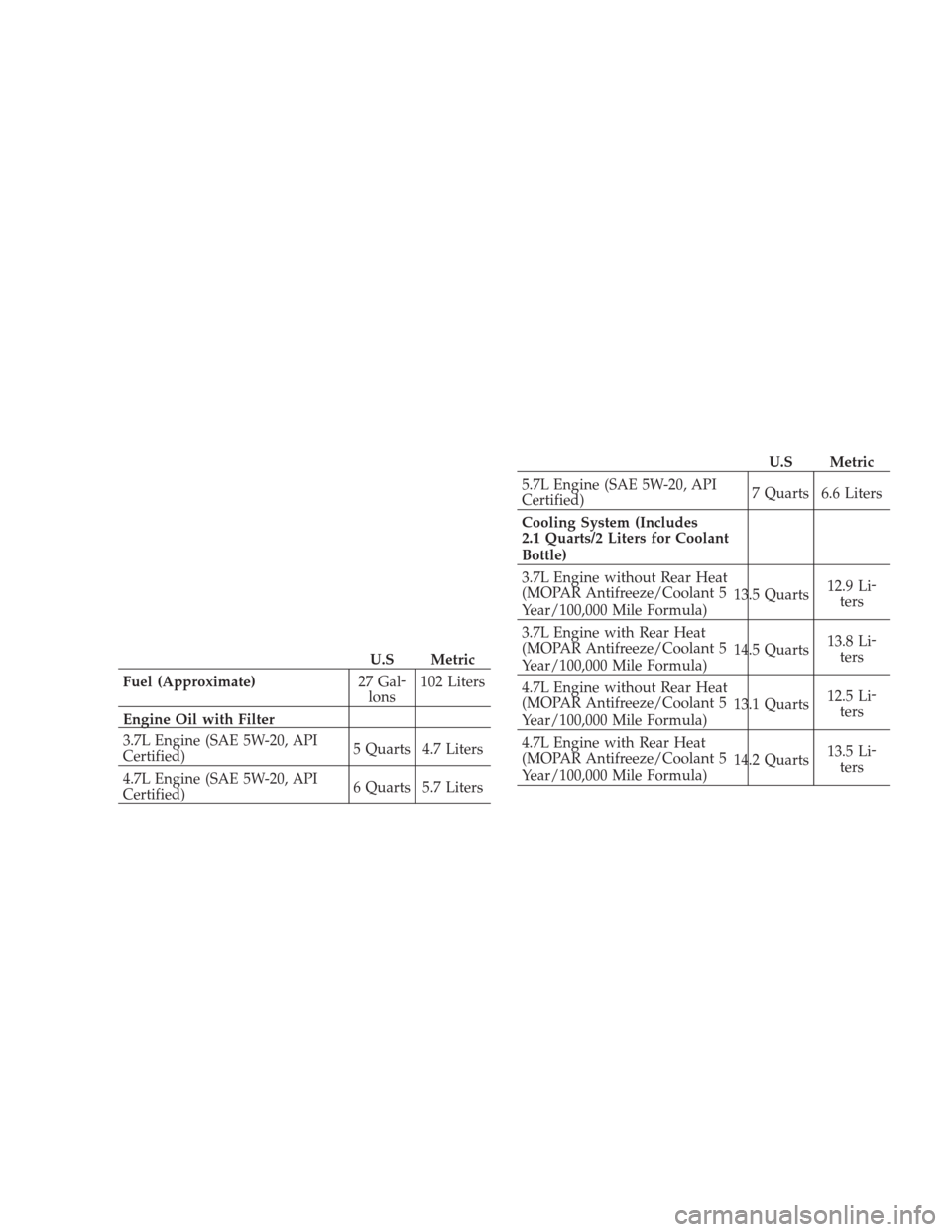

CAPACITIES
U.S Metric
Fuel (Approximate)27 Gal-
lons102 Liters
Engine Oil with Filter
3.7L Engine (SAE 5W-20, API
Certified)5 Quarts 4.7 Liters
4.7L Engine (SAE 5W-20, API
Certified)6 Quarts 5.7 Liters
U.S Metric
5.7L Engine (SAE 5W-20, API
Certified)7 Quarts 6.6 Liters
Cooling System (Includes
2.1 Quarts/2 Liters for Coolant
Bottle)
3.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.5 Quarts12.9 Li-
ters
3.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.5 Quarts13.8 Li-
ters
4.7L Engine without Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)13.1 Quarts12.5 Li-
ters
4.7L Engine with Rear Heat
(MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula)14.2 Quarts13.5 Li-
ters
