service indicator DODGE DURANGO 2012 3.G User Guide

The “ESC Malfunction Indicator Light” (located in the
instrument cluster) starts to flash as soon as the tires lose
traction and the ESC system becomes active. The “ESC
Malfunction Indicator Light” also flashes when TCS is
active. If the “ESC Malfunction Indicator Light” begins to
flash during acceleration, ease up on the accelerator and
apply as little throttle as possible. Be sure to adapt your
speed and driving to the prevailing road conditions.
NOTE:
•The “ESC Malfunction Indicator Light” and the “ESC
OFF Indicator Light” come on momentarily each time
the ignition switch is turned ON.
•Each time the ignition is turned ON, the ESC system
will be ON even if it was turned off previously.
•The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
TIRE SAFETY INFORMATION
Tire Markings
1 — U.S. DOT Safety
Standards Code (TIN)4 — Maximum Load
2 — Size Designation 5 — Maximum Pressure
3 — Service Description 6 — Treadwear, Traction and
Temperature Grades
478 STARTING AND OPERATING

These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes 1/16 in (2 mm). When the tread is worn to the
tread wear indicators, the tire should be replaced.
Life Of Tire
The service life of a tire is dependent upon various
factors including but not limited to:
•Driving style
•Tire pressure
•Distance driven
WARNING!
Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have an collision resulting
in serious injury or death.
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
1—WornTire
2—NewTire
5
STARTING AND OPERATING 495

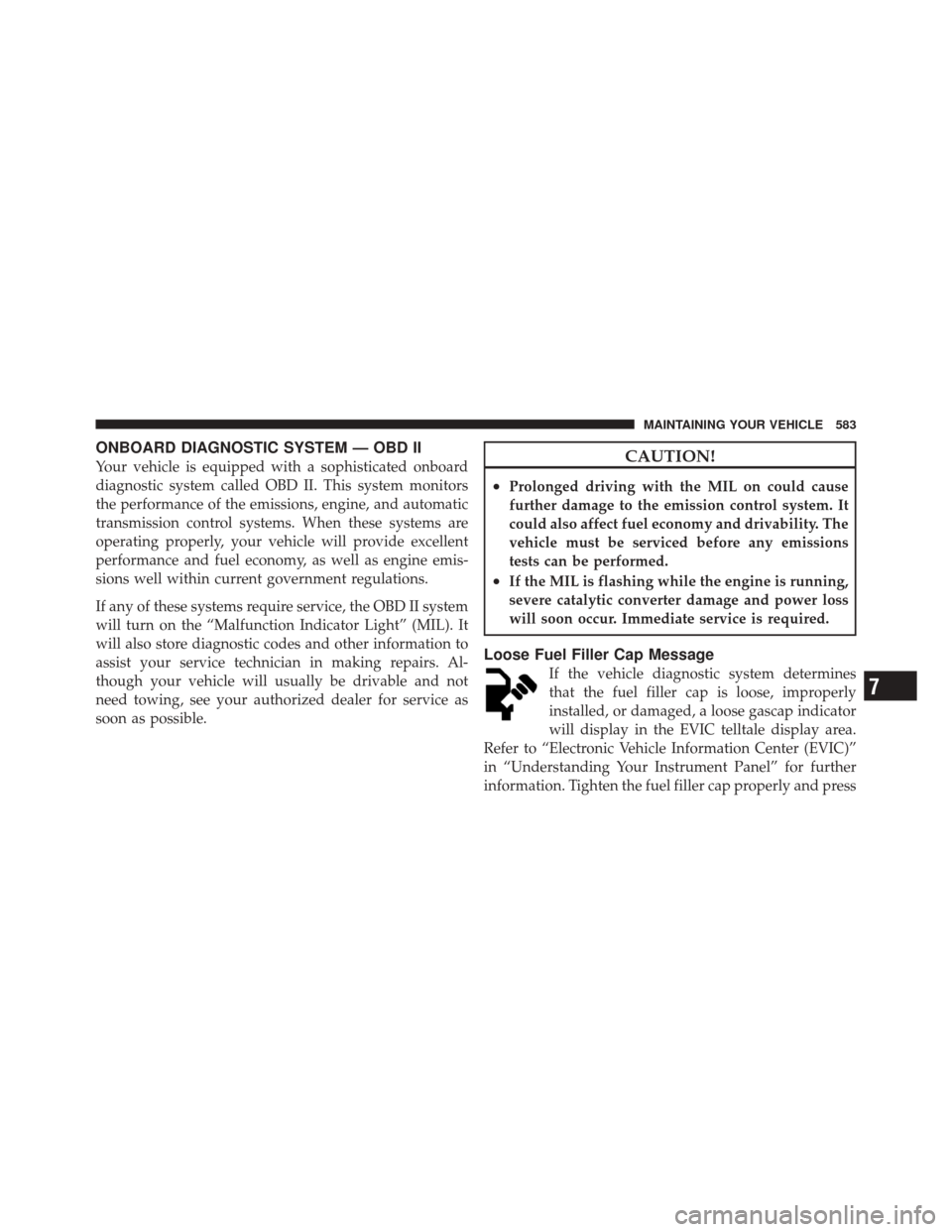

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the EVIC telltale display area.
Refer to “Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for further
information. Tighten the fuel filler cap properly and press
7
MAINTAINING YOUR VEHICLE 583

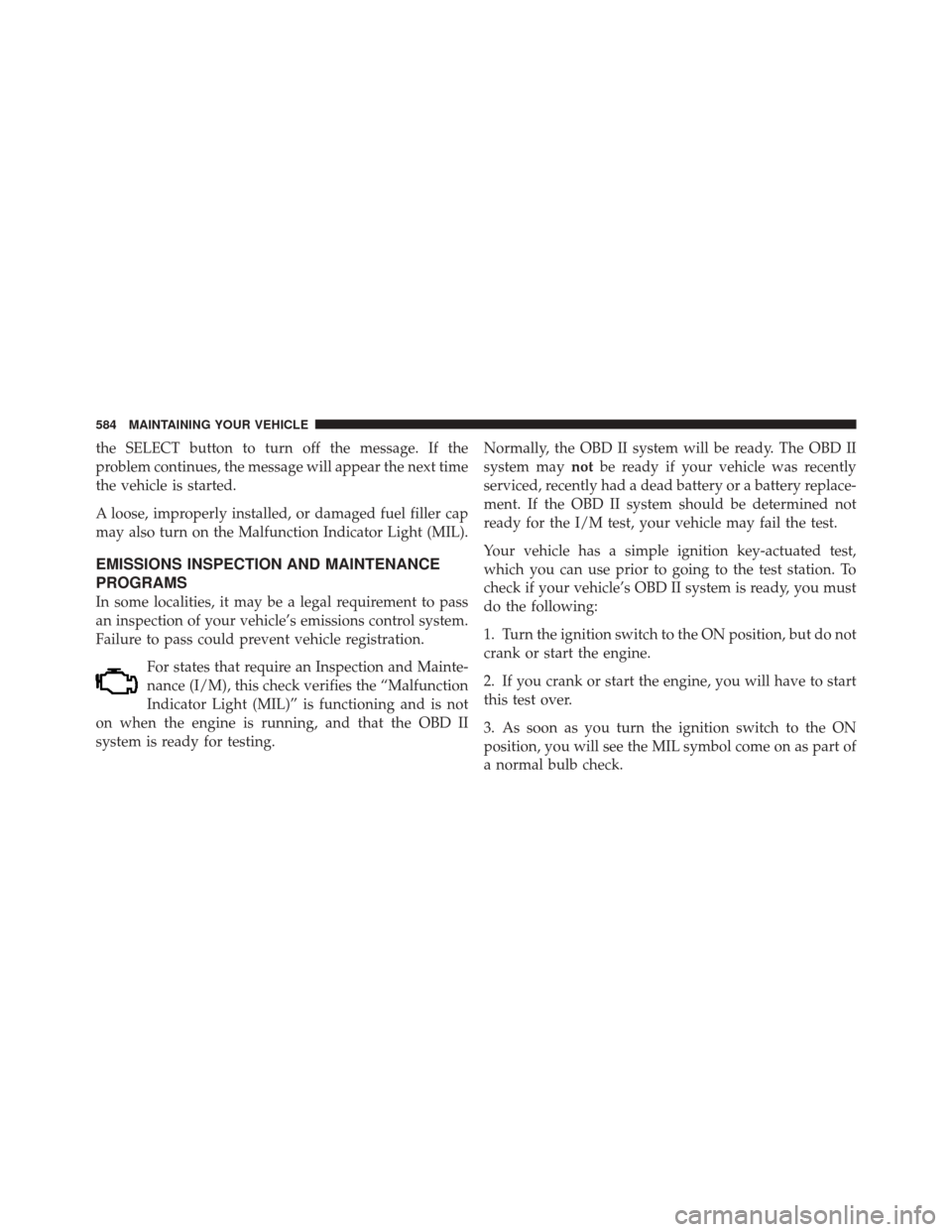

the SELECT button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
584 MAINTAINING YOUR VEHICLE

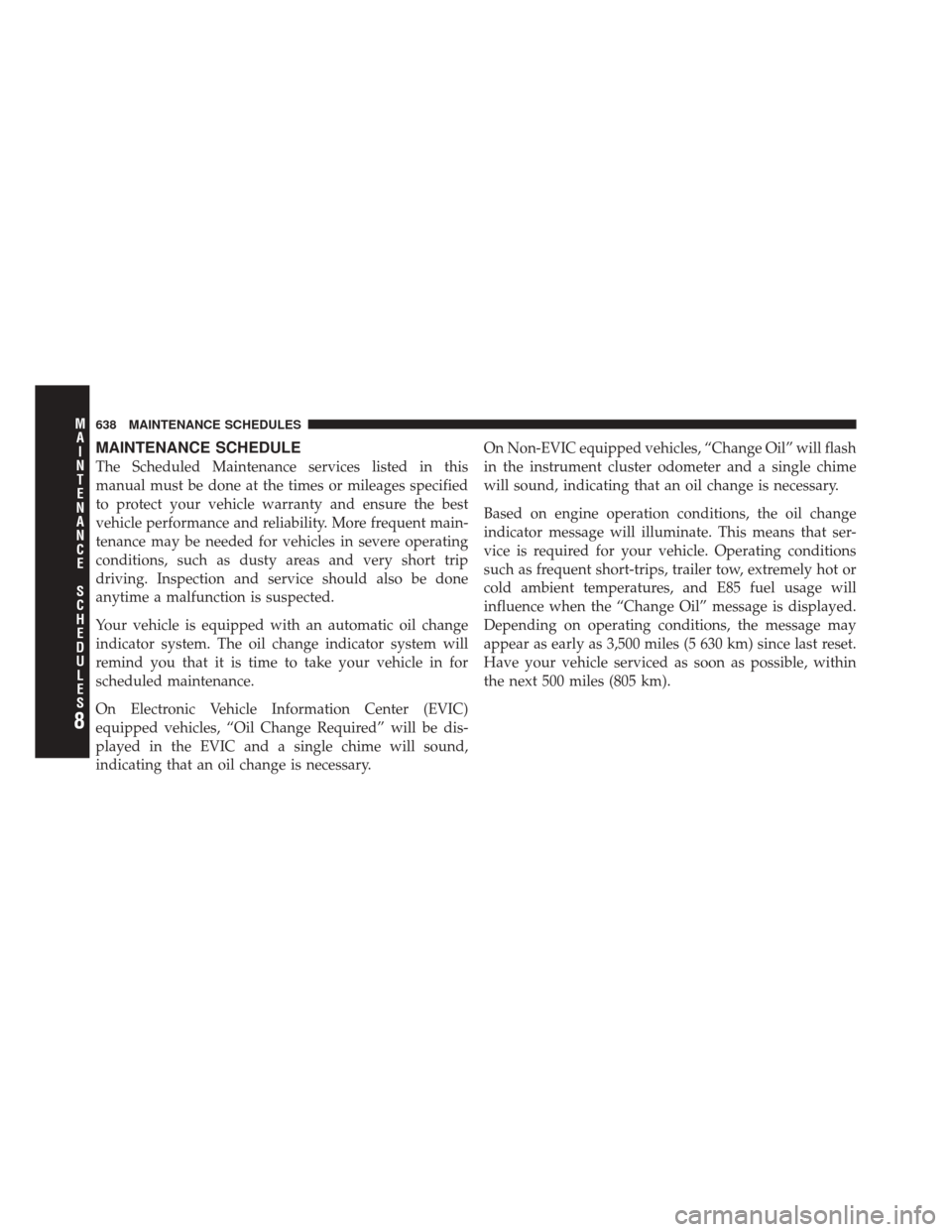

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S638 MAINTENANCE SCHEDULES

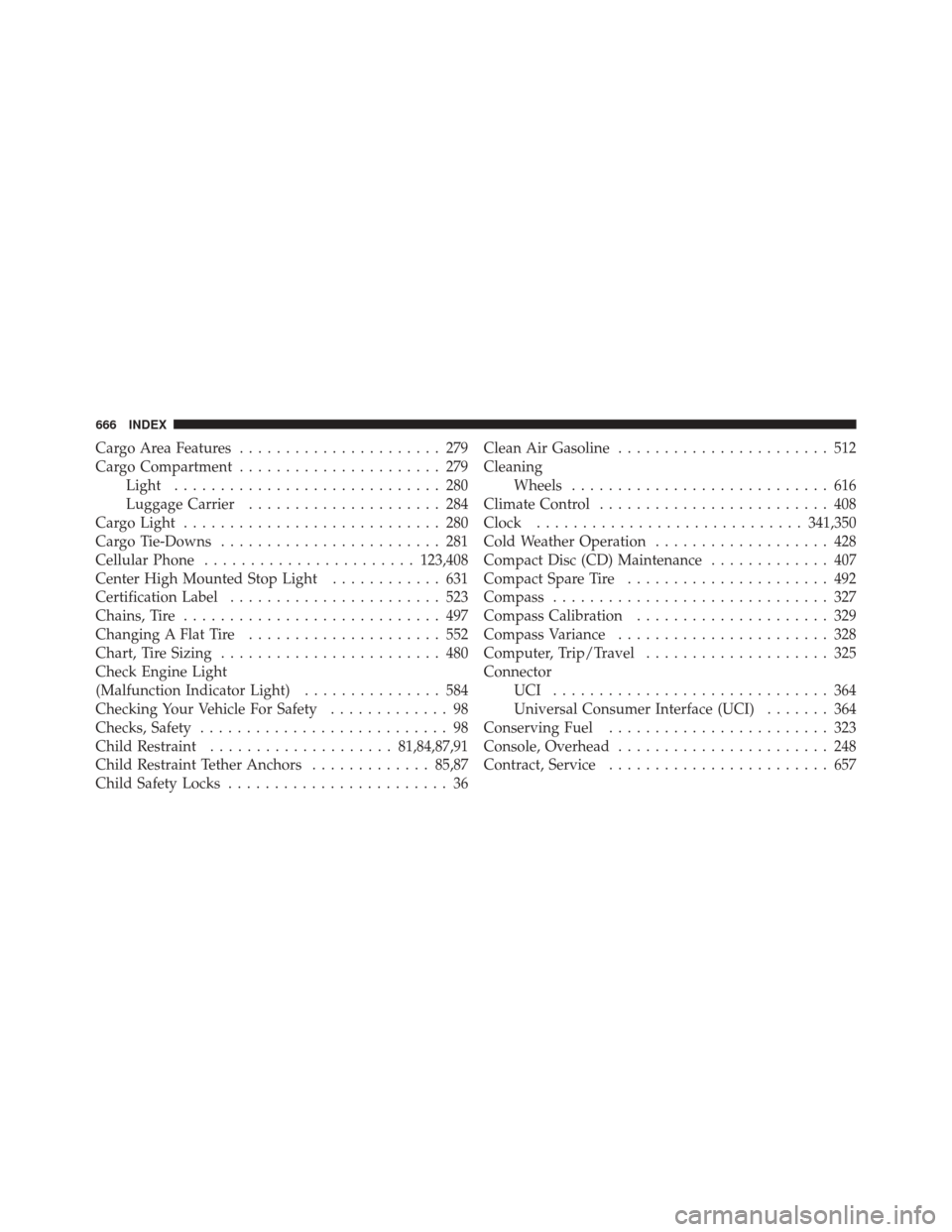

Cargo Area Features...................... 279
Cargo Compartment ...................... 279
Light ............................. 280
Luggage Carrier ..................... 284
Cargo Light ............................ 280
Cargo Tie-Downs ........................ 281
Cellular Phone ....................... 123,408
Center High Mounted Stop Light ............ 631
Certification Label ....................... 523
Chains, Tire ............................ 497
Changing A Flat Tire ..................... 552
Chart, Tire Sizing ........................ 480
Check Engine Light
(Malfunction Indicator Light) ............... 584
Checking Your Vehicle For Safety ............. 98
Checks, Safety ........................... 98
Child Restraint .................... 81,84,87,91
Child Restraint Tether Anchors .............85,87
Child Safety Locks ........................ 36 Clean Air Gasoline
....................... 512
Cleaning Wheels ............................ 616
Climate Control ......................... 408
Clock ............................. 341,350
Cold Weather Operation ................... 428
Compact Disc (CD) Maintenance ............. 407
Compact Spare Tire ...................... 492
Compass .............................. 327
Compass Calibration ..................... 329
Compass Variance ....................... 328
Computer, Trip/Travel .................... 325
Connector UCI .............................. 364
Universal Consumer Interface (UCI) ....... 364
Conserving Fuel ........................ 323
Console, Overhead ....................... 248
Contract, Service ........................ 657
666 INDEX

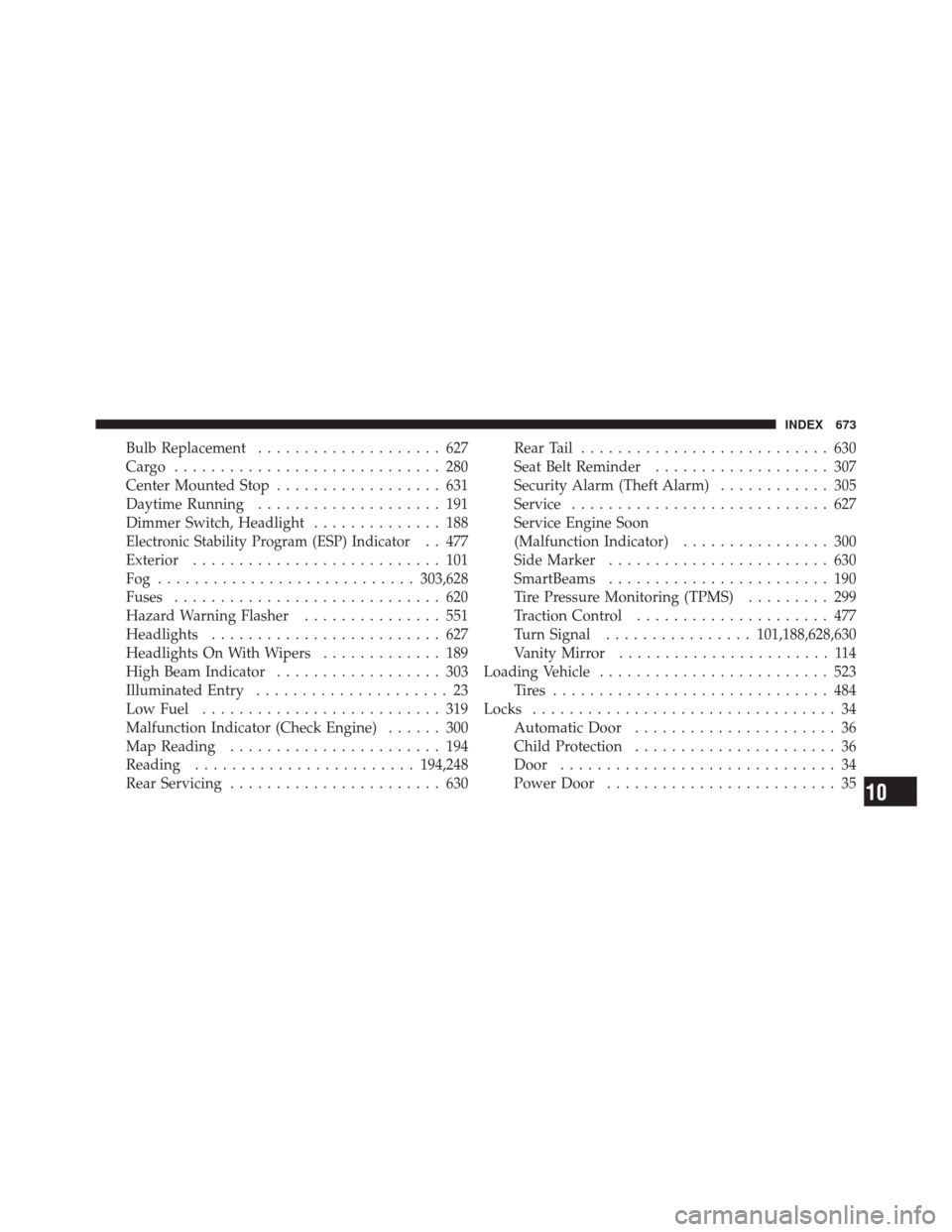

Bulb Replacement.................... 627
Cargo ............................. 280
Center Mounted Stop .................. 631
Daytime Running .................... 191
Dimmer Switch, Headlight .............. 188
Electronic Stability Program (ESP) Indicator. . 477
Exterior ........................... 101
Fog ............................ 303,628
Fuses ............................. 620
Hazard Warning Flasher ............... 551
Headlights ......................... 627
Headlights On With Wipers ............. 189
High Beam Indicator .................. 303
Illuminated Entry ..................... 23
Low Fuel .......................... 319
Malfunction Indicator (Check Engine) ...... 300
Map Reading ....................... 194
Reading ........................ 194,248
Rear Servicing ....................... 630 Rear Tail
........................... 630
Seat Belt Reminder ................... 307
Security Alarm (Theft Alarm) ............ 305
Service ............................ 627
Service Engine Soon
(Malfunction Indicator) ................ 300
Side Marker ........................ 630
SmartBeams ........................ 190
Tire Pressure Monitoring (TPMS) ......... 299
Traction Control ..................... 477
Turn Signal ................ 101,188,628,630
Vanity Mirror ....................... 114
Loading Vehicle ......................... 523
Tires .............................. 484
Locks ................................. 34
Automatic Door ...................... 36
Child Protection ...................... 36
Door .............................. 34
Power Door ......................... 35
10
INDEX 673

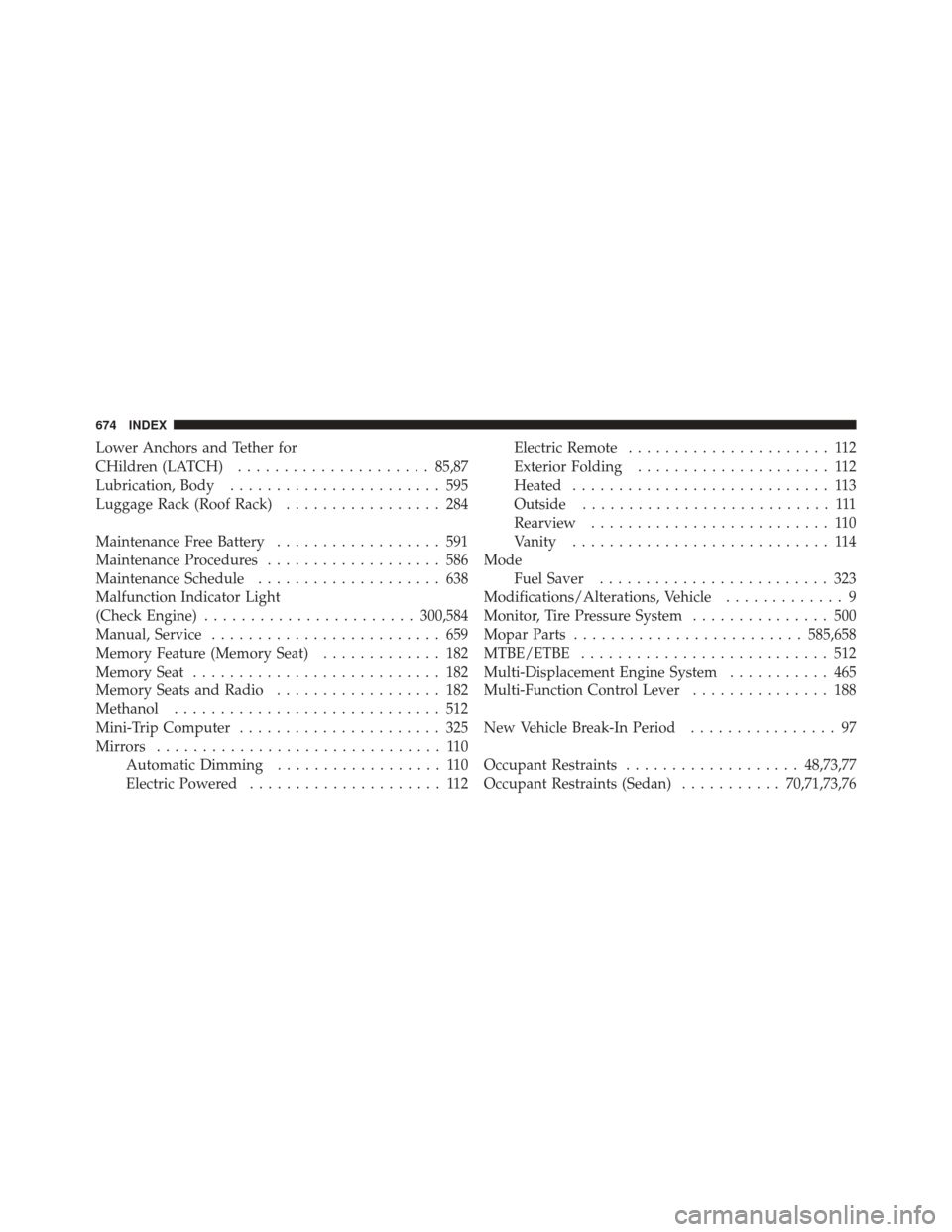

Lower Anchors and Tether for
CHildren (LATCH)..................... 85,87
Lubrication, Body ....................... 595
Luggage Rack (Roof Rack) ................. 284
Maintenance Free Battery .................. 591
Maintenance Procedures ................... 586
Maintenance Schedule .................... 638
Malfunction Indicator Light
(Check Engine) ....................... 300,584
Manual, Service ......................... 659
Memory Feature (Memory Seat) ............. 182
Memory Seat ........................... 182
Memory Seats and Radio .................. 182
Methanol ............................. 512
Mini-Trip Computer ...................... 325
Mirrors ............................... 110
Automatic Dimming .................. 110
Electric Powered ..................... 112 Electric Remote
...................... 112
Exterior Folding ..................... 112
Heated ............................ 113
Outside ........................... 111
Rearview .......................... 110
Vanity ............................ 114
Mode Fuel Saver ......................... 323
Modifications/Alterations, Vehicle ............. 9
Monitor, Tire Pressure System ............... 500
Mopar Parts ......................... 585,658
MTBE/ETBE ........................... 512
Multi-Displacement Engine System ........... 465
Multi-Function Control Lever ............... 188
New Vehicle Break-In Period ................ 97
Occupant Restraints ................... 48,73,77
Occupant Restraints (Sedan) ...........70,71,73,76
674 INDEX

Child Restraint................... 81,82,91
Extender ........................... 66
Front Seat .......................... 52
Inspection .......................... 99
Maintenance ........................ 619
Pretensioners ........................ 60
Reminder .......................... 307
Shoulder Belt Anchorage ................ 57
Untwisting Procedure .................. 56
Seats ................................. 158
Adjustment ......................... 163
Cleaning ........................... 617
Easy Entry ......................... 185
Memory ........................... 182
Power .......................... 158,160
Rear Folding ..................... 174,177
Reclining .......................... 164
Security Against Theft ..................... 20
Security Alarm (Theft Alarm) .............20,305Selection of Oil
......................... 588
Sentry Key (Immobilizer) ................... 18
Sentry Key Programming ................... 20
Sentry Key Replacement ................... 19
Service Assistance ....................... 655
Service Contract ......................... 657
Service Engine Soon Light
(Malfunction Indicator) .................... 300
Service Manuals ........................ 659
Setting the Clock ..................... 341,350
Settings, Personal ........................ 330
Shift Lever Override ...................... 573
Shifting ............................... 430
Automatic Transmission ................ 430
Transfer Case, Shifting into Transfer
Case Neutral (N) ..................... 543
Transfer Case, Shifting out of Transfer Case
Neutral (N) ......................... 546
Short Message Service (SMS) ................ 145
678 INDEX

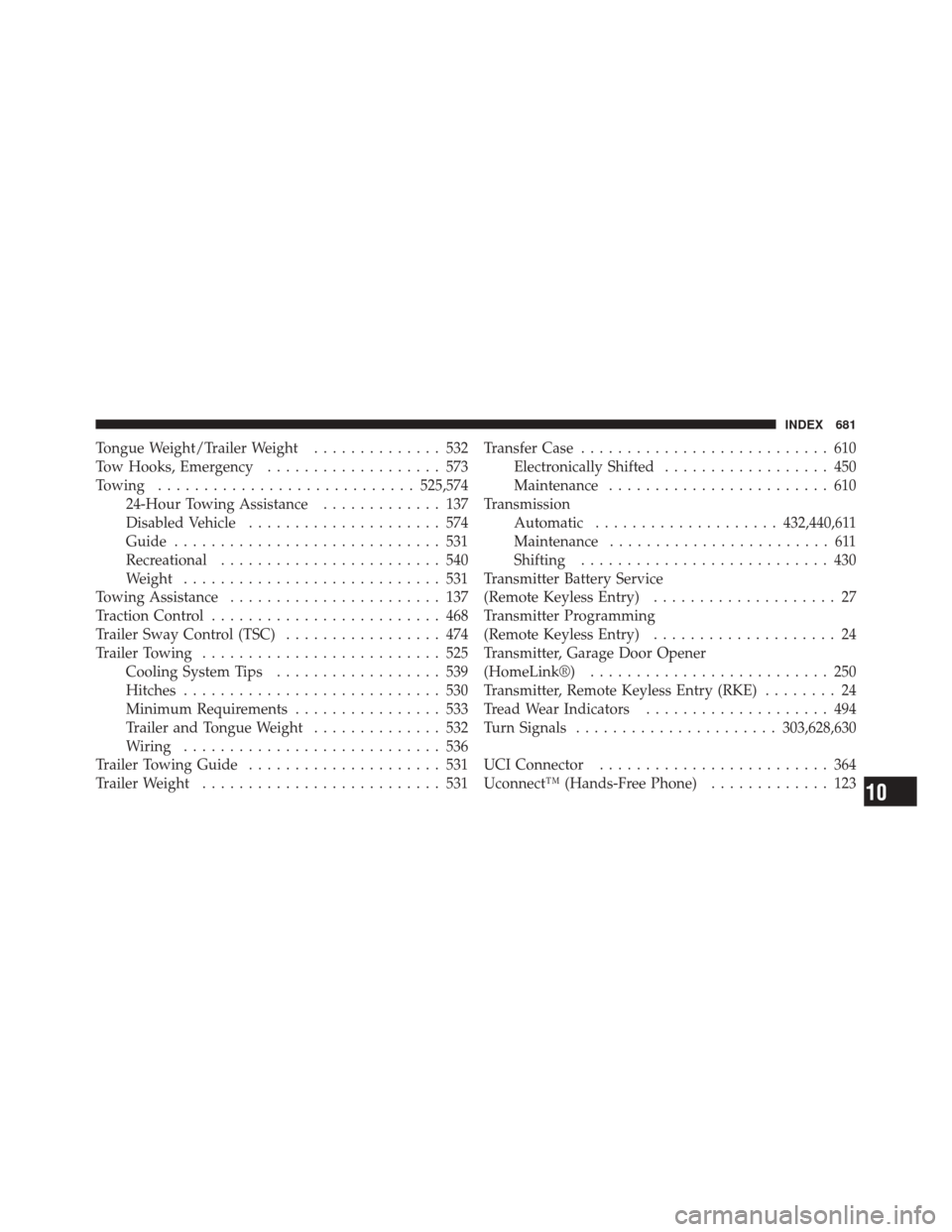

Tongue Weight/Trailer Weight.............. 532
Tow Hooks, Emergency ................... 573
Towing ............................ 525,574
24-Hour Towing Assistance ............. 137
Disabled Vehicle ..................... 574
Guide ............................. 531
Recreational ........................ 540
Weight ............................ 531
Towing Assistance ....................... 137
Traction Control ......................... 468
Trailer Sway Control (TSC) ................. 474
Trailer Towing .......................... 525
Cooling System Tips .................. 539
Hitches ............................ 530
Minimum Requirements ................ 533
Trailer and Tongue Weight .............. 532
Wiring ............................ 536
Trailer Towing Guide ..................... 531
Trailer Weight .......................... 531 Transfer Case
........................... 610
Electronically Shifted .................. 450
Maintenance ........................ 610
Transmission Automatic .................... 432,440,611
Maintenance ........................ 611
Shifting ........................... 430
Transmitter Battery Service
(Remote Keyless Entry) .................... 27
Transmitter Programming
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener
(HomeLink®) .......................... 250
Transmitter, Remote Keyless Entry (RKE) ........ 24
Tread Wear Indicators .................... 494
Turn Signals ...................... 303,628,630
UCI Connector ......................... 364
Uconnect™ (Hands-Free Phone) ............. 123
10
INDEX 681
