snow chains DODGE DURANGO 2012 3.G Owners Manual

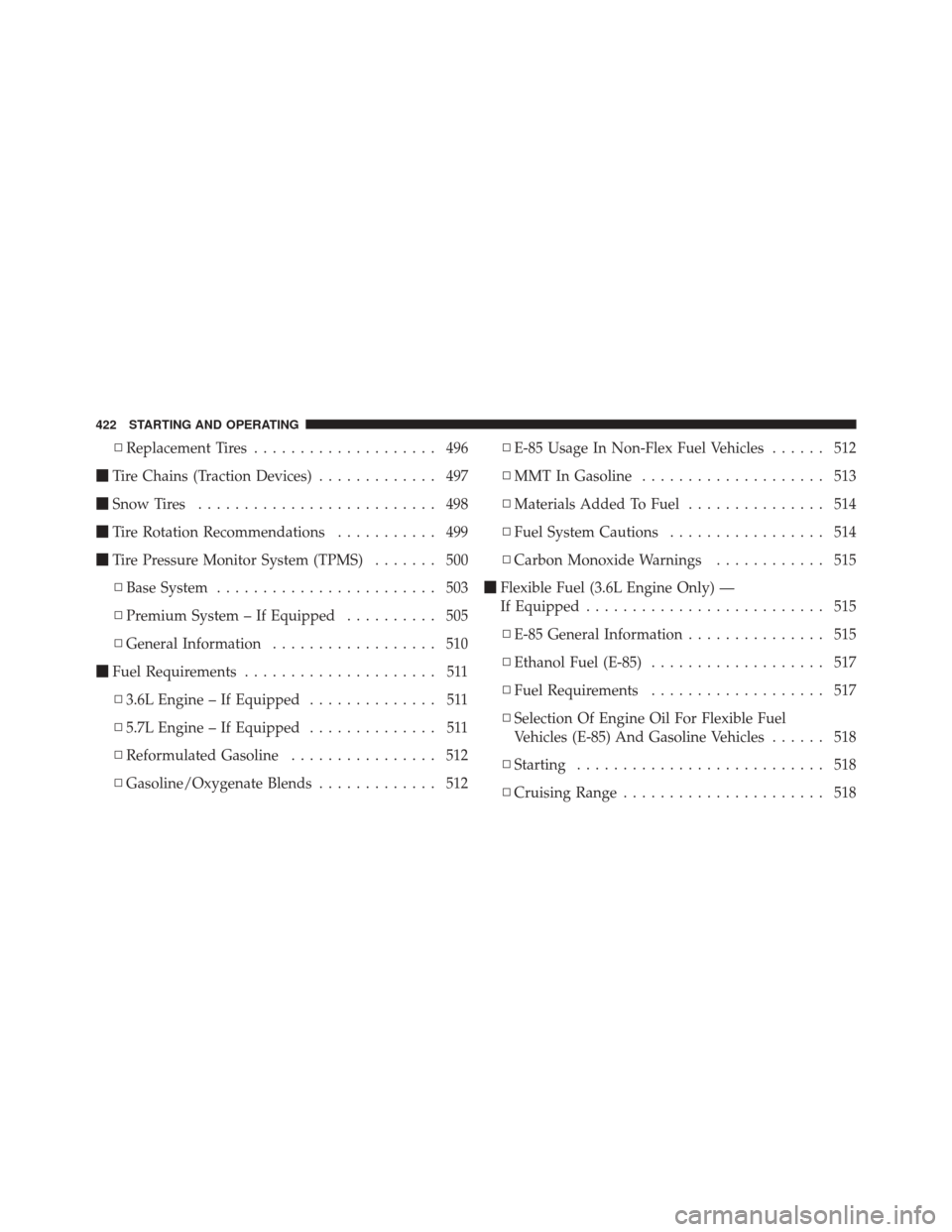

▫Replacement Tires .................... 496
 Tire Chains (Traction Devices) ............. 497
 Snow Tires .......................... 498
 Tire Rotation Recommendations ........... 499
 Tire Pressure Monitor System (TPMS) ....... 500
▫ Base System ........................ 503
▫ Premium System – If Equipped .......... 505
▫ General Information .................. 510
 Fuel Requirements ..................... 511
▫ 3.6L Engine – If Equipped .............. 511
▫ 5.7L Engine – If Equipped .............. 511
▫ Reformulated Gasoline ................ 512
▫ Gasoline/Oxygenate Blends ............. 512▫
E-85 Usage In Non-Flex Fuel Vehicles ...... 512
▫ MMT In Gasoline .................... 513
▫ Materials Added To Fuel ............... 514
▫ Fuel System Cautions ................. 514
▫ Carbon Monoxide Warnings ............ 515
 Flexible Fuel (3.6L Engine Only) —
If Equipped .......................... 515
▫ E-85 General Information ............... 515
▫ Ethanol Fuel (E-85) ................... 517
▫ Fuel Requirements ................... 517
▫ Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 518
▫ Starting ........................... 518
▫ Cruising Range ...................... 518
422 STARTING AND OPERATING

NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the “ESC OFF” switch. Once the
situation requiring ESC to be switched to the “Partial Off” mode is overcome, turn ESC back on by momen-
tarily pressing the “ESC OFF” switch. This may be done
while the vehicle is in motion.
WARNING!
•When in “Partial Off” mode, the TCS functionality
of ESC, (except for the limited slip feature de-
scribed in the TCS section), has been disabled and
the “ESC Off Indicator Light” will be illuminated.
When in “Partial Off” mode, the engine power
reduction feature of TCS is disabled, and the
enhanced vehicle stability offered by the ESC
system is reduced.
•Trailer Sway Control (TSC) is disabled when the
ESC system is in the “Partial Off” mode.
ESC OFF Switch
5
STARTING AND OPERATING 473

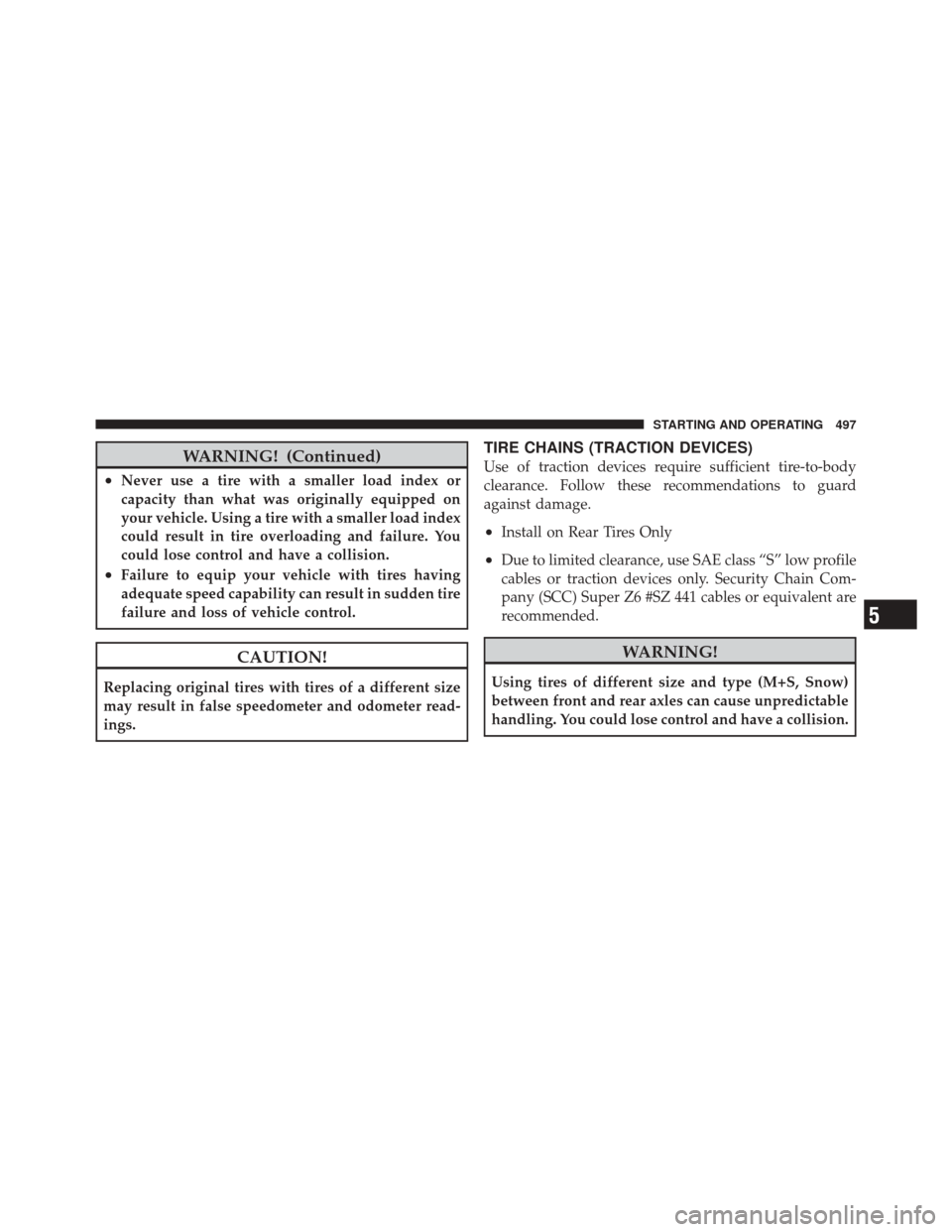

WARNING! (Continued)
•Never use a tire with a smaller load index or
capacity than what was originally equipped on
your vehicle. Using a tire with a smaller load index
could result in tire overloading and failure. You
could lose control and have a collision.
•Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size
may result in false speedometer and odometer read-
ings.
TIRE CHAINS (TRACTION DEVICES)
Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
•Install on Rear Tires Only
•Due to limited clearance, use SAE class “S” low profile
cables or traction devices only. Security Chain Com-
pany (SCC) Super Z6 #SZ 441 cables or equivalent are
recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
5
STARTING AND OPERATING 497

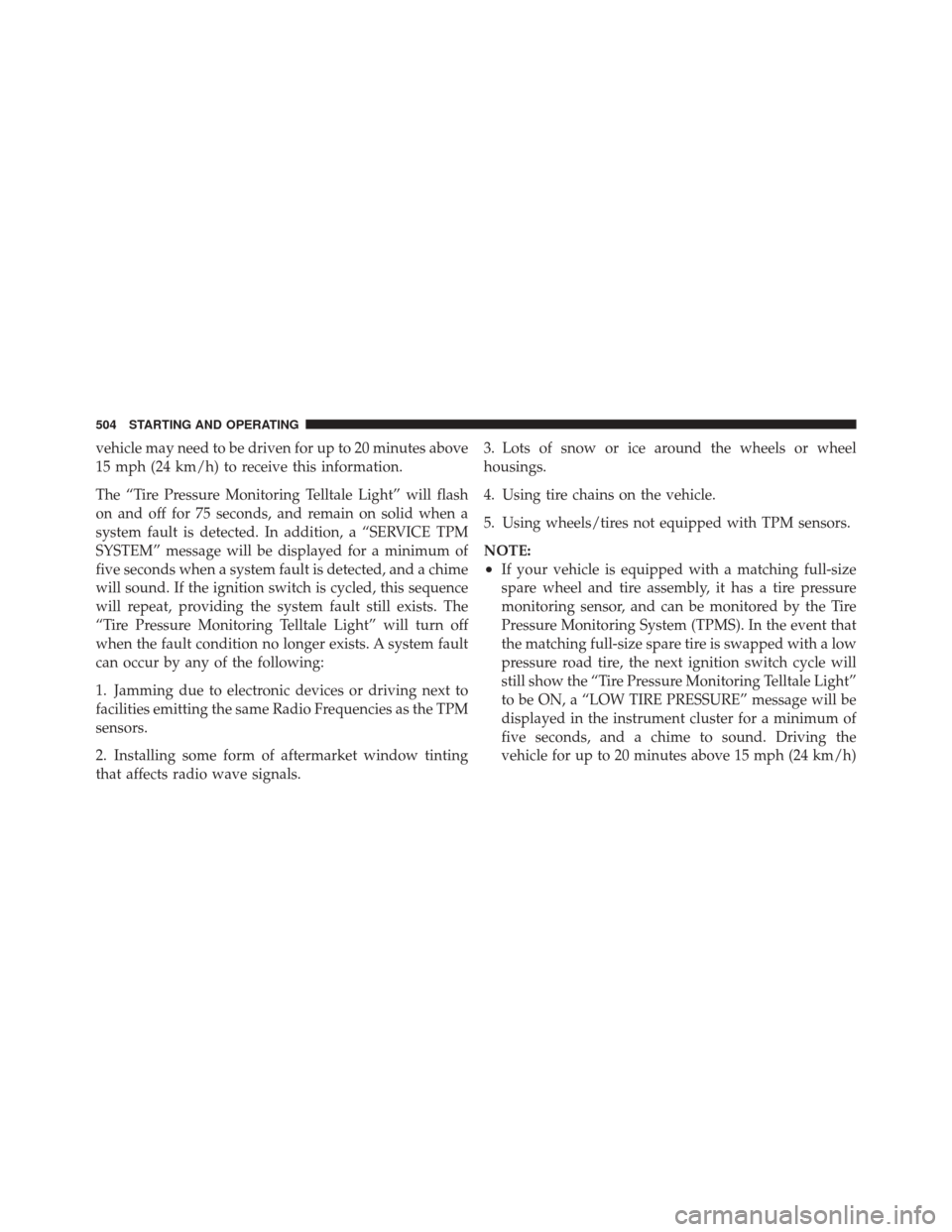

vehicle may need to be driven for up to 20 minutes above
15 mph (24 km/h) to receive this information.
The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds, and remain on solid when a
system fault is detected. In addition, a “SERVICE TPM
SYSTEM” message will be displayed for a minimum of
five seconds when a system fault is detected, and a chime
will sound. If the ignition switch is cycled, this sequence
will repeat, providing the system fault still exists. The
“Tire Pressure Monitoring Telltale Light” will turn off
when the fault condition no longer exists. A system fault
can occur by any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE:
•If your vehicle is equipped with a matching full-size
spare wheel and tire assembly, it has a tire pressure
monitoring sensor, and can be monitored by the Tire
Pressure Monitoring System (TPMS). In the event that
the matching full-size spare tire is swapped with a low
pressure road tire, the next ignition switch cycle will
still show the “Tire Pressure Monitoring Telltale Light”
to be ON, a “LOW TIRE PRESSURE” message will be
displayed in the instrument cluster for a minimum of
five seconds, and a chime to sound. Driving the
vehicle for up to 20 minutes above 15 mph (24 km/h)
504 STARTING AND OPERATING

NOTE:Your system can be set to display pressure units
in PSI, kPa, or BAR.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, the SERVICE TPM SYSTEMmessage will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur by
any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The EVIC will also display a
SERVICE TPM SYSTEM
message for a minimum of five seconds when a system
fault is detected possibly related to an incorrect sensor
location fault. In this case, the SERVICE TPM SYSTEM
508 STARTING AND OPERATING

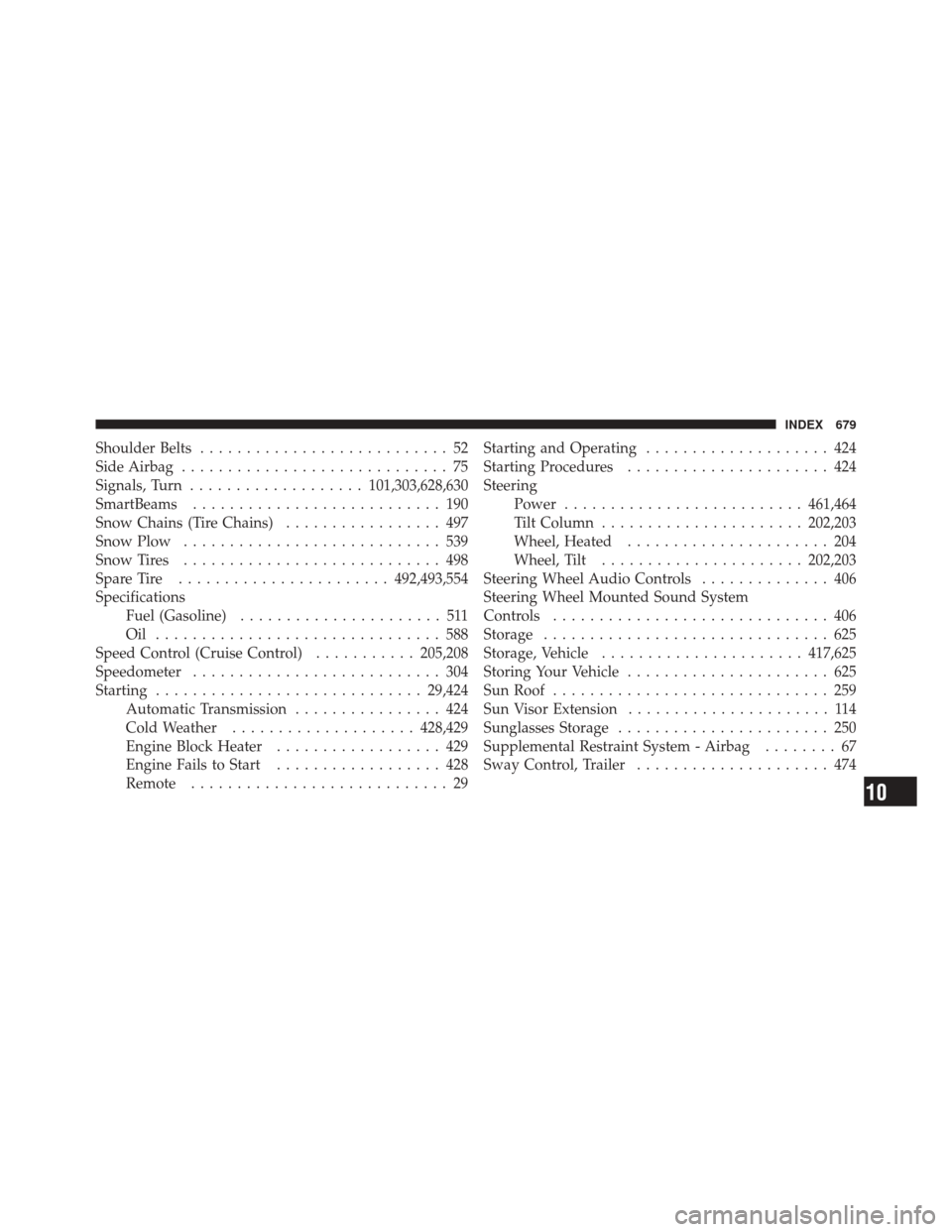

Shoulder Belts........................... 52
Side Airbag ............................. 75
Signals, Turn ................... 101,303,628,630
SmartBeams ........................... 190
Snow Chains (Tire Chains) ................. 497
Snow Plow ............................ 539
Snow Tires ............................ 498
Spare Tire ....................... 492,493,554
Specifications Fuel (Gasoline) ...................... 511
Oil ............................... 588
Speed Control (Cruise Control) ...........205,208
Speedometer ........................... 304
Starting ............................. 29,424
Automatic Transmission ................ 424
Cold Weather .................... 428,429
Engine Block Heater .................. 429
Engine Fails to Start .................. 428
Remote ............................ 29 Starting and Operating
.................... 424
Starting Procedures ...................... 424
Steering Power .......................... 461,464
Tilt Column ...................... 202,203
Wheel, Heated ...................... 204
Wheel, Tilt ...................... 202,203
Steering Wheel Audio Controls .............. 406
Steering Wheel Mounted Sound System
Controls .............................. 406
Storage ............................... 625
Storage, Vehicle ...................... 417,625
Storing Your Vehicle ...................... 625
Sun Roof .............................. 259
Sun Visor Extension ...................... 114
Sunglasses Storage ....................... 250
Supplemental Restraint System - Airbag ........ 67
Sway Control, Trailer ..................... 474
10
INDEX 679

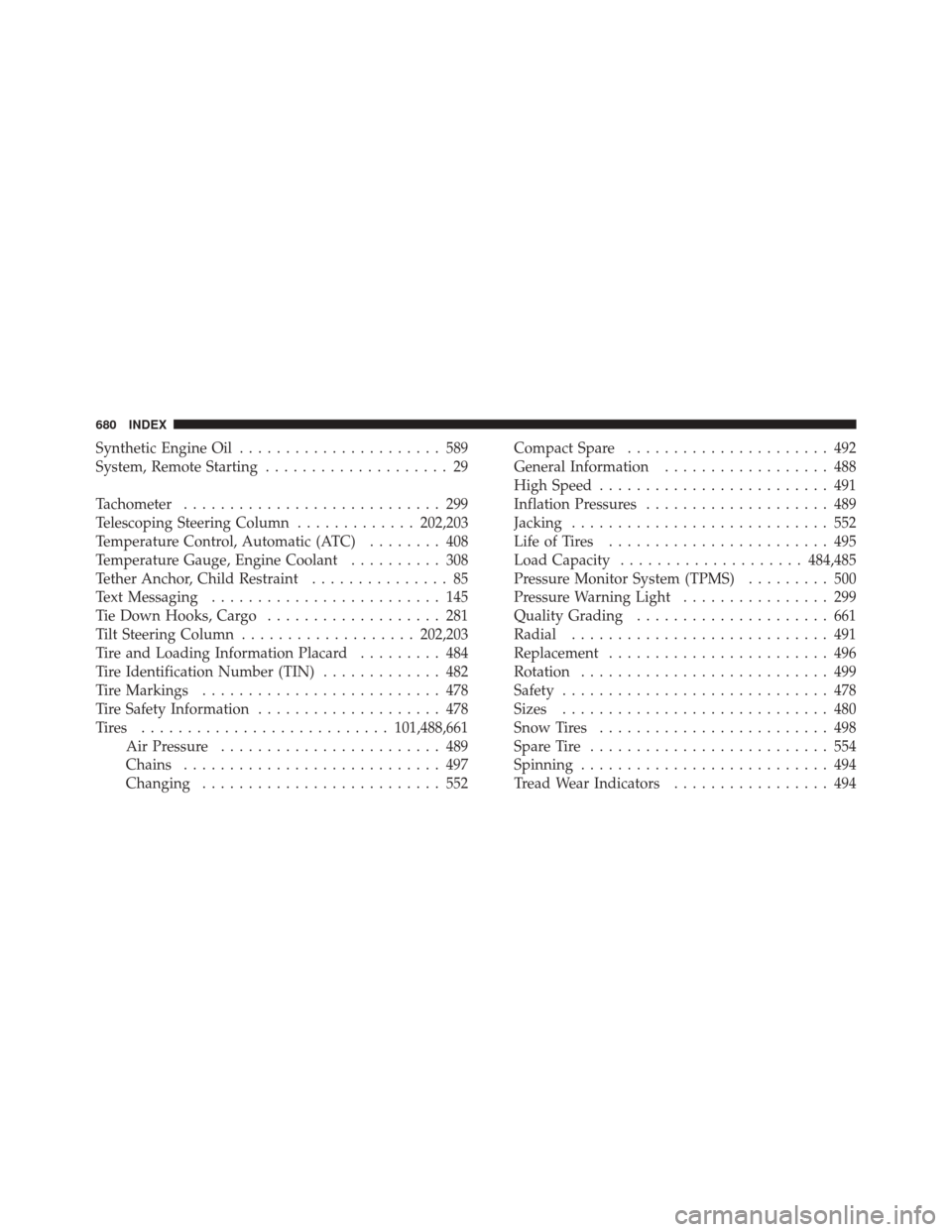

Synthetic Engine Oil...................... 589
System, Remote Starting .................... 29
Tachometer ............................ 299
Telescoping Steering Column .............202,203
Temperature Control, Automatic (ATC) ........ 408
Temperature Gauge, Engine Coolant .......... 308
Tether Anchor, Child Restraint ............... 85
Text Messaging ......................... 145
Tie Down Hooks, Cargo ................... 281
Tilt Steering Column ................... 202,203
Tire and Loading Information Placard ......... 484
Tire Identification Number (TIN) ............. 482
Tire Markings .......................... 478
Tire Safety Information .................... 478
Tires ........................... 101,488,661
Air Pressure ........................ 489
Chains ............................ 497
Changing .......................... 552 Compact Spare
...................... 492
General Information .................. 488
High Speed ......................... 491
Inflation Pressures .................... 489
Jacking ............................ 552
Life of Tires ........................ 495
Load Capacity .................... 484,485
Pressure Monitor System (TPMS) ......... 500
Pressure Warning Light ................ 299
Quality Grading ..................... 661
Radial ............................ 491
Replacement ........................ 496
Rotation ........................... 499
Safety ............................. 478
Sizes ............................. 480
Snow Tires ......................... 498
Spare Tire .......................... 554
Spinning ........................... 494
Tread Wear Indicators ................. 494
680 INDEX
