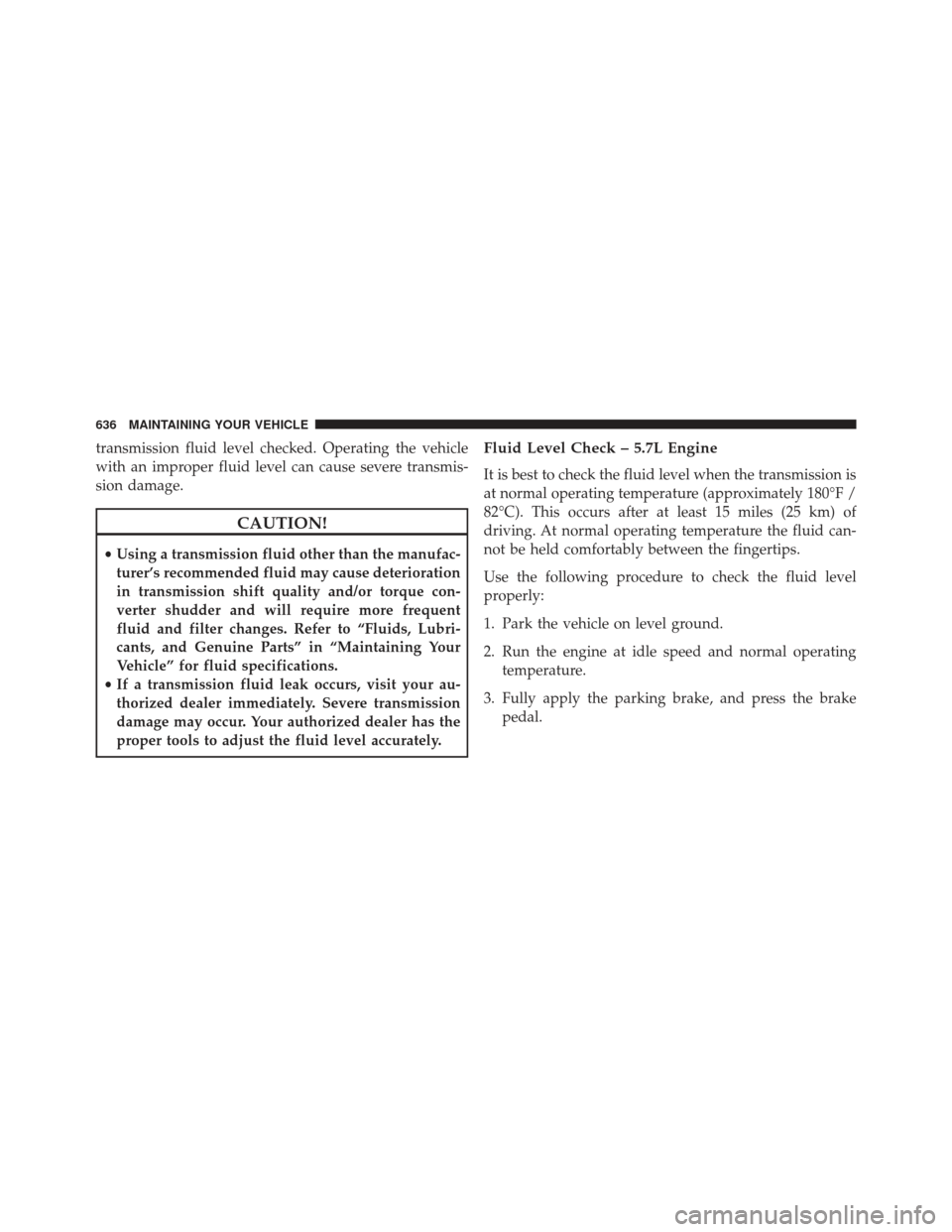

Page 638 of 699

transmission fluid level checked. Operating the vehicle
with an improper fluid level can cause severe transmis-
sion damage.
CAUTION!
•Using a transmission fluid other than the manufac-
turer’s recommended fluid may cause deterioration
in transmission shift quality and/or torque con-
verter shudder and will require more frequent
fluid and filter changes. Refer to “Fluids, Lubri-
cants, and Genuine Parts” in “Maintaining Your
Vehicle” for fluid specifications.
• If a transmission fluid leak occurs, visit your au-
thorized dealer immediately. Severe transmission
damage may occur. Your authorized dealer has the
proper tools to adjust the fluid level accurately.
Fluid Level Check – 5.7L Engine
It is best to check the fluid level when the transmission is
at normal operating temperature (approximately 180°F /
82°C). This occurs after at least 15 miles (25 km) of
driving. At normal operating temperature the fluid can-
not be held comfortably between the fingertips.
Use the following procedure to check the fluid level
properly:
1. Park the vehicle on level ground.
2. Run the engine at idle speed and normal operating temperature.
3. Fully apply the parking brake, and press the brake pedal.
636 MAINTAINING YOUR VEHICLE

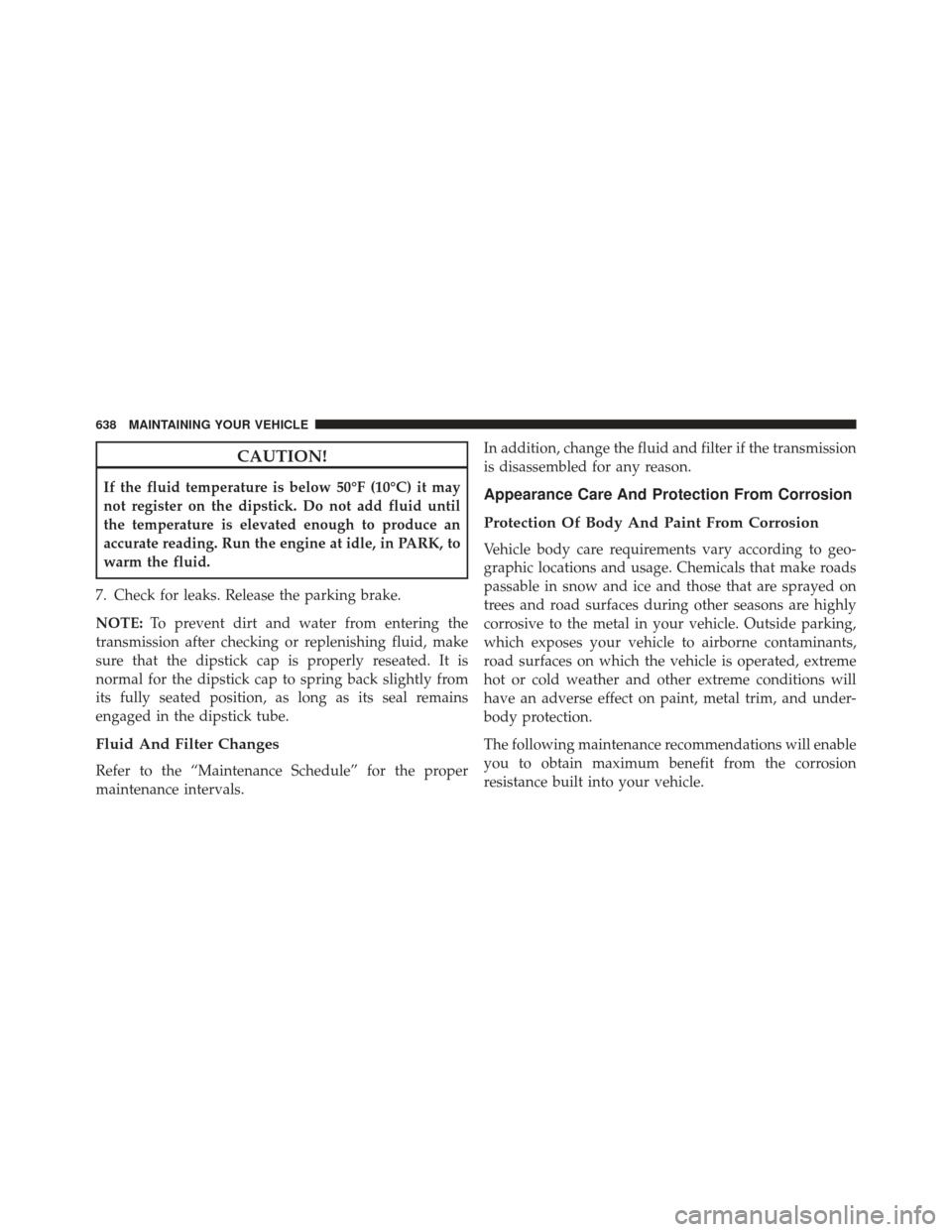

Page 640 of 699

CAUTION!
If the fluid temperature is below 50°F (10°C) it may
not register on the dipstick. Do not add fluid until
the temperature is elevated enough to produce an
accurate reading. Run the engine at idle, in PARK, to
warm the fluid.
7. Check for leaks. Release the parking brake.
NOTE: To prevent dirt and water from entering the
transmission after checking or replenishing fluid, make
sure that the dipstick cap is properly reseated. It is
normal for the dipstick cap to spring back slightly from
its fully seated position, as long as its seal remains
engaged in the dipstick tube.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals. In addition, change the fluid and filter if the transmission
is disassembled for any reason.
Appearance Care And Protection From Corrosion
Protection Of Body And Paint From Corrosion
Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
hot or cold weather and other extreme conditions will
have an adverse effect on paint, metal trim, and under-
body protection.
The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
638 MAINTAINING YOUR VEHICLE

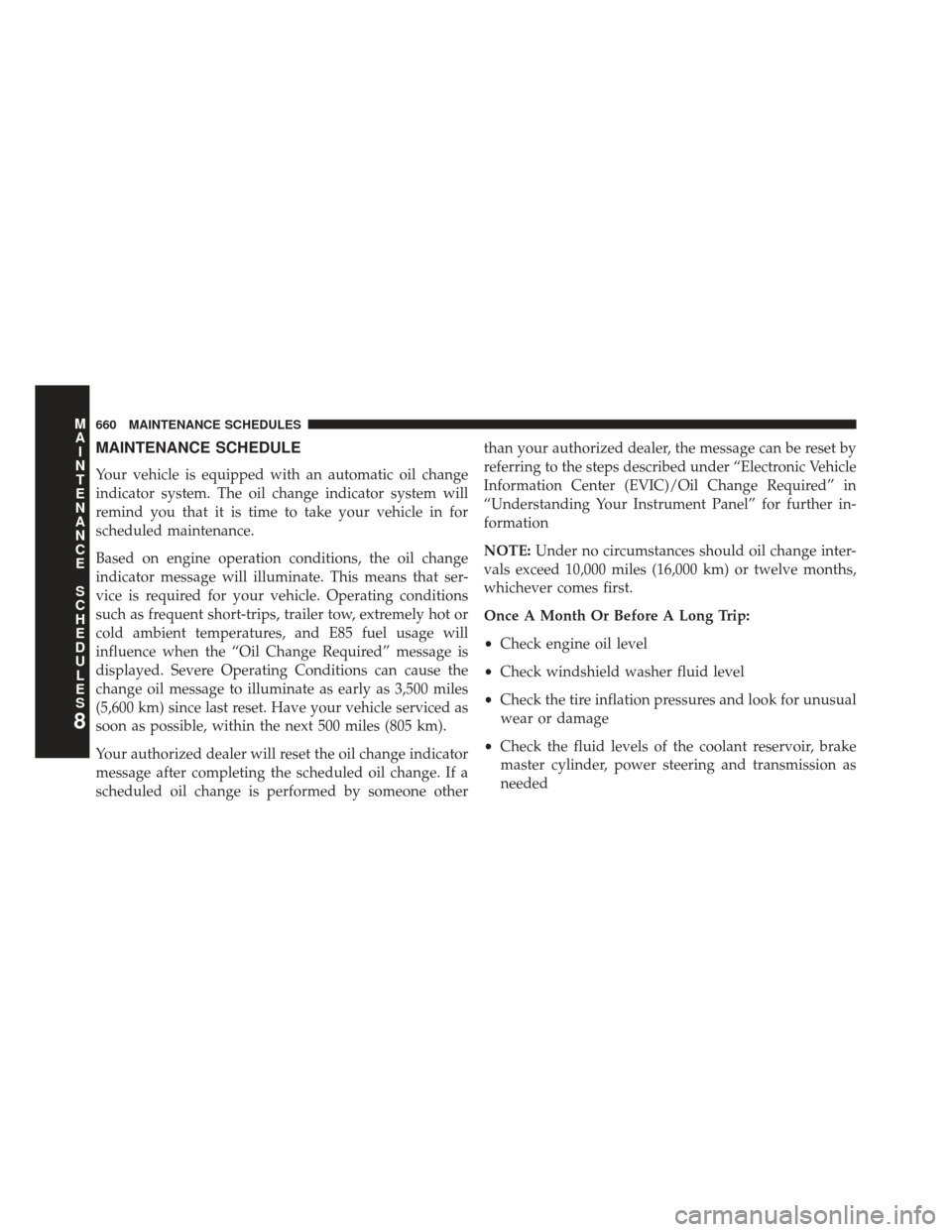

Page 662 of 699

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” for further in-
formation
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission as
needed
8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S660 MAINTENANCE SCHEDULES

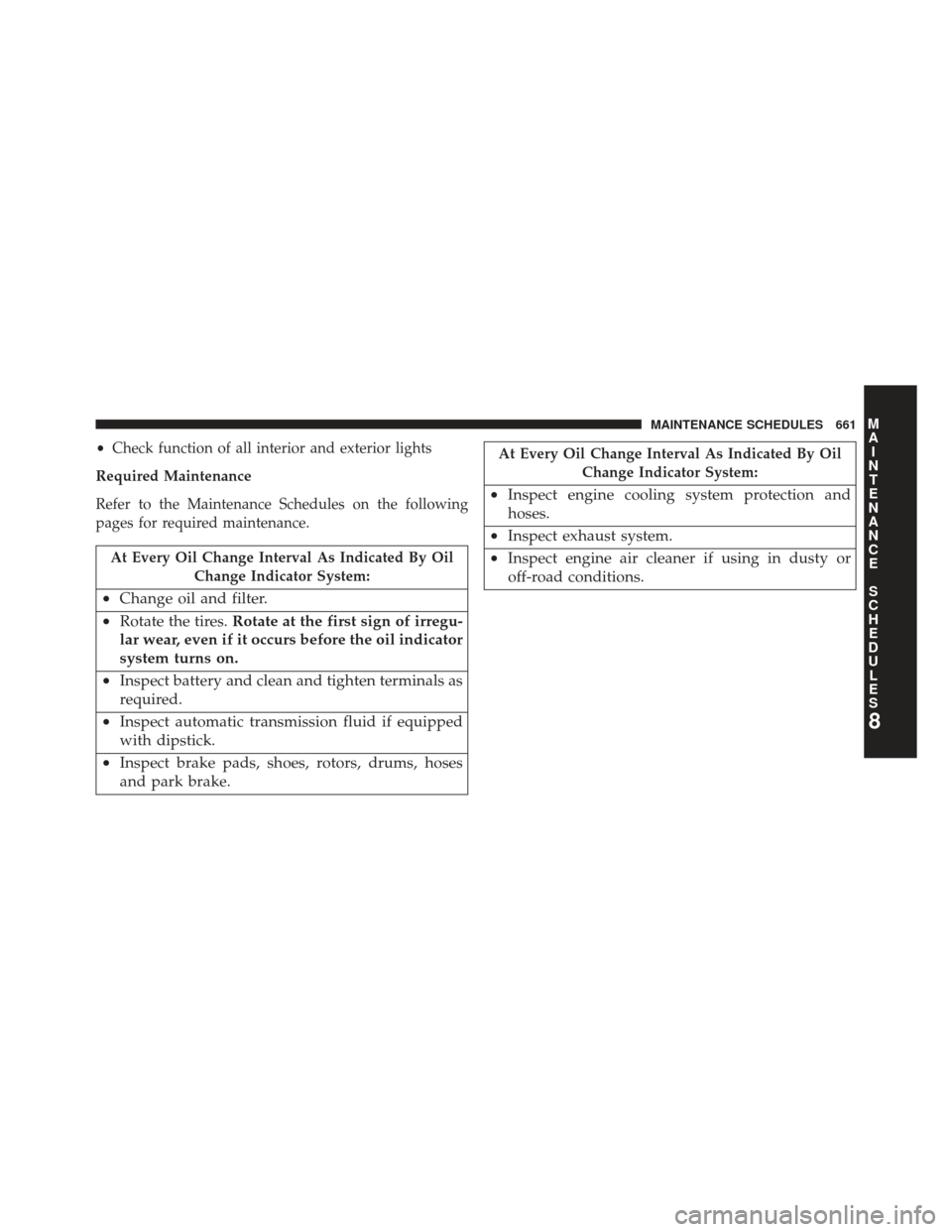

Page 663 of 699

•Check function of all interior and exterior lights
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 661

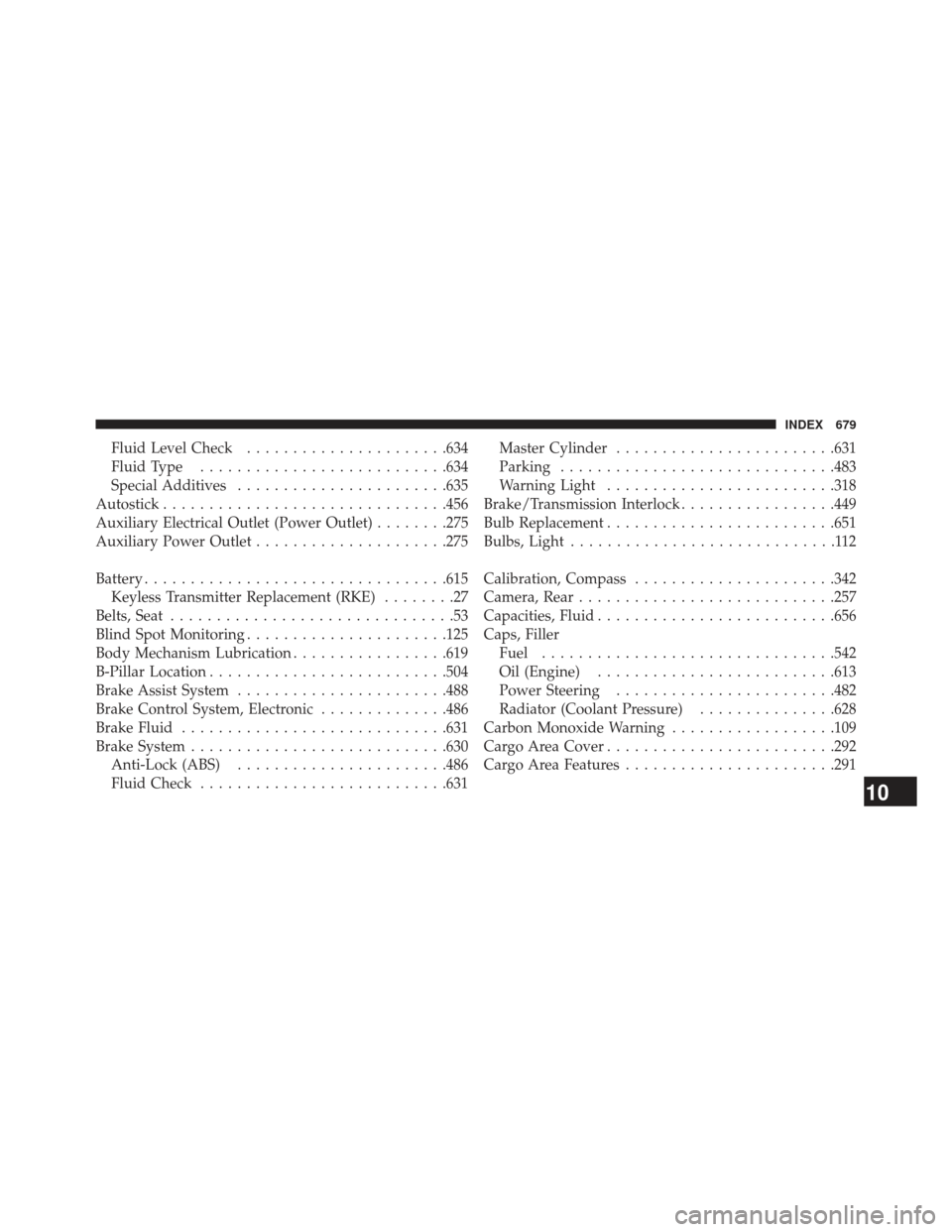

Page 681 of 699

Fluid Level Check..................... .634
Fluid Type .......................... .634
Special Additives ...................... .635
Autostick .............................. .456
Auxiliary Electrical Outlet (Power Outlet) ........275
Auxiliary Power Outlet .....................275
Battery ................................ .615
Keyless Transmitter Replacement (RKE) ........27
Belts, Seat ...............................53
Blind Spot Monitoring ..................... .125
Body Mechanism Lubrication .................619
B-Pillar Location ......................... .504
Brake Assist System ...................... .488
Brake Control System, Electronic ..............486
Brake Fluid ............................ .631
Brake System ........................... .630
Anti-Lock (ABS) ...................... .486
Fluid Check .......................... .631Master Cylinder
....................... .631
Parking ............................. .483
Warning Light ........................ .318
Brake/Transmission Interlock .................449
Bulb Replacement ........................ .651
Bulbs, Light .............................112
Calibration, Compass ..................... .342
Camera, Rear ........................... .257
Capacities, Fluid ......................... .656
Caps, Filler Fuel ............................... .542
Oil (Engine) ......................... .613
Power Steering ....................... .482
Radiator (Coolant Pressure) ...............628
Carbon Monoxide Warning ..................109
Cargo Area Cover ........................ .292
Cargo Area Features ...................... .291
10
INDEX 679

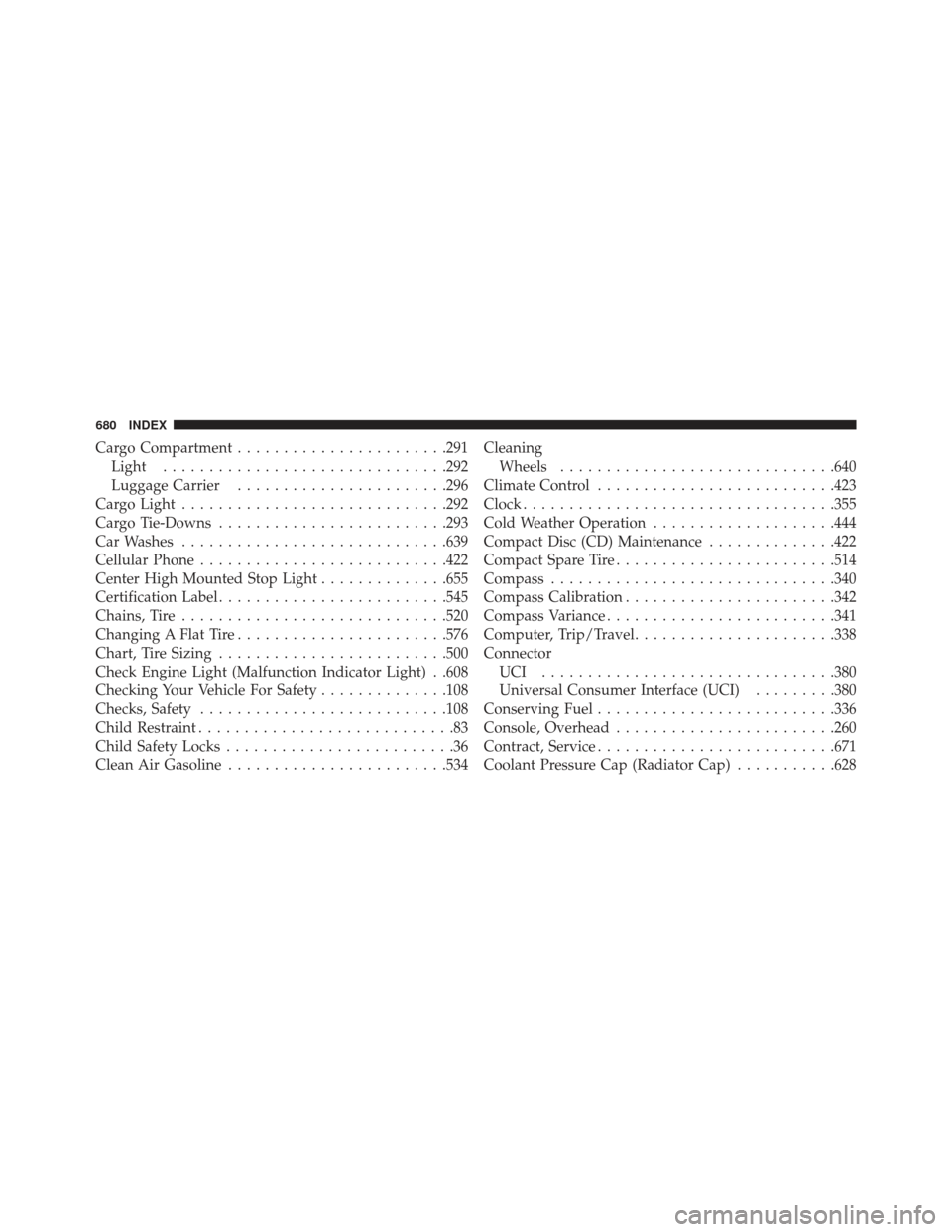

Page 682 of 699

Cargo Compartment...................... .291
Light .............................. .292
Luggage Carrier ...................... .296
Cargo Light ............................ .292
Cargo Tie-Downs ........................ .293
Car Washes ............................ .639
Cellular Phone .......................... .422
Center High Mounted Stop Light ..............655
Certification Label ........................ .545
Chains, Tire ............................ .520
Changing A Flat Tire ...................... .576
Chart, Tire Sizing ........................ .500
Check Engine Light (Malfunction Indicator Light) . .608
Checking Your Vehicle For Safety ..............108
Checks, Safety .......................... .108
Child Restraint ............................83
Child Safety Locks .........................36
Clean Air Gasoline ....................... .534Cleaning
Wheels ............................. .640
Climate Control ......................... .423
Clock ................................. .355
Cold Weather Operation ....................444
Compact Disc (CD) Maintenance ..............422
Compact Spare Tire ....................... .514
Compass .............................. .340
Compass Calibration ...................... .342
Compass Variance ........................ .341
Computer, Trip/Travel ..................... .338
Connector UCI ............................... .380
Universal Consumer Interface (UCI) .........380
Conserving Fuel ......................... .336
Console, Overhead ....................... .260
Contract, Service ......................... .671
Coolant Pressure Cap (Radiator Cap) ...........628
680 INDEX

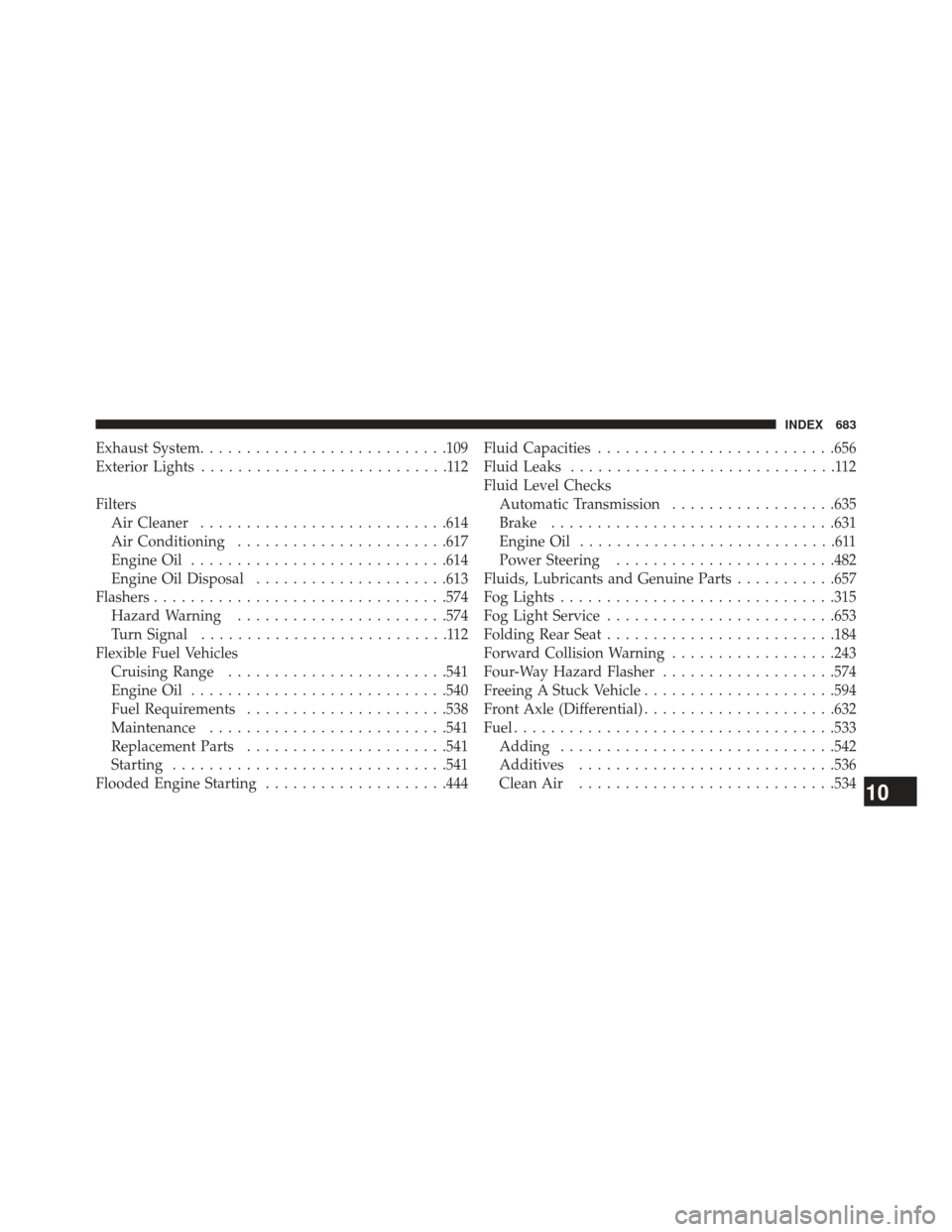

Page 685 of 699

Exhaust System.......................... .109
Exterior Lights ...........................112
Filters Air Cleaner .......................... .614
Air Conditioning ...................... .617
Engine Oil ........................... .614
Engine Oil Disposal .....................613
Flashers ............................... .574
Hazard Warning ...................... .574
Turn Signal ...........................112
Flexible Fuel Vehicles Cruising Range ....................... .541
Engine Oil ........................... .540
Fuel Requirements ..................... .538
Maintenance ......................... .541
Replacement Parts ..................... .541
Starting ............................. .541
Flooded Engine Starting ....................444 Fluid Capacities
......................... .656
Fluid Leaks .............................112
Fluid Level Checks Automatic Transmission ..................635
Brake .............................. .631
Engine Oil ............................611
Power Steering ....................... .482
Fluids, Lubricants and Genuine Parts ...........657
Fog Lights ............................. .315
Fog Light Service ........................ .653
Folding Rear Seat ........................ .184
Forward Collision Warning ..................243
Four-Way Hazard Flasher ...................574
Freeing A Stuck Vehicle .....................594
Front Axle (Differential) .....................632
Fuel .................................. .533
Adding ............................. .542
Additives ........................... .536
Clean Air ........................... .534
10
INDEX 683

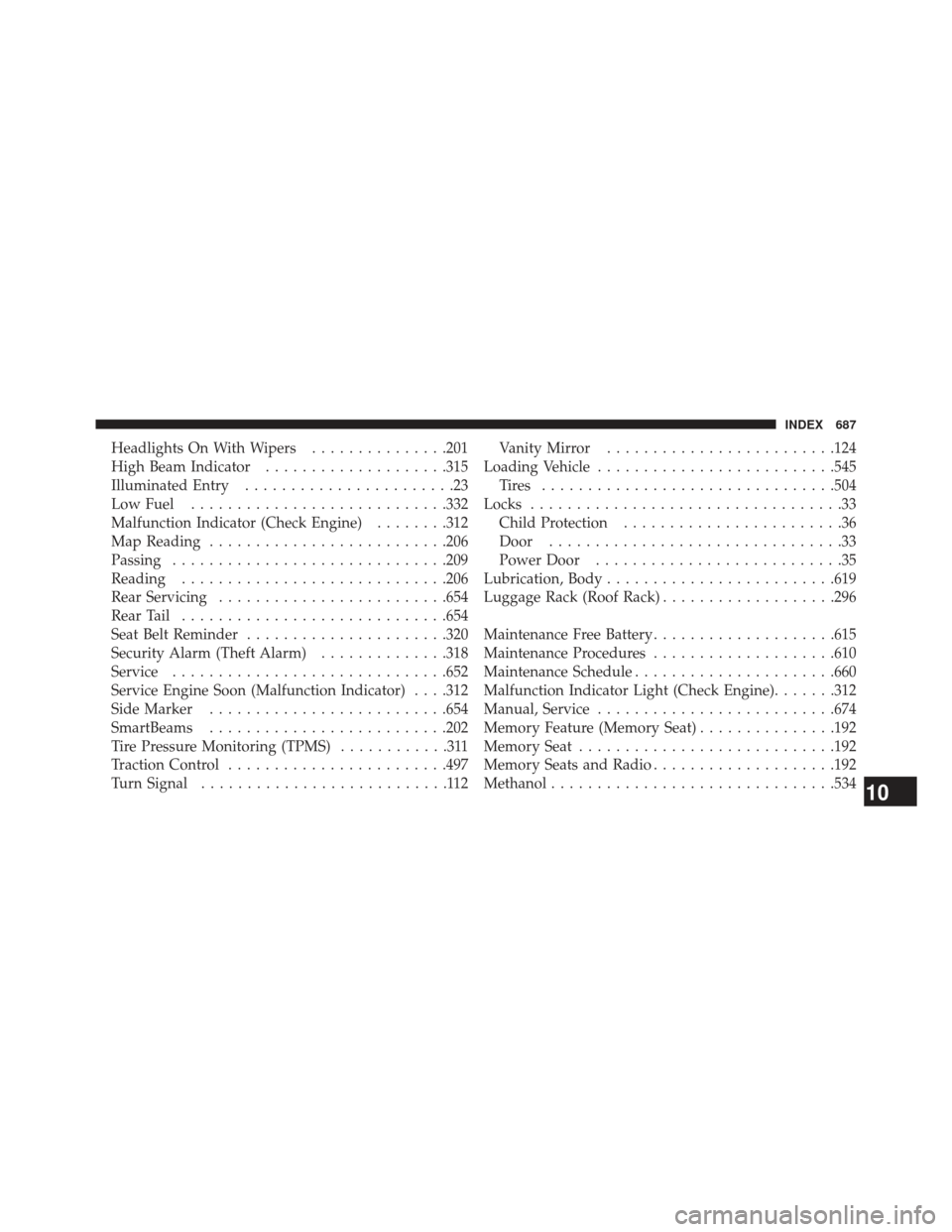

Page 689 of 699

Headlights On With Wipers...............201
High Beam Indicator ....................315
Illuminated Entry .......................23
Low Fuel ........................... .332
Malfunction Indicator (Check Engine) ........312
Map Reading ......................... .206
Passing ............................. .209
Reading ............................ .206
Rear Servicing ........................ .654
Rear Tail ............................ .654
Seat Belt Reminder ..................... .320
Security Alarm (Theft Alarm) ..............318
Service ............................. .652
Service Engine Soon (Malfunction Indicator) . . . .312
Side Marker ......................... .654
SmartBeams ......................... .202
Tire Pressure Monitoring (TPMS) ............311
Traction Control ....................... .497
Turn Signal ...........................112 Vanity Mirror
........................ .124
Loading Vehicle ......................... .545
Tires ............................... .504
Locks ..................................33
Child Protection ........................36
Door ................................33
Power Door ...........................35
Lubrication, Body ........................ .619
Luggage Rack (Roof Rack) ...................296
Maintenance Free Battery ....................615
Maintenance Procedures ....................610
Maintenance Schedule ..................... .660
Malfunction Indicator Light (Check Engine) .......312
Manual, Service ......................... .674
Memory Feature (Memory Seat) ...............192
Memory Seat ........................... .192
Memory Seats and Radio ....................192
Methanol .............................. .534
10
INDEX 687
