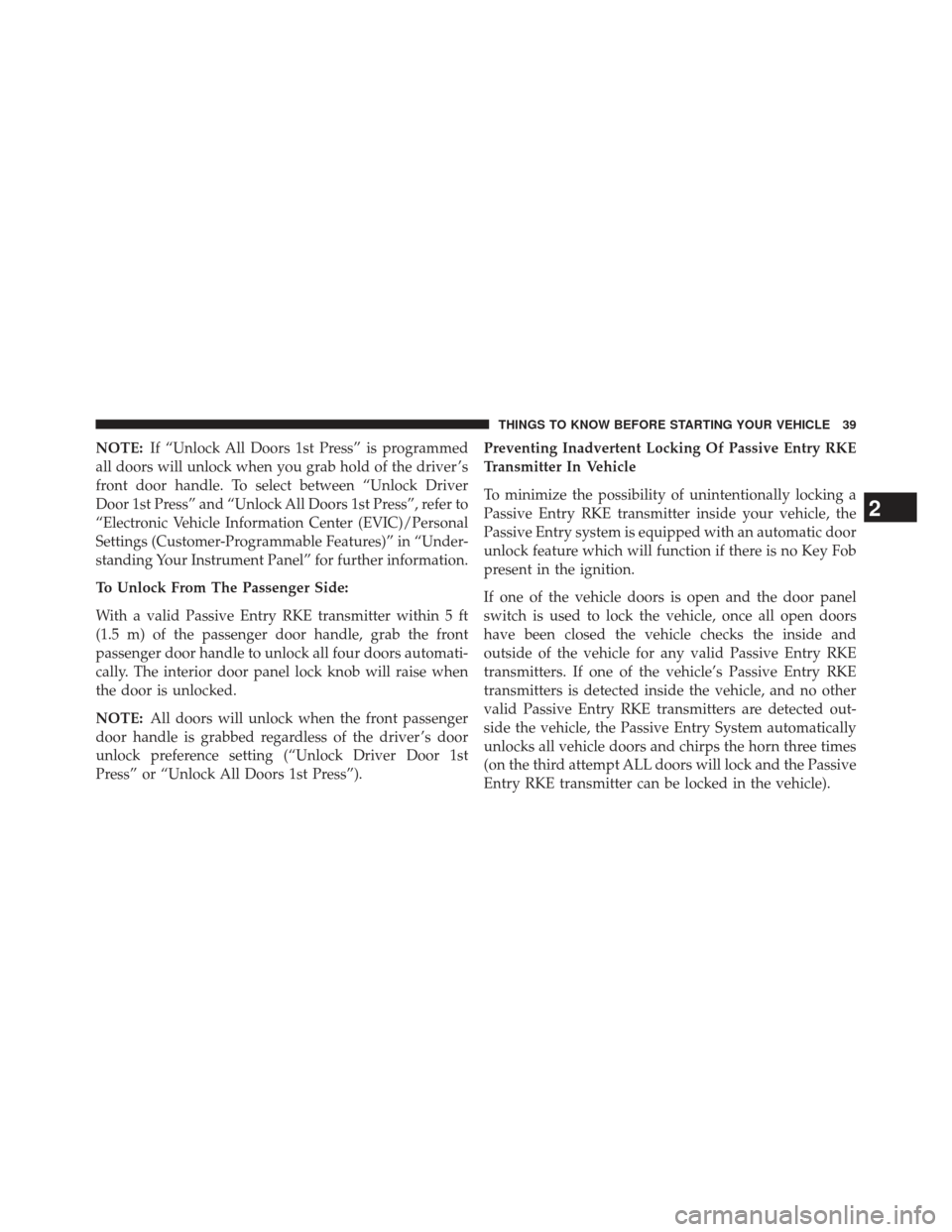

NOTE:If “Unlock All Doors 1st Press” is programmed
all doors will unlock when you grab hold of the driver ’s
front door handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st Press”, refer to
“Electronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further information.
To Unlock From The Passenger Side:
With a valid Passive Entry RKE transmitter within 5 ft
(1.5 m) of the passenger door handle, grab the front
passenger door handle to unlock all four doors automati-
cally. The interior door panel lock knob will raise when
the door is unlocked.
NOTE: All doors will unlock when the front passenger
door handle is grabbed regardless of the driver ’s door
unlock preference setting (“Unlock Driver Door 1st
Press” or “Unlock All Doors 1st Press”). Preventing Inadvertent Locking Of Passive Entry RKE
Transmitter In Vehicle
To minimize the possibility of unintentionally locking a
Passive Entry RKE transmitter inside your vehicle, the
Passive Entry system is equipped with an automatic door
unlock feature which will function if there is no Key Fob
present in the ignition.
If one of the vehicle doors is open and the door panel
switch is used to lock the vehicle, once all open doors
have been closed the vehicle checks the inside and
outside of the vehicle for any valid Passive Entry RKE
transmitters. If one of the vehicle’s Passive Entry RKE
transmitters is detected inside the vehicle, and no other
valid Passive Entry RKE transmitters are detected out-
side the vehicle, the Passive Entry System automatically
unlocks all vehicle doors and chirps the horn three times
(on the third attempt ALL doors will lock and the Passive
Entry RKE transmitter can be locked in the vehicle).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
Page 42 of 699
To Enter The Liftgate
With a valid Passive Entry RKE transmitter within 3 ft
(1.0 m) of the liftgate, press the button on the right side of
the chrome accent bar, which is located on the liftgate
below the liftgate glass to lock or unlock the vehicle.
Do NOT grab the door handle, when pressing the door
handle lock button. This could unlock the door(s).NOTE:If “Unlock All Doors 1st Press” is programmed
in EVIC, all doors will unlock when you push the button
on the liftgate. If Unlock Driver Door 1st press is
programmed in EVIC, the liftgate will unlock when you
press the button on the liftgate. For further information,
refer to “Electronic Vehicle Information Center (EVIC)/
Liftgate Passive Entry Button
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 43 of 699
Personal Settings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel”.
To Lock The Vehicle’s Doors
The front door handles have LOCK buttons located on
the outside of the handles.With one of the vehicle’s Passive Entry RKE transmitters
within 5 ft (1.5 m) of the driver or passenger front door
handle, press the door handle LOCK button to lock all
four doors and liftgate.
Outside Door Handle Lock Button
Do NOT Grab The Door Handle When Locking
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
Page 44 of 699
NOTE:
•After pressing the door handle LOCK button, you
must wait 2 seconds before you can lock or unlock the
doors, using either Passive Entry door handle. This is
done to allow you to check if the vehicle is locked by
pulling the door handle, without the vehicle reacting
and unlocking.
• The Passive Entry system will not operate if the RKE
transmitter battery is dead.
The vehicle doors can also be locked by using the RKE
transmitter lock button or the lock button located on the
vehicle’s interior door panel.
WINDOWS
Power Windows
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front passenger door/rear doors which operates the front
passenger/rear passenger door windows. The window
controls will operate only when the ignition switch is in
the ON/RUN or ACCESSORY position.
Power Window Switches
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 45 of 699

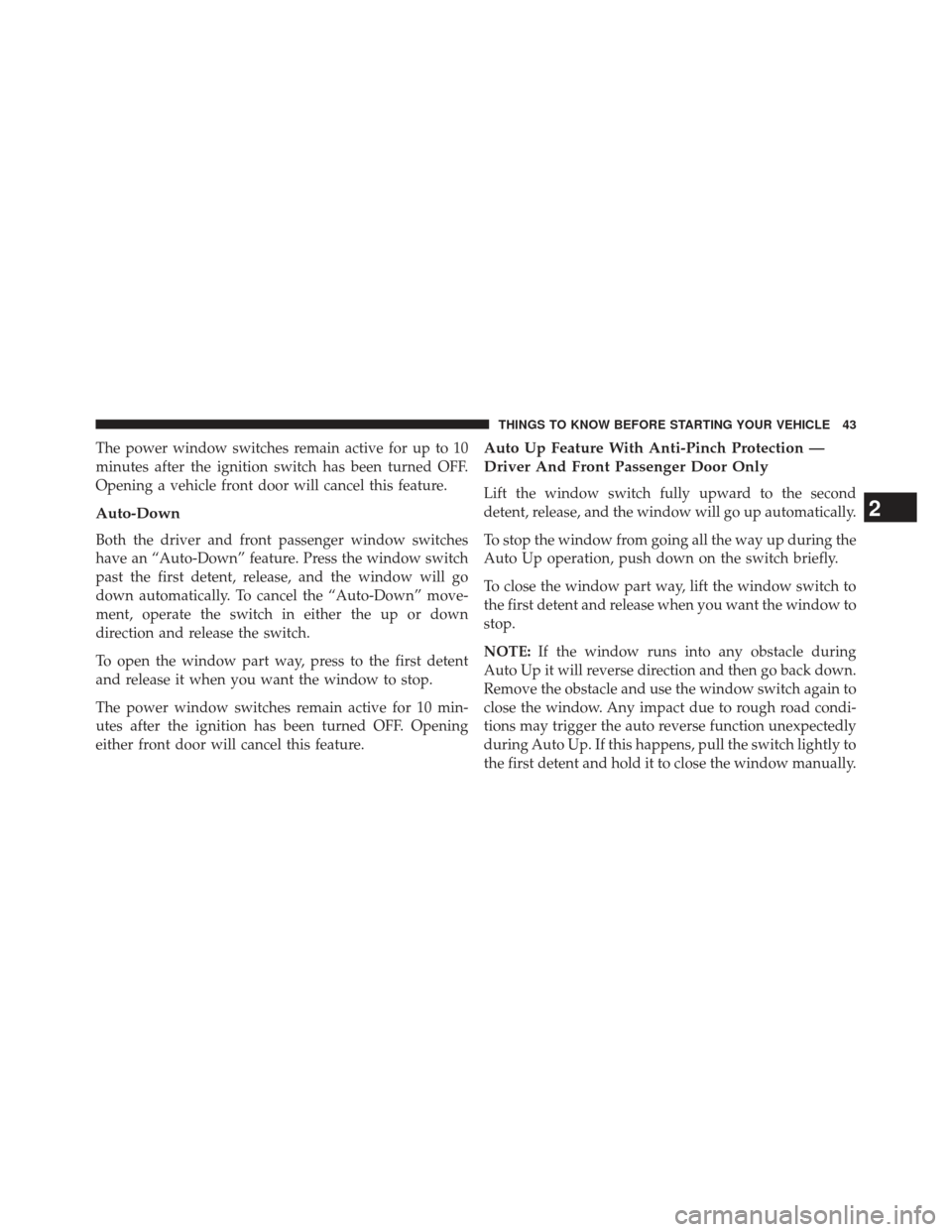

The power window switches remain active for up to 10
minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.
Auto-Down
Both the driver and front passenger window switches
have an “Auto-Down” feature. Press the window switch
past the first detent, release, and the window will go
down automatically. To cancel the “Auto-Down” move-
ment, operate the switch in either the up or down
direction and release the switch.
To open the window part way, press to the first detent
and release it when you want the window to stop.
The power window switches remain active for 10 min-
utes after the ignition has been turned OFF. Opening
either front door will cancel this feature.
Auto Up Feature With Anti-Pinch Protection —
Driver And Front Passenger Door Only
Lift the window switch fully upward to the second
detent, release, and the window will go up automatically.
To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:If the window runs into any obstacle during
Auto Up it will reverse direction and then go back down.
Remove the obstacle and use the window switch again to
close the window. Any impact due to rough road condi-
tions may trigger the auto reverse function unexpectedly
during Auto Up. If this happens, pull the switch lightly to
the first detent and hold it to close the window manually.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
Page 46 of 699
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting The Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up:
1. Pull the window switch up to close the windowcompletely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the window switch down firmly to the second detent to open the window completely and continue
to hold the switch down for an additional two seconds
after the window is fully open.
Window Lockout Button
The Window Lockout button on the driver’s door allows
you to disable the window controls on the rear doors. To
disable the window controls on the rear doors, press the
Window Lockout button. To enable the window controls,
press the Window Lockout button again.
Window Lockout Button
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 47 of 699
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting.
LIFTGATE
To open the liftgate, pull up on the handle and lift.
Manually unlocking the vehicle doors with the plunger
or a key in the lock cylinder will not unlock the liftgate.
Liftgate Release
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
Page 48 of 699
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened by pulling
up on the liftgate handle or by pressing the
LIFTGATE button on the Remote Keyless Entry
(RKE) transmitter. Press the LIFTGATE button
on the RKE transmitter twice within five seconds, to open
the power liftgate. Once the liftgate is open, pressing the
button twice within five seconds a second time will close
the liftgate. The power liftgate may also be opened and
closed with the overhead console switch. Also, the power liftgate may be closed by pressing the
liftgate switch located on the left rear trim, near the
liftgate opening. Pressing once will close the liftgate only.
This button cannot be used to open the liftgate.
To operate the power liftgate manually in the open
direction, pull the liftgate handle once to initiate power
cycle and then pull the handle a second time to put
liftgate into manual mode.
When the LIFTGATE button on the RKE transmitter is
pressed two times, the turn signals will flash twice to
signal that the liftgate is opening or closing (if Flash
Lamps with Lock is enabled in the EVIC) and the liftgate
chime will be audible. For further information, refer to
“Customer-Programmable Features (System Setup)/
Electronic Vehicle information Center (EVIC)” in “Under-
standing Your Instrument Panel”.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 49 of 699

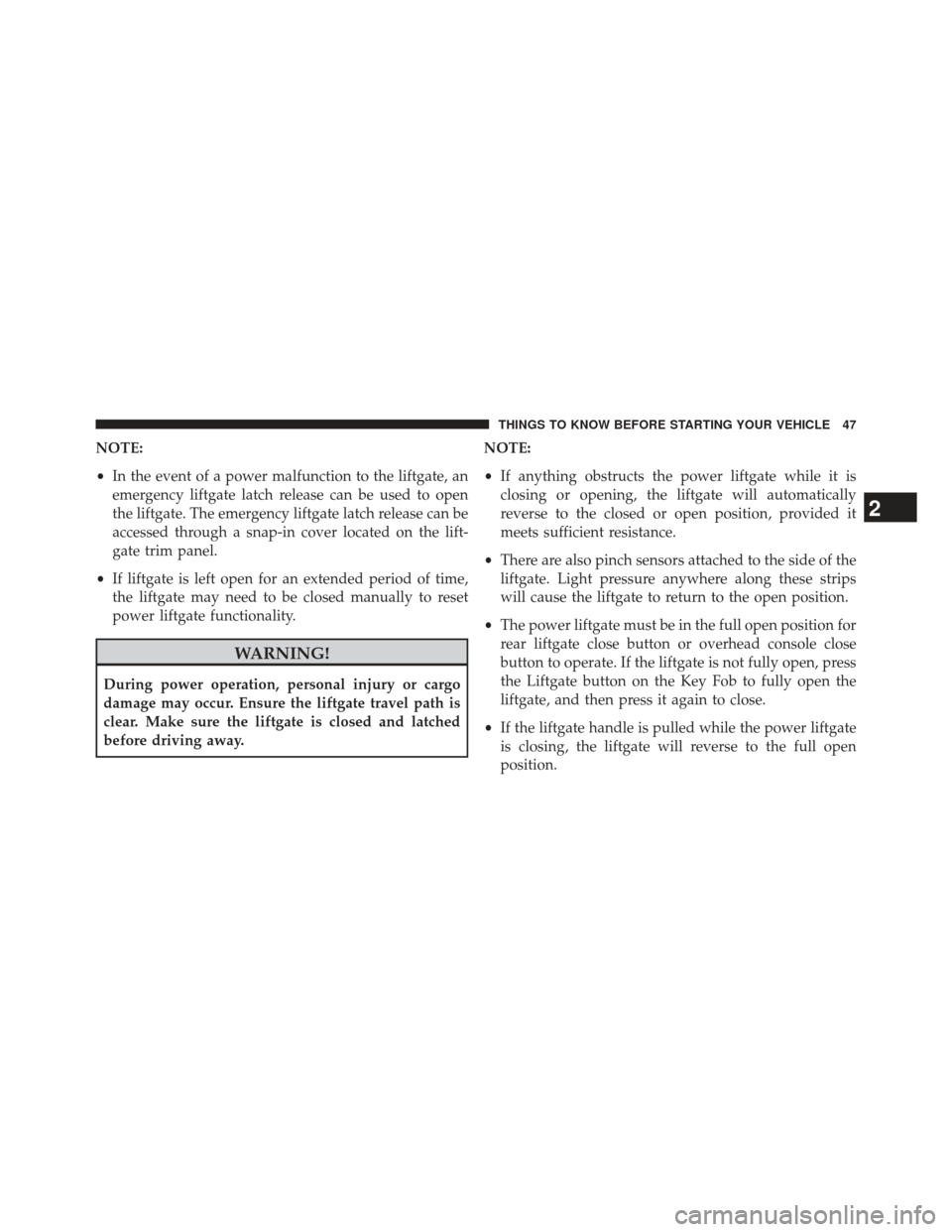

NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.
• If liftgate is left open for an extended period of time,
the liftgate may need to be closed manually to reset
power liftgate functionality.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away. NOTE:
•
If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
• There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
• The power liftgate must be in the full open position for
rear liftgate close button or overhead console close
button to operate. If the liftgate is not fully open, press
the Liftgate button on the Key Fob to fully open the
liftgate, and then press it again to close.
• If the liftgate handle is pulled while the power liftgate
is closing, the liftgate will reverse to the full open
position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
Page 50 of 699

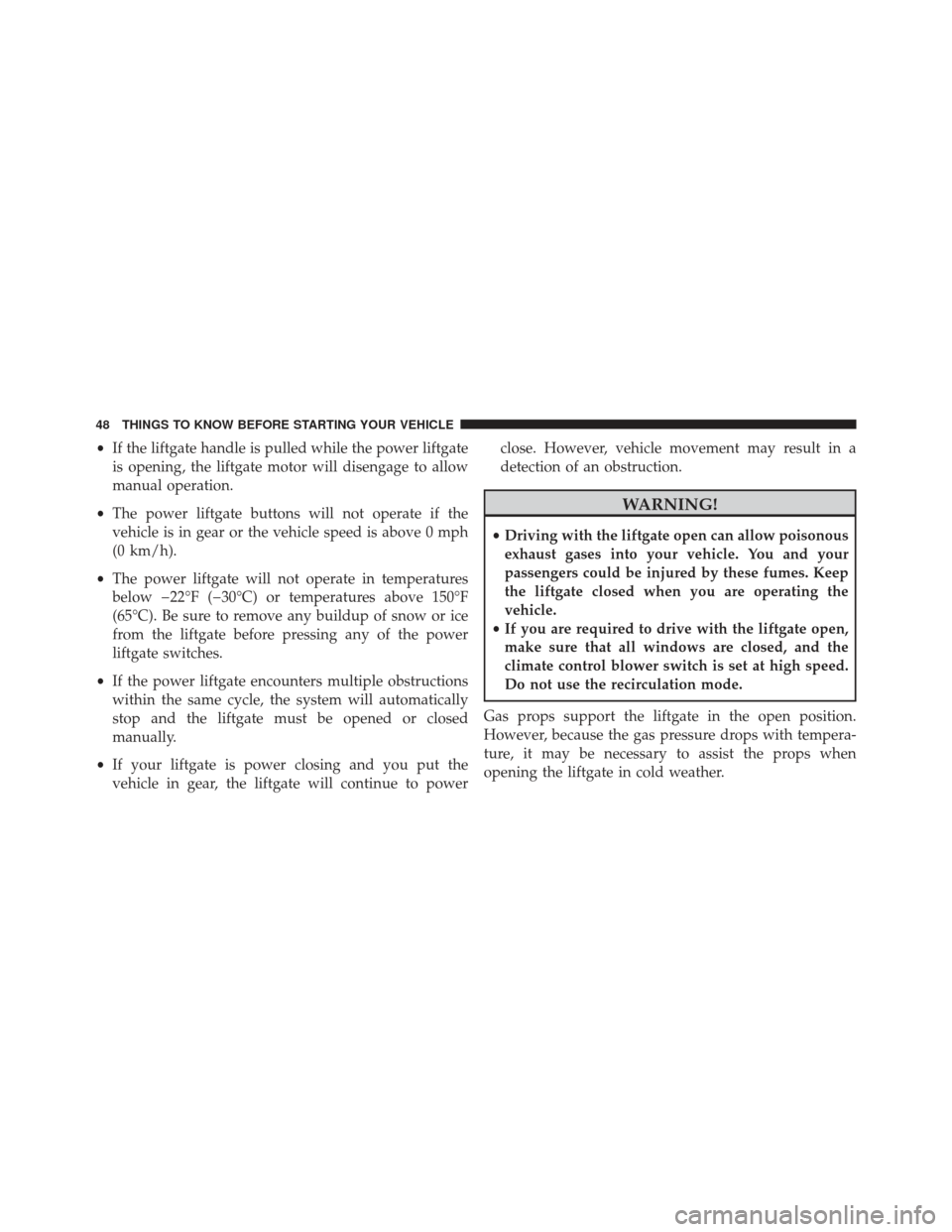

•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
• The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
• The power liftgate will not operate in temperatures
below 22°F ( 30°C) or temperatures above 150°F
(65°C). Be sure to remove any buildup of snow or ice
from the liftgate before pressing any of the power
liftgate switches.
• If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and the liftgate must be opened or closed
manually.
• If your liftgate is power closing and you put the
vehicle in gear, the liftgate will continue to power close. However, vehicle movement may result in a
detection of an obstruction.
WARNING!
•
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
• If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
