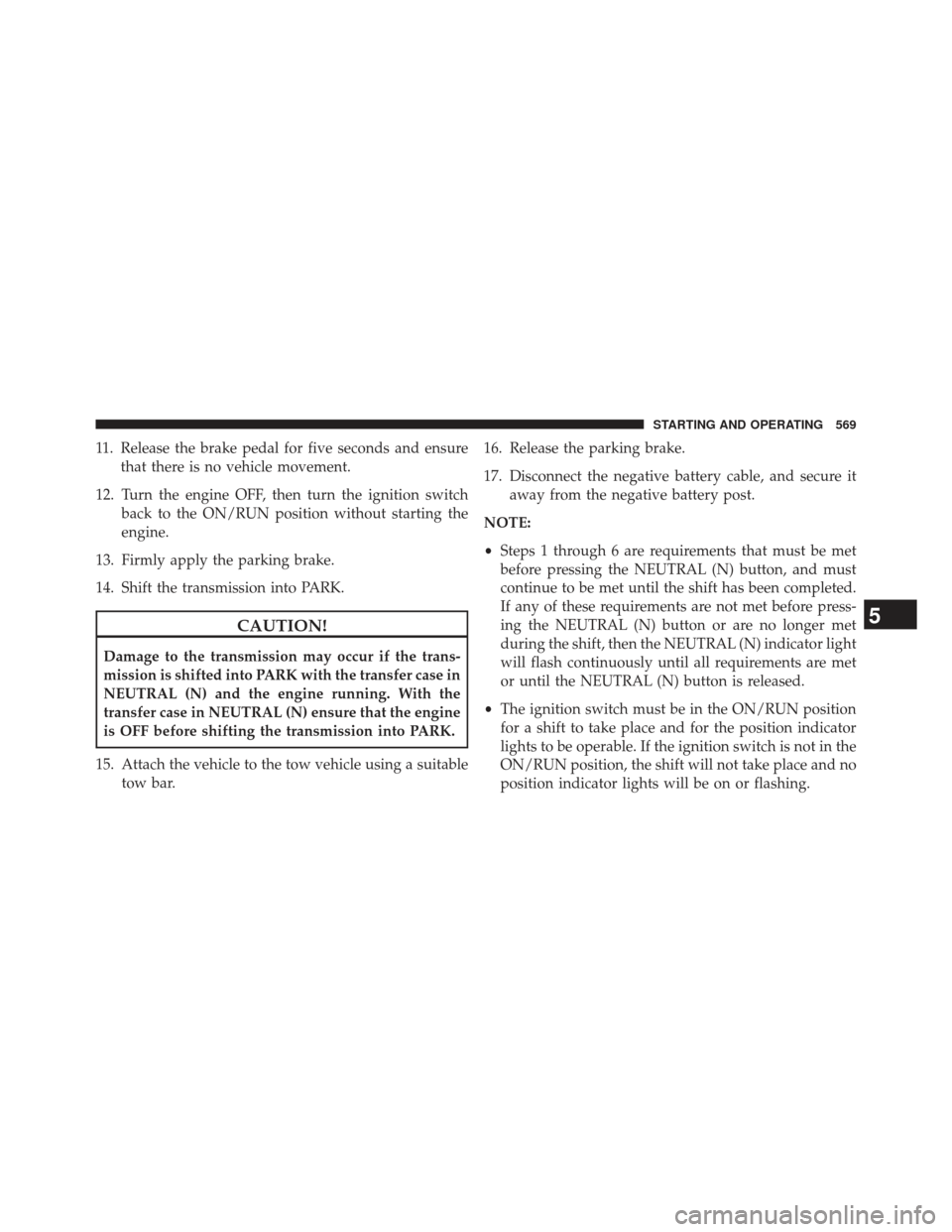

11. Release the brake pedal for five seconds and ensurethat there is no vehicle movement.
12. Turn the engine OFF, then turn the ignition switch back to the ON/RUN position without starting the
engine.
13. Firmly apply the parking brake.
14. Shift the transmission into PARK.
CAUTION!
Damage to the transmission may occur if the trans-
mission is shifted into PARK with the transfer case in
NEUTRAL (N) and the engine running. With the
transfer case in NEUTRAL (N) ensure that the engine
is OFF before shifting the transmission into PARK.
15. Attach the vehicle to the tow vehicle using a suitable tow bar. 16. Release the parking brake.
17. Disconnect the negative battery cable, and secure it
away from the negative battery post.
NOTE:
• Steps 1 through 6 are requirements that must be met
before pressing the NEUTRAL (N) button, and must
continue to be met until the shift has been completed.
If any of these requirements are not met before press-
ing the NEUTRAL (N) button or are no longer met
during the shift, then the NEUTRAL (N) indicator light
will flash continuously until all requirements are met
or until the NEUTRAL (N) button is released.
• The ignition switch must be in the ON/RUN position
for a shift to take place and for the position indicator
lights to be operable. If the ignition switch is not in the
ON/RUN position, the shift will not take place and no
position indicator lights will be on or flashing.
5
STARTING AND OPERATING 569

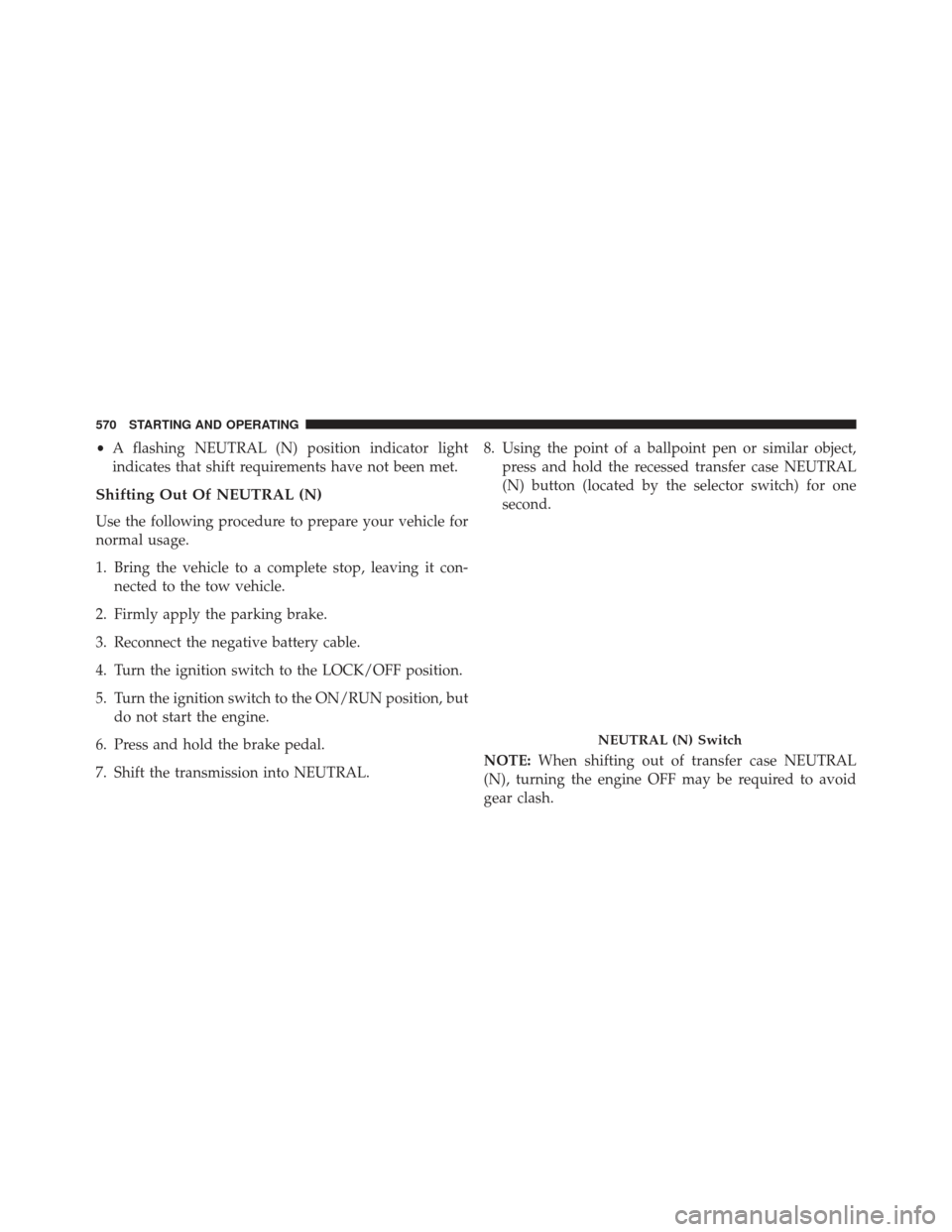

•A flashing NEUTRAL (N) position indicator light
indicates that shift requirements have not been met.
Shifting Out Of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con- nected to the tow vehicle.
2. Firmly apply the parking brake.
3. Reconnect the negative battery cable.
4. Turn the ignition switch to the LOCK/OFF position.
5. Turn the ignition switch to the ON/RUN position, but do not start the engine.
6. Press and hold the brake pedal.
7. Shift the transmission into NEUTRAL. 8. Using the point of a ballpoint pen or similar object,
press and hold the recessed transfer case NEUTRAL
(N) button (located by the selector switch) for one
second.
NOTE: When shifting out of transfer case NEUTRAL
(N), turning the engine OFF may be required to avoid
gear clash.
NEUTRAL (N) Switch
570 STARTING AND OPERATING

9. After the NEUTRAL (N) indicator light turns off,release the NEUTRAL (N) button.
10. After the NEUTRAL (N) button has been released, the transfer case will shift to the position indicated by
the selector switch.
11. Shift the transmission into PARK.
12. Release the brake pedal.
13. Disconnect vehicle from the tow vehicle.
14. Start the engine. 15. Press and hold the brake pedal.
16. Release the parking brake.
17. Shift the transmission into DRIVE, release the brake
pedal, and check that the vehicle operates normally.
18. The Keyless Enter-N-Go™ button (if equipped) may now be reinstalled if desired. Refer to “Starting
Procedures/Keyless Enter-N-Go™” in “Starting and
Operating” for further information.
5
STARTING AND OPERATING 571

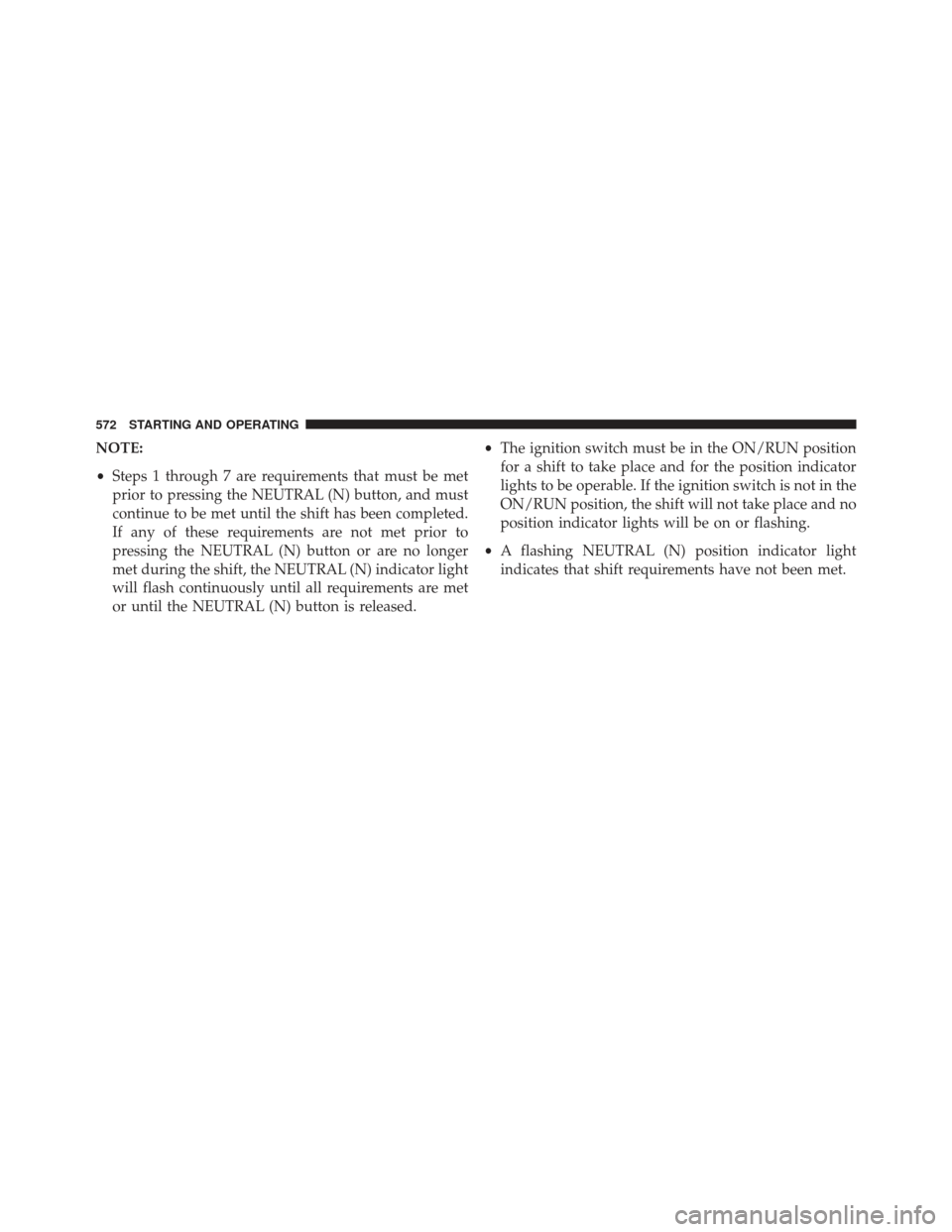

NOTE:
•Steps 1 through 7 are requirements that must be met
prior to pressing the NEUTRAL (N) button, and must
continue to be met until the shift has been completed.
If any of these requirements are not met prior to
pressing the NEUTRAL (N) button or are no longer
met during the shift, the NEUTRAL (N) indicator light
will flash continuously until all requirements are met
or until the NEUTRAL (N) button is released. •
The ignition switch must be in the ON/RUN position
for a shift to take place and for the position indicator
lights to be operable. If the ignition switch is not in the
ON/RUN position, the shift will not take place and no
position indicator lights will be on or flashing.
• A flashing NEUTRAL (N) position indicator light
indicates that shift requirements have not been met.
572 STARTING AND OPERATING

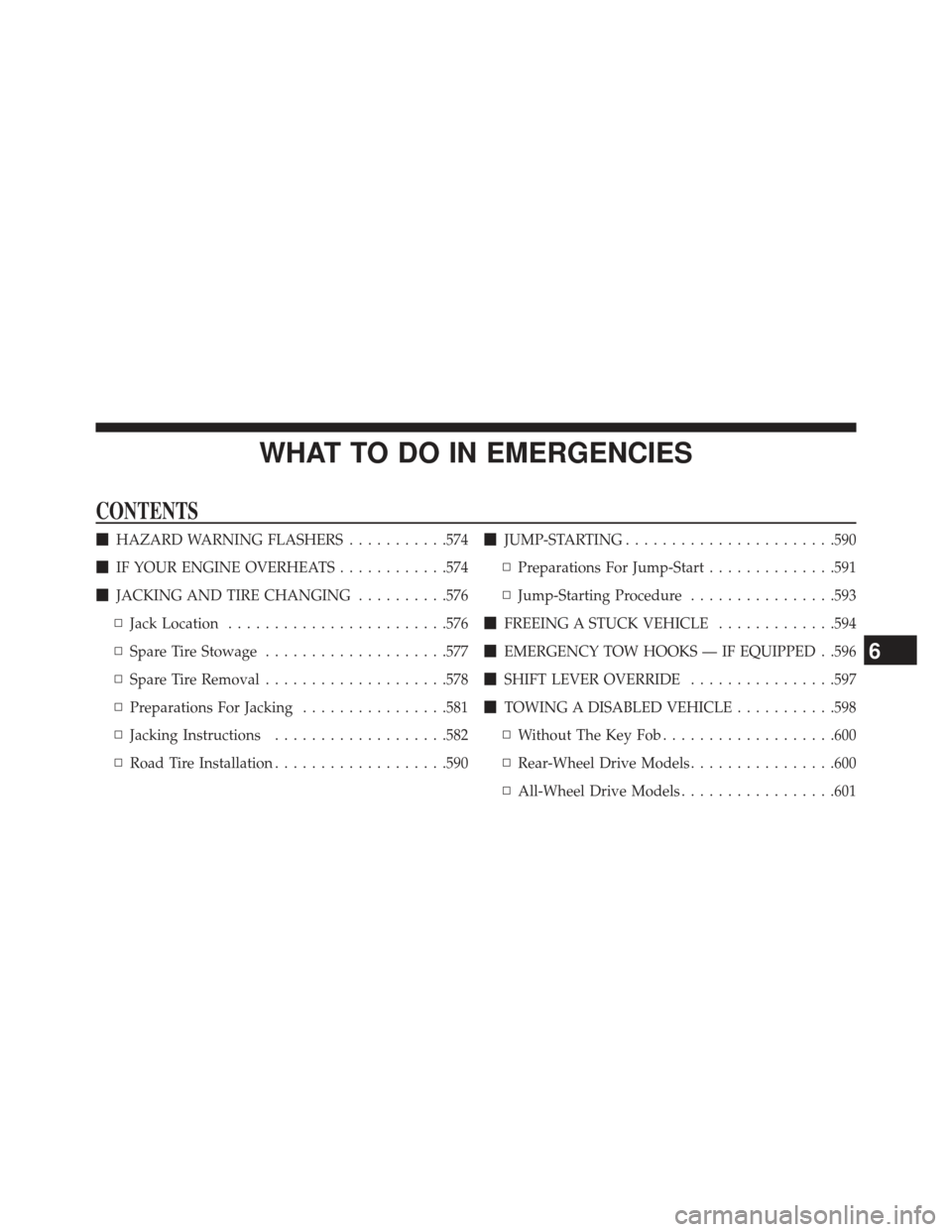

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ...........574
 IF YOUR ENGINE OVERHEATS ............574
 JACKING AND TIRE CHANGING ..........576
▫ Jack Location ....................... .576
▫ Spare Tire Stowage ....................577
▫ Spare Tire Removal ....................578
▫ Preparations For Jacking ................581
▫ Jacking Instructions ...................582
▫ Road Tire Installation ...................590
JUMP-STARTING ...................... .590
▫ Preparations For Jump-Start ..............591
▫ Jump-Starting Procedure ................593
 FREEING A STUCK VEHICLE .............594
 EMERGENCY TOW HOOKS — IF EQUIPPED . .596
 SHIFT LEVER OVERRIDE ................597
 TOWING A DISABLED VEHICLE ...........598
▫ Without The Key Fob ...................600
▫ Rear-Wheel Drive Models ................600
▫ All-Wheel Drive Models .................601
6

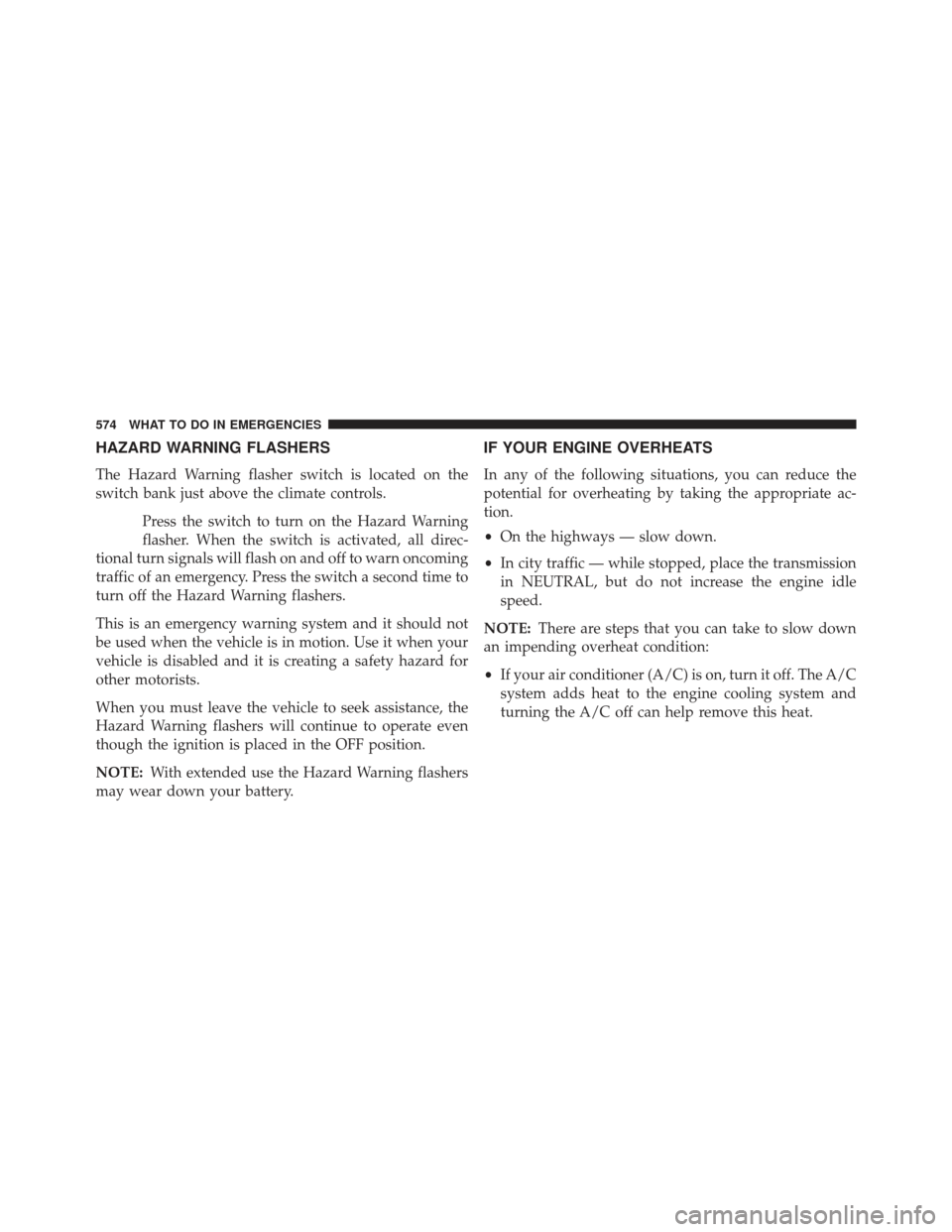

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
switch bank just above the climate controls.Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase the engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
574 WHAT TO DO IN EMERGENCIES

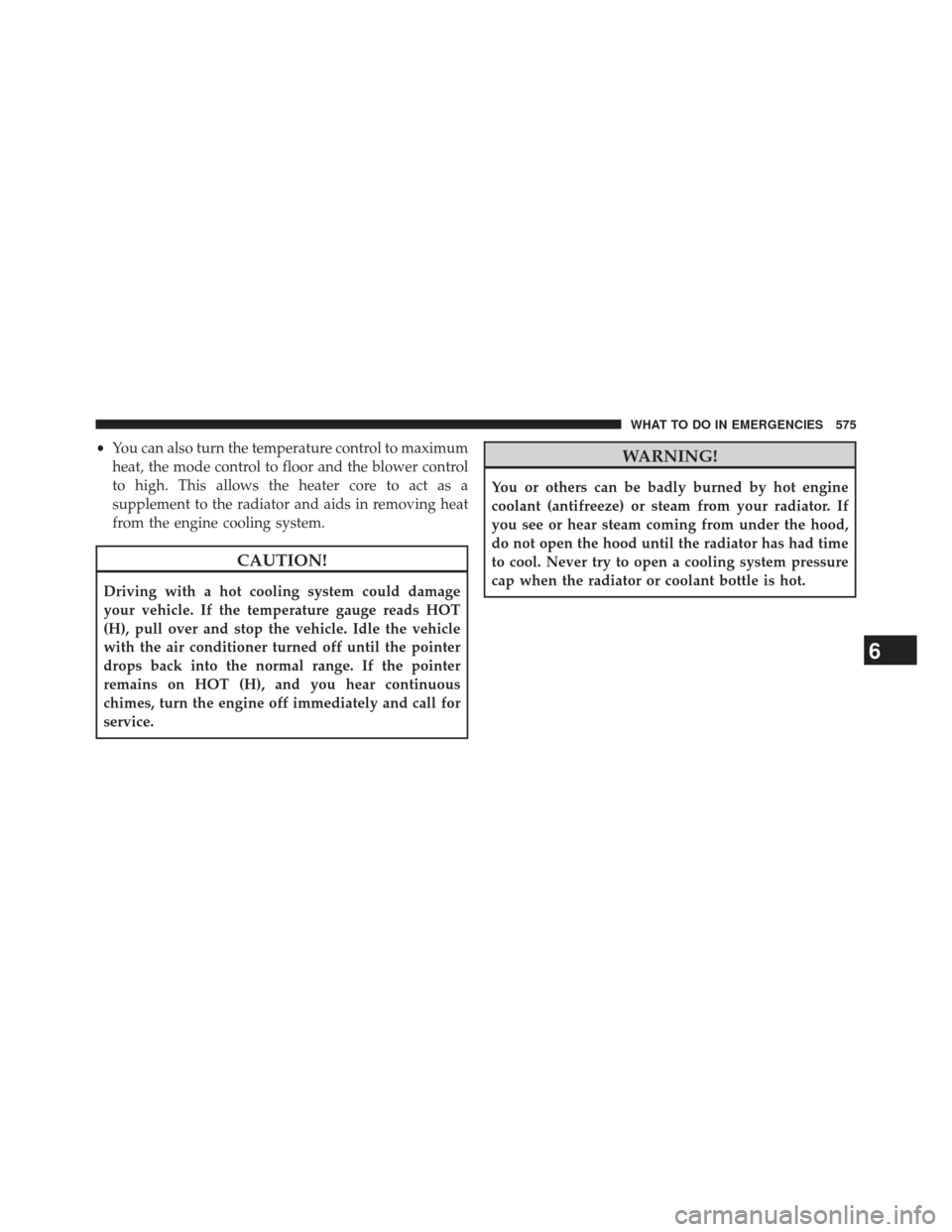

•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads HOT
(H), pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on HOT (H), and you hear continuous
chimes, turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
6
WHAT TO DO IN EMERGENCIES 575

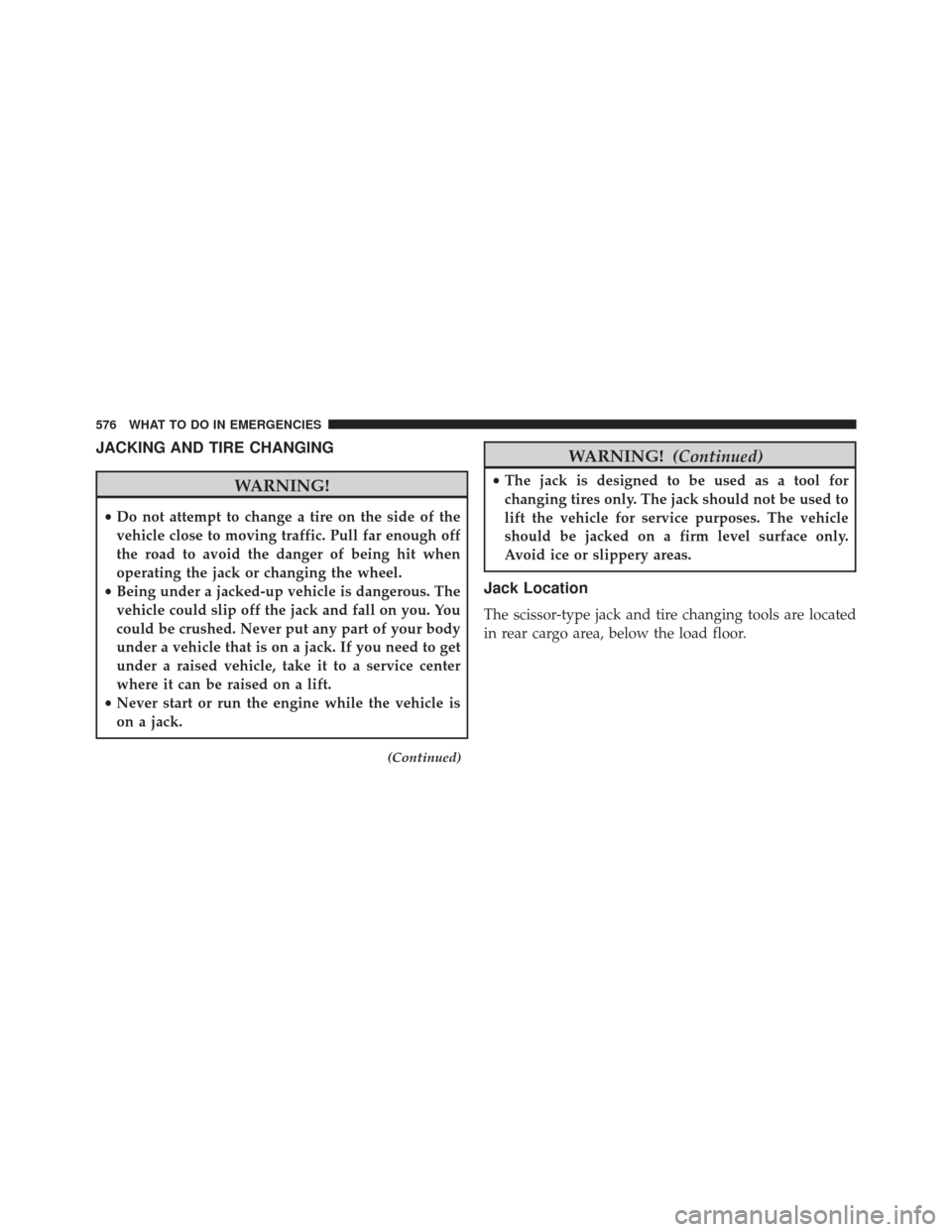

JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is
on a jack.
(Continued)
WARNING! (Continued)
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
Jack Location
The scissor-type jack and tire changing tools are located
in rear cargo area, below the load floor.
576 WHAT TO DO IN EMERGENCIES

Rotate the plastic thumb screw on the end of the jack to
loosen the jack and remove from the bracket.Spare Tire Stowage
The spare tire is stowed under the rear of the vehicle by
means of a cable winch mechanism. To remove or stow
the spare, use the jack handle/lug wrench connected to
the square socket extension to rotate the “spare tire
drive” nut. The nut is located under a plastic cover at the
Jack Storage LocationThumb Screw Location6
WHAT TO DO IN EMERGENCIES 577

center-rear of the cargo floor area, just inside the liftgate
opening.CAUTION!
Do not use power tools to winch the tire up or down.
Impact type tools can damage the winch mechanism.
Spare Tire Removal
1. Remove the jack tools from the bag.
2. Raise the rubber mat and remove the plug fromstorage compartment floor.
Spare Tire Location
578 WHAT TO DO IN EMERGENCIES
