THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............14
▫ Wireless Ignition Node (WIN) .............14
▫ KeyFob.............................15
▫ Removing Key Fob From Ignition ..........16
▫ Key-In-Ignition Reminder ................18
 SENTRY KEY .........................19
▫ Replacement Keys .....................20
▫ Customer Key Programming ..............20
▫ General Information ....................20
VEHICLE SECURITY
ALARM — IF EQUIPPED .................21
▫ Rearming The System ...................21
▫ To Arm The System .....................21
▫ To Disarm The System ...................22
▫ Tamper Alert .........................23
 ILLUMINATED ENTRY ...................23
 REMOTE KEYLESS ENTRY (RKE) ...........24
▫ To Unlock The Doors ....................25
▫ To Lock The Doors .....................26
2

▫Using The Panic Alarm ..................26
▫ Programming Additional Transmitters ........27
▫ Transmitter Battery Replacement ...........27
▫ General Information ....................29
 REMOTE STARTING SYSTEM —
IF EQUIPPED ..........................29
▫ How To Use Remote Start ................30
 DOOR LOCKS .........................33
▫ Manual Door Locks ....................33
▫ Power Door Locks .....................35
▫ Child-Protection Door Lock System — Rear
Doors ...............................36
 KEYLESS ENTER-N-GO™ .................37
WINDOWS ...........................42
▫ Power Windows .......................42
▫ Wind Buffeting .......................45
 LIFTGATE ............................45
▫ Power Liftgate — If Equipped .............46
 OCCUPANT RESTRAINTS ................49
▫ Lap/Shoulder Belts ....................53
▫ Lap/Shoulder Belt Operating Instructions .....54
▫ Lap/Shoulder Belt Untwisting Procedure .....58
▫ Adjustable Upper Shoulder Belt Anchorage . . .58
▫ Seat Belts In Passenger Seating Positions ......59
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................60
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for up
to 10 minutes after the ignition switch is turned to the
OFF position. Opening either front door will cancel
this feature. The time for this feature is programmable.
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel”
for further information.
CAUTION!
• If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
• Do not attempt to remove the Key Fob while in this
condition, damage could occur to the Key Fob or
ignition module. Only remove the emergency key
for locking and unlocking the doors.
(Continued)
CAUTION! (Continued)
•Leave the Key Fob in the ignition and either:
• Jump Start the vehicle.
• Charge the battery.
WARNING!
•When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

WARNING!(Continued)
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave Keyless Enter-N-Go™ in the ACC or ON/
RUN mode. A child could operate power windows,
other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove Key Fob from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE: The Key-In-Ignition reminder only sounds when
the Key Fob is placed in the OFF or ACC ignition
position.
With the Keyless Enter-N-Go™ feature, opening the
driver’s door when the vehicle’s ignition switch is placed
in ACC or ON/RUN (engine stopped) will cause the
reminder chime to sound. Refer to “Starting Procedures”
in “Starting And Operating” for further information.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Replacement Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs. Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:
When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the vehicle doors,
liftgate, and ignition for unauthorized operation. When
the alarm is activated, the interior switches for door locks
and power liftgate are disabled. The Vehicle Security
Alarm provides both audio and visual signals, the horn
will sound, the headlights will turn on, park lamps
and/or turn signals will flash repeatedly for three min-
utes. If the disturbance is still present (driver’s door,
passenger door, other doors, ignition) after three minutes,
the headlights, park lamps and/or turn signals will flash
for an additional 15 minutes.
NOTE: The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Remove the key from the ignition system (refer to
Starting Procedures inStarting And Operating for
further information).
• For vehicles equipped with Keyless Enter-N-Go™,
make sure the vehicle ignition system is OFF.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

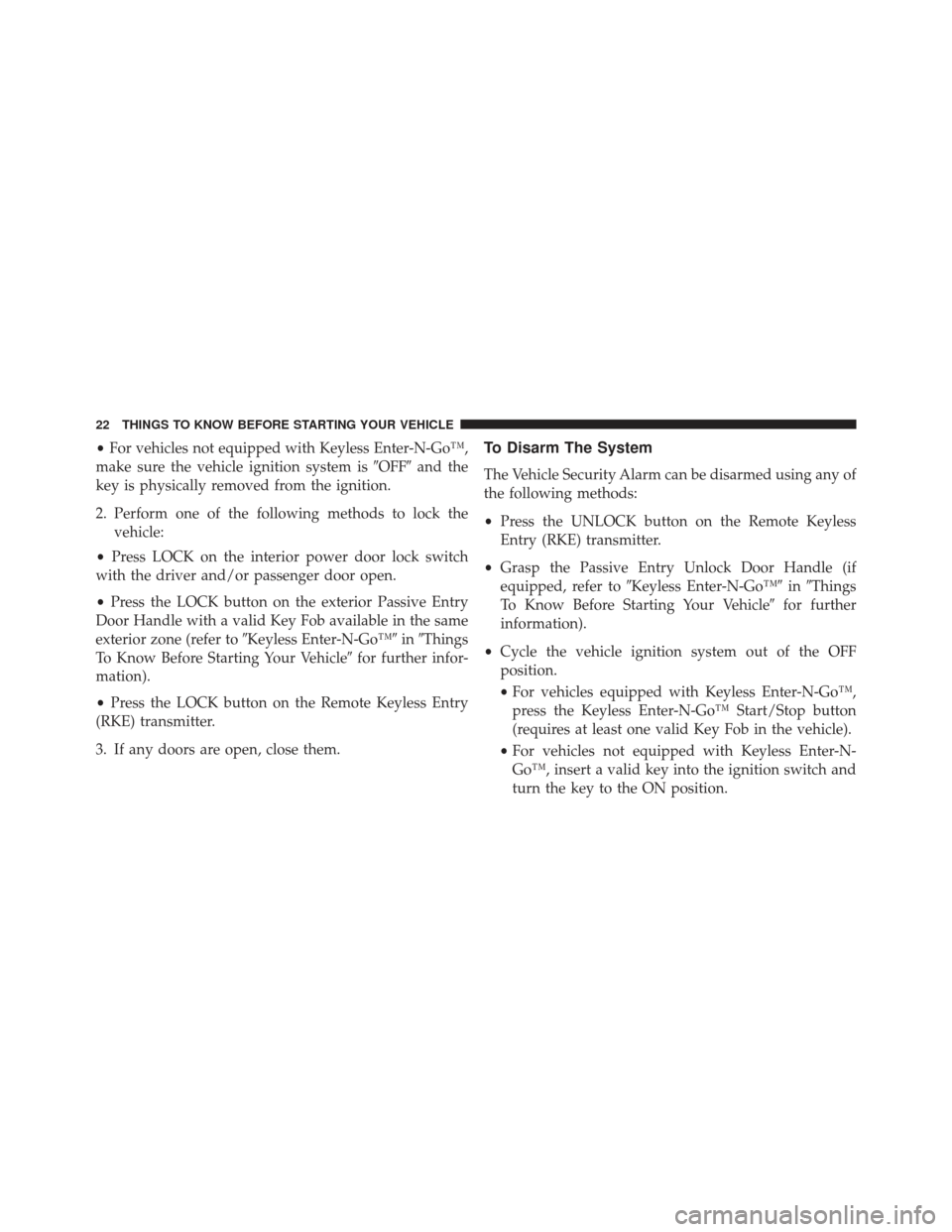

•For vehicles not equipped with Keyless Enter-N-Go™,
make sure the vehicle ignition system is OFFand the
key is physically removed from the ignition.
2. Perform one of the following methods to lock the vehicle:
• Press LOCK on the interior power door lock switch
with the driver and/or passenger door open.
• Press the LOCK button on the exterior Passive Entry
Door Handle with a valid Key Fob available in the same
exterior zone (refer to Keyless Enter-N-Go™ inThings
To Know Before Starting Your Vehicle for further infor-
mation).
• Press the LOCK button on the Remote Keyless Entry
(RKE) transmitter.
3. If any doors are open, close them.To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Press the UNLOCK button on the Remote Keyless
Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle (if
equipped, refer to Keyless Enter-N-Go™ inThings
To Know Before Starting Your Vehicle for further
information).
• Cycle the vehicle ignition system out of the OFF
position.
• For vehicles equipped with Keyless Enter-N-Go™,
press the Keyless Enter-N-Go™ Start/Stop button
(requires at least one valid Key Fob in the vehicle).
• For vehicles not equipped with Keyless Enter-N-
Go™, insert a valid key into the ignition switch and
turn the key to the ON position.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

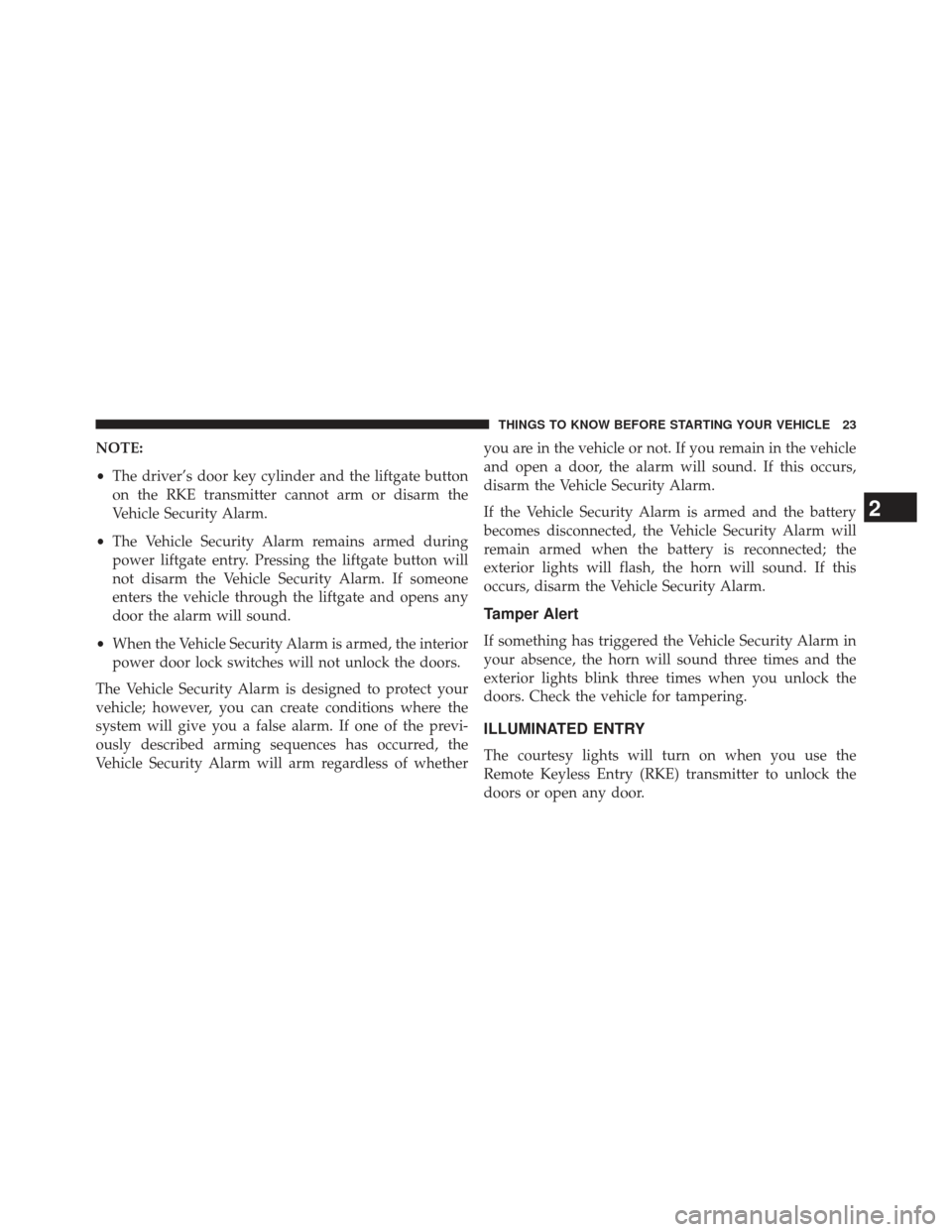

NOTE:
•The driver’s door key cylinder and the liftgate button
on the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• The Vehicle Security Alarm remains armed during
power liftgate entry. Pressing the liftgate button will
not disarm the Vehicle Security Alarm. If someone
enters the vehicle through the liftgate and opens any
door the alarm will sound.
• When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

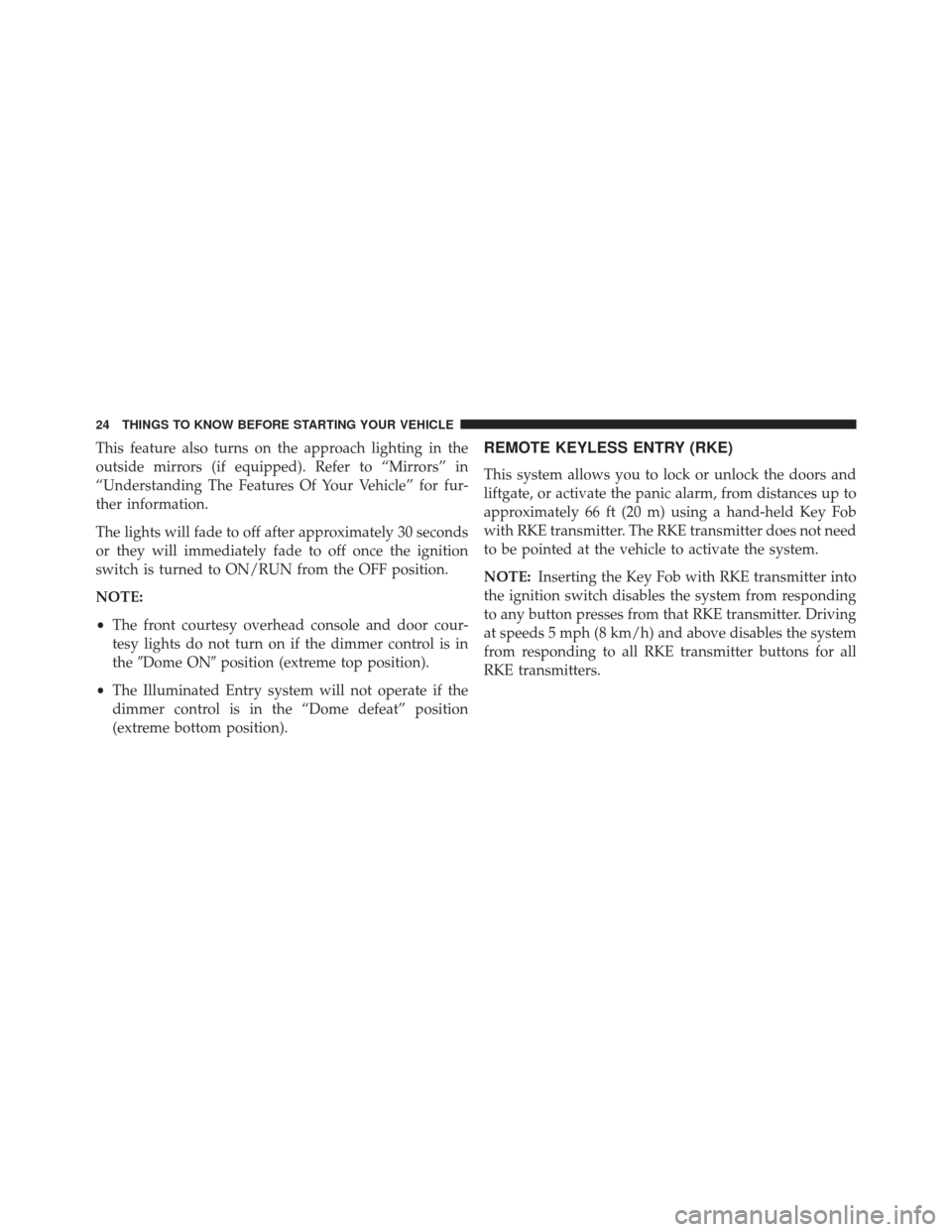

This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
the Dome ON position (extreme top position).
• The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate, or activate the panic alarm, from distances up to
approximately 66 ft (20 m) using a hand-held Key Fob
with RKE transmitter. The RKE transmitter does not need
to be pointed at the vehicle to activate the system.
NOTE: Inserting the Key Fob with RKE transmitter into
the ignition switch disables the system from responding
to any button presses from that RKE transmitter. Driving
at speeds 5 mph (8 km/h) and above disables the system
from responding to all RKE transmitter buttons for all
RKE transmitters.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock The Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash to
acknowledge the unlock signal. The illuminated entry
system will also turn on.
Refer to “Keyless Enter-N-Go™” under “Things To Know
Before Starting Your Vehicle” for further information.
Remote Unlock Sequence
This feature lets you program the system to unlock either
the driver ’s door or all doors, on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer- Program-
mable Features)” in “Understanding Your Instrument
Panel” for further information.
Flash Lamps With Lock
This feature will cause the turn signal lamps to flash
when the doors are locked or unlocked with the RKE
transmitter. This feature can be turned on or off. To
change the current setting, refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Key Fob With Five-Button RKE Transmitter
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
