3. Disconnect the positive(+)end of the jumper cable
from the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the remote positive (+)post of the dis-
charged vehicle.
5. Reinstall the protective cover over the remote positive (+) post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system tested
at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough without engine operation,
(Continued)
CAUTION! (Continued)
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE while gently pressing the accelerator.
NOTE:Shifts between DRIVE and REVERSE can only be
achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for
more than two seconds, you must press the brake pedal
to engage DRIVE or REVERSE.
6
WHAT TO DO IN EMERGENCIES 549

Use the least amount of accelerator pedal pressure that
will maintain the rocking motion without spinning the
wheels or racing the engine.
NOTE:Press the ESC Off switch (if necessary), to place
the Electronic Stability Control (ESC) system in Partial
Off mode, before rocking the vehicle. Refer to “Elec-
tronic Brake Control” in “Starting And Operating” for
further information. Once the vehicle has been freed,
press the ESC Off switch again to restore ESC On
mode.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
(Continued)
CAUTION! (Continued)
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
550 WHAT TO DO IN EMERGENCIES

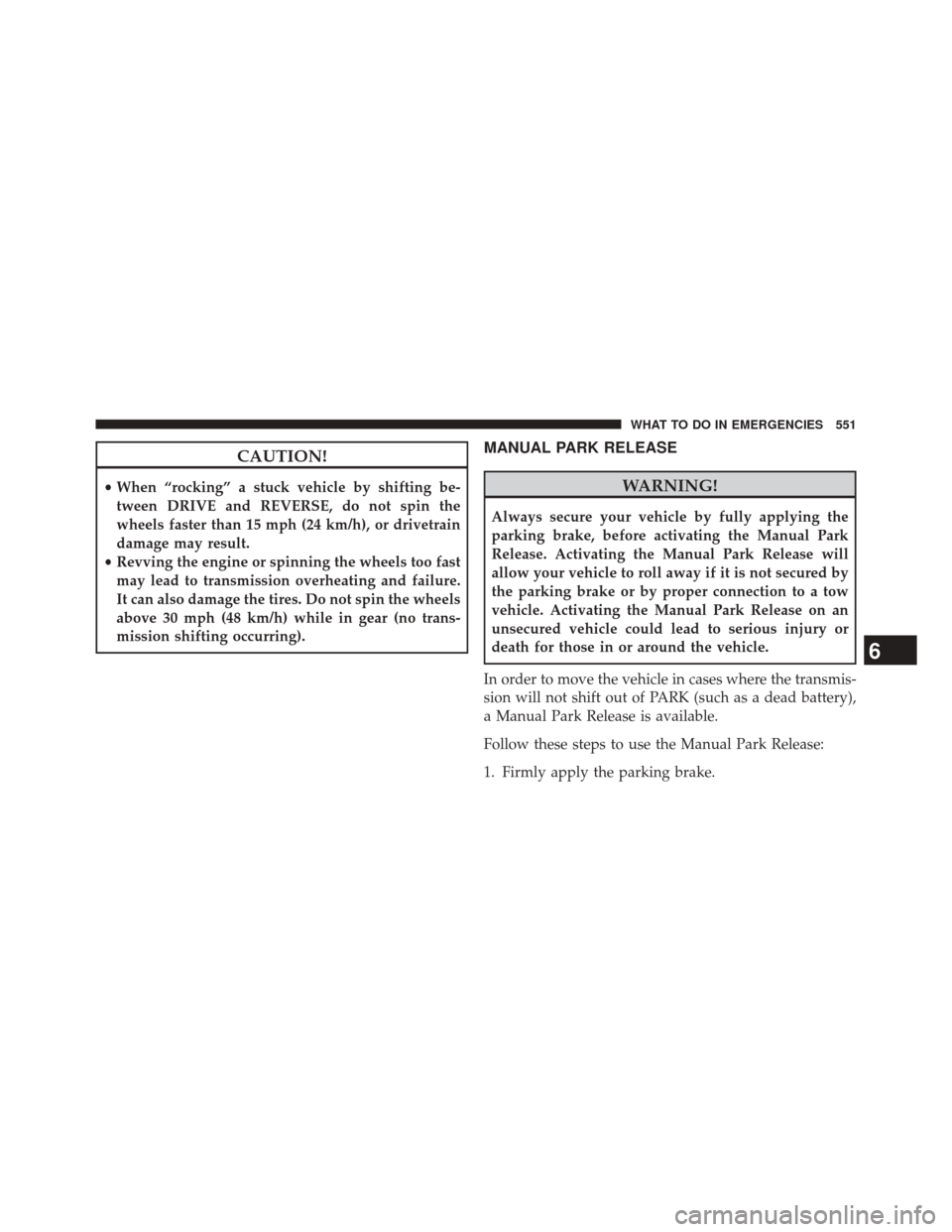

CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).
MANUAL PARK RELEASE
WARNING!
Always secure your vehicle by fully applying the
parking brake, before activating the Manual Park
Release. Activating the Manual Park Release will
allow your vehicle to roll away if it is not secured by
the parking brake or by proper connection to a tow
vehicle. Activating the Manual Park Release on an
unsecured vehicle could lead to serious injury or
death for those in or around the vehicle.
In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery),
a Manual Park Release is available.
Follow these steps to use the Manual Park Release:
1. Firmly apply the parking brake.
6
WHAT TO DO IN EMERGENCIES 551

2. Open the center console and locate the Manual ParkRelease cover, remove it by snapping the cover away
from the console hinges. 3. Using a screwdriver or similar tool, push the metal
latch in towards the tether strap.
Manual Park Release Cover
Release Latch
552 WHAT TO DO IN EMERGENCIES

4. While the metal latch is in the open position, simulta-neously pull upwards on the tether strap until the
lever clicks and latches in the released position. The
transmission is now out of PARK and the vehicle can
be moved.CAUTION!
Closing the armrest while the Manual Park Release is
activated may damage the Manual Park Release
mechanism, the transmission and the armrest.
NOTE: To prevent the vehicle from rolling unintention-
ally, firmly apply the parking brake.
Released Position
6
WHAT TO DO IN EMERGENCIES 553

To Disengage the Manual Park Release Lever:
1. To disengage the Manual Park Release apply tensionupward while pushing the release latch towards the
tether to unlock the lever. 2. Once the tension has been released and the lever has
been unlocked be sure it is stowed properly and locks
into position.
NOTE: Be sure to replace the cover by snapping it back
in place.
Release Latch
Stowed Position
554 WHAT TO DO IN EMERGENCIES

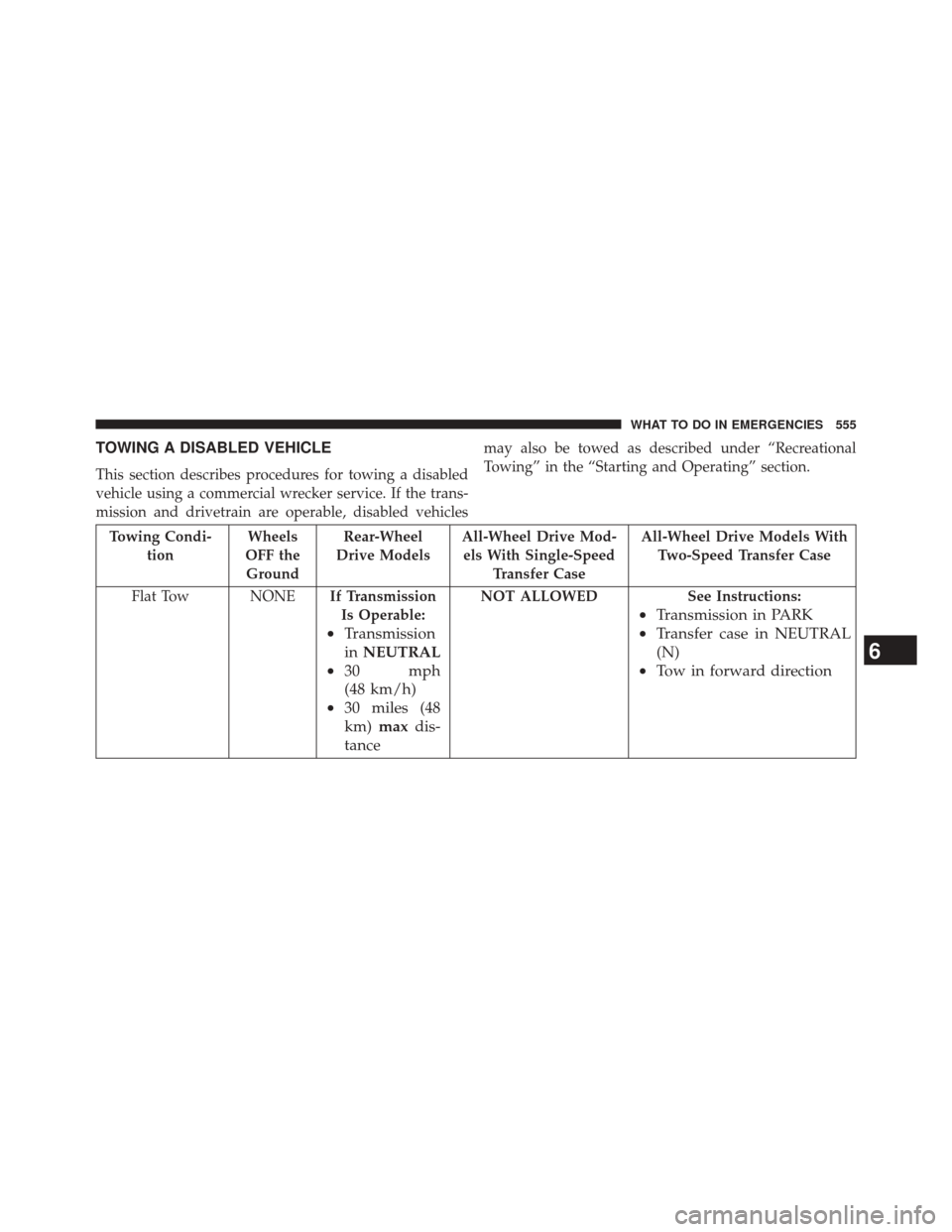

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial wrecker service. If the trans-
mission and drivetrain are operable, disabled vehiclesmay also be towed as described under “Recreational
Towing” in the “Starting and Operating” section.
Towing Condi-
tion Wheels
OFF the Ground Rear-Wheel
Drive Models All-Wheel Drive Mod-
els With Single-Speed Transfer Case All-Wheel Drive Models With
Two-Speed Transfer Case
Flat Tow NONE If Transmission
Is Operable:
• Transmission
inNEUTRAL
• 30 mph
(48 km/h)
• 30 miles (48
km) max dis-
tance
NOT ALLOWED See Instructions:
•Transmission in PARK
• Transfer case in NEUTRAL
(N)
• Tow in forward direction
6
WHAT TO DO IN EMERGENCIES 555

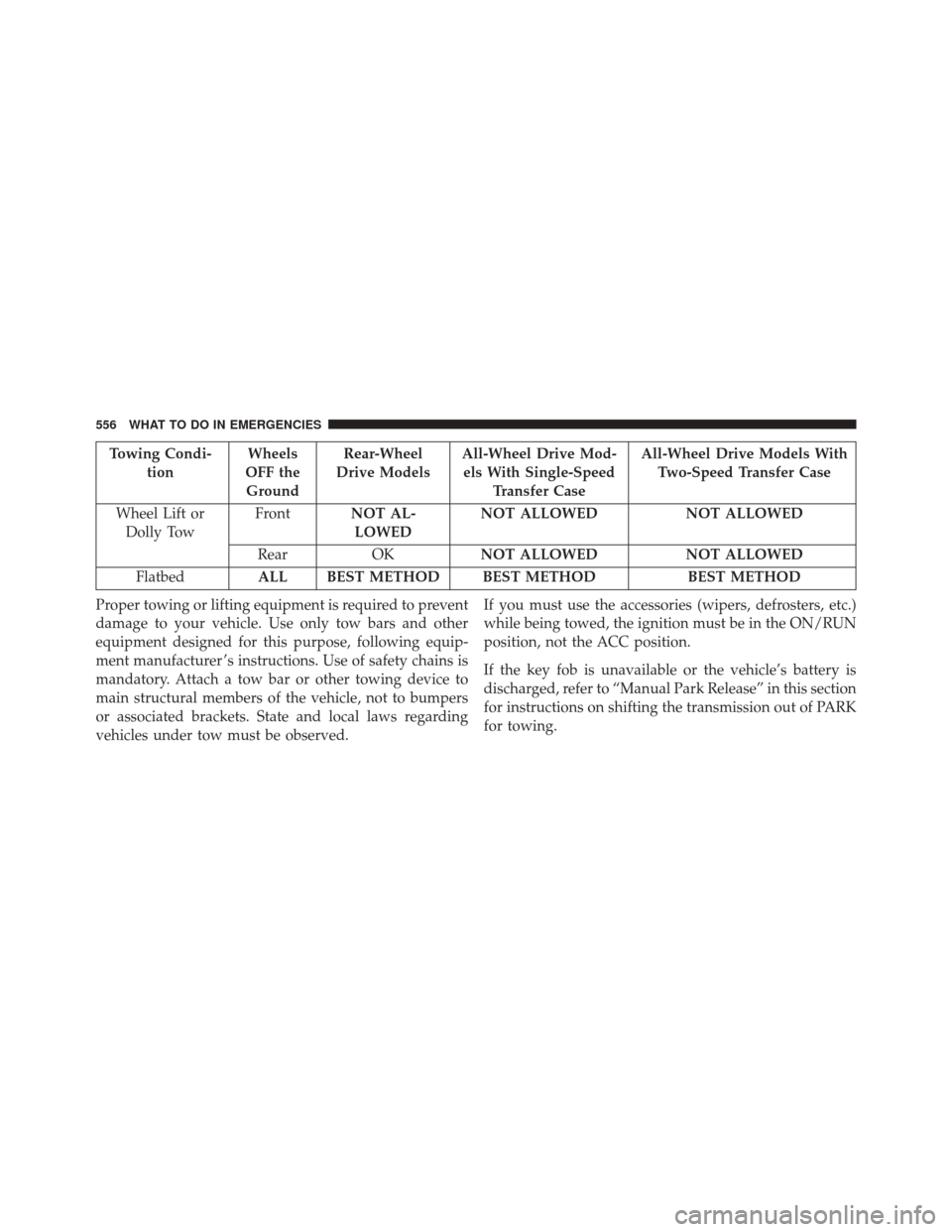

Towing Condi-tion Wheels
OFF the Ground Rear-Wheel
Drive Models All-Wheel Drive Mod-
els With Single-Speed Transfer Case All-Wheel Drive Models With
Two-Speed Transfer Case
Wheel Lift or Dolly Tow Front
NOT AL-
LOWED NOT ALLOWED
NOT ALLOWED
Rear OKNOT ALLOWED NOT ALLOWED
Flatbed ALL BEST METHOD BEST METHOD BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing.
556 WHAT TO DO IN EMERGENCIES

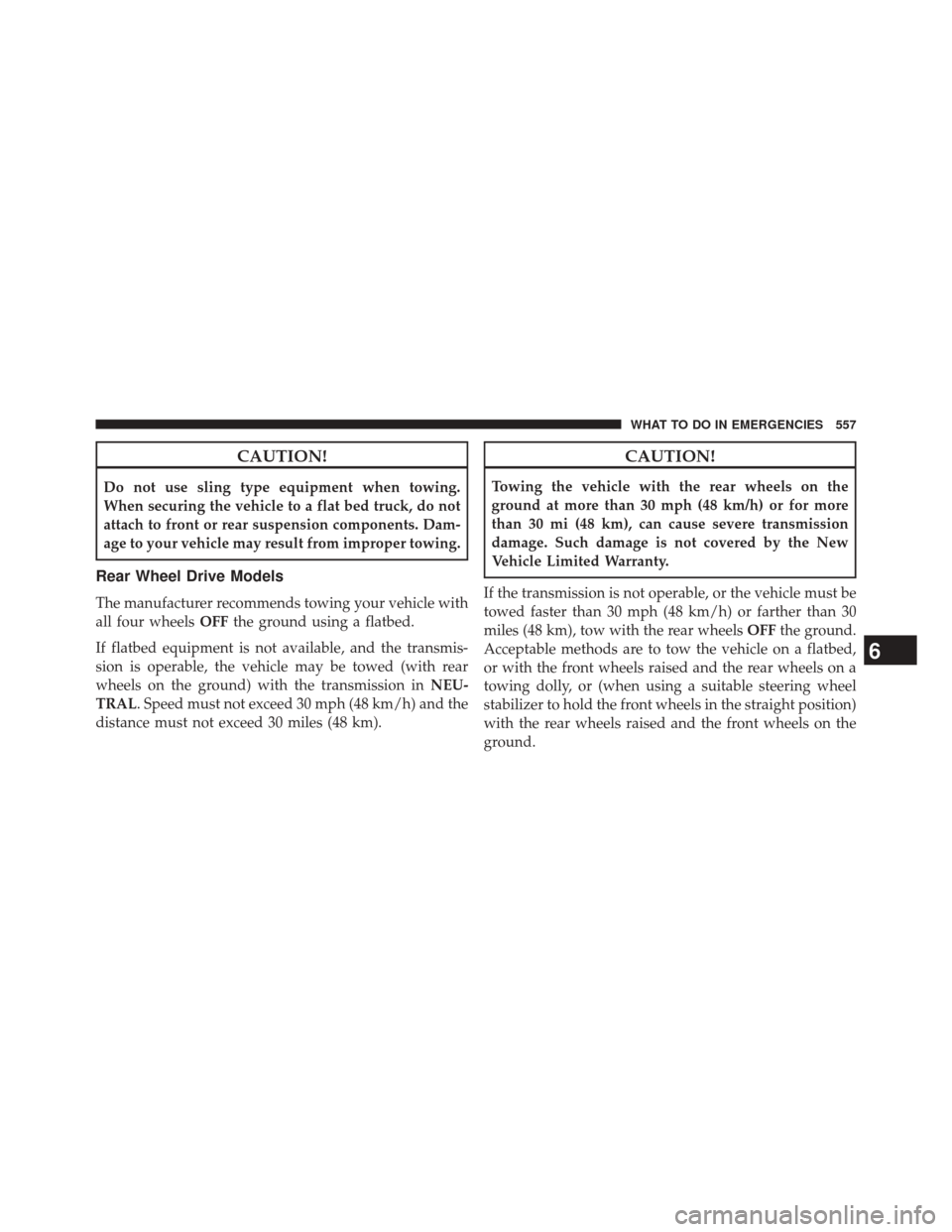

CAUTION!
Do not use sling type equipment when towing.
When securing the vehicle to a flat bed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
Rear Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be towed (with rear
wheels on the ground) with the transmission in NEU-
TRAL. Speed must not exceed 30 mph (48 km/h) and the
distance must not exceed 30 miles (48 km).
CAUTION!
Towing the vehicle with the rear wheels on the
ground at more than 30 mph (48 km/h) or for more
than 30 mi (48 km), can cause severe transmission
damage. Such damage is not covered by the New
Vehicle Limited Warranty.
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 30
miles (48 km), tow with the rear wheels OFFthe ground.
Acceptable methods are to tow the vehicle on a flatbed,
or with the front wheels raised and the rear wheels on a
towing dolly, or (when using a suitable steering wheel
stabilizer to hold the front wheels in the straight position)
with the rear wheels raised and the front wheels on the
ground.
6
WHAT TO DO IN EMERGENCIES 557

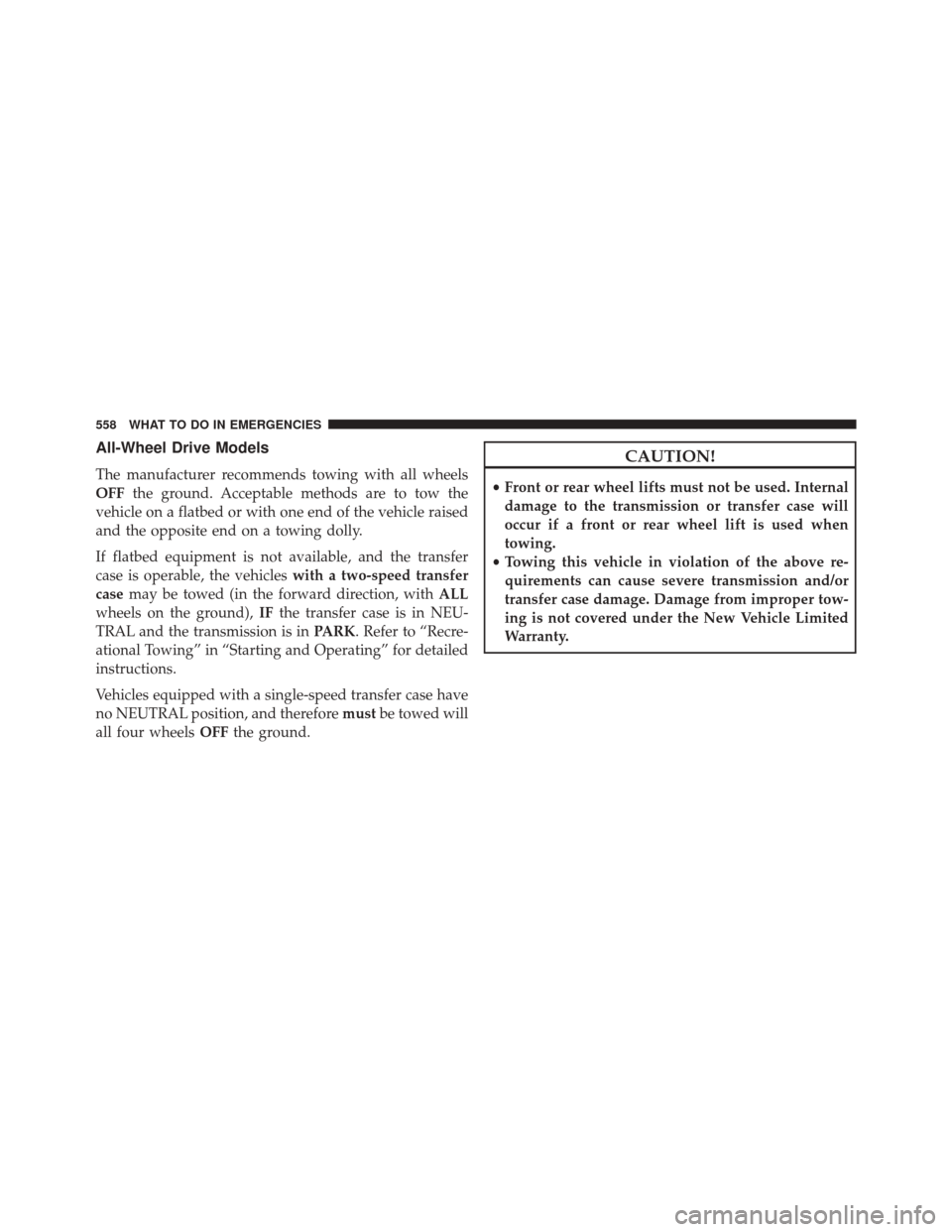

All-Wheel Drive Models
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of the vehicle raised
and the opposite end on a towing dolly.
If flatbed equipment is not available, and the transfer
case is operable, the vehicles with a two-speed transfer
case may be towed (in the forward direction, with ALL
wheels on the ground), IFthe transfer case is in NEU-
TRAL and the transmission is in PARK. Refer to “Recre-
ational Towing” in “Starting and Operating” for detailed
instructions.
Vehicles equipped with a single-speed transfer case have
no NEUTRAL position, and therefore mustbe towed will
all four wheels OFFthe ground.
CAUTION!
•Front or rear wheel lifts must not be used. Internal
damage to the transmission or transfer case will
occur if a front or rear wheel lift is used when
towing.
• Towing this vehicle in violation of the above re-
quirements can cause severe transmission and/or
transfer case damage. Damage from improper tow-
ing is not covered under the New Vehicle Limited
Warranty.
558 WHAT TO DO IN EMERGENCIES
