battery replacement DODGE DURANGO 2014 3.G Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............14
▫ Keyless Ignition Node (KIN) ..............14
▫ KeyFob ............................15
▫ Ignition Or Accessory On Message ..........16
 SENTRY KEY® .........................17
▫ Replacement Keys .....................18
▫ Customer Key Programming ..............19
▫ General Information ....................19

VEHICLE SECURITY ALARM — IF EQUIPPED . . .20
▫ To Arm The System ....................20 ▫
Rearming The System ...................21
▫ To Disarm The System ..................21
▫ Tamper Alert .........................23
 ILLUMINATED ENTRY ...................23
 REMOTE KEYLESS ENTRY (RKE) ...........23
▫ To Unlock The Doors And Liftgate ..........24
▫ To Lock The Doors And Liftgate ............25
▫ Using The Panic Alarm ..................26
▫ Programming Additional Transmitters .......26
▫ Transmitter Battery Replacement ...........26
2

Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated,
the turn signals will flash, the horn will pulse on and off,
and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pushing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you cycle the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on. •
You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
• Perchlorate Material — special handling may apply.
Batteries could contain dangerous materials. Please
dispose of them according to respect for environment
and local laws.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

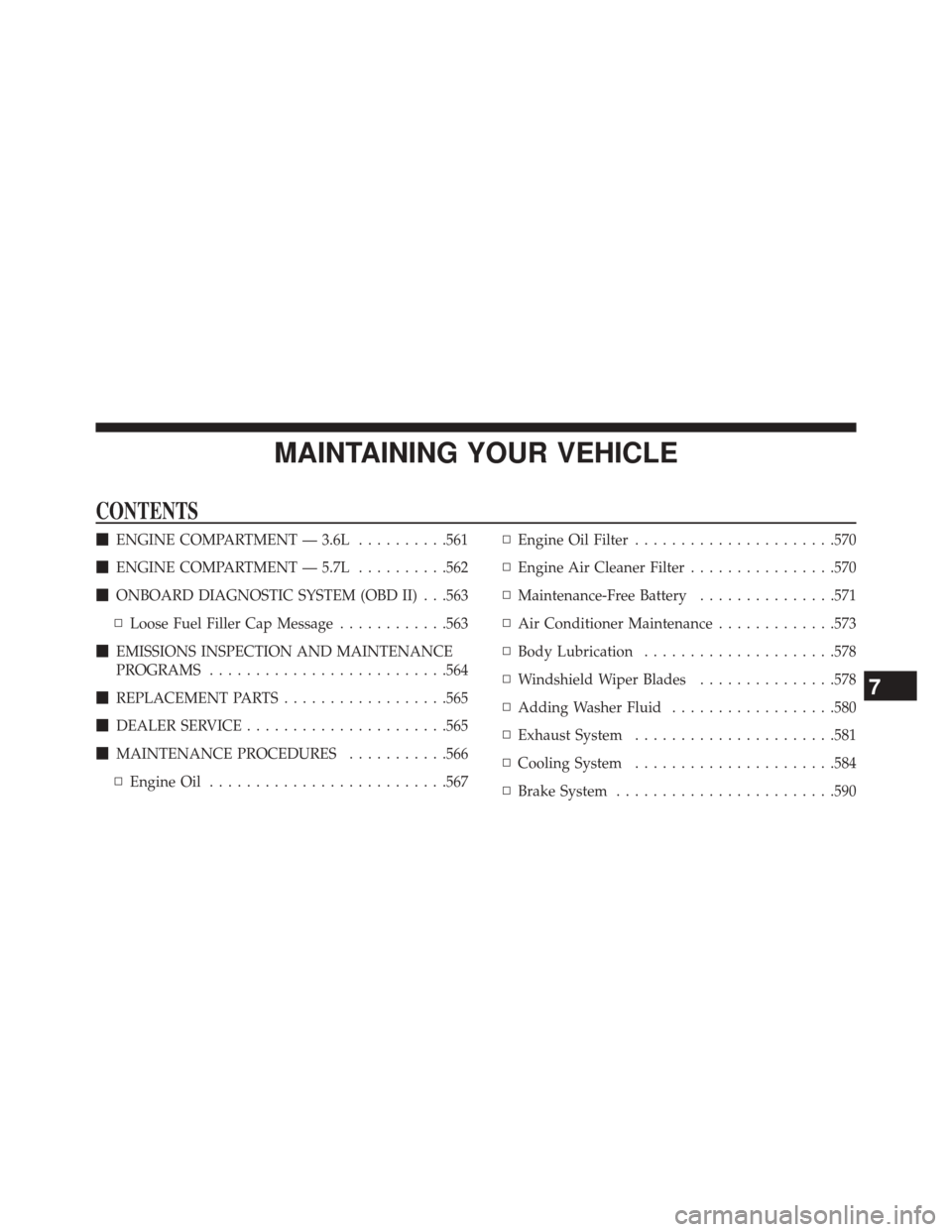

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........561
 ENGINE COMPARTMENT — 5.7L ..........562
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .563
▫ Loose Fuel Filler Cap Message ............563
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .564
 REPLACEMENT PARTS ..................565
 DEALER SERVICE ..................... .565
 MAINTENANCE PROCEDURES ...........566
▫ Engine Oil ......................... .567▫
Engine Oil Filter ..................... .570
▫ Engine Air Cleaner Filter ................570
▫ Maintenance-Free Battery ...............571
▫ Air Conditioner Maintenance .............573
▫ Body Lubrication .....................578
▫ Windshield Wiper Blades ...............578
▫ Adding Washer Fluid ..................580
▫ Exhaust System ..................... .581
▫ Cooling System ..................... .584
▫ Brake System ....................... .590
7

3. Approximately 15 seconds later, one of two things willhappen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR® parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR® parts for mainte-
nance and repairs will not be covered by the New Vehicle
Limited Warranty.
DEALER SERVICE
Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
7
MAINTAINING YOUR VEHICLE 565

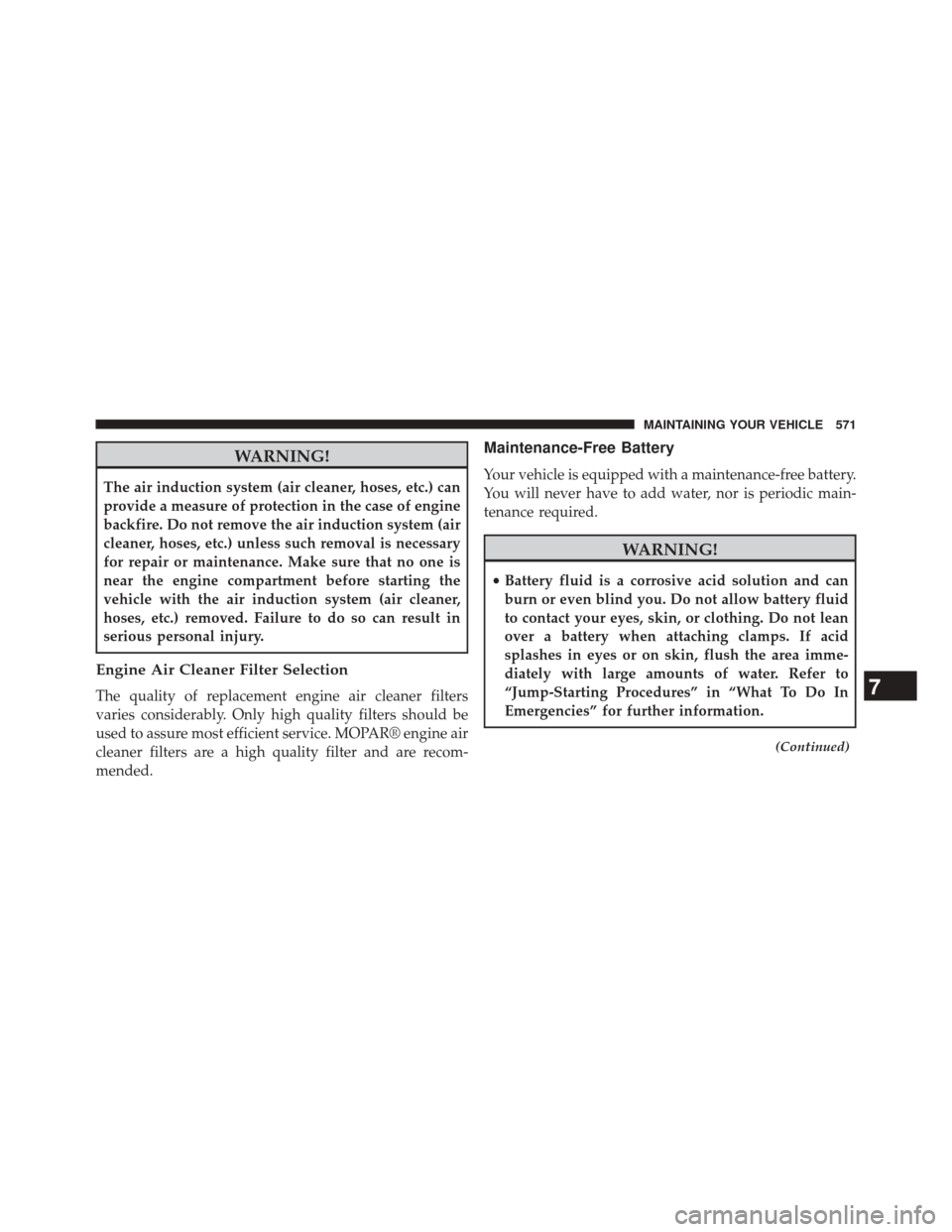

WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR® engine air
cleaner filters are a high quality filter and are recom-
mended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
WARNING!
•Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To Do In
Emergencies” for further information.
(Continued)
7
MAINTAINING YOUR VEHICLE 571

Fluid and Filter Changes..................595
Fluid Change ......................... .595
Fluid Level Check ...................... .594
Fluid Type ........................... .594
Gear Ranges .......................... .416
Special Additives ...................... .594
Auxiliary Electrical Outlet (Power Outlet) ........256
Auxiliary Power Outlet .....................256
Battery ................................ .305
Charging ............................ .305
Keyless Transmitter Replacement (RKE) ........26
Belts, Seat ...............................54
Blind Spot Monitoring ..................... .136
Body Mechanism Lubrication .................578
B-Pillar Location ......................... .460
Brake Assist System ...................... .444
Brake Control System, Electronic ..............442
Brake Fluid ............................ .590Brake System
........................... .590
Anti-Lock (ABS) ....................... .443
Fluid Check .......................... .590
Master Cylinder ....................... .590
Parking ............................. .439
Warning Light ........................ .295
Brake/Transmission Interlock .................414
Bulb Replacement ........................ .612
Bulbs, Light .............................118
Camera, Rear ........................... .239
Capacities, Fluid ......................... .618
Caps, Filler Fuel ................................ .544
Oil (Engine) .......................... .569
Power Steering ........................ .438
Radiator (Coolant Pressure) ................587
Carbon Monoxide Warning ..................115
Cargo Area Cover ........................ .273
10
INDEX 643
