fuse DODGE DURANGO 2014 3.G Owners Manual

NOTE:If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. The air bags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to the label
located on the inside of the fuse block cover for the
proper air bag fuses. See your authorized dealer if the
fuse is good.
Event Data Recorder (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle
is designed to record such data as: •
How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts
were buckled/fastened;
• How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of
the circumstances in which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no per-
sonal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law en-
forcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a
crash investigation.
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•To ensure proper operation a MOPAR® knob and
element must be used.
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
• Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse. Im-
proper use of the power outlet can cause damage not
covered by your New Vehicle Limited Warranty. The front power outlet is located inside the storage area
on the center stack of the instrument panel.
Front Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

NOTE:The rear cargo power outlet can be switched to
“battery” powered all the time by switching the power
outlet right rear quarter panel fuse in the fuse panel.
Rear Cargo Power OutletRear Cargo Power Outlet Fuse
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Outlet Fuse Locations
1 — F104 Fuse 20 A Yellow Power Outlet Console Bin
2 — F90–F91 Fuse 20 A Yellow Power Outlet Right Rear Quarter
Panel
3 — F93 Fuse 20 A Yellow Cigar Lighter Instrument Panel 260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Front/Rear Axle Fluid ..................592
▫ Transfer Case ....................... .593
▫ Automatic Transmission ................594
▫ Appearance Care And Protection From
Corrosion .......................... .596
 FUSES ............................. .602
▫ Power Distribution Center ...............603
 VEHICLE STORAGE ....................611
 REPLACEMENT BULBS .................612
 BULB REPLACEMENT ..................614
▫ High Intensity Discharge Headlamps
(Bi-Xenon) — If Equipped ...............614 ▫
Bi-Halogen Headlamps — If Equipped ......614
▫ Front Turn Signal .....................615
▫ Front Fog Lamps .....................616
▫ Rear Tail, Stop And Turn Signal Lamps ......617
▫ Rear Liftgate Mounted Back-up Lamps ......617
▫ Center High-Mounted Stop Lamp (CHMSL) . .617
▫ Rear License Lamp ....................617
 FLUID CAPACITIES ....................618

FLUIDS, LUBRICANTS AND GENUINE PARTS . .619
▫ Engine ............................ .619
▫ Chassis ............................ .621
560 MAINTAINING YOUR VEHICLE

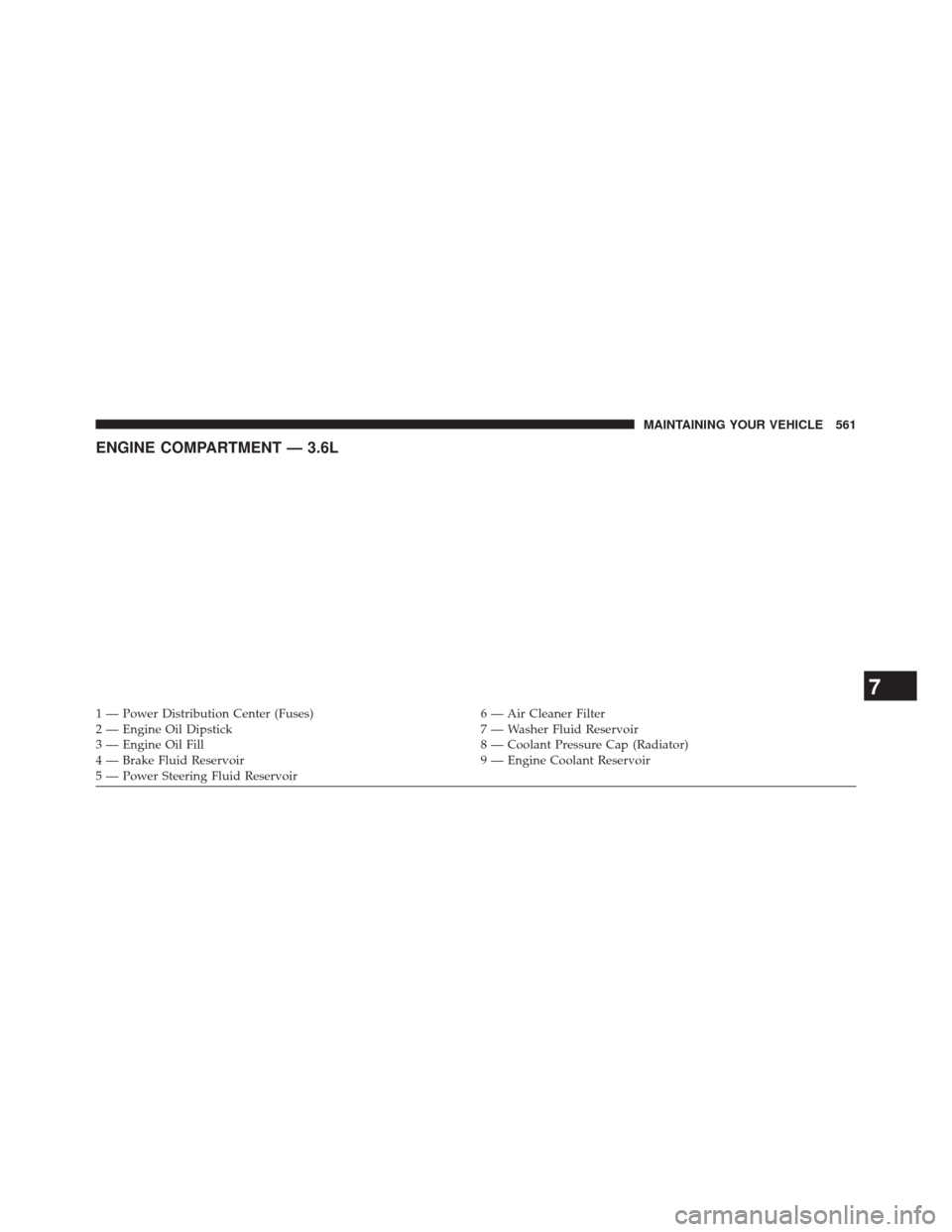

ENGINE COMPARTMENT — 3.6L
1 — Power Distribution Center (Fuses)6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Washer Fluid Reservoir
3 — Engine Oil Fill 8 — Coolant Pressure Cap (Radiator)
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Power Steering Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 561

ENGINE COMPARTMENT — 5.7L
1 — Remote Jump Start Terminals6 — Washer Fluid Reservoir
2 — Engine Oil Fill 7 — Engine Oil Dipstick
3 — Air Filter Cleaner 8 — Coolant Pressure Cap
4 — Brake Fluid Reservoir 9 — Engine Coolant Reservoir
5 — Power Steering Fluid Reservoir 10 — Power Distribution Center (Fuses)
562 MAINTAINING YOUR VEHICLE

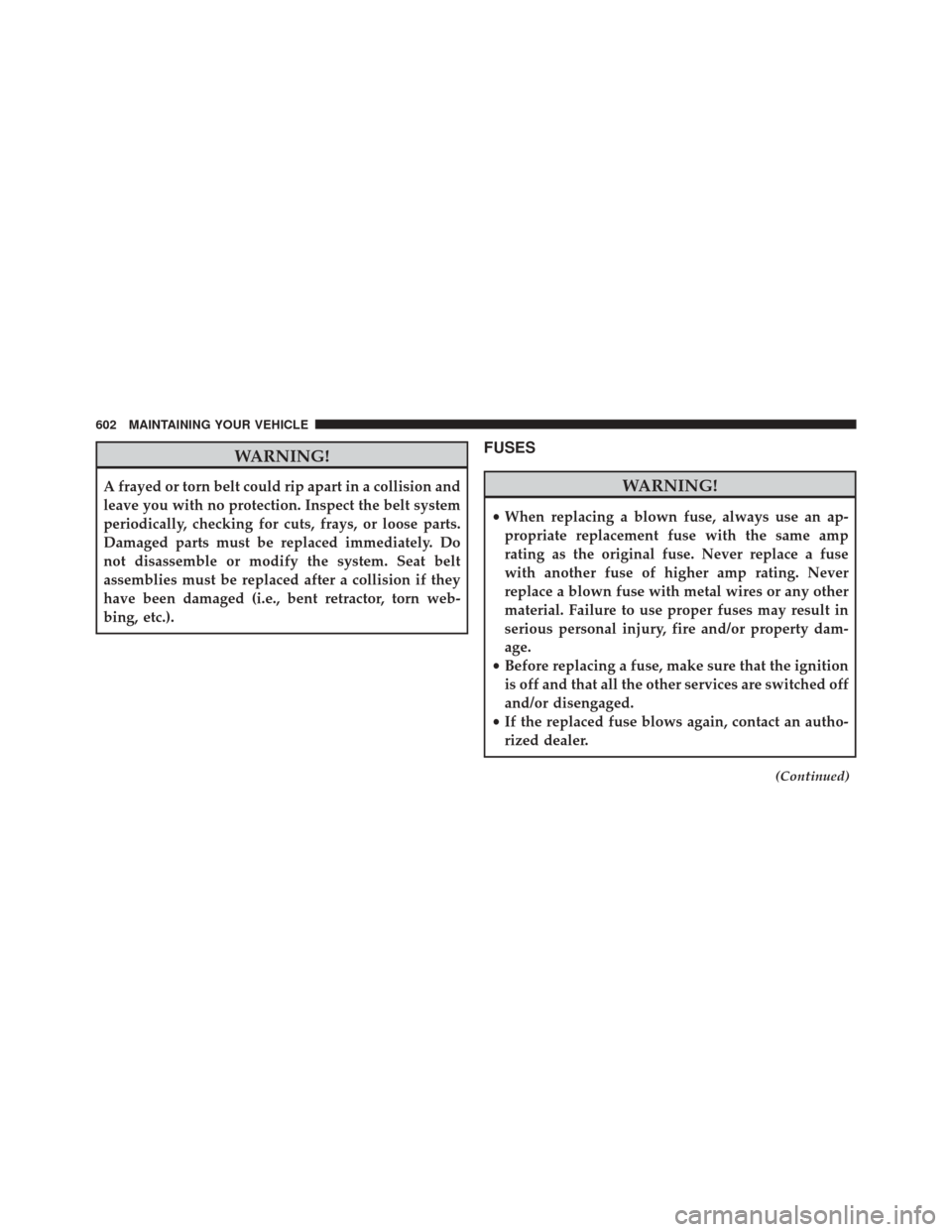

WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
• Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
602 MAINTAINING YOUR VEHICLE

WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to
the following chart.
Power Distribution Center
7
MAINTAINING YOUR VEHICLE 603

CavityCartridge Fuse Micro Fuse Description
F03 60 Amp Yellow Rad Fan
F05 40 Amp Green Compressor for Air Suspension - If
Equipped
F06 40 Amp Green Antilock Brakes/Electronic Stability Con-
trol Pump
F07 40 Amp Green Starter Solenoid
F08 40 Amp Green Emission Sensors (Diesel engine only)
F09 40 Amp Green Diesel Fuel Heater (Diesel engine only)
F10 40 Amp Green Body Controller / Exterior Lighting #2
F11 30 Amp Pink Trailer Tow Electric Brake - If Equipped
F12 40 Amp Green Body Controller #3 / Interior Lights
F13 40 Amp Green Blower Motor Front
F14 40 Amp Green Body Controller #4 / Power Locks
F17 30 Amp Pink Headrest Release - If Equipped
F20 30 Amp Pink Passenger Door Module
604 MAINTAINING YOUR VEHICLE
