jacking DODGE DURANGO 2014 3.G Owners Manual

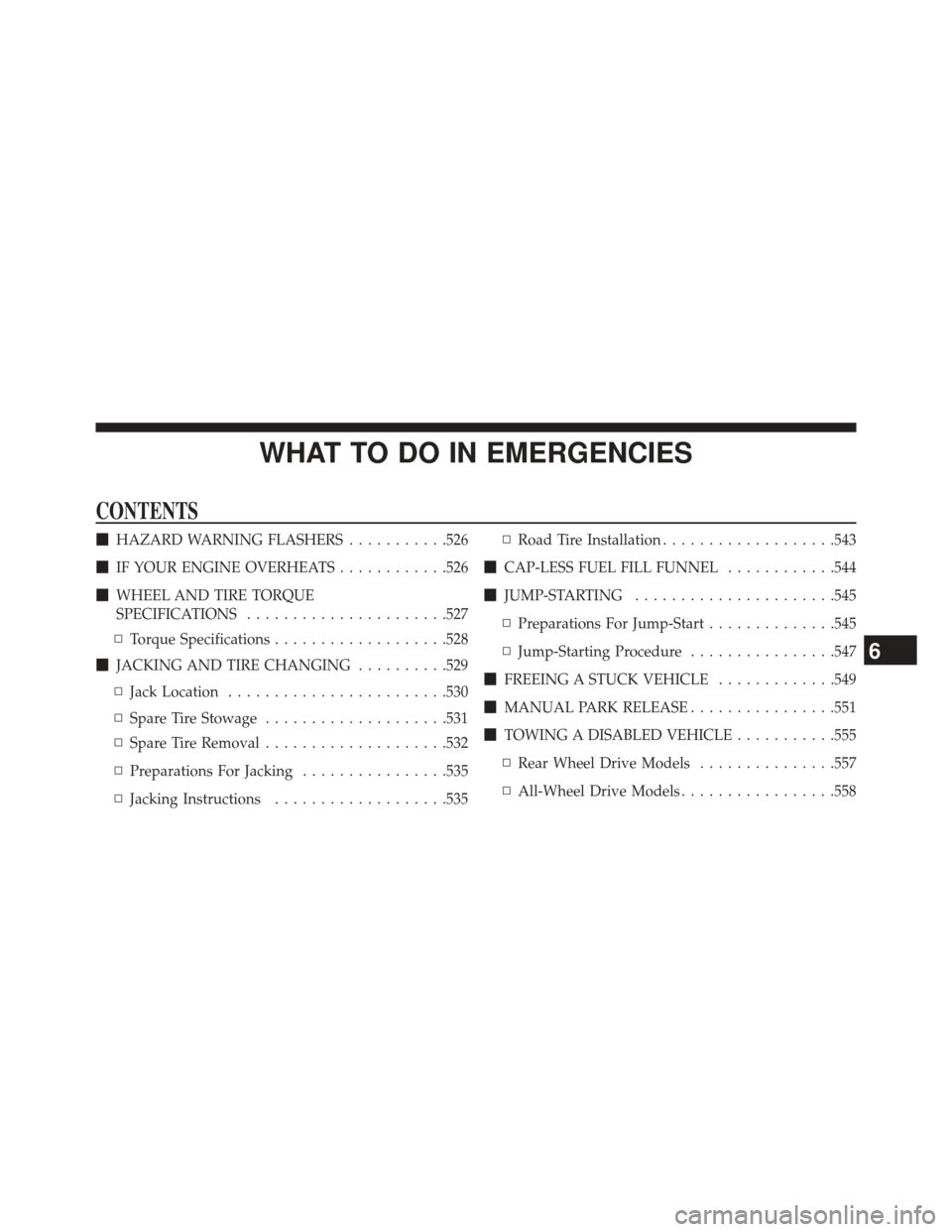

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ...........526
 IF YOUR ENGINE OVERHEATS ............526
 WHEEL AND TIRE TORQUE
SPECIFICATIONS ..................... .527
▫ Torque Specifications ...................528
 JACKING AND TIRE CHANGING ..........529
▫ Jack Location ....................... .530
▫ Spare Tire Stowage ....................531
▫ Spare Tire Removal ....................532
▫ Preparations For Jacking ................535
▫ Jacking Instructions ...................535 ▫
Road Tire Installation ...................543
 CAP-LESS FUEL FILL FUNNEL ............544
 JUMP-STARTING ..................... .545
▫ Preparations For Jump-Start ..............545
▫ Jump-Starting Procedure ................547
 FREEING A STUCK VEHICLE .............549
 MANUAL PARK RELEASE ................551
 TOWING A DISABLED VEHICLE ...........555
▫ Rear Wheel Drive Models ...............557
▫ All-Wheel Drive Models .................558
6

WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is
on a jack.
(Continued)
Torque Patterns6
WHAT TO DO IN EMERGENCIES 529

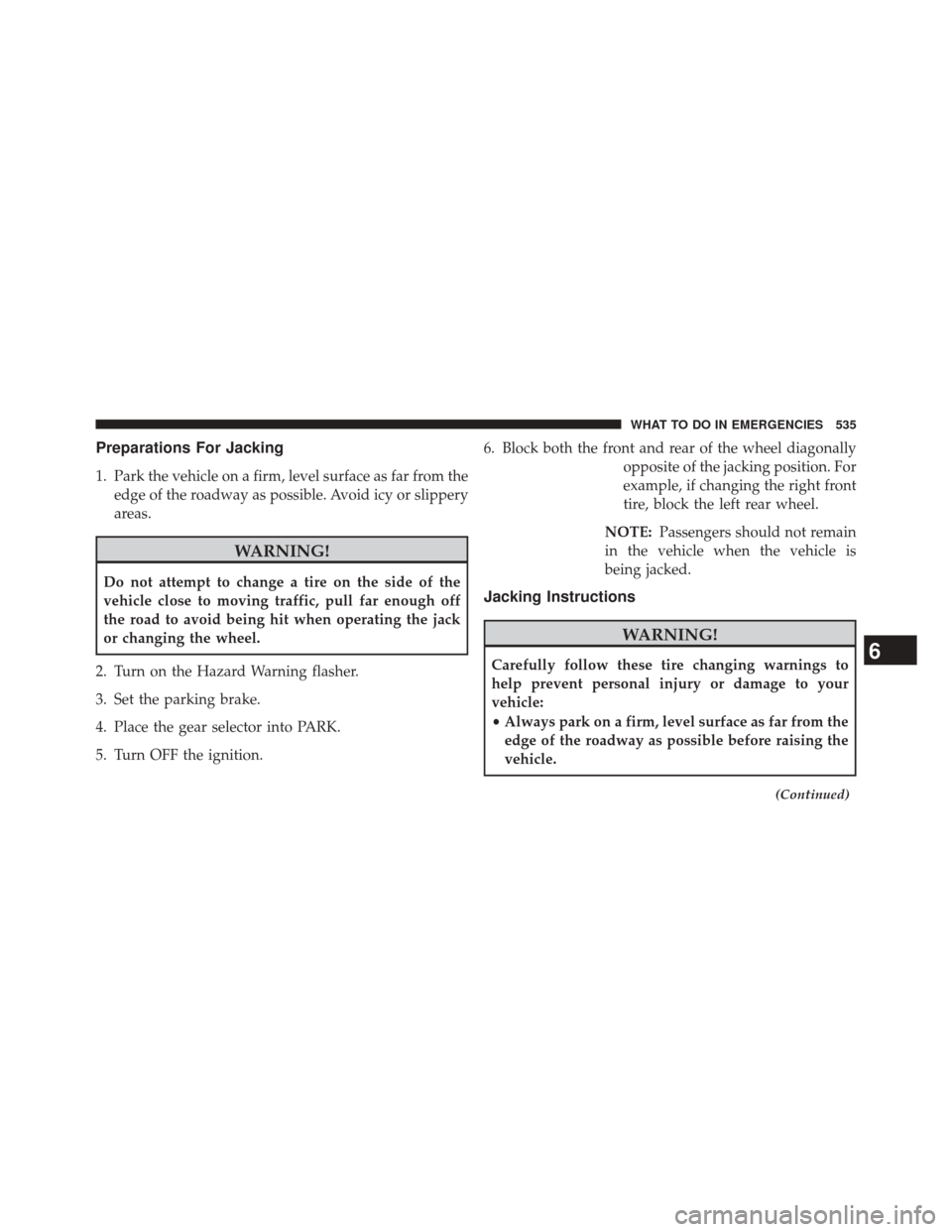

Preparations For Jacking
1. Park the vehicle on a firm, level surface as far from theedge of the roadway as possible. Avoid icy or slippery
areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the gear selector into PARK.
5. Turn OFF the ignition. 6. Block both the front and rear of the wheel diagonally
opposite of the jacking position. For
example, if changing the right front
tire, block the left rear wheel.
NOTE: Passengers should not remain
in the vehicle when the vehicle is
being jacked.Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
• Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
(Continued)
6
WHAT TO DO IN EMERGENCIES 535

WARNING!(Continued)
•Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to
be raised.
• Set the parking brake firmly and set the automatic
transmission in PARK.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
(Continued)
WARNING! (Continued)
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
Jack Warning Label
536 WHAT TO DO IN EMERGENCIES

1. Loosen (but do not remove) the wheel lug nuts byturning them to the left, one turn, while the wheel is
still on the ground.
2. Assemble the jack and jacking tools. 3. For the front axle, place the jack on the body flange
just behind the front tire as indicated by the triangular
lift point symbol on the sill molding. Do not raise the
vehicle until you are sure the jack is fully engaged.
Jack And Tool AssemblyLift Point Symbol On Sill Molding
6
WHAT TO DO IN EMERGENCIES 537

5. Raise the vehicle by turning the jack screw clockwise.Raise the vehicle just enough to remove the flat tire.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
6. Remove the lug nuts and wheel.
7. Install the spare wheel/tire on the vehicle and install the lug nuts with the cone-shaped end toward the
wheel. Lightly tighten the nuts.
CAUTION!
Be sure to mount the spare tire with the valve stem
facing outward. The vehicle could be damaged if the
spare tire is mounted incorrectly.
Rear Jacking Location6
WHAT TO DO IN EMERGENCIES 539

Electronic Brake Control System...............442
Brake Assist System .....................444
Electronic Roll Mitigation (ERM) ..............444
Electronic Speed Control (Cruise Control) ........194
Electronic Stability Control (ESC) ..............445
Electronic Vehicle Information Center Instrument Cluster Display .................31
Electronic Vehicle Information Center (EVIC) ......299
Change Engine Oil ..................... .305
Change Engine Oil Indicator System ..........305
Electronic Vehicle Information Center (EVIC) . . . .301
Electronic Vehicle Information Center (EVIC) Setup
Menu ............................... .301
EVIC Display ......................... .303
EVIC Messages ........................ .301
Remote Start ...........................31
Selectable Menu Items ....................312
Emergency, In Case of Freeing Vehicle When Stuck ................549 Hazard Warning Flasher
..................526
Jacking .............................. .529
Jump Starting ......................... .545
Emission Control System Maintenance ..........564
Engine Air Cleaner .......................... .570
Block Heater ...........................411
Break-In Recommendations ................113
Compartment ......................... .561
Compartment Identification ................561
Cooling ............................. .584
Exhaust Gas Caution .....................50
Fails to Start .......................... .410
Flooded, Starting ...................... .410
Fuel Requirements ..................... .486
Jump Starting ......................... .545
Oil................................. .567
Oil Filler Cap ......................... .569
Oil Selection .......................... .568
646 INDEX

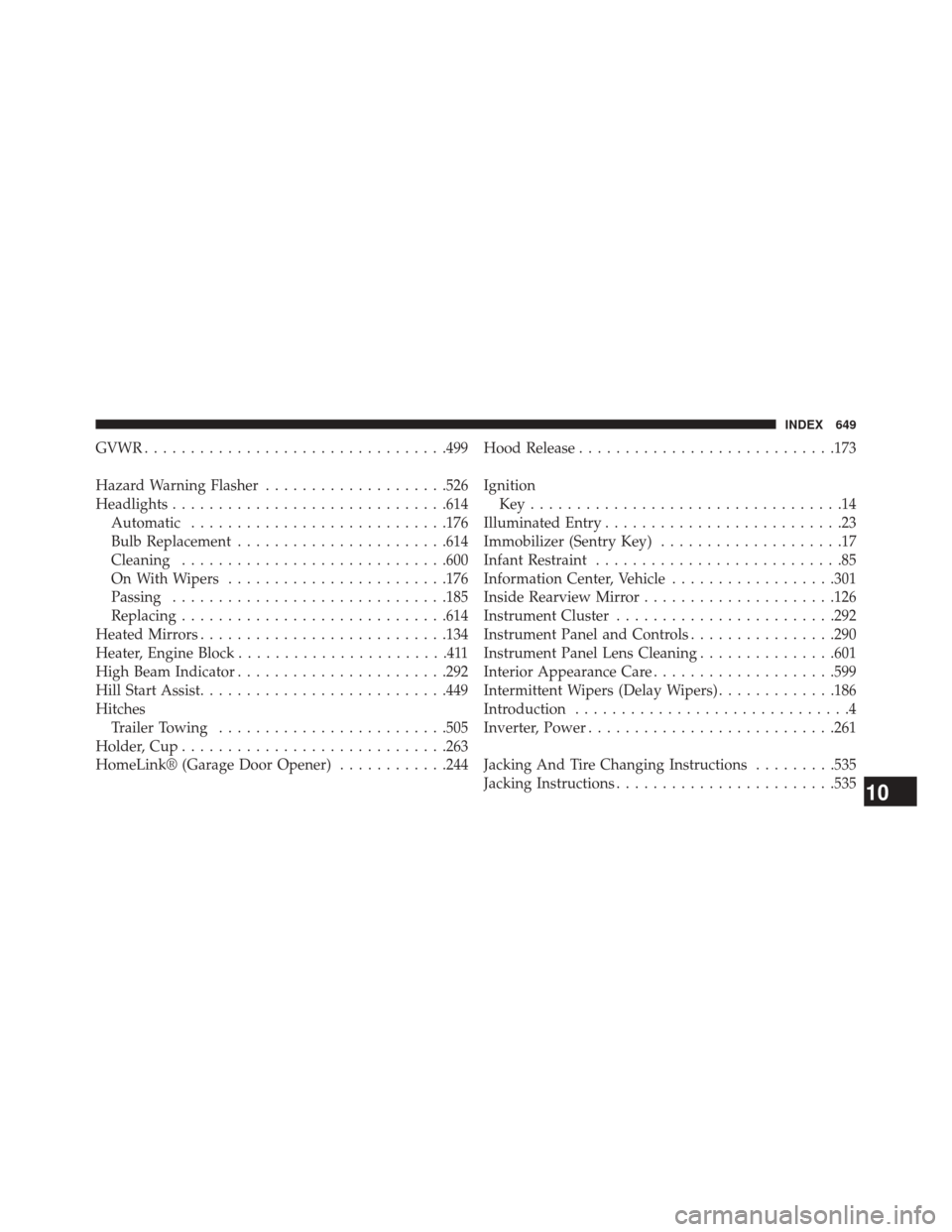

GVWR................................ .499
Hazard Warning Flasher ....................526
Headlights ............................. .614
Automatic ........................... .176
Bulb Replacement ...................... .614
Cleaning ............................ .600
On With Wipers ....................... .176
Passing ............................. .185
Replacing ............................ .614
Heated Mirrors .......................... .134
Heater, Engine Block .......................411
High Beam Indicator ...................... .292
Hill Start Assist .......................... .449
Hitches Trailer Towing ........................ .505
Holder, Cup ............................ .263
HomeLink® (Garage Door Opener) ............244Hood Release
........................... .173
Ignition Key..................................14
Illuminated Entry ..........................23
Immobilizer (Sentry Key) ....................17
Infant Restraint ...........................85
Information Center, Vehicle ..................301
Inside Rearview Mirror .....................126
Instrument Cluster ....................... .292
Instrument Panel and Controls ................290
Instrument Panel Lens Cleaning ...............601
Interior Appearance Care ....................599
Intermittent Wipers (Delay Wipers) .............186
Introduction ..............................4
Inverter, Power .......................... .261
Jacking And Tire Changing Instructions .........535
Jacking Instructions ....................... .535
10
INDEX 649

Filter Disposal........................ .570
Identification Logo ..................... .568
Materials Added to ..................... .570
Recommendation ...................... .568
Viscosity ............................ .569
Oil Filter, Selection ....................... .570
Onboard Diagnostic System ..................563
Opener, Garage Door (HomeLink®) ............244
Operating Precautions ..................... .563
Operator Manual (Owner’s Manual) .............6
Outside Rearview Mirrors ...................127
Overhead Console ........................ .241
Overheating, Engine ...................... .295
Owner’s Manual (Operator Manual) .............6
Paint Care ............................. .596
Panic Alarm ..............................26
Parking Brake ........................... .439
ParkSense® System, Rear ....................229 Passing Light
........................... .185
Passive Entry .............................36
Pets ...................................113
Pets, Transporting .........................113
Placard, Tire and Loading Information ..........460
Power Distribution Center (Fuses) ................603
Door Locks ............................34
Inverter ............................. .261
Lift Gate ..............................48
Mirrors ............................. .133
Outlet (Auxiliary Electrical Outlet) ...........256
Seats ............................... .145
Steering ............................. .436
Sunroof ............................. .253
Tilt/Telescoping Steering Column ............191
Windows ..............................42
Pregnant Women and Seat Belts ................68
Preparation for Jacking .....................535
10
INDEX 653

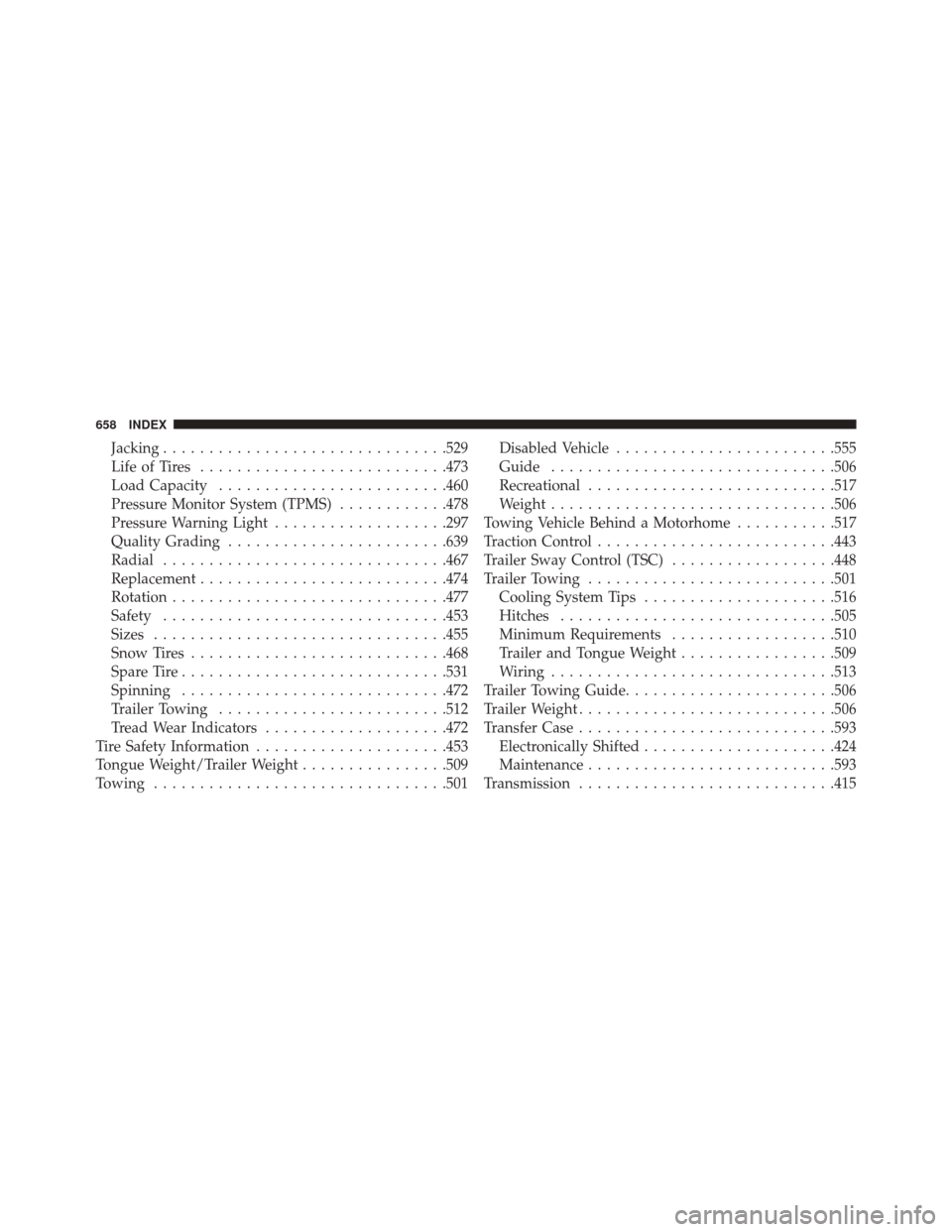

Jacking.............................. .529
Life of Tires .......................... .473
Load Capacity ........................ .460
Pressure Monitor System (TPMS) ............478
Pressure Warning Light ...................297
Quality Grading ....................... .639
Radial .............................. .467
Replacement .......................... .474
Rotation ............................. .477
Safety .............................. .453
Sizes ............................... .455
Snow Tires ........................... .468
Spare Tire ............................ .531
Spinning ............................ .472
Trailer Towing ........................ .512
Tread Wear Indicators ....................472
Tire Safety Information .....................453
Tongue Weight/Trailer Weight ................509
Towing ............................... .501Disabled Vehicle
....................... .555
Guide .............................. .506
Recreational .......................... .517
Weight .............................. .506
Towing Vehicle Behind a Motorhome ...........517
Traction Control ......................... .443
Trailer Sway Control (TSC) ..................448
Trailer Towing .......................... .501
Cooling System Tips .....................516
Hitches ............................. .505
Minimum Requirements ..................510
Trailer and Tongue Weight .................509
Wiring .............................. .513
Trailer Towing Guide ...................... .506
Trailer Weight ........................... .506
T

ransfer Case ........................... .593
Electronically Shifted .....................424
Maintenance .......................... .593
Transmission ........................... .415
658 INDEX
