engine DODGE DURANGO 2015 3.G Owners Manual

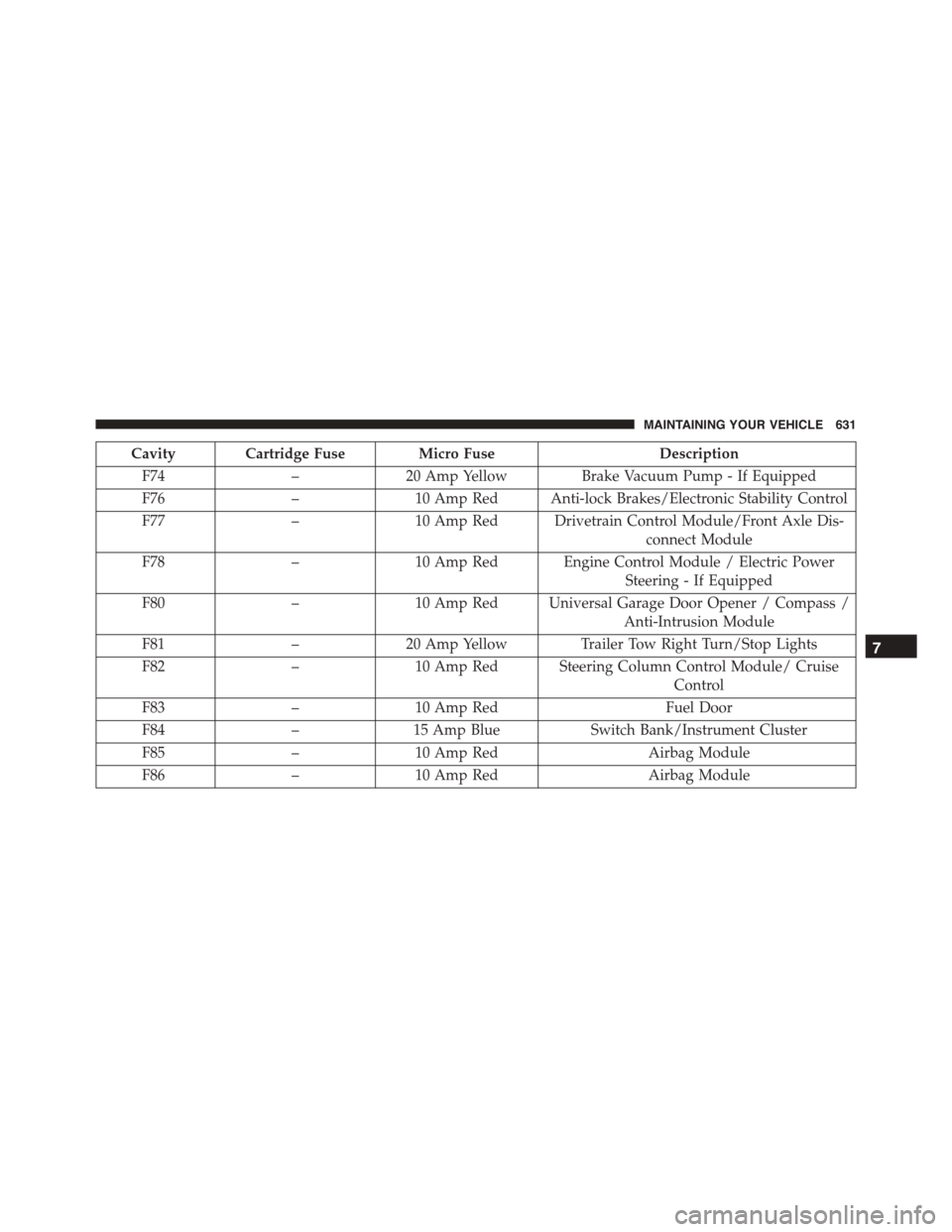

Cavity Cartridge Fuse Micro FuseDescription
F74–20 Amp YellowBrake Vacuum Pump - If Equipped
F76–10 Amp Red Anti-lock Brakes/Electronic Stability Control
F77–10 Amp Red Drivetrain Control Module/Front Axle Dis-
connect Module
F78–10 Amp Red Engine Control Module / Electric Power
Steering - If Equipped
F80–10 Amp Red Universal Garage Door Opener / Compass /
Anti-Intrusion Module
F81–20 Amp Yellow Trailer Tow Right Turn/Stop Lights
F82–10 Amp Red Steering Column Control Module/ Cruise
Control
F83–10 Amp RedFuel Door
F84–15 Amp BlueSwitch Bank/Instrument Cluster
F85–10 Amp RedAirbag Module
F86–10 Amp RedAirbag Module
7
MAINTAINING YOUR VEHICLE 631

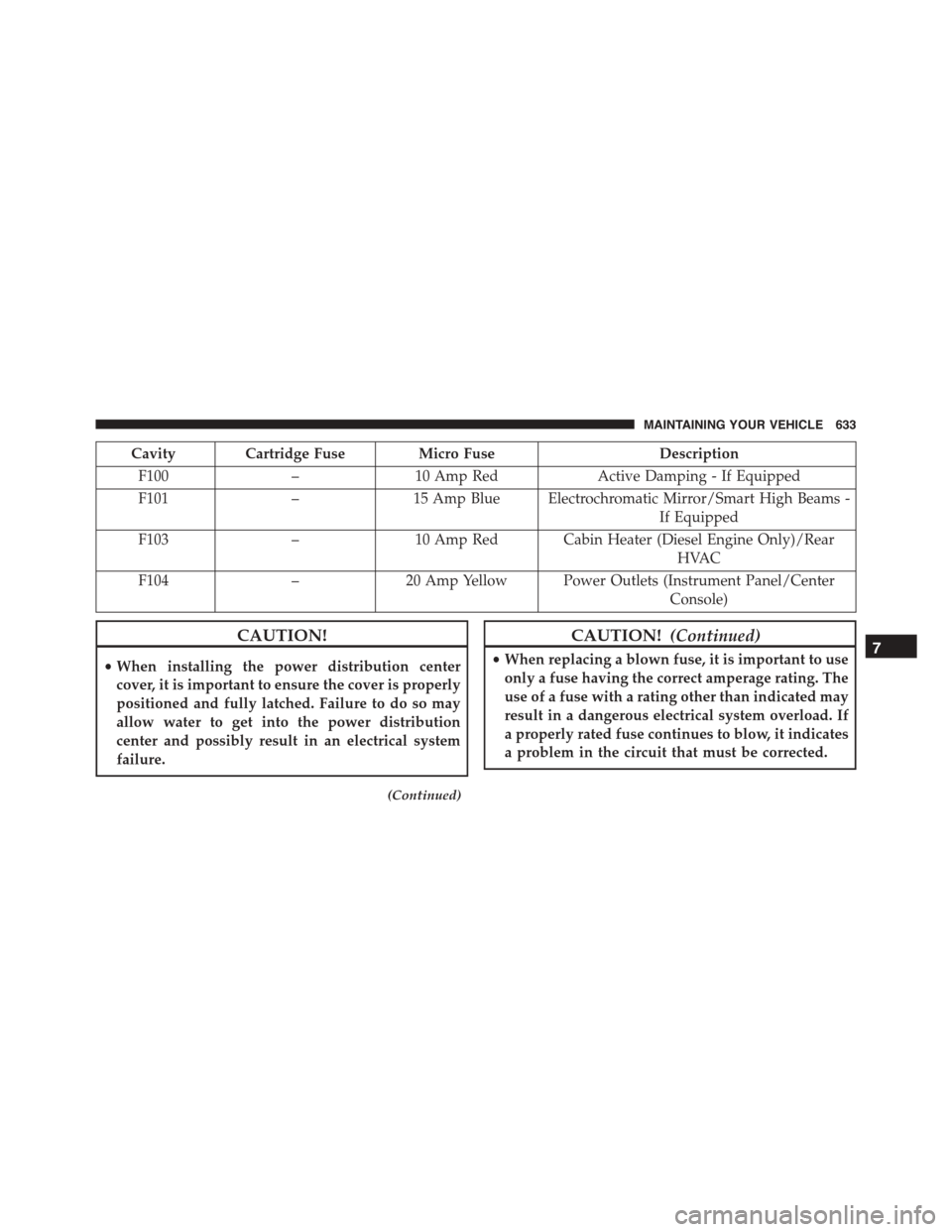

Cavity Cartridge Fuse Micro FuseDescription
F100–10 Amp RedActive Damping - If Equipped
F101–15 Amp Blue Electrochromatic Mirror/Smart High Beams -
If Equipped
F103–10 Amp Red Cabin Heater (Diesel Engine Only)/Rear
HVAC
F104–20 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
(Continued)
CAUTION!(Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 633

FLUID CAPACITIES
U.SMetric
Fuel (Approximate)
3.6L and 5.7L Engines25 Gallons94 Liters
Engine Oil With Filter
3.6L Engine (SAE 5W-20, API Certi-
fied)
6 Quarts5.6 Liters
5.7L Engine (SAE 5W-20, API Certi-
fied)
7 Quarts6.6 Liters
Cooling System *
3.6L Engine (MOPAR® Antifreeze/
Engine Coolant 10 Year/150,000
Mile Formula or equivalent) –
Without Trailer Tow Package
10.4 Quarts9.9 Liters
640 MAINTAINING YOUR VEHICLE

U.SMetric
3.6L Engine (MOPAR® Antifreeze/
Engine Coolant 10 Year/150,000
Mile Formula or equivalent) – With
Trailer Tow Package
11 Quarts10.4 Liters
5.7 Liter Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or
equivalent) – Without Trailer Tow
Package
15.4 Quarts14.6 Liters
5.7 Liter Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or
equivalent) – With Trailer Tow
Package
16 Quarts15.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 641

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant
10 Year/150,000 Mile Formula OAT (Organic Additive
Technology) meeting the requirements of Chrysler Ma-
terial Standard MS.90032.
Engine Oil – 3.6L EngineWe recommend you use API Certified SAE 5W-20
Engine Oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395 such as MOPAR®, Pennzoil®,
Shell Helix® or equivalent. Refer to your engine oil filler
cap for correct SAE grade.
Engine Oil – 5.7L EngineWe recommend you use API Certified SAE 5W-20
Engine Oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395 such as MOPAR®, Pennzoil®,
Shell Helix® or equivalent. Refer to your engine oil filler
cap for correct SAE grade.
642 MAINTAINING YOUR VEHICLE

ComponentFluid, Lubricant, or Genuine Part
Engine Oil FilterWe recommend you use a MOPAR® Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR® Spark Plugs.
Fuel Selection – 3.6L Engine87 Octane
Fuel Selection – 5.7L Engine87 Octane Acceptable – 89 Octane Recommended
7
MAINTAINING YOUR VEHICLE 643

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
(Continued)
CAUTION!(Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
•This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
644 MAINTAINING YOUR VEHICLE

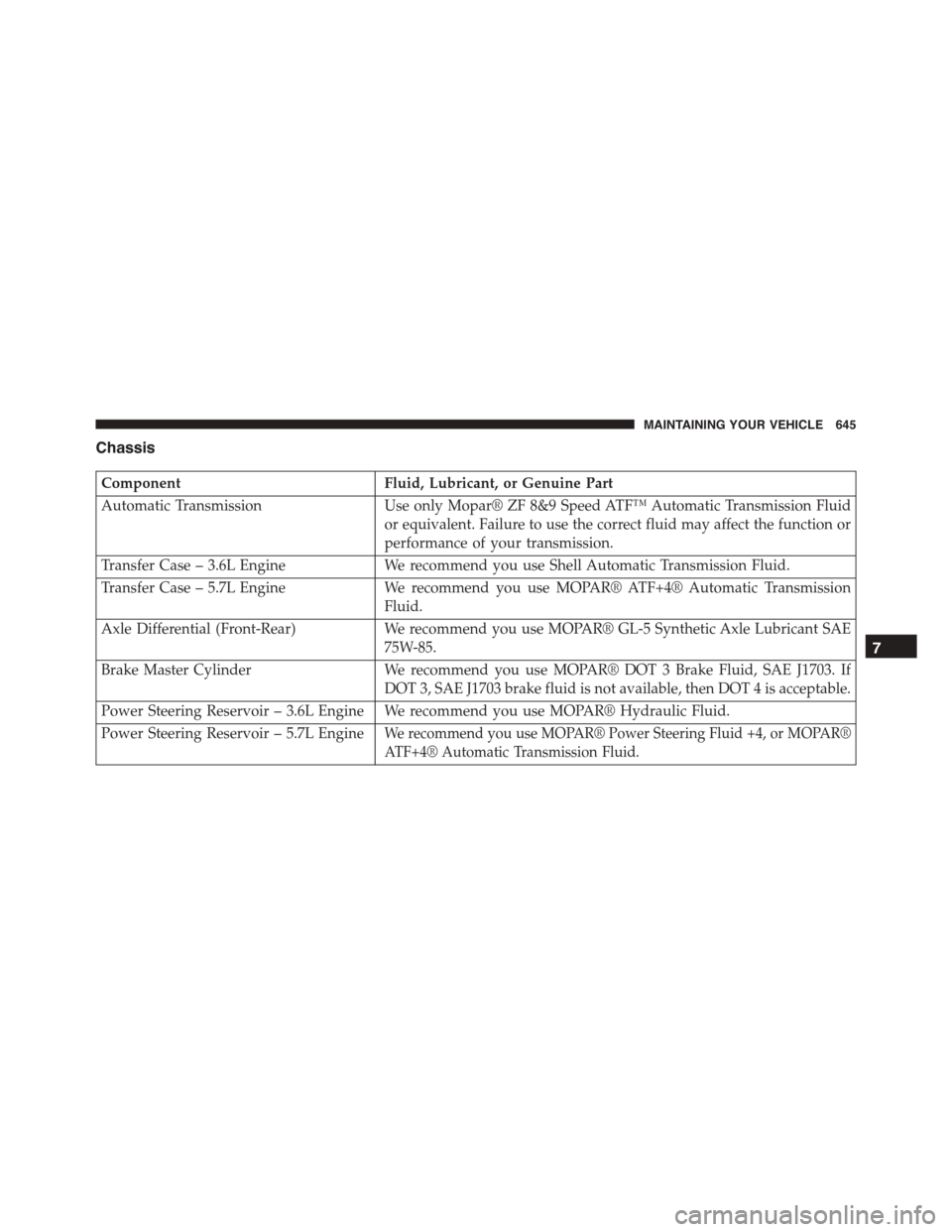

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic TransmissionUse only Mopar® ZF 8&9 Speed ATF™ Automatic Transmission Fluid
or equivalent. Failure to use the correct fluid may affect the function or
performance of your transmission.
Transfer Case – 3.6L EngineWe recommend you use Shell Automatic Transmission Fluid.
Transfer Case – 5.7L EngineWe recommend you use MOPAR® ATF+4® Automatic Transmission
Fluid.
Axle Differential (Front-Rear)We recommend you use MOPAR® GL-5 Synthetic Axle Lubricant SAE
75W-85.
Brake Master CylinderWe recommend you use MOPAR® DOT 3 Brake Fluid, SAE J1703. If
DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable.
Power Steering Reservoir – 3.6L Engine We recommend you use MOPAR® Hydraulic Fluid.
Power Steering Reservoir – 5.7L EngineWe recommend you use MOPAR® Power Steering Fluid +4, or MOPAR®
ATF+4® Automatic Transmission Fluid.
7
MAINTAINING YOUR VEHICLE 645

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
•Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder and power steering, and fill as needed.
•Check function of all interior and exterior lights
648 MAINTENANCE SCHEDULES

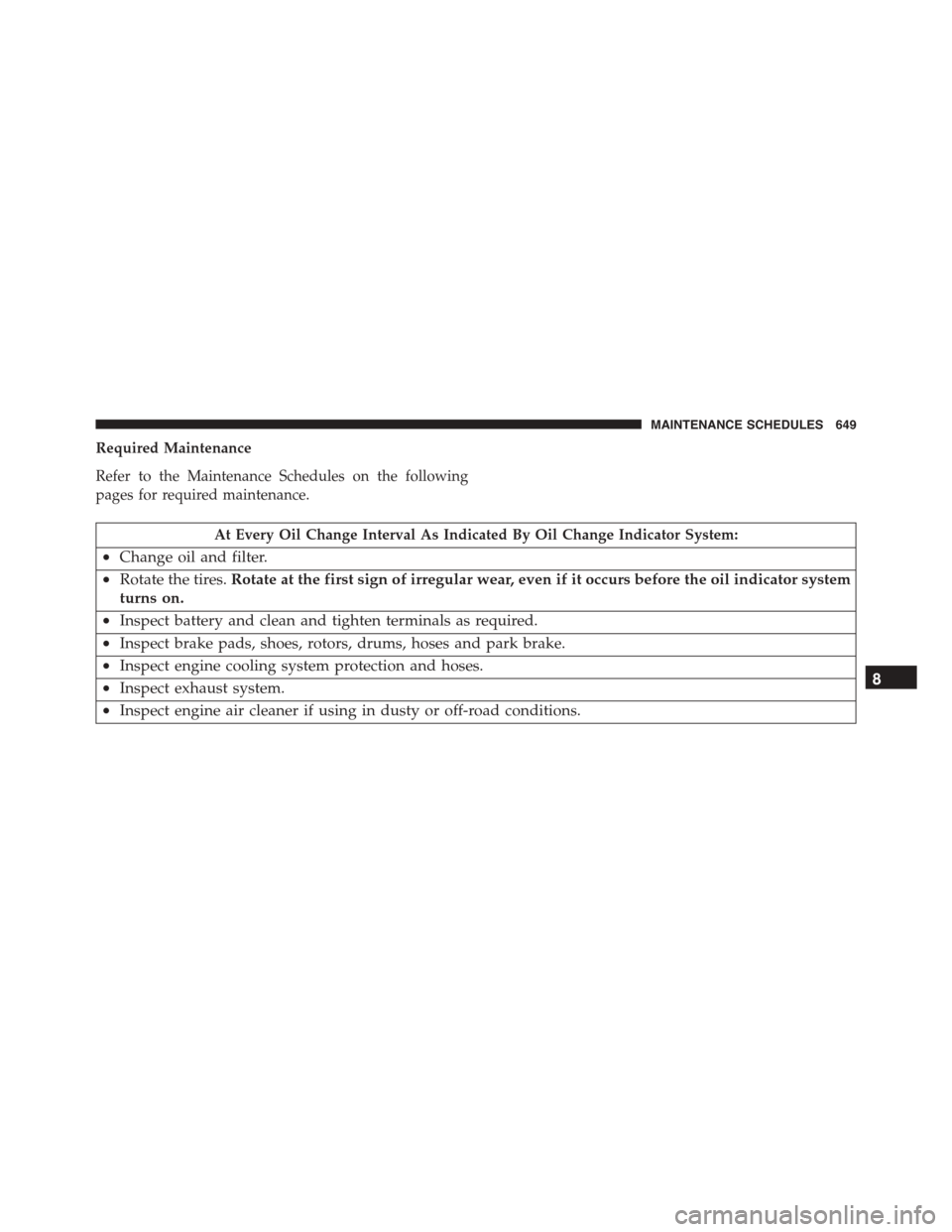

Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
•Rotate the tires.Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system
turns on.
•Inspect battery and clean and tighten terminals as required.
•Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•Inspect engine cooling system protection and hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or off-road conditions.
8
MAINTENANCE SCHEDULES 649
