EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which you
can use prior to going to the test station. To check if your
vehicle’s OBD II system is ready, you must do the following:
1. Cycle the ignition switch to the ON position, but do
not crank or start the engine.
NOTE:If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON
position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will
happen:
•The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system isnot readyand you should
notproceed to the I/M station.
588 MAINTAINING YOUR VEHICLE

4. Install the wiper blade pivot pin into the wiper blade
holder at the end of the wiper arm, and firmly press
the wiper blade until it snaps into place.
5. Lower the wiper blade and snap the pivot cap into
place.
Adding Washer Fluid
This vehicle is equipped with a Driver Information
Display (DID), the DID will indicate when the washer
fluid level is low. When the sensor detects a low fluid
level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.
The fluid reservoir for the windshield washers and the
rear window washer is shared. The fluid reservoir is
located in the engine compartment, be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
604 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
•Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder and power steering, and fill as needed.
•Check function of all interior and exterior lights
648 MAINTENANCE SCHEDULES

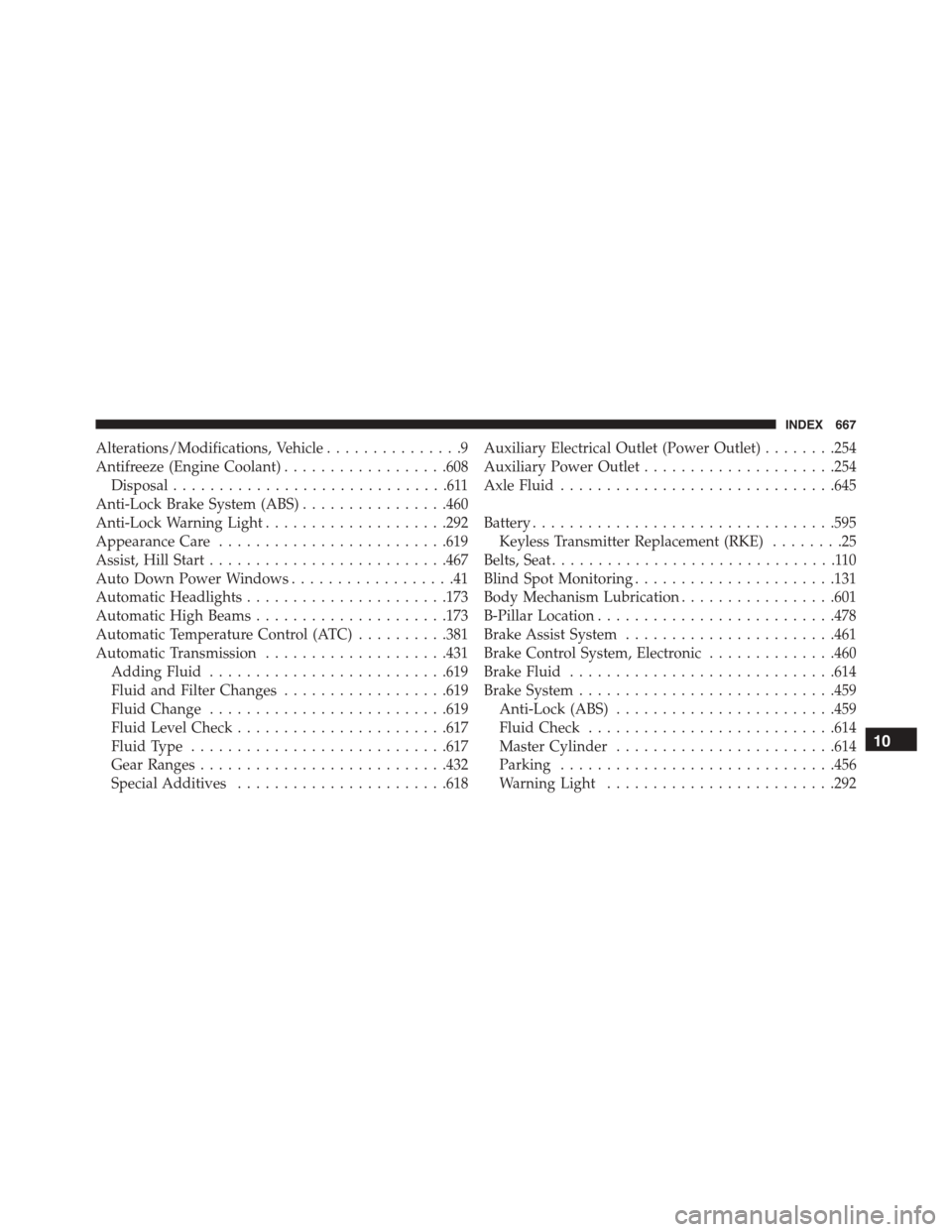

Alterations/Modifications, Vehicle...............9
Antifreeze (Engine Coolant)..................608
Disposal..............................611
Anti-Lock Brake System (ABS)................460
Anti-Lock Warning Light....................292
Appearance Care.........................619
Assist, Hill Start..........................467
Auto Down Power Windows..................41
Automatic Headlights......................173
Automatic High Beams.....................173
Automatic Temperature Control (ATC)..........381
Automatic Transmission....................431
Adding Fluid..........................619
Fluid and Filter Changes..................619
Fluid Change..........................619
Fluid Level Check.......................617
Fluid Type............................617
Gear Ranges...........................432
Special Additives.......................618
Auxiliary Electrical Outlet (Power Outlet)........254
Auxiliary Power Outlet.....................254
Axle Fluid..............................645
Battery.................................595
Keyless Transmitter Replacement (RKE)........25
Belts, Seat...............................110
Blind Spot Monitoring......................131
Body Mechanism Lubrication.................601
B-Pillar Location..........................478
Brake Assist System.......................461
Brake Control System, Electronic..............460
Brake Fluid.............................614
Brake System............................459
Anti-Lock (ABS)........................459
Fluid Check...........................614
Master Cylinder........................614
Parking..............................456
Warning Light.........................292
10
INDEX 667

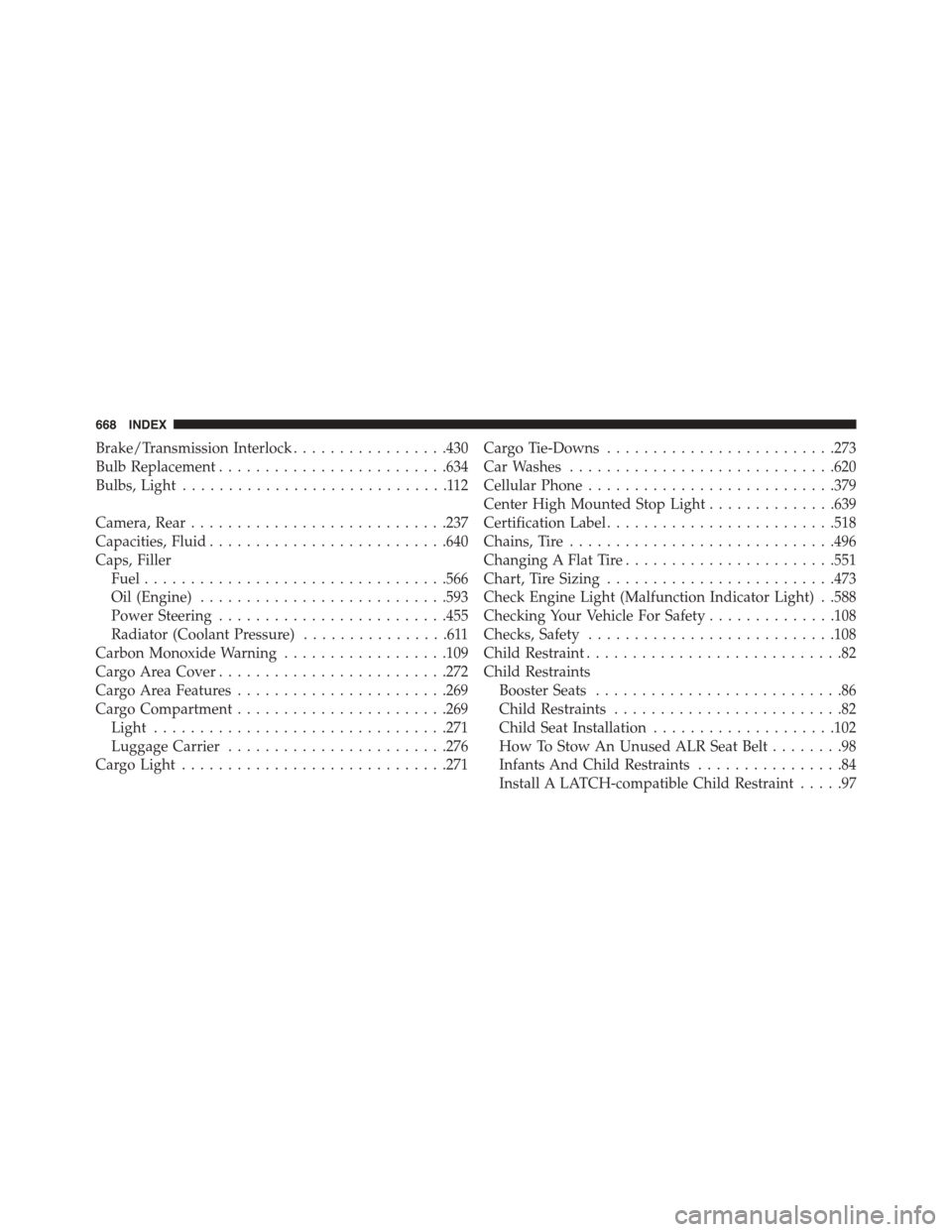

Brake/Transmission Interlock.................430
Bulb Replacement.........................634
Bulbs, Light.............................112
Camera, Rear............................237
Capacities, Fluid..........................640
Caps, Filler
Fuel.................................566
Oil (Engine)...........................593
Power Steering.........................455
Radiator (Coolant Pressure)................611
Carbon Monoxide Warning..................109
Cargo Area Cover.........................272
Cargo Area Features.......................269
Cargo Compartment.......................269
Light................................271
Luggage Carrier........................276
Cargo Light.............................271
Cargo Tie-Downs.........................273
Car Washes.............................620
Cellular Phone...........................379
Center High Mounted Stop Light..............639
Certification Label.........................518
Chains, Tire.............................496
Changing A Flat Tire.......................551
Chart, Tire Sizing.........................473
Check Engine Light (Malfunction Indicator Light) . .588
Checking Your Vehicle For Safety..............108
Checks, Safety...........................108
Child Restraint............................82
Child Restraints
Booster Seats...........................86
Child Restraints.........................82
Child Seat Installation....................102
How To Stow An Unused ALR Seat Belt........98
Infants And Child Restraints................84
Install A LATCH-compatible Child Restraint.....97
668 INDEX

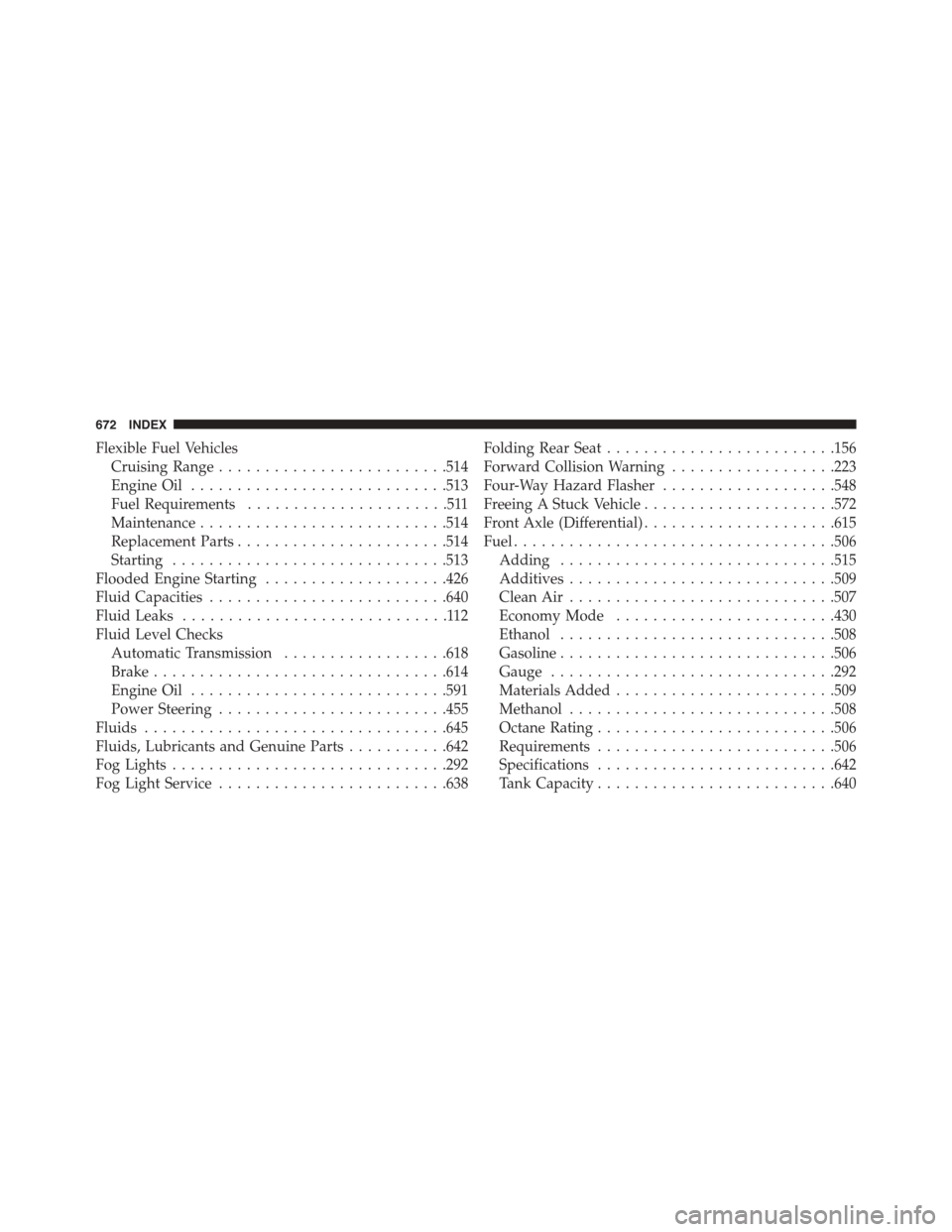

Flexible Fuel Vehicles
Cruising Range.........................514
Engine Oil............................513
Fuel Requirements......................511
Maintenance...........................514
Replacement Parts.......................514
Starting..............................513
Flooded Engine Starting....................426
Fluid Capacities..........................640
Fluid Leaks.............................112
Fluid Level Checks
Automatic Transmission..................618
Brake................................614
Engine Oil............................591
Power Steering.........................455
Fluids.................................645
Fluids, Lubricants and Genuine Parts...........642
Fog Lights..............................292
Fog Light Service.........................638
Folding Rear Seat.........................156
Forward Collision Warning..................223
Four-Way Hazard Flasher...................548
Freeing A Stuck Vehicle.....................572
Front Axle (Differential).....................615
Fuel...................................506
Adding..............................515
Additives.............................509
Clean Air.............................507
Economy Mode........................430
Ethanol..............................508
Gasoline..............................506
Gauge...............................292
Materials Added........................509
Methanol.............................508
Octane Rating..........................506
Requirements..........................506
Specifications..........................642
Tank Capacity..........................640
672 INDEX

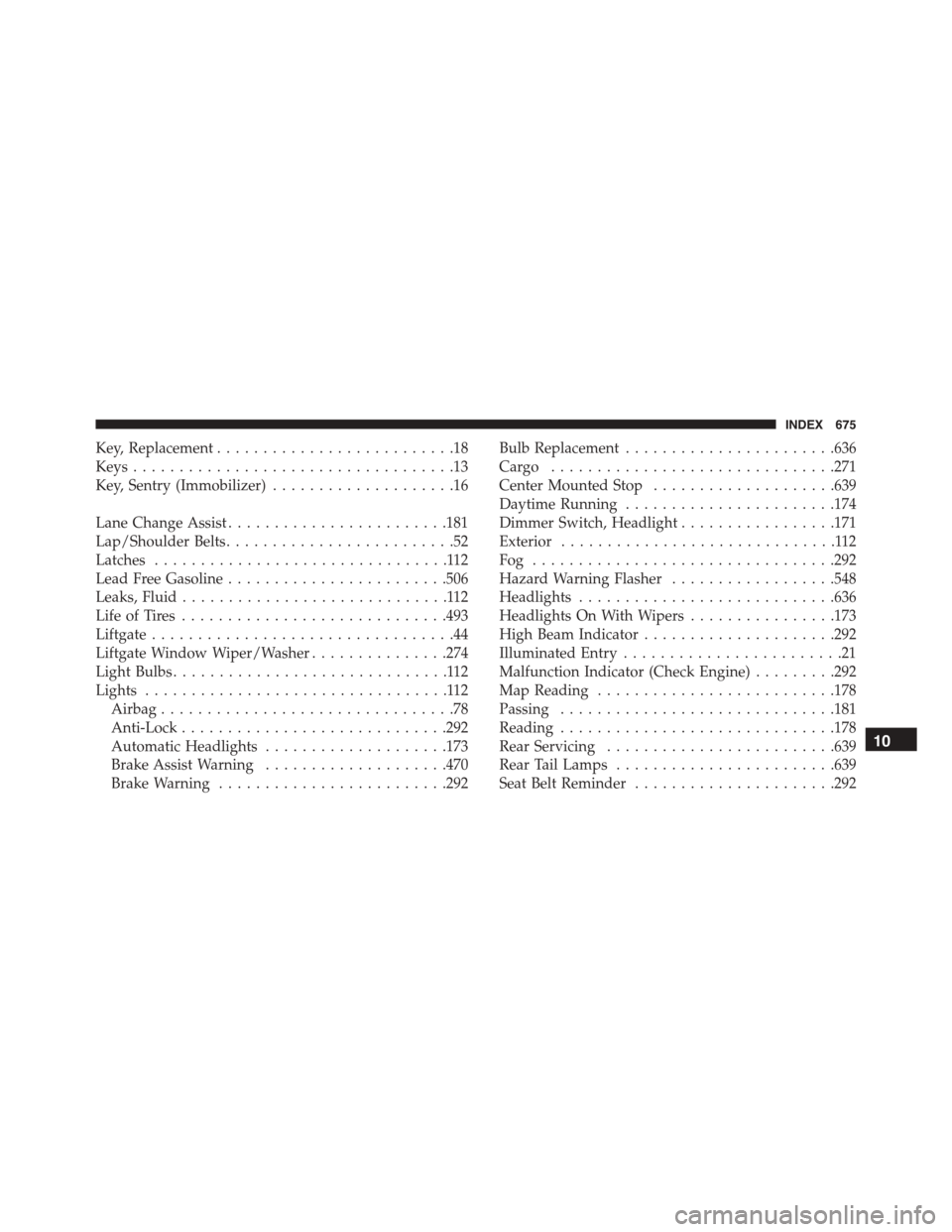

Key, Replacement..........................18
Keys...................................13
Key, Sentry (Immobilizer)....................16
Lane Change Assist........................181
Lap/Shoulder Belts.........................52
Latches................................112
Lead Free Gasoline........................506
Leaks, Fluid.............................112
Life of Tires.............................493
Liftgate.................................44
Liftgate Window Wiper/Washer...............274
Light Bulbs..............................112
Lights.................................112
Airbag................................78
Anti-Lock.............................292
Automatic Headlights....................173
Brake Assist Warning....................470
Brake Warning.........................292
Bulb Replacement.......................636
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..271
Center Mounted Stop....................639
Daytime Running.......................174
Dimmer Switch, Headlight.................171
Exterior..............................112
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..292
Hazard Warning Flasher..................548
Headlights............................636
Headlights On With Wipers................173
High Beam Indicator.....................292
Illuminated Entry........................21
Malfunction Indicator (Check Engine).........292
Map Reading..........................178
Passing..............................181
Reading..............................178
Rear Servicing.........................639
Rear Tail Lamps........................639
Seat Belt Reminder......................292
10
INDEX 675

Security Alarm.........................292
Service...............................636
Service Engine Soon (Malfunction Indicator) . . . .292
Side Marker...........................639
Tire Pressure Monitoring (TPMS)............292
Traction Control........................470
Turn Signal............................112
Vanity Mirror..........................130
Loading Vehicle..........................518
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..478
Locks..................................31
Child Protection.........................33
Door.................................31
Power Door............................32
Lubrication, Body.........................601
Luggage Rack (Roof Rack)...................276
Lug Nuts...............................549
Maintenance Free Battery....................595
Maintenance Procedures....................590
Maintenance Schedule......................648
Malfunction Indicator Light (Check Engine).......292
Manual, Service..........................662
Memory Feature (Memory Seat)...............164
Memory Seat............................164
Memory Seats and Radio....................164
Methanol...............................508
Mirrors................................120
Electric Powered........................128
Electric Remote.........................128
Exterior Folding........................128
Heated...............................129
Outside..............................120
Rearview.............................120
Vanity...............................130
Modifications/Alterations, Vehicle...............9
Monitor, Tire Pressure System................498
MOPAR® Parts...........................589
676 INDEX
