Keyless Enter-N-Go™
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the Remote
Start/Keyless Enter-N-Go™ Key Fob
is in the passenger compartment.
Normal Starting
Using The ENGINE START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the
ENGINE START/STOP button once.
3. The system takes over and attempts to start the
vehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to
the engine starting, push the button again.
NOTE:Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the shift lever/gear selector in PARK, then press
and release the ENGINE START/STOP button.
2. The ignition switch will return to the OFF position.
3. If the shift lever/gear selector is not in PARK, the
ENGINE START/STOP button must be held for two
seconds or three short presses in a row with the
vehicle speed above 5 mph (8 km/h) before the engine
will shut off. The ignition switch position will remain
in the ACC position until the shift lever/gear selector
is in PARK and the button is pressed twice to the OFF
424 STARTING AND OPERATING

NOTE:When using a portable battery booster pack
follow the manufacturer’s operating instructions and
precautions.
Preparations For Jump-Start
The battery in your vehicle is located under the passen-
ger’s front seat. There are remote locations located under
the hood to assist in jump-starting.
Remote Battery Posts
1—RemotePositive(+)Post (covered with protective cap)2 — Remote Negative(-)Post
568 WHAT TO DO IN EMERGENCIES

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
•Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
NOTE:Be sure that the disconnected ends of the cables
do not touch while still connected to the other vehicle.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories.
3. Remove the protective cover over the remote positive
(+)battery post. Pull upward on the cover to remove
it.
4. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
6
WHAT TO DO IN EMERGENCIES 569

Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
NOTE:Make sure at all times that unused ends of
jumper cables are not contacting each other or either
vehicle while making connections.
Connecting The Jumper Cables
1. Connect the positive(+)end of the jumper cable to the
remote positive(+)post of the discharged vehicle.
2. Connect the opposite end of the positive(+)jumper
cable to the positive(+)post of the booster battery.
3. Connect the negative end(-)of the jumper cable to the
negative(-)post of the booster battery.
4. Connect the opposite end of the negative(-)jumper
cable to the remote negative(-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting electri-
cal spark could cause the battery to explode and
(Continued)
570 WHAT TO DO IN EMERGENCIES

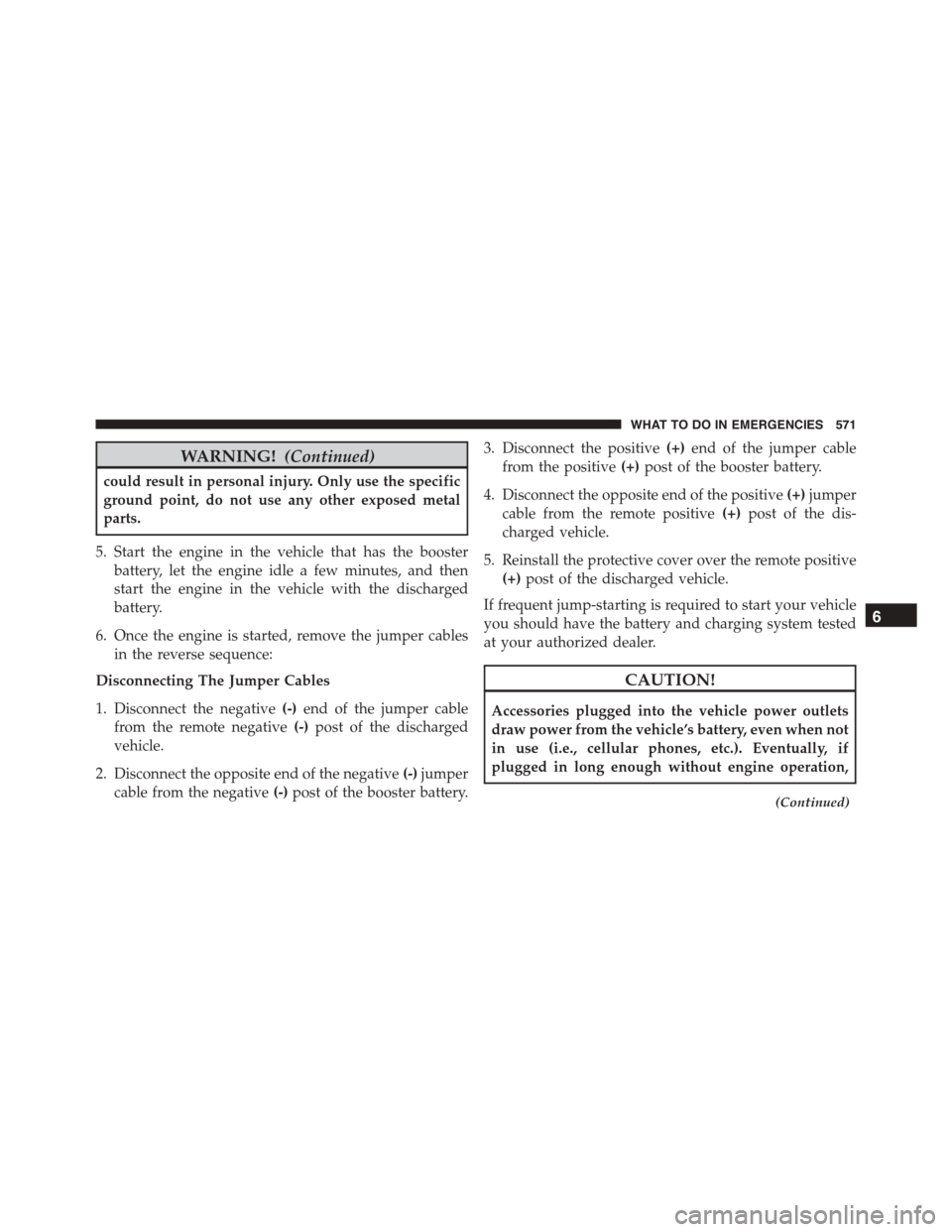

WARNING!(Continued)
could result in personal injury. Only use the specific
ground point, do not use any other exposed metal
parts.
5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
6. Once the engine is started, remove the jumper cables
in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative(-)end of the jumper cable
from the remote negative(-)post of the discharged
vehicle.
2. Disconnect the opposite end of the negative(-)jumper
cable from the negative(-)post of the booster battery.
3. Disconnect the positive(+)end of the jumper cable
from the positive(+)post of the booster battery.
4. Disconnect the opposite end of the positive(+)jumper
cable from the remote positive(+)post of the dis-
charged vehicle.
5. Reinstall the protective cover over the remote positive
(+)post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system tested
at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough without engine operation,
(Continued)
6
WHAT TO DO IN EMERGENCIES 571

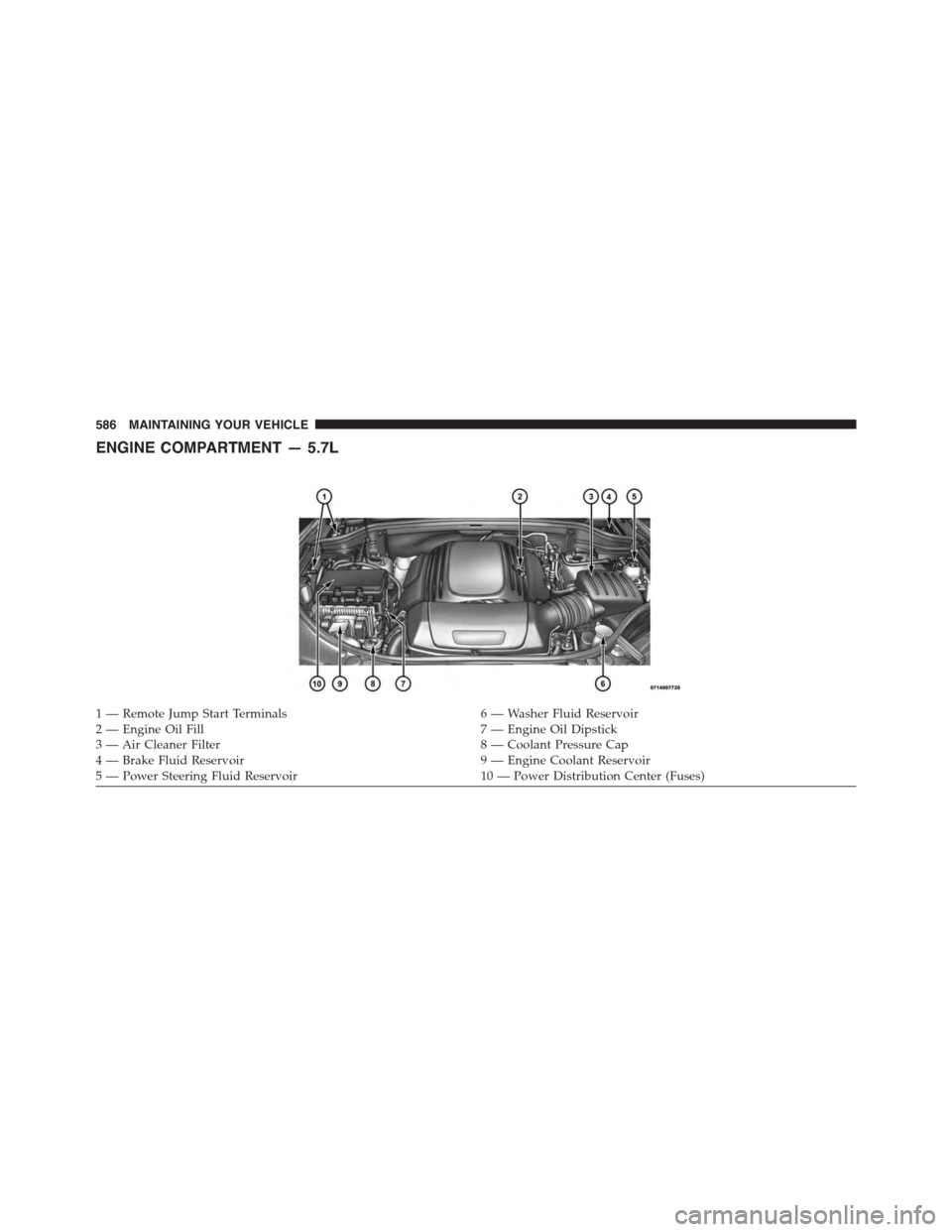

ENGINE COMPARTMENT — 5.7L
1 — Remote Jump Start Terminals6 — Washer Fluid Reservoir2—EngineOilFill7—EngineOilDipstick3 — Air Cleaner Filter8 — Coolant Pressure Cap4—BrakeFluidReservoir9—EngineCoolantReservoir5 — Power Steering Fluid Reservoir10 — Power Distribution Center (Fuses)
586 MAINTAINING YOUR VEHICLE

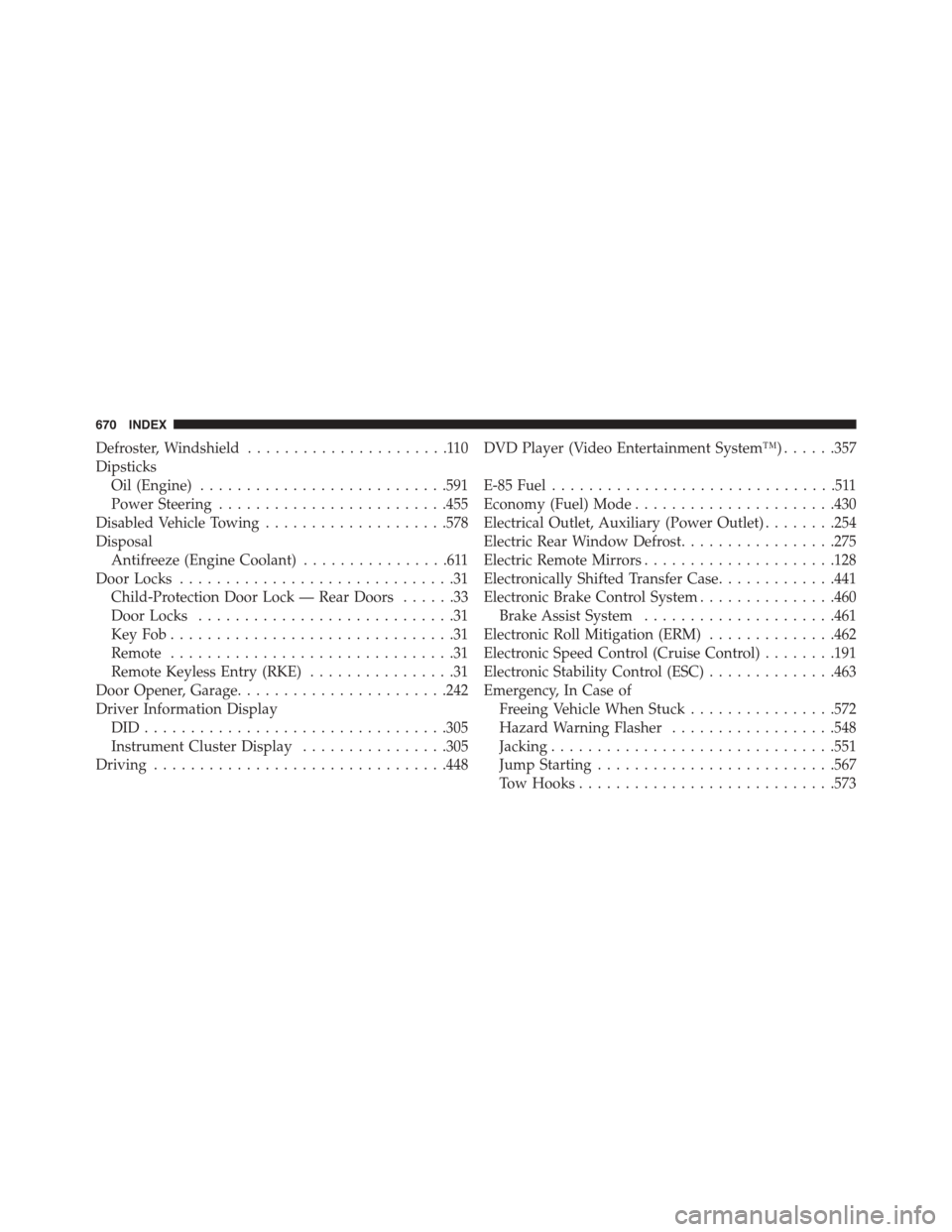

Defroster, Windshield......................110
Dipsticks
Oil (Engine)...........................591
Power Steering.........................455
Disabled Vehicle Towing....................578
Disposal
Antifreeze (Engine Coolant)................611
Door Locks..............................31
Child-Protection Door Lock — Rear Doors......33
Door Locks............................31
Key Fob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Remote...............................31
Remote Keyless Entry (RKE)................31
Door Opener, Garage.......................242
Driver Information Display
DID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..305
Instrument Cluster Display................305
Driving................................448
DVD Player (Video Entertainment System™)......357
E-85 Fuel...............................511
Economy (Fuel) Mode......................430
Electrical Outlet, Auxiliary (Power Outlet)........254
Electric Rear Window Defrost.................275
Electric Remote Mirrors.....................128
Electronically Shifted Transfer Case.............441
Electronic Brake Control System...............460
Brake Assist System.....................461
Electronic Roll Mitigation (ERM)..............462
Electronic Speed Control (Cruise Control)........191
Electronic Stability Control (ESC)..............463
Emergency, In Case of
Freeing Vehicle When Stuck................572
Hazard Warning Flasher..................548
Jacking...............................551
Jump Starting..........................567
Tow Hooks............................573
670 INDEX

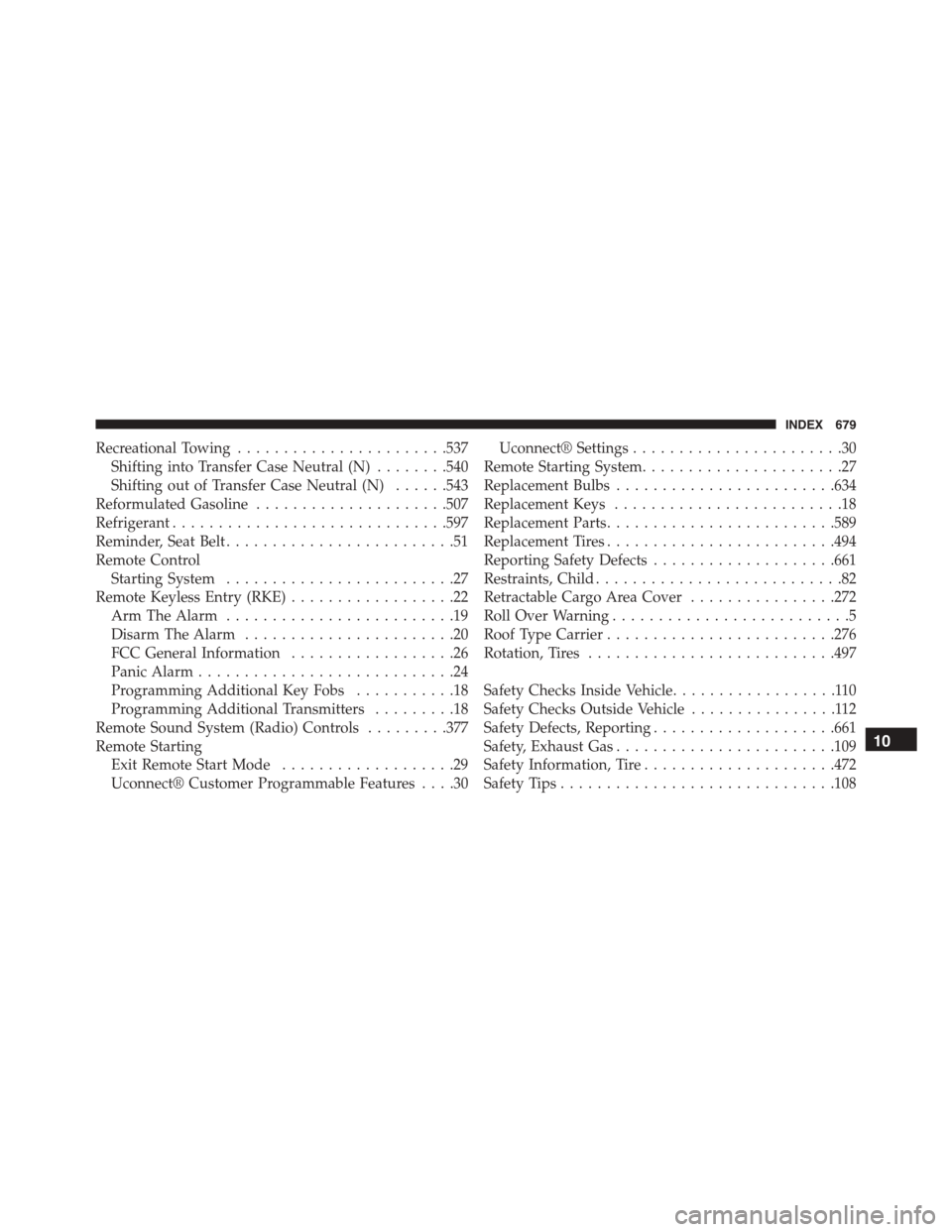

Recreational Towing.......................537
Shifting into Transfer Case Neutral (N)........540
Shifting out of Transfer Case Neutral (N)......543
Reformulated Gasoline.....................507
Refrigerant..............................597
Reminder, Seat Belt.........................51
Remote Control
Starting System.........................27
Remote Keyless Entry (RKE)..................22
Arm The Alarm.........................19
Disarm The Alarm.......................20
FCC General Information..................26
Panic Alarm............................24
Programming Additional Key Fobs...........18
Programming Additional Transmitters.........18
Remote Sound System (Radio) Controls.........377
Remote Starting
Exit Remote Start Mode...................29
Uconnect® Customer Programmable Features....30
Uconnect® Settings.......................30
Remote Starting System......................27
Replacement Bulbs........................634
Replacement Keys.........................18
Replacement Parts.........................589
Replacement Tires.........................494
Reporting Safety Defects....................661
Restraints, Child...........................82
Retractable Cargo Area Cover................272
Roll Over Warning..........................5
Roof Type Carrier.........................276
Rotation, Tires...........................497
Safety Checks Inside Vehicle..................110
Safety Checks Outside Vehicle................112
Safety Defects, Reporting....................661
Safety, Exhaust Gas........................109
Safety Information, Tire.....................472
Safety Tips..............................108
10
INDEX 679

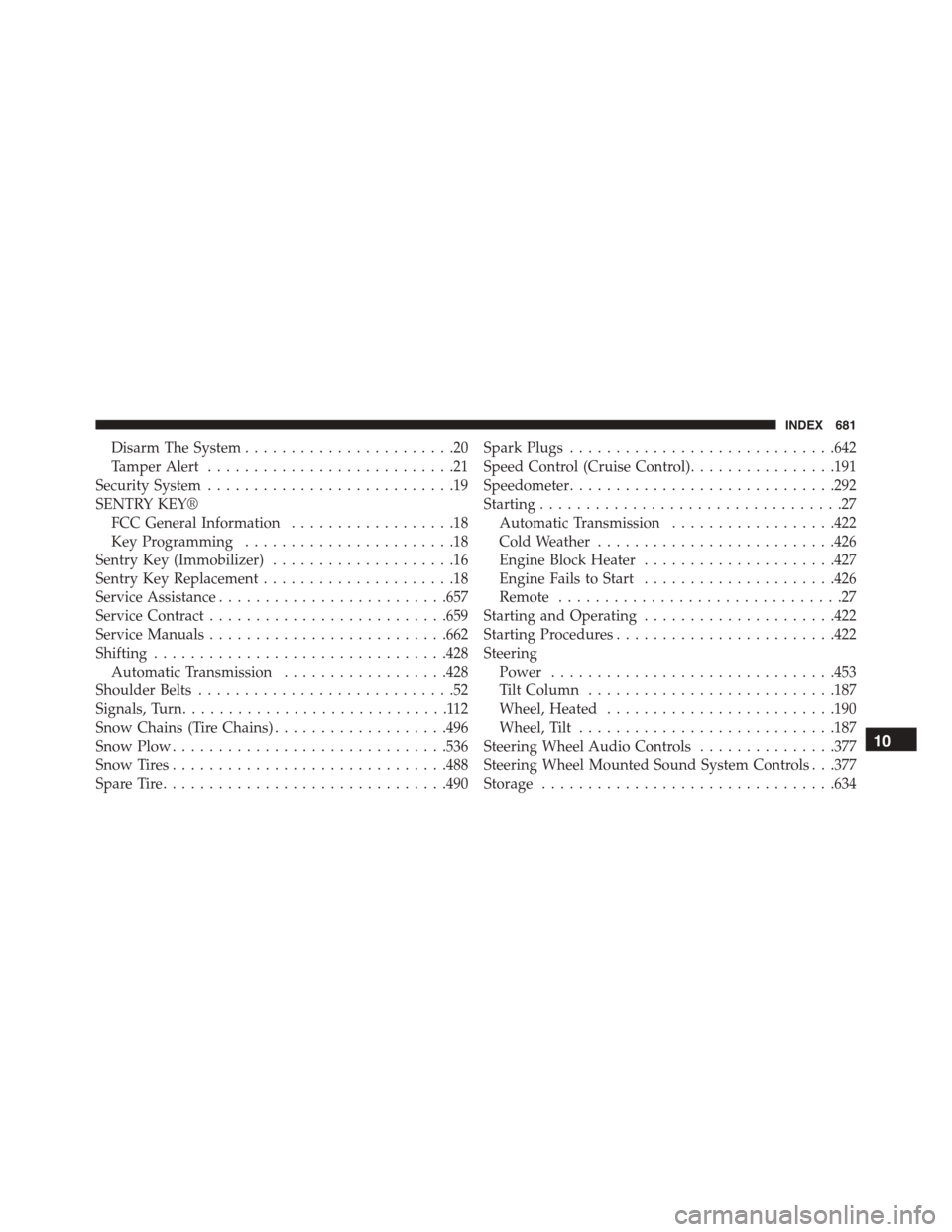

Disarm The System.......................20
Tamper Alert...........................21
Security System...........................19
SENTRY KEY®
FCC General Information..................18
Key Programming.......................18
Sentry Key (Immobilizer)....................16
Sentry Key Replacement.....................18
Service Assistance.........................657
Service Contract..........................659
Service Manuals..........................662
Shifting................................428
Automatic Transmission..................428
Shoulder Belts............................52
Signals, Turn.............................112
Snow Chains (Tire Chains)...................496
Snow Plow..............................536
Snow Tires..............................488
Spare Tire...............................490
Spark Plugs.............................642
Speed Control (Cruise Control)................191
Speedometer.............................292
Starting.................................27
Automatic Transmission..................422
Cold Weather..........................426
Engine Block Heater.....................427
Engine Fails to Start.....................426
Remote...............................27
Starting and Operating.....................422
Starting Procedures........................422
Steering
Power...............................453
Tilt Column...........................187
Wheel, Heated.........................190
Wheel, Tilt............................187
Steering Wheel Audio Controls...............377
Steering Wheel Mounted Sound System Controls . . .377
Storage................................634
10
INDEX 681

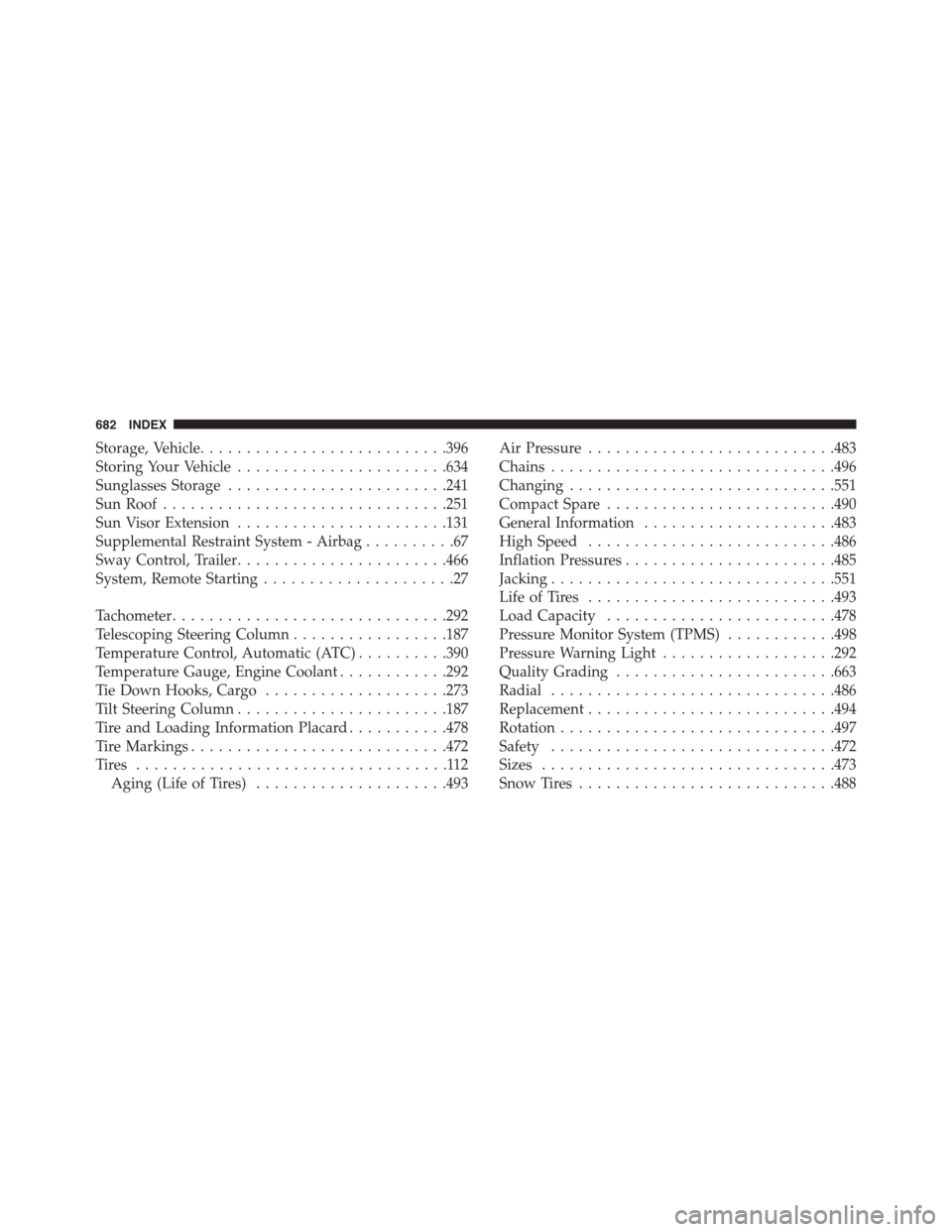

Storage, Vehicle...........................396
Storing Your Vehicle.......................634
Sunglasses Storage........................241
Sun Roof...............................251
Sun Visor Extension.......................131
Supplemental Restraint System - Airbag..........67
Sway Control, Trailer.......................466
System, Remote Starting.....................27
Tachometer..............................292
Telescoping Steering Column.................187
Temperature Control, Automatic (ATC)..........390
Temperature Gauge, Engine Coolant............292
Tie Down Hooks, Cargo....................273
Tilt Steering Column.......................187
Tire and Loading Information Placard...........478
Tire Markings............................472
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2
Aging (Life of Tires).....................493
Air Pressure...........................483
Chains...............................496
Changing.............................551
Compact Spare.........................490
General Information.....................483
High Speed...........................486
Inflation Pressures.......................485
Jacking...............................551
Life of Tires...........................493
Load Capacity.........................478
Pressure Monitor System (TPMS)............498
Pressure Warning Light...................292
Quality Grading........................663
Radial...............................486
Replacement...........................494
Rotation..............................497
Safety...............................472
Sizes................................473
SnowTires............................488
682 INDEX
