ACC Operation At Stop
If the ACC system brings your vehicle to a standstill while
following a target vehicle, if the target vehicle starts
moving within two seconds of your vehicle coming to a
standstill, your vehicle will resume motion without the
need for any driver action.
If the target vehicle does not start moving within two
seconds of your vehicle coming to a standstill, the ACC
with Stop system will cancel and the brakes will release. A
cancel message will display on the Instrument Cluster
Display and produce a warning chime. Driver intervention
will be required at this moment.
While ACC with Stop is holding your vehicle at a stand-
still, if the driver seatbelt is unbuckled or the driver door is
opened, the ACC with Stop system will cancel and the
brakes will release. A cancel message will display on the
Instrument Cluster Display and produce a warning chime.
Driver intervention will be required at this moment.
WARNING!
When the ACC system is resumed, the driver must
ensure that there are no pedestrians, vehicles or objects
in the path of the vehicle. Failure to follow these
warnings can result in a collision and death or serious
personal injury.
Adaptive Cruise Control (ACC) Menu
The Instrument Cluster Display will show the current ACC
system settings. The Instrument Cluster Display is located
in the center of the instrument cluster. The information it
displays depends on ACC system status.
Push the ADAPTIVE CRUISE CONTROL (ACC) ON/OFF
button (located on the steering wheel) until one of the
following displays in the Instrument Cluster Display:
Adaptive Cruise Control Off
When ACC is deactivated, the display will read “Adaptive
Cruise Control Off.”
Adaptive Cruise Control Ready
When ACC is activated but the vehicle speed setting has
not been selected, the display will read “Adaptive Cruise
Control Ready.”
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, open the front and rear windows together
to minimize the buffeting. If the buffeting occurs with the
sunroof open, adjust the sunroof opening to minimize the
buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.
Ignition OFF Operation
The power sunroof switch will remain active in Accessory
Delay for up to approximately ten minutes after the
ignition switch is turned to the LOCK position. Opening
either front door will cancel this feature.
NOTE:Ignition Off time is programmable through the
Uconnect System. Refer to “Uconnect Settings/Customer
Programmable Features” in “Understanding Your Instru-
ment Panel” for further information.
Relearn Procedure
For vehicles equipped with a sunroof, there is a relearn
procedure that allows you to calibrate the sunroof when
the “Express Operation” feature stops working. To reset the
sunroof, follow these steps:
1. Set the ignition to the ACC ON/RUN position.
2. Ensure that the sunroof is in the Fully Closed position.
3. Push and hold the Close switch. The sunroof will hit the hard stop and move to the Vent position after 10
seconds.
4. Release the Close switch, then push and hold the Close switch again within 5 seconds to begin the teaching
process. The sunroof will complete one full cycle and
return to the Fully Closed position.
NOTE: If the Close switch is released anytime during the
teach cycle, the procedure will need to be repeated starting
from the first step.
5. Once the sunroof has stopped in the Fully Closed position, release the Close switch. The sunroof is now
reset and ready to use.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

INSTRUMENT PANEL FEATURES
Instrument Panel
1 — Air Outlet6 — Lower Switch Bank
2 — Instrument Cluster 7 — Hazard Switch
3 — Radio 8 — Ignition Start/Stop Button
4 — Glove Compartment 9 — Dimmer Switch
5 — Climate Controls 10 — Headlight Switch
234 UNDERSTANDING YOUR INSTRUMENT PANEL

Electronic Throttle Control (ETC) Warning Light
Red TelltaleLight What It Means
Electronic Throttle Control (ETC) Warning Light
This light informs you of a problem with the Electronic Throttle Control (ETC) system. If a prob-
lem is detected while the engine is running, the light will either stay on or flash depending on
the nature of the problem. Cycle the ignition key when the vehicle is safely and completely
stopped and the transmission is placed in the PARK position. The light should turn off. If the
light remains on with the engine running, your vehicle will usually be drivable; however, see an
authorized dealer for service as soon as possible.
If the light continues to flash when the engine is running, immediate service is required and you
may experience reduced performance, an elevated/rough idle, or engine stall and your vehicle
may require towing. The light will come on when the ignition is first turned to ON/RUN and
remain on briefly as a bulb check. If the light does not come on during starting, have the system
checked by an authorized dealer.
Oil Temperature Warning Light
Red Telltale
Light What It Means
Oil Temperature Warning Light
This telltale indicates engine oil temperature is high. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 243

Service Stop/Start System Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Stop/Start System Indicator Light — If Equipped
This telltale will turn on to indicate the Stop/Start system is not functioning properly and service
is required.
LaneSense Indicator Light — If Equipped
Yellow Telltale
Light What It Means
LaneSense Indicator Light — If Equipped
The LaneSense is solid yellow when the system senses a lane drift situation.
The LaneSense is flashing yellow when the system senses the lane has been approached and is in
a lane departure situation.
Refer to “LaneSense - If Equipped
in “Understanding The Features Of Your Vehicle” for further
information.
LaneSense Failure Indicator Light — If Equipped
Yellow Telltale Light What It Means
LaneSense Failure Indicator Light
This light will turn on when the LaneSense system is not operating and needs service. Please see
your authorized dealer.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 253

Adaptive Cruise Control (ACC) Set With Target Light — If Equipped
Green TelltaleLight What It Means
Adaptive Cruise Control (ACC) Set With Target Light
This will display when the ACC is set and a target vehicle is detected. Refer to “Adaptive Cruise
Control (ACC)” in “Understanding The Features Of Your Vehicle” for further information.
Stop/Start Active Indicator Light — If Equipped
Green Telltale
Light What It Means
Stop/Start Active Indicator Light — If Equipped
This telltale will illuminate when the Stop/Start function is in “Autostop” mode.
Sport Mode Indicator Light
Green Telltale
Light What It Means
Sport Mode Indicator Light
This light will turn on when Sport Mode is active.
256 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DISPLAY
The vehicle is equipped with an interactive cluster display,
located in the instrument cluster, which offers useful
information to the driver. With the ignition in the STOP/
OFF position, the opening/closing of a door will activate
the display for viewing, and display the total miles or
kilometers in the odometer.
Instrument Cluster Display Location And Controls
The Instrument Cluster Display Menu items consists of the
following:
•Speedometer
• Vehicle Info
• Driver Assist — If Equipped
• Fuel Economy
• Trip
• Stop/Start — If Equipped
• Audio
• Stored Messages
• Screen Setup
Instrument Cluster Display Location
4
UNDERSTANDING YOUR INSTRUMENT PANEL 259

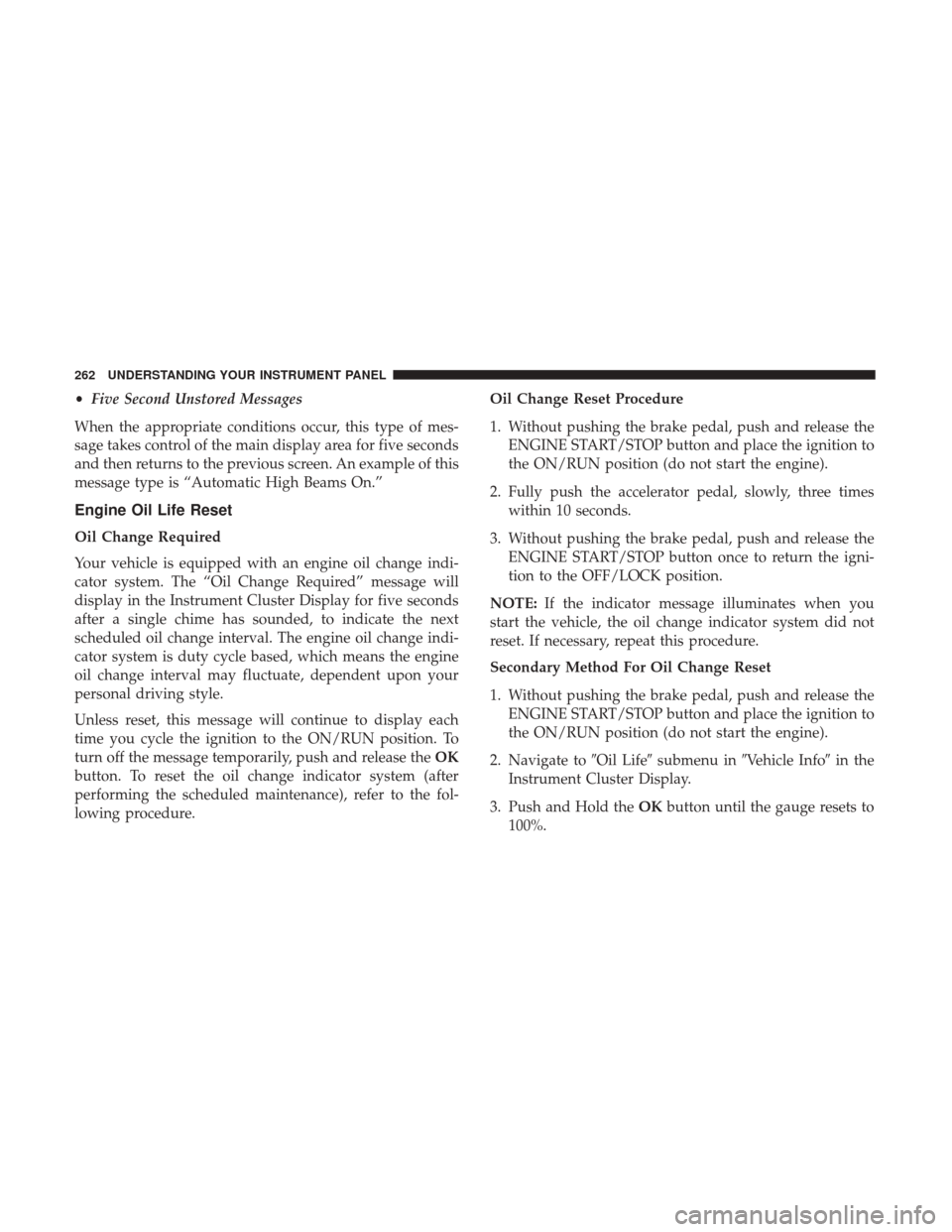

•Five Second Unstored Messages
When the appropriate conditions occur, this type of mes-
sage takes control of the main display area for five seconds
and then returns to the previous screen. An example of this
message type is “Automatic High Beams On.”
Engine Oil Life Reset
Oil Change Required
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the Instrument Cluster Display for five seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change indi-
cator system is duty cycle based, which means the engine
oil change interval may fluctuate, dependent upon your
personal driving style.
Unless reset, this message will continue to display each
time you cycle the ignition to the ON/RUN position. To
turn off the message temporarily, push and release the OK
button. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the fol-
lowing procedure. Oil Change Reset Procedure
1. Without pushing the brake pedal, push and release the
ENGINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).
2. Fully push the accelerator pedal, slowly, three times within 10 seconds.
3. Without pushing the brake pedal, push and release the ENGINE START/STOP button once to return the igni-
tion to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Secondary Method For Oil Change Reset
1. Without pushing the brake pedal, push and release the ENGINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).
2. Navigate to Oil Lifesubmenu in Vehicle Info in the
Instrument Cluster Display.
3. Push and Hold the OKbutton until the gauge resets to
100%.
262 UNDERSTANDING YOUR INSTRUMENT PANEL

Fuel Economy
Push and release theUPorDOWNar-
row button until the Fuel Economy Menu
icon/title is highlighted. Push the LEFTor
RIGHT arrow button to scroll the submenus,
one with current fuel economy display and one without
it.
• Range
• Current MPG or L/100 km or km/l
• Average MPG or L/100 km or km/l
• Press the OKbutton to reset the average fuel economy
NOTE: The Range feature is not able to be reset through
the Instrument Cluster Display Controls.
Trip
Push and release the UPorDOWNar-
row button until the Trip icon/title is high-
lighted in the Instrument Cluster Display, then
push and release the LEFT
orRIGHT
arrow button to select Trip A or Trip B.
The Trip A and Trip B information will display the
following:
•Distance
• Average Fuel Economy
• Elapsed Time
Hold the OKbutton to reset all the information.
Stop/Start — If Equipped
Push and release the UPorDOWNar-
row button until the Stop/Start icon/title is
highlighted in the Instrument Cluster Display.
The screen will display the Stop/Start status.
Audio
Push and release the UPorDOWNar-
row button until the Audio Menu icon/title is
highlighted in the Instrument Cluster Display.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

Stored Messages
Push and release theUPorDOWNar-
row button until the Messages Menu item is
highlighted. This feature shows the number of
stored warning messages. Pushing the RIGHT
arrow button will allow you to see what the stored
messages are.
When no messages are present, main menu icon will be a
closed envelope.
Screen Setup
Push and release the UPorDOWNar-
row button until the Screen Setup Menu icon/
title is highlighted in the Instrument Cluster
Display. Push and release the OKbutton to
enter the submenus and follow the prompts on the
screen as needed. The Screen Setup feature allows you
to change what information is displayed in the instru-
ment cluster as well as the location that information is
displayed. Screen Setup Driver Selectable Items
Current Gear
•
On
• Off (default setting)
Favorite Menus
• Speedometer
• Vehicle Info
• Driver Assist (Show/Hide)
• Fuel Economy (Show/Hide)
• Trip (Show/Hide)
• Stop/Start
• Audio (Show/Hide)
• Stored Messages
• Screen Setup
NOTE: Menus with (show/hide) can push the OKbutton
to choose whether to show or hide this menu on the
Instrument Cluster Display.
268 UNDERSTANDING YOUR INSTRUMENT PANEL
