sensor DODGE DURANGO 2017 3.G Owner's Guide

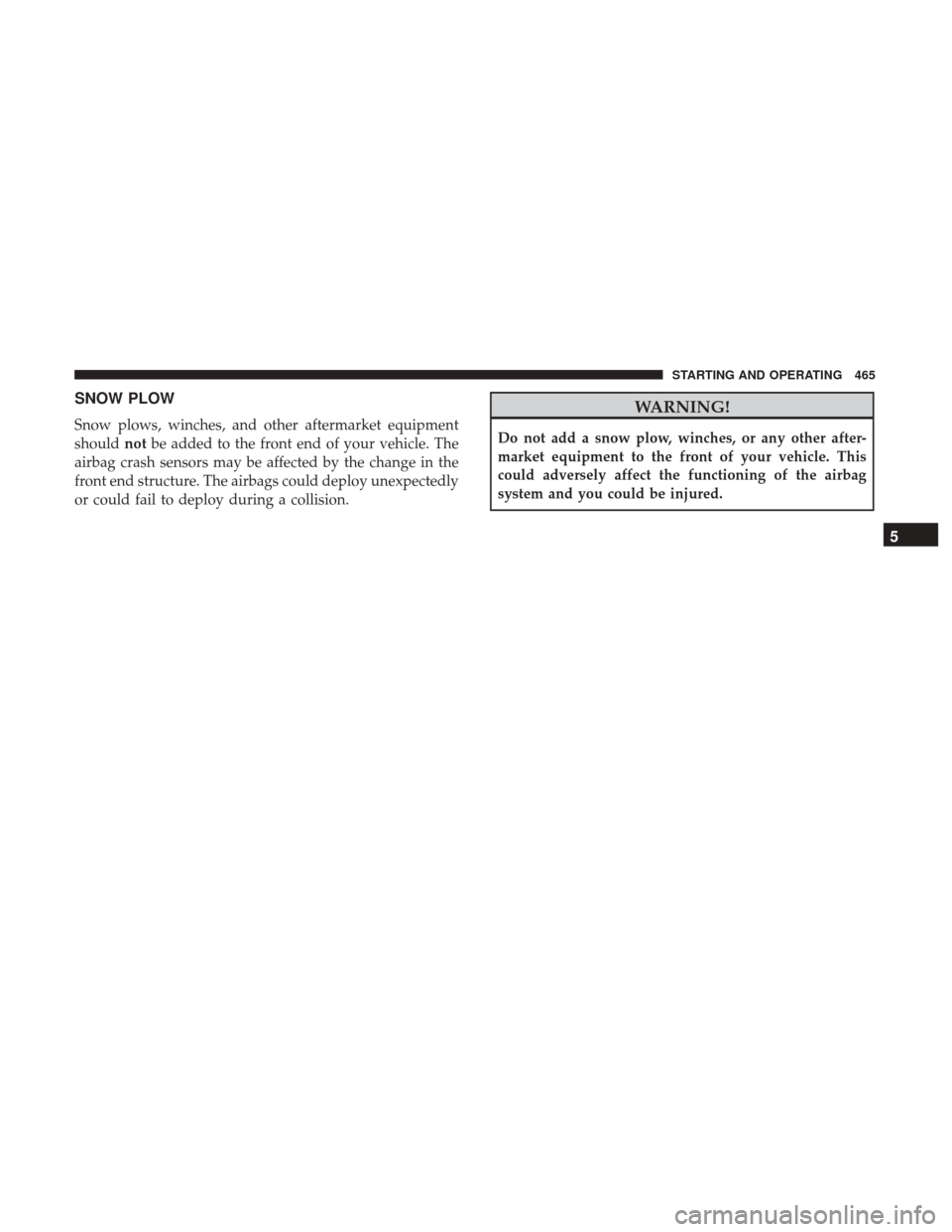

SNOW PLOW
Snow plows, winches, and other aftermarket equipment
shouldnotbe added to the front end of your vehicle. The
airbag crash sensors may be affected by the change in the
front end structure. The airbags could deploy unexpectedly
or could fail to deploy during a collision.
WARNING!
Do not add a snow plow, winches, or any other after-
market equipment to the front of your vehicle. This
could adversely affect the functioning of the airbag
system and you could be injured.
5
STARTING AND OPERATING 465

3.Grab the bottom of the wiper blade and rotate it forward to
unsnap the blade pivot pin from the wiper blade holder.
4. Install the wiper blade pivot pin into the wiper bladeholder at the end of the wiper arm, and firmly press the
wiper blade until it snaps into place.
5.
Lower the wiper blade and snap the pivot cap into place.
Adding Washer Fluid
The instrument cluster display will indicate when the washer
fluid level is low. When the sensor detects a low fluid level,
the windshield will light on the vehicle graphic outline and
the “WASHER FLUID LOW” message will be displayed.
The fluid reservoir for the windshield washers and the rear
window washer is shared. The fluid reservoir is located in
the engine compartment, be sure to check the fluid level at
regular intervals. Fill the reservoir with windshield washer
solvent only (not radiator antifreeze). When refilling the
washer fluid reservoir, take some washer fluid and apply it
to a cloth or towel and wipe clean the wiper blades, this
will help blade performance. To prevent freeze-up of your
windshield washer system in cold weather, select a solu-
tion or mixture that meets or exceeds the temperature
range of your climate. This rating information can be found
on most washer fluid containers.
WARNING!
Commercially available windshield washer solvents are
flammable. They could ignite and burn you. Care must
be exercised when filling or working around the washer
solution.
Removing The Wiper Blade
1—WiperBlade
2 — Blade Pivot Pin
3—WiperArm
4 — Wiper Blade Holder 518 MAINTAINING YOUR VEHICLE

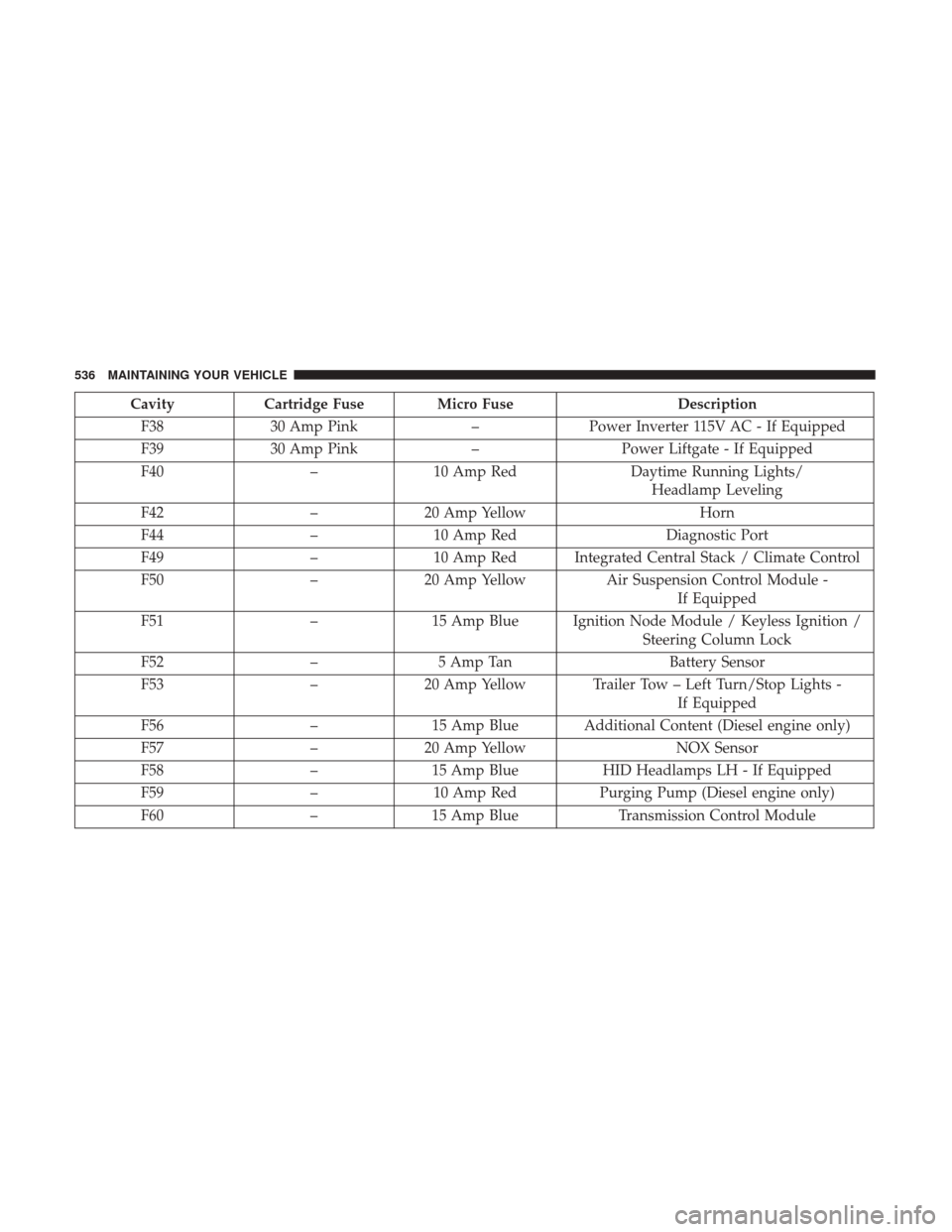

CavityCartridge Fuse Micro Fuse Description
F38 30 Amp Pink –Power Inverter 115V AC - If Equipped
F39 30 Amp Pink –Power Liftgate - If Equipped
F40 –10 Amp Red Daytime Running Lights/
Headlamp Leveling
F42 –20 Amp Yellow Horn
F44 –10 Amp Red Diagnostic Port
F49 –10 Amp Red Integrated Central Stack / Climate Control
F50 –20 Amp Yellow Air Suspension Control Module -
If Equipped
F51 –15 Amp Blue Ignition Node Module / Keyless Ignition /
Steering Column Lock
F52 –5 Amp Tan Battery Sensor
F53 –20 Amp Yellow Trailer Tow – Left Turn/Stop Lights -
If Equipped
F56 –15 Amp Blue Additional Content (Diesel engine only)
F57 –20 Amp Yellow NOX Sensor
F58 –15 Amp Blue HID Headlamps LH - If Equipped
F59 –10 Amp Red Purging Pump (Diesel engine only)
F60 –15 Amp Blue Transmission Control Module
536 MAINTAINING YOUR VEHICLE

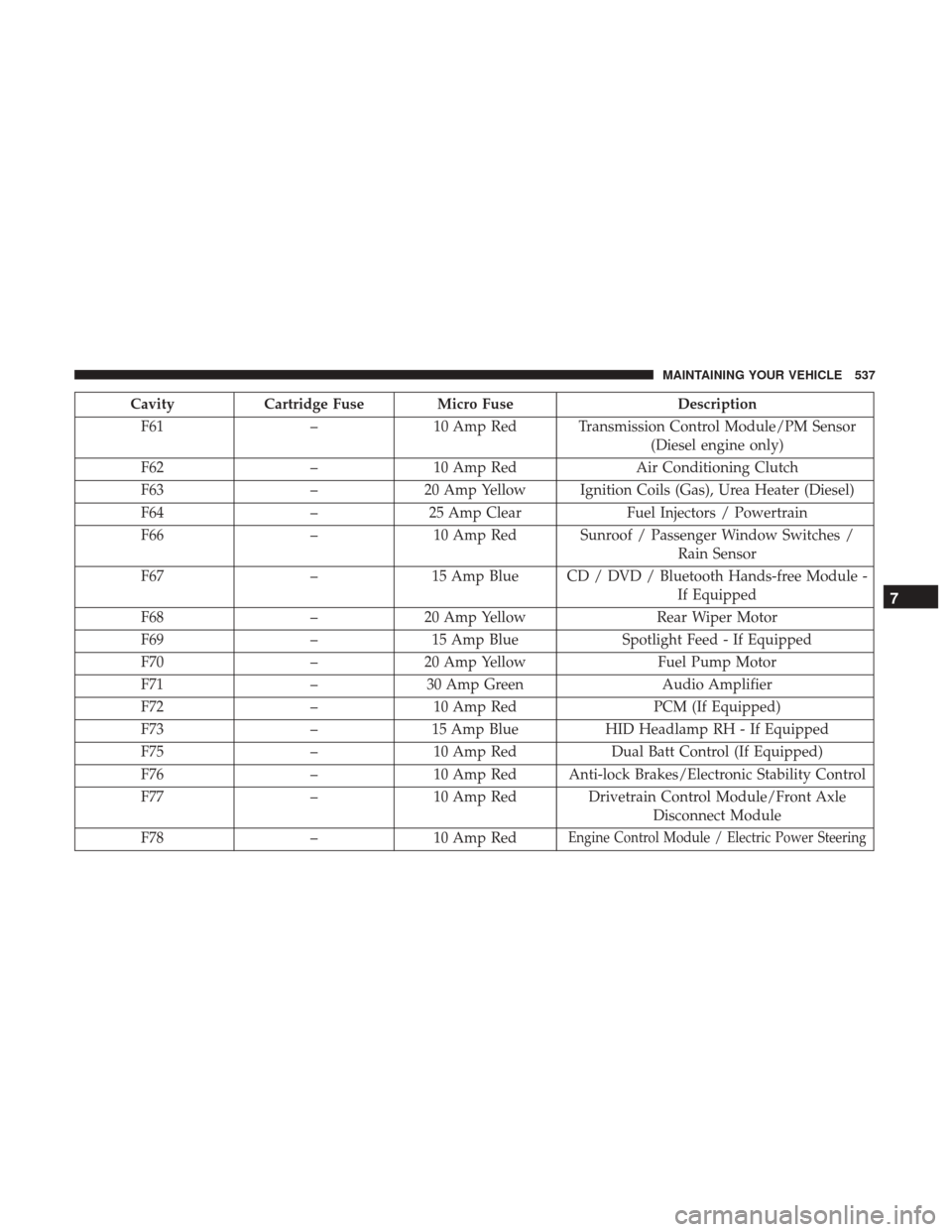

CavityCartridge Fuse Micro Fuse Description
F61 –10 Amp Red Transmission Control Module/PM Sensor
(Diesel engine only)
F62 –10 Amp Red Air Conditioning Clutch
F63 –20 Amp Yellow Ignition Coils (Gas), Urea Heater (Diesel)
F64 –25 Amp Clear Fuel Injectors / Powertrain
F66 –10 Amp Red Sunroof / Passenger Window Switches /
Rain Sensor
F67 –15 Amp Blue CD / DVD / Bluetooth Hands-free Module -
If Equipped
F68 –20 Amp Yellow Rear Wiper Motor
F69 –15 Amp Blue Spotlight Feed - If Equipped
F70 –20 Amp Yellow Fuel Pump Motor
F71 –30 Amp Green Audio Amplifier
F72 –10 Amp Red PCM (If Equipped)
F73 –15 Amp Blue HID Headlamp RH - If Equipped
F75 –10 Amp Red Dual Batt Control (If Equipped)
F76 –10 Amp Red Anti-lock Brakes/Electronic Stability Control
F77 –10 Amp Red Drivetrain Control Module/Front Axle
Disconnect Module
F78 –10 Amp Red
Engine Control Module / Electric Power Steering
7
MAINTAINING YOUR VEHICLE 537

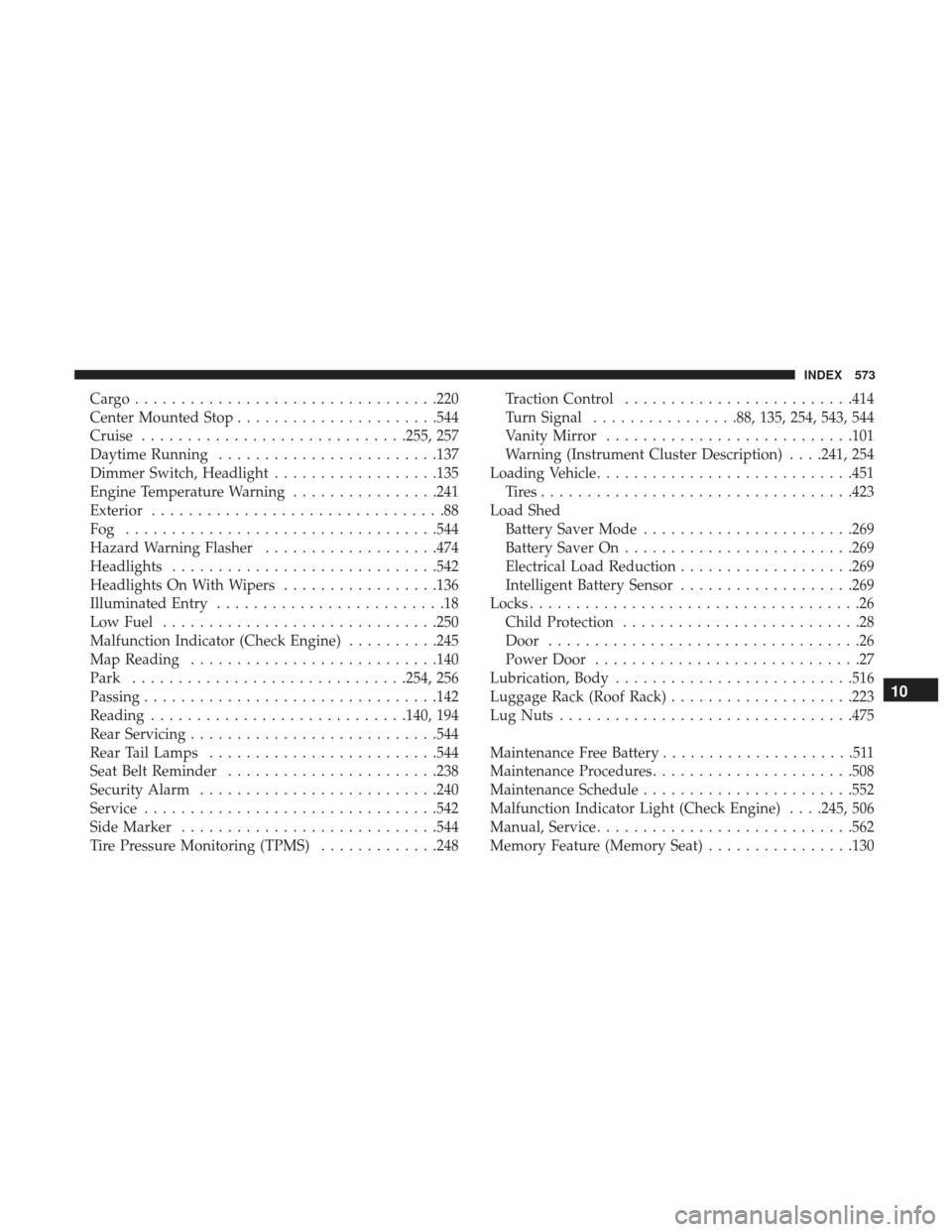

Cargo.................................220
Center Mounted Stop ..................... .544
Cruise ............................ .255, 257
Daytime Running ....................... .137
Dimmer Switch, Headlight ..................135
Engine Temperature Warning ................241
Exterior ................................88
Fog ................................. .544
Hazard Warning Flasher ...................474
Headlights ............................ .542
Headlights On With Wipers .................136
Illuminated Entry .........................18
Low Fuel ............................. .250
Malfunction Indicator (Check Engine) ..........245
Map Reading .......................... .140
Park ............................. .254, 256
Passing ............................... .142
Reading ........................... .140, 194
Rear Servicing .......................... .544
Rear Tail Lamps ........................ .544
Seat Belt Reminder ...................... .238
Security Alarm ......................... .240
Service ............................... .542
Side Marker ........................... .544
Tire Pressure Monitoring (TPMS) .............248Traction Control
........................ .414
Turn Signal ................88, 135, 254, 543, 544
Vanity Mirror .......................... .101
Warning (Instrument Cluster Description) . . . .241, 254
Loading Vehicle ........................... .451
Tires................................. .423
Load Shed Battery Saver Mode ...................... .269
Battery Saver On ........................ .269
Electrical Load Reduction ...................269
Intelligent Battery Sensor ...................269
Locks ....................................26
Child
Protection ..........................28
Door ..................................26
Power Door .............................27
Lubrication, Body ......................... .516
Luggage Rack (Roof Rack) ....................223
Lug Nuts ............................... .475
Maintenance Free Battery .....................511
Maintenance Procedures ..................... .508
Maintenance Schedule ...................... .552
Malfunction Indicator Light (Check Engine) . . . .245, 506
Manual, Service ........................... .562
Memory Feature (Memory Seat) ................130
10
INDEX 573
