Enabling And Disabling ParkSense
ParkSense can be enabled and disabled with the ParkSense
switch.When the ParkSense switch is pushed to disable
the system, the Instrument Cluster Display will
show a “PARKSENSE OFF” message for ap-
proximately five seconds. Refer to “Instrument
Cluster Display” in “Understanding Your Instrument
Panel” for further information. When the gear selector is
moved to REVERSE and the system is disabled, the Instru-
ment Cluster Display will show the “PARKSENSE OFF”
message for as long as the vehicle is in REVERSE.
The ParkSense switch LED will be ON when ParkSense is
disabled or requires service. The ParkSense switch LED
will be OFF when the system is enabled. If the ParkSense
switch is pushed, and the system requires service, the
ParkSense switch LED will blink momentarily, and then
the LED will be ON.
Service The ParkSense Rear Park Assist System
During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the Instru-
ment Cluster Display will actuate a single chime, once per ignition cycle, and it will display the “PARKSENSE UN-
AVAILABLE WIPE REAR SENSORS” or the “PARKSENSE
UNAVAILABLE SERVICE REQUIRED” message. Refer to
“Instrument Cluster Display”. When the gear selector is
moved to REVERSE and the system has detected a faulted
condition, the Instrument Cluster Display will display the
PARKSENSE UNAVAILABLE WIPE REAR SENSORS
or
PARKSENSE UNAVAILABLE SERVICE REQUIRED mes-
sage for as long as the vehicle is in REVERSE. Under this
condition, ParkSense will not operate.
If “PARKSENSE UNAVAILABLE WIPE REAR SENSORS”
appears in the Instrument Cluster Display make sure the
outer surface and the underside of the rear fascia/bumper
is clean and clear of snow, ice, mud, dirt or other obstruc-
tion and then cycle the ignition. If the message continues to
appear, see an authorized dealer.
If “PARKSENSE UNAVAILABLE SERVICE REQUIRED”
appears in the Instrument Cluster Display, see an autho-
rized dealer.Cleaning The ParkSense System
Clean the ParkSense sensors with water, car wash soap and
a soft cloth. Do not use rough or hard cloths. Do not scratch
or poke the sensors. Otherwise, you could damage the
sensors.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

ParkSense System Usage Precautions
NOTE:
•Ensure that the rear bumper is free of snow, ice, mud,
dirt and debris to keep the ParkSense system operating
properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
• When you turn ParkSense OFF, the Instrument Cluster
Display will read “PARKSENSE OFF”. Furthermore,
once you turn ParkSense off, it remains off until you turn
it on again, even if you cycle the ignition.
• When you move the gear selector to the REVERSE
position and ParkSense is turned OFF, the Instrument
Cluster Display will show a “PARKSENSE OFF” mes-
sage for as long as the vehicle is in REVERSE.
• ParkSense, when on, will reduce the volume of the radio
when it is sounding a tone.
• Clean the ParkSense sensors regularly, taking care not to
scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The ParkSense system might not detect an obstacle behind the fascia/bumper, or it could provide a
false indication that an obstacle is behind the fascia/
bumper.
• Use the ParkSense switch to turn the ParkSense system
OFF if objects such as bicycle carriers, trailer hitches, etc.
are placed within 12 in (30 cm) from the rear fascia/
bumper. Failure to do so can result in the system
misinterpreting a close object as a sensor problem,
causing the “PARKSENSE UNAVAILABLE SERVICE
REQUIRED” message to be displayed in the Instrument
Cluster Display.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen image
of the rear surroundings of your vehicle whenever the gear
selector is put into REVERSE. The image will be displayed
on the Navigation/Multimedia radio display screen along
with a caution note to “check entire surroundings” across
the top of the screen. After five seconds this note will
disappear. The ParkView camera is located on the rear of
the vehicle above the rear License plate.
When the vehicle is shifted out of REVERSE (with camera
delay turned OFF), the rear camera mode is exited and the
navigation or audio screen appears again.When the vehicle is shifted out of REVERSE (with camera
delay turned ON), the rear view image with dynamic grid
lines will be displayed for up to 10 seconds after shifting
out of
REVERSE unless the forward vehicle speed ex-
ceeds 8 mph (13 km/h), the transmission is shifted into
PARK or the ignition is switched to the OFF position.
NOTE: The ParkView Rear Back Up Camera has program-
mable modes of operation that may be selected through the
Uconnect System. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
When enabled, active guide lines are overlaid on the image
to illustrate the width of the vehicle and its projected
backup path based on the steering wheel position. A
dashed center line overlay indicates the center of the
vehicle to assist with parking or aligning to a hitch/
receiver. Different colored zones indicate the distance to
the rear of the vehicle. The following table shows the
approximate distances for each zone:
Zone Distance to the rear of the vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 6.5 ft (30 cm - 2 m)
Green 6.5 ft or greater (2 m or greater)
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

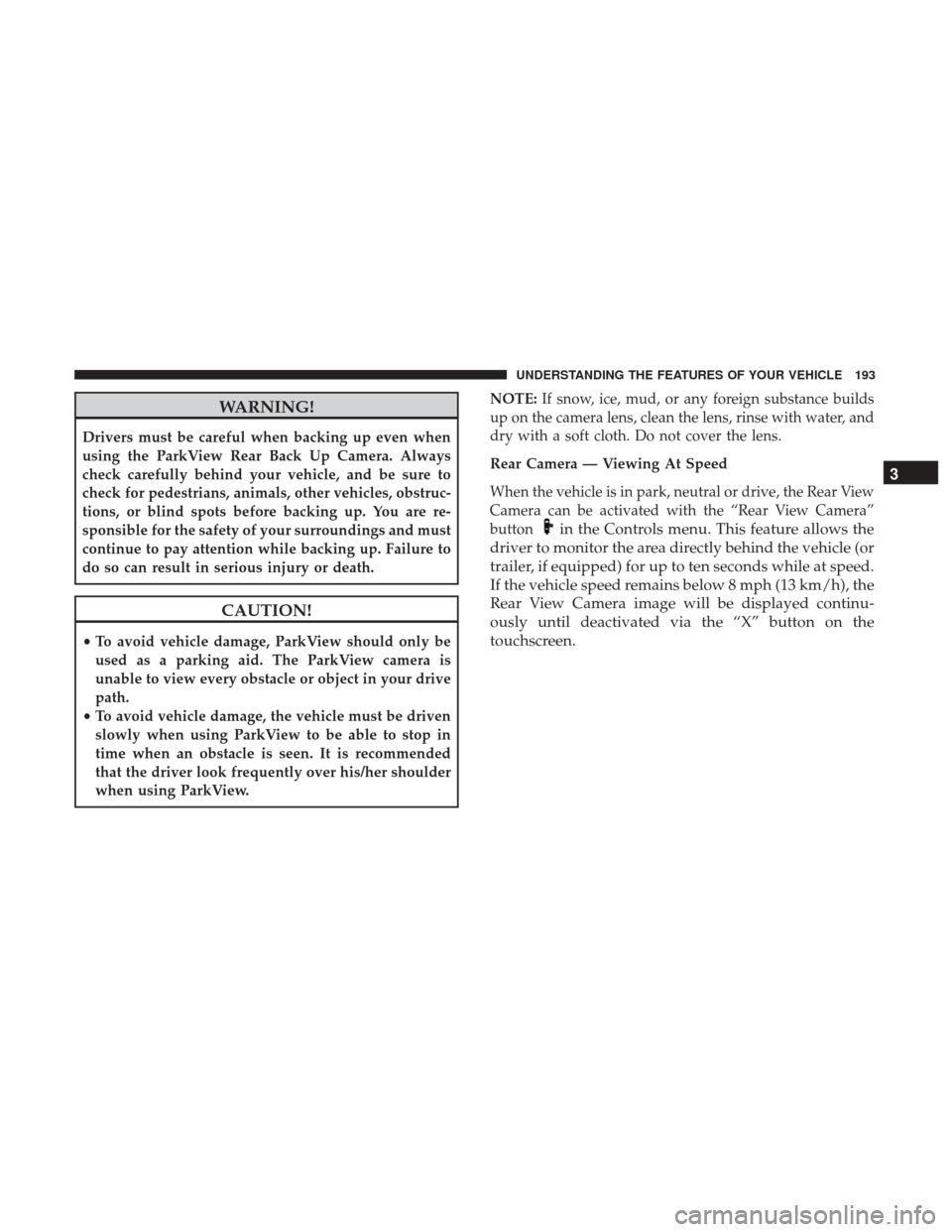

WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, obstruc-
tions, or blind spots before backing up. You are re-
sponsible for the safety of your surroundings and must
continue to pay attention while backing up. Failure to
do so can result in serious injury or death.
CAUTION!
•To avoid vehicle damage, ParkView should only be
used as a parking aid. The ParkView camera is
unable to view every obstacle or object in your drive
path.
• To avoid vehicle damage, the vehicle must be driven
slowly when using ParkView to be able to stop in
time when an obstacle is seen. It is recommended
that the driver look frequently over his/her shoulder
when using ParkView. NOTE:
If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.
Rear Camera — Viewing At Speed
When the vehicle is in park, neutral or drive, the Rear View
Camera can be activated with the “Rear View Camera”
button
in the Controls menu. This feature allows the
driver to monitor the area directly behind the vehicle (or
trailer, if equipped) for up to ten seconds while at speed.
If the vehicle speed remains below 8 mph (13 km/h), the
Rear View Camera image will be displayed continu-
ously until deactivated via the “X” button on the
touchscreen. 3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

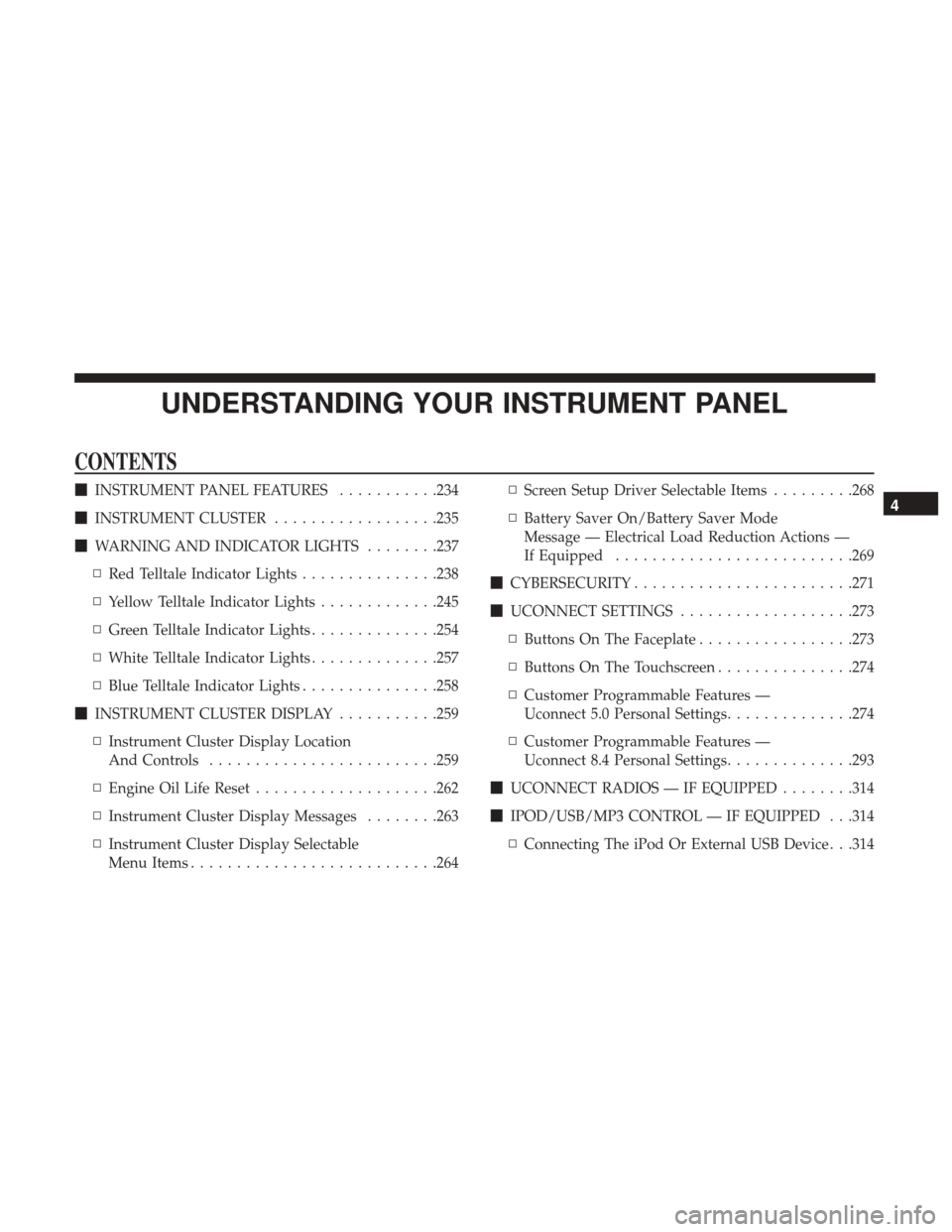

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ...........234
 INSTRUMENT CLUSTER ..................235
 WARNING AND INDICATOR LIGHTS ........237
▫ Red Telltale Indicator Lights ...............238
▫ Yellow Telltale Indicator Lights .............245
▫ Green Telltale Indicator Lights ..............254
▫ White Telltale Indicator Lights ..............257
▫ Blue Telltale Indicator Lights ...............258
 INSTRUMENT CLUSTER DISPLAY ...........259
▫ Instrument Cluster Display Location
And Controls ........................ .259
▫ Engine Oil Life Reset ....................262
▫ Instrument Cluster Display Messages ........263
▫ Instrument Cluster Display Selectable
Menu Items .......................... .264▫
Screen Setup Driver Selectable Items .........268
▫ Battery Saver On/Battery Saver Mode
Message — Electrical Load Reduction Actions —
If Equipped ......................... .269
 CYBERSECURITY ....................... .271
 UCONNECT SETTINGS ...................273
▫ Buttons On The Faceplate .................273
▫ Buttons On The Touchscreen ...............274
▫ Customer Programmable Features —
Uconnect 5.0 Personal Settings ..............274
▫ Customer Programmable Features —
Uconnect 8.4 Personal Settings ..............293
 UCONNECT RADIOS — IF EQUIPPED ........314
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .314
▫ Connecting The iPod Or External USB Device . . .3144

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Speedometer •Indicates vehicle speed.
3. Temperature Gauge •
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
CAUTION!
Driving with a hot engine cooling system could damage
your vehicle. If the temperature gauge reads “H” pull over
and stop the vehicle. Idle the vehicle with the air condi-
tioner turned off until the pointer drops back into the
normal range. If the pointer remains on the “H”, turn the
engine off immediately and call an authorized dealer for
service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Maintaining Your Ve-
hicle”. Follow the warnings under the Cooling System
Pressure Cap paragraph.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
5. Instrument Cluster Display
•The Instrument Cluster Display features a driver-
interactive display. Refer to “Instrument Cluster Dis-
play” in “Understanding Your Instrument Panel” for
further information.
236 UNDERSTANDING YOUR INSTRUMENT PANEL

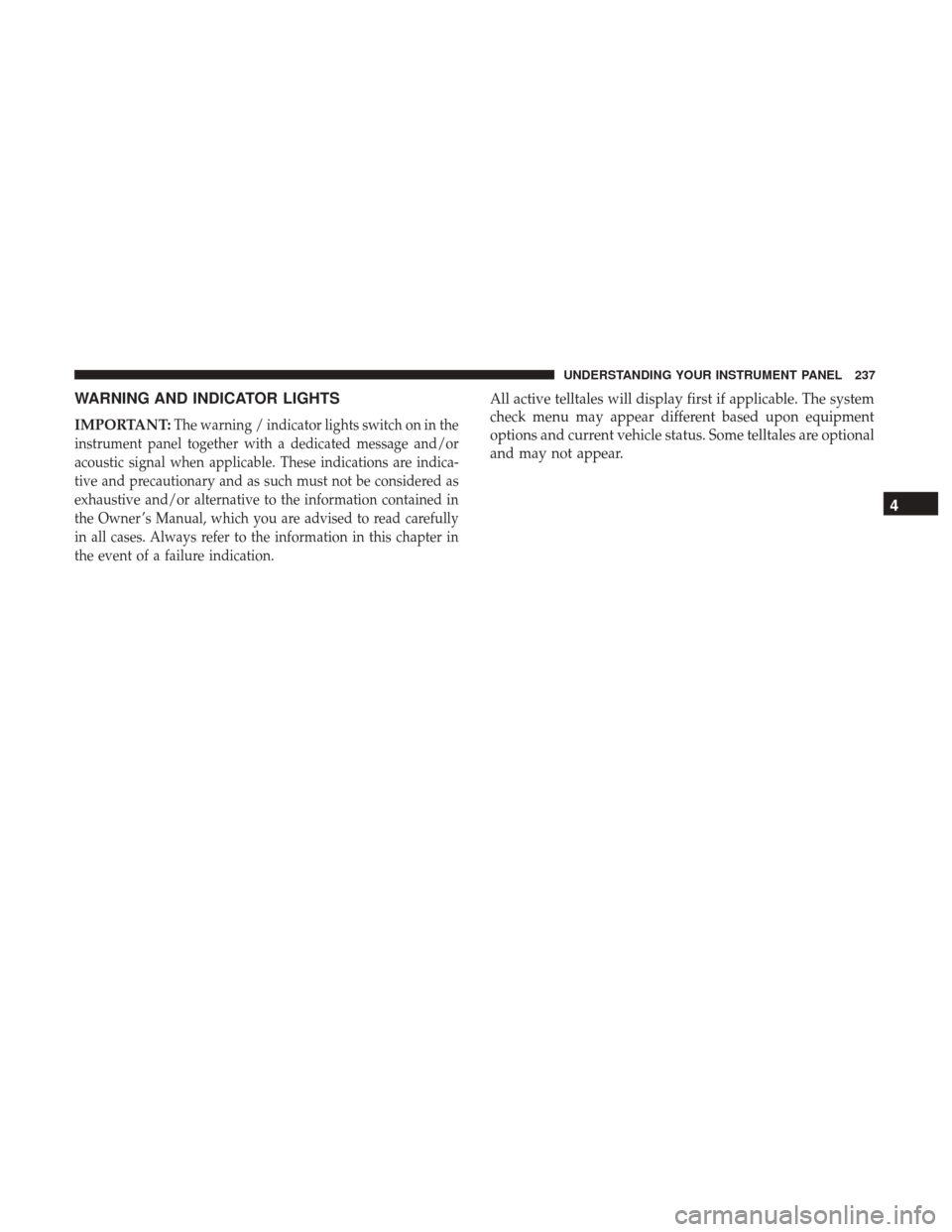

WARNING AND INDICATOR LIGHTS
IMPORTANT:The warning / indicator lights switch on in the
instrument panel together with a dedicated message and/or
acoustic signal when applicable. These indications are indica-
tive and precautionary and as such must not be considered as
exhaustive and/or alternative to the information contained in
the Owner ’s Manual, which you are advised to read carefully
in all cases. Always refer to the information in this chapter in
the event of a failure indication.
All active telltales will display first if applicable. The system
check menu may appear different based upon equipment
options and current vehicle status. Some telltales are optional
and may not appear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 237

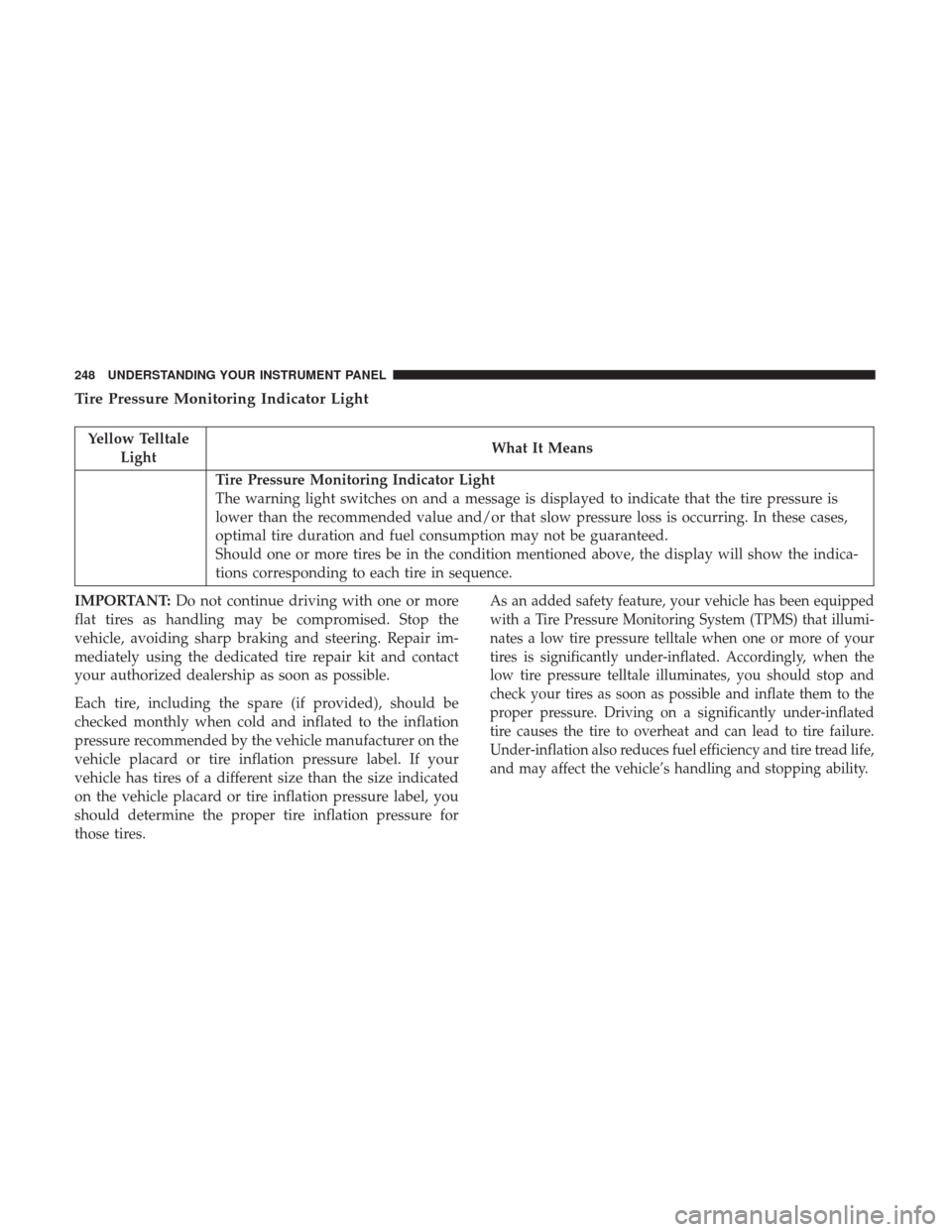

Tire Pressure Monitoring Indicator Light
Yellow TelltaleLight What It Means
Tire Pressure Monitoring Indicator Light
The warning light switches on and a message is displayed to indicate that the tire pressure is
lower than the recommended value and/or that slow pressure loss is occurring. In these cases,
optimal tire duration and fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned above, the display will show the indica-
tions corresponding to each tire in sequence.
IMPORTANT: Do not continue driving with one or more
flat tires as handling may be compromised. Stop the
vehicle, avoiding sharp braking and steering. Repair im-
mediately using the dedicated tire repair kit and contact
your authorized dealership as soon as possible.
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. If your
vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you
should determine the proper tire inflation pressure for
those tires.
As an added safety feature, your vehicle has been equipped
with a Tire Pressure Monitoring System (TPMS) that illumi-
nates a low tire pressure telltale when one or more of your
tires is significantly under-inflated. Accordingly, when the
low tire pressure telltale illuminates, you should stop and
check your tires as soon as possible and inflate them to the
proper pressure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
248 UNDERSTANDING YOUR INSTRUMENT PANEL

Front Fog Indicator Light — If Equipped
Green TelltaleLight What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
Cruise Control Set Indicator Light — If Equipped
Green Telltale
Light What It Means
Cruise Control Set Indicator Light — If Equipped
This light will turn on when the electronic speed control has been set.
Adaptive Cruise Control (ACC) Set Without Target Light — If Equipped
Green Telltale
Light What It Means
Adaptive Cruise Control (ACC) Set Without Target Light
This will display the distance setting for the ACC system when the system is engaged. Refer to
“Adaptive Cruise Control (ACC)” in “Understanding The Features Of Your Vehicle” for further
information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 255

Adaptive Cruise Control (ACC) Set With Target Light — If Equipped
Green TelltaleLight What It Means
Adaptive Cruise Control (ACC) Set With Target Light
This will display when the ACC is set and a target vehicle is detected. Refer to “Adaptive Cruise
Control (ACC)” in “Understanding The Features Of Your Vehicle” for further information.
Stop/Start Active Indicator Light — If Equipped
Green Telltale
Light What It Means
Stop/Start Active Indicator Light — If Equipped
This telltale will illuminate when the Stop/Start function is in “Autostop” mode.
Sport Mode Indicator Light
Green Telltale
Light What It Means
Sport Mode Indicator Light
This light will turn on when Sport Mode is active.
256 UNDERSTANDING YOUR INSTRUMENT PANEL
