Oil Pressure Warning Light
Red TelltaleLight What It Means
Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle
and shut off the engine as soon as possible. A chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected. This light does not indicate how much oil
is in the engine. The engine oil level must be checked under the hood.
Transmission Temperature Indicator Light
Yellow Telltale
Light What It Means
Transmission Temperature Indicator Light
This light indicates that the transmission fluid temperature is running hot. This may occur with severe
usage, such as trailer towing. If this light turns on, safely pull over and stop the vehicle. Then, shift
the transmission into NEUTRAL and run the engine at idle or faster until the light turns off.
WARNING!
If you continue operating the vehicle when the Trans-
mission Temperature Warning Light is illuminated you
could cause the fluid to boil over, come in contact with
hot engine or exhaust components and cause a fire.
CAUTION!
Continuous driving with the Transmission Temperature
Warning Light illuminated will eventually cause severe
transmission damage or transmission failure.
242 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a service
job, take your vehicle to a competent mechanic.
MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides those maintenance items specified in the fixed
“Maintenance Schedule”, there are other components
which may require servicing or replacement in the future.
CAUTION!
• Failure to properly maintain your vehicle or perform
repairs and service when necessary could result in
more costly repairs, damage to other components or
negatively impact vehicle performance. Immediately
(Continued)
CAUTION! (Continued)
have potential malfunctions examined by an autho-
rized dealer or qualified repair center.
• Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, or air conditioning. Such damage is not
covered by the New Vehicle Limited Warranty. If a
flush is needed because of component malfunction,
use only the specified fluid for the flushing proce-
dure.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop.
The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
508 MAINTAINING YOUR VEHICLE

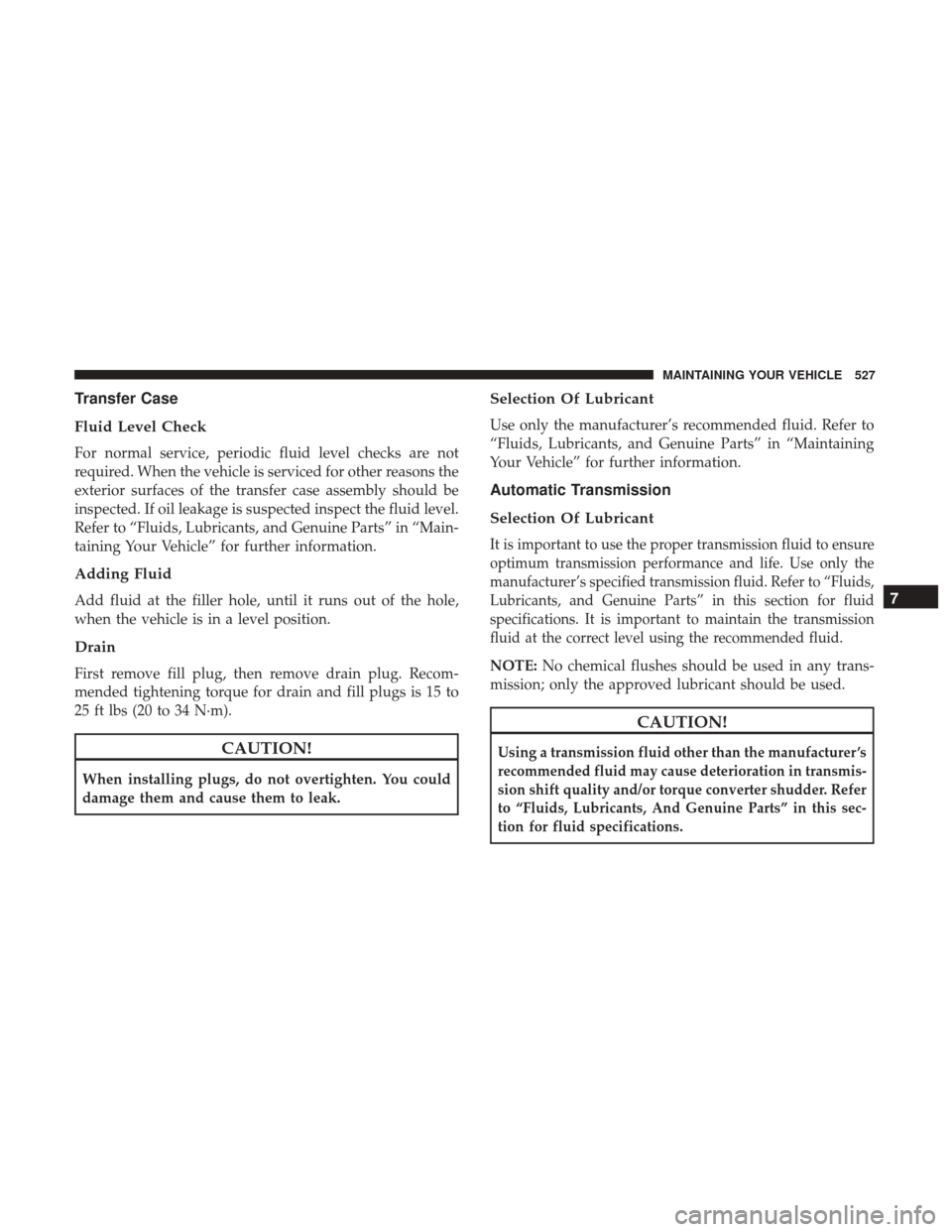

Transfer Case
Fluid Level Check
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons the
exterior surfaces of the transfer case assembly should be
inspected. If oil leakage is suspected inspect the fluid level.
Refer to “Fluids, Lubricants, and Genuine Parts” in “Main-
taining Your Vehicle” for further information.
Adding Fluid
Add fluid at the filler hole, until it runs out of the hole,
when the vehicle is in a level position.
Drain
First remove fill plug, then remove drain plug. Recom-
mended tightening torque for drain and fill plugs is 15 to
25 ft lbs (20 to 34 N·m).
CAUTION!
When installing plugs, do not overtighten. You could
damage them and cause them to leak.
Selection Of Lubricant
Use only the manufacturer’s recommended fluid. Refer to
“Fluids, Lubricants, and Genuine Parts” in “Maintaining
Your Vehicle” for further information.
Automatic Transmission
Selection Of Lubricant
It is important to use the proper transmission fluid to ensure
optimum transmission performance and life. Use only the
manufacturer’s specified transmission fluid. Refer to “Fluids,
Lubricants, and Genuine Parts” in this section for fluid
specifications. It is important to maintain the transmission
fluid at the correct level using the recommended fluid.
NOTE:No chemical flushes should be used in any trans-
mission; only the approved lubricant should be used.
CAUTION!
Using a transmission fluid other than the manufacturer ’s
recommended fluid may cause deterioration in transmis-
sion shift quality and/or torque converter shudder. Refer
to “Fluids, Lubricants, And Genuine Parts” in this sec-
tion for fluid specifications.
7
MAINTAINING YOUR VEHICLE 527

Special Additives
The manufacturer strongly recommends against using any
special additives in the transmission.
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid additives
to the transmission. Avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New Vehicle
Limited Warranty.
Fluid Level Check
The fluid level is preset at the factory and does not require
adjustment under normal operating conditions. Routine
fluid level checks are not required, therefore the transmis-
sion has no dipstick. Your authorized dealer can check
your transmission fluid level using special service tools.
If you notice fluid leakage or transmission malfunction,
visit your authorized dealer immediately to have thetransmission fluid level checked. Operating the vehicle
with an improper fluid level can cause severe transmission
damage.
CAUTION!
If a transmission fluid leak occurs, visit your autho-
rized dealer immediately. Severe transmission damage
may occur. Your authorized dealer has the proper tools
to adjust the fluid level accurately.
Fluid And Filter Changes
Under normal operating conditions, the fluid installed at
the factory will provide satisfactory lubrication for the life
of the vehicle.
Routine fluid and filter changes are not required. However,
change the fluid and filter if the fluid becomes contami-
nated (with water, etc.), or if the transmission is disas-
sembled for any reason.
Appearance Care And Protection From Corrosion
Protection Of Body And Paint From Corrosion
Vehicle body care requirements vary according to geographic
locations and usage. Chemicals that make roads passable in
snow and ice and those that are sprayed on trees and road
528 MAINTAINING YOUR VEHICLE

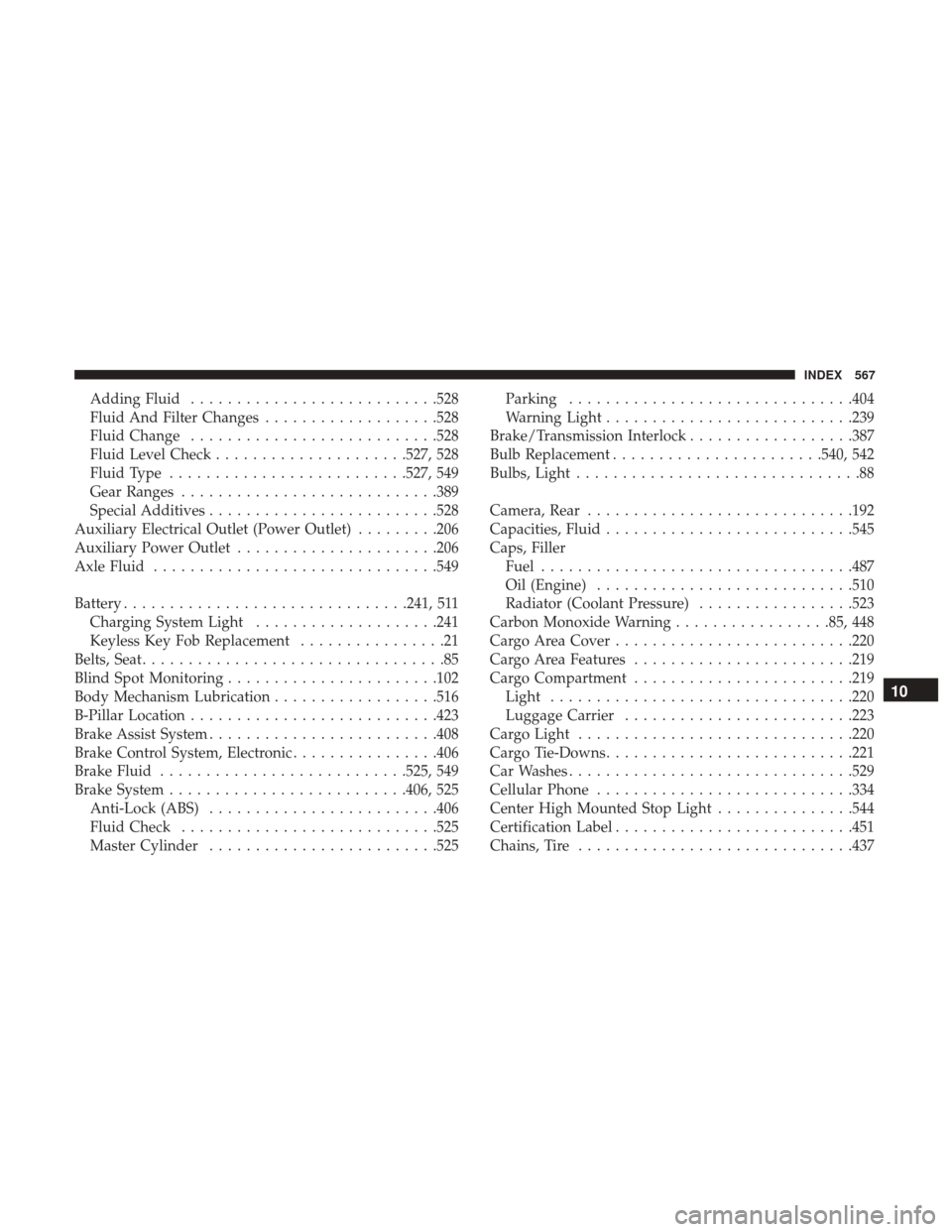

Adding Fluid.......................... .528
Fluid And Filter Changes ...................528
Fluid Change .......................... .528
Fluid Level Check .....................527, 528
Fluid Type ......................... .527, 549
Gear Ranges ........................... .389
Special Additives ........................ .528
Auxiliary Electrical Outlet (Power Outlet) .........206
Auxiliary Power Outlet ..................... .206
Axle Fluid .............................. .549
Battery .............................. .241, 511
Charging System Light ....................241
Keyless Key Fob Replacement ................21
Belts, Seat .................................85
Blind Spot Monitoring ...................... .102
Body Mechanism Lubrication ..................516
B-Pillar Location .......................... .423
Brake Assist System ........................ .408
Brake Control System, Electronic ................406
Brake Fluid .......................... .525, 549
Brake System ......................... .406, 525
Anti-Lock (ABS) ........................ .406
Fluid Check ........................... .525
Master Cylinder ........................ .525Parking
.............................. .404
Warning Light .......................... .239
Brake/Transmission Interlock ..................387
Bulb Replacement ...................... .540, 542
Bulbs, Light ...............................88
Camera, Rear ............................ .192
Capacities, Fluid .......................... .545
Caps, Filler Fuel ................................. .487
Oil (Engine) ........................... .510
Radiator (Coolant Pressure) .................523
Carbon Monoxide Warning .................85,
448
Cargo Area Cover ......................... .220
Cargo Area Features ....................... .219
Cargo Compartment ....................... .219
Light ................................ .220
Luggage Carrier ........................ .223
Cargo Light ............................. .220
Cargo Tie-Downs .......................... .221
Car Washes .............................. .529
Cellular Phone ........................... .334
Center High Mounted Stop Light ...............544
Certification Label ......................... .451
Chains, Tire ............................. .437
10
INDEX 567

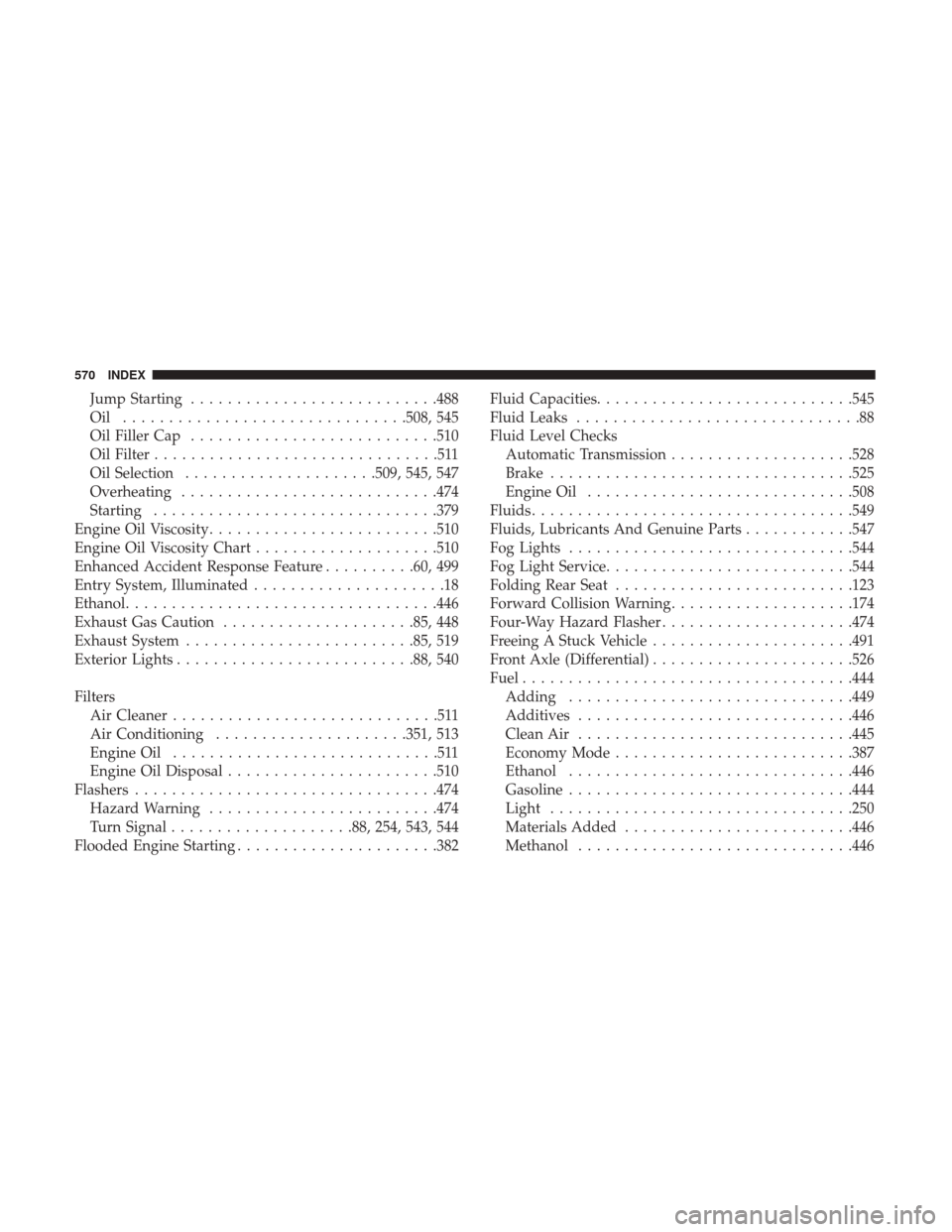

Jump Starting.......................... .488
Oil .............................. .508, 545
Oil Filler Cap .......................... .510
Oil Filter ...............................511
Oil Selection .....................509, 545, 547
Overheating ........................... .474
Starting .............................. .379
Engine Oil Viscosity ........................ .510
Engine Oil Viscosity Chart ....................510
Enhanced Accident Response Feature ..........60, 499
Entry System, Illuminated .....................18
Ethanol ................................. .446
Exhaust Gas Caution .....................85, 448
Exhaust System ........................ .85, 519
Exterior Lights ......................... .88, 540
Filters Air Cleaner .............................511
Air Conditioning .....................351, 513
Engine Oil .............................511
Engine Oil Disposal ...................... .510
Flashers ................................ .474
Hazard Warning ........................ .474
Turn Signal ....................88, 254, 543, 544
Flooded Engine Starting ..................... .382Fluid Capacities
........................... .545
Fluid Leaks ...............................88
Fluid Level Checks Automatic Transmission ....................528
Brake ................................ .525
Engine Oil ............................ .508
Fluids .................................. .549
Fluids, Lubricants And Genuine Parts ............547
Fog Lights .............................. .544
Fog Light Service .......................... .544
Folding Rear Seat ......................... .123
Forward Collision Warning ....................174
Four-Way Hazard Flasher .....................474
Freeing A Stuck Vehicle ..................... .491
Fr
ont Axle (Differential) ..................... .526
Fuel ................................... .444
Adding .............................. .449
Additives ............................. .446
Clean Air ............................. .445
Economy Mode ......................... .387
Ethanol .............................. .446
Gasoline .............................. .444
Light ................................ .250
Materials Added ........................ .446
Methanol ............................. .446
570 INDEX
