jacking DODGE DURANGO 2017 3.G Owners Manual

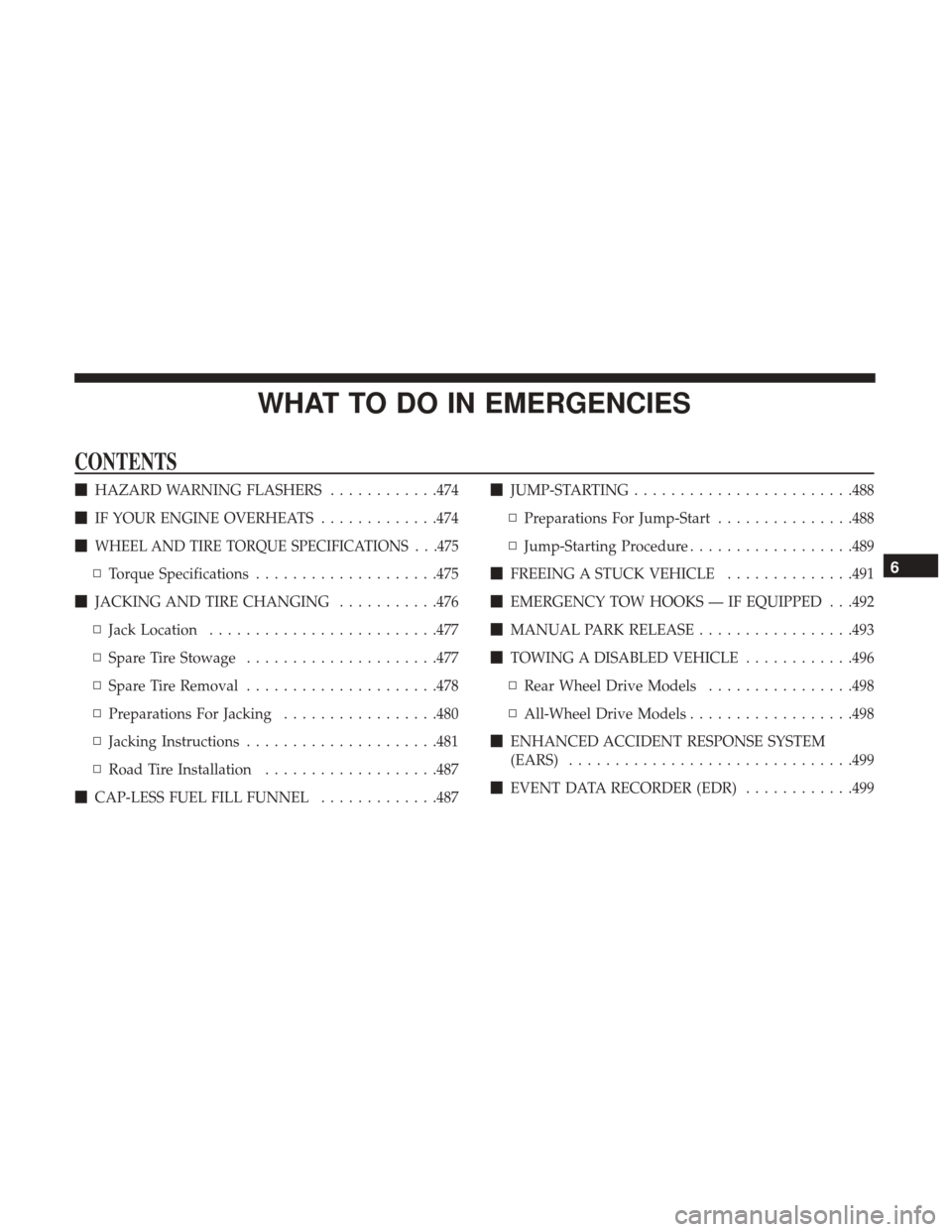

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ............474
 IF YOUR ENGINE OVERHEATS .............474

WHEEL AND TIRE TORQUE SPECIFICATIONS . . .475
▫ Torque Specifications ....................475
 JACKING AND TIRE CHANGING ...........476
▫ Jack Location ........................ .477
▫ Spare Tire Stowage .....................477
▫ Spare Tire Removal .....................478
▫ Preparations For Jacking .................480
▫ Jacking Instructions .....................481
▫ Road Tire Installation ...................487
 CAP-LESS FUEL FILL FUNNEL .............487
JUMP-STARTING ....................... .488
▫ Preparations For Jump-Start ...............488
▫ Jump-Starting Procedure ..................489
 FREEING A STUCK VEHICLE ..............491
 EMERGENCY TOW HOOKS — IF EQUIPPED . . .492
 MANUAL PARK RELEASE .................493
 TOWING A DISABLED VEHICLE ............496
▫ Rear Wheel Drive Models ................498
▫ All-Wheel Drive Models ..................498
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .499
 EVENT DATA RECORDER (EDR) ............4996

WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts fully until the vehicle has been
lowered. Failure to follow this warning may result in
personal injury.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is on
a jack.
• The jack is designed to be used as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.
Torque Patterns
476 WHAT TO DO IN EMERGENCIES

7. Pinch the three short and two long tubes to remove theprotective plate from the steel spare wheel.Preparations For Jacking
1. Park the vehicle on a firm, level surface as far from theedge of the roadway as possible. Avoid icy or slippery
areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.
Sleeve And CableReleasing Protective Plate
480 WHAT TO DO IN EMERGENCIES

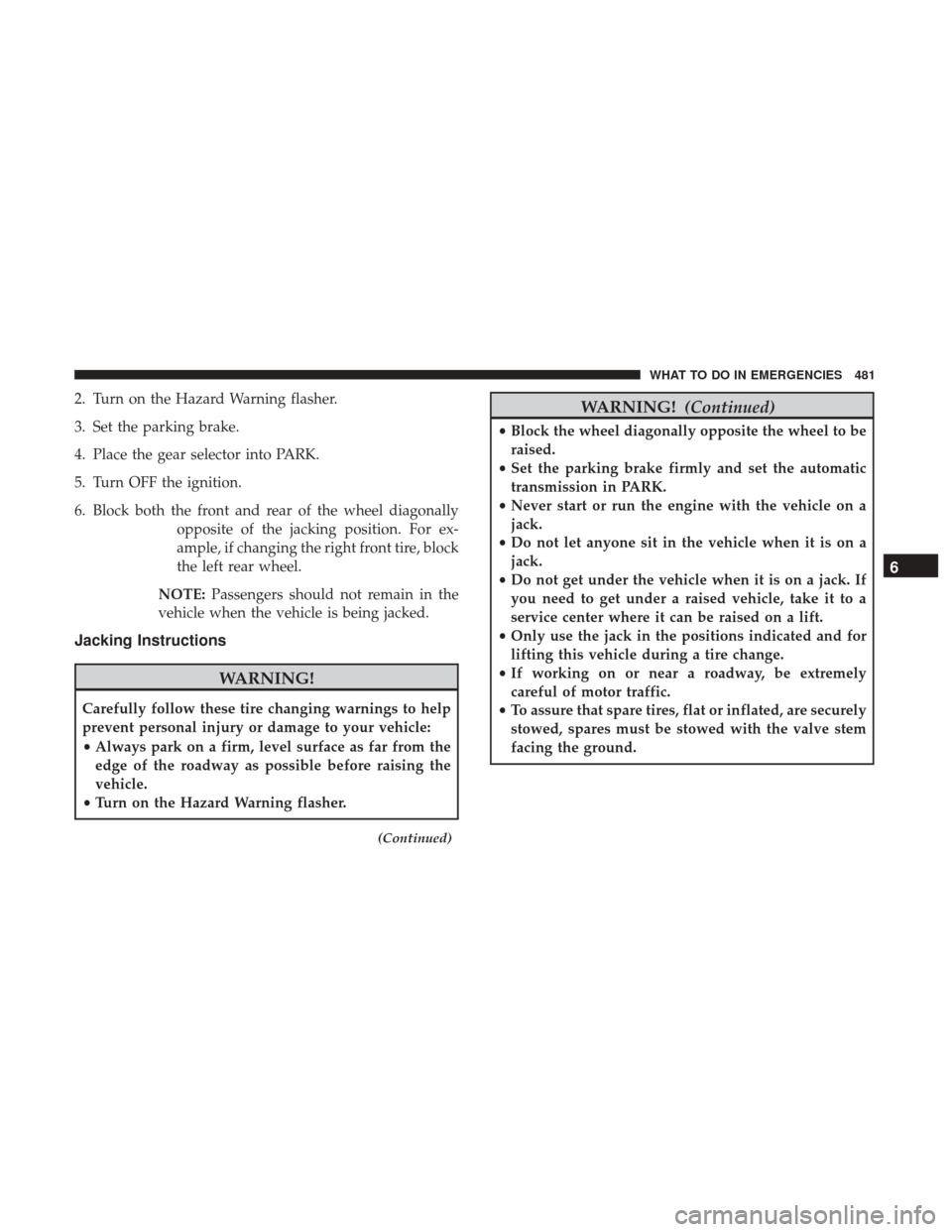

2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the gear selector into PARK.
5. Turn OFF the ignition.
6. Block both the front and rear of the wheel diagonallyopposite of the jacking position. For ex-
ample, if changing the right front tire, block
the left rear wheel.
NOTE: Passengers should not remain in the
vehicle when the vehicle is being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
• Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
• Turn on the Hazard Warning flasher.
(Continued)
WARNING! (Continued)
•Block the wheel diagonally opposite the wheel to be
raised.
• Set the parking brake firmly and set the automatic
transmission in PARK.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are securely
stowed, spares must be stowed with the valve stem
facing the ground.
6
WHAT TO DO IN EMERGENCIES 481

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Loosen (but do not remove) the wheel lug nuts by turning them to the left, one turn, while the wheel is still
on the ground.
2. Assemble the jack and jacking tools. 3. For the front tire, place the jack on the body flange just
behind the front tire. Do not raise the vehicle until you
are sure the jack is fully engaged.
Jack Warning LabelJack And Tool Assembly
482 WHAT TO DO IN EMERGENCIES

4. For a rear tire, place the jack in the slot on the reartie-down bracket, just forward of the rear tire. Do not
raise the vehicle until you are sure the jack is fully
engaged. 5. Raise the vehicle by turning the jack screw clockwise.
Raise the vehicle just enough to remove the flat tire.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.
6. Remove the lug nuts and wheel.
Front Jack LocationRear Jacking Location
6
WHAT TO DO IN EMERGENCIES 483

DipsticksOil (Engine) ........................... .508
Disabled Vehicle Towing .....................496
Disposal Antifreeze (Engine Coolant) .................523
Do Not Disturb ........................... .372
Door Ajar ............................... .244
Door Ajar Light ........................... .244
Door Locks ................................26
Child-Protection Door Lock — Rear Doors .......28
Door Locks .......................... .26, 28
KeyFob................................26
Remote ................................26
Remote Keyless Entry ......................26
Door Opener, Garage ....................... .196
Driver Information Display DID ................................. .262
Instrument Cluster Display ..................262
Driving ................................. .399
DVD Player (Video Entertainment System) .........316
Economy (Fuel) Mode ...................... .387
Electrical Outlet, Auxiliary (Power Outlet) .........206
Electric Rear Window Defrost ..................223
Electric Remote Mirrors ..................... .100Electronically Shifted Transfer Case
..............395
Electronic Brake Control System ................406
Anti-Lock Brake System ....................407
Traction Control System ....................411
Electronic Speed Control (Cruise Control) ......150, 153
Electronic Stability Control (ESC) ...............412
Electronic Throttle Control Warning Light .........243
Emergency, In Case Of Freeing Vehicle When Stuck .................491
Hazard Warning Flasher ...................474
Jacking ............................... .476
Jump Starting .......................... .488
Tow Hooks ............................ .492
Emission Control System Maintenance ............506
Engine Air Cleaner .............................511
Block Heater ........................... .385
Br

eak-In Recommendations ..................83
Compartment ....................... .503, 504
Compartment Identification ..............503, 504
Cooling .............................. .520
Exhaust Gas Caution ...................85, 448
Fails To Start ........................... .382
Flooded, Starting ........................ .382
Fuel Requirements ....................... .54510
INDEX 569

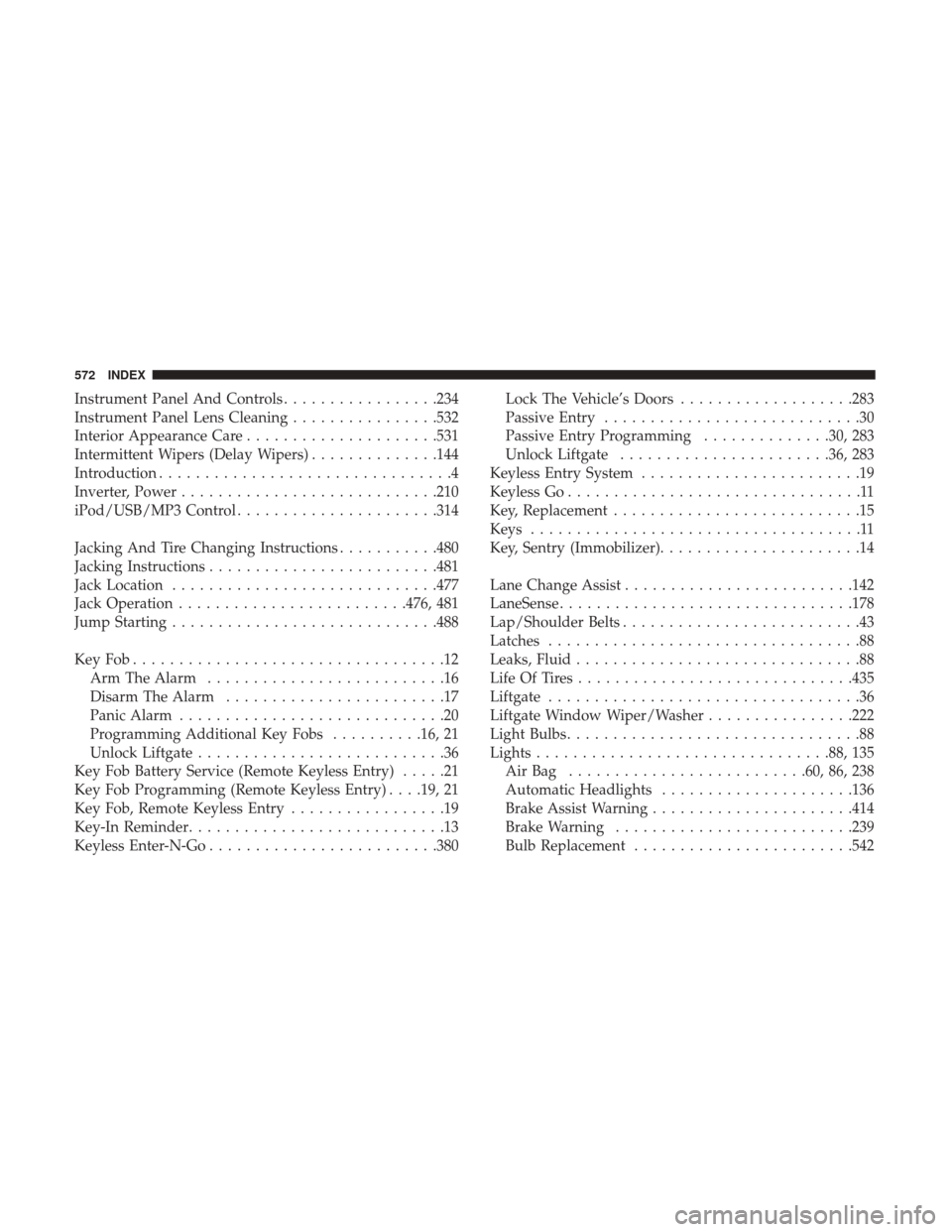

Instrument Panel And Controls.................234
Instrument Panel Lens Cleaning ................532
Interior Appearance Care .....................531
Intermittent Wipers (Delay Wipers) ..............144
Introduction ................................4
Inverter, Power ........................... .210
iPod/USB/MP3 Control ..................... .314
Jacking And Tire Changing Instructions ...........480
Jacking Instructions ........................ .481
Jack Location ............................ .477
Jack Operation ........................ .476, 481
Jump Starting ............................ .488
KeyFob..................................12 Arm The Alarm ..........................16
Disarm The Alarm ........................17
Panic Alarm .............................20
Programming Additional Key Fobs ..........16, 21
Unlock Liftgate ...........................36
Key Fob Battery Service (Remote Keyless Entry) .....21
Key Fob Programming (Remote Keyless Entry) . . . .19, 21
Key Fob, Remote Keyless Entry .................19
Key-In Reminder ............................13
Keyless Enter-N-Go ........................ .380Lock The Vehicle’s Doors
...................283
Passive Entry ............................30
Passive Entry Programming ..............30, 283
Unlock Liftgate ...................... .36, 283
Keyless Entry System ........................19
Keyless Go ................................11
Key, Replacement ...........................15
Keys ....................................11
Key, Sentry (Immobilizer) ......................14
Lane Change Assist ........................ .142
LaneSense ............................... .178
Lap/Shoulder Belts ..........................43
Latches ..................................88
Leaks, Fluid ...............................88
Life Of Tires ............................. .435
Liftgate ..................................36
Liftgate Window Wiper/Washer ................222
Light Bulbs ................................88
Lights ............................... .88,
135
AirBag ......................... .60, 86, 238
Automatic Headlights .....................136
Brake Assist Warning ..................... .414
Brake Warning ......................... .239
Bulb Replacement ....................... .542
572 INDEX

Pets.....................................83
Placard, Tire And Loading Information ...........424
Power Brakes ............................... .406
Distribution Center (Fuses) ..................534
Door Locks ..............................27
Inverter .............................. .210
Lift Gate ...............................38
Mirrors ............................... .100
Outlet (Auxiliary Electrical Outlet) ............206
Seats ..............................110,111
Steering ........................... .403, 549
Sunroof .............................. .203
Tilt/Telescoping Steering Column .............148
Windows ...............................34
Power Seats Forward ............................110,111
Rearward ...........................110,111
Recline ................................110
Pregnant Women And Seat Belts .................48
Preparation For Jacking ..................... .480
Pretensioners Seat Belts ...............................49
Programming Key Fobs (Remote Keyless Entry) ......19Quadra-Trac
............................. .395
Radial Ply Tires ........................... .429
Radiator Cap (Coolant Pressure Cap) .............523
Radio Frequency General Information .............14, 16, 23, 26, 33
Radio Operation .......................... .334
Radio Remote Controls ..................... .332
Radio (Sound Systems) ..................... .314
Rain Sensitive Wiper System ...................146
Rear Air Conditioning ...................... .343
Rear Axle (Differential) ..................... .526
Rear Camera ............................. .192
Rear Cross Path ........................... .107
Rear Cupholder ............................211
Rear ParkSense System ..................... .183
Rear Seat, Folding ......................... .123
Rear Window Features ...................... .222
Rear

Wiper/Washer ........................ .222
Reclining Front Seats ........................113
Recreational Towing ........................ .466
Shifting Into Transfer Case Neutral (N) .........468
Shifting Out Of Transfer Case Neutral (N) .......470
Reformulated Gasoline ...................... .445
Refrigerant .............................. .513
10
INDEX 575

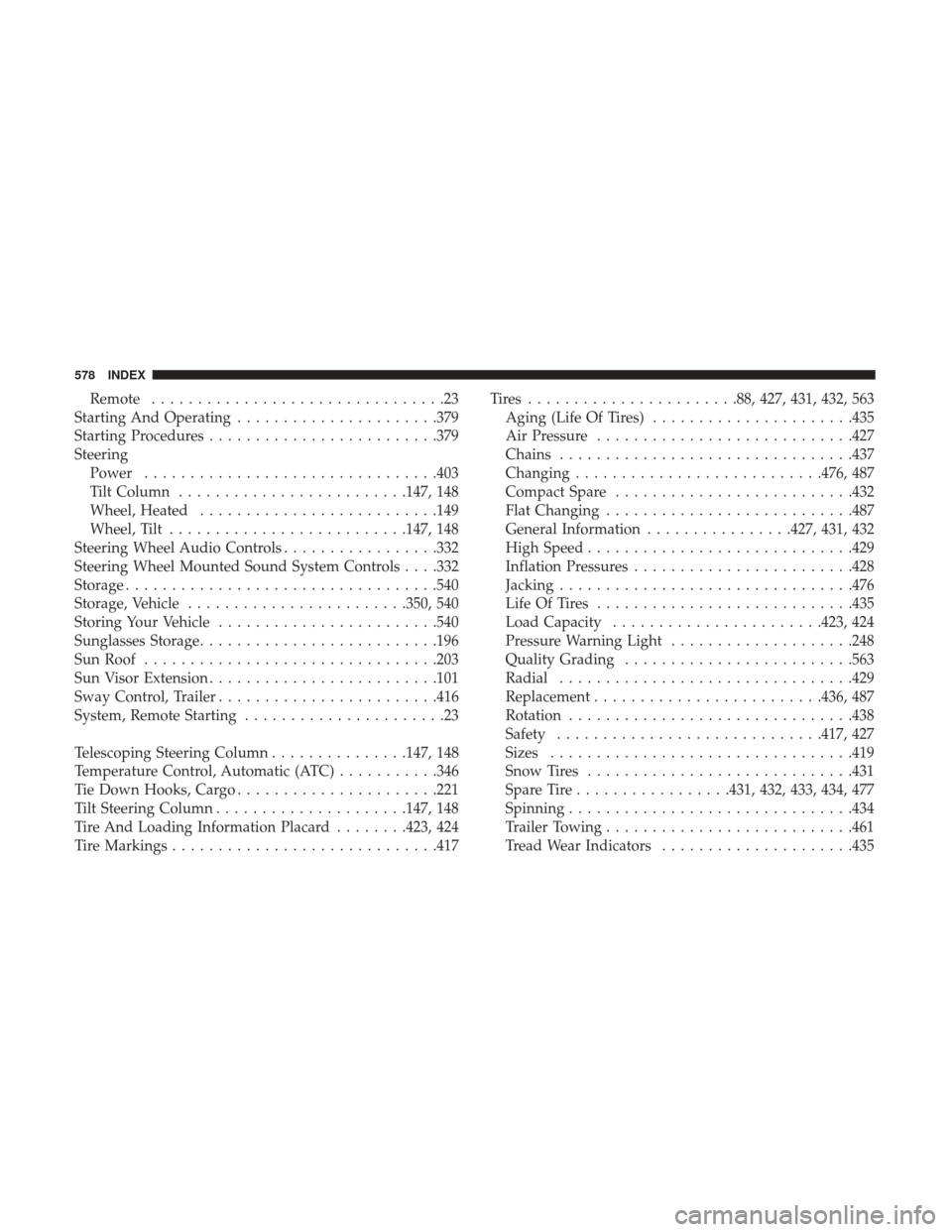

Remote................................23
Starting And Operating ..................... .379
Starting Procedures ........................ .379
Steering Power ............................... .403
Tilt Column ........................ .147, 148
Wheel, Heated ......................... .149
Wheel, Tilt ......................... .147, 148
Steering Wheel Audio Controls .................332
Steering Wheel Mounted Sound System Controls . . . .332
Storage ................................. .540
Storage, Vehicle ....................... .350, 540
Storing Your Vehicle ....................... .540
Sunglasses Storage ......................... .196
Sun Roof ............................... .203
Sun Visor Extension ........................ .101
Sway Control, Trailer ....................... .416
System, Remote Starting ......................23
Telescoping Steering Column ...............147, 148
Temperature Control, Automatic (ATC) ...........346
Tie Down Hooks, Cargo ..................... .221
Tilt Steering Column .....................147, 148
Tire And Loading Information Placard ........423, 424
Tire Markings ............................ .417Tires ......................
.88, 427, 431, 432, 563
Aging (Life Of Tires) ..................... .435
Air Pressure ........................... .427
Chains ............................... .437
Changing .......................... .476, 487
Compact Spare ......................... .432
Flat Changing .......................... .487
General Information ................427, 431, 432
High Speed ............................ .429
Inflation Pressures ....................... .428
Jacking ............................... .476
Life Of Tires ........................... .435
Load

Capacity ...................... .423, 424
Pressure Warning Light ....................248
Quality Grading ........................ .563
Radial ............................... .429
Replacement ........................ .436, 487
Rotation .............................. .438
Safety ............................ .417, 427
Sizes ................................ .419
Snow Tires ............................ .431
Spare Tire .................431, 432, 433, 434, 477
Spinning .............................. .434
Trailer Towing .......................... .461
Tread Wear Indicators .....................435
578 INDEX
