TPMS DODGE DURANGO 2018 User Guide

If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault no
longer exists, the Tire Pressure Monitoring System Warning
Light will no longer flash, theSERVICE TPM SYSTEM
message will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur by
any of the following:
• Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPM sensors.
• Installing some form of aftermarket window tinting that
affects radio wave signals.
• Lots of snow or ice around the wheels or wheel hous-
ings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPM sensors. NOTE:
There is no tire pressure monitoring sensor in the
spare tire. The TPMS will not be able to monitor the tire
pressure. If you install the spare tire in place of a road tire
that has a pressure below the low-pressure warning limit,
upon the next ignition switch cycle, the Tire Pressure
Monitoring System Warning Light will remain on, a chime
will sound, and the instrument cluster display will still
display a pressure value in the different color graphic
display and an “Inflate to XX” message will be displayed.
After driving the vehicle for up to 20 minutes above
15 mph (24 km/h), the Tire Pressure Monitoring System
Warning Light will flash on and off for 75 seconds and then
remain on solid. In addition, the instrument cluster display
will display a “SERVICE TPM SYSTEM message for five
seconds and then display dashes (- -) in place of the
pressure value. For each subsequent ignition switch cycle,
a chime will sound, the Tire Pressure Monitoring System
Warning Light will flash on and off for 75 seconds and then
remain on solid, and the instrument cluster display will
display a SERVICE TPM SYSTEM message for five sec-
onds and then display dashes (- -) in place of the pressure
value. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the spare tire, the
TPMS will update automatically.
5
SAFETY 197

In addition, the Tire Pressure Monitoring System Warning
Light will turn off and the graphic in the instrument cluster
display will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 20 minutes above
15 mph (24 km/h) in order for the TPMS to receive this
information.
TPMS Deactivation — If Equipped
The Tire Pressure Monitoring System (TPMS) can be deac-
tivated if replacing all four wheel and tire assemblies (road
tires) with wheel and tire assemblies that do not have
TPMS Sensors, such as when installing winter wheel and
tire assemblies on your vehicle.
To deactivate the TPMS, first, replace all four wheel and
tire assemblies (road tires) with tires not equipped with
Tire Pressure Monitoring (TPM) Sensors. Then, drive the
vehicle for 20 minutes above 15 mph (24 km/h). The TPMS
will chime, the TPMS Warning Light will flash on and off
for 75 seconds and then remain on. The instrument cluster
will display the “SERVICE TPM SYSTEM” message and
then display dashes (--) in place of the pressure values.Beginning with the next ignition cycle, the TPMS will no
longer chime or display the “SERVICE TPM SYSTEM”
message in the instrument cluster but dashes (--) will
remain in place of the pressure values.
To reactivate the TPMS, replace all four wheel and tire
assemblies (road tires) with tires equipped with TPM
sensors. Then, drive the vehicle for up to 20 minutes above
15 mph (24 km/h). The TPMS will chime, the TPMS
Warning Light will flash on and off for 75 seconds and then
turn off. The instrument cluster will display the “SERVICE
TPM SYSTEM” message and then display pressure values
in place of the dashes. On the next ignition cycle the
SERVICE TPM SYSTEM
message will no longer be dis-
played as long as no system fault exists.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
198 SAFETY

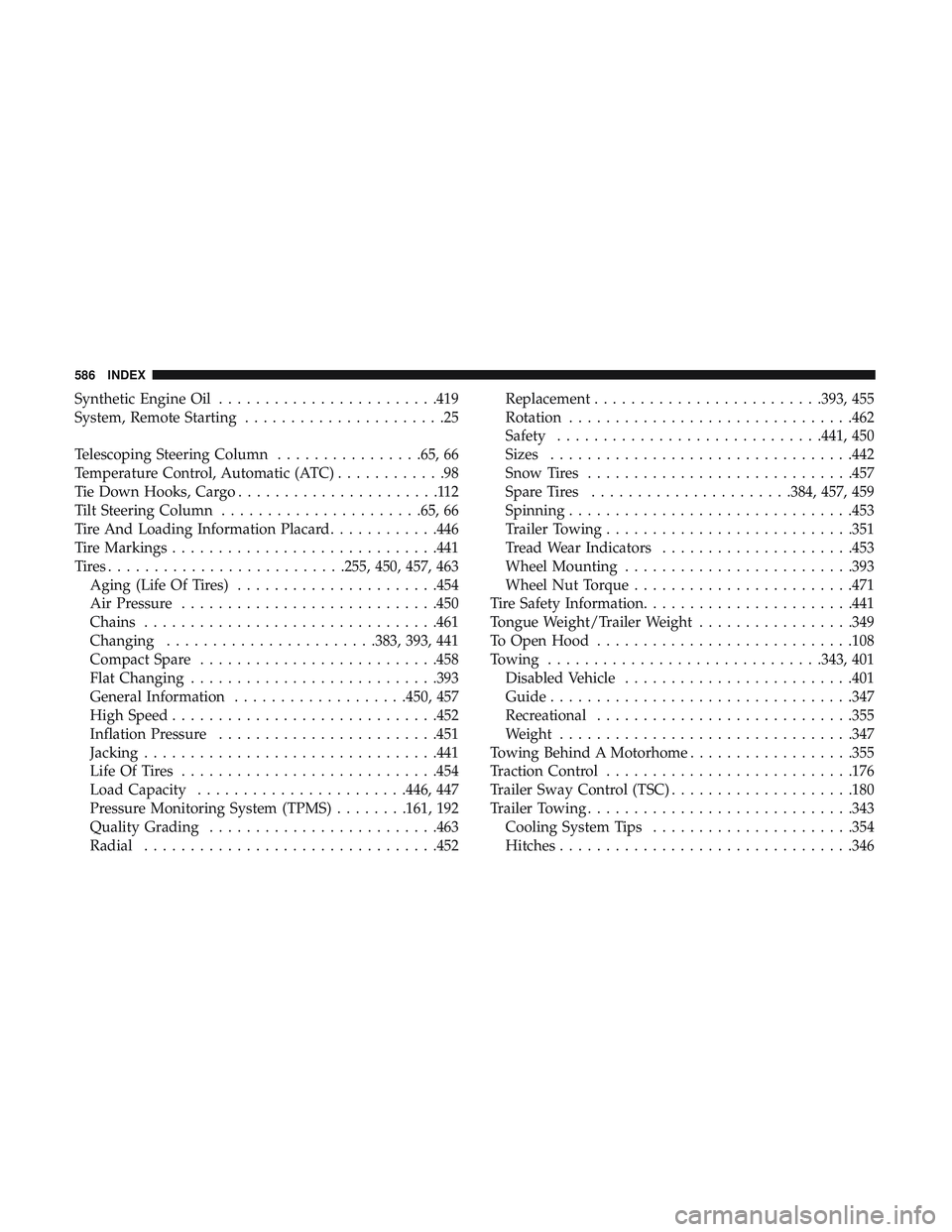

Synthetic Engine Oil........................419
System, Remote Starting ......................25
Telescoping Steering Column ................65, 66
Temperature Control, Automatic (ATC) ............98
Tie Down Hooks, Cargo ......................112
Tilt Steering Column ..................... .65, 66
Tire And Loading Information Placard ............446
Tire Markings ............................ .441
Tires......................... .255, 450, 457, 463
Aging (Life Of Tires) ..................... .454
Air Pressure ............................450
Chains ............................... .461
Changing .......................383, 393, 441
Compact Spare ..........................458
Flat Changing .......................... .393
General Information ...................450, 457
High Speed ............................ .452
Inflation Pressure ........................451
Jacking ............................... .441
Life Of Tires ............................454
Load Capacity .......................446, 447
Pressure Monitoring System (TPMS) ........161, 192
Quality Grading ........................ .463
Radial ............................... .452Replacement
........................ .393, 455
Rotation ...............................462
Safety ............................ .441, 450
Sizes .................................442
Snow Tires ............................ .457
Spare Tires ..................... .384, 457, 459
Spinning ...............................453
Trailer Towing .......................... .351
Tread Wear Indicators .....................453
Wheel Mounting ........................ .393
Wheel Nut Torque ........................471
Tire Safety Information .......................441
T ongue

Weight/Trailer Weight .................349
To Open Hood ............................108
Towing ............................. .343, 401
Disabled Vehicle ........................ .401
Guide .................................347
Recreational ............................355
Weight ............................... .347
Towing Behind A Motorhome ..................355
Traction Control .......................... .176
Trailer Sway Control (TSC) ....................180
Trailer Towing ............................ .343
Cooling System Tips ..................... .354
Hitches ............................... .346
586 INDEX
