DODGE DURANGO 2019 Owners Manual

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ..................263
▫ Automatic Transmission ..................263
▫ Keyless Enter-N-Go — Ignition .............264
▫ Normal Starting .......................264

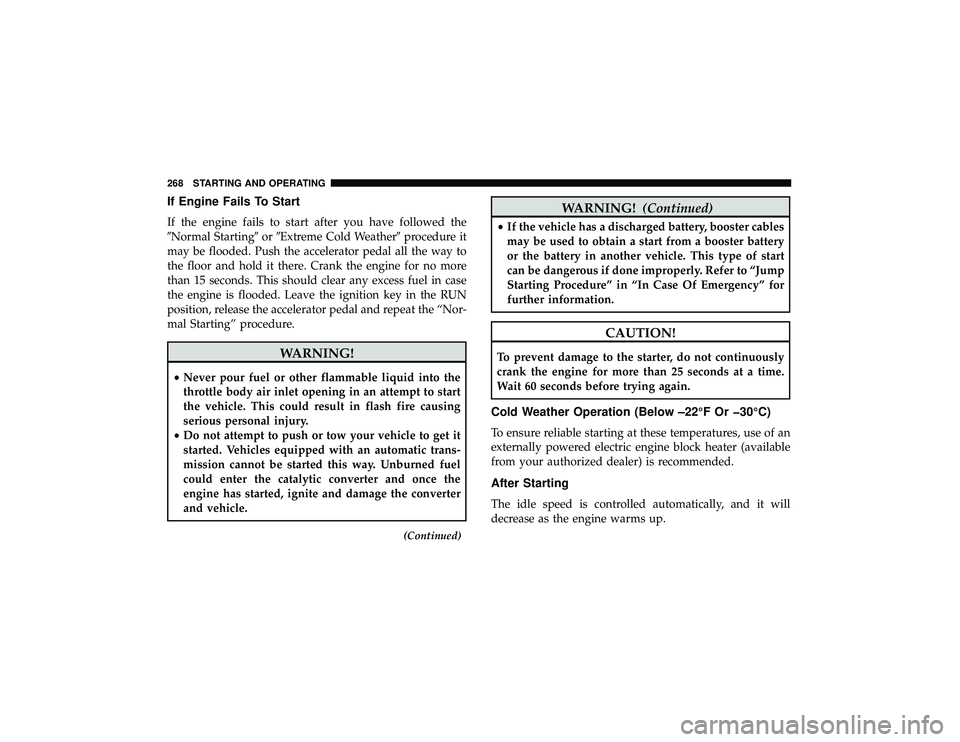

▫ If Engine Fails To Start ..................268
▫ Cold Weather Operation (Below –22°F Or
30°C) ............................. .268
▫ After Starting ......................... .268
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .269
 ENGINE BREAK-IN RECOMMENDATIONS . . . .269
 PARKING BRAKE .......................270
 AUTOMATIC TRANSMISSION ..............272
▫ Ignition Park Interlock .................. .273
▫ Brake/Transmission Shift Interlock System . . . .273 ▫
Fuel Economy (ECO) Mode ...............274
▫ Eight-Speed Automatic Transmission .........274
 SPORT MODE — IF EQUIPPED .............282
 ALL-WHEEL DRIVE OPERATION ...........282
▫ Single-Speed Operating Instructions/Precautions —
If Equipped .......................... .282
▫ Electronically Shifted Transfer Case
(Three-Position Switch) — If Equipped .......283
▫ Shifting Procedure ..................... .286
 FUEL SAVER TECHNOLOGY 5.7L ONLY — IF
EQUIPPED ............................ .287
 POWER STEERING ..................... .287
 STOP/START SYSTEM — IF EQUIPPED ........288
▫ Automatic Mode .......................288
6

▫Possible Reasons The Engine Does Not
Autostop ........................... .289
▫ To Start The Engine While In Autostop Mode . .290
▫ To Manually Turn Off The Stop/Start System . .290
▫ To Manually Turn On The Stop/Start System . . .291
▫ System Malfunction .....................291
 SPEED CONTROL — IF EQUIPPED ..........291
▫ To Activate .......................... .292
▫ To Set A Desired Speed ..................292
▫ To Vary The Speed Setting ................292
▫ To Accelerate For Passing .................293
▫ To Resume Speed ..................... .294
▫ To Deactivate ........................ .294
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED ........................... .294
▫ Adaptive Cruise Control (ACC) Operation .....296
▫ Activating Adaptive Cruise Control (ACC) .....297
▫ To Activate/Deactivate .................. .297▫
To Set A Desired ACC Speed ...............298
▫ To Cancel ........................... .299
▫ ToTurnOff.......................... .299
▫ To Resume .......................... .299
▫ To Vary The Speed Setting ................299
▫ Setting The Following Distance In ACC .......301
▫ Overtake Aid ......................... .304
▫ ACC Operation At Stop ..................304
▫ Adaptive Cruise Control (ACC) Menu ........305
▫ Display Warnings And Maintenance .........306
▫ Precautions While Driving With ACC .........308
▫ General Information .....................

311
▫ Normal (Fixed Speed) Cruise Control Mode . . . .311
 PARKSENSE REAR PARK ASSIST
— IF EQUIPPED ....................... .314
▫ ParkSense Sensors ..................... .315
▫ ParkSense Display ..................... .316
260 STARTING AND OPERATING

▫ParkSense Warning Display ................320
▫ Enabling And Disabling ParkSense ..........320
▫ Operation With A Trailer ..................320
▫ Service The ParkSense Rear Park Assist System. .321
▫ Cleaning The ParkSense System .............321
▫ ParkSense System Usage Precautions .........321
 PARKSENSE FRONT AND REAR PARK ASSIST — IF
EQUIPPED ............................ .323
▫ ParkSense Sensors ..................... .324
▫ ParkSense Display ..................... .325
▫ ParkSense Warning Display ................329
▫ Enabling And Disabling ParkSense ..........330
▫ Operation With A Trailer ..................330
▫ Service The ParkSense Park Assist System .....331
▫ Cleaning The ParkSense System .............331
▫ ParkSense System Usage Precautions .........332
LANESENSE — IF EQUIPPED ..............333
▫ LaneSense Operation ................... .333
▫ Turning LaneSense On Or Off ..............334
▫ LaneSense Warning Message ...............335
▫ Changing LaneSense Status ................338
 PARKVIEW REAR BACK UP CAMERA ........338
 REFUELING THE VEHICLE ................340
▫ Emergency Fuel Filler Door Release ..........342
 VEHICLE LOADING .....................343
▫ Gross Vehicle Weight Rating (GVWR) ........343
▫ Payload ............................. .343
▫ Gr oss

Axle Weight Rating (GAWR) ..........343
▫ Tire Size ............................ .343
▫ Rim Size ............................ .343
▫ Inflation Pressure .......................343
▫ Curb Weight ......................... .343
▫ Loading ............................ .344
6
STARTING AND OPERATING 261

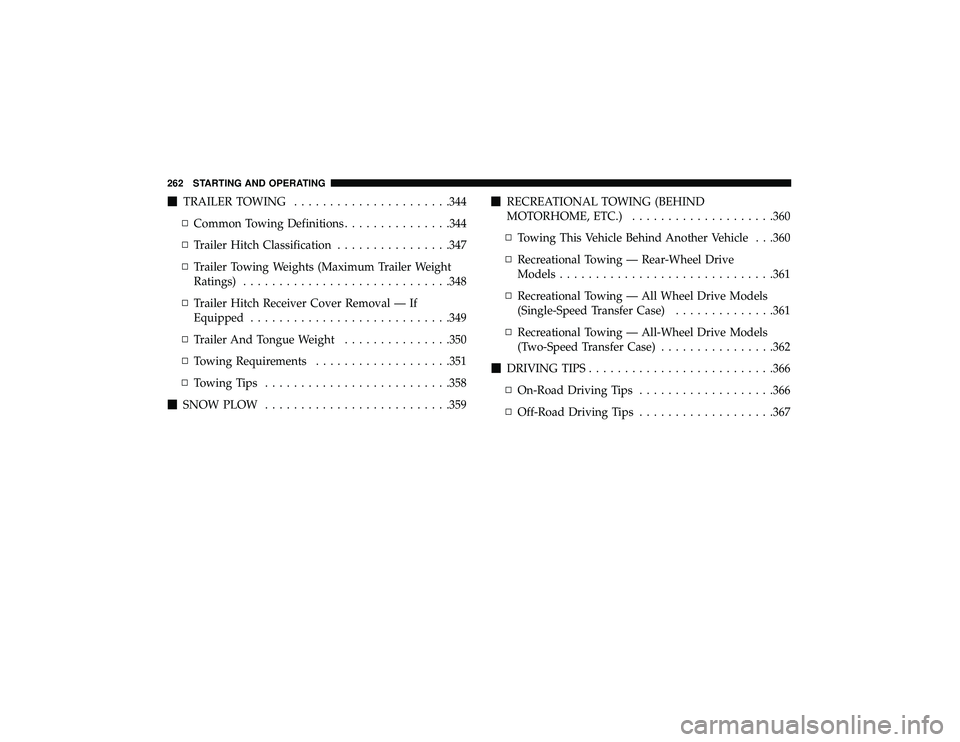

TRAILER TOWING ..................... .344
▫ Common Towing Definitions ...............344
▫ Trailer Hitch Classification ................347
▫ Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .348
▫ Trailer Hitch Receiver Cover Removal — If
Equipped ........................... .349
▫ Trailer And Tongue Weight ...............350
▫ Towing Requirements .................. .351
▫ Towing Tips ......................... .358
 SNOW PLOW ......................... .359
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ................... .360
▫ Towing This Vehicle Behind Another Vehicle . . .360
▫ Recreational Towing — Rear-Wheel Drive
Models ............................. .361
▫ Recreational Towing — All Wheel Drive Models
(Single-Speed Transfer Case) ..............361
▫ Recreational Towing — All-Wheel Drive Models
(Two-Speed Transfer Case) ................362
 DRIVING TIPS ......................... .366
▫ On-Road Driving Tips .................. .366
▫ Off-Road Driving Tips .................. .367
262 STARTING AND OPERATING

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Before exiting a vehicle, always come to a complete
stop, then shift the automatic transmission into
PARK and apply the parking brake.
• Always make sure the keyless ignition node is in the
OFF mode, key fob is removed from the vehicle and
vehicle is locked.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Automatic Transmission
The gear selector must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
CAUTION!
Damage to the transmission may occur if the following
precautions are not observed:
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above idle
speed.
(Continued)
6
STARTING AND OPERATING 263

CAUTION!(Continued)
•Shift into PARK only after the vehicle has come to a
complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at idle
speed.
• Before shifting into any gear, make sure your foot is
firmly on the brake pedal.
Keyless Enter-N-Go — Ignition
This feature allows the driver to operate the ignition switch
with the push of a button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the passenger
compartment.
Normal Starting
To Turn On The Engine Using The ENGINE START/
STOP Button
1. The transmission must be in PARK.
2. Press and hold the brake pedal while pushing the
ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Keyless Push Button Ignition
264 STARTING AND OPERATING

To Turn Off The Engine Using ENGINE START/STOP
Button
1. Place the gear selector in PARK, then push and releasethe ENGINE START/STOP button.
2. The ignition will return to the OFF mode.
3. If the gear selector is not in PARK, the ENGINE START/ STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 MPH
(8 km/h) before the engine will shut off. The ignition
will remain in the ACC mode until the gear selector is in
PARK and the button is pushed twice to the OFF mode.
4. If the gear selector is not in PARK and the ENGINE START/STOP button is pushed once with the vehicle
speed above 5 MPH (8 km/h), the instrument cluster
will display a “ Vehicle Not In Park” message and the
engine will remain running. Never leave a vehicle out of
the PARK position, or it could roll.
NOTE: If the gear selector is not in PARK, and the ENGINE
START/STOP button is pushed once with the vehicle
speed below 5 MPH (8 km/h), the engine will shut off and
the ignition will remain in the ACC position. If vehicle
speed drops below 1.2 MPH (1.9 km/h), the vehicle will
AutoPark. See AutoPark section for further details. ENGINE START/STOP Button Functions — With Driv-
er ’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has three modes: OFF, ACC, and RUN.
To change the ignition modes without starting the vehicle
and use the accessories, follow these directions:
1. Start with the ignition in the OFF mode.
2. Push the ENGINE START/STOP button once to place
the ignition to the ACC mode.
3. Push the ENGINE START/STOP button a second time to place the ignition to the RUN mode.
4. Push the ENGINE START/STOP button a third time to return the ignition to the OFF mode.
NOTE: Only press one pedal at a time while driving the
vehicle. Torque performance of the vehicle could be re-
duced if both pedals are pressed at the same time. If
pressure is detected on both pedals simultaneously, a
warning message will display in the instrument cluster. For
further information, refer to “Instrument Cluster Display”
in “Getting To Know Your Instrument Panel”.
6
STARTING AND OPERATING 265

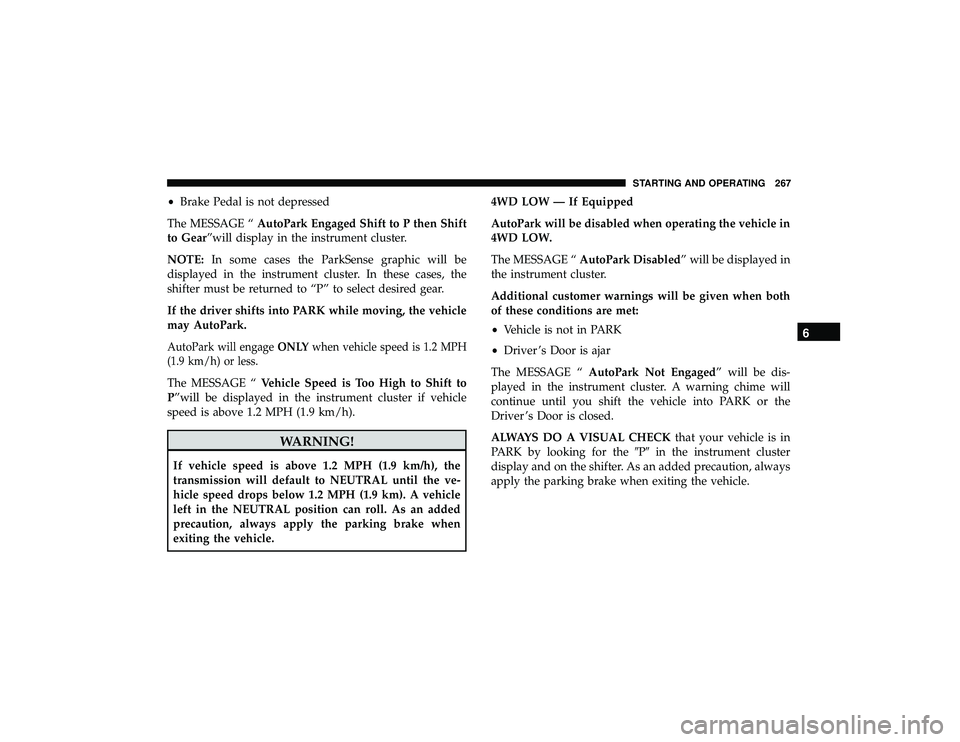

AutoPark
AutoPark is a supplemental feature to assist in placing the
vehicle in PARK should the situations on the following
pages occur. It is a back up system and should not be relied
upon as the primary method by which the driver shifts the
vehicle into PARK.
The conditions under which AutoPark will engage are
outlined on the following pages.
WARNING!
•Driver inattention could lead to failure to place the
vehicle in PARK. ALWAYS DO A VISUAL CHECK
that your vehicle is in PARK by verifying that a solid
(not blinking) “P” is indicated in the instrument
cluster display and on the gear selector. If the P
indicator is blinking, your vehicle is not in PARK. As
an added precaution, always apply the parking brake
when exiting the vehicle.
• AutoPark is a supplemental feature. It is not de-
signed to replace the need to shift your vehicle into
PARK. It is a back up system and should not be
relied upon as the primary method by which the
driver shifts the vehicle into PARK. If the vehicle is not in PARK and the driver turns off the
engine, the vehicle may AutoPark.
AutoPark will engage when all of these conditions are met:
•
Vehicle is equipped with an 8-speed transmission
• Vehicle is not in PARK
• Vehicle Speed is 1.2 MPH (1.9 km/h) or less
• Ignition switched from RUN to ACC
NOTE: For Keyless Go equipped vehicles, The engine will
turn off and the ignition switch will change to ACC mode.
After 30 minutes the ignition switches to OFF automati-
cally, unless the driver turns the ignition switch OFF.
If the vehicle is not in PARK and the driver exits the
vehicle with the engine running, the vehicle may Au-
toPark.
AutoPark will engage when all of these conditions are met:
• Vehicle is equipped with an 8-speed transmission
• Vehicle is not in PARK
• Vehicle Speed is 1.2 MPH (1.9 km/h) or less
• Driver ’s seat belt is unbuckled
• Driver ’s door is ajar
266 STARTING AND OPERATING

•Brake Pedal is not depressed
The MESSAGE “ AutoPark Engaged Shift to P then Shift
to Gear”will display in the instrument cluster.
NOTE: In some cases the ParkSense graphic will be
displayed in the instrument cluster. In these cases, the
shifter must be returned to “P” to select desired gear.
If the driver shifts into PARK while moving, the vehicle
may AutoPark.
AutoPark will engage ONLYwhen vehicle speed is 1.2 MPH
(1.9 km/h) or less.
The MESSAGE “ Vehicle Speed is Too High to Shift to
P”will be displayed in the instrument cluster if vehicle
speed is above 1.2 MPH (1.9 km/h).
WARNING!
If vehicle speed is above 1.2 MPH (1.9 km/h), the
transmission will default to NEUTRAL until the ve-
hicle speed drops below 1.2 MPH (1.9 km). A vehicle
left in the NEUTRAL position can roll. As an added
precaution, always apply the parking brake when
exiting the vehicle. 4WD LOW — If Equipped
AutoPark will be disabled when operating the vehicle in
4WD LOW.
The MESSAGE “
AutoPark Disabled” will be displayed in
the instrument cluster.
Additional customer warnings will be given when both
of these conditions are met:
• Vehicle is not in PARK
• Driver ’s Door is ajar
The MESSAGE “ AutoPark Not Engaged” will be dis-
played in the instrument cluster. A warning chime will
continue until you shift the vehicle into PARK or the
Driver ’s Door is closed.
ALWAYS DO A VISUAL CHECK that your vehicle is in
PARK by looking for the Pin the instrument cluster
display and on the shifter. As an added precaution, always
apply the parking brake when exiting the vehicle.
6
STARTING AND OPERATING 267

If Engine Fails To Start
If the engine fails to start after you have followed the
Normal StartingorExtreme Cold Weather procedure it
may be flooded. Push the accelerator pedal all the way to
the floor and hold it there. Crank the engine for no more
than 15 seconds. This should clear any excess fuel in case
the engine is flooded. Leave the ignition key in the RUN
position, release the accelerator pedal and repeat the “Nor-
mal Starting” procedure.
WARNING!
• Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
(Continued)
WARNING! (Continued)
•If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to “Jump
Starting Procedure” in “In Case Of Emergency” for
further information.
CAUTION!
To prevent damage to the starter, do not continuously
crank the engine for more than 25 seconds at a time.
Wait 60 seconds before trying again.
Cold Weather Operation (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
268 STARTING AND OPERATING
